Routing

Istio's advanced routing features allow fine-grained control over traffic based on various request attributes.

Table of Contents

1. Routing Overview
2. Match Conditions
3. URI-based Routing
4. Header-based Routing
5. Query Parameter-based Routing
6. HTTP Method-based Routing
7. Source-based Routing
8. Priority and Fallback
9. Practical Examples
10. Troubleshooting

Routing Overview

These are independent sidecar routing examples. Create the named Services and subsets, and apply only one overlapping VirtualService per host. Without gateways, routes apply to mesh sidecars; external-host ingress examples also need an existing Gateway binding and matching hostname. Headers, query parameters, and source workload labels are routing inputs, not proof of user identity. Enforce tenant/user permissions with authentication and AuthorizationPolicy.

VirtualService routing rules consist of Match conditions and Route destinations.

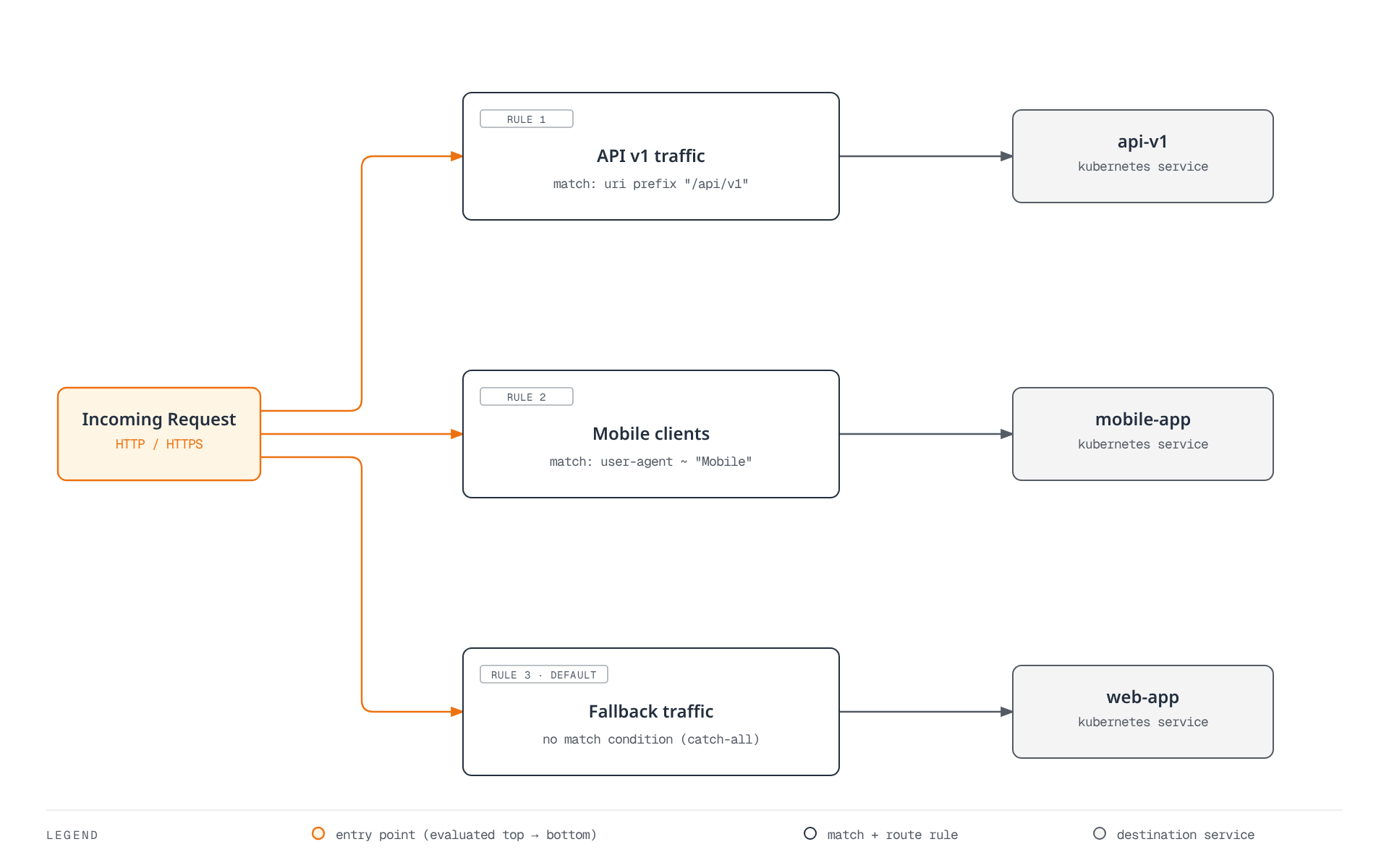

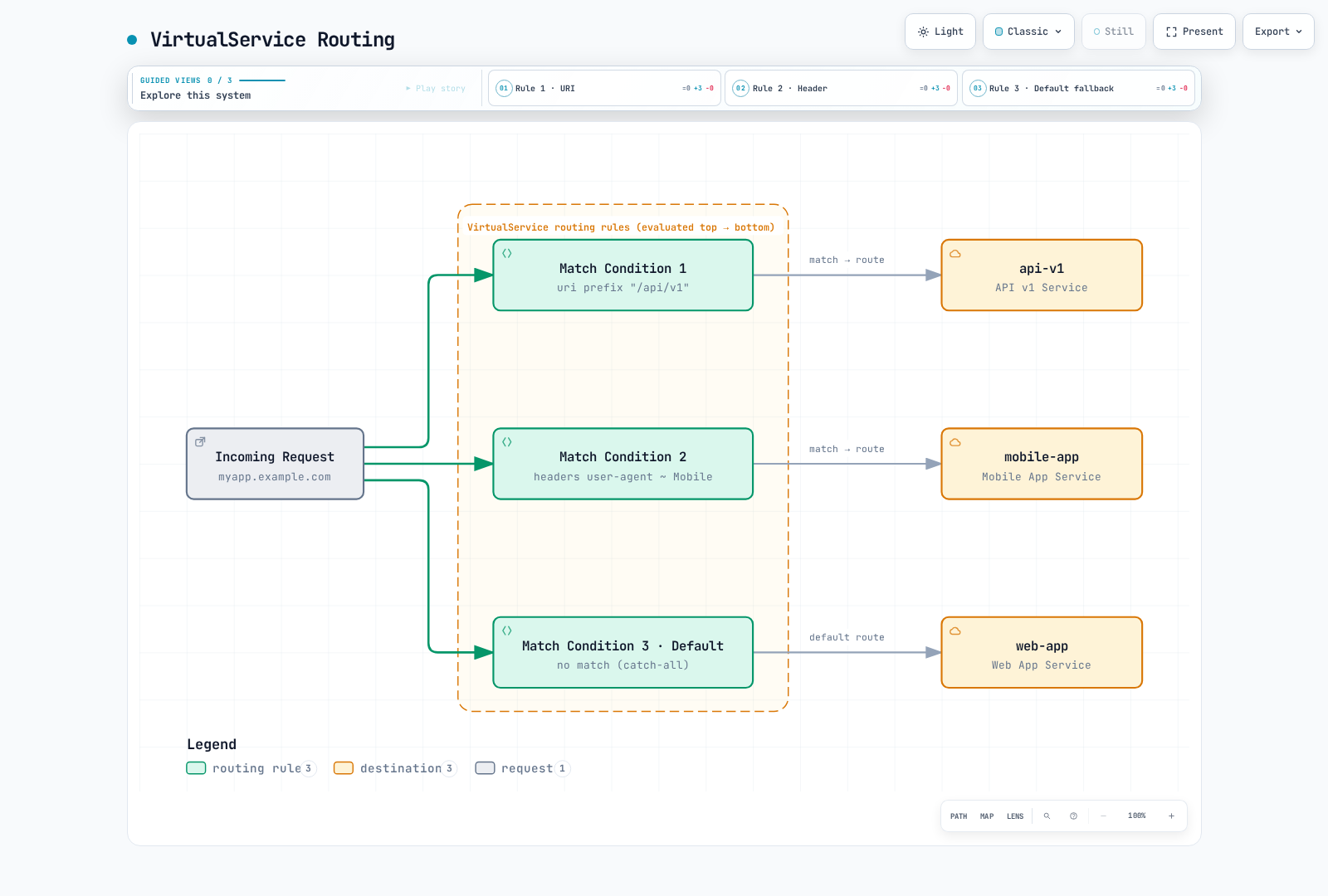

Diagram showing how an incoming request is evaluated against ordered match conditions in an Istio VirtualService and routed to the corresponding destination service, with a default fallback rule applied when no earlier condition matches.Open full screen ↗

Basic Structure

apiVersion: networking.istio.io/v1
kind: VirtualService
metadata:
  name: routing-example
spec:
  hosts:
  - myapp.example.com
  http:
  - match:
    - uri:
        prefix: "/api/v1"
    route:
    - destination:
        host: api-v1
  - match:
    - headers:
        user-agent:
          regex: ".*Mobile.*"
    route:
    - destination:
        host: mobile-app
  - route:  # Default route (no match)
    - destination:
        host: web-app

Match Conditions

Match Condition Types

Condition	Description	Match Type
uri	Request path	exact, prefix, regex
scheme	HTTP/HTTPS	exact, prefix, regex
method	HTTP method	exact, prefix, regex
authority	Host header	exact, prefix, regex
headers	HTTP headers	exact, prefix, regex
queryParams	Query parameters	exact, prefix, regex
sourceLabels	Source workload labels	Label selector
gateways	Gateway name	List

Match Types

# exact: Exact match
match:
- uri:
    exact: "/login"

# prefix: Prefix match
match:
- uri:
    prefix: "/api/"

# regex: Regular expression match
match:
- uri:
    regex: "^/api/v[0-9]+/.*"

Combining Multiple Conditions

# AND condition: All conditions must match
http:
- match:
  - uri:
      prefix: "/api"
    headers:
      x-api-version:
        exact: "v2"
    queryParams:
      debug:
        exact: "true"
  route:
  - destination:
      host: api-debug

# OR condition: Use multiple match blocks
http:
- match:
  - uri:
      prefix: "/api/v1"
  - uri:
      prefix: "/api/v2"
  route:
  - destination:
      host: api-service

URI-based Routing

Prefix Matching

apiVersion: networking.istio.io/v1
kind: VirtualService
metadata:
  name: uri-prefix-routing
spec:
  hosts:
  - myapp.example.com
  http:
  # API traffic
  - match:
    - uri:
        prefix: "/api/"
    route:
    - destination:
        host: api-service
        port:
          number: 8080

  # Admin traffic
  - match:
    - uri:
        prefix: "/admin/"
    route:
    - destination:
        host: admin-service
        port:
          number: 9000

  # Static files
  - match:
    - uri:
        prefix: "/static/"
    route:
    - destination:
        host: static-service
        port:
          number: 8000

  # Default traffic
  - route:
    - destination:
        host: frontend-service
        port:
          number: 3000

Exact Matching

apiVersion: networking.istio.io/v1
kind: VirtualService
metadata:
  name: uri-exact-routing
spec:
  hosts:
  - myapp.example.com
  http:
  # Login page
  - match:
    - uri:
        exact: "/login"
    route:
    - destination:
        host: auth-service

  # Logout
  - match:
    - uri:
        exact: "/logout"
    route:
    - destination:
        host: auth-service

  # Health check
  - match:
    - uri:
        exact: "/health"
    route:
    - destination:
        host: health-service

Regex Matching

apiVersion: networking.istio.io/v1
kind: VirtualService
metadata:
  name: uri-regex-routing
spec:
  hosts:
  - myapp.example.com
  http:
  # API version routing: /api/v1/, /api/v2/, etc.
  - match:
    - uri:
        regex: "^/api/v[0-9]+/.*"
    route:
    - destination:
        host: api-service

  # Numeric resource ID: /users/123
  - match:
    - uri:
        regex: "^/users/[0-9]+$"
    route:
    - destination:
        host: user-service

  # File extension: .jpg, .png, .gif
  - match:
    - uri:
        regex: ".*\\.(jpg|png|gif)$"
    route:
    - destination:
        host: image-service

Header-based Routing

User-Agent-based Routing

apiVersion: networking.istio.io/v1
kind: VirtualService
metadata:
  name: header-user-agent-routing
spec:
  hosts:
  - reviews
  http:
  # Tablet devices
  - match:
    - headers:
        user-agent:
          regex: ".*(iPad|Tablet).*"
    route:
    - destination:
        host: reviews
        subset: tablet

  # Mobile devices
  - match:
    - headers:
        user-agent:
          regex: ".*Mobile.*"
    route:
    - destination:
        host: reviews
        subset: mobile

  # Desktop (default)
  - route:
    - destination:
        host: reviews
        subset: desktop

Custom Header-based Routing

apiVersion: networking.istio.io/v1
kind: VirtualService
metadata:
  name: header-custom-routing
spec:
  hosts:
  - myapp
  http:
  # Developer/Tester routing
  - match:
    - headers:
        x-dev-user:
          exact: "true"
    route:
    - destination:
        host: myapp
        subset: dev

  # Beta testers
  - match:
    - headers:
        x-beta-tester:
          exact: "true"
    route:
    - destination:
        host: myapp
        subset: beta

  # VIP users
  - match:
    - headers:
        x-user-tier:
          exact: "vip"
    route:
    - destination:
        host: myapp
        subset: vip

  # Regular users
  - route:
    - destination:
        host: myapp
        subset: stable

API Version-based Routing

apiVersion: networking.istio.io/v1
kind: VirtualService
metadata:
  name: header-api-version-routing
spec:
  hosts:
  - api.example.com
  http:
  # API v3
  - match:
    - headers:
        x-api-version:
          exact: "v3"
    route:
    - destination:
        host: api-service
        subset: v3

  # API v2
  - match:
    - headers:
        x-api-version:
          exact: "v2"
    route:
    - destination:
        host: api-service
        subset: v2

  # API v1 (default)
  - route:
    - destination:
        host: api-service
        subset: v1

Query Parameter-based Routing

Basic Query Parameter Matching

apiVersion: networking.istio.io/v1
kind: VirtualService
metadata:
  name: query-param-routing
spec:
  hosts:
  - search.example.com
  http:
  # Debug mode: ?debug=true
  - match:
    - queryParams:
        debug:
          exact: "true"
    route:
    - destination:
        host: search-service
        subset: debug

  # Premium search: ?premium=1
  - match:
    - queryParams:
        premium:
          exact: "1"
    route:
    - destination:
        host: search-service
        subset: premium

  # A/B testing: ?variant=b
  - match:
    - queryParams:
        variant:
          exact: "b"
    route:
    - destination:
        host: search-service
        subset: variant-b

  # Default search
  - route:
    - destination:
        host: search-service
        subset: standard

Combining Multiple Query Parameters

apiVersion: networking.istio.io/v1
kind: VirtualService
metadata:
  name: query-param-combined-routing
spec:
  hosts:
  - api.example.com
  http:
  # Debug mode + verbose logging
  - match:
    - queryParams:
        debug:
          exact: "true"
        verbose:
          exact: "true"
    route:
    - destination:
        host: api-service
        subset: debug-verbose

  # Debug mode only
  - match:
    - queryParams:
        debug:
          exact: "true"
    route:
    - destination:
        host: api-service
        subset: debug

  # Normal mode
  - route:
    - destination:
        host: api-service
        subset: production

HTTP Method-based Routing

apiVersion: networking.istio.io/v1
kind: VirtualService
metadata:
  name: method-based-routing
spec:
  hosts:
  - api.example.com
  http:
  # POST requests → Write-only service
  - match:
    - method:
        exact: "POST"
      uri:
        prefix: "/api/"
    route:
    - destination:
        host: api-write-service

  # PUT/PATCH requests → Update service
  - match:
    - method:
        regex: "PUT|PATCH"
      uri:
        prefix: "/api/"
    route:
    - destination:
        host: api-update-service

  # DELETE requests → Delete service
  - match:
    - method:
        exact: "DELETE"
      uri:
        prefix: "/api/"
    route:
    - destination:
        host: api-delete-service

  # GET requests → Read-only service
  - match:
    - method:
        exact: "GET"
      uri:
        prefix: "/api/"
    route:
    - destination:
        host: api-read-service

Source-based Routing

sourceLabels and sourceNamespace select which source sidecars receive configuration; they are not per-request authenticated matches at an ingress gateway. An explicit top-level gateway list must include mesh for these selectors to apply. The database example assumes an HTTP-facing service, not an opaque SQL protocol.

Namespace-based Routing

apiVersion: networking.istio.io/v1
kind: VirtualService
metadata:
  name: source-namespace-routing
  namespace: production
spec:
  hosts:
  - database.production.svc.cluster.local
  http:
  # Requests from production namespace
  - match:
    - sourceNamespace: production
    route:
    - destination:
        host: database
        subset: production

  # Requests from staging namespace
  - match:
    - sourceNamespace: staging
    route:
    - destination:
        host: database
        subset: staging

  # Illustrative HTTP rejection; enforce identity policy at the destination
  - directResponse:
      status: 403

Source Workload Label-based Routing

apiVersion: networking.istio.io/v1
kind: VirtualService
metadata:
  name: source-sa-routing
spec:
  hosts:
  - payment-service
  http:
  # Select configuration for matching source workload labels
  - match:
    - sourceLabels:
        app: frontend
        version: v2
    route:
    - destination:
        host: payment-service
        subset: v2

  # Legacy service
  - match:
    - sourceLabels:
        app: frontend
        version: v1
    route:
    - destination:
        host: payment-service
        subset: v1

Priority and Fallback

Match Rule Priority

Istio evaluates VirtualService HTTP routing rules from top to bottom.

apiVersion: networking.istio.io/v1
kind: VirtualService
metadata:
  name: priority-example
spec:
  hosts:
  - myapp.example.com
  http:
  # Priority 1: Most specific condition
  - match:
    - uri:
        exact: "/api/v2/users/admin"
      headers:
        x-admin:
          exact: "true"
    route:
    - destination:
        host: admin-api-v2

  # Priority 2: Medium specificity
  - match:
    - uri:
        prefix: "/api/v2/"
    route:
    - destination:
        host: api-v2

  # Priority 3: Less specific
  - match:
    - uri:
        prefix: "/api/"
    route:
    - destination:
        host: api-v1

  # Priority 4 (last): Default fallback
  - route:
    - destination:
        host: frontend

Fallback Strategy

Fallback here means the final unmatched-request route. Once a route matches, an upstream failure does not restart rule evaluation at the next route. Configure retries/outlier detection or a rollout controller separately for failure recovery.

apiVersion: networking.istio.io/v1
kind: VirtualService
metadata:
  name: fallback-strategy
spec:
  hosts:
  - myapp
  http:
  # Requests matching specific conditions
  - match:
    - headers:
        x-canary:
          exact: "true"
    route:
    - destination:
        host: myapp
        subset: canary
    # No fallback on canary failure - return error

  # Default route for requests that did not match the canary condition
  - route:
    - destination:
        host: myapp
        subset: stable
      weight: 100

Practical Examples

Example 1: Multi-tenant Routing

apiVersion: networking.istio.io/v1
kind: VirtualService
metadata:
  name: multi-tenant-routing
spec:
  hosts:
  - api.example.com
  - tenant-b.api.example.com
  http:
  # Tenant A (identified by header)
  - match:
    - headers:
        x-tenant-id:
          exact: "tenant-a"
    route:
    - destination:
        host: api-service
        subset: tenant-a

  # Tenant B (identified by subdomain)
  - match:
    - authority:
        exact: "tenant-b.api.example.com"
    route:
    - destination:
        host: api-service
        subset: tenant-b

  # Tenant C (identified by path)
  - match:
    - uri:
        prefix: "/tenant-c/"
    rewrite:
      uri: "/"
    route:
    - destination:
        host: api-service
        subset: tenant-c

Example 2: Feature Flag-based Routing

apiVersion: networking.istio.io/v1
kind: VirtualService
metadata:
  name: feature-flag-routing
spec:
  hosts:
  - myapp
  http:
  # Users with new feature enabled
  - match:
    - headers:
        x-feature-new-ui:
          exact: "enabled"
    route:
    - destination:
        host: myapp
        subset: new-ui

  # Beta feature testers
  - match:
    - headers:
        x-feature-beta:
          exact: "enabled"
    route:
    - destination:
        host: myapp
        subset: beta

  # Workloads labeled role=employee with the feature header
  - match:
    - headers:
        x-feature-experimental:
          exact: "enabled"
      sourceLabels:
        role: employee
    route:
    - destination:
        host: myapp
        subset: experimental

  # Default (stable version)
  - route:
    - destination:
        host: myapp
        subset: stable

Example 3: Geographic Routing

apiVersion: networking.istio.io/v1
kind: VirtualService
metadata:
  name: geo-routing
spec:
  hosts:
  - content.example.com
  http:
  # Korean users
  - match:
    - headers:
        x-country-code:
          exact: "KR"
    route:
    - destination:
        host: content-service
        subset: korea

  # Japanese users
  - match:
    - headers:
        x-country-code:
          exact: "JP"
    route:
    - destination:
        host: content-service
        subset: japan

  # US users
  - match:
    - headers:
        x-country-code:
          exact: "US"
    route:
    - destination:
        host: content-service
        subset: us

  # European users
  - match:
    - headers:
        x-country-code:
          regex: "DE|FR|GB|IT|ES"
    route:
    - destination:
        host: content-service
        subset: europe

  # Other regions (global)
  - route:
    - destination:
        host: content-service
        subset: global

Example 4: API Gateway Pattern

Bind api-gateway to the real gateway and apply JWT authentication plus authorization to protected paths before exposure. Matching the text Bearer ... does not validate a token. A protected path must not fall through to a public/general route when its credential is missing. Geo/tenant headers must come from a trusted, authenticated source if they influence access decisions.

apiVersion: networking.istio.io/v1
kind: VirtualService
metadata:
  name: api-gateway-routing
spec:
  hosts:
  - api.example.com
  gateways:
  - api-gateway
  http:
  # Route protected paths; JWT/authorization must be enforced separately
  - match:
    - uri:
        prefix: "/api/v1/protected/"
    route:
    - destination:
        host: protected-api-service

  # Public APIs
  - match:
    - uri:
        prefix: "/api/v1/public/"
    route:
    - destination:
        host: public-api-service

  # GraphQL endpoint
  - match:
    - uri:
        exact: "/graphql"
      method:
        exact: "POST"
    route:
    - destination:
        host: graphql-service

  # REST API
  - match:
    - uri:
        prefix: "/api/v1/"
    route:
    - destination:
        host: rest-api-service

  # Health check
  - match:
    - uri:
        exact: "/health"
    route:
    - destination:
        host: health-service

  # 404 response for unmatched paths
  - directResponse:
      status: 404

Troubleshooting

Routing Not Working

# 1. Check VirtualService status
kubectl get virtualservice -A
kubectl describe virtualservice <name> -n <namespace>

# 2. Check routing rules
istioctl proxy-config routes <pod-name> -n <namespace>

# 3. Check routing to specific service
istioctl proxy-config routes <pod-name> -n <namespace> --name <route-name> -o json

# 4. Validate configuration
istioctl analyze -n <namespace>

Debugging Match Conditions

# Increase Envoy log level
istioctl proxy-config log <pod-name> -n <namespace> --level debug

# Trace requests
kubectl logs -n <namespace> <pod-name> -c istio-proxy -f

# Debug Pilot
kubectl logs -n istio-system -l app=istiod --tail=100

Common Issues

1. Match Order Issues

# ❌ Wrong order - default route first ignores other rules
http:
- route:  # All traffic goes here
  - destination:
      host: myapp
- match:  # Never executed
  - uri:
      prefix: "/api"
  route:
  - destination:
      host: api-service

# ✅ Correct order
http:
- match:  # Specific rules first
  - uri:
      prefix: "/api"
  route:
  - destination:
      host: api-service
- route:  # Default route last
  - destination:
      host: myapp

2. Regex Matching Scope

RE2 matches the complete string. /api/v[1-3] is valid syntax and matches /api/v1, but not /api/v1/users; / does not need escaping. For both the version root and descendant paths:

match:
- uri:
    regex: "^/api/v[1-3](/.*)?$"

3. Header Names

HTTP header names are case-insensitive on the wire, but Istio match-map keys must be lowercase. Header values remain case-sensitive unless the expression says otherwise.

match:
- headers:
    x-custom-header:
      exact: "value"

Best Practices

1. Place Specific Rules First

# ✅ Good example
http:
- match:
  - uri:
      exact: "/api/v2/admin"  # Most specific
  route:
  - destination:
      host: admin-v2
- match:
  - uri:
      prefix: "/api/v2/"  # Medium
  route:
  - destination:
      host: api-v2
- match:
  - uri:
      prefix: "/api/"  # General
  route:
  - destination:
      host: api-v1
- route:  # Default
  - destination:
      host: frontend

2. Minimize Regular Expressions

# ❌ Avoid - complex regex degrades performance
match:
- uri:
    regex: "^/(api|admin|public)/v[0-9]+/(users|products|orders)/[a-zA-Z0-9_-]+$"

# ✅ Recommended - use prefix or exact
match:
- uri:
    prefix: "/api/v1/"

3. Clear Naming

# ✅ Use clear names
apiVersion: networking.istio.io/v1
kind: VirtualService
metadata:
  name: product-api-routing  # Clear name
  labels:
    app: product-service
    purpose: routing
spec:
  hosts:
  - product-api.example.com
  http:
  - route:
    - destination:
        host: product-api-service

4. Documentation

apiVersion: networking.istio.io/v1
kind: VirtualService
metadata:
  name: myapp-routing
  annotations:
    description: "Routes traffic based on API version and user type"
    owner: "platform-team"
spec:
  hosts:
  - myapp.example.com
  http:
  # Route VIP users to dedicated instance
  - match:
    - headers:
        x-user-tier:
          exact: "vip"
    route:
    - destination:
        host: myapp
        subset: vip

5. Testing Strategy

Set GATEWAY_URL to the installed ingress address/port and adapt Host and headers to the single example currently deployed. The mesh-only examples must first be bound to that gateway for these external curl tests. Restore any temporary proxy debug log level after investigation.

# Routing rule test script
#!/bin/bash

# API v1 test
curl -H "Host: api.example.com" http://$GATEWAY_URL/api/v1/users

# API v2 test
curl -H "Host: api.example.com" http://$GATEWAY_URL/api/v2/users

# Mobile user test
curl -H "Host: myapp.example.com" -H "User-Agent: Mobile" "http://$GATEWAY_URL/"

# Header-based test
curl -H "Host: myapp.example.com" -H "x-canary: true" "http://$GATEWAY_URL/"

References

• Istio Traffic Management
• VirtualService Reference
• HTTP Route Matching
• Traffic Routing
