Logging

Last Updated: September 13, 2026

Logging connects application behavior, infrastructure events and audit evidence. Design the event schema, collection ownership, delivery failure behavior, access, retention and queries together. A collector or backend choice alone does not guarantee complete records, tenant isolation or regulatory compliance.

Logging fundamentals

Structured records still require parsing

JSON makes fields explicit and easier to validate/search, but it still needs decoding, timestamp/type mapping and correct handling of container-runtime framing. JSON can be larger than plain text and does not automatically remove sensitive data. Produce one event per line unless a tested multiline format requires otherwise.

This synthetic example retains its original 2025 timestamp as a format illustration, not a claim about a current incident:

{
  "timestamp": "2025-02-15T10:23:45.123Z",
  "level": "ERROR",
  "message": "Database connection timed out",
  "service": "example-api",
  "operation": "database.connect",
  "timeout_ms": 30000,
  "trace_id": "4bf92f3577b34da6a3ce929d0e0e4736",
  "span_id": "00f067aa0ba902b7"
}

The expanded JSON is shown for readability. A line-oriented producer can encode it as follows, including messages that contain newline characters:

import json


def encode_log(record):
    # JSON escapes embedded newlines; append exactly one record delimiter.
    return json.dumps(record, ensure_ascii=False, separators=(",", ":")) + "\n"

These are application field conventions, not the OTLP wire schema. Configure the collector/backend mapping to OpenTelemetry's Timestamp, SeverityText/SeverityNumber, Body, Resource, Attributes and trace context where relevant.

Trace IDs are 16-byte values (32 hexadecimal characters in this representation); span IDs are 8 bytes (16 hexadecimal characters). All-zero IDs are invalid. Attach the actual active context, not a fresh unrelated ID per log. Startup/system records without a span can omit trace context; the fields are not mandatory for every JSON log. Correct IDs alone do not create spans or guarantee cross-service correlation.

Collect the business/context fields you actually need. Do not recommend raw session tokens, passwords, customer data, IPs or request bodies as universal default fields. Identity-bearing audit data may have a legitimate purpose, but needs a defined access/retention/redaction policy. Prefer trusted collector metadata for routing rather than letting application JSON claim an arbitrary tenant/namespace.

Severity is not a universal 0–5 scale

Frameworks have different names and numeric levels. Map their meaning explicitly. For the OpenTelemetry log model, the ranges are:

Severity	SeverityNumber
TRACE	1–4
DEBUG	5–8
INFO	9–12
WARN	13–16
ERROR	17–20
FATAL	21–24

Zero represents unspecified severity in that model. ERROR does not universally mean recoverable, and a label alone does not decide retry/recovery policy. INFO is often a starting point for production operations; audit/security events and temporarily enabled debugging need their own requirements. Raising everything to WARN merely to reduce volume can remove needed evidence.

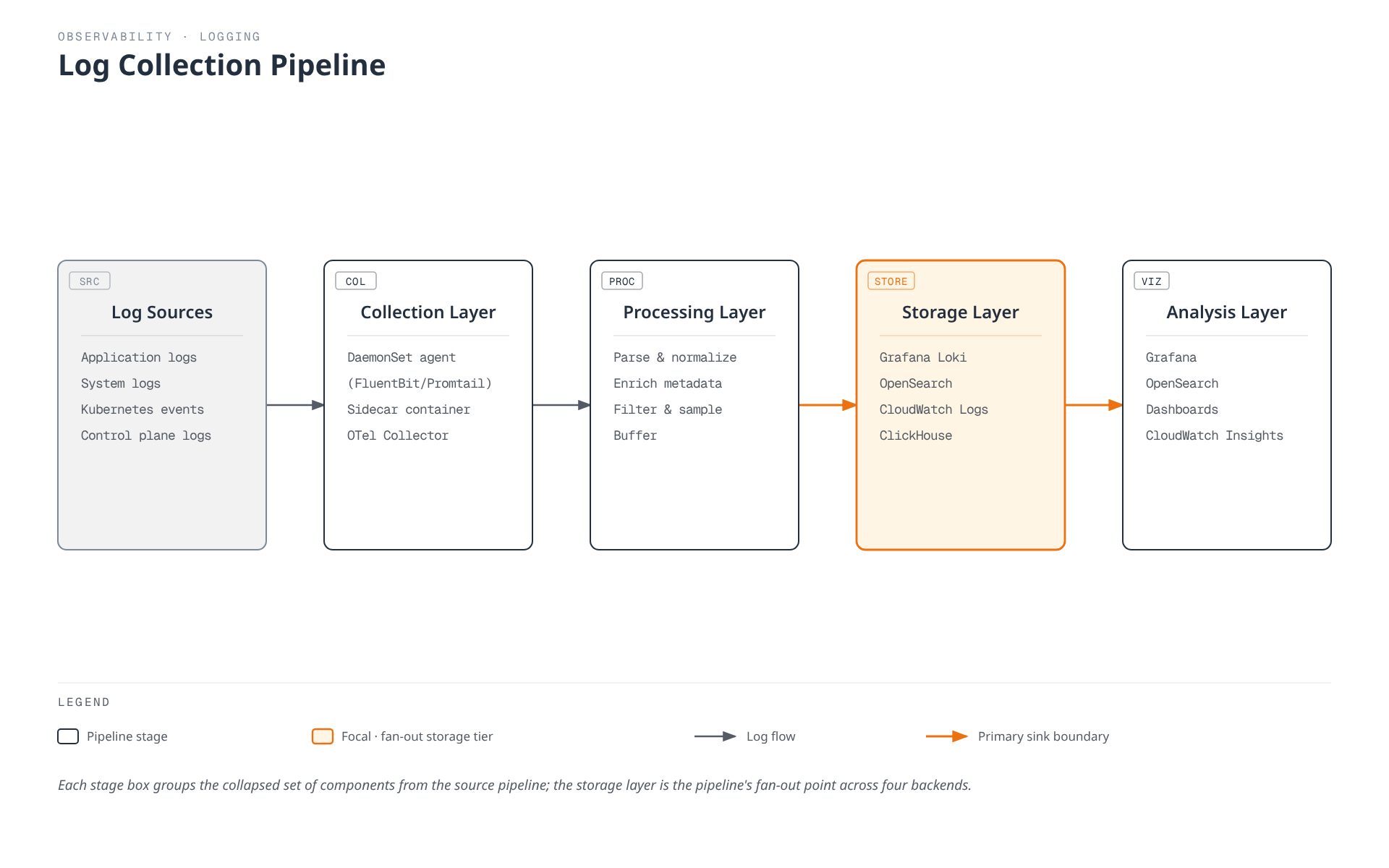

Collection and processing

The layers below are responsibilities, not necessarily separate processes. Destinations are selected deliberately; this is not a requirement to copy every record to every backend. Managed EKS control-plane records enter through CloudWatch, not worker-node log files.

Pattern	Appropriate use and limits
stdout/stderr + node collector	Common Linux worker-node path; runtime files and collector permissions still matter
File + sidecar	Legacy/file-only applications or application-specific processing; shared volume, startup/shutdown and overhead need care
Application/SDK push	Can carry structured events directly; buffering, authentication and failure behavior affect the application
Managed platform router	For example EKS Fargate's built-in log router; uses its supported configuration model

A DaemonSet schedules on eligible nodes according to selectors, affinity, tolerations, OS and rollout behavior. It does not prove every node has a healthy collector or every container is included. Multiple collectors/rolling overlap can duplicate collection. A sidecar is not automatically a strong multi-tenant security boundary.

Default Linux log paths and lifecycle

The common default layout is:

Runtime log files:
  /var/log/pods/<namespace>_<pod>_<uid>/<container>/0.log

Compatibility symlinks pointing to those files:
  /var/log/containers/<pod>_<namespace>_<container>-<container-id>.log

Kubelet directs the runtime's CRI log path and manages rotation. podLogsDir can change the default path, and OS/runtime-specific layouts differ. Inspect the actual deployment instead of adding Docker-only mounts to every containerd workload. kubectl logs exposes the current log file; --previous can access a previous container instance when retained. It is not a historical log archive.

Rotation bounds local files; it does not implement central retention or backup. Node loss, eviction or deletion can remove records before collection. A sidecar's emptyDir survives a container restart within the same pod, but not pod deletion. Collector offset databases, queues and persistent storage must be designed alongside output acknowledgment/retries. Buffering is finite; retries can duplicate records. Measure loss/duplicates, backlog, storage exhaustion and recovery under failure.

Choose a primary route per record. A sidecar that both forwards records and writes them to stdout can duplicate the node collector path. Avoid collecting collector output recursively or forwarding into the same subscribed source log group.

Fluent Bit processing fragment

The following is classic Fluent Bit configuration, not YAML. It illustrates filters only: supply and validate the actual input, CRI/multiline parser, tag format, RBAC/cache access, storage and output separately.

# Fluent Bit classic-format FILTER fragment, not YAML or a complete pipeline.
# Requires matching tail input tags and CRI/Docker parsing.
[FILTER]
    Name               kubernetes
    Match              kube.*
    Kube_Tag_Prefix     kube.var.log.containers.
    Merge_Log          On
    Merge_Log_Key      app
    Keep_Log           On
    K8S-Logging.Parser  Off
    Labels             Off
    Annotations        Off

[FILTER]
    Name               modify
    Match              kube.*
    Set                cluster_name example-cluster
    Set                environment demo

Merge_Log_Key app keeps parsed application fields separate from collector metadata. Set replaces the chosen trusted cluster/environment values; Add would leave an already-present value unchanged. Workload-selected parsers/annotations are not implicitly trusted in this fragment. Match Kube_Tag_Prefix to the real input tags.

With Keep_Log On, redaction must account for both the original log and parsed copy. Remove the raw copy only under a tested policy. Do not drop any line containing HealthCheck: a failing health check may be the evidence you need. Filter only well-defined routine events after checking the application format and failure cases.

This overview does not present an incomplete latest-image DaemonSet as a complete installation. A real collector requires pinned images, an actual configuration, service account/RBAC, correct mounts, permissions and resources. Follow the collector chapter for deployment details and validate its chosen platform/backend configuration.

EKS logging paths

Control-plane logs

EKS can send api, audit, authenticator, controllerManager and scheduler records directly to CloudWatch Logs in the account. They serve different purposes: API diagnostics, audit events, IAM authentication diagnostics, controller and scheduler diagnostics. Select the types your operating/security requirements need.

Save this request as control-plane-logging.json:

{
  "clusterLogging": [
    {
      "types": [
        "api",
        "audit",
        "authenticator",
        "controllerManager",
        "scheduler"
      ],
      "enabled": true
    }
  ]
}

export AWS_REGION=ap-northeast-2
export CLUSTER_NAME=my-cluster

# Inspect the existing configuration before choosing a change.
aws eks describe-cluster --name "$CLUSTER_NAME" --region "$AWS_REGION" \
  --query 'cluster.logging'

# This changes the cluster logging configuration and can incur log charges.
aws eks update-cluster-config --name "$CLUSTER_NAME" --region "$AWS_REGION" \
  --logging file://control-plane-logging.json

# Use the actual update ID from the response, then inspect status/errors.
: "${UPDATE_ID:?Set the returned update ID}"
aws eks describe-update --name "$CLUSTER_NAME" --region "$AWS_REGION" \
  --update-id "$UPDATE_ID"

Logging updates are asynchronous. EKS documents up to five available IP addresses per subnet for the update. Verify the update status, emitted streams and log-group retention/permissions. Delivery is best effort, usually within minutes; enabling a type does not backfill every prior event.

Audit events follow the audit policy and its levels/stages/exclusions. They do not prove that every request/body was recorded, and enabling audit alone does not establish compliance. The node DaemonSet does not read a managed control-plane host. Forwarding CloudWatch records elsewhere is a separate subscription/export path with its encoding, IAM, delivery and duplicate-handling requirements.

Fargate and Container Insights

EKS Fargate provides a managed Fluent Bit-based router configured by aws-logging in the aws-observability namespace, with a documented 5,300-character limit and supported-section/plugin restrictions. You do not install the ordinary host DaemonSet there. Configure its destination permissions and test new workload logs. Auto Mode/mixed/Windows environments also need their supported collection paths.

The namespace requires the aws-observability: enabled label. Grant destination permissions to the Fargate pod execution role as documented. ConfigMap changes apply to new pods, not existing pods; plan a controlled rollout and verify delivery.

CloudWatch Agent's logs.metrics_collected.kubernetes emits Container Insights performance data; that alone is not application stdout/stderr log collection. Fluent Bit or a configured OTel log path handles application logs separately. A ConfigMap has no effect unless the actual workload/Operator consumes it. See the reviewed CloudWatch guide for those model and configuration boundaries.

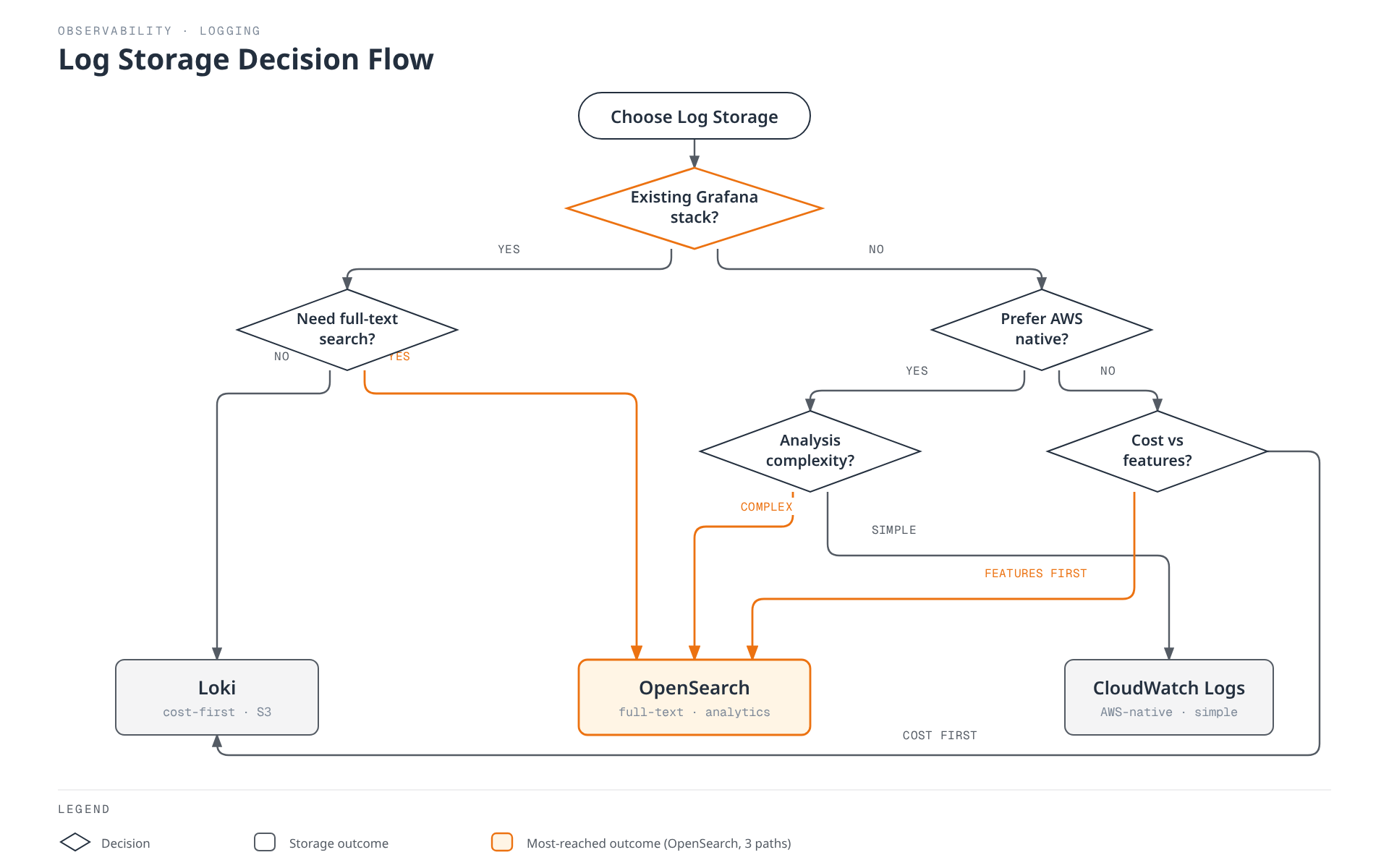

Storage, retention and cost decisions

Backend	Design questions
Loki	LogQL, label-indexed streams/chunks and supported metadata/filter paths; choose labels, tenancy/authentication, storage and query capacity
OpenSearch	Search/aggregation APIs and mappings/index lifecycle; distinguish self-managed, managed domains, UltraWarm and Serverless
CloudWatch Logs	Managed log groups, IAM, retention and Logs Insights QL/SQL/PPL; features vary by log class and Region
ClickHouse	Column-oriented SQL analytics, schema/order/partition/TTL choices and the selected self-managed or cloud storage model

OpenSearch is not universally “S3 snapshots only”: UltraWarm uses S3 and caching, and Serverless separates storage and compute. CloudWatch is not a user-configured S3 log backend, but supports separate export/delivery/integration paths. A product's tenant identifier or a sidecar does not replace authenticated routing and backend access controls.

Full-text filtering, indexing and query latency are different questions. Test representative volumes, query predicates, concurrency, cold data and recovery. Avoid unconditional “excellent/limited” rankings, “schemaless means no schema” claims or compression ratios without a measured dataset/configuration.

Retention requires a policy for the actual records

Do not map financial to seven years, healthcare to six years or general logs to one year as universal legal rules. Determine the applicable record category, jurisdiction, contractual requirements, legal holds and approved owner policy. Hot/warm/cold tiers are operational choices, not evidence that these obligations were met. Include replicas, object versions, backups and exports in deletion/access plans, and test restoration separately.

Compare like-for-like costs

The old 2025 table mixed per-GB storage and ingestion prices and called self-managed queries free. The later 100-GB estimates lacked a reproducible Region, hours, retention, capacity and workload basis. These were illustrative estimates, not production measurements; changing the date or only one price would not repair them.

Compare ingestion, retained/compressed bytes and index overhead, replicas, compute, query scans/capacity, storage requests, network transfer, backups and operating work. An object-store price is only one term. Even without a per-query service charge, queries consume provisioned CPU/memory/I/O. Loki plus S3 is not a guaranteed cost winner, nor is a named backend automatically suitable for compliance.

1. Define required queries, freshness, retention, access and recovery objectives.
2. Shortlist deployment models that meet those requirements.
3. Replay representative data/queries and failure/recovery cases.
4. Compare complete costs and operating ownership.
5. Record remaining assumptions and verify them before production use.

Next steps and validation scope

Promtail reached end of life on 2026-03-02. Use Alloy or another supported client for new work and plan migration for existing Promtail deployments. The cited notice explicitly treats lambda-promtail separately; do not broaden the retirement claim.

• Loki
• OpenSearch
• CloudWatch Logs
• ClickHouse
• Collectors: Fluent Bit, Alloy and OpenTelemetry

This audit checked source facts, example serialization/IDs and request/configuration structure. No EKS logging change, collector deployment, tenant/storage provisioning, legal determination, production cost measurement or delivery/recovery test was run.

References

• Kubernetes logging architecture
• Kubelet legacy log symlinks
• DaemonSet behavior
• Kubernetes audit policy
• OpenTelemetry logs data model
• W3C Trace Context
• EKS control-plane logging
• EKS Fargate log router
• Fluent Bit Kubernetes filter source documentation
• Fluent Bit modify filter
• Loki architecture
• Promtail end of life
• OpenSearch UltraWarm
• OpenSearch Serverless
• CloudWatch Logs query languages
• CloudWatch log classes
• ClickHouse overview
