Part 3: MSA Deployment and Canary

Difficulty: Advanced Estimated Time: 60 minutes Last Updated: February 23, 2026

Learning Objectives

Deploy MSA applications using ArgoCD multi-cluster management
Configure Argo Rollouts for canary deployments with AnalysisTemplate
Implement OpenTelemetry auto-instrumentation for all services

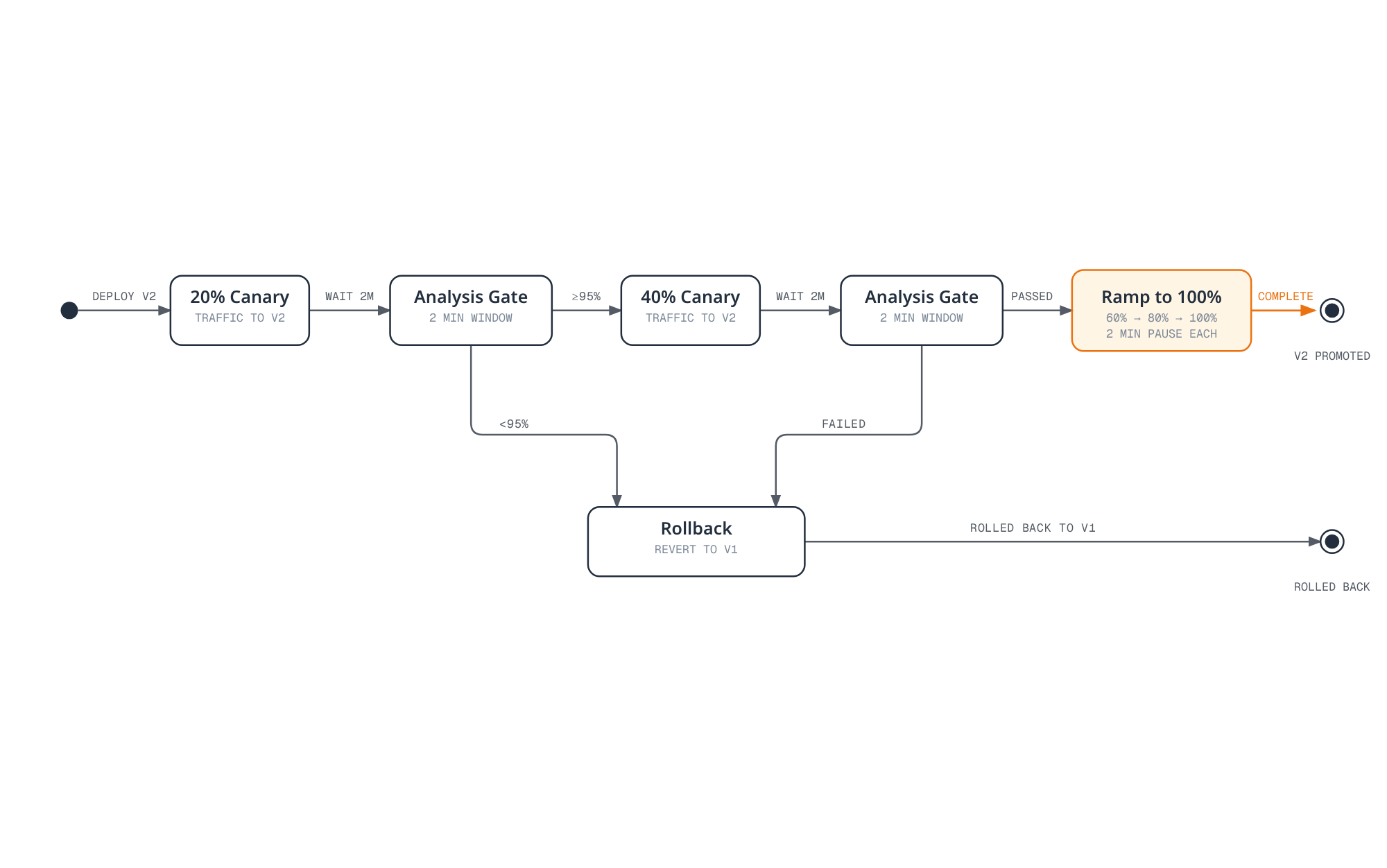

Execute canary releases with observability-driven promotion/rollback

Prerequisites

[ ] Completed Part 1: Infrastructure Setup
[ ] Completed Part 2: Observability Stack
[ ] ArgoCD and Argo Rollouts running
[ ] Observability stack collecting data

Architecture Overview

MSA Service Map

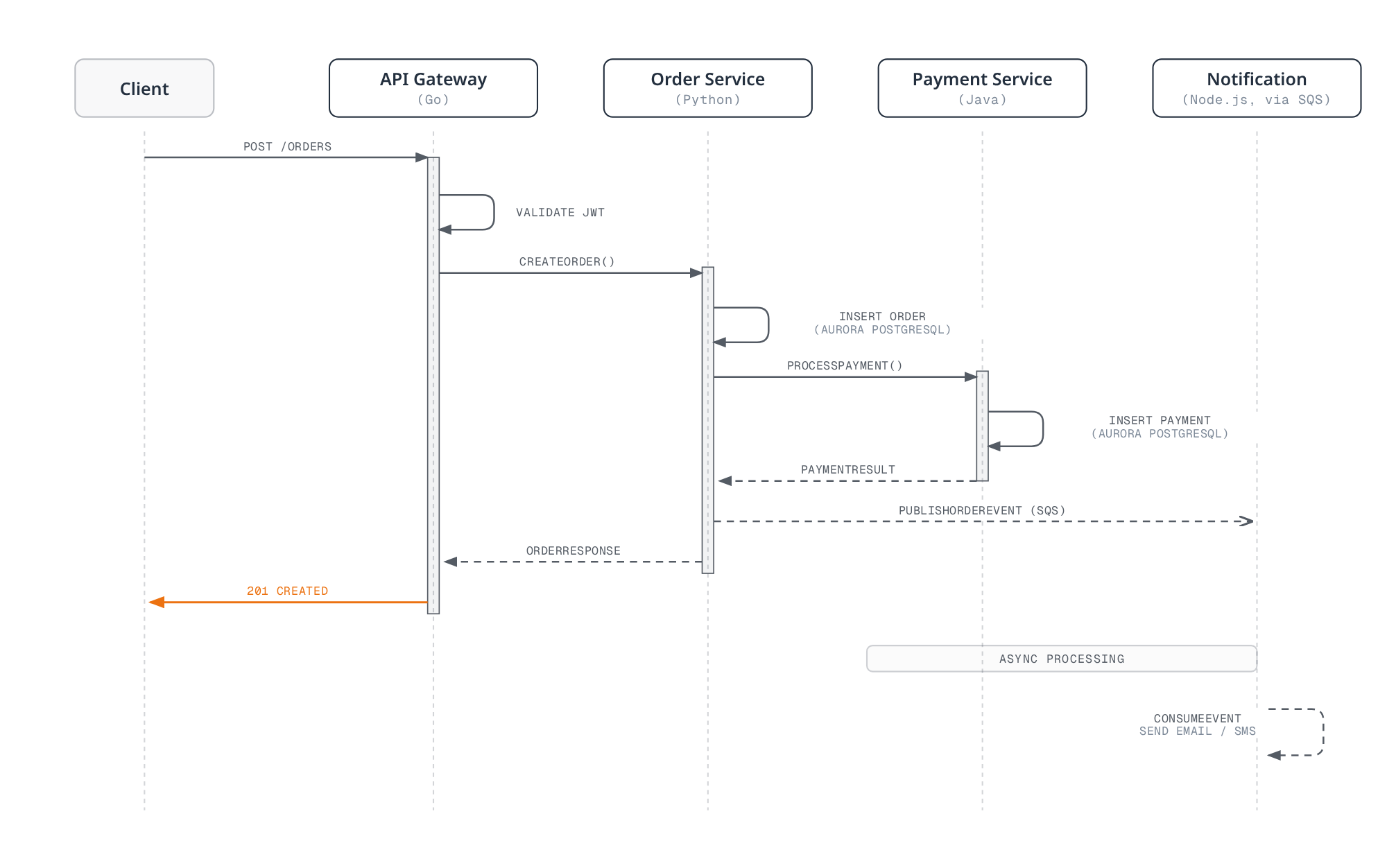

Service Call Flow

Sequence diagram of an order placement request flowing synchronously from the client through the API Gateway, Order Service, and Payment Service (each writing to Aurora PostgreSQL), with the Order Service then publishing an event that a Notification service consumes asynchronously via SQS to send email or SMS.

Exercise 1: MSA Application Overview

Application Structure

Service	Language	Framework	Port	Description
API Gateway	Go	Gin	8080	Request routing, authentication
Order Service	Python	FastAPI	8000	Order management
Payment Service	Java	Spring Boot	8080	Payment processing
Notification Service	Node.js	Express	3000	Email/SMS notifications
Analytics Batch	Python	-	-	Daily analytics (MWAA triggered)

Repository Structure

obs-lab-msa/
├── api-gateway/
│   ├── main.go
│   ├── Dockerfile
│   └── k8s/
│       ├── deployment.yaml
│       ├── service.yaml
│       └── rollout.yaml
├── order-service/
│   ├── main.py
│   ├── requirements.txt
│   ├── Dockerfile
│   └── k8s/
├── payment-service/
│   ├── src/main/java/...
│   ├── pom.xml
│   ├── Dockerfile
│   └── k8s/
├── notification-service/
│   ├── index.js
│   ├── package.json
│   ├── Dockerfile
│   └── k8s/
├── analytics-batch/
│   ├── main.py
│   ├── Dockerfile
│   └── k8s/
└── argocd/
    ├── app-of-apps.yaml
    └── applicationset.yaml

Sample Code Snippets

API Gateway (Go with OTel)

package main

import (
    "github.com/gin-gonic/gin"
    "go.opentelemetry.io/contrib/instrumentation/github.com/gin-gonic/gin/otelgin"
    "go.opentelemetry.io/otel"
    "go.opentelemetry.io/otel/exporters/otlp/otlptrace/otlptracehttp"
    "go.opentelemetry.io/otel/sdk/trace"
)

func main() {
    // Initialize OTel
    exporter, _ := otlptracehttp.New(ctx,
        otlptracehttp.WithEndpoint("otel-collector:4318"),
        otlptracehttp.WithInsecure(),
    )
    tp := trace.NewTracerProvider(trace.WithBatcher(exporter))
    otel.SetTracerProvider(tp)

    r := gin.New()
    r.Use(otelgin.Middleware("api-gateway"))

    r.POST("/orders", createOrderHandler)
    r.Run(":8080")
}

Order Service (Python with OTel)

python

from fastapi import FastAPI
from opentelemetry import trace
from opentelemetry.instrumentation.fastapi import FastAPIInstrumentor
from opentelemetry.instrumentation.sqlalchemy import SQLAlchemyInstrumentor
from opentelemetry.exporter.otlp.proto.http.trace_exporter import OTLPSpanExporter

app = FastAPI()

# Auto-instrumentation
FastAPIInstrumentor.instrument_app(app)
SQLAlchemyInstrumentor().instrument()

tracer = trace.get_tracer(__name__)

@app.post("/orders")
async def create_order(order: OrderRequest):
    with tracer.start_as_current_span("create_order") as span:
        span.set_attribute("order.amount", order.amount)
        # Business logic...
        return {"order_id": order_id}

Exercise 2: Karpenter NodePool Configuration

Steps

Step 2.1: Switch to Service Cluster

bash

kubectl config use-context $(kubectl config get-contexts -o name | grep obs-service)

Step 2.2: Create dedicated NodePool for MSA workloads

bash

cat <<'EOF' | kubectl apply -f -
apiVersion: karpenter.sh/v1
kind: NodePool
metadata:
  name: msa-workloads
spec:
  template:
    metadata:
      labels:
        workload-type: msa
    spec:
      requirements:
        - key: kubernetes.io/arch
          operator: In
          values: ["amd64"]
        - key: karpenter.sh/capacity-type
          operator: In
          values: ["spot", "on-demand"]
        - key: node.kubernetes.io/instance-type
          operator: In
          values:
            - m5.large
            - m5.xlarge
            - m5.2xlarge
            - c5.large
            - c5.xlarge
            - c5.2xlarge
        - key: topology.kubernetes.io/zone
          operator: In
          values:
            - us-west-2a
            - us-west-2b
            - us-west-2c
      nodeClassRef:
        name: msa-nodeclass
      taints:
        - key: workload-type
          value: msa
          effect: NoSchedule
  limits:
    cpu: 200
    memory: 400Gi
  disruption:
    consolidationPolicy: WhenUnderutilized
    consolidateAfter: 60s
    budgets:
      - nodes: "20%"
---
apiVersion: karpenter.k8s.aws/v1
kind: EC2NodeClass
metadata:
  name: msa-nodeclass
spec:
  amiFamily: AL2
  subnetSelectorTerms:
    - tags:
        karpenter.sh/discovery: obs-service
  securityGroupSelectorTerms:
    - tags:
        karpenter.sh/discovery: obs-service
  role: KarpenterNodeRole-obs-service
  blockDeviceMappings:
    - deviceName: /dev/xvda
      ebs:
        volumeSize: 100Gi
        volumeType: gp3
        iops: 3000
        throughput: 125
        deleteOnTermination: true
  tags:
    Environment: lab
    ManagedBy: karpenter
    WorkloadType: msa
EOF

Verification

bash

kubectl get nodepools
kubectl get ec2nodeclasses
# Expected: msa-workloads NodePool and msa-nodeclass EC2NodeClass created

Exercise 3: KEDA ScaledObject Configuration

Steps

Step 3.1: Install KEDA

bash

helm repo add kedacore https://kedacore.github.io/charts
helm repo update

helm install keda kedacore/keda \
  --namespace keda \
  --create-namespace \
  --version 2.13.0 \
  --set serviceAccount.annotations."eks\.amazonaws\.com/role-arn"=arn:aws:iam::${ACCOUNT_ID}:role/obs-lab-keda \
  --wait

Step 3.2: Create ScaledObject for Notification Service (SQS-based)

bash

kubectl create namespace msa

cat <<'EOF' | kubectl apply -f -
apiVersion: keda.sh/v1alpha1
kind: TriggerAuthentication
metadata:
  name: aws-credentials
  namespace: msa
spec:
  podIdentity:
    provider: aws-eks
---
apiVersion: keda.sh/v1alpha1
kind: ScaledObject
metadata:
  name: notification-scaler
  namespace: msa
spec:
  scaleTargetRef:
    name: notification-service
  pollingInterval: 15
  cooldownPeriod: 60
  minReplicaCount: 1
  maxReplicaCount: 20
  triggers:
    - type: aws-sqs-queue
      authenticationRef:
        name: aws-credentials
      metadata:
        queueURL: "${SQS_QUEUE_URL}"
        queueLength: "10"
        awsRegion: "${AWS_REGION}"
        identityOwner: operator
EOF

Step 3.3: Create ScaledObject for Order Service (Prometheus-based)

bash

cat <<'EOF' | kubectl apply -f -
apiVersion: keda.sh/v1alpha1
kind: ScaledObject
metadata:
  name: order-service-scaler
  namespace: msa
spec:
  scaleTargetRef:
    name: order-service
  pollingInterval: 15
  cooldownPeriod: 120
  minReplicaCount: 2
  maxReplicaCount: 30
  advanced:
    horizontalPodAutoscalerConfig:
      behavior:
        scaleDown:
          stabilizationWindowSeconds: 300
          policies:
            - type: Percent
              value: 10
              periodSeconds: 60
        scaleUp:
          stabilizationWindowSeconds: 0
          policies:
            - type: Percent
              value: 100
              periodSeconds: 15
            - type: Pods
              value: 4
              periodSeconds: 15
          selectPolicy: Max
  triggers:
    - type: prometheus
      metadata:
        serverAddress: http://kube-prometheus-stack-prometheus.monitoring.svc.cluster.local:9090
        metricName: http_requests_per_second
        threshold: "100"
        query: |
          sum(rate(http_server_request_count{service="order-service"}[1m]))
EOF

Verification

bash

kubectl get scaledobjects -n msa
kubectl get hpa -n msa
# Expected: ScaledObjects created, HPAs auto-generated

Exercise 4: ArgoCD Application Deployment

Steps

Step 4.1: Switch to Managed Cluster (ArgoCD host)

bash

kubectl config use-context $(kubectl config get-contexts -o name | grep obs-managed)

Step 4.2: Create ArgoCD App-of-Apps

bash

cat <<'EOF' | kubectl apply -f -
apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: obs-lab-msa
  namespace: argocd
  finalizers:
    - resources-finalizer.argocd.argoproj.io
spec:
  project: default
  source:
    repoURL: https://github.com/your-org/obs-lab-msa.git
    targetRevision: main
    path: argocd
  destination:
    server: https://kubernetes.default.svc
    namespace: argocd
  syncPolicy:
    automated:
      prune: true
      selfHeal: true
    syncOptions:
      - CreateNamespace=true
      - PruneLast=true
EOF

Step 4.3: Create ApplicationSet for MSA services

bash

cat <<'EOF' | kubectl apply -f -
apiVersion: argoproj.io/v1alpha1
kind: ApplicationSet
metadata:
  name: msa-services
  namespace: argocd
spec:
  generators:
    - list:
        elements:
          - service: api-gateway
            language: go
            port: "8080"
          - service: order-service
            language: python
            port: "8000"
          - service: payment-service
            language: java
            port: "8080"
          - service: notification-service
            language: nodejs
            port: "3000"
  template:
    metadata:
      name: '{{service}}'
      namespace: argocd
      labels:
        app.kubernetes.io/name: '{{service}}'
        app.kubernetes.io/part-of: obs-lab-msa
    spec:
      project: default
      source:
        repoURL: https://github.com/your-org/obs-lab-msa.git
        targetRevision: main
        path: '{{service}}/k8s'
        helm:
          valueFiles:
            - values.yaml
          parameters:
            - name: image.tag
              value: latest
            - name: service.port
              value: '{{port}}'
      destination:
        server: https://obs-service-cluster-endpoint  # Service cluster
        namespace: msa
      syncPolicy:
        automated:
          prune: true
          selfHeal: true
        syncOptions:
          - CreateNamespace=true
EOF

Step 4.4: Deploy sample MSA manifests directly (for lab)

bash

# Switch to Service Cluster
kubectl config use-context $(kubectl config get-contexts -o name | grep obs-service)

# Create namespace
kubectl create namespace msa --dry-run=client -o yaml | kubectl apply -f -

# Deploy API Gateway
cat <<'EOF' | kubectl apply -f -
apiVersion: apps/v1
kind: Deployment
metadata:
  name: api-gateway
  namespace: msa
  labels:
    app: api-gateway
    version: v1
spec:
  replicas: 2
  selector:
    matchLabels:
      app: api-gateway
  template:
    metadata:
      labels:
        app: api-gateway
        version: v1
      annotations:
        instrumentation.opentelemetry.io/inject-go: "true"
    spec:
      tolerations:
        - key: workload-type
          value: msa
          effect: NoSchedule
      nodeSelector:
        workload-type: msa
      containers:
        - name: api-gateway
          image: obs-lab/api-gateway:v1
          ports:
            - containerPort: 8080
          env:
            - name: OTEL_EXPORTER_OTLP_ENDPOINT
              value: "http://otel-collector-gateway.opentelemetry.svc.cluster.local:4317"
            - name: OTEL_SERVICE_NAME
              value: "api-gateway"
            - name: ORDER_SERVICE_URL
              value: "http://order-service:8000"
            - name: PAYMENT_SERVICE_URL
              value: "http://payment-service:8080"
          resources:
            requests:
              cpu: 100m
              memory: 128Mi
            limits:
              cpu: 500m
              memory: 512Mi
          livenessProbe:
            httpGet:
              path: /health
              port: 8080
            initialDelaySeconds: 10
            periodSeconds: 10
          readinessProbe:
            httpGet:
              path: /ready
              port: 8080
            initialDelaySeconds: 5
            periodSeconds: 5
---
apiVersion: v1
kind: Service
metadata:
  name: api-gateway
  namespace: msa
spec:
  selector:
    app: api-gateway
  ports:
    - port: 8080
      targetPort: 8080
  type: LoadBalancer
EOF

# Deploy Order Service
cat <<'EOF' | kubectl apply -f -
apiVersion: apps/v1
kind: Deployment
metadata:
  name: order-service
  namespace: msa
  labels:
    app: order-service
    version: v1
spec:
  replicas: 2
  selector:
    matchLabels:
      app: order-service
  template:
    metadata:
      labels:
        app: order-service
        version: v1
      annotations:
        instrumentation.opentelemetry.io/inject-python: "true"
    spec:
      tolerations:
        - key: workload-type
          value: msa
          effect: NoSchedule
      containers:
        - name: order-service
          image: obs-lab/order-service:v1
          ports:
            - containerPort: 8000
          env:
            - name: OTEL_EXPORTER_OTLP_ENDPOINT
              value: "http://otel-collector-gateway.opentelemetry.svc.cluster.local:4317"
            - name: OTEL_SERVICE_NAME
              value: "order-service"
            - name: DATABASE_URL
              valueFrom:
                secretKeyRef:
                  name: aurora-credentials
                  key: url
            - name: SQS_QUEUE_URL
              value: "${SQS_QUEUE_URL}"
          resources:
            requests:
              cpu: 200m
              memory: 256Mi
            limits:
              cpu: 1000m
              memory: 1Gi
---
apiVersion: v1
kind: Service
metadata:
  name: order-service
  namespace: msa
spec:
  selector:
    app: order-service
  ports:
    - port: 8000
      targetPort: 8000
EOF

# Deploy Payment Service
cat <<'EOF' | kubectl apply -f -
apiVersion: apps/v1
kind: Deployment
metadata:
  name: payment-service
  namespace: msa
  labels:
    app: payment-service
    version: v1
spec:
  replicas: 2
  selector:
    matchLabels:
      app: payment-service
  template:
    metadata:
      labels:
        app: payment-service
        version: v1
      annotations:
        instrumentation.opentelemetry.io/inject-java: "true"
    spec:
      tolerations:
        - key: workload-type
          value: msa
          effect: NoSchedule
      containers:
        - name: payment-service
          image: obs-lab/payment-service:v1
          ports:
            - containerPort: 8080
          env:
            - name: OTEL_EXPORTER_OTLP_ENDPOINT
              value: "http://otel-collector-gateway.opentelemetry.svc.cluster.local:4317"
            - name: OTEL_SERVICE_NAME
              value: "payment-service"
            - name: SPRING_DATASOURCE_URL
              valueFrom:
                secretKeyRef:
                  name: aurora-credentials
                  key: jdbc-url
          resources:
            requests:
              cpu: 200m
              memory: 512Mi
            limits:
              cpu: 1000m
              memory: 2Gi
---
apiVersion: v1
kind: Service
metadata:
  name: payment-service
  namespace: msa
spec:
  selector:
    app: payment-service
  ports:
    - port: 8080
      targetPort: 8080
EOF

# Deploy Notification Service
cat <<'EOF' | kubectl apply -f -
apiVersion: apps/v1
kind: Deployment
metadata:
  name: notification-service
  namespace: msa
  labels:
    app: notification-service
    version: v1
spec:
  replicas: 1
  selector:
    matchLabels:
      app: notification-service
  template:
    metadata:
      labels:
        app: notification-service
        version: v1
      annotations:
        instrumentation.opentelemetry.io/inject-nodejs: "true"
    spec:
      tolerations:
        - key: workload-type
          value: msa
          effect: NoSchedule
      containers:
        - name: notification-service
          image: obs-lab/notification-service:v1
          ports:
            - containerPort: 3000
          env:
            - name: OTEL_EXPORTER_OTLP_ENDPOINT
              value: "http://otel-collector-gateway.opentelemetry.svc.cluster.local:4317"
            - name: OTEL_SERVICE_NAME
              value: "notification-service"
            - name: SQS_QUEUE_URL
              value: "${SQS_QUEUE_URL}"
          resources:
            requests:
              cpu: 100m
              memory: 128Mi
            limits:
              cpu: 500m
              memory: 512Mi
---
apiVersion: v1
kind: Service
metadata:
  name: notification-service
  namespace: msa
spec:
  selector:
    app: notification-service
  ports:
    - port: 3000
      targetPort: 3000
EOF

Verification

bash

kubectl get pods -n msa
kubectl get svc -n msa
# Expected: All 4 services running

Exercise 5: OpenTelemetry Auto-Instrumentation

Steps

Step 5.1: Install OpenTelemetry Operator

bash

# Install cert-manager (required by OTel Operator)
kubectl apply -f https://github.com/cert-manager/cert-manager/releases/download/v1.14.0/cert-manager.yaml

# Wait for cert-manager
kubectl wait --for=condition=available --timeout=300s deployment/cert-manager -n cert-manager
kubectl wait --for=condition=available --timeout=300s deployment/cert-manager-webhook -n cert-manager

# Install OTel Operator
kubectl apply -f https://github.com/open-telemetry/opentelemetry-operator/releases/download/v0.95.0/opentelemetry-operator.yaml

Step 5.2: Create Instrumentation resources

bash

cat <<'EOF' | kubectl apply -f -
apiVersion: opentelemetry.io/v1alpha1
kind: Instrumentation
metadata:
  name: otel-instrumentation
  namespace: msa
spec:
  exporter:
    endpoint: http://otel-collector-gateway.opentelemetry.svc.cluster.local:4317
  propagators:
    - tracecontext
    - baggage
    - b3
  sampler:
    type: parentbased_traceidratio
    argument: "1"

  python:
    env:
      - name: OTEL_PYTHON_LOG_CORRELATION
        value: "true"
      - name: OTEL_PYTHON_LOG_LEVEL
        value: "info"
      - name: OTEL_PYTHON_LOGGING_AUTO_INSTRUMENTATION_ENABLED
        value: "true"

  java:
    env:
      - name: OTEL_JAVAAGENT_DEBUG
        value: "false"
      - name: OTEL_INSTRUMENTATION_JDBC_ENABLED
        value: "true"
      - name: OTEL_INSTRUMENTATION_SPRING_WEBMVC_ENABLED
        value: "true"

  nodejs:
    env:
      - name: OTEL_NODE_RESOURCE_DETECTORS
        value: "env,host,os"

  go:
    env:
      - name: OTEL_GO_AUTO_TARGET_EXE
        value: "/app/api-gateway"
EOF

Step 5.3: Auto-instrumentation coverage table

Language	Instrumented Libraries	Annotation
Go	gin, net/http, gRPC	`instrumentation.opentelemetry.io/inject-go: "true"`
Python	FastAPI, SQLAlchemy, boto3, requests	`instrumentation.opentelemetry.io/inject-python: "true"`
Java	Spring Boot, JDBC, Kafka, gRPC	`instrumentation.opentelemetry.io/inject-java: "true"`
Node.js	Express, pg, aws-sdk, http	`instrumentation.opentelemetry.io/inject-nodejs: "true"`

Step 5.4: Restart deployments to apply instrumentation

bash

kubectl rollout restart deployment -n msa
kubectl rollout status deployment -n msa --timeout=300s

Verification

bash

# Check pods have init containers injected
kubectl get pods -n msa -o jsonpath='{range .items[*]}{.metadata.name}{"\t"}{.spec.initContainers[*].name}{"\n"}{end}'

# Check traces are being generated
kubectl logs -n opentelemetry -l app=otel-collector --tail=50 | grep "trace"

Exercise 6: Argo Rollouts Canary Deployment

Steps

Step 6.1: Convert Order Service to Rollout

bash

cat <<'EOF' | kubectl apply -f -
apiVersion: argoproj.io/v1alpha1
kind: Rollout
metadata:
  name: order-service
  namespace: msa
spec:
  replicas: 4
  revisionHistoryLimit: 3
  selector:
    matchLabels:
      app: order-service
  template:
    metadata:
      labels:
        app: order-service
      annotations:
        instrumentation.opentelemetry.io/inject-python: "true"
    spec:
      tolerations:
        - key: workload-type
          value: msa
          effect: NoSchedule
      containers:
        - name: order-service
          image: obs-lab/order-service:v1
          ports:
            - containerPort: 8000
          env:
            - name: OTEL_EXPORTER_OTLP_ENDPOINT
              value: "http://otel-collector-gateway.opentelemetry.svc.cluster.local:4317"
            - name: OTEL_SERVICE_NAME
              value: "order-service"
            - name: VERSION
              value: "v1"
          resources:
            requests:
              cpu: 200m
              memory: 256Mi
            limits:
              cpu: 1000m
              memory: 1Gi
  strategy:
    canary:
      canaryService: order-service-canary
      stableService: order-service-stable
      trafficRouting:
        nginx:
          stableIngress: order-service-ingress
      steps:
        - setWeight: 20
        - pause: {duration: 2m}
        - analysis:
            templates:
              - templateName: success-rate
            args:
              - name: service-name
                value: order-service
        - setWeight: 40
        - pause: {duration: 2m}
        - analysis:
            templates:
              - templateName: success-rate
        - setWeight: 60
        - pause: {duration: 2m}
        - setWeight: 80
        - pause: {duration: 2m}
        - setWeight: 100
      analysis:
        templates:
          - templateName: success-rate
        startingStep: 2
        args:
          - name: service-name
            value: order-service
---
apiVersion: v1
kind: Service
metadata:
  name: order-service-stable
  namespace: msa
spec:
  selector:
    app: order-service
  ports:
    - port: 8000
      targetPort: 8000
---
apiVersion: v1
kind: Service
metadata:
  name: order-service-canary
  namespace: msa
spec:
  selector:
    app: order-service
  ports:
    - port: 8000
      targetPort: 8000
EOF

Step 6.2: Create AnalysisTemplate

bash

cat <<'EOF' | kubectl apply -f -
apiVersion: argoproj.io/v1alpha1
kind: AnalysisTemplate
metadata:
  name: success-rate
  namespace: msa
spec:
  args:
    - name: service-name
  metrics:
    - name: success-rate
      interval: 30s
      count: 5
      successCondition: result[0] >= 0.95
      failureLimit: 3
      provider:
        prometheus:
          address: http://kube-prometheus-stack-prometheus.monitoring.svc.cluster.local:9090
          query: |
            sum(rate(http_server_request_count{service="{{args.service-name}}",http_status_code!~"5.."}[2m]))
            /
            sum(rate(http_server_request_count{service="{{args.service-name}}"}[2m]))

    - name: latency-p99
      interval: 30s
      count: 5
      successCondition: result[0] <= 500
      failureLimit: 3
      provider:
        prometheus:
          address: http://kube-prometheus-stack-prometheus.monitoring.svc.cluster.local:9090
          query: |
            histogram_quantile(0.99, sum(rate(http_server_request_duration_seconds_bucket{service="{{args.service-name}}"}[2m])) by (le)) * 1000

    - name: error-count
      interval: 30s
      count: 5
      successCondition: result[0] <= 5
      failureLimit: 2
      provider:
        prometheus:
          address: http://kube-prometheus-stack-prometheus.monitoring.svc.cluster.local:9090
          query: |
            sum(increase(http_server_request_count{service="{{args.service-name}}",http_status_code=~"5.."}[2m]))
EOF

Canary State Diagram

State machine showing a canary deployment ramping v2 traffic through 20% and 40% stages, each gated by a 2-minute analysis window, then automatically ramping to 100% once both gates pass, with a rollback to v1 triggered from either gate if the success rate drops below 95%.

Step 6.3: Trigger canary deployment (update image)

bash

# Update to v2
kubectl argo rollouts set image order-service \
  order-service=obs-lab/order-service:v2 \
  -n msa

# Watch rollout progress
kubectl argo rollouts get rollout order-service -n msa --watch

Verification

bash

# Check rollout status
kubectl argo rollouts status order-service -n msa

# View in Argo Rollouts dashboard
ROLLOUTS_DASHBOARD=$(kubectl -n argo-rollouts get svc argo-rollouts-dashboard \
  -o jsonpath='{.status.loadBalancer.ingress[0].hostname}')
echo "Dashboard: http://$ROLLOUTS_DASHBOARD:3100/rollout/msa/order-service"

Exercise 7: Intentional Failure and Automatic Rollback

Steps

Step 7.1: Deploy a failing version

bash

# Deploy v3 with intentional errors (returns 500 for 30% of requests)
kubectl argo rollouts set image order-service \
  order-service=obs-lab/order-service:v3-failing \
  -n msa

Step 7.2: Monitor the canary analysis

bash

# Watch analysis results
kubectl argo rollouts get rollout order-service -n msa --watch

# Check AnalysisRun
kubectl get analysisruns -n msa -l rollouts-pod-template-hash
kubectl describe analysisrun -n msa $(kubectl get analysisruns -n msa -o jsonpath='{.items[0].metadata.name}')

Step 7.3: Verify automatic rollback

bash

# After analysis failure, rollout should automatically abort
kubectl argo rollouts status order-service -n msa

# Expected output: "Degraded - RolloutAborted: Rollout aborted due to analysis failure"

Step 7.4: Check Grafana for traffic split

bash

# Open Grafana and check:
# 1. Request rate by version (v1 vs v3-failing)
# 2. Error rate spike during canary
# 3. Automatic rollback to v1

echo "Grafana URL: http://$GRAFANA_URL"
echo "Check dashboard: Kubernetes / Deployment"

Verification

bash

# Verify all pods are running v1 after rollback
kubectl get pods -n msa -l app=order-service -o jsonpath='{range .items[*]}{.metadata.name}{"\t"}{.spec.containers[0].image}{"\n"}{end}'

# All should show v1 or stable version

Summary

In this lab, you have:

Task	Status
Karpenter NodePool for MSA	Configured
KEDA ScaledObjects (SQS + Prometheus)	Created
ArgoCD ApplicationSet	Deployed
MSA Services (4 services)	Running
OTel Auto-Instrumentation	Enabled
Argo Rollouts Canary	Configured
AnalysisTemplate	Created
Failure/Rollback Test	Completed

Cleanup

Cleanup will be performed in Part 6.

Troubleshooting

OTel instrumentation not injecting

Verify OTel Operator is running: kubectl get pods -n opentelemetry-operator-system
Check Instrumentation resource: kubectl get instrumentation -n msa
Ensure pod annotations are correct
Restart pods after creating Instrumentation

Canary analysis always failing

Check Prometheus query syntax in AnalysisTemplate
Verify metrics are being collected: test query in Grafana Explore
Check AnalysisRun logs: kubectl describe analysisrun -n msa <name>
Adjust success/failure conditions if needed

KEDA not scaling

Verify IRSA permissions for SQS access
Check KEDA operator logs: kubectl logs -n keda -l app=keda-operator
Test SQS metrics: aws sqs get-queue-attributes --queue-url $SQS_QUEUE_URL --attribute-names ApproximateNumberOfMessages

Next Steps

Continue to Part 4: Load Testing and Autoscaling to stress test the MSA application.

Traffic Management

Security

Observability

Resilience

Advanced

Comparison Guide

ArgoCD

Metrics

Logging

Tracing

Alerting

Observability End-to-End Labs

Part 3: MSA Deployment and Canary ​

Learning Objectives ​

Prerequisites ​

Architecture Overview ​

Service Call Flow ​

Exercise 1: MSA Application Overview ​

Application Structure ​

Repository Structure ​

Sample Code Snippets ​

Exercise 2: Karpenter NodePool Configuration ​

Steps ​

Verification ​

Exercise 3: KEDA ScaledObject Configuration ​

Steps ​

Verification ​

Exercise 4: ArgoCD Application Deployment ​

Steps ​

Verification ​

Exercise 5: OpenTelemetry Auto-Instrumentation ​

Steps ​

Verification ​

Exercise 6: Argo Rollouts Canary Deployment ​

Steps ​

Canary State Diagram ​

Verification ​

Exercise 7: Intentional Failure and Automatic Rollback ​

Steps ​

Verification ​

Summary ​

Cleanup ​

Troubleshooting ​

Next Steps ​

References ​

Part 3: MSA Deployment and Canary

Learning Objectives

Prerequisites

Architecture Overview

Service Call Flow

Exercise 1: MSA Application Overview

Application Structure

Repository Structure

Sample Code Snippets

Exercise 2: Karpenter NodePool Configuration

Steps

Verification

Exercise 3: KEDA ScaledObject Configuration

Steps

Verification

Exercise 4: ArgoCD Application Deployment

Steps

Verification

Exercise 5: OpenTelemetry Auto-Instrumentation

Steps

Verification

Exercise 6: Argo Rollouts Canary Deployment

Steps

Canary State Diagram

Verification

Exercise 7: Intentional Failure and Automatic Rollback

Steps

Verification

Summary

Cleanup

Troubleshooting

Next Steps

References
