Part 4: BGP Deep Dive

Review baseline: Calico 3.32.2; Calico 3.32 tests Kubernetes 1.34–1.36. Last Updated: September 12, 2026.
Configuration examples assume a Linux Calico cluster with BGP enabled and the standard Calico API server installed (projectcalico.org/v3). They are separate topology alternatives, not one manifest to apply in sequence. Retain the installation's operator/GitOps ownership and merge intended fields into its existing configuration. The installation guide covers API prerequisites; the networking modes guide covers BGP-free routing alternatives. Router addresses, ASNs and CIDRs must match a network you control. No live fabric or cluster failover was tested for this review.

Introduction

Border Gateway Protocol (BGP) exchanges reachability information. Calico can use it to distribute workload routes and integrate with an existing routed fabric. BGP is a control-plane protocol: it can accompany unencapsulated routing or IP-in-IP, and it does not itself guarantee better performance. Calico 3.32 also supports Felix-managed cluster routing without BGP; external BGP advertisement still requires a BGP speaker.

This deep dive covers BGP fundamentals, Calico's BGP architecture options, configuration resources, and advanced deployment patterns for enterprise environments.

BGP Fundamentals

What is BGP?

BGP (Border Gateway Protocol) is a path-vector routing protocol designed to exchange routing information between autonomous systems. In Calico, BGP distributes pod IP routes across cluster nodes and optionally to external network infrastructure.

Key BGP Concepts

Concept	Description
Autonomous System (AS)	A collection of IP networks under a single administrative domain
AS Number (ASN)	16-bit or 32-bit identifier; allocation excludes special/reserved ranges
iBGP	Internal BGP - sessions between routers in the same AS
eBGP	External BGP - sessions between routers in different ASes
NLRI	Network Layer Reachability Information - the routes being advertised
BGP Speaker	A router or software that participates in BGP

Private AS Number Ranges

For internal use within organizations, IANA reserves the following private ASN ranges:

16-bit Private ASN Range: 64512 - 65534
32-bit Private ASN Range: 4200000000 - 4294967294

Calico's default cluster ASN is 64512. Private ASNs must be removed from AS paths before those routes reach the global Internet; they are identifiers, not inherently unroutable IP addresses. Other special ranges include documentation ASNs 64496–64511 and 65536–65551, and 23456 (AS_TRANS). Consult the IANA registry rather than treating every other integer as an allocated public ASN.

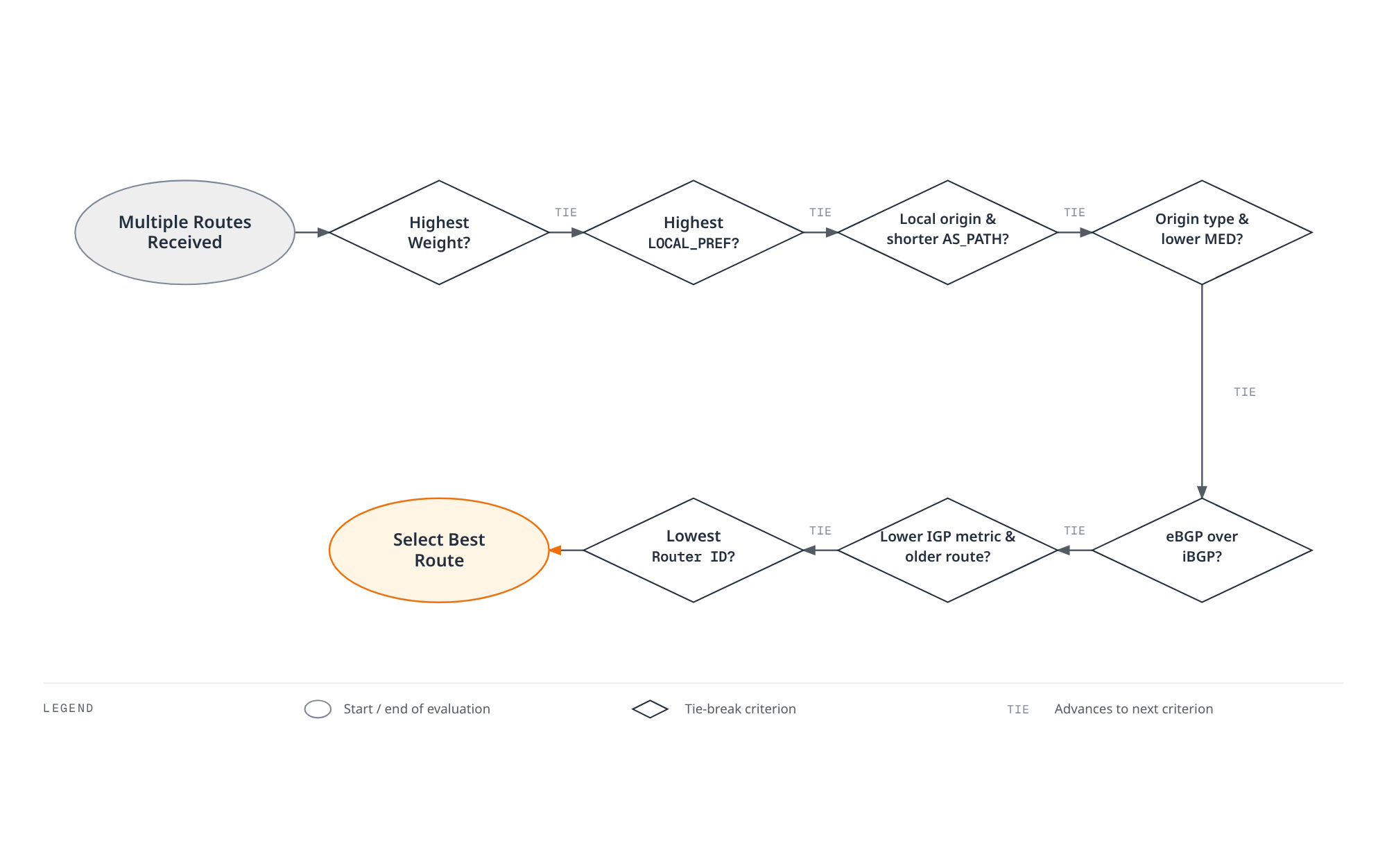

BGP Route Selection Process

Compare the actual implementation and routing policy. Cisco Weight and administrative distances 20/200 are not universal BGP properties or Calico BIRD defaults.

Calico 3.32.2 pins its BIRD fork to v0.3.3-211-g9111ec3c. For comparable eligible BGP routes, its selection function checks higher LOCAL_PREF, shorter AS_PATH (when enabled), lower ORIGIN, lower MED under the applicable neighbor-AS policy, eBGP over iBGP, and lower IGP metric. Remaining ties use router/ORIGINATOR_ID, CLUSTER_LIST length and peer IP; optional older-route preference changes the tie break. Suppression, next-hop reachability, stale-route handling and BIRD route preference also matter. This is not a universal eleven-step ladder.

Calico 3.32 translates its route priorities into LOCAL_PREF and kernel metrics. Therefore, do not assume every locally exported route retains the upstream BIRD default LOCAL_PREF of 100.

iBGP vs eBGP Behavior

Attribute	iBGP	eBGP
AS relationship	Same AS	Different ASes
AS_PATH	Normally preserved	Normally prepends the local AS
Route propagation	An iBGP-learned route is normally not sent to another iBGP peer; RR is an exception	Export depends on policy and loop prevention
Next hop	Often preserved; must remain reachable	Often changed; `nextHopMode` and topology affect this
TTL and administrative distance	Implementation/configuration dependent	Implementation/configuration dependent

Locally originated or eBGP-learned routes can be sent to iBGP peers. Calico's generated external-peer configuration uses BIRD multihop; do not diagnose it from a generic “eBGP TTL 1” table. Inspect the generated configuration and negotiated session state.

Calico BGP Architecture

BIRD: Calico's BGP Implementation

When BGP is enabled, Calico runs its BIRD fork in calico-node; confd renders its configuration. BIRD is not required in a BGP-disabled deployment. Both BIRD and Felix have routing responsibilities depending on the selected mode.

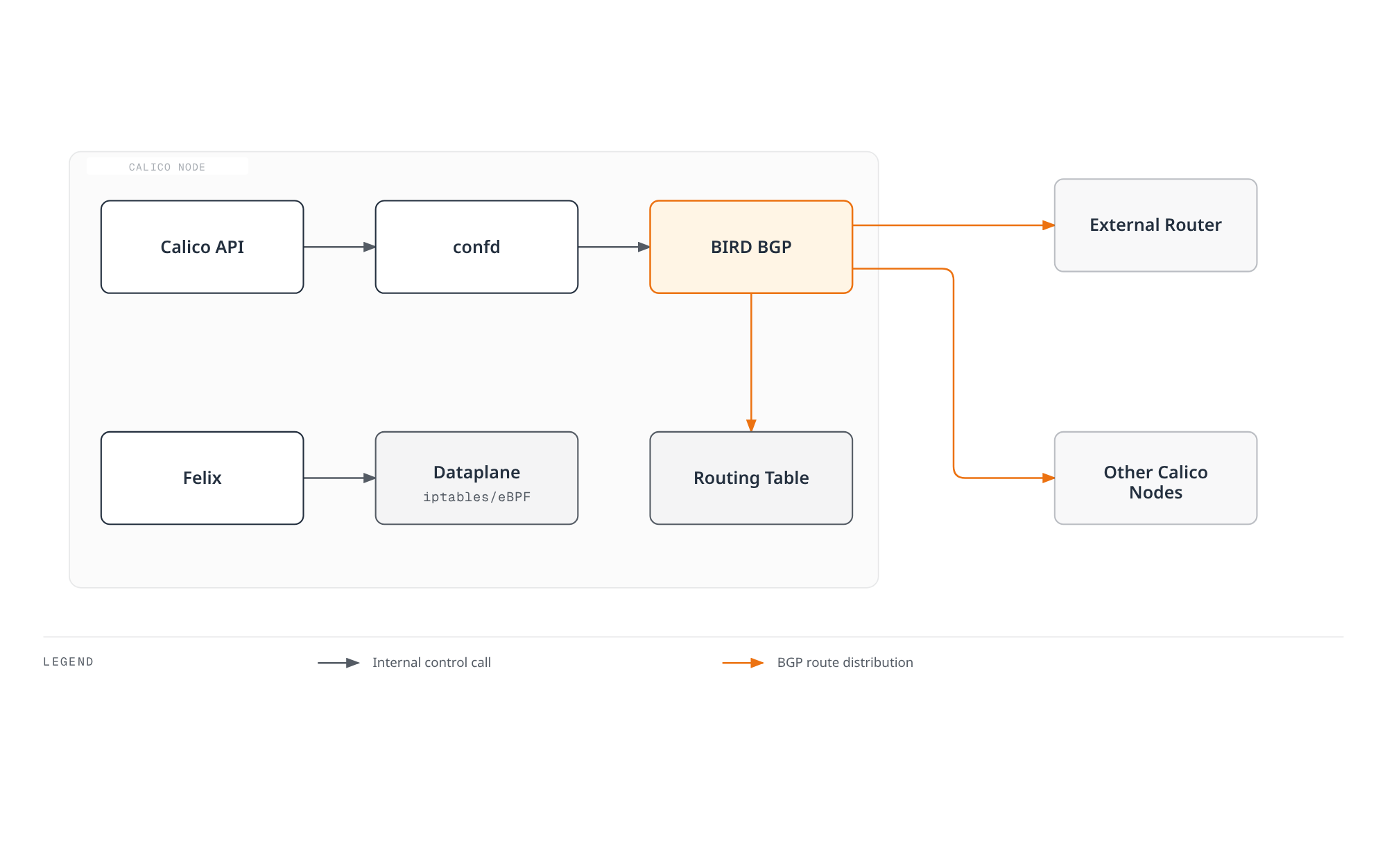

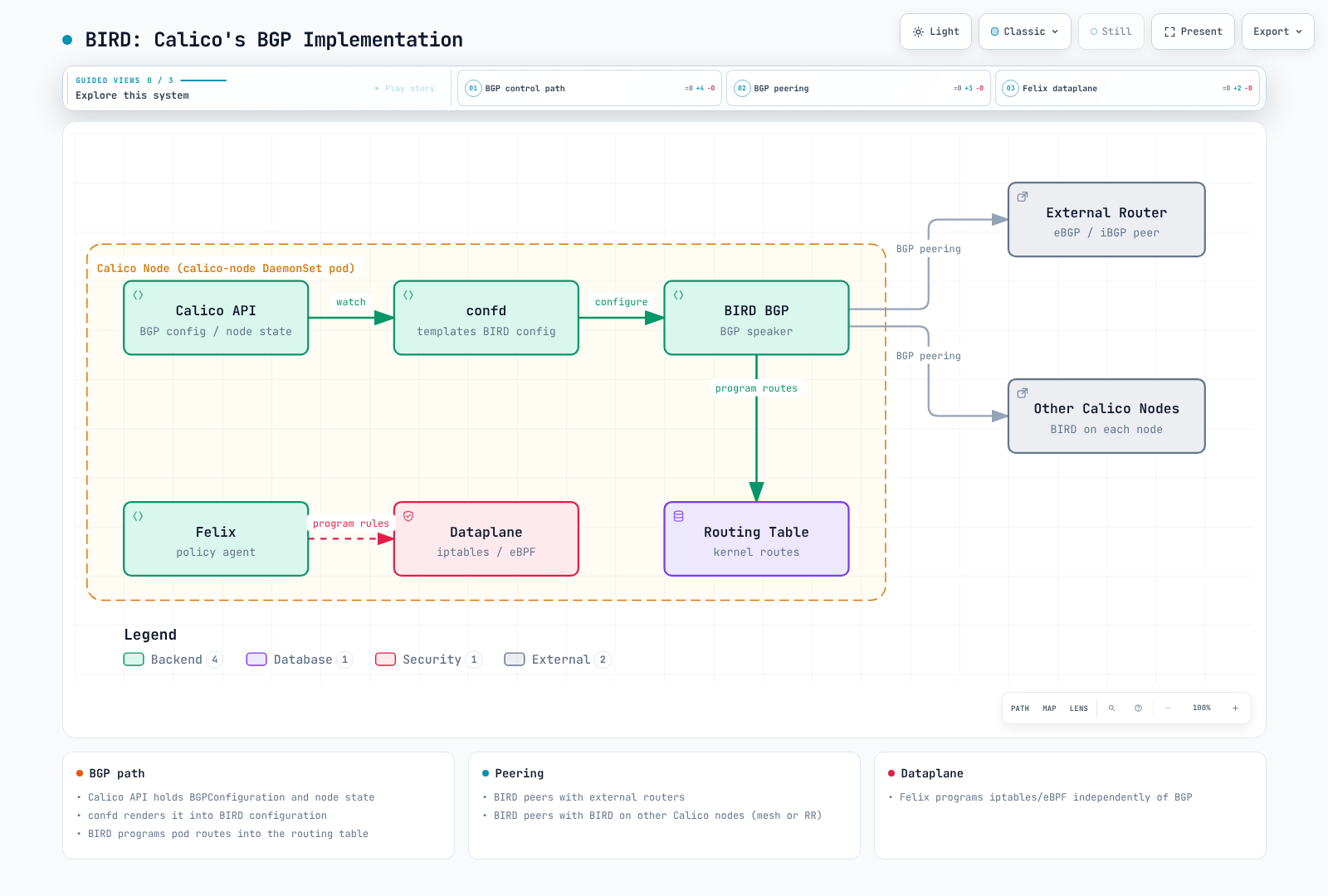

BGP control-plane relationships: confd configures BIRD, which exchanges routes with peers, while Felix programs the dataplane.

BGP control-plane relationships: confd configures BIRD, which exchanges routes with peers, while Felix programs the dataplane.Open full screen ↗

The boundary is schematic: the Calico API server is a separate component, not a process inside each calico-node Pod. Felix also manages local workload routes and, in the selected mode, cluster routes. BIRD is present only when enabled.

BGP Topology Options

Common internal BGP topology choices are:

Node-to-Node Mesh (Full Mesh) - Default configuration
Route Reflectors - Recommended for larger clusters

Full-Mesh Topology

How Full-Mesh Works

With BGP and the default node mesh enabled, participating non-RR nodes peer with each other. Nodes marked as route reflectors are excluded from the automatic mesh.

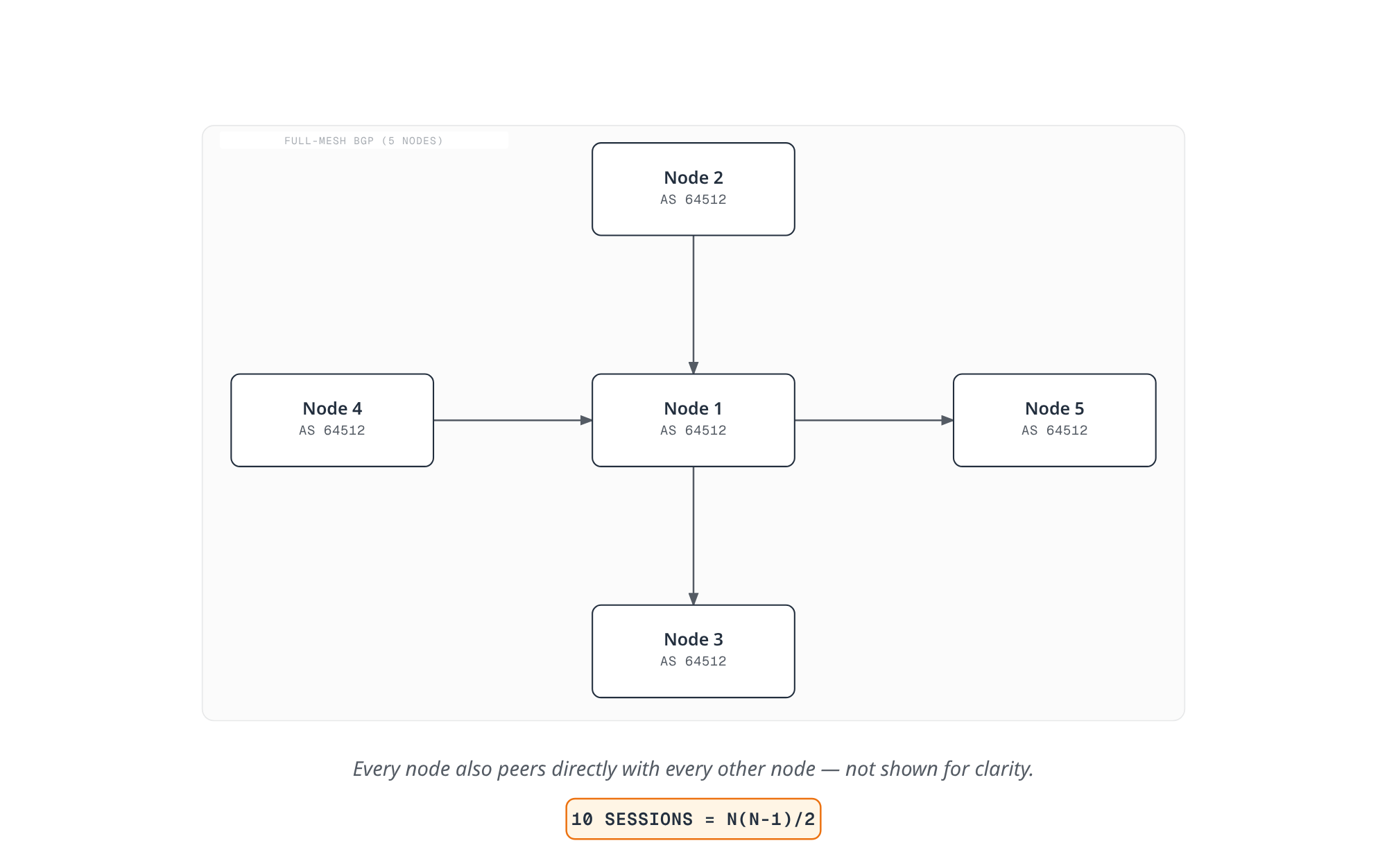

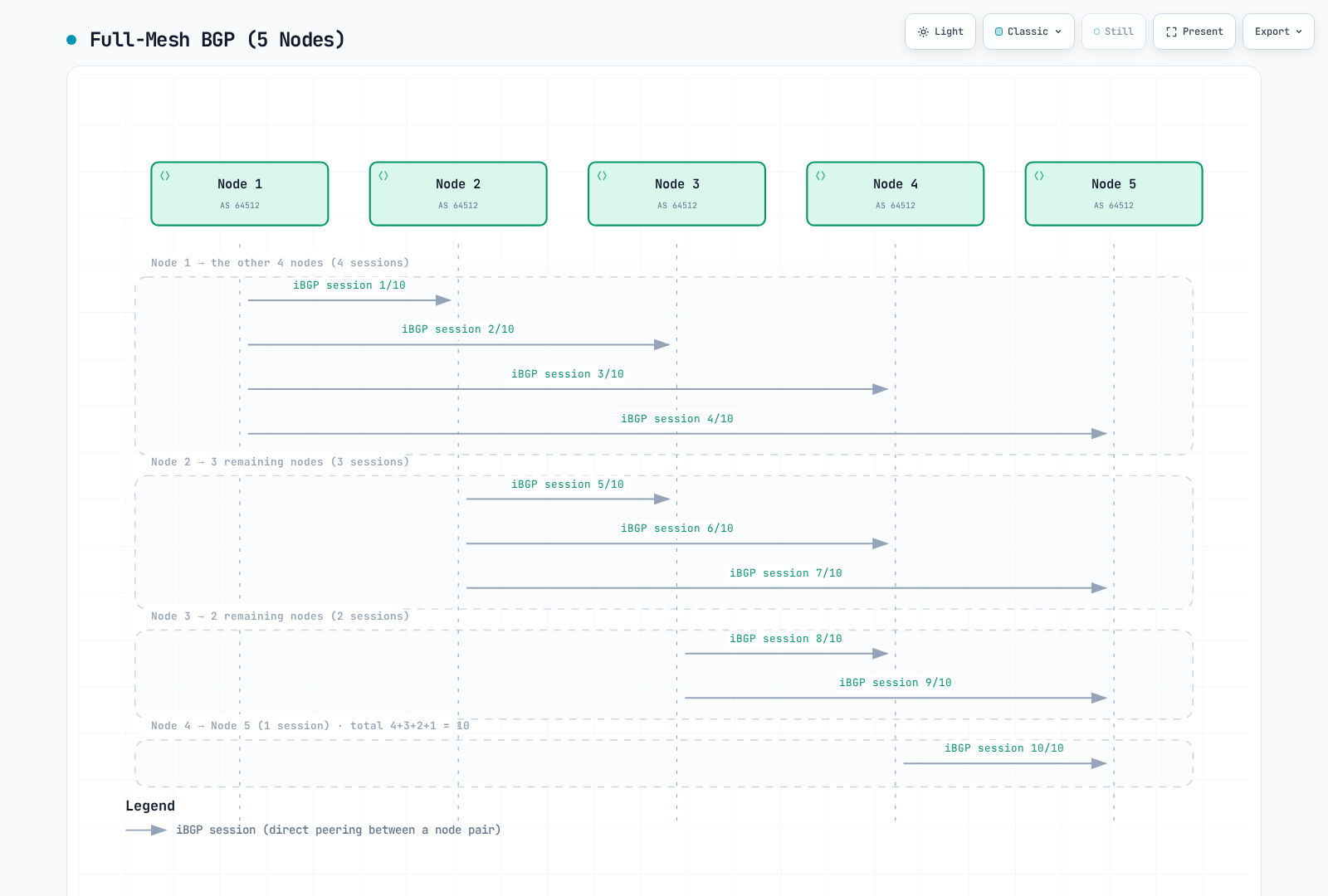

Ten sessions connect every pair of five nodes in a full mesh.

Ten sessions connect every pair of five nodes in a full mesh.Open full screen ↗

The arrows enumerate bidirectional sessions, not one-way traffic. This counts one session per pair for the address family under discussion.

Session Count Formula

The number of BGP sessions in a full-mesh topology grows quadratically:

Sessions = N × (N - 1) / 2

Examples:
- 10 nodes:   10 × 9 / 2 = 45 sessions
- 50 nodes:   50 × 49 / 2 = 1,225 sessions
- 100 nodes:  100 × 99 / 2 = 4,950 sessions
- 500 nodes:  500 × 499 / 2 = 124,750 sessions

Full-Mesh Scaling and Transition

The formula assumes one session per node pair for the address family being counted. Each node has N−1 peers. CPU and memory depend on route count, update churn, policy, hardware and convergence targets; the former per-node memory table and fixed 50/200-node limits were not measured capacity limits.

Check the existing configuration:

bash

kubectl get bgpconfiguration.projectcalico.org default -o yaml

An absent default resource means defaults may be in use. Prepare and validate replacement RR or fabric sessions before disabling the automatic mesh. Follow the transition order below; merely creating an RR label does not provide a working replacement.

Route Reflector Topology

Route Reflector Concepts

Route Reflectors (RRs) solve the iBGP scalability problem by allowing a subset of nodes to reflect routes to other nodes. This eliminates the need for a full mesh.

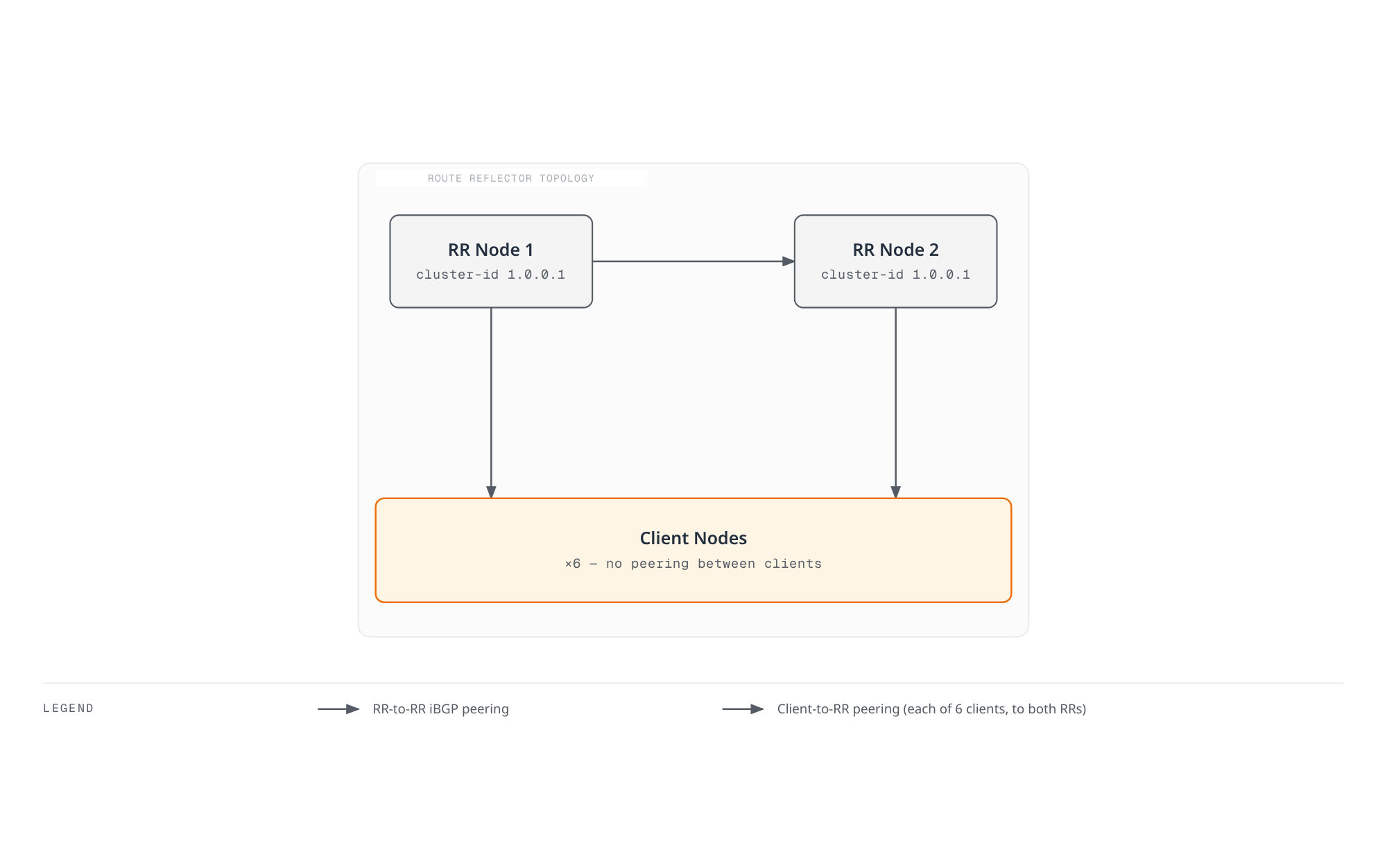

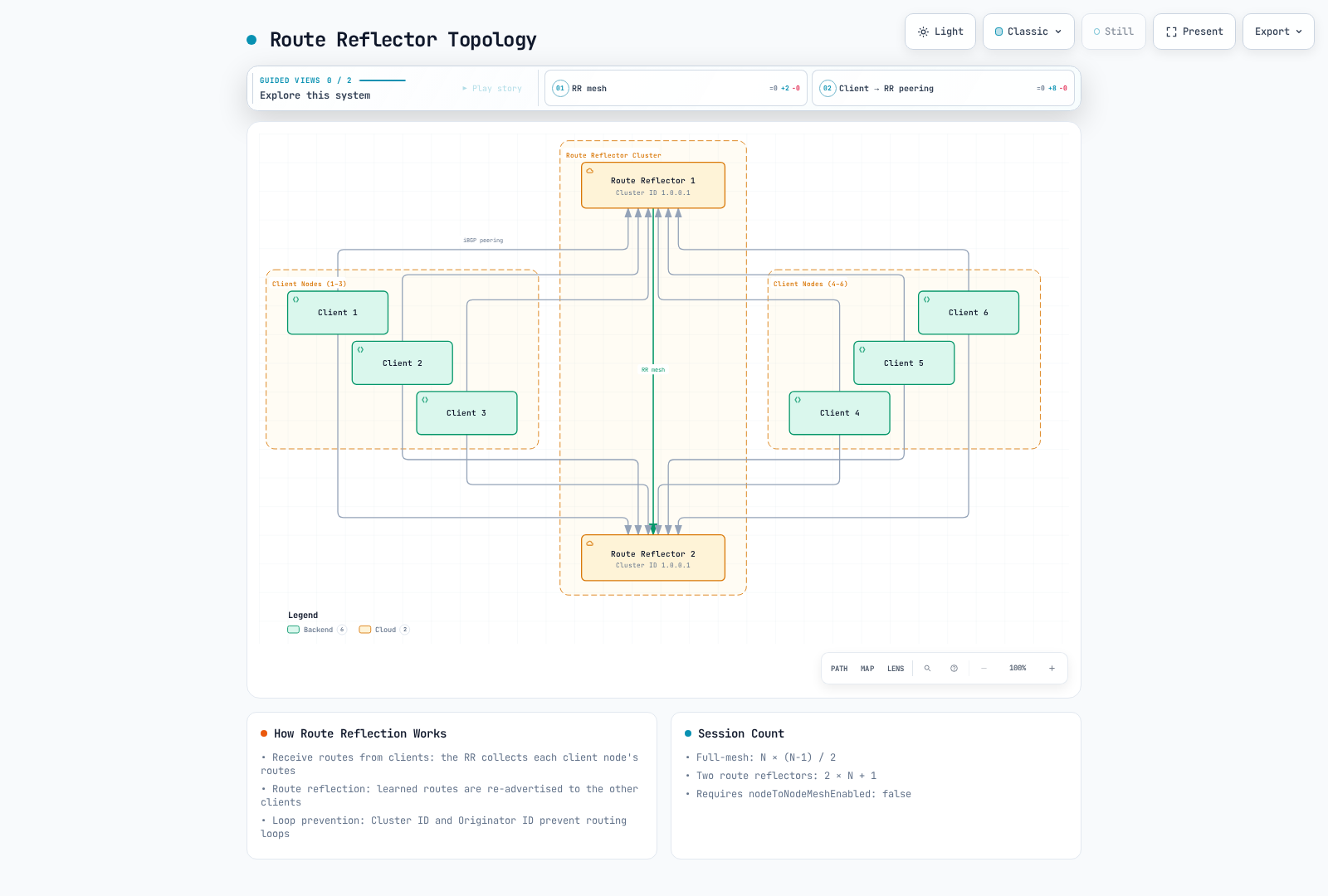

Six clients each peer with two mutually peered route reflectors.

Six clients each peer with two mutually peered route reflectors.Open full screen ↗

This drawing contains six clients plus two RRs: 13 sessions. In the figure’s 2N+1 expression N counts clients, while full-mesh N counts total nodes. Automatic mesh is disabled only after the explicit replacement topology is verified.

Route Reflector Key Attributes

Attribute	Description
Cluster ID	Identifies a set of RRs serving the same clients
Originator ID	Prevents routing loops (set to the router ID of originator)
Route Reflection	RR re-advertises routes learned from clients to other clients

Session Count with Route Reflectors

Let T be the total node count, R the number of reflectors, and C=T−R the number of clients. If every client peers with every RR and the RRs peer with each other:

text

RR sessions = C×R + R×(R−1)/2
T=100, R=2: 98×2 + 1 = 197 (full mesh of the same 100 nodes: 4,950)
T=500, R=2: 498×2 + 1 = 997 (full mesh of the same 500 nodes: 124,750)

If “100 nodes” instead means 100 clients plus two additional RRs, the count is 201, but that topology has 102 nodes. The two meanings must not be mixed.

Configuring Route Reflector Nodes

Use prepared, workload-free RR nodes for this transition. Setting a cluster ID immediately removes that node from the automatic mesh; changing a busy node in place can interrupt connectivity. This Kubernetes-datastore example preserves existing node IPs and other fields.

1. Label and annotate the prepared RR nodes

bash

kubectl label node rr-node-1 rr-node-2 route-reflector=true
kubectl annotate node rr-node-1 rr-node-2   projectcalico.org/RouteReflectorClusterID=244.0.0.1

The shared ID identifies this redundant RR cluster, not the Kubernetes cluster. Other RR clusters/hierarchy levels need an intentional ID design.

2. Create explicit peerings

yaml

apiVersion: projectcalico.org/v3
kind: BGPPeer
metadata:
  name: peer-to-rr
spec:
  nodeSelector: "!has(route-reflector)"
  peerSelector: "has(route-reflector)"
---
apiVersion: projectcalico.org/v3
kind: BGPPeer
metadata:
  name: rr-mesh
spec:
  nodeSelector: "has(route-reflector)"
  peerSelector: "has(route-reflector)"

peerSelector selects Calico nodes, and reverse peering is automatic unless reversePeering: Manual is selected. It does not discover arbitrary external routers.

3. Verify before removing the old path

Verify Established sessions on both RRs and their clients, expected advertised/received workload prefixes, reachable next hops, and representative cross-node traffic. Confirm forwarding survives the planned loss of either RR. Ordinary client mesh sessions can remain during this transition.

4. Disable automatic mesh only after those checks

Update the owned BGPConfiguration/default manifest, preserving its ASN, communities and other settings. The equivalent merge patch for an existing resource is:

bash

kubectl patch bgpconfiguration.projectcalico.org default --type=merge   -p '{"spec":{"nodeToNodeMeshEnabled":false}}'

If default does not exist, create it through the installation's configuration owner after the same checks. Recheck routes and traffic after the change; keep a rollback plan for the original topology.

Route Reflector Redundancy Patterns

Pattern 1: Dual Route Reflectors (Small/Medium Clusters)

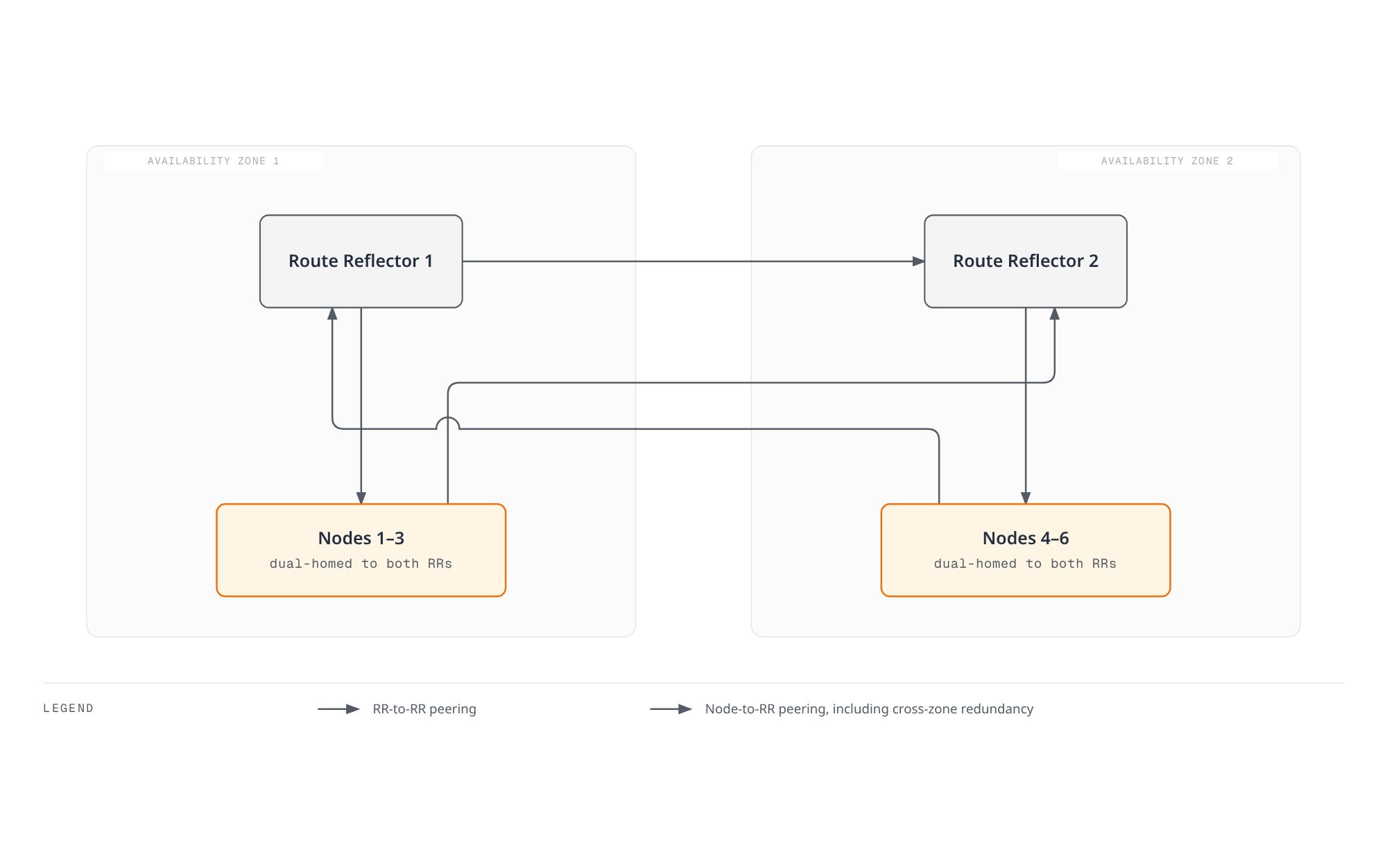

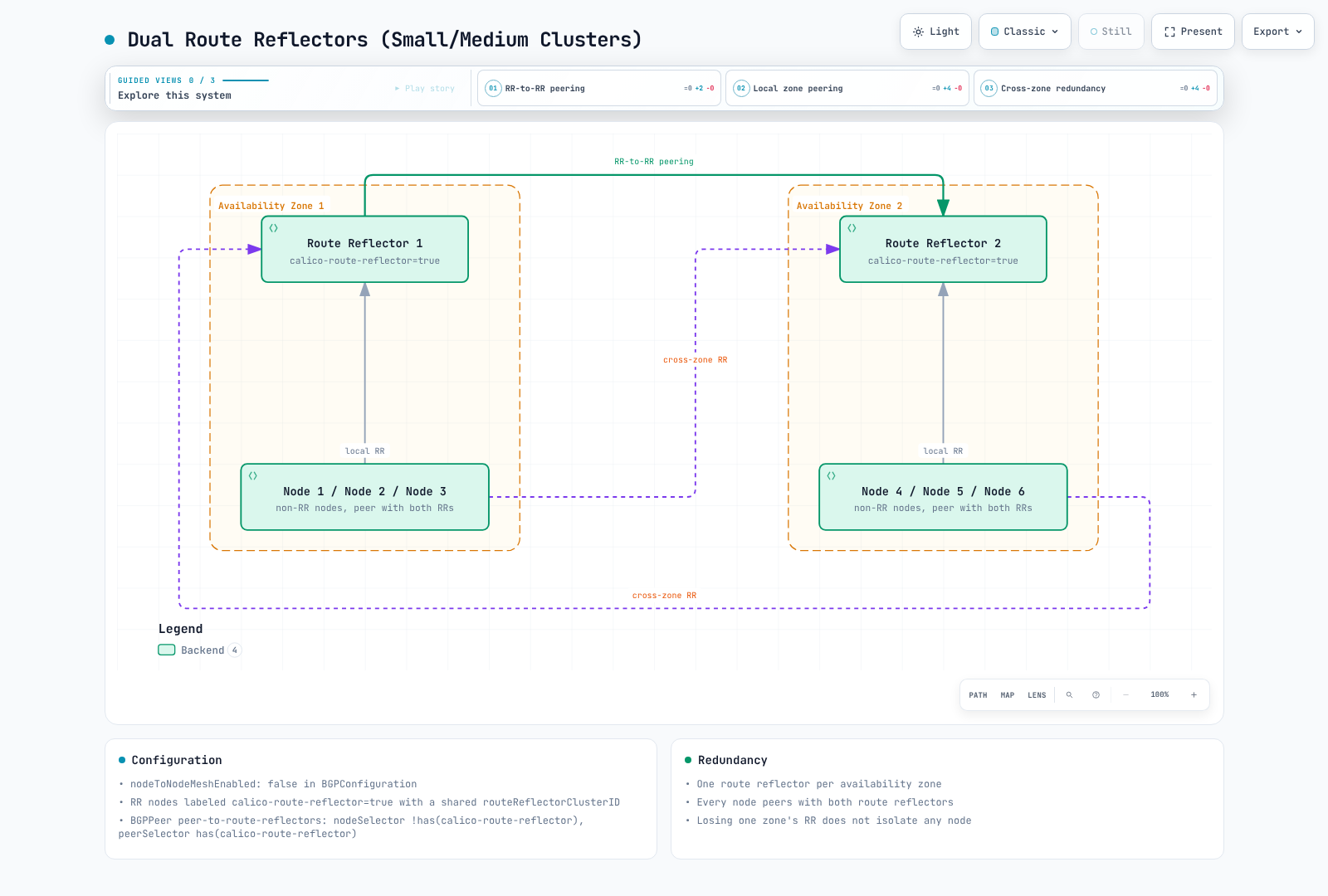

Each zone’s clients peer with both route reflectors placed in separate zones.

Each zone’s clients peer with both route reflectors placed in separate zones.Open full screen ↗

This provides a redundant route-distribution path for surviving clients when one RR is lost, provided transport, forwarding and remaining capacity are healthy. It does not preserve workloads located in a failed zone.

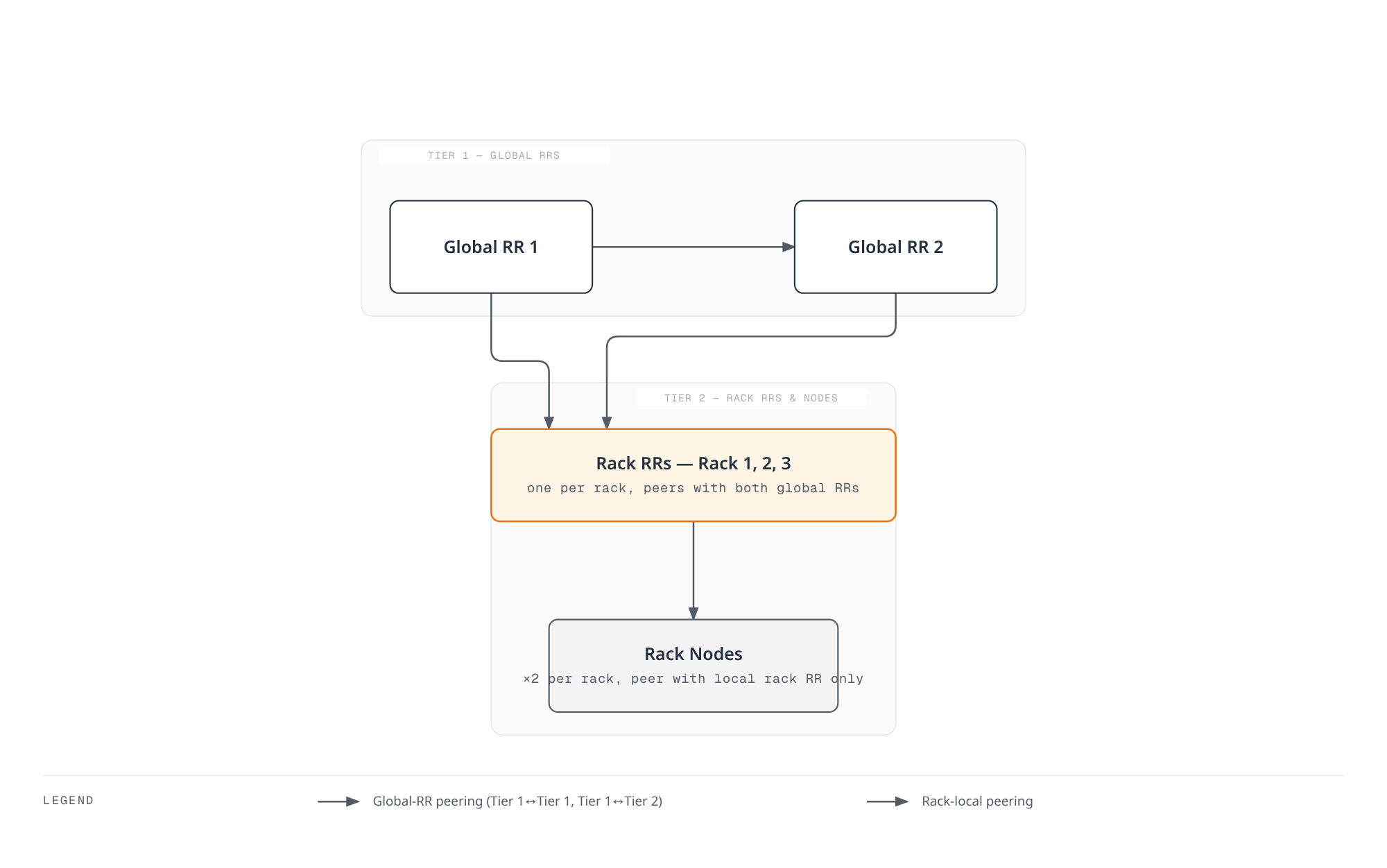

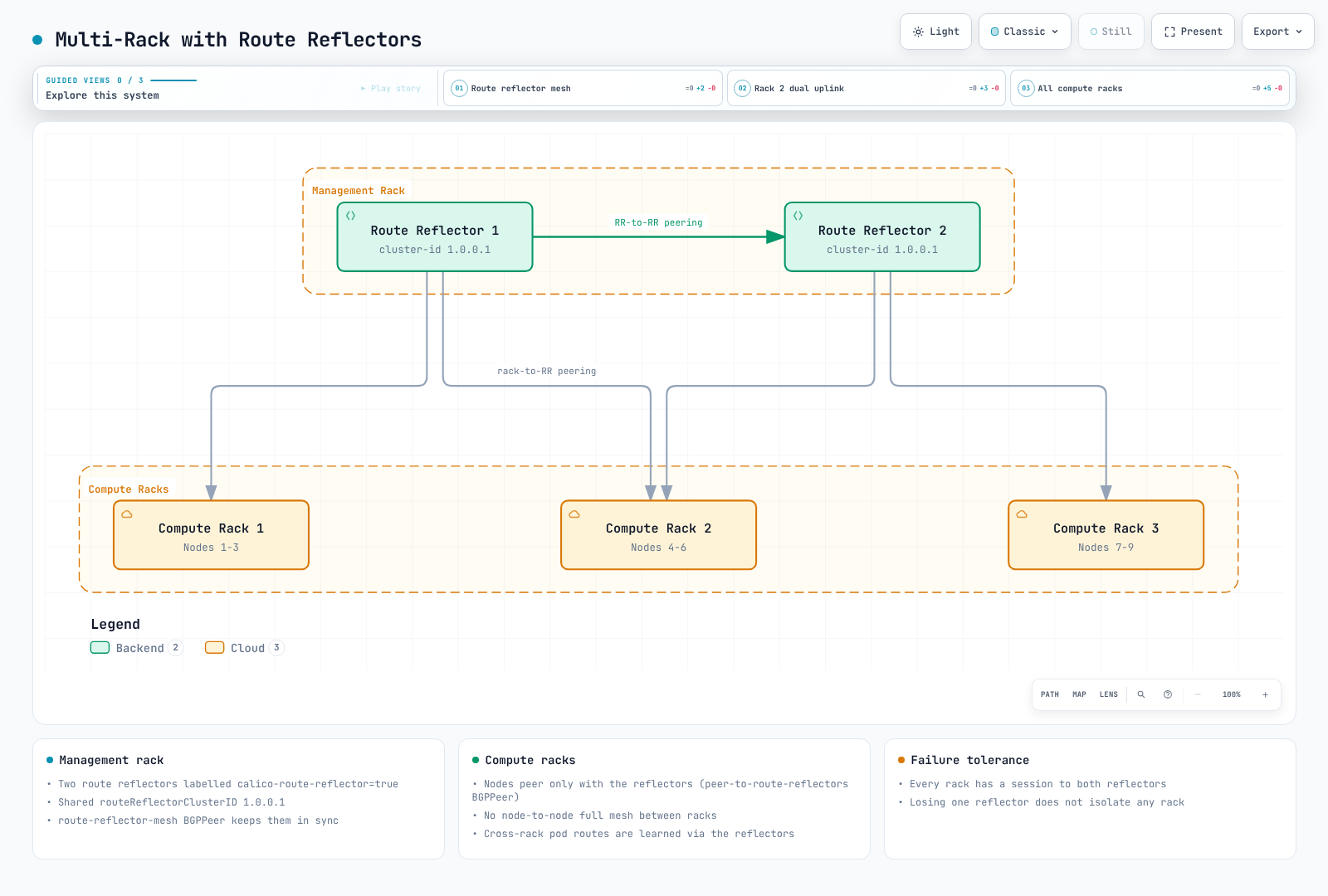

Pattern 2: Hierarchical Route Reflectors

Rack-level RRs can peer with global RRs to reduce per-node session fan-out. Total sessions still grow with clients and racks. A single RR per rack remains a failure point even if global RRs are redundant; evaluate each tier's redundancy, cluster IDs, reflection rules, reachability and convergence before adopting a hierarchy.

BGPPeer Resource

The BGPPeer resource defines BGP peering relationships between Calico nodes and external BGP speakers.

BGPPeer Scope Types

Type	Description	Use Case
Global	Applies to all nodes	External router peering
Node-specific	Uses nodeSelector	Rack-local peering
Per-node	Specifies exact node	Special configurations

Global BGPPeer Example

Peer all nodes with external ToR switches:

yaml

apiVersion: projectcalico.org/v3
kind: BGPPeer
metadata:
  name: peer-to-tor-switches
spec:
  peerIP: 10.0.0.1
  asNumber: 65001
  # No nodeSelector means all nodes peer with this address

Node-Specific BGPPeer Example

Peer nodes in specific racks with their local ToR switch:

yaml

apiVersion: projectcalico.org/v3
kind: BGPPeer
metadata:
  name: rack1-tor-peer
spec:
  nodeSelector: rack == 'rack1'
  peerIP: 10.0.1.1
  asNumber: 65001
---
apiVersion: projectcalico.org/v3
kind: BGPPeer
metadata:
  name: rack2-tor-peer
spec:
  nodeSelector: rack == 'rack2'
  peerIP: 10.0.2.1
  asNumber: 65002

BGPPeer with peerSelector

Use peerSelector to dynamically select Calico nodes as peers:

yaml

apiVersion: projectcalico.org/v3
kind: BGPPeer
metadata:
  name: client-to-rr-peering
spec:
  nodeSelector: "!has(route-reflector)"
  peerSelector: has(route-reflector)

Advanced BGPPeer Configuration

Create the referenced Secret and the tor-policy BGPFilter from the security section first. This example assumes a directly connected peer with matching GTSM and authentication settings.

yaml

apiVersion: projectcalico.org/v3
kind: BGPPeer
metadata:
  name: advanced-peer
spec:
  node: specific-node-name
  peerIP: 192.168.1.1
  asNumber: 65100
  password:
    secretKeyRef:
      name: bgp-secrets
      key: datacenter-password
  keepaliveTime: 30s
  maxRestartTime: 120s
  sourceAddress: UseNodeIP
  nextHopMode: Auto
  ttlSecurity: 1
  filters:
    - tor-policy

Field	Meaning in Calico 3.32.2
`keepaliveTime`	Duration string; the lowercase `a` is significant. Verified against the released CRD and renderer.
`maxRestartTime`	Graceful-restart time advertised to the neighbor; not a connection-retry interval.
`sourceAddress`	`UseNodeIP` or `None`; a literal source IP is not accepted.
`filters`	Names of existing `BGPFilter` resources, not embedded rule objects.
`ttlSecurity`	GTSM path length in edges; `1` means a directly connected peer.
`numAllowedLocalASNumbers`	Allowed occurrences of the local ASN in a received AS_PATH; relaxes loop prevention, not a multihop setting. Leave unset unless the routing design requires it.

The current BGPPeer API has no holdTime, keepAliveTime or restartTime field. nextHopMode is Auto, Self or Keep; the older keepOriginalNextHop field is deprecated, not removed.

BGPConfiguration Resource

The BGPConfiguration resource defines cluster-wide BGP settings.

Basic BGPConfiguration

yaml

apiVersion: projectcalico.org/v3
kind: BGPConfiguration
metadata:
  name: default
spec:
  # Cluster AS number
  asNumber: 64512

  # Set topology separately after validating its peerings.
  # Log level for BIRD
  logSeverityScreen: Info

Service IP Advertisement

Calico can advertise existing Service IPs to an authorized routed network. Advertisement does not allocate the IP, create a cloud load balancer, or guarantee a reachable return path. The CIDRs below are examples: merge only the required ranges into the existing configuration and retain other settings.

yaml

apiVersion: projectcalico.org/v3
kind: BGPConfiguration
metadata:
  name: default
spec:
  asNumber: 64512

  # Advertise Service ClusterIPs
  serviceClusterIPs:
    - cidr: 10.96.0.0/12

  # Advertise Service ExternalIPs
  serviceExternalIPs:
    - cidr: 203.0.113.0/24

  # Advertise Service LoadBalancerIPs
  serviceLoadBalancerIPs:
    - cidr: 198.51.100.0/24

BGP Communities Configuration

prefixAdvertisements adds communities to matching existing routes, including Pod routes in the current renderer. It does not originate the listed prefix or aggregate all Pod blocks into that prefix. Named communities take effect only when referenced; their names and arbitrary values do not implement a routing policy by themselves.

yaml

apiVersion: projectcalico.org/v3
kind: BGPConfiguration
metadata:
  name: default
spec:
  asNumber: 64512

  # Community tagging for pod networks
  prefixAdvertisements:
    - cidr: 10.244.0.0/16
      communities:
        - "64512:100"  # Standard community
        - "64512:200"
    - cidr: 10.96.0.0/12
      communities:
        - "64512:300"  # Service IPs community

  # Named aliases, referenced by prefixAdvertisements in this configuration
  communities:
    - name: pod-networks
      value: "64512:100"
    - name: service-networks
      value: "64512:300"
    - name: no-export
      value: "65535:65281"  # Well-known NO_EXPORT

Node-Specific AS Number

For a Kubernetes datastore, annotate the existing node to preserve its addresses and other fields. Changing an ASN resets affected peerings; coordinate both endpoints and the routing topology.

bash

kubectl annotate node border-node-1 projectcalico.org/ASNumber=65001

For an existing annotation, update it through the configuration owner after reviewing its current value. Other datastores use the Calico Node API; do not replace an existing Node with a partial example containing invented addresses.

Service IP Advertisement

Advertisement Types and Forwarding

Type	Address owner and prerequisite
ClusterIP	Kubernetes allocates it; advertising the Service CIDR exposes a route into the service network.
ExternalIP	The operator must already own and route the assigned address. `spec.externalIPs` is deprecated since Kubernetes 1.36; existing support is not removal.
LoadBalancer IP	A compatible controller allocates it. Calico can allocate owned VIPs itself, or interoperate with an explicitly chosen allocator. A cloud LB hostname is not an IP prefix.

With the default aggregation behavior, Cluster-mode Services use configured aggregate advertisements, while Local-mode Services use host routes (/32 or /128) from nodes with ready local endpoints. Explicit host-prefix ranges and Calico 3.32’s serviceLoadBalancerAggregation setting can change the advertised routes; inspect the actual RIB/export rather than inferring it solely from the Service type. Validate endpoints, the Service dataplane, upstream ECMP and return paths. This is distinct from Pod IPAM block advertisement.

Native Calico LoadBalancer IPAM

Calico 3.32 includes a LoadBalancer controller in calico-kube-controllers. It requires an IPPool with allowedUses: [LoadBalancer]; the standard Pod pool does not supply those addresses automatically. Confirm that controller is enabled. This standalone bare-metal example also assumes an existing calico-demo namespace and ready app=my-app endpoints serving the stated port. Replace the documentation range with an owned, routable range.

yaml

apiVersion: projectcalico.org/v3
kind: IPPool
metadata:
  name: service-lb-pool
spec:
  cidr: 198.51.100.0/24
  allowedUses:
    - LoadBalancer
  assignmentMode: Automatic
---
apiVersion: projectcalico.org/v3
kind: BGPConfiguration
metadata:
  name: default
spec:
  serviceLoadBalancerIPs:
    - cidr: 198.51.100.0/24
---
apiVersion: v1
kind: Service
metadata:
  name: my-lb-service
  namespace: calico-demo
  annotations:
    projectcalico.org/loadBalancerIPs: '["198.51.100.50"]'
spec:
  type: LoadBalancer
  loadBalancerClass: calico
  externalTrafficPolicy: Local
  selector:
    app: my-app
  ports:
    - port: 443
      targetPort: 8443

The explicit projectcalico.org/loadBalancerIPs request must belong to an eligible pool and be available; it does not fall back to another address if allocation fails. Allocation and BGP advertisement are separate. Review the controller's assignIPs mode before changing it: RequestedServicesOnly can unassign existing unannotated Services. Preserve existing pool and controller ownership.

MetalLB is an alternative allocator: its current requested-IP annotation is metallb.io/loadBalancerIPs. Choose allocation and BGP-speaker ownership deliberately rather than running competing allocators/speakers for the same VIP. Do not advertise AWS-managed load balancer addresses as a locally owned pool.

Selective Service Advertisement

There is no documented Calico Service opt-out annotation named projectcalico.org/bgp-advertise. Select advertised ranges in BGPConfiguration, and apply peer-specific BGPFilters where needed. The supported node label node.kubernetes.io/exclude-from-external-load-balancers=true excludes a node; it is not a per-Service opt-out.

Rejecting one /32 does not make an IP unreachable if a covering Service aggregate is still advertised. For a Service that must remain internal, ensure no advertised range covers it and enforce access policy independently; route filtering is not an authorization boundary.

Physical Network Integration

ToR Routing Policy and Vendor Adaptation

Configure the router's ASN, node neighbors, address family, authentication, import/export policy and reachable next hops as one design. Decide whether nodes use a pre-existing underlay default route or receive a default from BGP. network originates an existing matching route; it is not a command to accept routes from a neighbor. Broad redistribute connected can leak unrelated networks.

Platform	Adaptation required
Cisco IOS XE / NX-OS	Use the exact platform/release syntax. IOS XE dynamic neighbors use a peer group and `bgp listen range`; do not combine IOS and NX-OS command hierarchies. Define every referenced route map and prefix list.
Arista EOS	Use the deployed release’s peer-group, address-family, secret and import/export policy configuration. The former unverified EOS command block is not a runnable recipe.
Junos	A plain prefix-list match is exact. Use an explicit route-filter match type when more-specific routes are intended.

For example, this Junos policy fragment, attached as import policy on the ToR's intended node-facing BGP group, accepts planned Pod /26–/32 routes and LoadBalancer /32 routes, then rejects the rest:

text

policy-options {
    policy-statement K8S-IMPORT {
        term approved {
            from {
                route-filter 10.244.0.0/16 prefix-length-range /26-/32;
                route-filter 198.51.100.0/24 prefix-length-range /32-/32;
            }
            then accept;
        }
        term reject-rest {
            then reject;
        }
    }
}

The minimum Pod length assumes /26 IPAM blocks; adapt it to the actual pool and route inventory. Borrowed addresses and some mobility paths can require /32 routes, so le 26 is not a generally safe Pod filter. This fragment neither creates neighbors nor advertises a default route. Vendor device configuration and failover have not been runtime tested here; complete and validate export policy, limits and next-hop behavior on the exact router release before deployment.

Spine-Leaf Architecture Integration

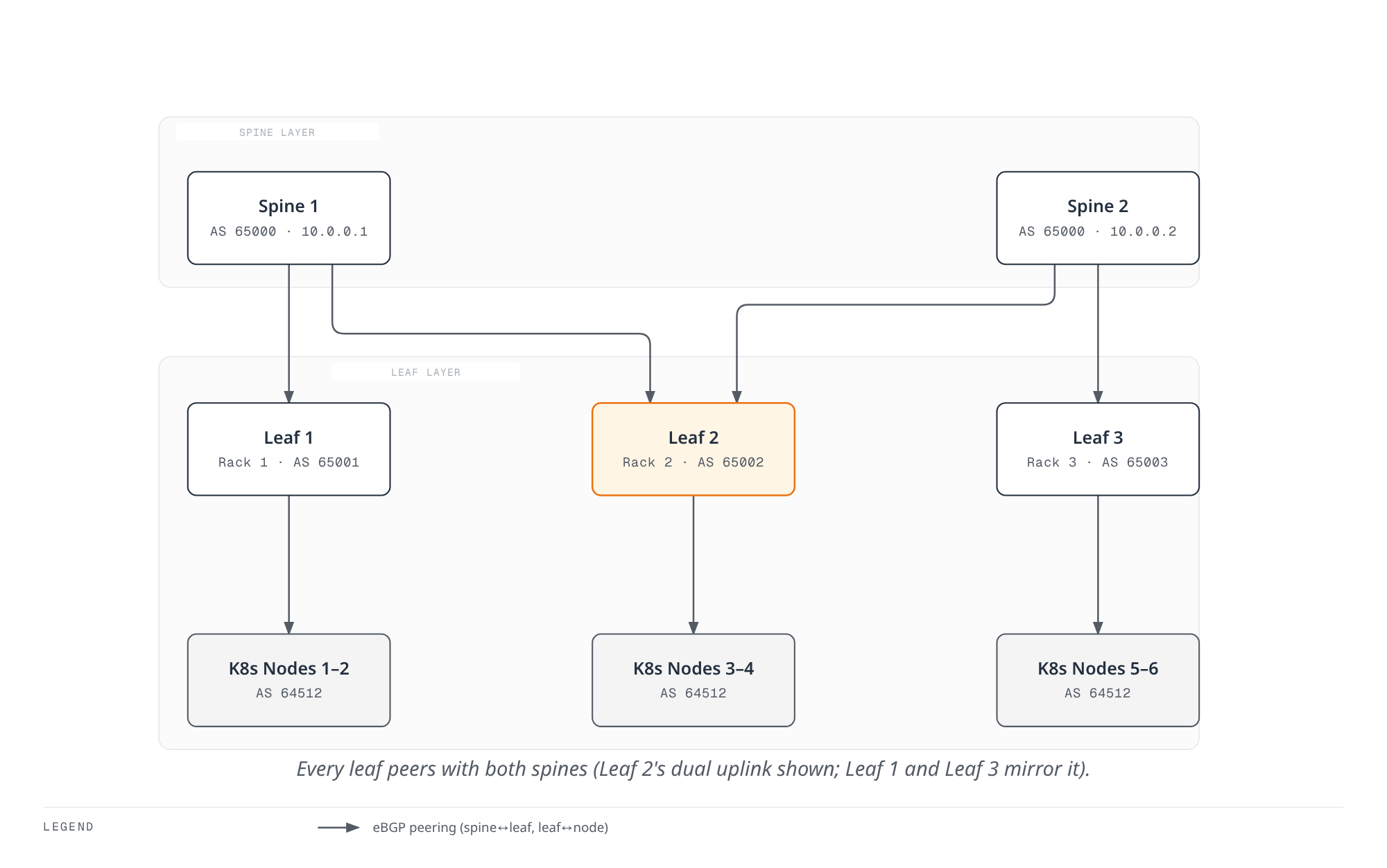

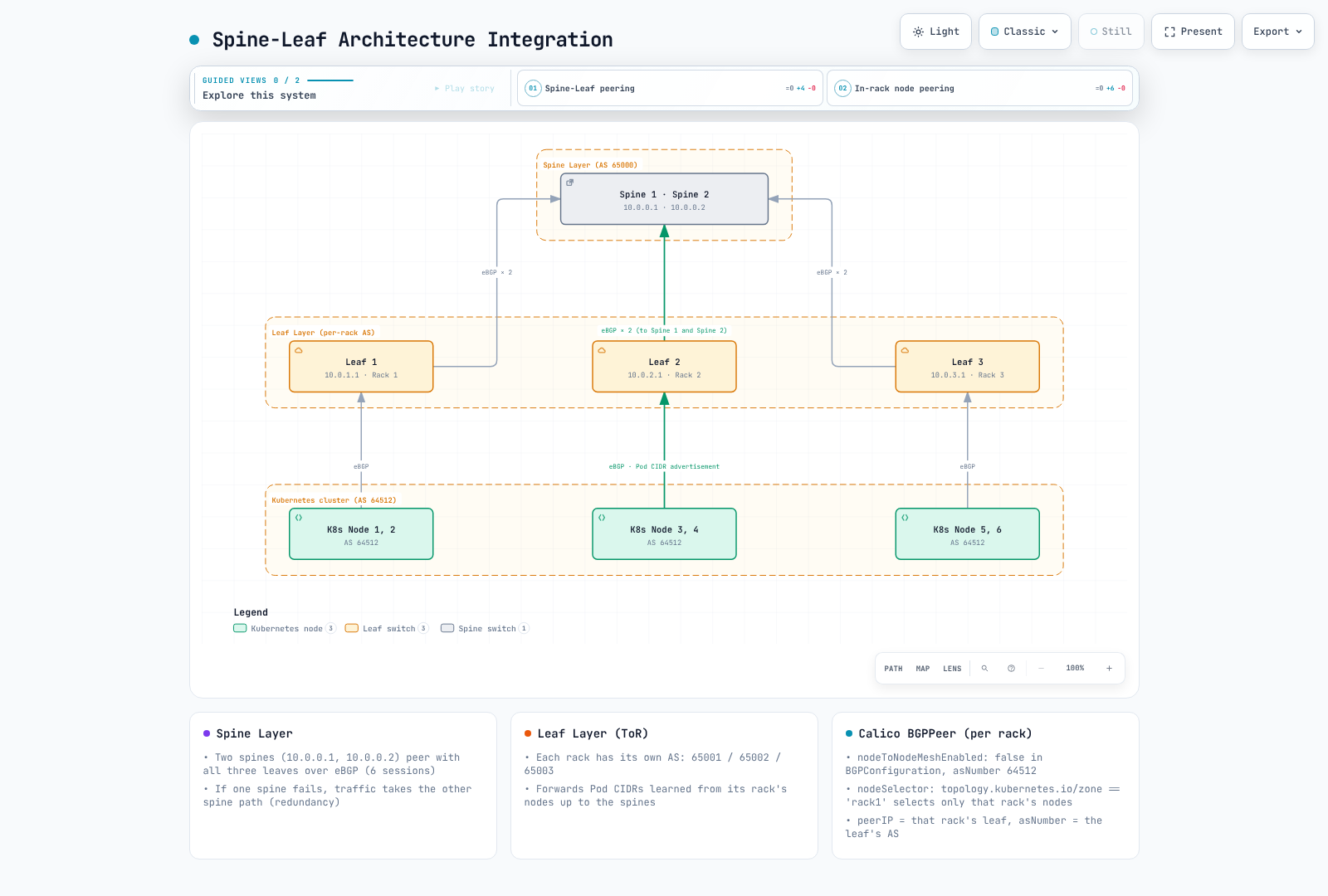

Nodes peer with local leaf switches, which connect to the spine layer.

Nodes peer with local leaf switches, which connect to the spine layer.Open full screen ↗

Grouped boxes summarize multiple sessions. The shared node ASN needs an explicit AS-loop/override design; dual spines alone do not provide leaf or node-uplink redundancy. Use the addresses and ASNs as an illustrative topology, not a complete deployable configuration.

Calico peer fragments for a spine-leaf design follow. Confirm node labels, direct/recursive next-hop reachability, export policies and the return path first. Reusing ASN 64512 on nodes across racks can cause a route to be rejected when its AS_PATH contains the receiving node's ASN; design unique ASNs or a deliberately validated fabric AS-override/loop policy. Do not work around this by blindly raising numAllowedLocalASNumbers. Validate the replacement path before removing mesh sessions.

yaml

# Final topology alternative: establish fabric peerings before removing mesh.
apiVersion: projectcalico.org/v3
kind: BGPConfiguration
metadata:
  name: default
spec:
  asNumber: 64512

---
# Peer nodes with their local leaf switch
apiVersion: projectcalico.org/v3
kind: BGPPeer
metadata:
  name: rack1-leaf-peer
spec:
  nodeSelector: topology.kubernetes.io/zone == 'rack1'
  peerIP: 10.0.1.1
  asNumber: 65001

---
apiVersion: projectcalico.org/v3
kind: BGPPeer
metadata:
  name: rack2-leaf-peer
spec:
  nodeSelector: topology.kubernetes.io/zone == 'rack2'
  peerIP: 10.0.2.1
  asNumber: 65002

---
apiVersion: projectcalico.org/v3
kind: BGPPeer
metadata:
  name: rack3-leaf-peer
spec:
  nodeSelector: topology.kubernetes.io/zone == 'rack3'
  peerIP: 10.0.3.1
  asNumber: 65003

BGP Community Tagging Strategy

Community Design Patterns

The private values below are a local convention requiring router policy; they are not built-in priority controls. Standard communities contain two 16-bit values. Large communities contain three 32-bit values and can represent a four-byte ASN without squeezing it into a standard community.

Community	Meaning	Action
`64512:100`	Pod Networks	Accept, normal routing
`64512:200`	Service IPs	Accept, may apply special policy
`64512:300`	Infrastructure	Higher priority routing
`65535:65281`	NO_EXPORT	Do not advertise outside the AS confederation boundary (outside the AS when no confederation is used)
`65535:65282`	NO_ADVERTISE	Do not advertise to any peer

Community-Based Traffic Engineering

yaml

apiVersion: projectcalico.org/v3
kind: BGPConfiguration
metadata:
  name: default
spec:
  asNumber: 64512

  communities:
    - name: production
      value: "64512:100"
    - name: staging
      value: "64512:200"
    - name: local-only
      value: "65535:65281"  # NO_EXPORT

  prefixAdvertisements:
    # Tag existing production routes; actual propagation follows routing policy
    - cidr: 10.244.0.0/17
      communities:
        - production

    # Add NO_EXPORT to existing staging routes
    - cidr: 10.244.128.0/17
      communities:
        - staging
        - local-only

    # Service IPs
    - cidr: 10.96.0.0/12
      communities:
        - production

BGP Security

MD5 Authentication

Calico supports the TCP MD5 signature option for BGP. It authenticates traffic from peers sharing the secret; it does not encrypt traffic or validate the legitimacy of routes sent by an authenticated peer.

Provision bgp-secrets through your secret-management process in the namespace where calico-node runs (calico-system for the operator installation used here; manifest installations may use kube-system). The example requires the datacenter-password key. Other examples referencing mesh-password, rack-specific or leaf-specific keys require those keys too. Configure matching credentials on the corresponding routers and confirm the Calico service account can read the Secret.

yaml

apiVersion: projectcalico.org/v3
kind: BGPPeer
metadata:
  name: secure-peer
spec:
  peerIP: 192.168.1.1
  asNumber: 65100
  password:
    secretKeyRef:
      name: bgp-secrets
      key: datacenter-password

Prefix Filtering

Rules are evaluated in order; the first match executes immediately. Unmatched routes default to Accept, so a whitelist needs an unconditional final Reject. Equal 0.0.0.0/0 matches only the default route; In 0.0.0.0/0 matches every IPv4 route and NotIn 0.0.0.0/0 matches none.

The following external-peer example accepts only a default route and the planned underlay 10.0.0.0/16 on import. On export it allows actual Pod /26–/32 routes and LoadBalancer /32 routes. Adapt the CIDRs and lengths to the actual route inventory; do not attach this external policy indiscriminately to RR/client sessions.

yaml

apiVersion: projectcalico.org/v3
kind: BGPFilter
metadata:
  name: tor-policy
spec:
  importV4:
    - action: Accept
      matchOperator: Equal
      cidr: 0.0.0.0/0
    - action: Accept
      matchOperator: In
      cidr: 10.0.0.0/16
    - action: Reject
  exportV4:
    - action: Accept
      matchOperator: In
      cidr: 10.244.0.0/16
      prefixLength:
        min: 26
        max: 32
      operations:
        - addCommunity:
            value: "64512:100"
    - action: Accept
      matchOperator: In
      cidr: 198.51.100.0/24
      prefixLength:
        min: 32
        max: 32
    - action: Reject
---
apiVersion: projectcalico.org/v3
kind: BGPPeer
metadata:
  name: filtered-peer
spec:
  peerIP: 192.168.1.1
  asNumber: 65100
  filters:
    - tor-policy

prefixLength is an object with min and max, not a range string. Calico 3.32 also supports accepted-route operations such as addCommunity. An explicit export Accept returns before the built-in Calico export/aggregation/prefixAdvertisements processing. It may therefore export more-specific routes already in the RIB, and this example adds its Pod tag directly in the rule. Inspect show route export before applying it to the fabric; a BGPFilter does not create missing routes.

GTSM (TTL Security)

GTSM rejects packets arriving with a TTL below the expected path threshold; it reduces off-path spoofing exposure but does not authenticate the peer or stop an on-link attacker. Configure both endpoints consistently.

yaml

apiVersion: projectcalico.org/v3
kind: BGPPeer
metadata:
  name: gtsm-enabled-peer
spec:
  peerIP: 192.168.1.1
  asNumber: 65100
  ttlSecurity: 1

For the pinned BIRD implementation, GTSM sends TTL 255 and sets minimum receive TTL to 256−hops. Thus ttlSecurity: 1 requires 255, not 254; two edges require at least 254. Verify the actual path before enabling it. This setting is unrelated to the count of local ASNs allowed in AS_PATH.

Performance Tuning

BGP Timer Configuration

yaml

apiVersion: projectcalico.org/v3
kind: BGPPeer
metadata:
  name: tuned-peer
spec:
  peerIP: 192.168.1.1
  asNumber: 65100
  keepaliveTime: 20s
  maxRestartTime: 120s

The pinned BIRD fork proposes a 240-second Hold Time by default and negotiates the smaller value with the neighbor. If no keepalive interval is configured, it uses one third of that negotiated Hold Time. An explicit keepaliveTime overrides the interval; it does not automatically change Hold Time to three times that value. Inspect the actual negotiated timers and choose an interval that fits them.

BGPPeer does not expose holdTime. The former 60/180, 10/30 and 3/9 recommendations were not verified Calico defaults or failure-detection guarantees. BIRD's standalone BFD capability does not imply a supported Calico BFD CRD or configuration field. Test any separate BFD integration against the exact supported deployment rather than adding an invented field.

Route Aggregation

Calico normally aggregates local IPAM addresses into their allocated blocks; the current BIRD aggregation template also permits higher-priority more-specific routes. Borrowing and mobility may require host routes. prefixAdvertisements only tags existing matching routes and does not turn every /26 into an originated /16.

Larger IPAM blocks trade fewer block routes against allocation granularity and address utilization. Existing IPPool blockSize is immutable; use the pool migration procedure in networking modes if a new pool is required. Do not apply a new block size over an existing default pool or advertise a covering aggregate from a router that cannot reach all covered destinations.

Graceful Restart

Calico's BIRD template enables Graceful Restart. Its benefit requires negotiated capability and a still-working forwarding path; retained stale routes can otherwise blackhole traffic. It does not guarantee interruption-free updates.

For explicit peers, BGPPeer.maxRestartTime sets the advertised restart time. The following setting applies to automatic node mesh sessions, not every explicit peer:

yaml

apiVersion: projectcalico.org/v3
kind: BGPConfiguration
metadata:
  name: default
spec:
  nodeMeshMaxRestartTime: 120s

This is a duration string, not an integer or an enable switch. Change it through the existing configuration owner and validate actual peer capability and recovery behavior.

Debugging BGP

Inspect BIRD from the Correct Node

Choose an actual node and the installation namespace. These read-only commands run from the operator's shell against the IPv4 BIRD control socket. For IPv6 use birdcl6 and /var/run/calico/bird6.ctl. A BGP-disabled installation need not have either daemon.

bash

CALICO_NAMESPACE=calico-system
CALICO_NODE=worker-1
CALICO_POD="$(kubectl -n "$CALICO_NAMESPACE" get pods -l k8s-app=calico-node \
  --field-selector "spec.nodeName=$CALICO_NODE" -o jsonpath='{.items[0].metadata.name}')"
test -n "$CALICO_POD"
kubectl -n "$CALICO_NAMESPACE" exec "$CALICO_POD" -c calico-node -- \
  birdcl -s /var/run/calico/bird.ctl show protocols all
kubectl -n "$CALICO_NAMESPACE" exec "$CALICO_POD" -c calico-node -- \
  birdcl -s /var/run/calico/bird.ctl show route

bash

CALICO_BGP_PROTOCOL=Global_192_168_1_1
kubectl -n "$CALICO_NAMESPACE" exec "$CALICO_POD" -c calico-node -- \
  birdcl -s /var/run/calico/bird.ctl show protocols all "$CALICO_BGP_PROTOCOL"
kubectl -n "$CALICO_NAMESPACE" exec "$CALICO_POD" -c calico-node -- \
  birdcl -s /var/run/calico/bird.ctl show route export "$CALICO_BGP_PROTOCOL"
kubectl -n "$CALICO_NAMESPACE" exec "$CALICO_POD" -c calico-node -- \
  birdcl -s /var/run/calico/bird.ctl show route protocol "$CALICO_BGP_PROTOCOL"
kubectl -n "$CALICO_NAMESPACE" exec "$CALICO_POD" -c calico-node -- \
  birdcl -s /var/run/calico/bird.ctl 'show route where net ~ [10.244.0.0/16+]'

bash

kubectl get bgpconfiguration.projectcalico.org default -o yaml
kubectl get bgppeers.projectcalico.org -o wide
kubectl get bgpfilters.projectcalico.org -o yaml
kubectl -n "$CALICO_NAMESPACE" logs "$CALICO_POD" -c calico-node --tail=200

Replace CALICO_BGP_PROTOCOL with a name returned by show protocols; actual names include Mesh_…, Global_… and Node_…, not a universal bgp* prefix. Quote route expressions so the local shell does not expand them. show protocols all includes non-BGP protocols too.

Container logs can show startup and confd errors, but absence of matching stdout lines does not prove BIRD is healthy. Inspect the installation's BIRD log destination and session state. calicoctl node status is a node-local diagnostic requiring the node environment, not just a workstation kubeconfig. Likewise, ip route must be inspected on the intended node/network namespace.

Symptom	Checks
Session remains Active	Peer address/ASN, TCP listener and firewall, source address, MD5/GTSM agreement, transport reachability
Established but no useful routes	Import/export filters, RR roles, endpoint/IPAM state, next-hop reachability and AS-loop rejection
Flapping or resets	Transport loss, MTU, authentication, negotiated timers, controller changes
Route exists but traffic fails	Actual kernel/FIB path, return route, Service forwarding, access policy and covering aggregates

Established BGP alone does not prove workload connectivity.

Multi-Rack and Multi-Datacenter Design

Multi-Rack with Route Reflectors

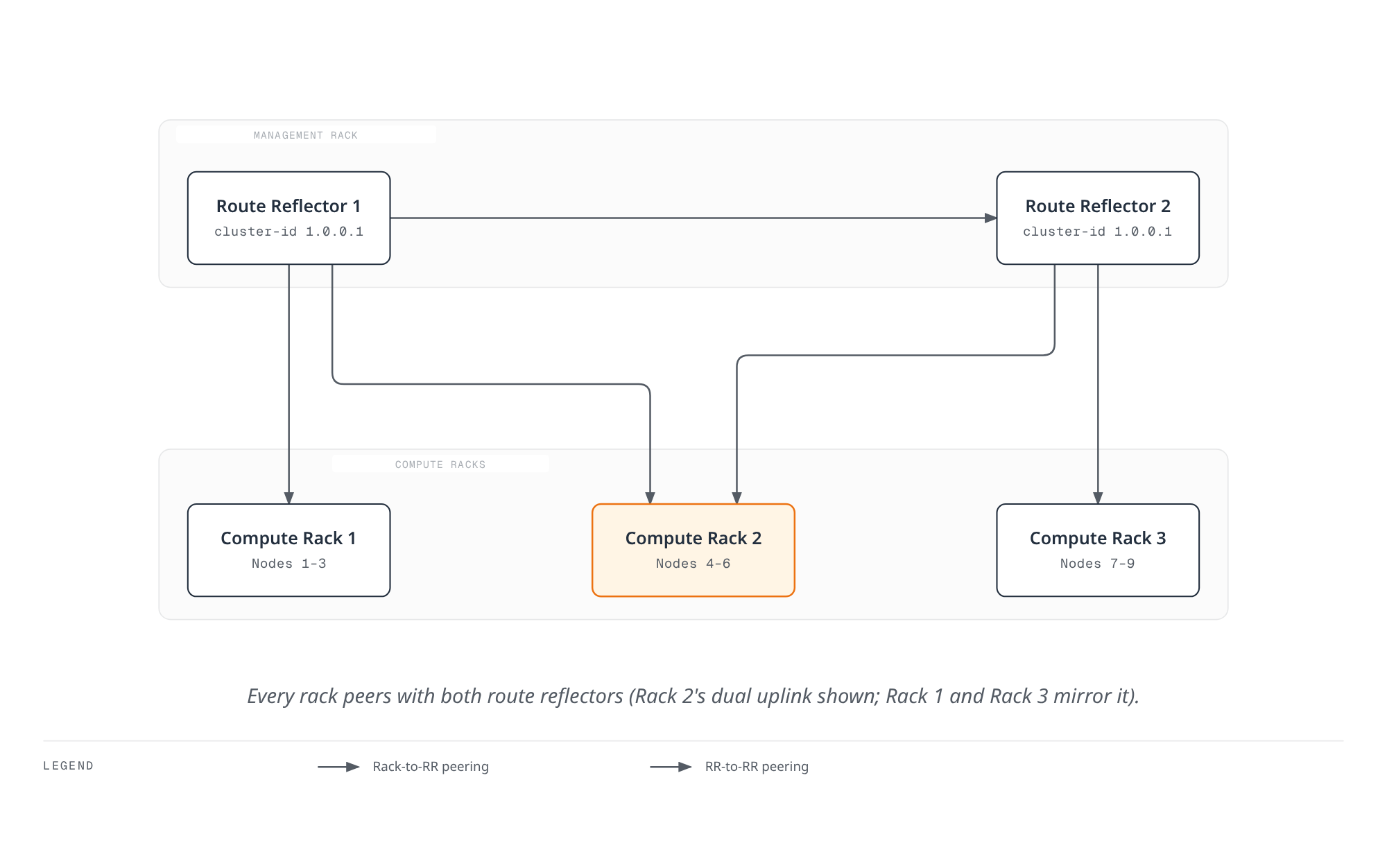

Two route reflectors in one management rack each peer with compute nodes across racks.

Two route reflectors in one management rack each peer with compute nodes across racks.Open full screen ↗

A surviving RR can preserve route distribution only if its transport and capacity remain available. Both RRs in one management rack share that rack’s failure risk; separate failure domains for rack-level resilience.

Multi-Datacenter BGP Design

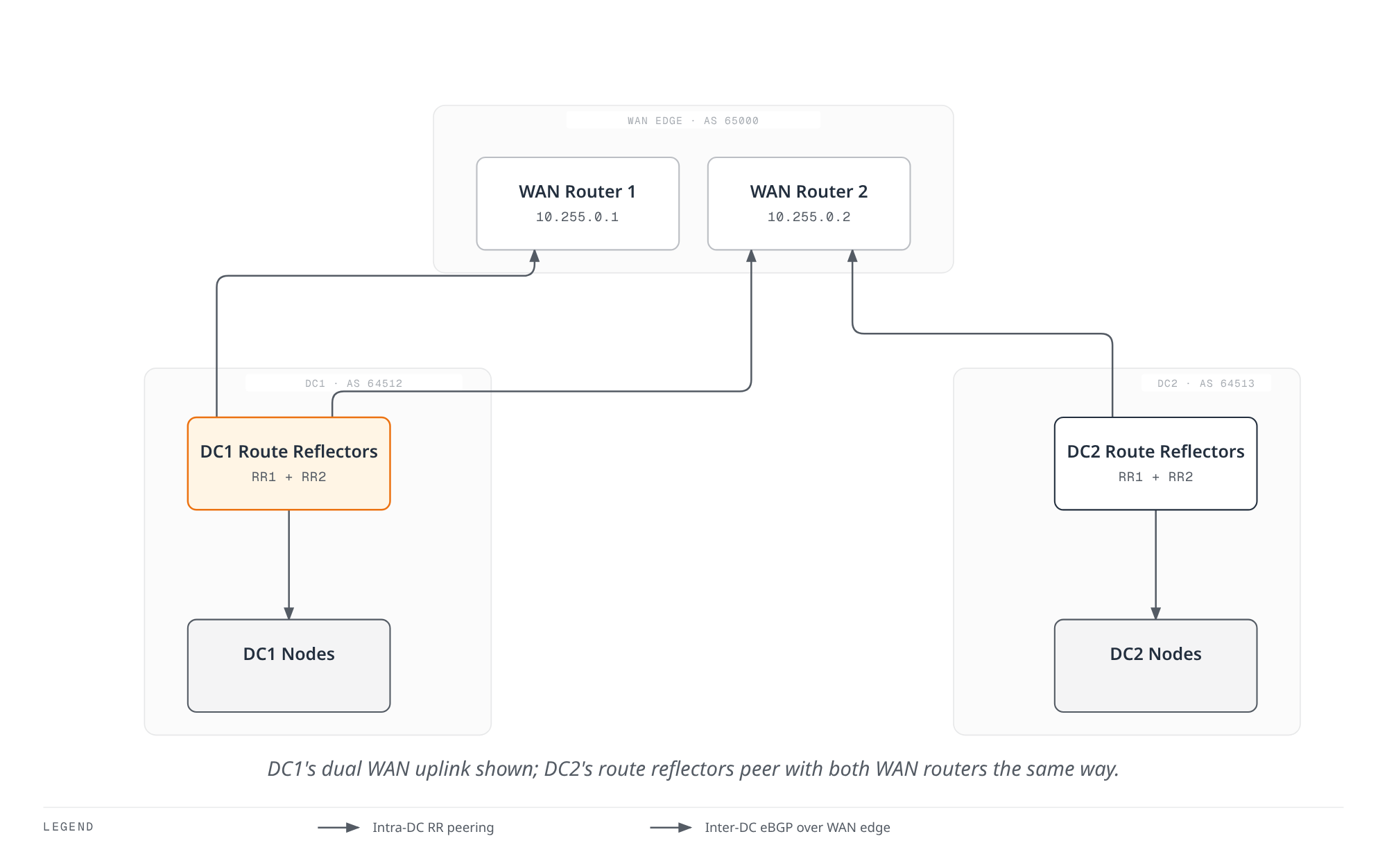

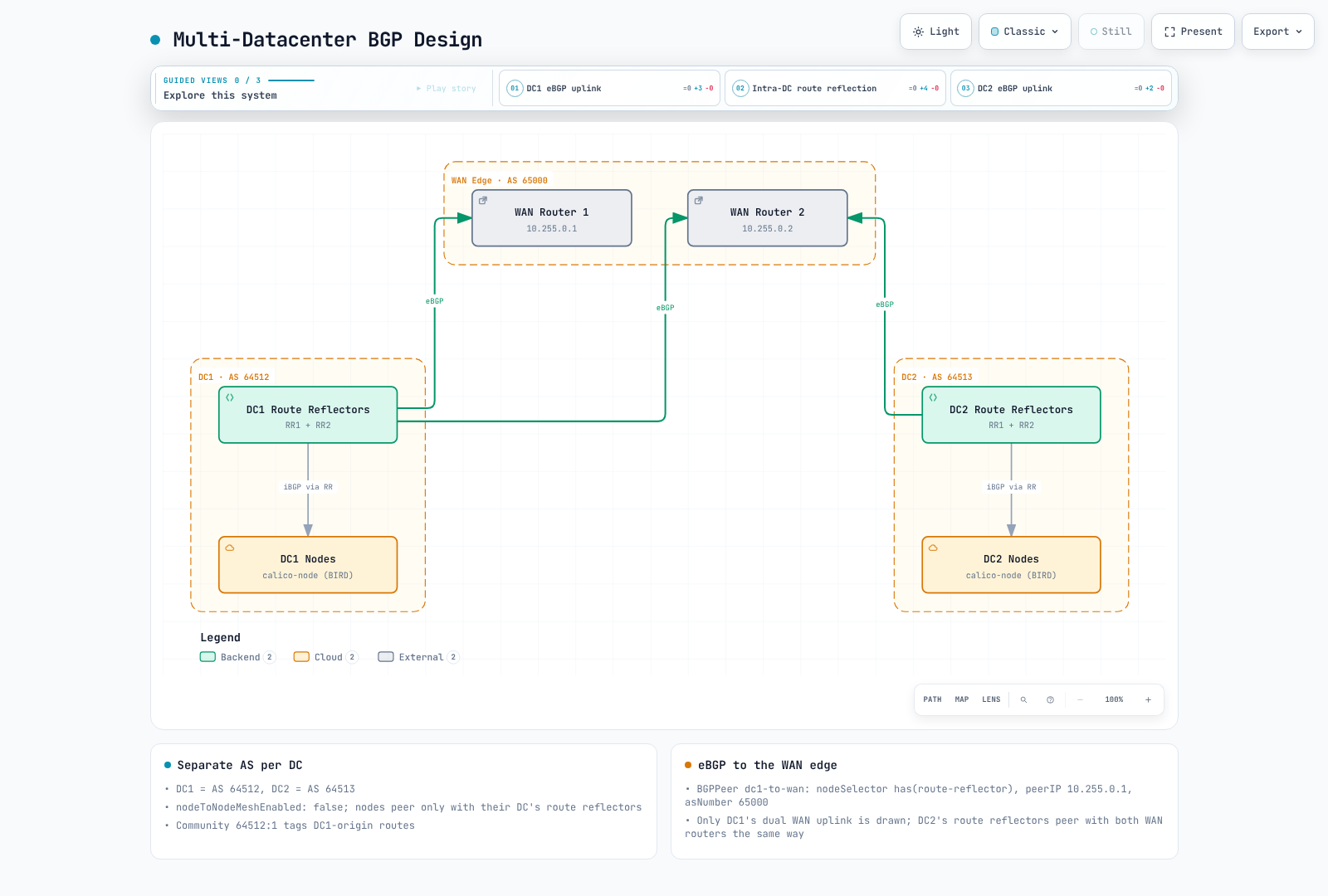

Each datacenter has its own AS and route reflectors peering with WAN routers.

Each datacenter has its own AS and route reflectors peering with WAN routers.Open full screen ↗

The WAN group summarizes transit that must be separately configured; the visible links alone do not establish end-to-end reachability. DC1 origin tagging also requires the prefixAdvertisements reference shown in the text.

DC1 configuration fragments follow, assuming its owned workload CIDR is 10.244.0.0/16 and its local RR topology is already working. A named community must also be referenced by prefixAdvertisements to tag matching routes. DC2 needs its own non-overlapping CIDRs, ASNs and peer definitions; the WAN needs explicit transit/return routing and policy. This fragment is not a complete two-DC deployment.

yaml

# DC1 Configuration
apiVersion: projectcalico.org/v3
kind: BGPConfiguration
metadata:
  name: default
spec:
  asNumber: 64512

  communities:
    - name: dc1-origin
      value: "64512:1"
  prefixAdvertisements:
    - cidr: 10.244.0.0/16
      communities:
        - dc1-origin

---
# Peer DC1 RRs with WAN routers
apiVersion: projectcalico.org/v3
kind: BGPPeer
metadata:
  name: dc1-to-wan
spec:
  nodeSelector: has(route-reflector)
  peerIP: 10.255.0.1  # WAN Router
  asNumber: 65000

Best Practices Summary

Design Recommendations

Size full mesh and RR deployments using measured route count, churn and convergence targets.
Separate redundant RRs across failure domains and verify surviving capacity and transport.
Use rack-aware labels and a documented ASN, CIDR and next-hop plan.
Add a hierarchy only when its reflection/loop rules and per-tier redundancy are understood.
Treat multiple datacenters as a complete routing and security design, not merely two BGPPeer objects.

Security Recommendations

Always enable MD5 authentication for external peers
Implement prefix filtering to prevent route injection
Use GTSM (TTL Security) where supported
Configure supported prefix limits on the external routers; do not invent a Calico BGPPeer limit field.
Monitor BGP sessions for anomalies

Operational Recommendations

Label nodes consistently for BGP topology
Document AS number allocation scheme
Implement BGP monitoring and alerting
Test failover scenarios regularly
Inspect negotiated timers and test recovery; a shorter keepalive is not a guaranteed shorter Hold Time.

Traffic Management

Security

Observability

Resilience

Advanced

Comparison Guide

ArgoCD

Metrics

Logging

Tracing

Alerting

Observability End-to-End Labs

Part 4: BGP Deep Dive ​

Introduction ​

BGP Fundamentals ​

What is BGP? ​

Key BGP Concepts ​

Private AS Number Ranges ​

BGP Route Selection Process ​

iBGP vs eBGP Behavior ​

Calico BGP Architecture ​

BIRD: Calico's BGP Implementation ​

BGP Topology Options ​

Full-Mesh Topology ​

How Full-Mesh Works ​

Session Count Formula ​

Full-Mesh Scaling and Transition ​

Route Reflector Topology ​

Route Reflector Concepts ​

Route Reflector Key Attributes ​

Session Count with Route Reflectors ​

Configuring Route Reflector Nodes ​

Route Reflector Redundancy Patterns ​

BGPPeer Resource ​

BGPPeer Scope Types ​

Global BGPPeer Example ​

Node-Specific BGPPeer Example ​

BGPPeer with peerSelector ​

Advanced BGPPeer Configuration ​

BGPConfiguration Resource ​

Basic BGPConfiguration ​

Service IP Advertisement ​

BGP Communities Configuration ​

Node-Specific AS Number ​

Service IP Advertisement ​

Advertisement Types and Forwarding ​

Native Calico LoadBalancer IPAM ​

Selective Service Advertisement ​

Physical Network Integration ​

ToR Routing Policy and Vendor Adaptation ​

Spine-Leaf Architecture Integration ​

BGP Community Tagging Strategy ​

Community Design Patterns ​

Community-Based Traffic Engineering ​

BGP Security ​

MD5 Authentication ​

Prefix Filtering ​

GTSM (TTL Security) ​

Performance Tuning ​

BGP Timer Configuration ​

Route Aggregation ​

Graceful Restart ​

Part 4: BGP Deep Dive

Introduction

BGP Fundamentals

What is BGP?

Key BGP Concepts

Private AS Number Ranges

BGP Route Selection Process

iBGP vs eBGP Behavior

Calico BGP Architecture

BIRD: Calico's BGP Implementation

BGP Topology Options

Full-Mesh Topology

How Full-Mesh Works

Session Count Formula

Full-Mesh Scaling and Transition

Route Reflector Topology

Route Reflector Concepts

Route Reflector Key Attributes

Session Count with Route Reflectors

Configuring Route Reflector Nodes

Route Reflector Redundancy Patterns

BGPPeer Resource

BGPPeer Scope Types

Global BGPPeer Example

Node-Specific BGPPeer Example

BGPPeer with peerSelector

Advanced BGPPeer Configuration

BGPConfiguration Resource

Basic BGPConfiguration

Service IP Advertisement

BGP Communities Configuration

Node-Specific AS Number

Service IP Advertisement

Advertisement Types and Forwarding

Native Calico LoadBalancer IPAM

Selective Service Advertisement

Physical Network Integration

ToR Routing Policy and Vendor Adaptation

Spine-Leaf Architecture Integration

BGP Community Tagging Strategy

Community Design Patterns

Community-Based Traffic Engineering

BGP Security

MD5 Authentication

Prefix Filtering

GTSM (TTL Security)

Performance Tuning

BGP Timer Configuration

Route Aggregation

Graceful Restart
