Architecture

Reviewed Version: Istio 1.31.0 API Version: networking.istio.io/v1, security.istio.io/v1 Last Updated: September 11, 2026

This document provides an in-depth look at Istio's internal architecture and networking mechanisms.

For background and history, refer to the Basic Concepts document.

Important Changes (Istio 1.5+):

• Pilot, Citadel, Galley are no longer separate components
• They are consolidated into a single binary called Istiod (pilot-discovery)
• Pilot/Citadel/Galley terminology refers to historical names describing functionality

Table of Contents

This chapter primarily describes sidecar mode. Ambient uses Rust-based ztunnel per node and optional L7 waypoint proxies; its interception and DNS paths differ. Mixer was retired, with telemetry moved into proxies, rather than merged into istiod. JSON and injected-pod excerpts below are schematic, not complete deployable manifests.

1. Istio Architecture Overview
2. Control Plane: Istiod
3. Data Plane: Envoy Proxy
4. Sidecar Injection Mechanism
5. iptables and Traffic Interception
6. DNS Processing Mechanism
7. xDS API Communication

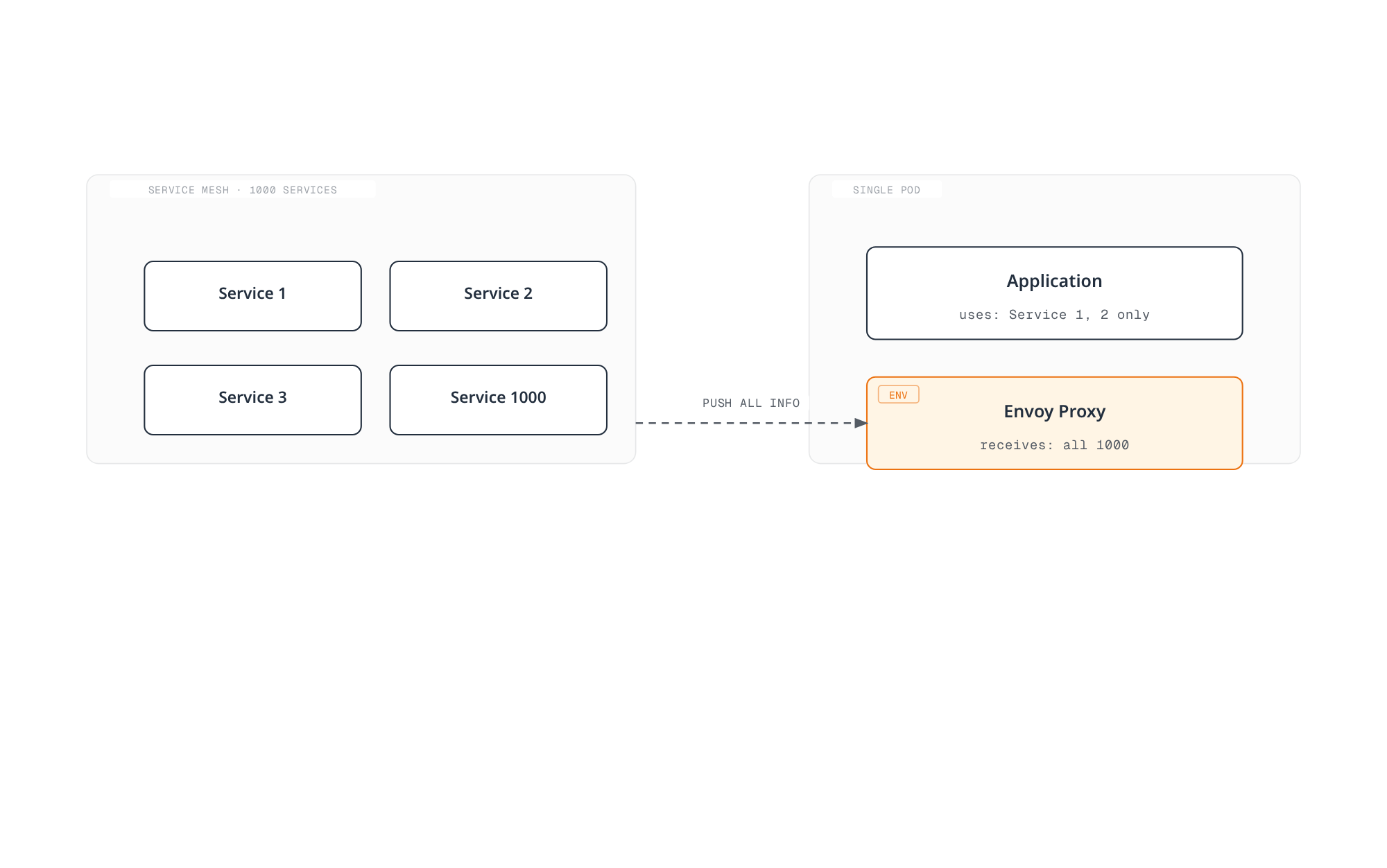

8. Optimization with Sidecar Resource

Istio Architecture Overview

Overall Structure

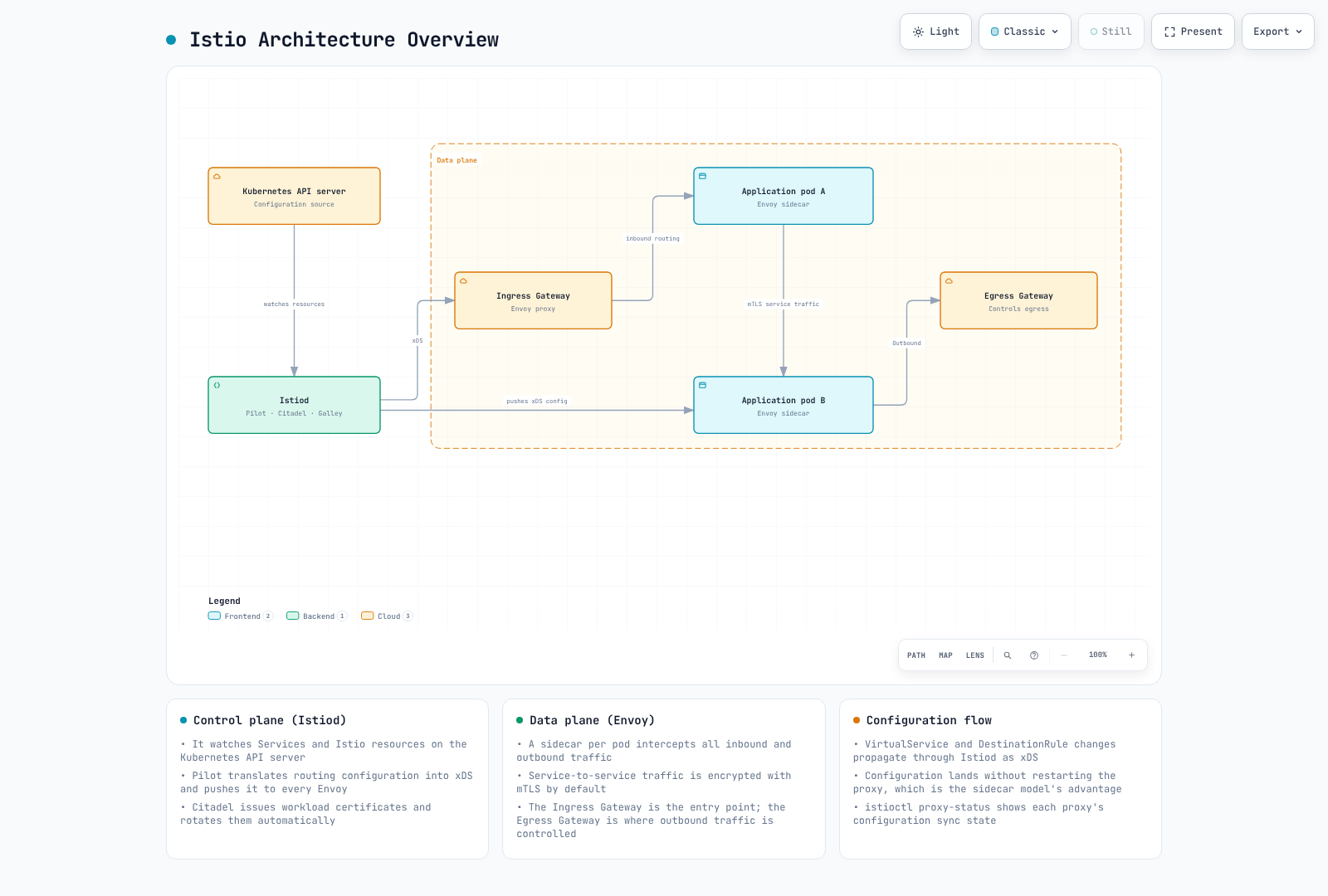

Istio architecture overview: Istiod watches the Kubernetes API server and pushes xDS configuration to the Ingress Gateway and sidecars, while pods talk to each other over mTLS.Open full screen ↗

Control Plane vs Data Plane

Category	Control Plane (Istiod)	Data Plane (Envoy)
Role	Policy management, configuration distribution	Actual traffic processing
Location	Separate pods (typically 1-3)	All application pods
Language	Go	C++
Load	Low	High (all traffic)
Scalability	Horizontal scaling (HA)	Automatic (1 per pod)

Control Plane: Istiod

Istiod Internal Structure

Important: Since Istio 1.5, Pilot, Citadel, and Galley are internal functions of Istiod, not separate components.

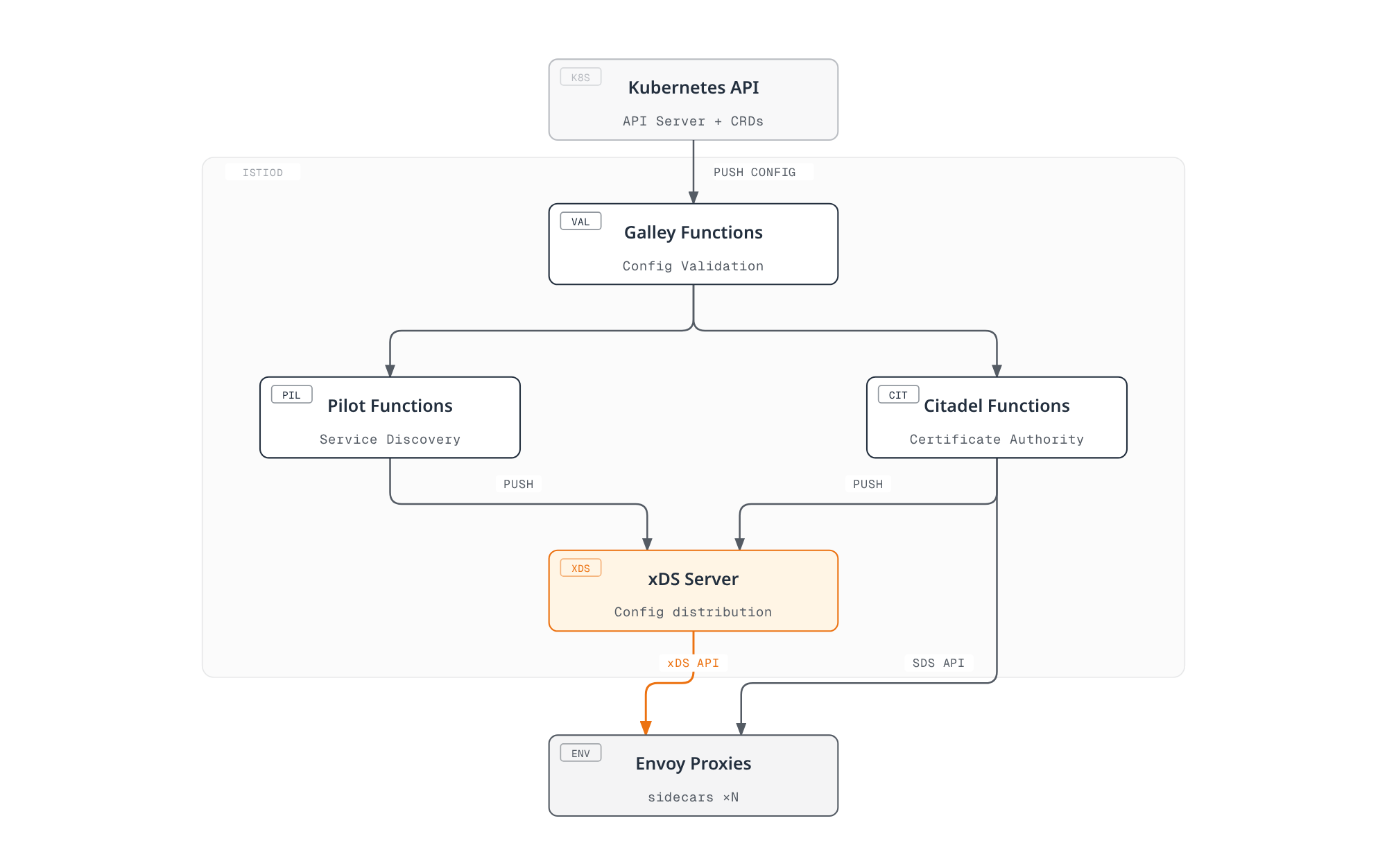

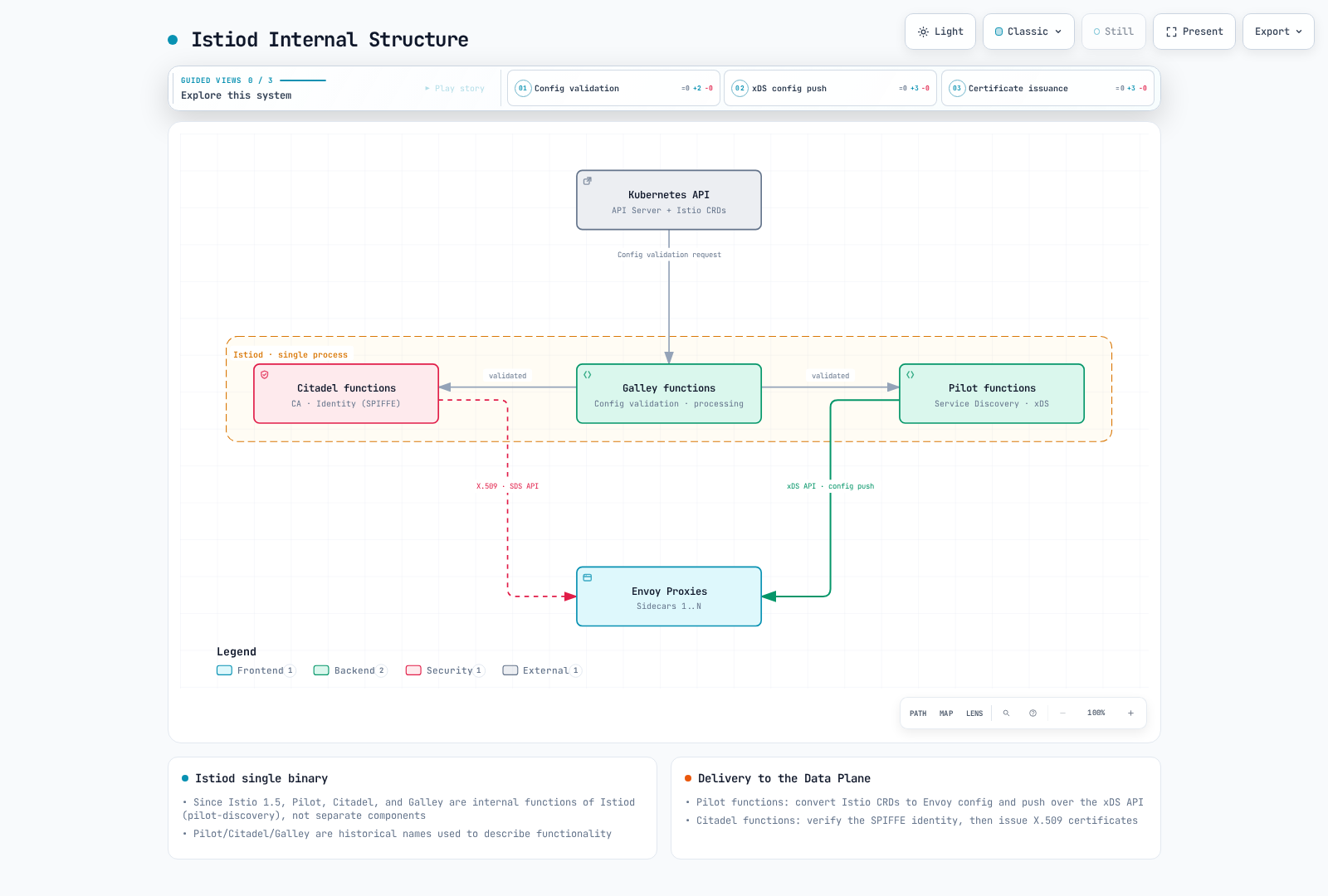

Architecture diagram showing Istiod's single process consolidating Pilot, Citadel, and Galley functions, validating configuration from the Kubernetes API and pushing xDS configuration and X.509 certificates to Envoy sidecar proxies.Open full screen ↗

Istiod Main Functions

Note: The functions below are integrated within Istiod in Istio 1.31. Historical names (Pilot, Citadel, Galley) are used to describe functionality.

1. Service Discovery (Pilot Functionality)

# Kubernetes Service detection
apiVersion: v1
kind: Service
metadata:
  name: reviews
spec:
  selector:
    app: reviews
  ports:
  - port: 9080

Istiod tracks:

• Kubernetes Services
• EndpointSlices (pod IPs)
• Pod state changes
• External services (ServiceEntry)

2. Traffic Management (Pilot Functionality)

Converts Istio CRDs to Envoy configuration:

# VirtualService (user-defined)
apiVersion: networking.istio.io/v1
kind: VirtualService
metadata:
  name: reviews
spec:
  hosts:
  - reviews
  http:
  - route:
    - destination:
        host: reviews
        subset: v1
      weight: 90
    - destination:
        host: reviews
        subset: v2
      weight: 10

↓ Istiod converts to Envoy configuration ↓

{
  "match": {"prefix": "/"},
  "route": {
    "weighted_clusters": {
      "clusters": [
        {"name": "outbound|9080|v1|reviews.default.svc.cluster.local", "weight": 90},
        {"name": "outbound|9080|v2|reviews.default.svc.cluster.local", "weight": 10}
      ]
    }
  }
}

3. Certificate Management (Citadel Functionality)

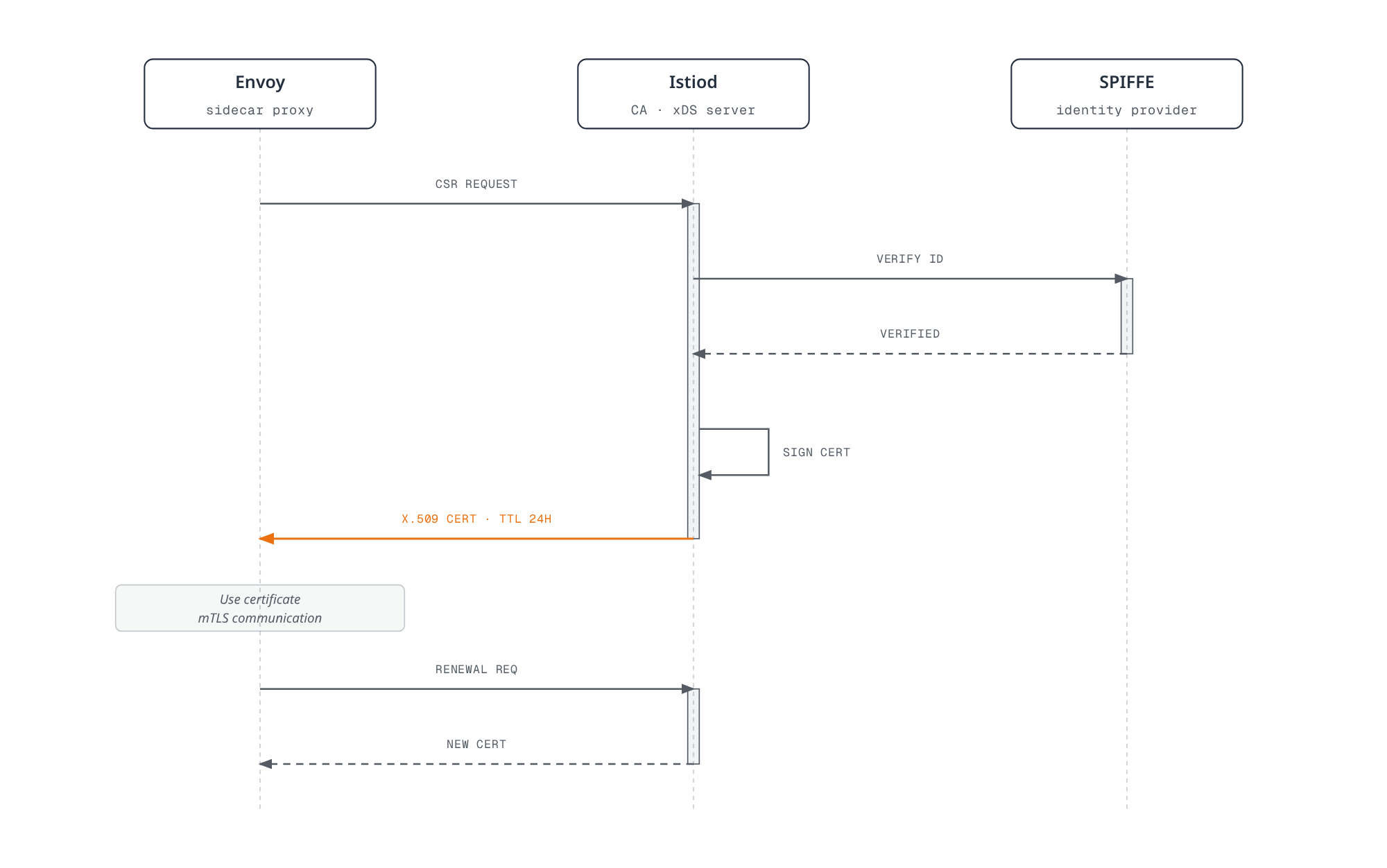

The Istio agent creates the key and CSR, authenticates to istiod, and receives a signed certificate. Envoy obtains that certificate and key from the local agent through SDS. Certificate lifetime is configurable; rotation precedes expiry.

SPIFFE ID Format:

spiffe://cluster.local/ns/default/sa/reviews

4. Configuration Validation (Galley Functionality)

Admission validation checks schema and local configuration constraints. Cross-resource existence is checked with istioctl analyze; a destination that does not exist is not necessarily rejected by the admission webhook. This example references a missing Gateway:

# invalid-vs.yaml
apiVersion: networking.istio.io/v1
kind: VirtualService
metadata:
  name: invalid
spec:
  hosts:
  - reviews
  gateways:
  - missing-gateway
  http:
  - route:
    - destination:
        host: reviews

istioctl analyze invalid-vs.yaml --use-kube=false
# IST0101: Referenced gateway not found: "missing-gateway"

Istiod Process Structure

Actual Implementation in Istio 1.31:

# Inspect the configured binary arguments; no shell in the image is required
kubectl get deployment istiod -n istio-system   -o jsonpath='{.spec.template.spec.containers[?(@.name=="discovery")].args}'
# The discovery container runs pilot-discovery discovery.

Key Points:

• Istiod runs as a single Go binary called pilot-discovery
• Pilot, Citadel, and Galley are historical role names, not a promise of current package names
• All functions run as goroutines within a single process

Main Ports Provided by Istiod:

Port	Protocol	Purpose	Functionality
15010	gRPC	xDS (legacy)	Backward compatibility
15012	gRPC	xDS over TLS	Primary xDS API endpoint
15014	HTTP	Control plane monitoring	Metrics and health checks
15017	HTTPS	Webhook	Injection and validation
8080	HTTP	Debug	Debugging interface

Istiod Deployment

High Availability Configuration:

# Merge into the existing istioctl install file; do not replace a managed Deployment
apiVersion: install.istio.io/v1alpha1
kind: IstioOperator
spec:
  components:
    pilot:
      k8s:
        hpaSpec:
          minReplicas: 3
          maxReplicas: 5
        resources:
          requests:
            cpu: 500m
            memory: 2Gi

Typical Resource Usage:

• CPU: 0.5 - 2 cores
• Memory: 2 - 4 GB
• Can handle thousands of services and pods

Data Plane: Envoy Proxy

Envoy Architecture

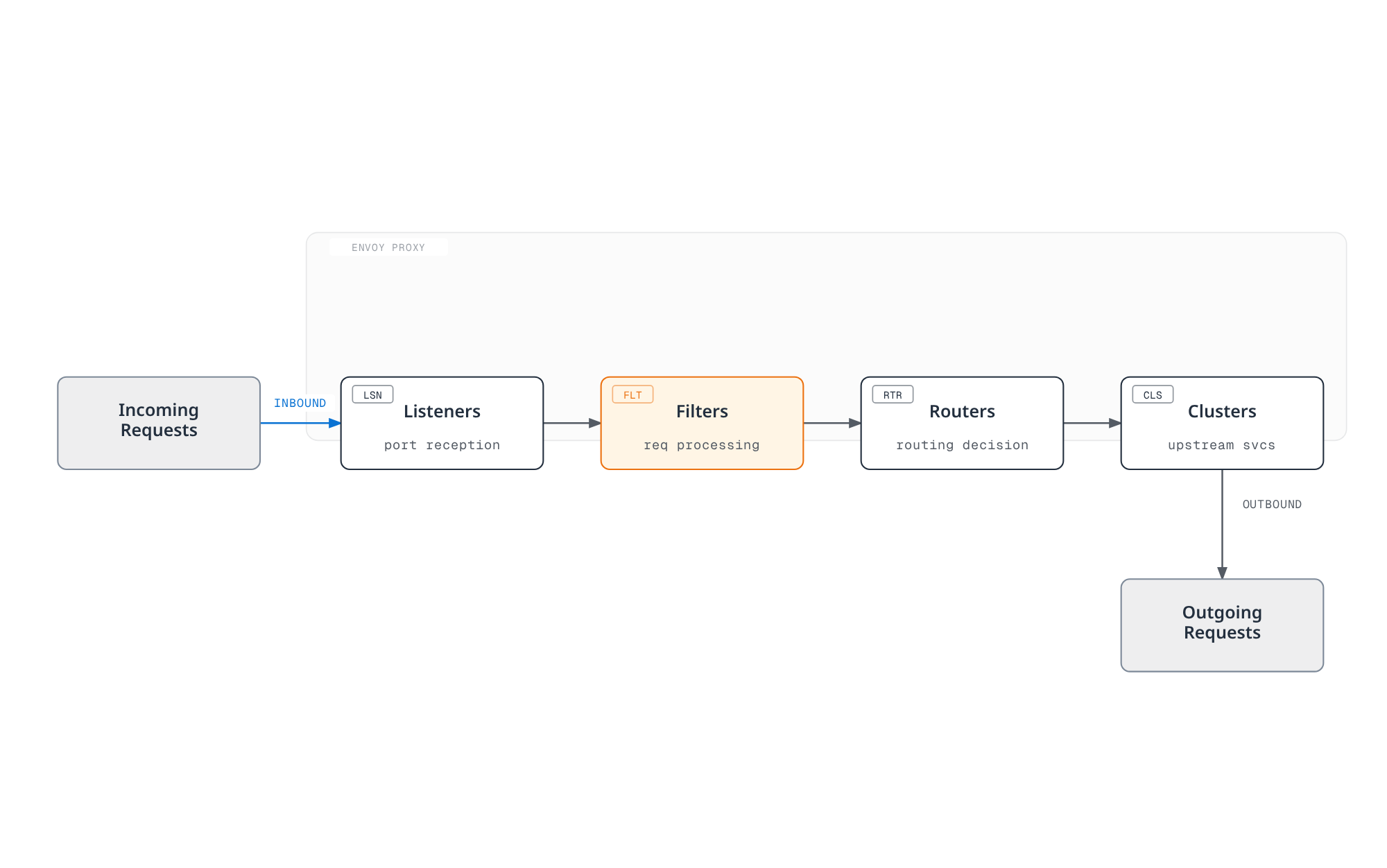

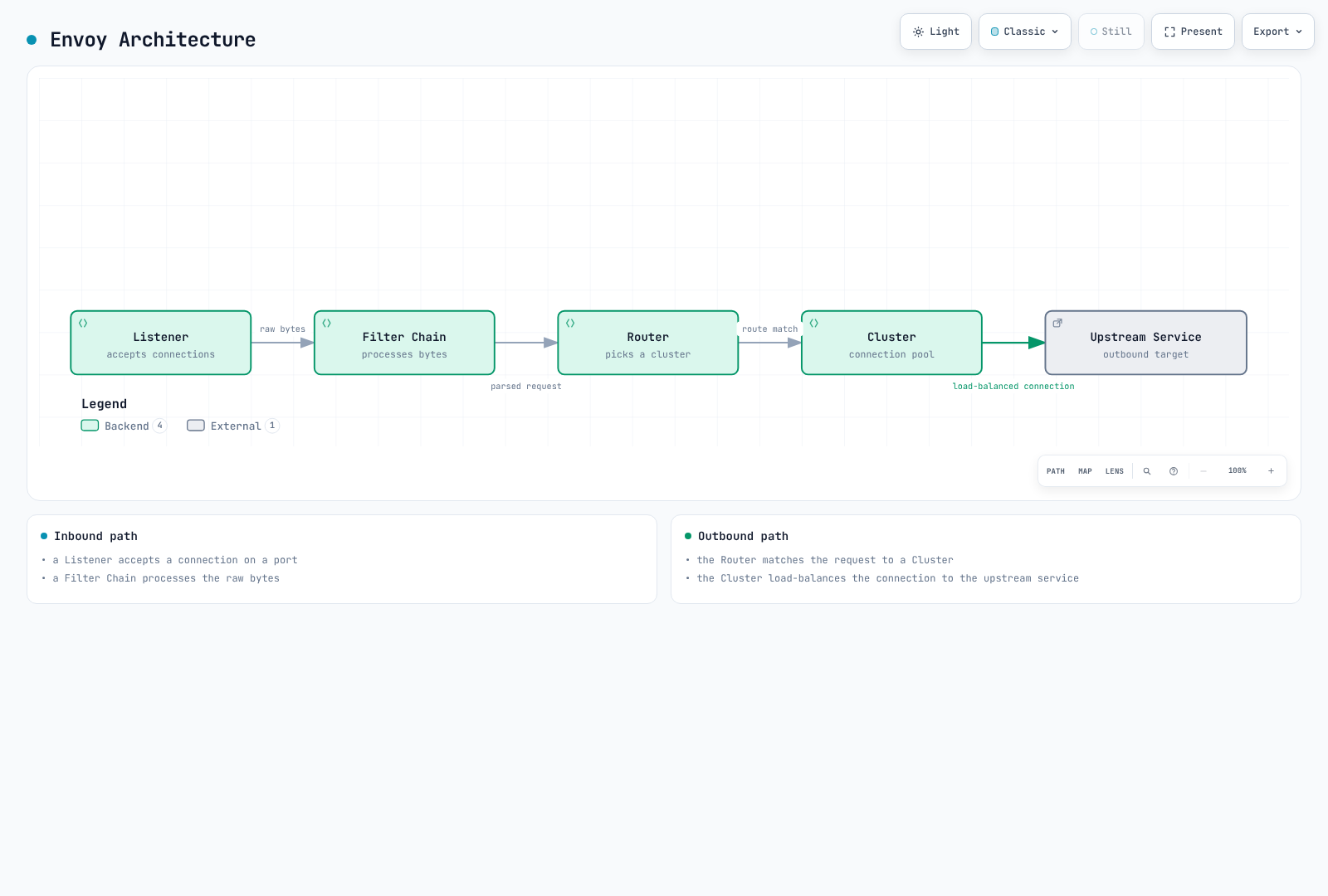

Architecture diagram showing an inbound request passing through Envoy's listener, filter chain, and router into a cluster of upstream services before leaving as an outbound request.Open full screen ↗

Envoy Main Components

1. Listeners

Receives connections on ports:

{
  "name": "0.0.0.0_15001",
  "address": {
    "socket_address": {
      "address": "0.0.0.0",
      "port_value": 15001
    }
  },
  "filter_chains": [...]
}

Default Istio Listeners:

• 0.0.0.0:15001: All outbound TCP traffic
• 0.0.0.0:15006: All inbound TCP traffic
• 0.0.0.0:15021: Health check
• 0.0.0.0:15090: Prometheus metrics

2. Filters

Plugins that process requests/responses:

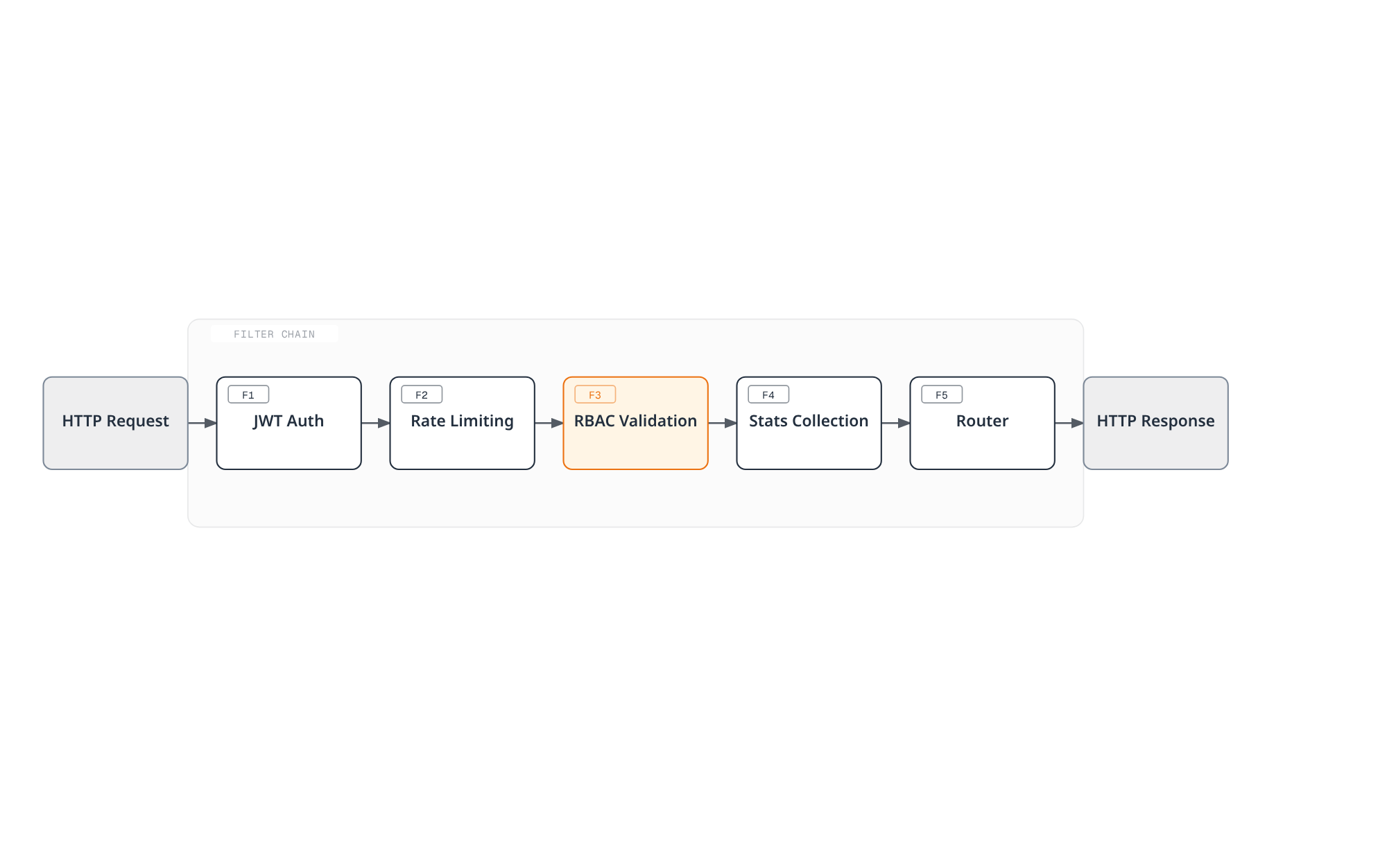

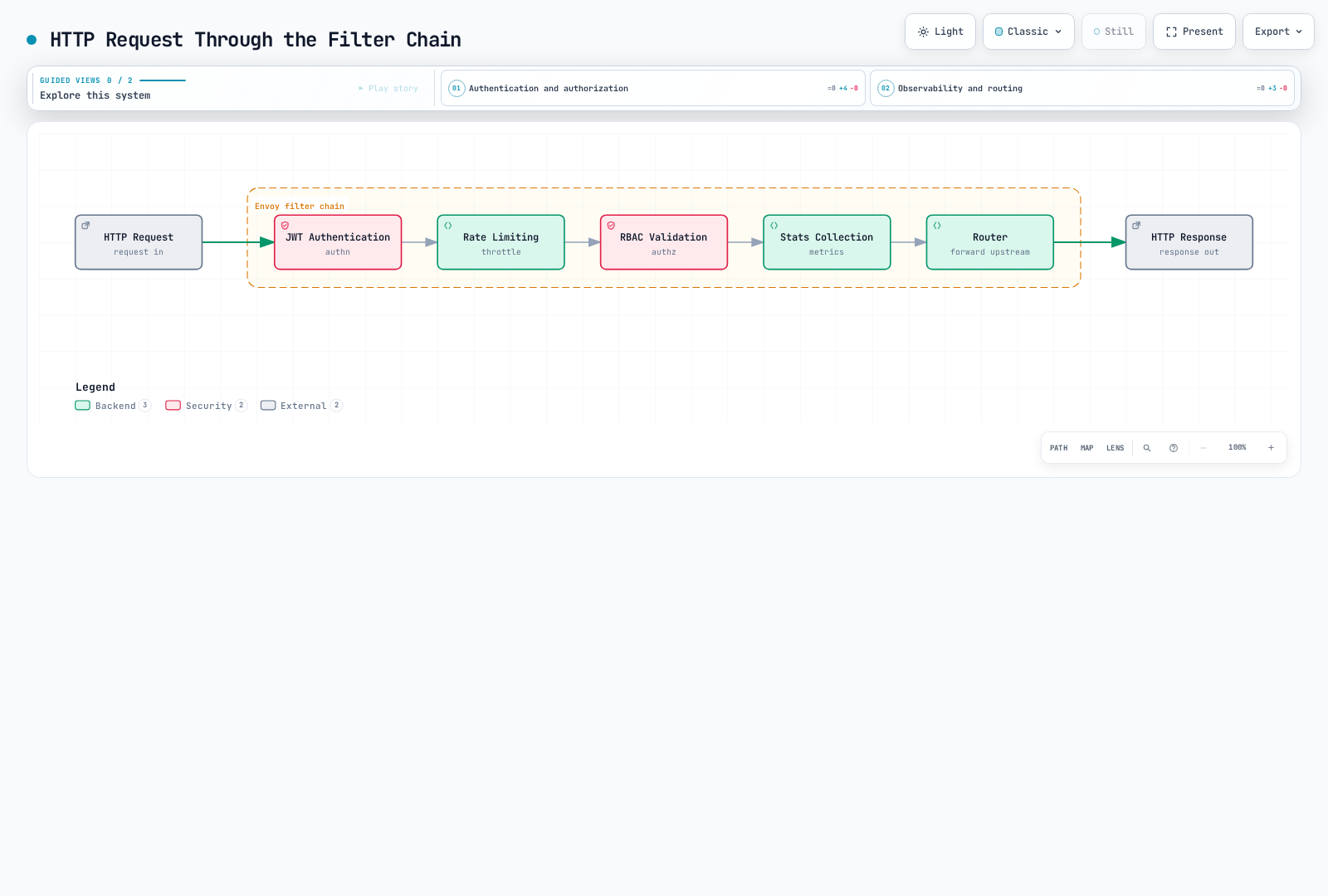

Flowchart showing an HTTP request passing sequentially through Envoy's JWT authentication, rate limiting, RBAC validation, stats collection, and router filters before becoming the HTTP response.Open full screen ↗

3. Clusters

Logical groups of upstream services:

{
  "name": "outbound|9080|v1|reviews.default.svc.cluster.local",
  "type": "EDS",
  "eds_cluster_config": {
    "service_name": "outbound|9080|v1|reviews.default.svc.cluster.local"
  },
  "circuit_breakers": {...},
  "outlier_detection": {...}
}

4. Endpoints

Actual pod IP list:

{
  "cluster_name": "outbound|9080|v1|reviews",
  "endpoints": [
    {
      "lb_endpoints": [
        {"endpoint": {"address": {"socket_address": {"address": "10.244.1.5", "port_value": 9080}}}},
        {"endpoint": {"address": {"socket_address": {"address": "10.244.2.8", "port_value": 9080}}}}
      ]
    }
  ]
}

Envoy Performance

Measure the actual traffic pattern, configuration size, and telemetry settings. The official benchmark is explicitly for Istio 1.24; there is no universal RPS/core, sub-millisecond P99, or memory guarantee. Size istiod from service/proxy count and configuration churn as well.

Sidecar Injection Mechanism

Injection Process

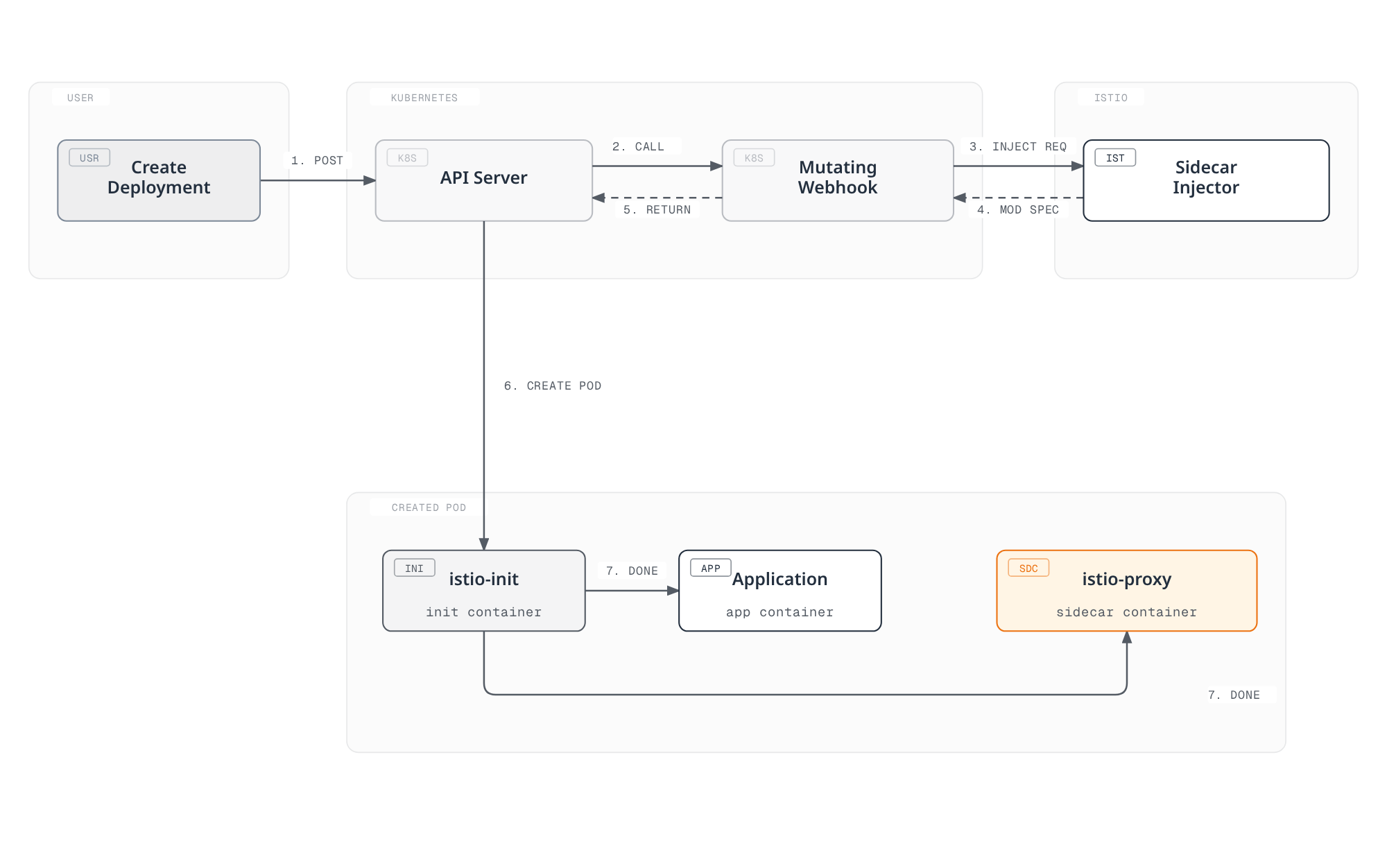

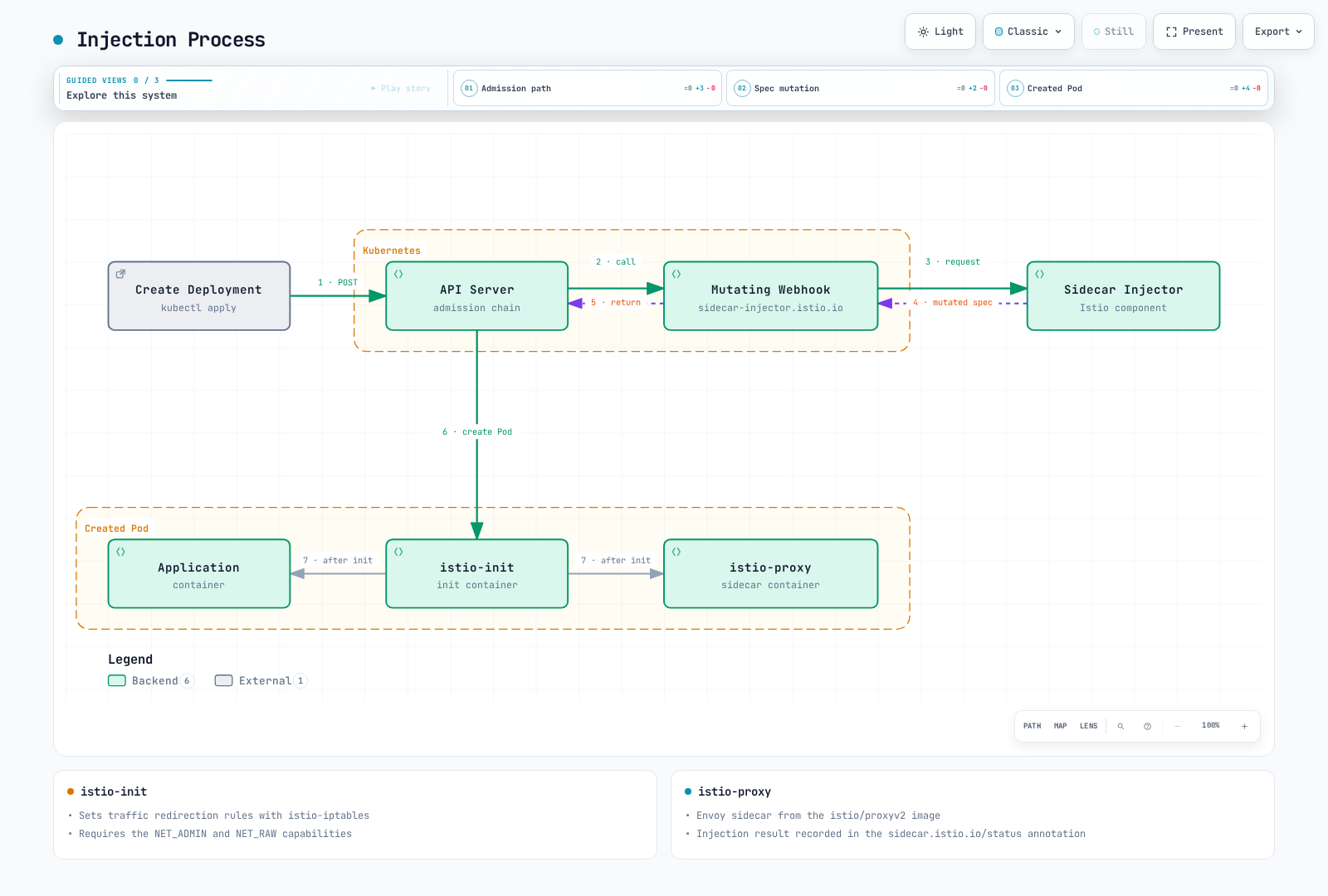

Deployment creation request flowing through the API Server and Mutating Webhook to Istio's Sidecar Injector, which mutates the Pod spec so the created pod carries istio-init, the application container and the istio-proxy sidecar.Open full screen ↗

The webhook mutates Pod creation requests, not the Deployment itself. Existing pods need recreation after enabling injection. With Istio CNI, networking setup moves out of the privileged per-pod init container; native sidecars can also change the generated pod layout.

Original vs After Injection

Original Deployment:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: reviews
spec:
  selector:
    matchLabels:
      app: reviews
  template:
    metadata:
      labels:
        app: reviews
    spec:
      containers:
      - name: reviews
        image: reviews:v1
        ports:
        - containerPort: 9080

After Injection:

apiVersion: v1
kind: Pod
metadata:
  annotations:
    sidecar.istio.io/status: '{"initContainers":["istio-init"],"containers":["istio-proxy"]}'
spec:
  initContainers:
  - name: istio-init
    image: istio/proxyv2:1.31.0
    command: ['istio-iptables', ...]
    securityContext:
      capabilities:
        add: [NET_ADMIN, NET_RAW]
  containers:
  - name: reviews
    image: reviews:v1
    ports:
    - containerPort: 9080
  - name: istio-proxy
    image: istio/proxyv2:1.31.0
    args: ['proxy', 'sidecar', ...]

Enabling Sidecar Injection

Automatic Injection (Recommended)

Namespace Level:

# Add label to namespace
kubectl label namespace default istio-injection=enabled

# All pods deployed to this namespace will automatically have sidecar injected
kubectl apply -f deployment.yaml

Pod Level (Label):

apiVersion: v1
kind: Pod
metadata:
  name: example-app
  labels:
    sidecar.istio.io/inject: "true"  # Enable injection per pod
spec:
  containers:
  - name: app
    image: myapp:v1

Manual Injection

Use istioctl kube-inject command to inject sidecar directly into YAML files.

# Inject sidecar into YAML file and deploy
istioctl kube-inject -f deployment.yaml | kubectl apply -f -

# Or save to file
istioctl kube-inject -f deployment.yaml -o deployment-injected.yaml
kubectl apply -f deployment-injected.yaml

Manual Injection Scenarios:

• Environments where automatic injection cannot be used
• When explicit control is needed in CI/CD pipelines
• When you want to inspect injected YAML for debugging

iptables and Traffic Interception

istio-init Container

Role: Sets up iptables rules to redirect pod network traffic to Envoy Proxy

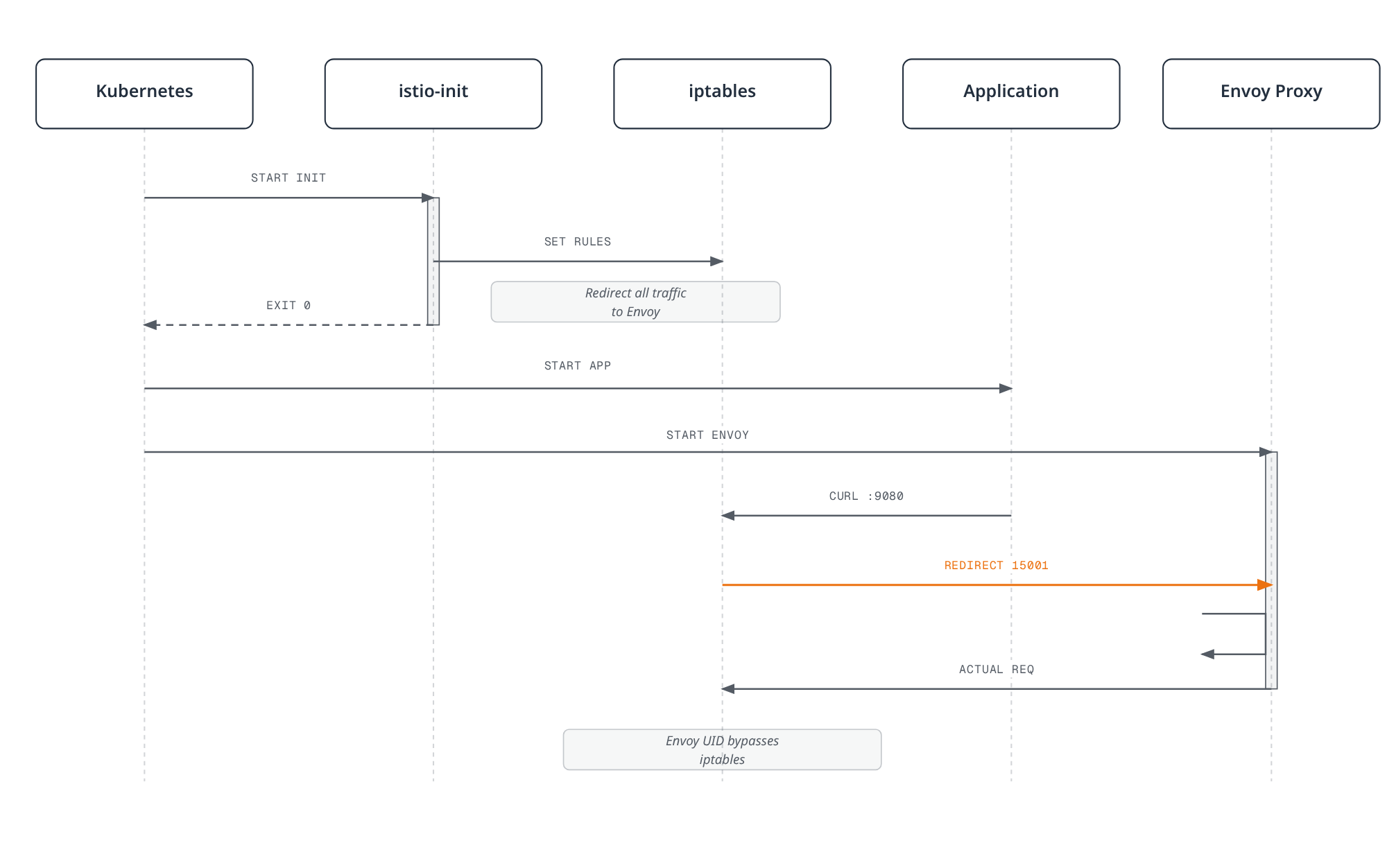

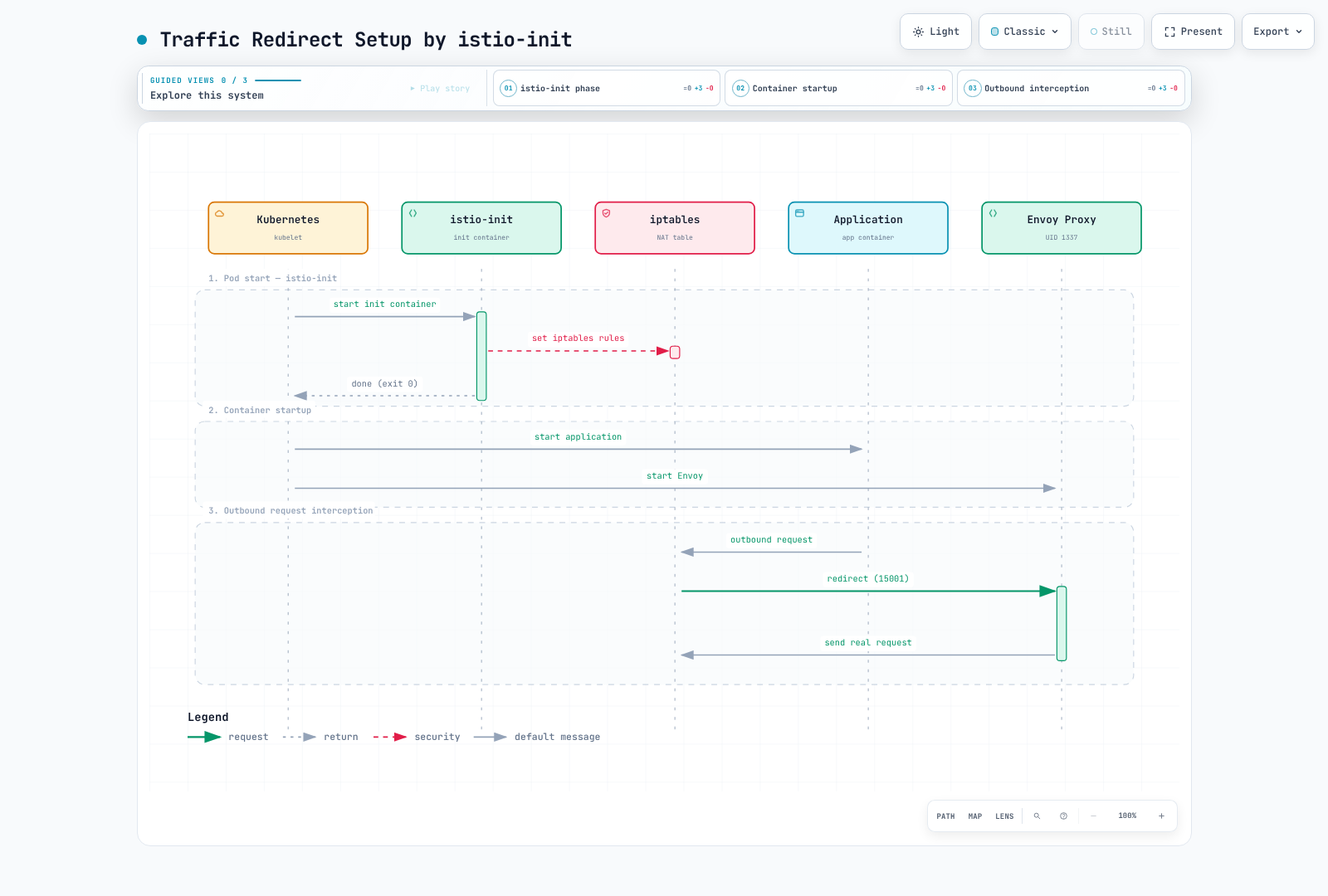

Sequence diagram showing the istio-init container configuring iptables to redirect a pod's traffic to Envoy before the application and Envoy proxy start, so that a later outbound request is transparently intercepted and redirected to Envoy's listener.Open full screen ↗

iptables Rules Detail

Simplified rule sketch — not a script to execute:

#!/bin/bash
# istio-iptables script (simplified)

# 1. OUTPUT chain: Application outbound traffic
iptables -t nat -A OUTPUT -p tcp \
  -m owner ! --uid-owner 1337 \
  -j REDIRECT --to-port 15001     # Envoy outbound port

# 2. PREROUTING chain: Inbound traffic to pod
iptables -t nat -A PREROUTING -p tcp \
  -j REDIRECT --to-port 15006     # Envoy inbound port

# 3. Exclusion rules
# - localhost traffic
iptables -t nat -I OUTPUT -d 127.0.0.1/32 -j RETURN

# - Istiod communication (15012)
iptables -t nat -I OUTPUT -p tcp --dport 15012 -j RETURN

# - DNS (53)
iptables -t nat -I OUTPUT -p udp --dport 53 -j RETURN

Traffic Flow (After iptables Applied)

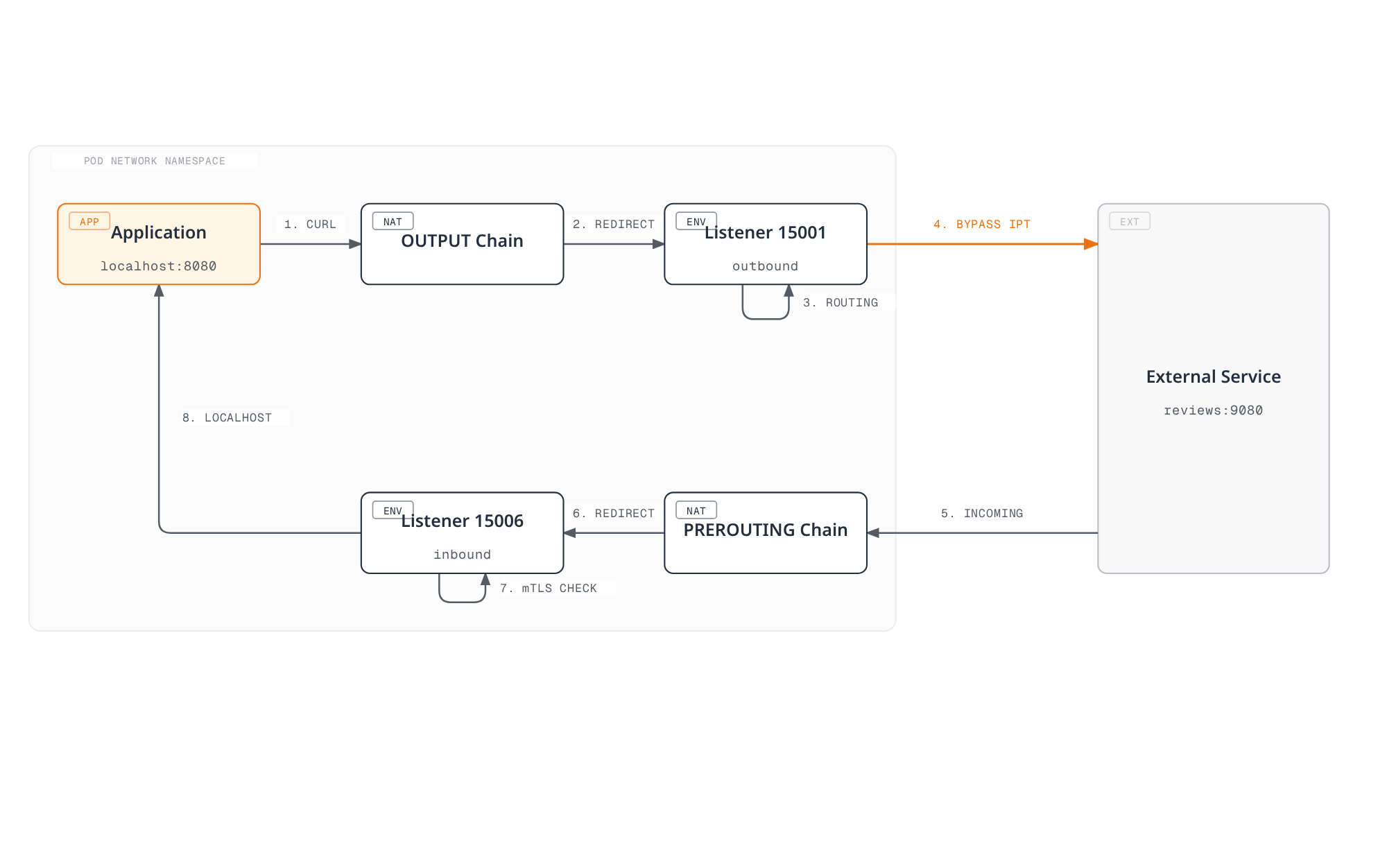

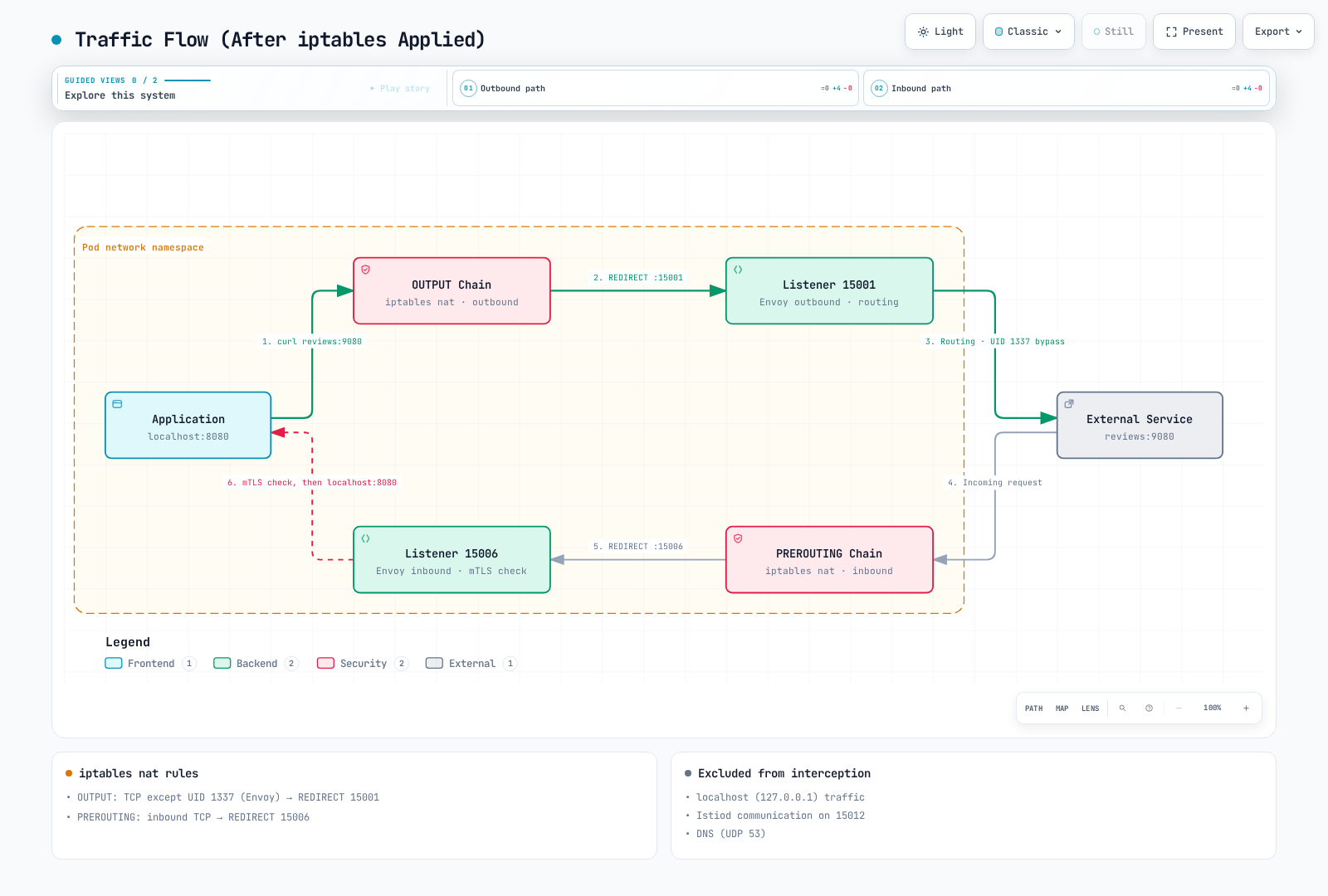

Diagram showing an app's outbound request redirected by the iptables OUTPUT chain into Envoy's 15001 listener and out to an external service, and inbound traffic redirected by PREROUTING into the 15006 listener, mTLS-verified, then sent to the app.Open full screen ↗

Checking iptables Rules

Check from inside the pod:

A normal istio-proxy container may be distroless and lacks NET_ADMIN. Inspect rules only through an approved node/pod-network-namespace debugging session with the necessary tools and capabilities. The following is illustrative output from iptables -t nat -L -n -v:

# OUTPUT chain
Chain OUTPUT (policy ACCEPT)
target     prot opt source     destination
ISTIO_OUTPUT  tcp  --  0.0.0.0/0  0.0.0.0/0

# ISTIO_OUTPUT detail
Chain ISTIO_OUTPUT (1 references)
RETURN     all  --  0.0.0.0/0  127.0.0.1           # Exclude localhost
RETURN     all  --  0.0.0.0/0  0.0.0.0/0           owner UID match 1337  # Exclude Envoy
REDIRECT   tcp  --  0.0.0.0/0  0.0.0.0/0           redir ports 15001  # Redirect rest

# PREROUTING chain
Chain PREROUTING (policy ACCEPT)
ISTIO_INBOUND  tcp  --  0.0.0.0/0  0.0.0.0/0

# ISTIO_INBOUND detail
Chain ISTIO_INBOUND (1 references)
REDIRECT   tcp  --  0.0.0.0/0  0.0.0.0/0           redir ports 15006

Init container vs Istio CNI

Both paths configure traffic redirection. Istio CNI is a privileged node DaemonSet chained to the primary CNI, such as AWS VPC CNI; it is not an eBPF replacement for that CNI. It is optional for sidecars and required for ambient mode.

DNS Processing Mechanism

Kubernetes DNS Basic Operation

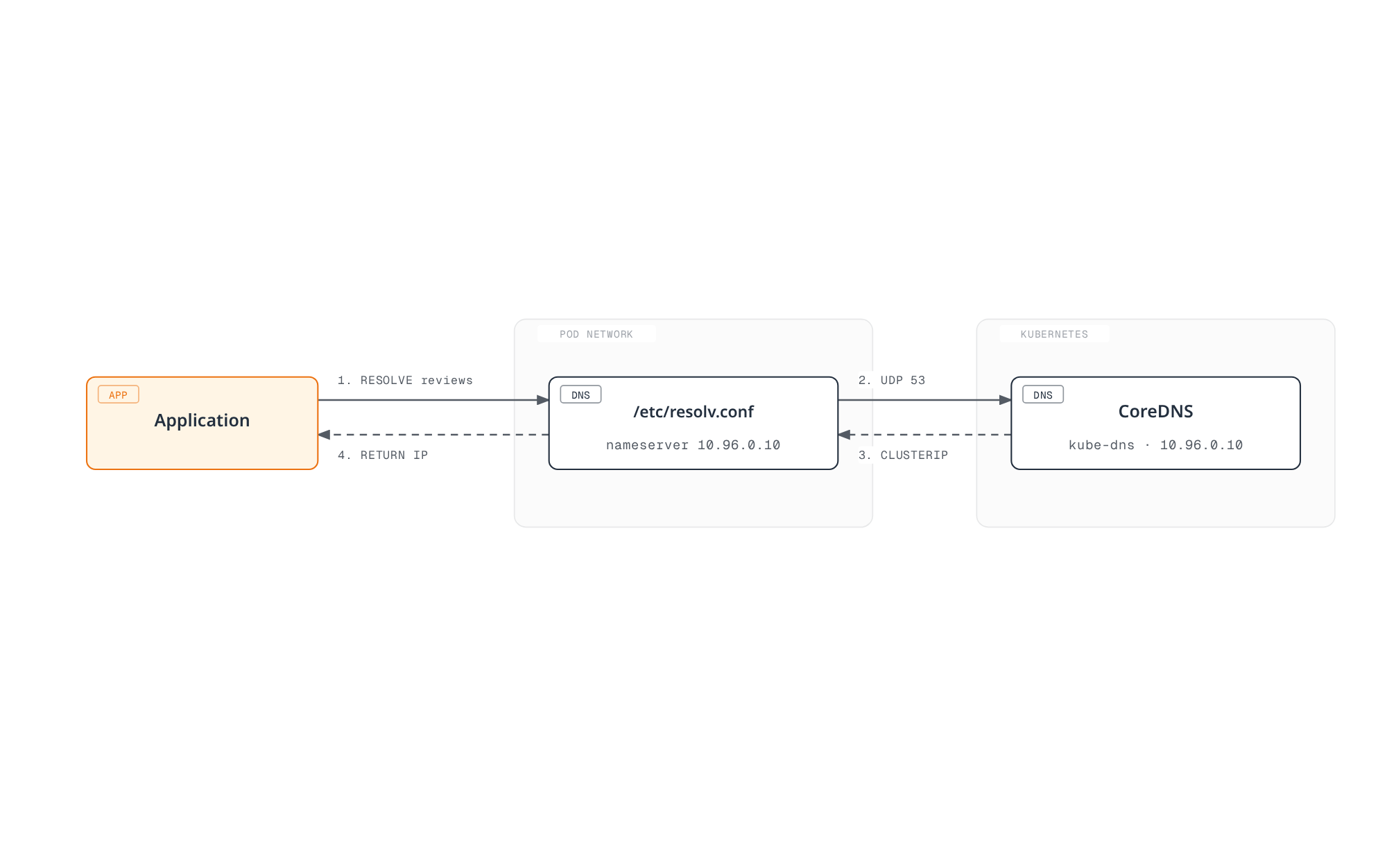

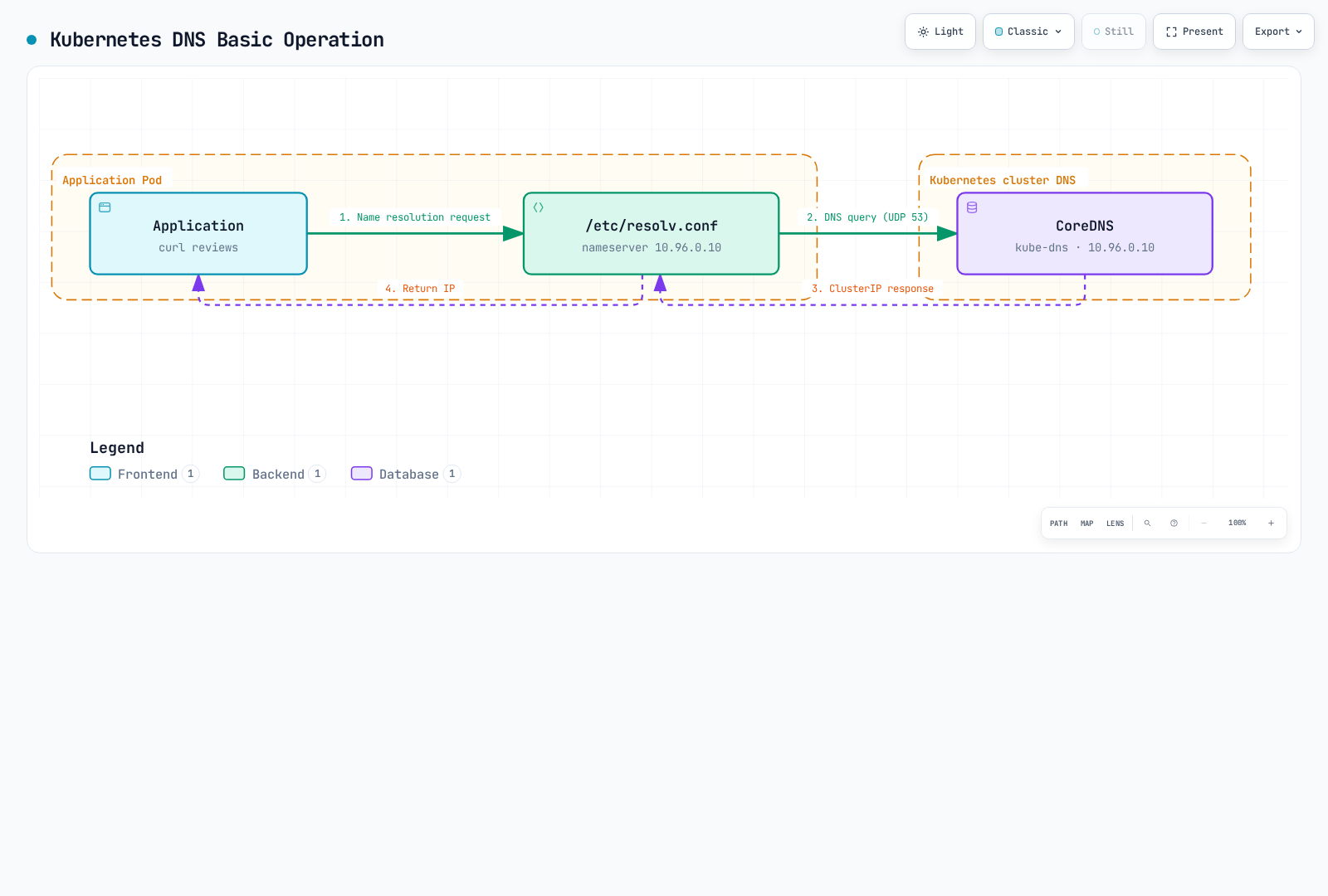

Architecture diagram showing an application's default DNS lookup path: a name resolution request goes through the pod's resolv.conf to CoreDNS, which returns the service's ClusterIP back to the application.Open full screen ↗

/etc/resolv.conf (inside pod):

nameserver 10.96.0.10  # kube-dns ClusterIP
search default.svc.cluster.local svc.cluster.local cluster.local
options ndots:5

Envoy's DNS Processing

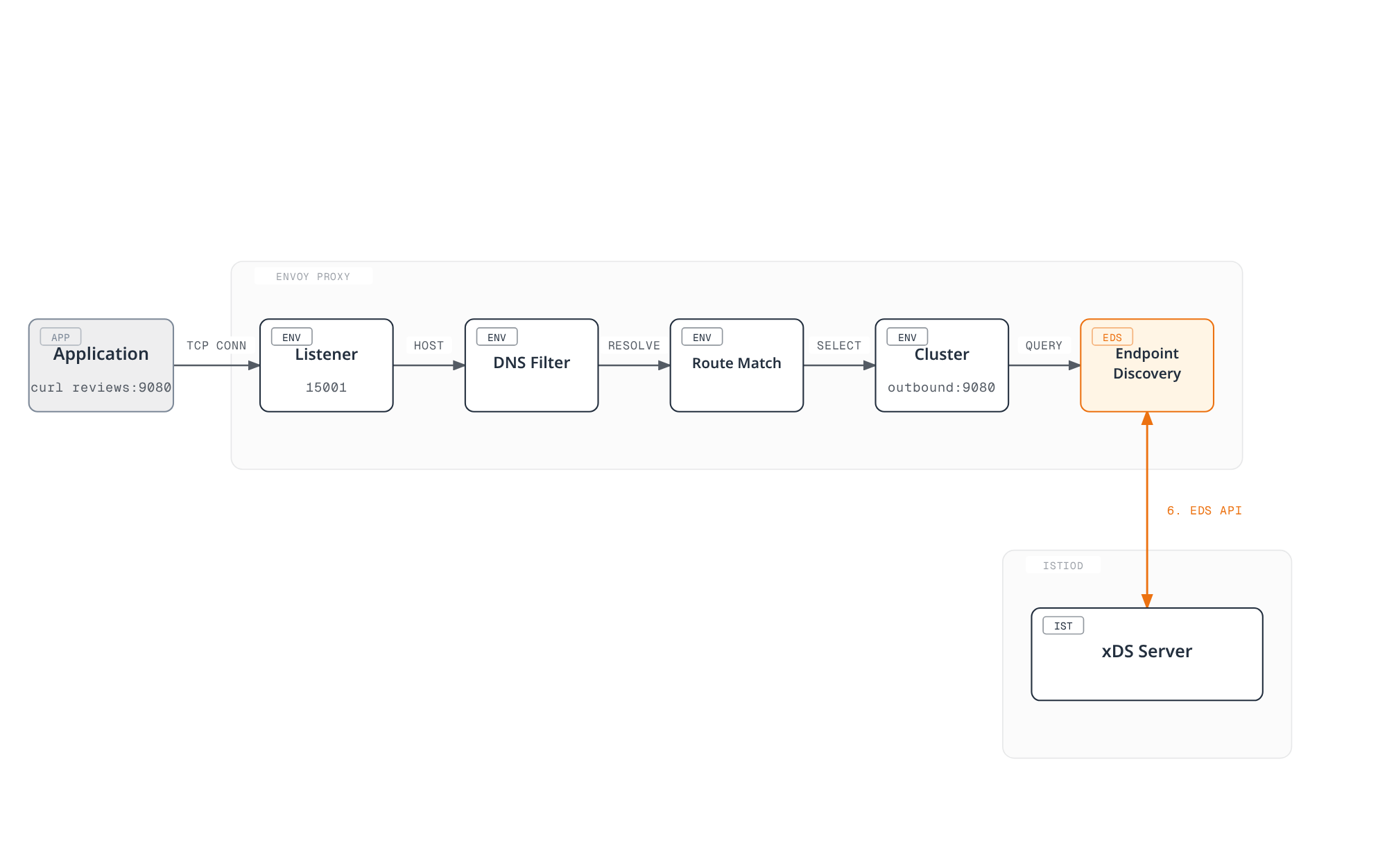

Application DNS resolution and Envoy endpoint discovery are different operations:

The application resolves a service name first. Envoy then uses routing configuration and EDS endpoint data to select an upstream; EDS does not replace the application DNS lookup.

Advantages:

• EDS distributes endpoints to Envoy; application DNS still uses its configured resolver unless DNS capture answers locally
• Dynamic Endpoint updates
• Advanced routing (versions, weights, etc.)

DNS Proxy (Optional in Sidecar Mode)

DNS Proxy feature added in Istio 1.8+:

The sidecar DNS proxy runs in the Istio agent and answers from a locally cached name table supplied by istiod. It does not query istiod for each DNS request. Unknown names go to the resolver in /etc/resolv.conf. Ambient DNS capture is enabled by default from Istio 1.25. Merge the following into the installation file and restart affected sidecar workloads.

apiVersion: install.istio.io/v1alpha1
kind: IstioOperator
spec:
  meshConfig:
    defaultConfig:
      proxyMetadata:
        ISTIO_META_DNS_CAPTURE: "true"  # Enable DNS Proxy

Operation:

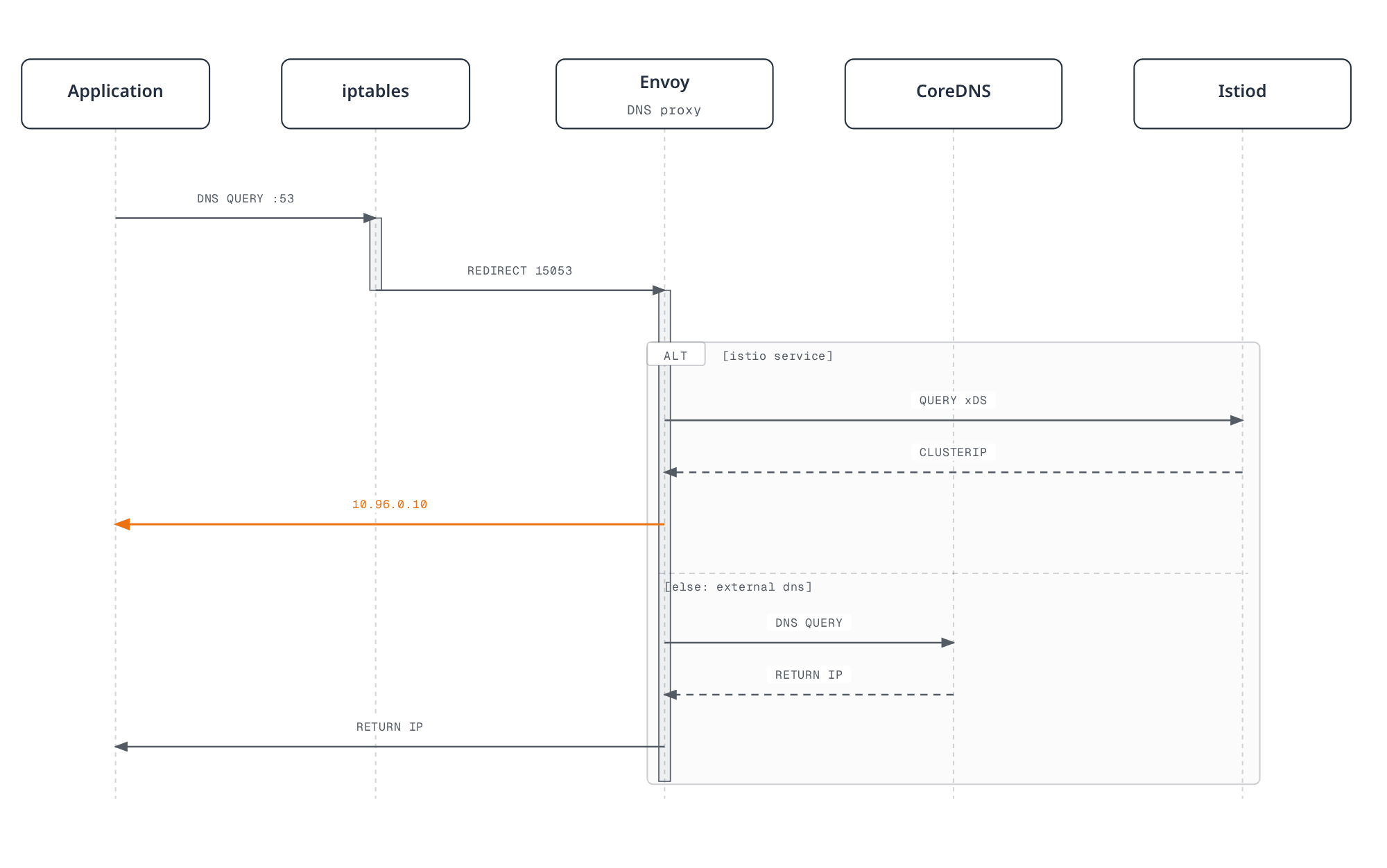

With DNS capture enabled: application → Istio agent DNS proxy → local name table, or upstream resolver when the name is unknown.

DNS Proxy iptables rules:

# Redirect UDP port 53 to Istio agent DNS proxy
iptables -t nat -A OUTPUT -p udp --dport 53 \
  -m owner ! --uid-owner 1337 \
  -j REDIRECT --to-port 15053

xDS API Communication

xDS Protocol Overview

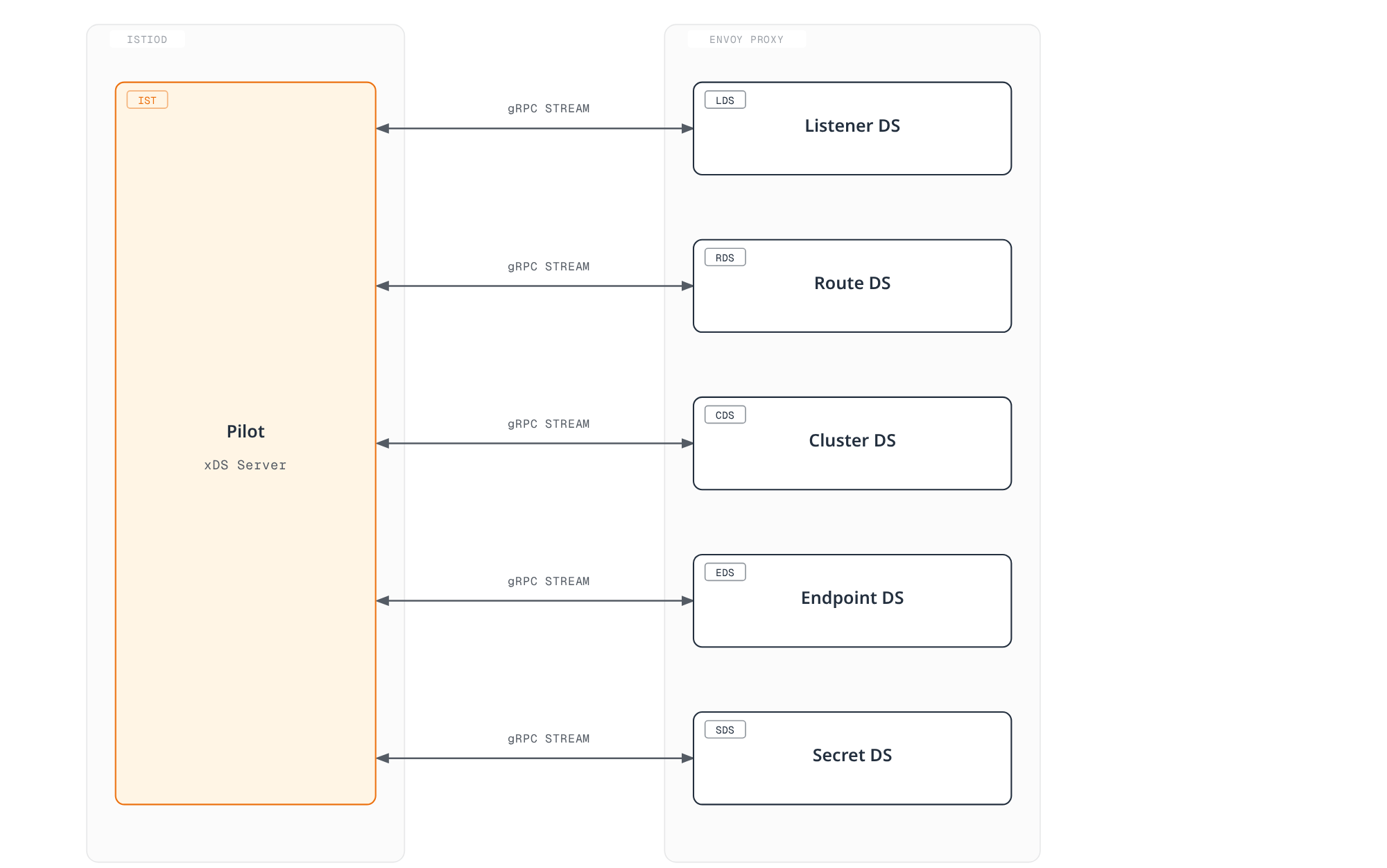

xDS: Stands for Discovery Service, Envoy's dynamic configuration protocol.

LDS, RDS, CDS, and EDS are logical resource types, normally multiplexed over an aggregated discovery stream (ADS). Sidecar SDS is served by the local Istio agent, not a fifth direct istiod stream.

xDS API Types

API	Name	Role	Example
LDS	Listener Discovery	Receive port configuration	15001, 15006
RDS	Route Discovery	HTTP routing rules	VirtualService
CDS	Cluster Discovery	Upstream services	DestinationRule
EDS	Endpoint Discovery	Pod IP list	Service Endpoints
SDS	Secret Discovery	TLS certificates	mTLS certificates

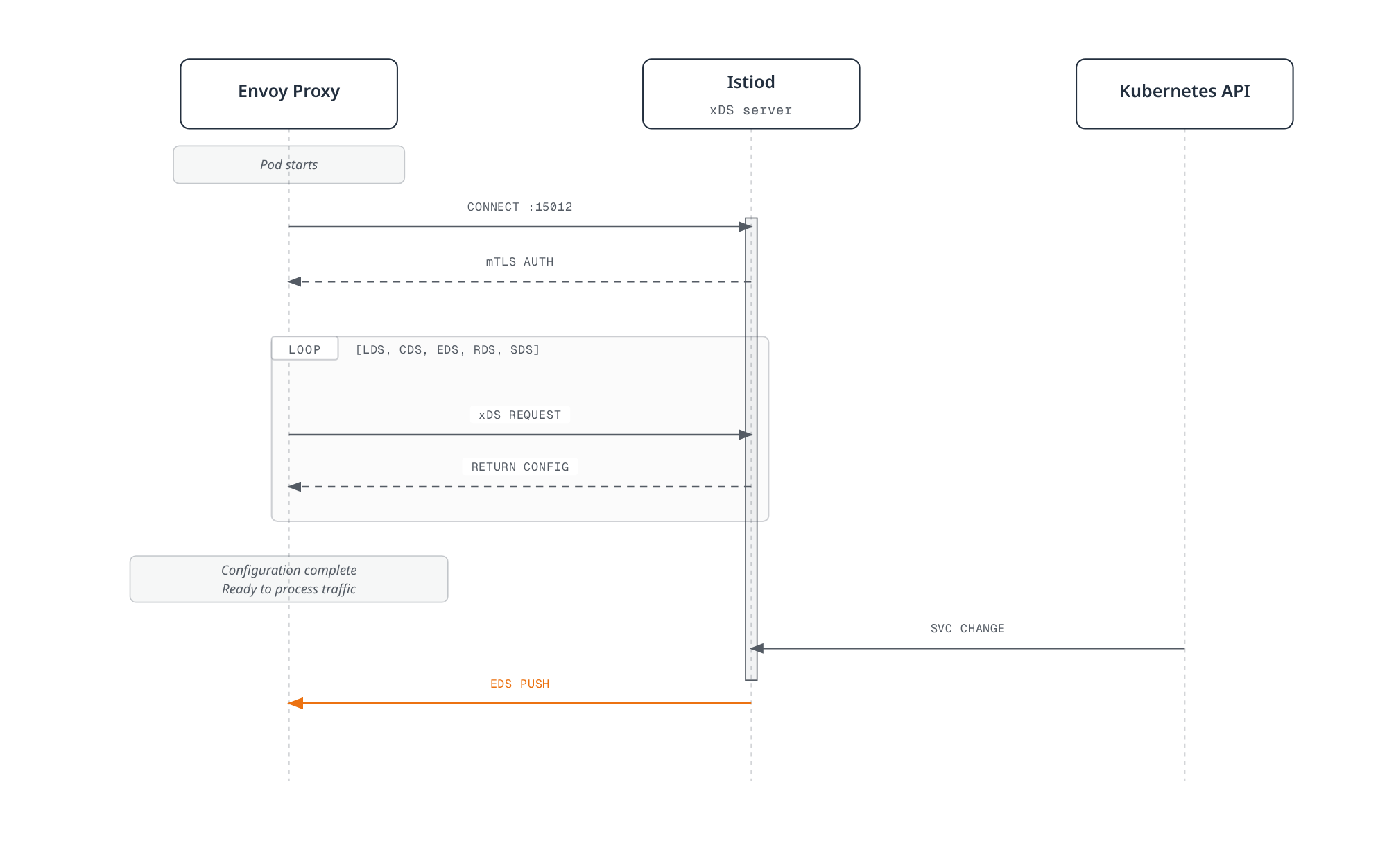

xDS Communication Flow

At startup, the agent bootstraps identity and proxies the discovery connection to istiod. Envoy acknowledges accepted configurations; istiod pushes updates when configuration or endpoints change. SDS supplies certificates separately through the local agent.

Verifying xDS Communication

Check with Envoy Admin API:

# Export via istioctl; no curl or shell is required inside the proxy image
istioctl proxy-config all <pod-name> -n default -o json > config-dump.json
jq '.configs[] | select(."@type" | endswith("ListenersConfigDump")) | .dynamic_listeners' config-dump.json
jq '.configs[] | select(."@type" | endswith("ClustersConfigDump")) | .dynamic_active_clusters' config-dump.json
jq '.configs[] | select(."@type" | endswith("RoutesConfigDump")) | .dynamic_route_configs' config-dump.json

Check with istioctl:

# Listener configuration
istioctl proxy-config listeners <pod-name> -n default

# Cluster configuration
istioctl proxy-config clusters <pod-name> -n default

# Endpoint configuration
istioctl proxy-config endpoints <pod-name> -n default

# Route configuration
istioctl proxy-config routes <pod-name> -n default

Optimization with Sidecar Resource

Problem: Receiving All Service Information

By default, each Envoy receives information about all services in the entire mesh:

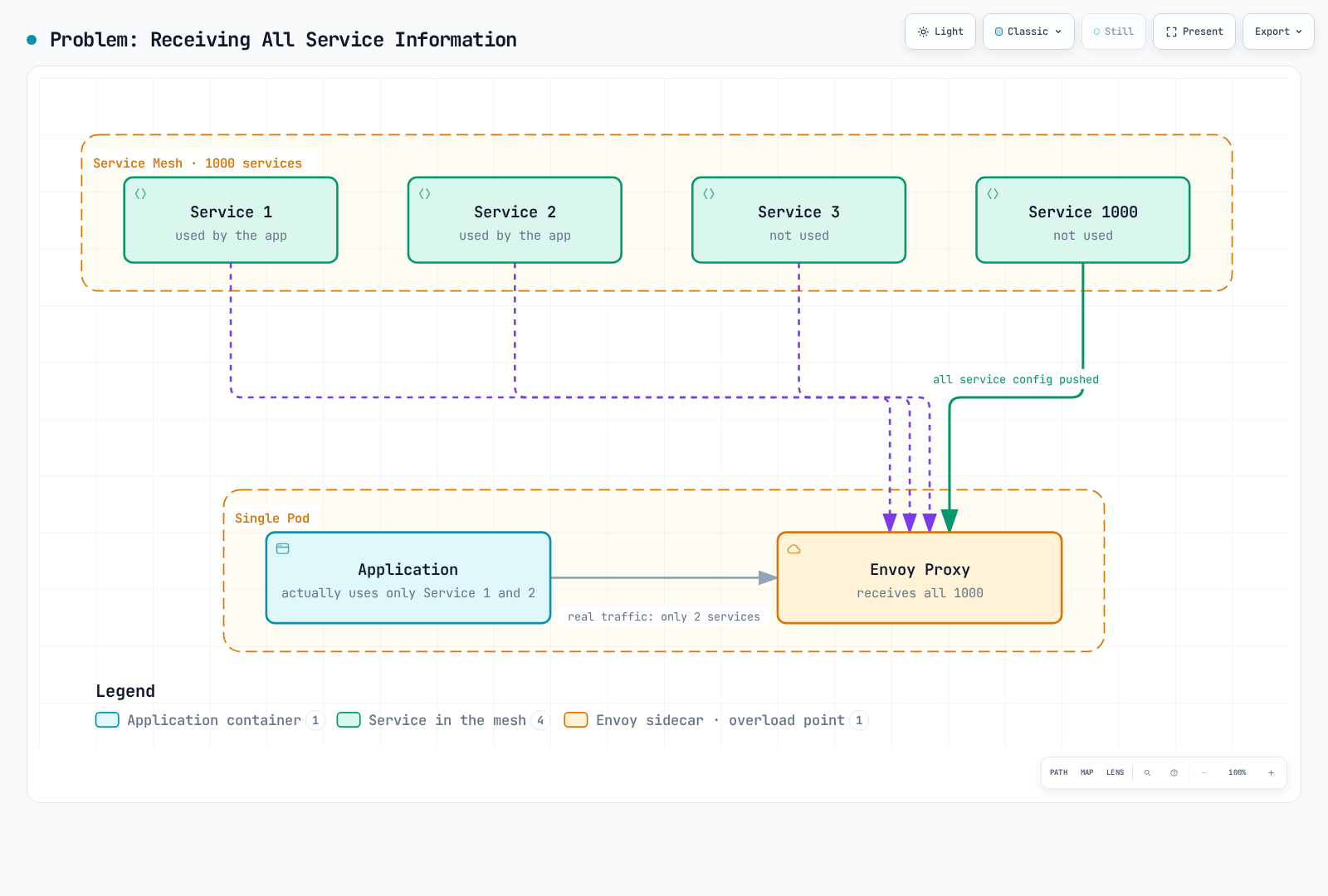

Architecture diagram showing that by default every Envoy sidecar in a 1000-service mesh receives configuration for all services, even though the application in its pod only talks to two of them.Open full screen ↗

Problems:

• Increased memory usage
• Increased CPU usage (configuration processing)
• Network bandwidth waste
• Increased Istiod load

Solution: Sidecar Resource

Use Sidecar resource to restrict receiving only necessary services:

apiVersion: networking.istio.io/v1
kind: Sidecar
metadata:
  name: default
  namespace: default
spec:
  egress:
  - hosts:
    - "./*"  # All services in same namespace
    - "istio-system/*"  # All services in istio-system
    - "production/reviews.production.svc.cluster.local"  # Only reviews in production namespace

Configuration scoping and REGISTRY_ONLY are not outbound firewalls. Use AuthorizationPolicy and network enforcement for isolation. Sidecar resources do not configure ambient proxies.

Sidecar Resource Examples

1. Namespace Configuration Scoping

apiVersion: networking.istio.io/v1
kind: Sidecar
metadata:
  name: default
  namespace: team-a
spec:
  egress:
  - hosts:
    - "team-a/*"  # Own namespace only
    - "istio-system/*"  # System services
    - "shared/*"  # Shared services

2. Import Specific Services

apiVersion: networking.istio.io/v1
kind: Sidecar
metadata:
  name: frontend
  namespace: default
spec:
  workloadSelector:
    labels:
      app: frontend
  egress:
  - port:
      number: 443
      name: https
      protocol: HTTPS
    hosts:
    - "external/*"
  - hosts:
    - "default/reviews.default.svc.cluster.local"
    - "default/ratings.default.svc.cluster.local"
    - "default/details.default.svc.cluster.local"

3. Detect Unregistered Destinations

apiVersion: networking.istio.io/v1
kind: Sidecar
metadata:
  name: external-only
  namespace: default
spec:
  workloadSelector:
    labels:
      app: batch-job
  egress:
  - hosts:
    - "./*"  # Same namespace
  outboundTrafficPolicy:
    mode: REGISTRY_ONLY  # Known Kubernetes services and ServiceEntry destinations

Sidecar Resource Effects

Importing fewer services reduces configuration size and can reduce proxy memory and push work. Cluster count also depends on ports and subsets, so one service does not always equal one Envoy cluster. Measure the effect; fixed memory or push-time savings are not guaranteed.

DNS and Sidecar Integration

apiVersion: networking.istio.io/v1
kind: Sidecar
metadata:
  name: dns-optimized
  namespace: default
spec:
  egress:
  - hosts:
    - "default/reviews.default.svc.cluster.local"
    - "default/ratings.default.svc.cluster.local"
  # Scope imported service configuration
  # DNS capture is configured separately

Result:

• The proxy imports the selected service configuration; this is not a DNS allowlist
• External domains like google.com forwarded to CoreDNS
• Memory and CPU savings

References

Official Documentation

• Istio Architecture
• Envoy Proxy
• xDS Protocol
• SPIFFE

History and Background

• Envoy project milestones (CNCF)
• Istio Announcement - Google Cloud Blog
• Service Mesh History

Advanced Learning

• Envoy Architecture Overview

• Istio Performance and Scalability

• iptables Tutorial

• Architecture

• DNS Proxying

• Install the Istio CNI node agent

• Security

• ReferencedResourceNotFound

• Installing the Sidecar

• Sidecar

• Configuration Scoping

• Performance and Scalability
