Cluster Architecture

Supported Versions: Kubernetes 1.35, 1.36, 1.37 Last Updated: October 12, 2026

The version header refers to upstream Kubernetes. The project maintains release branches for the three most recent minor releases (1.35–1.37). Upstream 1.34 is in maintenance mode and still receives patch releases until its end of life on October 27, 2026, separately from its AWS support end date on EKS.

As of October 12, 2026, EKS standard support covers 1.34–1.37; EKS 1.37 became available on October 1, 2026. Check the Kubernetes release status and EKS lifecycle before selecting a version.

Component commands below illustrate self-managed clusters; EKS manages its control plane. Image tags and infrastructure IDs are examples: select compatible, maintained images and replace placeholders before use.

Lab Environment Setup

To practice the concepts in this document, you need the following tools and environment:

Required Tools

• kubectl within one minor version of the API server
• A working Kubernetes cluster (EKS, minikube, kind, etc.)

Local Development Environment Setup

# Install minikube (for local development)
curl -LO https://storage.googleapis.com/minikube/releases/latest/minikube-linux-amd64
sudo install minikube-linux-amd64 /usr/local/bin/minikube

# Start cluster
minikube start

# Check cluster status
kubectl cluster-info

# Check control plane components
kubectl get pods -n kube-system

Cluster Architecture Overview

Core Concept: A Kubernetes cluster consists of the control plane and worker nodes, each composed of multiple components that perform specific roles.

A Kubernetes cluster consists of a set of nodes (virtual or physical machines) for running containerized applications. The cluster is broadly divided into the control plane and worker nodes.

Cluster Architecture Diagram

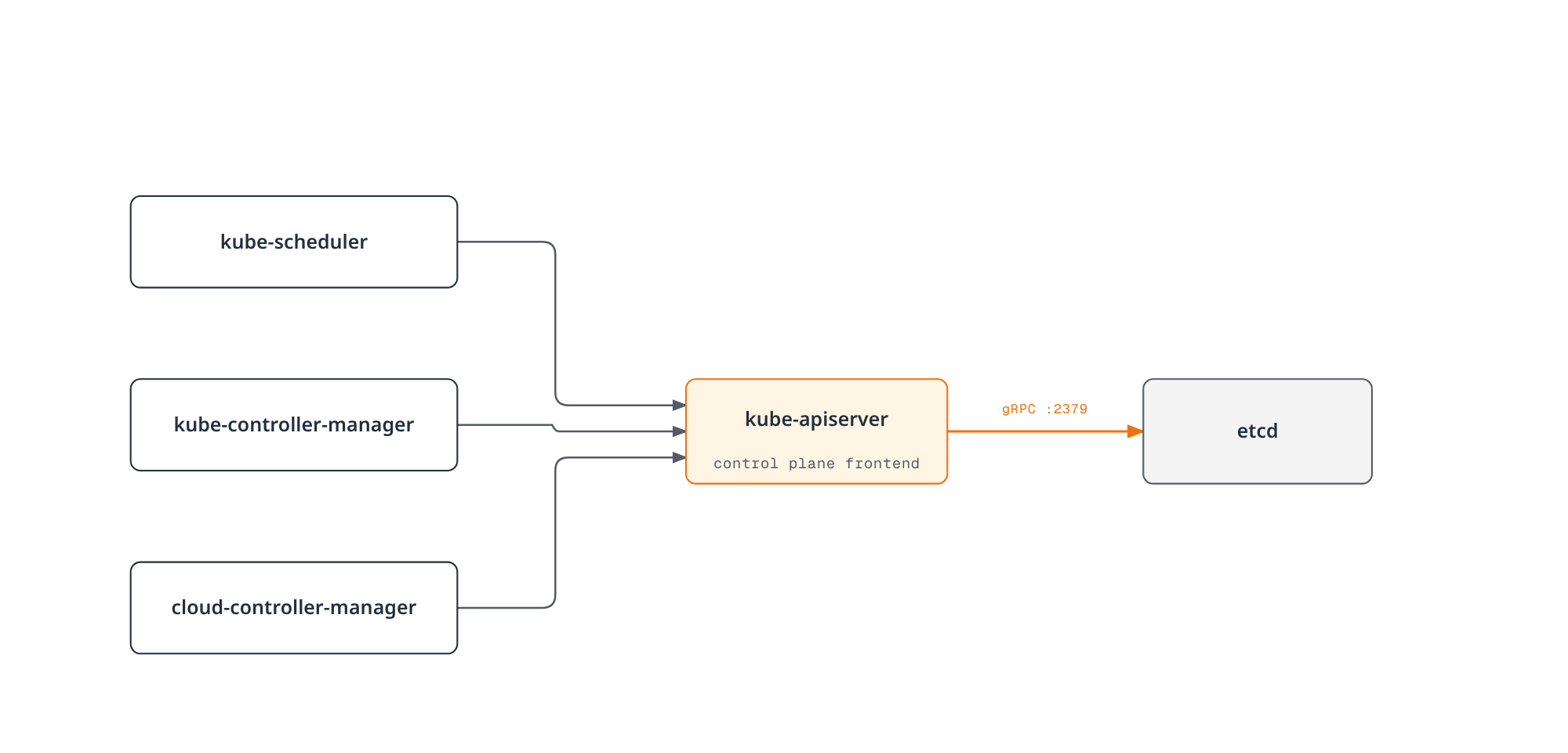

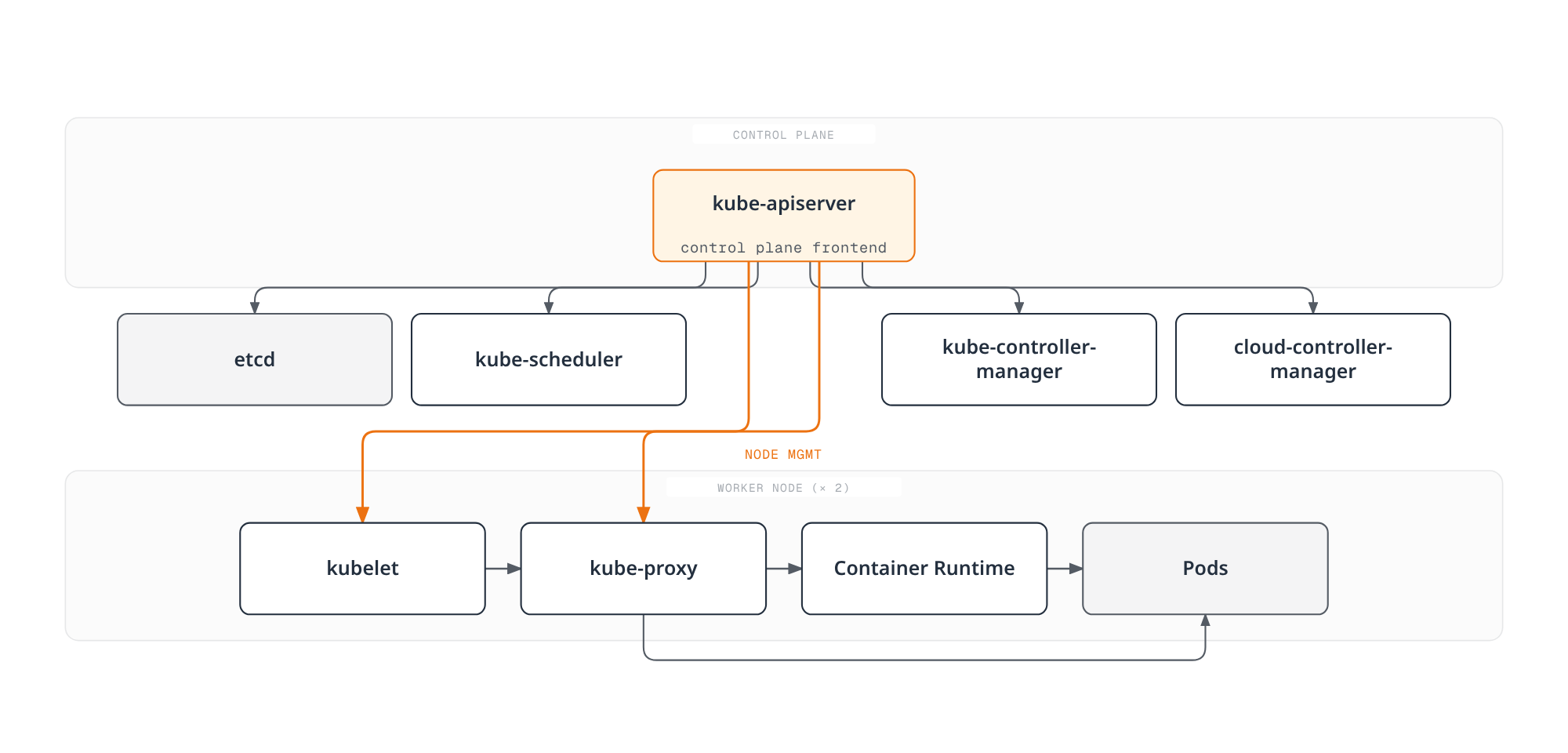

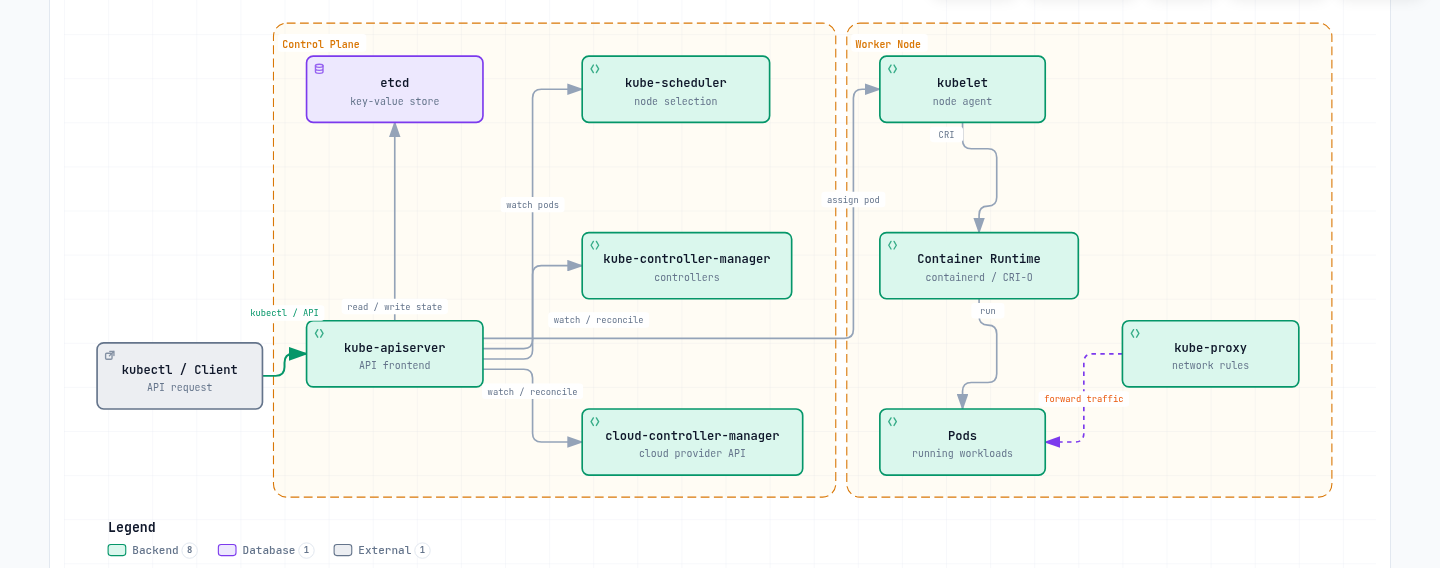

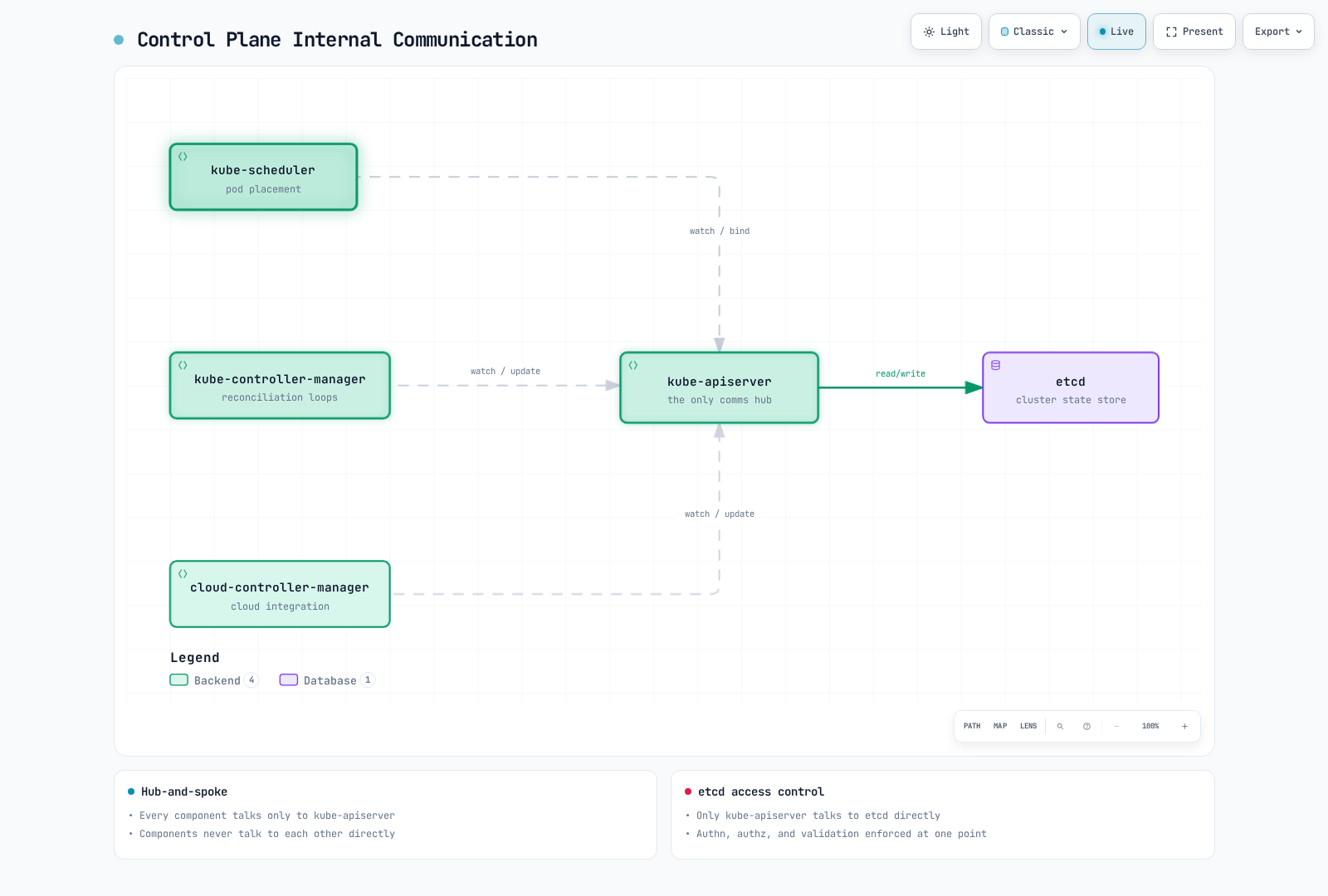

Architecture diagram showing the control plane's kube-apiserver coordinating etcd, the scheduler, and controller managers, and reaching across to a worker node's kubelet and kube-proxy, with kubelet driving the container runtime and kube-proxy configuring Service networking.Open full screen ↗

Control Plane Components:

• kube-apiserver: Frontend that exposes the Kubernetes API
• etcd: Key-value store that stores Kubernetes API state
• kube-scheduler: Selects nodes to run newly created pods
• kube-controller-manager: Runs controllers that manage cluster state
• cloud-controller-manager: Interacts with cloud provider APIs

Worker Node Components:

• kubelet: Agent running on each node, manages container execution
• kube-proxy: Maintains network rules and performs connection forwarding
• Container Runtime: Runs containers (containerd, CRI-O, etc.)

Control Plane Components

The control plane acts as the "brain" of the Kubernetes cluster, managing and controlling the overall state of the cluster. Control plane components typically run on dedicated machines and can be replicated to multiple instances for high availability.

Control Plane Component Details

Component	Main Functions	Communication Targets	High Availability Configuration
kube-apiserver	- Provides Kubernetes API - Authentication and authorization - API request processing	- All components - etcd	Horizontal scaling with multiple instances
etcd	- Stores cluster data - Distributed key-value store - Ensures consistency	- kube-apiserver	Multi-node cluster
kube-scheduler	- Pod placement decisions - Evaluates node resources - Applies affinity/anti-affinity	- kube-apiserver	Active-standby configuration
kube-controller-manager	- Node controller - Replication controller - Endpoint controller - Service account controller	- kube-apiserver	Active-standby configuration
cloud-controller-manager	- Cloud provider integration - Node lifecycle - Routing and load balancing	- kube-apiserver - Cloud API	Active-standby configuration

Control Plane Communication Flow

1. User or controller sends request to kube-apiserver
2. kube-apiserver performs authentication, authorization, and admission
3. kube-apiserver reads/writes data from/to etcd
4. Controllers and scheduler watch cluster state through kube-apiserver
5. kubelet reports node status to kube-apiserver

kube-apiserver

kube-apiserver is the frontend of the control plane that exposes the Kubernetes API. All internal and external requests are processed through this API server.

Main Functions:

• Provides REST API
• Authentication and authorization
• Request validation and processing
• Communication with etcd
• Horizontally scalable (can scale to multiple instances)

Main Flags and Configuration Options:

# Basic configuration example
kube-apiserver \
  --advertise-address=192.168.1.10 \
  --allow-privileged=true \
  --authorization-mode=Node,RBAC \
  --client-ca-file=/etc/kubernetes/pki/ca.crt \
  --enable-admission-plugins=NodeRestriction \
  --enable-bootstrap-token-auth=true \
  --etcd-servers=https://127.0.0.1:2379 \
  --etcd-cafile=/etc/kubernetes/pki/etcd/ca.crt \
  --etcd-certfile=/etc/kubernetes/pki/apiserver-etcd-client.crt \
  --etcd-keyfile=/etc/kubernetes/pki/apiserver-etcd-client.key \
  --kubelet-client-certificate=/etc/kubernetes/pki/apiserver-kubelet-client.crt \
  --kubelet-client-key=/etc/kubernetes/pki/apiserver-kubelet-client.key \
  --service-account-key-file=/etc/kubernetes/pki/sa.pub \
  --service-account-signing-key-file=/etc/kubernetes/pki/sa.key \
  --service-account-issuer=https://kubernetes.default.svc.cluster.local \
  --service-cluster-ip-range=10.96.0.0/12 \
  --tls-cert-file=/etc/kubernetes/pki/apiserver.crt \
  --tls-private-key-file=/etc/kubernetes/pki/apiserver.key

API Server Security:

• Secure communication through TLS certificates
• Supports various authentication methods (X.509 certificates, service account tokens, OIDC, webhooks, etc.)
• Permission management through RBAC (Role-Based Access Control)
• Request validation and modification through admission controllers

etcd

etcd is a consistent, highly available key-value store that stores Kubernetes API state. It acts as Kubernetes' "source of truth."

Key Features:

• Distributed system
• Strong consistency (uses Raft consensus algorithm)
• High availability (can be configured with multiple nodes)
• Secure data storage
• Watch functionality to monitor changes

etcd Cluster Configuration:

# etcd cluster configuration example (3 nodes)
etcd \
  --name etcd-1 \
  --initial-advertise-peer-urls https://192.168.1.11:2380 \
  --listen-peer-urls https://192.168.1.11:2380 \
  --listen-client-urls https://192.168.1.11:2379,https://127.0.0.1:2379 \
  --advertise-client-urls https://192.168.1.11:2379 \
  --initial-cluster-token etcd-cluster \
  --initial-cluster etcd-1=https://192.168.1.11:2380,etcd-2=https://192.168.1.12:2380,etcd-3=https://192.168.1.13:2380 \
  --initial-cluster-state new \
  --data-dir=/var/lib/etcd \
  --cert-file=/etc/kubernetes/pki/etcd/server.crt \
  --key-file=/etc/kubernetes/pki/etcd/server.key \
  --trusted-ca-file=/etc/kubernetes/pki/etcd/ca.crt \
  --client-cert-auth=true \
  --peer-cert-file=/etc/kubernetes/pki/etcd/peer.crt \
  --peer-key-file=/etc/kubernetes/pki/etcd/peer.key \
  --peer-trusted-ca-file=/etc/kubernetes/pki/etcd/ca.crt \
  --peer-client-cert-auth=true

etcd Backup and Recovery:

# etcd backup
ETCDCTL_API=3 etcdctl snapshot save snapshot.db \
  --endpoints=https://127.0.0.1:2379 \
  --cacert=/etc/kubernetes/pki/etcd/ca.crt \
  --cert=/etc/kubernetes/pki/etcd/server.crt \
  --key=/etc/kubernetes/pki/etcd/server.key

# etcd recovery
etcdutl snapshot restore snapshot.db \
  --bump-revision=1000000000 --mark-compacted \
  --data-dir=/var/lib/etcd-restore \
  --name=etcd-1 \
  --initial-cluster=etcd-1=https://192.168.1.11:2380 \
  --initial-cluster-token=etcd-cluster \
  --initial-advertise-peer-urls=https://192.168.1.11:2380

etcd Performance Optimization:

• Disk I/O optimization (SSD recommended)
• Proper memory allocation
• Regular compaction and defragmentation
• Appropriate number of etcd nodes based on cluster size (typically 3 or 5)

July 2026 Update: etcd v3.7.0 Released

On July 8, 2026, SIG etcd released etcd v3.7.0. Highlights:

• RangeStream: streams large range results in chunks instead of buffering the whole response in memory (a long-requested feature)
• Performance improvements: optimized keys-only range requests, faster and more reliable leases
• Removes the last remnants of the legacy v2store and completes a major protobuf overhaul
• Ships with updated core dependencies bbolt v1.5.0 and raft v3.7.0

See the official announcement and the etcd v3.7 changelog for details.

kube-scheduler

kube-scheduler is the control plane component that selects nodes to run newly created pods.

Scheduling Process:

1. Filtering: Identifying nodes that can run the pod

   • Resource requirements (CPU, memory)
   • Node selectors, node affinity
   • Taints and tolerations
   • Volume constraints

2. Scoring: Assigning scores to suitable nodes

   • Resource utilization
   • Pod inter-affinity/anti-affinity
   • Data locality
   • Load balancing across nodes

3. Binding: Assigning the pod to the optimal node

Scheduler Configuration:

# Basic configuration example
kube-scheduler \
  --kubeconfig=/etc/kubernetes/scheduler.conf \
  --leader-elect=true \
  --v=2

Scheduler Profiles and Plugins:

• Default scheduler profiles
• Custom scheduler profiles
• Scheduler extension points (filter, score, bind, etc.)
• Multiple scheduler support

Scheduling Policy:

# Scheduling policy example
apiVersion: kubescheduler.config.k8s.io/v1
kind: KubeSchedulerConfiguration
profiles:
- schedulerName: default-scheduler
  pluginConfig:
  - name: NodeResourcesFit
    args:
      scoringStrategy:
        type: MostAllocated
        resources:
        - name: cpu
          weight: 1
        - name: memory
          weight: 1

kube-controller-manager

kube-controller-manager is the control plane component that runs multiple controller processes. Each controller manages a specific aspect of the cluster.

Main Controllers:

• Node Controller: Monitors and responds to node status
• Replication Controller: Maintains pod replica count
• EndpointSlice Controller: Tracks Service backends in EndpointSlices
• Service Account & Token Controllers: Create default ServiceAccounts and maintain explicitly requested legacy token Secrets; current Pods use short-lived TokenRequest tokens
• Job Controller: Manages one-time tasks
• CronJob Controller: Manages scheduled tasks
• DaemonSet Controller: Ensures specific pods run on all nodes
• StatefulSet Controller: Manages stateful applications
• PV Controller: Manages persistent volumes
• Namespace Controller: Manages namespace lifecycle
• Garbage Collector: Cleans up orphaned objects

Controller Manager Configuration:

# Basic configuration example
kube-controller-manager \
  --kubeconfig=/etc/kubernetes/controller-manager.conf \
  --leader-elect=true \
  --use-service-account-credentials=true \
  --root-ca-file=/etc/kubernetes/pki/ca.crt \
  --service-account-private-key-file=/etc/kubernetes/pki/sa.key \
  --cluster-signing-cert-file=/etc/kubernetes/pki/ca.crt \
  --cluster-signing-key-file=/etc/kubernetes/pki/ca.key \
  --controllers=*,bootstrapsigner,tokencleaner

Controller Operation:

1. Controllers continuously watch cluster state through the API server
2. Detect differences between current and desired state
3. Perform operations to reconcile the difference
4. Report state changes to the API server

cloud-controller-manager

cloud-controller-manager is the control plane component that contains cloud-specific control logic. This allows separation of Kubernetes core from cloud provider APIs.

Main Controllers:

• Node Controller: Checks node status through cloud provider API
• Route Controller: Configures routes in cloud environments
• Service Controller: Creates, updates, and deletes cloud load balancers

Cloud storage provisioning and attachment use CSI controllers; kubelet and CSI node plugins handle mounts. These are not cloud-controller-manager responsibilities.

Cloud Provider Implementations:

• AWS Cloud Controller Manager
• Azure Cloud Controller Manager
• GCP Cloud Controller Manager
• OpenStack Cloud Controller Manager
• vSphere Cloud Controller Manager

Cloud Controller Manager Configuration:

# AWS Cloud Controller Manager example
cloud-controller-manager \
  --cloud-provider=aws \
  --cloud-config=/etc/kubernetes/cloud-config \
  --kubeconfig=/etc/kubernetes/cloud-controller-manager.conf \
  --leader-elect=true

Cloud Controller Manager Benefits:

• Separation of cloud provider-specific code from Kubernetes core
• Cloud providers can develop their own features independently
• Add cloud features without changing Kubernetes core

Node Components

Nodes are worker machines in the Kubernetes cluster that run containerized applications. Each node is managed by the control plane and consists of multiple components.

kubelet

kubelet is an agent running on each node that manages containers within pods. kubelet receives PodSpecs through various mechanisms and ensures containers run healthily according to those specs.

Main Functions:

• Runs containers according to PodSpec
• Monitors and reports container status
• Manages container lifecycle
• Manages volume mounts
• Reports node status
• Performs container health checks

kubelet Configuration:

# Basic configuration example
kubelet \
  --kubeconfig=/etc/kubernetes/kubelet.conf \
  --config=/var/lib/kubelet/config.yaml \
  --container-runtime-endpoint=unix:///run/containerd/containerd.sock

kubelet Configuration File Example:

# /var/lib/kubelet/config.yaml
apiVersion: kubelet.config.k8s.io/v1beta1
kind: KubeletConfiguration
address: 0.0.0.0
authentication:
  anonymous:
    enabled: false
  webhook:
    cacheTTL: 2m0s
    enabled: true
  x509:
    clientCAFile: /etc/kubernetes/pki/ca.crt
authorization:
  mode: Webhook
  webhook:
    cacheAuthorizedTTL: 5m0s
    cacheUnauthorizedTTL: 30s
cgroupDriver: systemd
clusterDomain: cluster.local
cpuManagerPolicy: none
evictionHard:
  memory.available: 100Mi
  nodefs.available: 10%
  nodefs.inodesFree: 5%
failSwapOn: true
healthzBindAddress: 127.0.0.1
healthzPort: 10248

Static Pods: The manifest below is a fragment, not a complete control-plane installation; it also needs host networking, certificates, mounts, and the full API-server configuration. kubelet can run static pods that it manages directly without going through the API server. This is primarily used to run control plane components.

# /etc/kubernetes/manifests/kube-apiserver.yaml
apiVersion: v1
kind: Pod
metadata:
  name: kube-apiserver
  namespace: kube-system
spec:
  containers:
  - name: kube-apiserver
    image: registry.k8s.io/kube-apiserver:v1.37.1
    command:
    - kube-apiserver
    - --advertise-address=192.168.1.10
    # ... additional flags

kube-proxy

kube-proxy is a network proxy running on each node that implements the Kubernetes Service concept. It maintains network rules on nodes and performs connection forwarding.

Main Functions:

• Maintains network rules for service IPs and ports
• Connection forwarding
• Implements load balancing
• Supports service discovery

Operating Modes:

1. iptables: Default Linux mode; installs kernel packet-processing rules
2. nftables: Stable since v1.33; check kernel and CNI compatibility
3. IPVS: Legacy Linux mode, deprecated since v1.35; migrate to a supported alternative
4. kernelspace: Windows mode

The old userspace mode was removed. Some network implementations replace kube-proxy entirely.

kube-proxy Configuration:

# Basic configuration example
kube-proxy \
  --config=/var/lib/kube-proxy/config.conf \
  --hostname-override=node1

kube-proxy Configuration File Example:

# /var/lib/kube-proxy/config.conf
apiVersion: kubeproxy.config.k8s.io/v1alpha1
kind: KubeProxyConfiguration
bindAddress: 0.0.0.0
clientConnection:
  acceptContentTypes: ""
  burst: 10
  contentType: application/vnd.kubernetes.protobuf
  kubeconfig: /var/lib/kube-proxy/kubeconfig.conf
  qps: 5
clusterCIDR: 10.244.0.0/16
configSyncPeriod: 15m0s
conntrack:
  maxPerCore: 32768
  min: 131072
  tcpCloseWaitTimeout: 1h0m0s
  tcpEstablishedTimeout: 24h0m0s
enableProfiling: false
healthzBindAddress: 0.0.0.0:10256
hostnameOverride: node1
iptables:
  masqueradeAll: false
  masqueradeBit: 14
  minSyncPeriod: 0s
  syncPeriod: 30s
ipvs:
  excludeCIDRs: null
  minSyncPeriod: 0s
  scheduler: ""
  syncPeriod: 30s
mode: "iptables"

IPVS vs iptables Mode Comparison:

Characteristic	iptables Mode	IPVS Mode
Performance	Performance degradation with many services	Better performance in large clusters
Load Balancing Algorithms	Random backend selection by default	Various algorithms supported (rr, lc, dh, sh, sed, nq)
Implementation	Network packet filtering chains	Hash table based
Kernel Requirements	Default kernel modules	IPVS kernel module required

Container Runtime

Container runtime is software that runs containers. Kubernetes supports various container runtimes through the Container Runtime Interface (CRI).

Main Container Runtimes:

1. containerd: Lightweight container runtime (currently most widely used)
2. CRI-O: Lightweight runtime specifically designed for Kubernetes
3. Docker Engine: Requires an external CRI adapter such as cri-dockerd; the built-in dockershim was removed in v1.24. Docker-built OCI images still work with containerd/CRI-O.

Container Runtime Layer Structure:

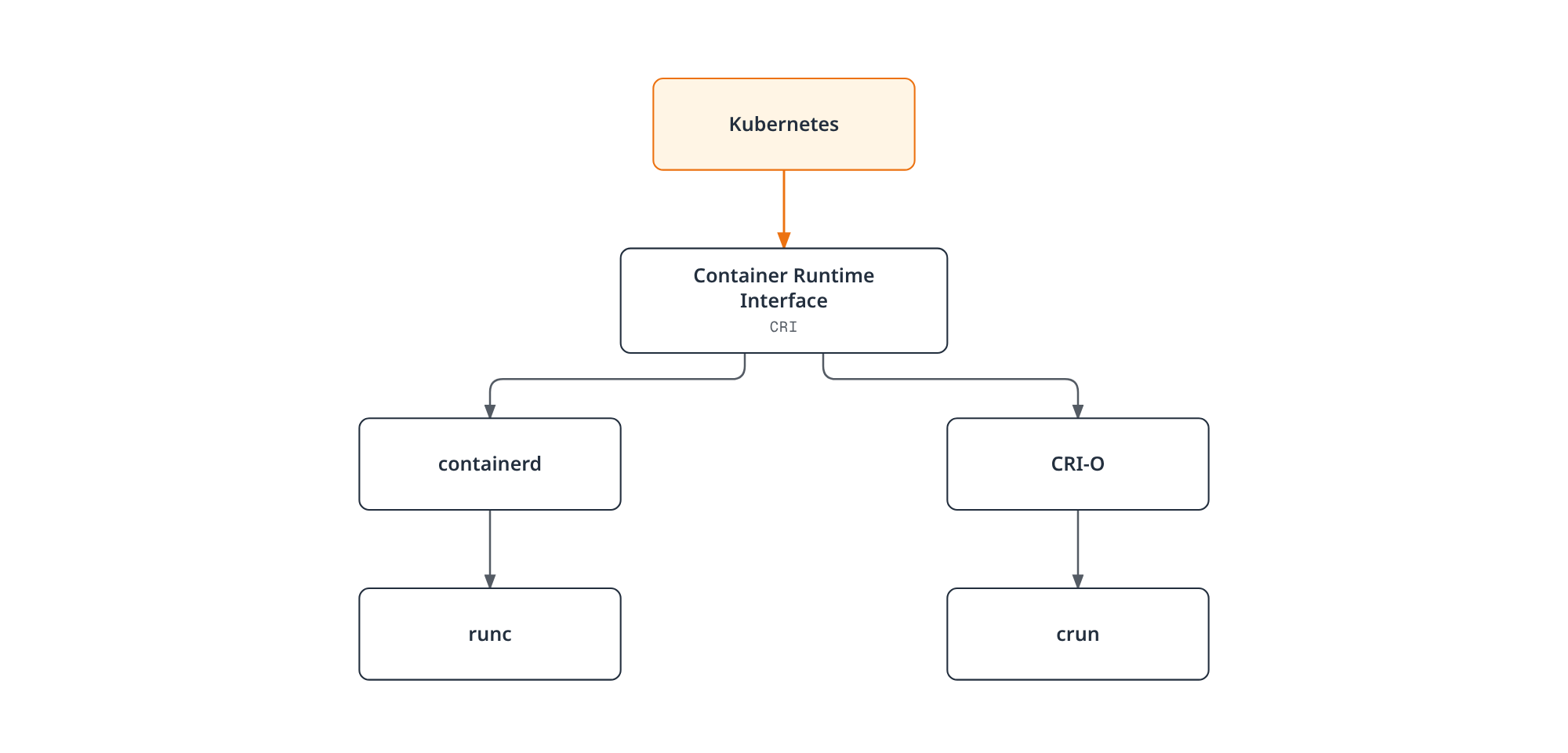

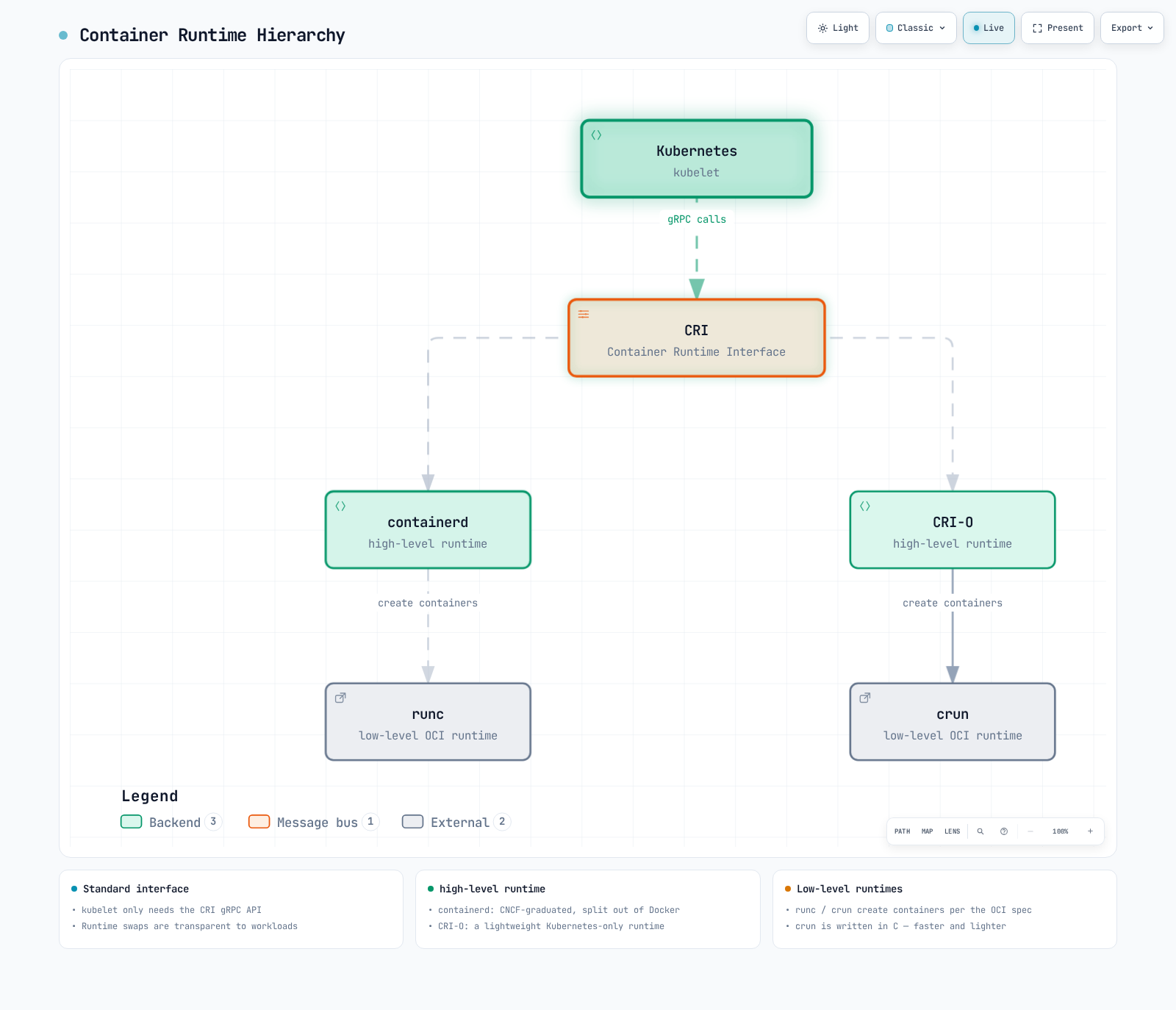

Layered architecture diagram showing Kubernetes calling the Container Runtime Interface, which delegates to containerd or CRI-O, each backed by a low-level runtime (runc or crun).Open full screen ↗

containerd 1.x Configuration Example (2.x uses different plugin IDs; generate defaults for the installed release):

# /etc/containerd/config.toml
version = 2

[plugins]
  [plugins."io.containerd.grpc.v1.cri"]
    sandbox_image = "registry.k8s.io/pause:3.10"
    [plugins."io.containerd.grpc.v1.cri".containerd]
      default_runtime_name = "runc"
      [plugins."io.containerd.grpc.v1.cri".containerd.runtimes]
        [plugins."io.containerd.grpc.v1.cri".containerd.runtimes.runc]
          runtime_type = "io.containerd.runc.v2"
          [plugins."io.containerd.grpc.v1.cri".containerd.runtimes.runc.options]
            SystemdCgroup = true

CRI-O Configuration Example:

# /etc/crio/crio.conf
[crio]
root = "/var/lib/containers/storage"
runroot = "/var/run/containers/storage"
storage_driver = "overlay"
storage_option = ["overlay.mountopt=nodev"]

[crio.runtime]
default_runtime = "runc"
conmon = "/usr/bin/conmon"
conmon_cgroup = "pod"
cgroup_manager = "systemd"

[crio.image]
pause_image = "registry.k8s.io/pause:3.10"

Add-on Components

Add-ons are additional components that extend the functionality of Kubernetes clusters. Some important add-ons include:

1. CNI Network Plugins: Implements pod networking

   • Calico, Cilium, Flannel, etc.

2. DNS: Provides DNS service within the cluster

   • CoreDNS (default)

3. Dashboard: Provides web-based UI

   • Headlamp (Kubernetes Dashboard is archived)

4. Ingress Controller: Manages HTTP/HTTPS routing

   • Traefik, HAProxy, etc.

5. Metrics Server: Collects resource usage metrics

   • Metrics Server

6. Logging and Monitoring: Log collection and monitoring

   • Prometheus, Grafana, Elasticsearch, Fluentd, Kibana, etc.

CoreDNS Configuration Example:

apiVersion: v1
kind: ConfigMap
metadata:
  name: coredns
  namespace: kube-system
data:
  Corefile: |
    .:53 {
        errors
        health {
            lameduck 5s
        }
        ready
        kubernetes cluster.local in-addr.arpa ip6.arpa {
            pods insecure
            fallthrough in-addr.arpa ip6.arpa
            ttl 30
        }
        prometheus :9153
        forward . /etc/resolv.conf {
            max_concurrent 1000
        }
        cache 30
        loop
        reload
        loadbalance
    }

Calico CNI Configuration Example:

apiVersion: v1
kind: ConfigMap
metadata:
  name: calico-config
  namespace: kube-system
data:
  calico_backend: "bird"
  cni_network_config: |-
    {
      "name": "k8s-pod-network",
      "cniVersion": "0.3.1",
      "plugins": [
        {
          "type": "calico",
          "log_level": "info",
          "datastore_type": "kubernetes",
          "nodename": "__KUBERNETES_NODE_NAME__",
          "mtu": __CNI_MTU__,
          "ipam": {
            "type": "calico-ipam"
          },
          "policy": {
            "type": "k8s"
          },
          "kubernetes": {
            "kubeconfig": "__KUBECONFIG_FILEPATH__"
          }
        },
        {
          "type": "portmap",
          "snat": true,
          "capabilities": {"portMappings": true}
        }
      ]
    }

Cluster Communication Paths

Communication between various components occurs within a Kubernetes cluster. Understanding these communication paths is important for cluster design, security, and troubleshooting.

Control Plane Internal Communication

Architecture diagram showing the scheduler, controller manager, and cloud controller manager all calling the kube-apiserver, which in turn reads and writes cluster state to etcd over gRPC.Open full screen ↗

Communication between control plane components is as follows:

1. kube-apiserver and etcd: kube-apiserver communicates with etcd to store and retrieve cluster state.

   • Protocol: gRPC
   • Port: 2379/TCP
   • Security: TLS certificate-based authentication

2. kube-scheduler and kube-apiserver: kube-scheduler communicates with kube-apiserver for pod scheduling.

   • Protocol: HTTPS
   • Port: 6443/TCP (kube-apiserver)
   • Security: TLS certificate-based authentication

3. kube-controller-manager and kube-apiserver: Controllers communicate with kube-apiserver to watch and modify cluster state.

   • Protocol: HTTPS
   • Port: 6443/TCP (kube-apiserver)
   • Security: TLS certificate-based authentication

4. cloud-controller-manager and kube-apiserver: Cloud controller communicates with kube-apiserver to watch cluster state and manage cloud resources.

   • Protocol: HTTPS
   • Port: 6443/TCP (kube-apiserver)
   • Security: TLS certificate-based authentication

Control Plane and Node Communication

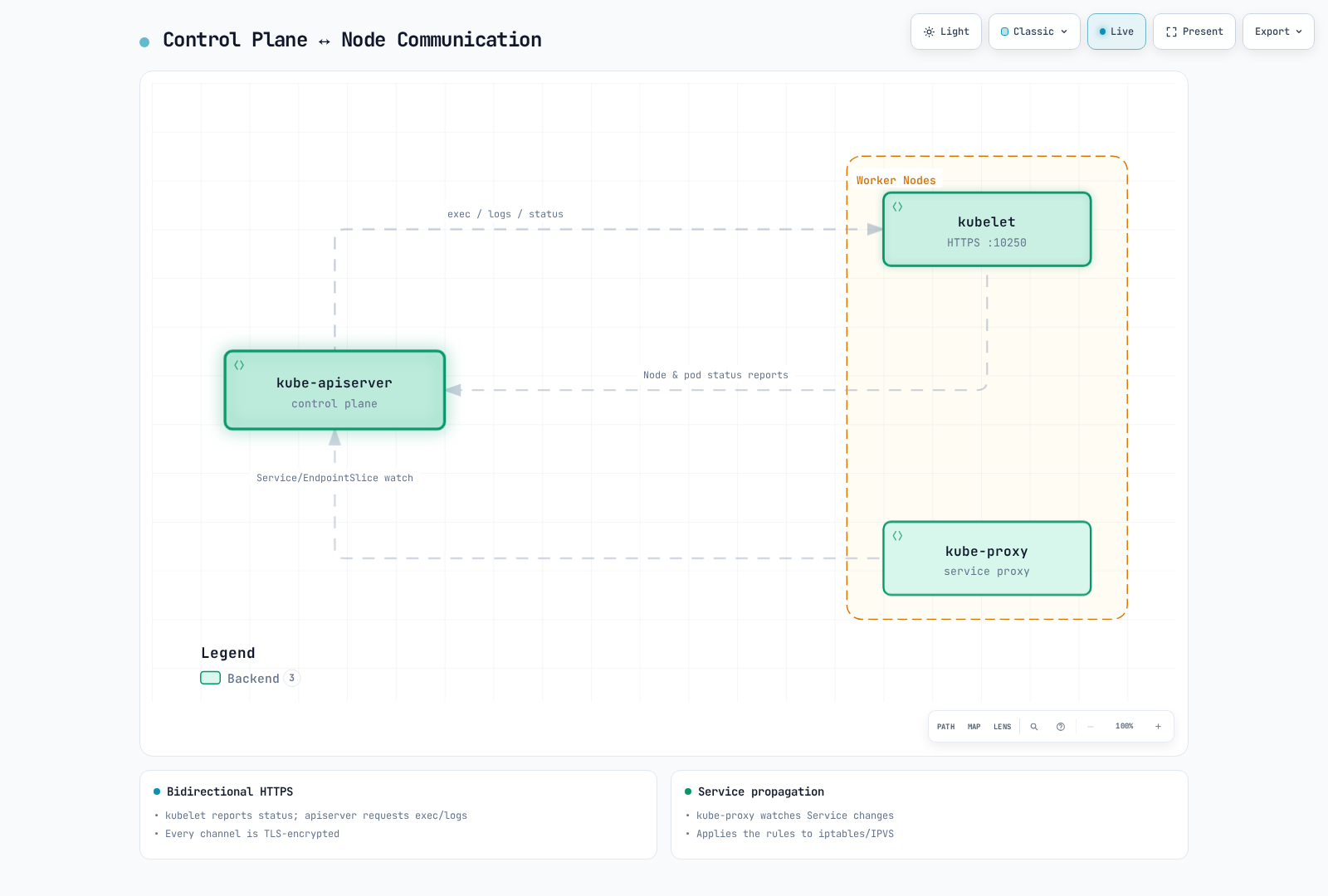

kubelet and kube-proxy watch the API server; the API server separately calls the kubelet for logs, exec, and port forwarding.Open full screen ↗

Communication between control plane and nodes is as follows:

1. kube-apiserver → kubelet: The API server calls the kubelet API for logs, exec/attach, and port forwarding.

   • Protocol: HTTPS
   • Port: 10250/TCP (kubelet)
   • Security: TLS certificate-based authentication

2. kubelet and kube-apiserver: kubelet communicates with kube-apiserver to watch assigned PodSpecs, register the node, and report node/Pod status and events.

   • Protocol: HTTPS
   • Port: 6443/TCP (kube-apiserver)
   • Security: TLS certificate-based authentication

3. kube-proxy and kube-apiserver: kube-proxy communicates with kube-apiserver to retrieve service information.

   • Protocol: HTTPS
   • Port: 6443/TCP (kube-apiserver)
   • Security: TLS certificate-based authentication

Inter-Node Communication

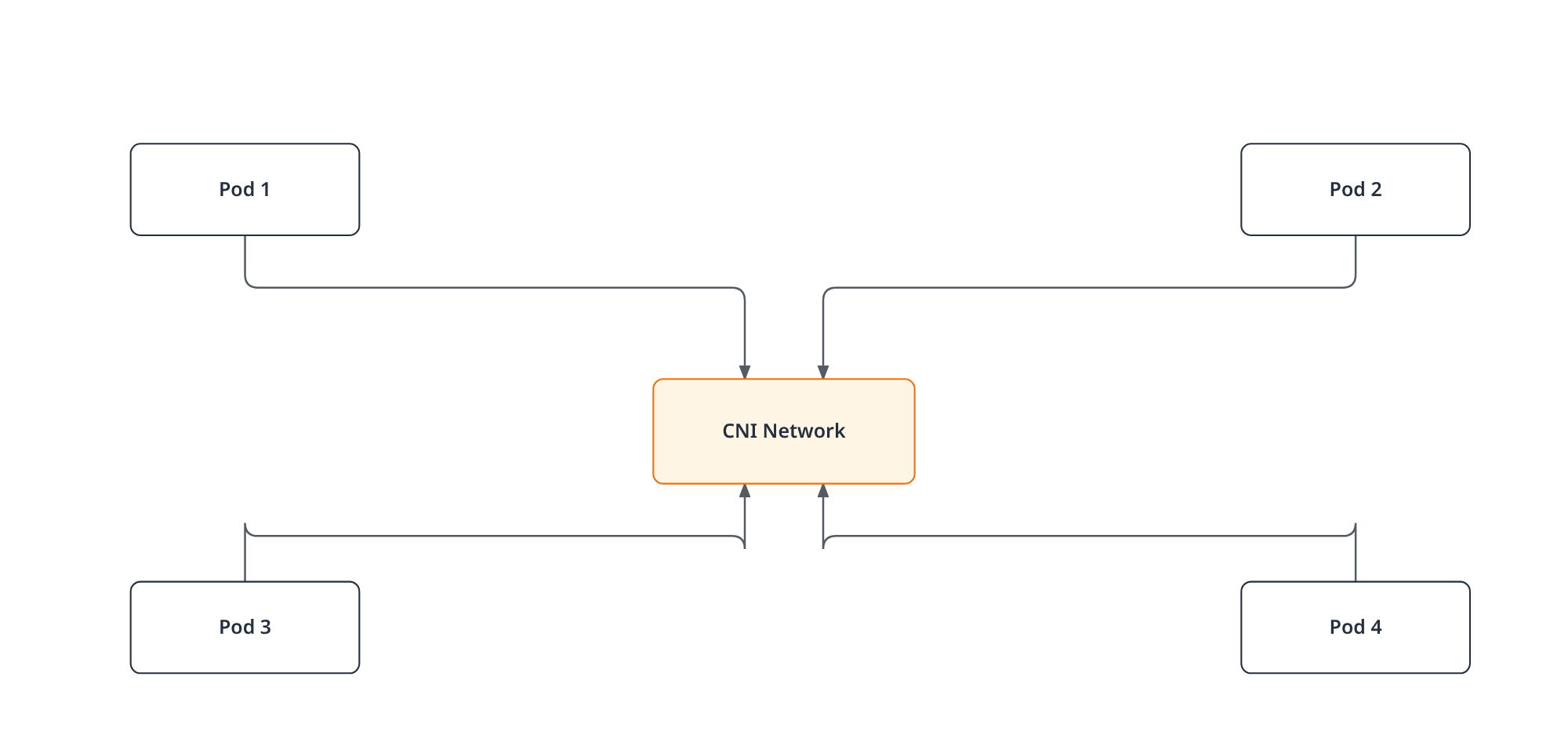

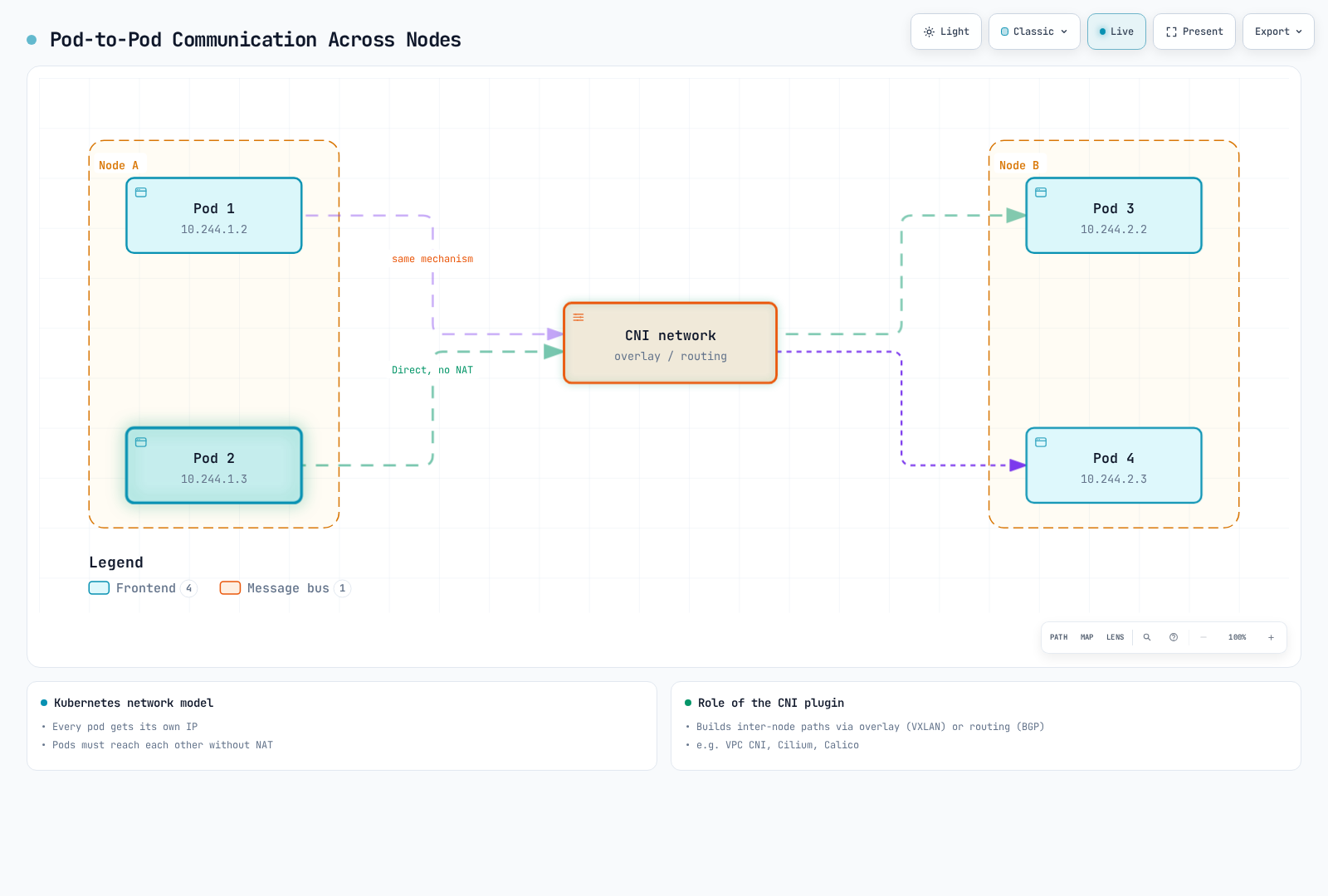

Architecture diagram showing pods on two nodes reaching each other directly through the CNI network without NAT, with one cross-node flow highlighted from a pod on Node A to a pod on Node B.Open full screen ↗

Inter-node communication is as follows:

1. Pod-to-Pod Communication: Pods communicate with each other through the network provided by CNI plugins.

   • Protocol: Depends on application (TCP, UDP, etc.)
   • Port: Depends on application
   • Security: Can be controlled through network policies

2. Cross-Node Pod Communication: Communication between pods on different nodes is handled by the CNI plugin.

   • Protocol: Depends on application (TCP, UDP, etc.)
   • Port: Depends on application
   • Security: Can be controlled through network policies

External Communication

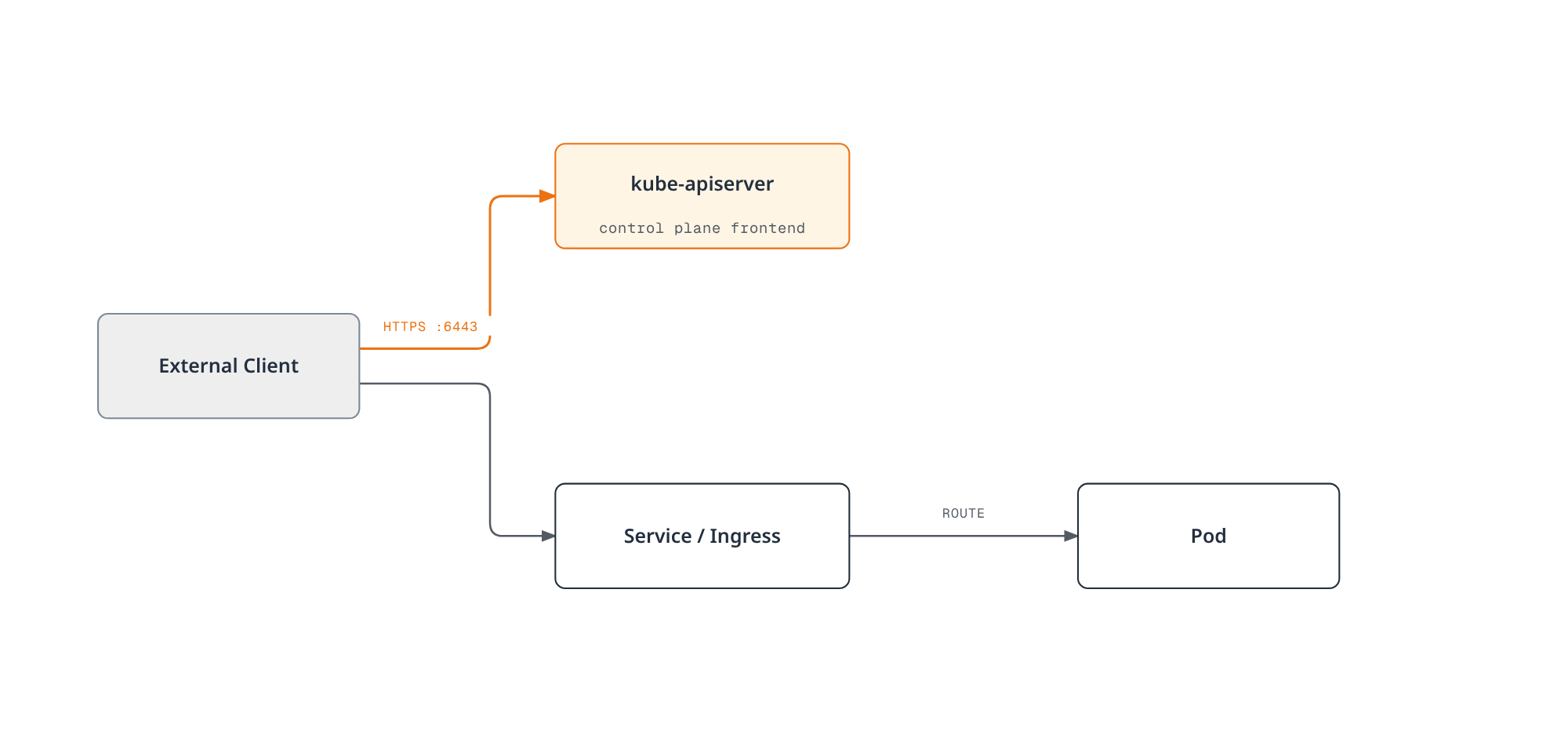

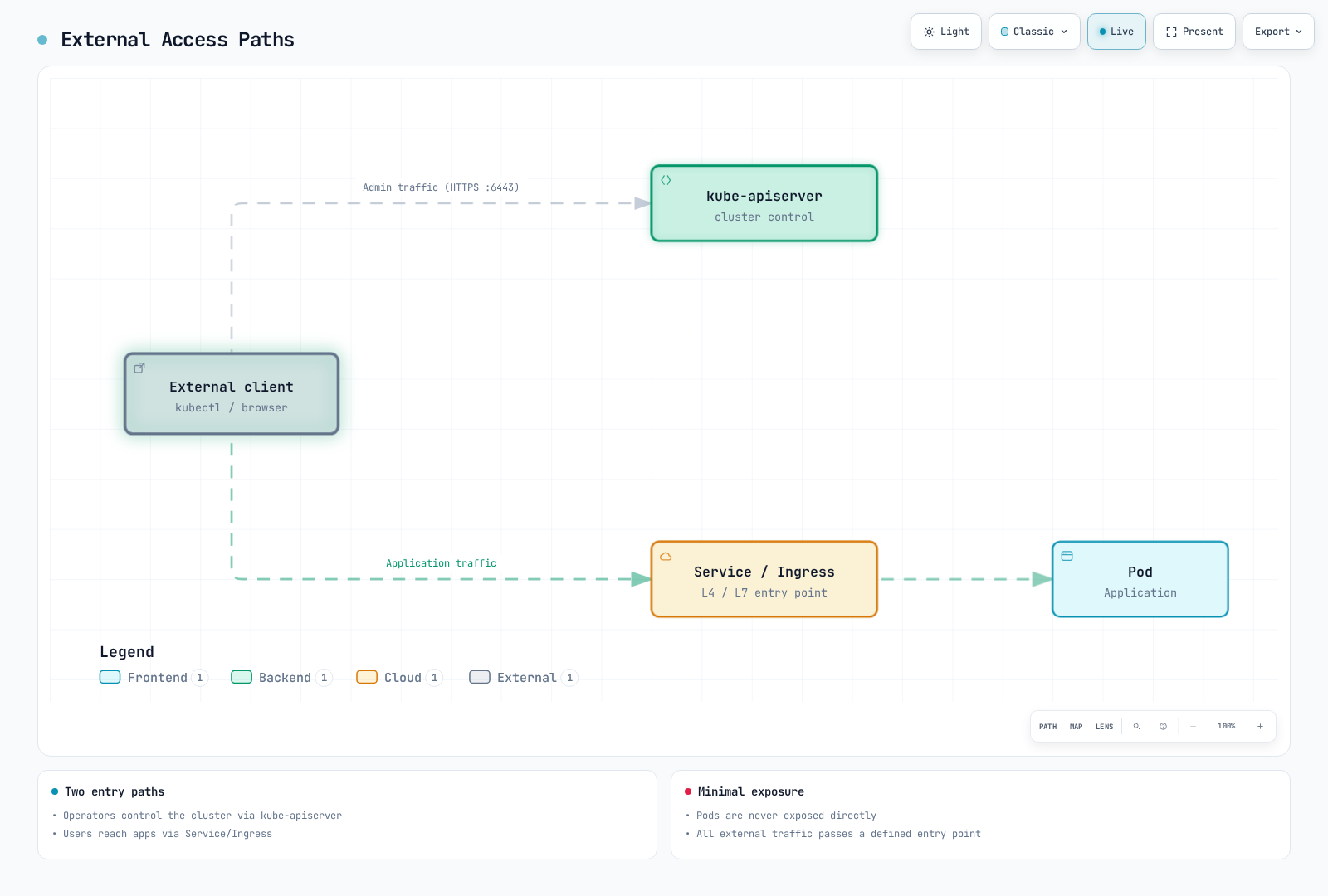

Architecture diagram showing an external client reaching the kube-apiserver directly for cluster management, and reaching application traffic through a Service or Ingress into a pod.Open full screen ↗

Communication with external entities is as follows:

1. Client and kube-apiserver: Users and external systems interact with the cluster through kube-apiserver.

   • Protocol: HTTPS
   • Port: 6443/TCP (kube-apiserver)
   • Security: TLS certificates, tokens, user authentication, etc.

2. External Traffic and Services: External traffic accesses applications within the cluster through NodePort, LoadBalancer services, or Ingress.

   • Protocol: HTTP, HTTPS, TCP, UDP, etc.
   • Port: Depends on service configuration
   • Security: Depends on ingress controller and service configuration

Communication Security

Security for communication within a Kubernetes cluster is implemented through the following methods:

1. TLS Certificates: All communication between control plane components is encrypted with TLS certificates.
2. Authentication and Authorization: All requests to the API server go through authentication and authorization processes.
3. Network Policies: Pod-to-pod communication can be restricted through network policies.
4. Encrypted Secrets: Secrets stored in etcd can be encrypted.

API Data Encryption at Rest Example (configure the API server with --encryption-provider-config; rewrite existing Secrets to encrypt them):

apiVersion: apiserver.config.k8s.io/v1
kind: EncryptionConfiguration
resources:
  - resources:
    - secrets
    providers:
    - aescbc:
        keys:
        - name: key1
          secret: <base64-encoded-key>
    - identity: {}

High Availability Cluster Configuration

High availability (HA) Kubernetes clusters are designed to eliminate single points of failure and continue operation without service interruption.

Control Plane High Availability

High availability of the control plane is implemented through the following methods:

1. Multiple Control Plane Nodes: Typically deploy 3 or 5 control plane nodes for redundancy
2. etcd Cluster: Deploy cluster composed of multiple etcd instances (typically 3 or 5)
3. Load Balancer: Place load balancer in front of API servers to distribute traffic

High Availability Control Plane Architecture:

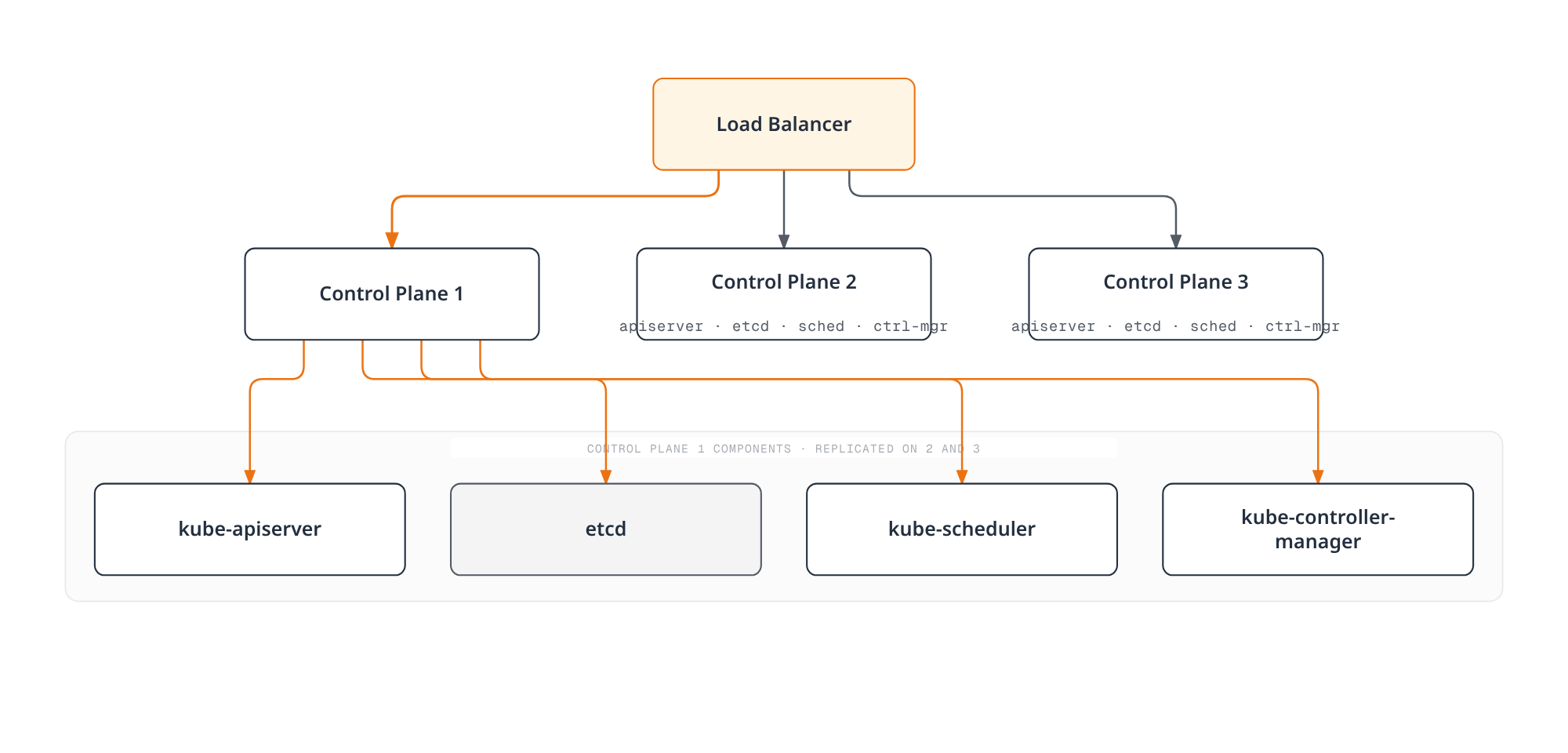

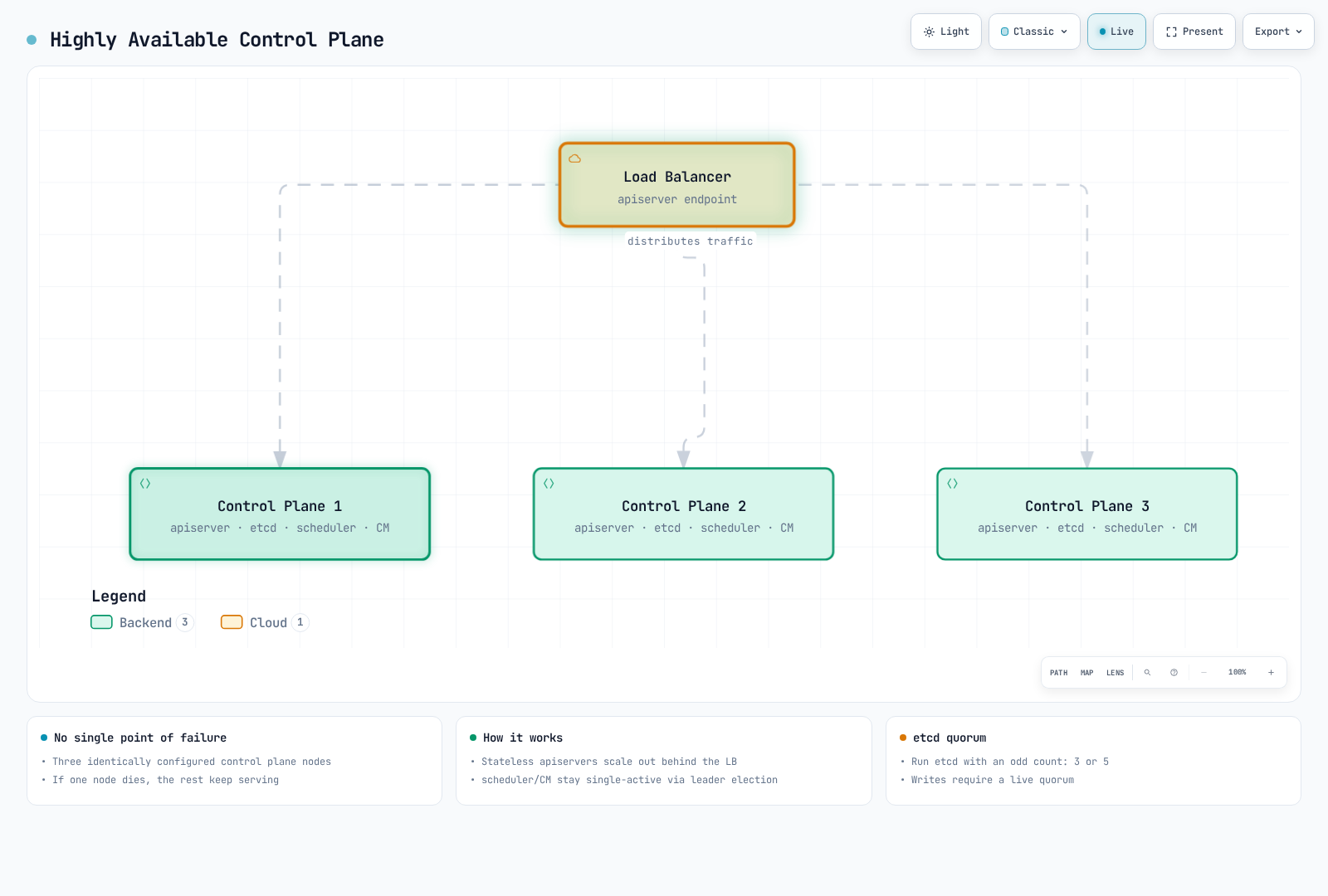

Architecture diagram showing a load balancer distributing traffic across three replicated control plane nodes, each running its own kube-apiserver, etcd, kube-scheduler, and kube-controller-manager.Open full screen ↗

etcd Cluster Configuration:

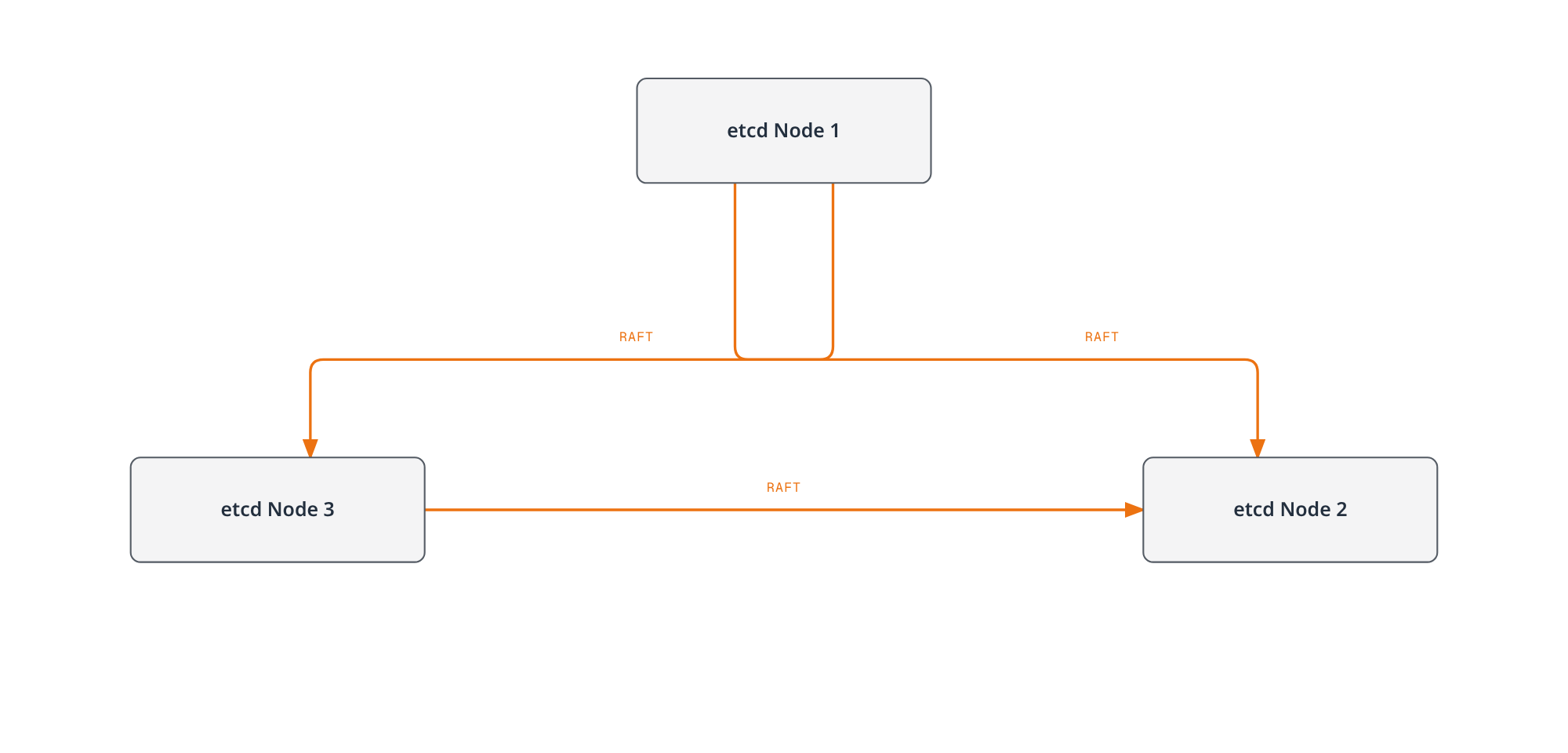

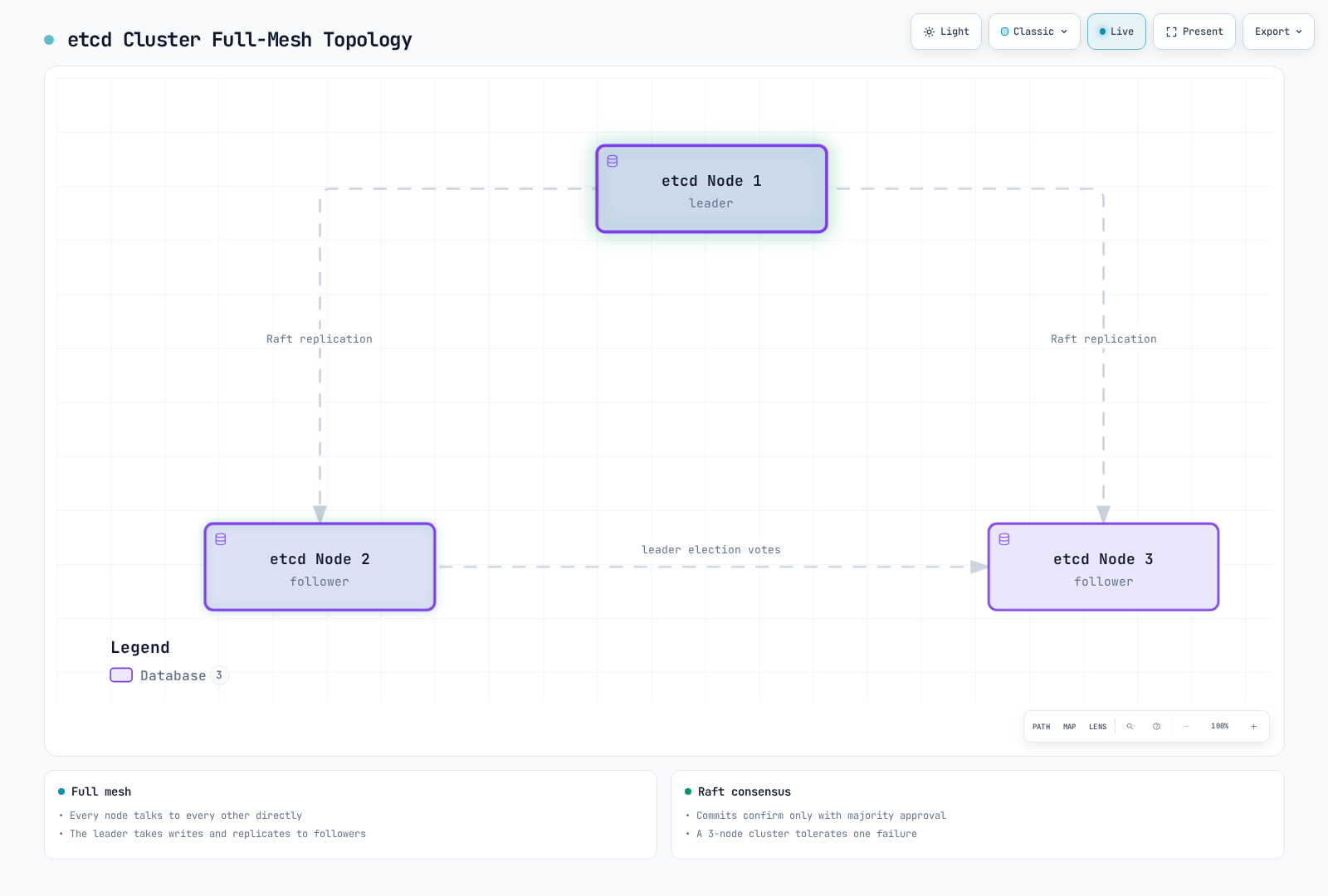

Architecture diagram showing three etcd nodes in a full mesh, where the leader replicates writes to both followers via Raft consensus and the followers exchange leader-election votes.Open full screen ↗

Worker Node High Availability

High availability of worker nodes is implemented through the following methods:

1. Multiple Worker Nodes: Distribute workloads across multiple worker nodes
2. Automatic Node Recovery: Utilize cloud provider's automatic recovery features
3. Auto Scaling: Automatic node scaling through cluster autoscaler
4. Multiple Availability Zones: Deploy nodes across multiple availability zones

Worker Node Distributed Deployment:

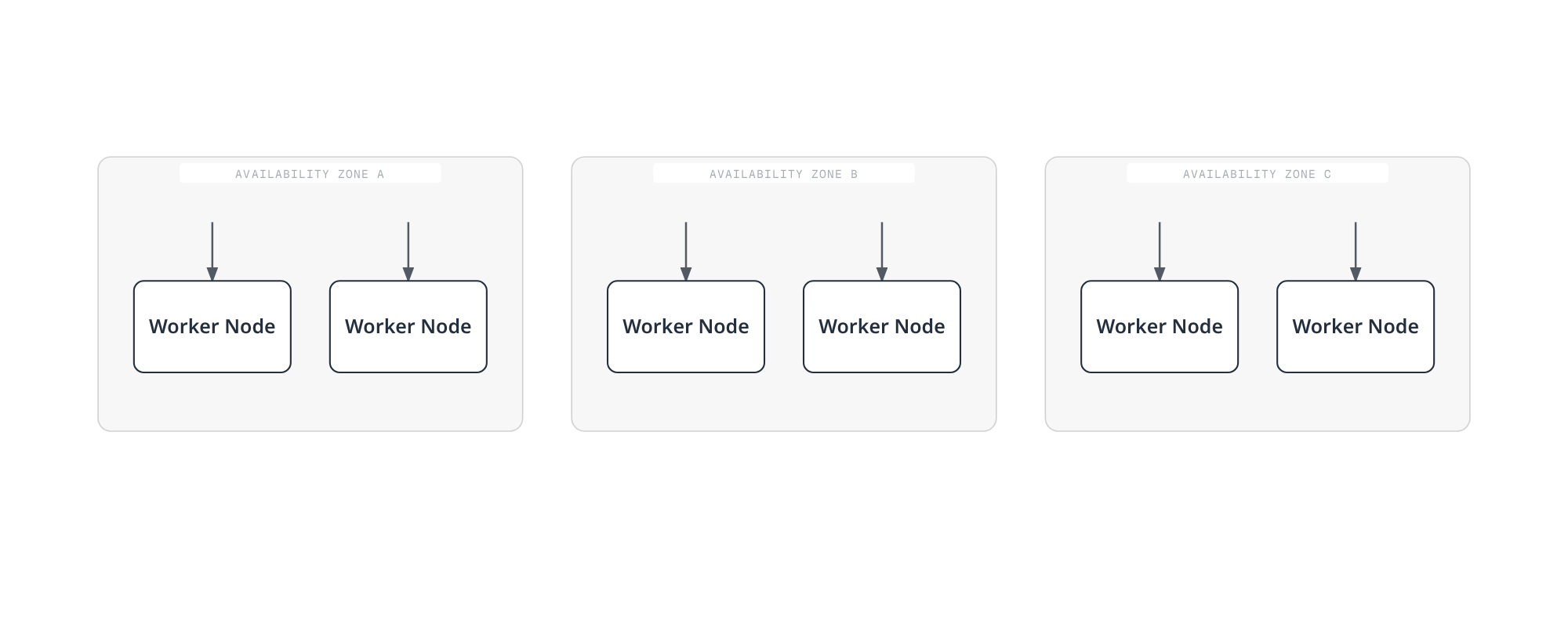

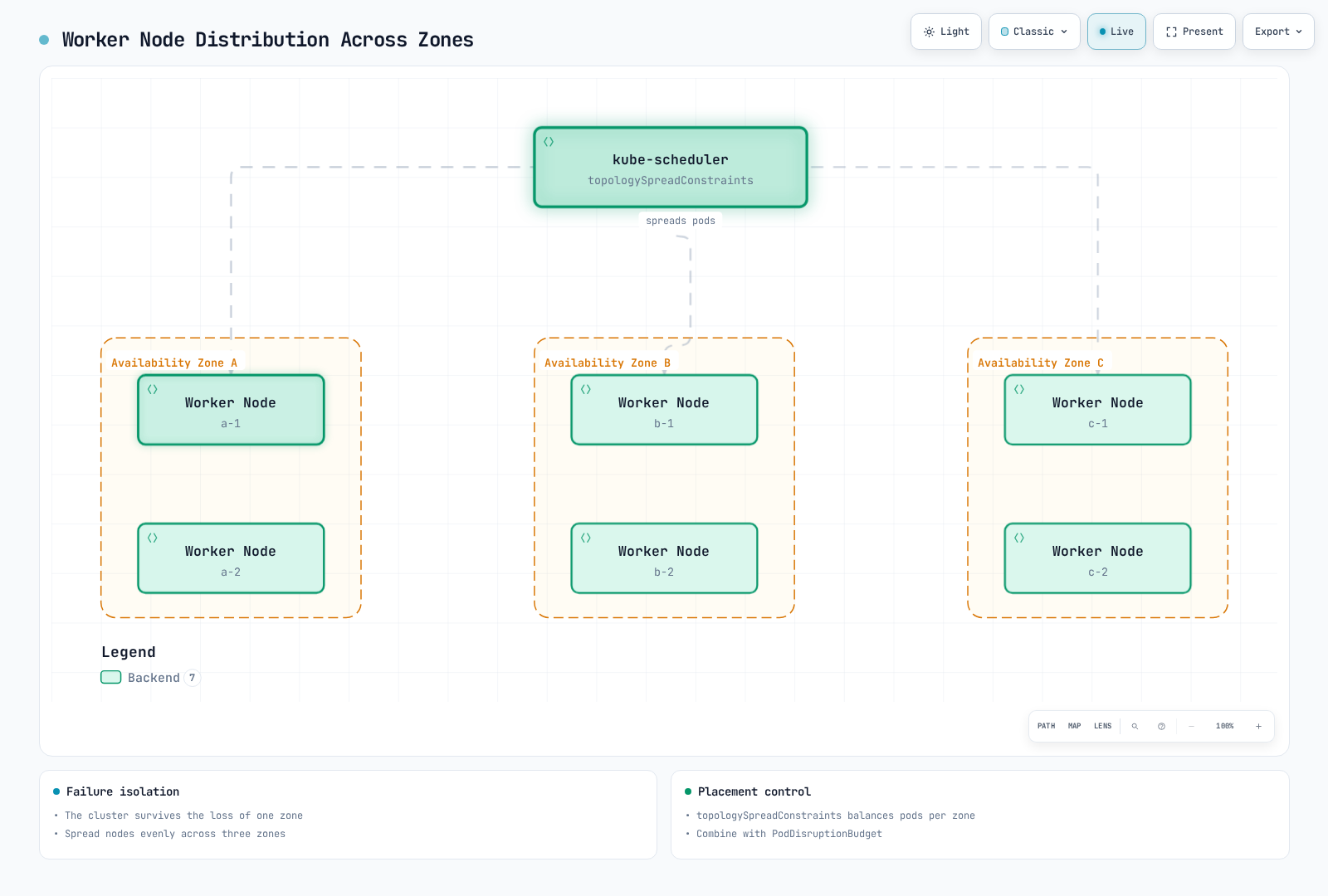

Architecture diagram showing worker nodes spread two-per-zone across three availability zones for fault isolation.Open full screen ↗

Application High Availability

High availability of applications is implemented through the following methods:

1. ReplicaSet/Deployment: Run multiple pod replicas
2. Pod Distribution Rules: Distribute pods across multiple nodes through pod anti-affinity
3. PodDisruptionBudget: Ensure minimum availability during planned disruptions
4. Service and Load Balancing: Distribute traffic across multiple pods

Pod Anti-Affinity Example:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: web-server
spec:
  replicas: 3
  selector:
    matchLabels:
      app: web-server
  template:
    metadata:
      labels:
        app: web-server
    spec:
      affinity:
        podAntiAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
          - labelSelector:
              matchExpressions:
              - key: app
                operator: In
                values:
                - web-server
            topologyKey: "kubernetes.io/hostname"
      containers:
      - name: web-server
        image: nginx:1.30.4

PodDisruptionBudget Example:

apiVersion: policy/v1
kind: PodDisruptionBudget
metadata:
  name: web-server-pdb
spec:
  minAvailable: 2
  selector:
    matchLabels:
      app: web-server

Disaster Recovery Strategy

Disaster recovery strategies for Kubernetes clusters are implemented through the following methods:

1. etcd Backup and Recovery: Establish regular etcd data backup and recovery procedures
2. Multi-Region Deployment: Deploy clusters across multiple regions
3. Cluster Federation: Manage multiple clusters in federation
4. Continuous Backup: Continuous backup of application data

etcd Backup Script Example:

#!/bin/bash
ETCDCTL_API=3 etcdctl snapshot save /backup/etcd-snapshot-$(date +%Y%m%d-%H%M%S).db \
  --endpoints=https://127.0.0.1:2379 \
  --cacert=/etc/kubernetes/pki/etcd/ca.crt \
  --cert=/etc/kubernetes/pki/etcd/server.crt \
  --key=/etc/kubernetes/pki/etcd/server.key

etcd recovery procedure (self-managed clusters):

1. Validate the snapshot with etcdutl snapshot status. Restore into a new data directory with a compatible etcdutl, as shown above.
2. Before switching data directories, stop all API server instances and the affected etcd processes using the cluster's runbook. Stopping kubelet alone does not stop existing static Pod containers.
3. For a multi-member recovery, restore the same snapshot on every member with a unique name/peer URL and the same full --initial-cluster membership. The single-member example above is not an HA recovery recipe.
4. Use --bump-revision and --mark-compacted for Kubernetes watch caches; choose the bump to exceed revisions since the snapshot (the shown value is an example).
5. Update the etcd static Pod's hostPath to the restored directory, restart etcd, verify quorum/health, then restart API servers and controllers. Keep the original data and backup until verification finishes.

Follow the etcd recovery guide. EKS users do not operate or restore the managed control plane's etcd directly.

Cluster Networking

Kubernetes networking enables communication between pods, services, and the outside world. The Kubernetes networking model assumes that every pod has a unique IP address and can communicate with each other without NAT.

Networking Model

The Kubernetes networking model has the following requirements:

1. Pod-to-Pod Communication: All pods must be able to communicate with all other pods without NAT
2. Node-to-Pod Communication: Node agents must be able to communicate with Pods on that node
3. Pod-to-External Communication: External connectivity depends on routing, NAT where needed, and security/egress policy; it is not a requirement that every Pod reach the internet

CNI (Container Network Interface)

CNI is a standard interface for implementing networking in Kubernetes. There are various CNI plugins, each with different features and performance characteristics.

Main CNI Plugins:

1. Calico: BGP-based networking, network policy support

   • Features: High performance, network policies, encryption, eBPF support
   • Use cases: Large clusters, security-focused environments

2. Cilium: eBPF-based networking and security

   • Features: L3-L7 security policies, high performance, observability
   • Use cases: Microservices, security-focused environments

3. Flannel: Simple overlay network

   • Features: Simple setup, lightweight
   • Use cases: Small clusters, development environments

4. Weave Net (historical): The project was archived in June 2024; evaluate maintained alternatives for new deployments.

CNI Configuration Example (Calico):

apiVersion: v1
kind: ConfigMap
metadata:
  name: calico-config
  namespace: kube-system
data:
  calico_backend: "bird"
  cni_network_config: |-
    {
      "name": "k8s-pod-network",
      "cniVersion": "0.3.1",
      "plugins": [
        {
          "type": "calico",
          "log_level": "info",
          "datastore_type": "kubernetes",
          "nodename": "__KUBERNETES_NODE_NAME__",
          "mtu": __CNI_MTU__,
          "ipam": {
            "type": "calico-ipam"
          },
          "policy": {
            "type": "k8s"
          },
          "kubernetes": {
            "kubeconfig": "__KUBECONFIG_FILEPATH__"
          }
        },
        {
          "type": "portmap",
          "snat": true,
          "capabilities": {"portMappings": true}
        }
      ]
    }

Service Networking

Kubernetes Services provide stable endpoints for a set of pods. Services have several types including ClusterIP, NodePort, LoadBalancer, and ExternalName.

Service Networking Components:

1. ClusterIP: Virtual IP accessible only within the cluster
2. kube-proxy: Routes traffic to service IPs to pods
3. CoreDNS: DNS service for service discovery

Service Networking Flow:

Client -> kernel rules programmed by kube-proxy (ClusterIP DNAT) -> Pod

Service Example:

apiVersion: v1
kind: Service
metadata:
  name: my-service
spec:
  selector:
    app: my-app
  ports:
  - port: 80
    targetPort: 8080
  type: ClusterIP

Ingress Networking

Ingress manages HTTP and HTTPS routing from outside the cluster to services inside the cluster. Ingress controllers implement ingress resources.

Main Ingress Controllers:

1. Maintained Ingress/Gateway controllers: Check controller lifecycle and Gateway API support
2. AWS Load Balancer Controller: Provisions ALBs for Ingress
3. Traefik: Cloud-native edge router
4. HAProxy Ingress: HAProxy-based ingress controller

Ingress Networking Flow:

Client -> Ingress Controller -> Service -> Pod

Community ingress-nginx retired in March 2026; see the retirement notice. This example requires an installed Traefik controller with an IngressClass named traefik; /app is forwarded unchanged.

Ingress Example:

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: my-ingress
spec:
  ingressClassName: traefik
  rules:
  - host: example.com
    http:
      paths:
      - path: /app
        pathType: Prefix
        backend:
          service:
            name: my-service
            port:
              number: 80

Network Policies

Network policies provide a way to control communication between pods. By default, all pods can communicate with each other, but network policies can restrict this.

Network Policy Example:

apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: db-network-policy
spec:
  podSelector:
    matchLabels:
      role: db
  policyTypes:
  - Ingress
  - Egress
  ingress:
  - from:
    - podSelector:
        matchLabels:
          role: frontend
    ports:
    - protocol: TCP
      port: 3306
  egress:
  - to:
    - podSelector:
        matchLabels:
          role: monitoring
    ports:
    - protocol: TCP
      port: 9090

Network Troubleshooting

Common tools and commands for troubleshooting Kubernetes networking issues:

1. ping, traceroute: Basic network connectivity testing
2. tcpdump: Network packet capture and analysis
3. netstat, ss: Check network connection status
4. nslookup, dig: DNS lookup testing
5. kubectl exec: Execute network commands within pods

Network Debugging Example:

# Test network connectivity within a pod
kubectl exec -it <pod-name> -- ping <target-ip>

# Test DNS lookup within a pod
kubectl exec -it <pod-name> -- nslookup <service-name>

# Capture network packets within a pod
kubectl exec -it <pod-name> -- tcpdump -i eth0 -n

# Check service endpoints
kubectl get endpointslices -l kubernetes.io/service-name=<service-name>

Cluster Storage

Kubernetes storage provides data persistence for containerized applications. Kubernetes provides various storage options and abstractions to help applications use storage efficiently.

Storage Architecture

Kubernetes storage architecture consists of the following components:

1. Volumes: Directories that can be mounted to containers within pods
2. Persistent Volumes (PV): Storage resources in the cluster
3. Persistent Volume Claims (PVC): User storage requests
4. Storage Classes: Defines "classes" or types of storage
5. CSI (Container Storage Interface): Standard interface with storage systems

Storage Architecture Flow:

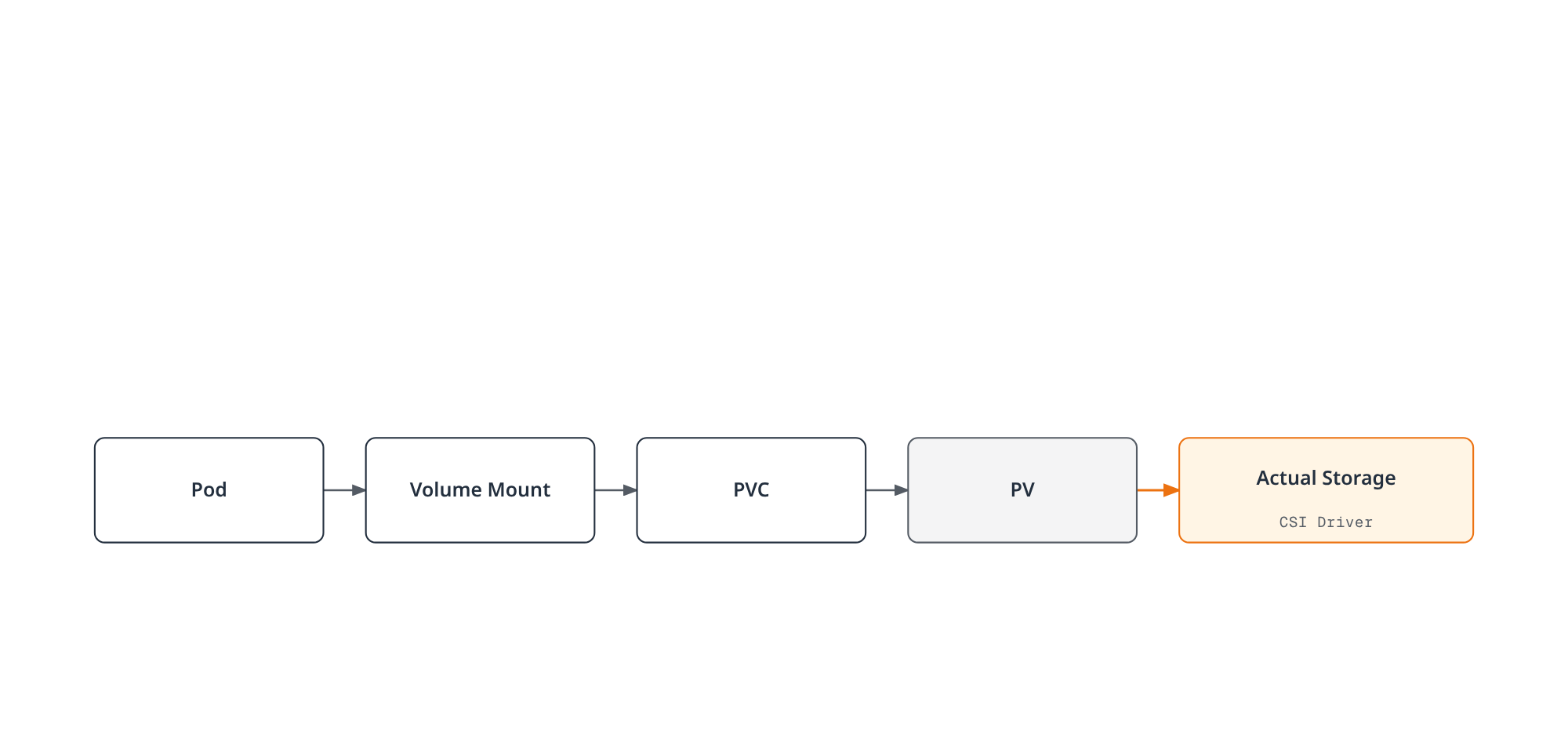

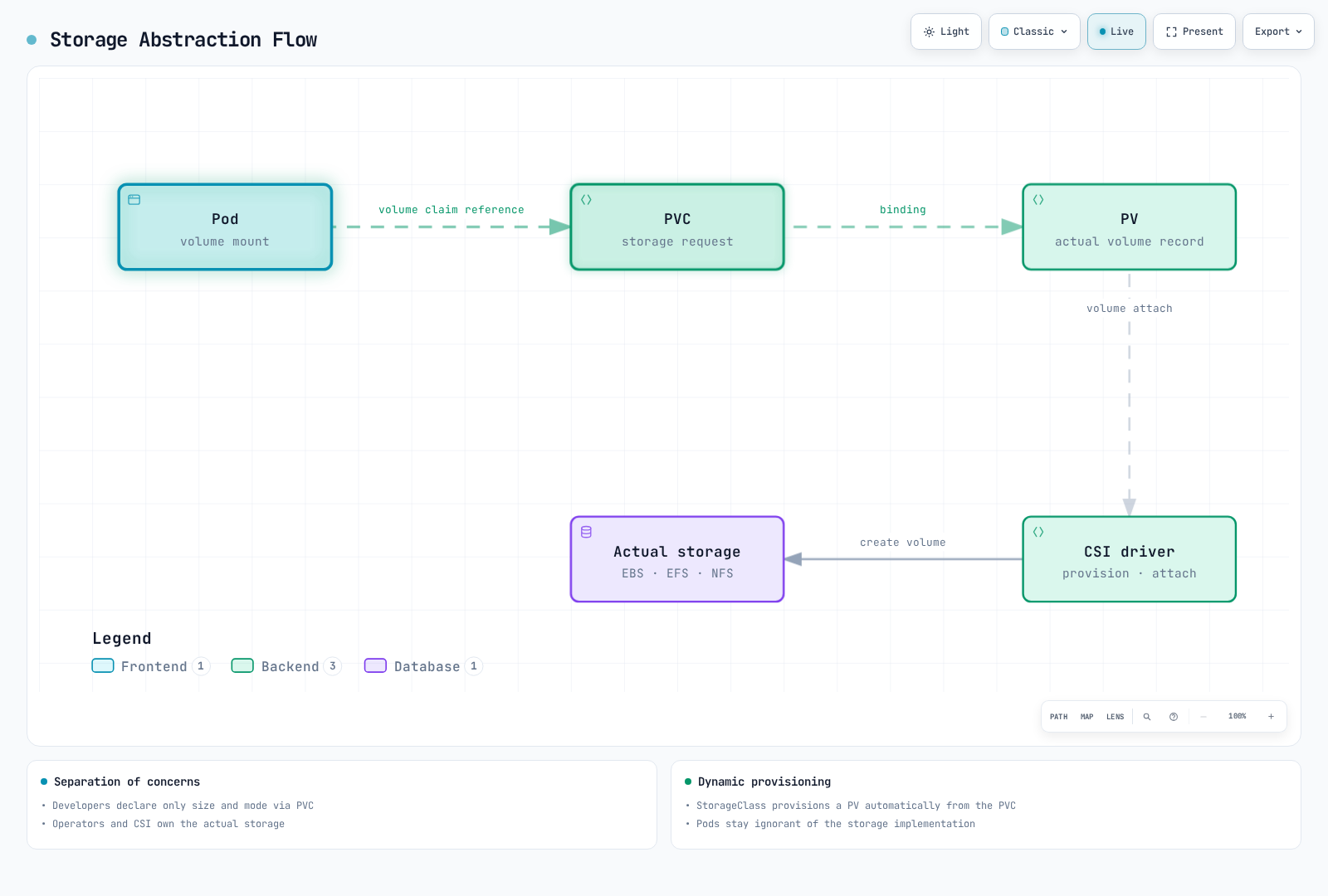

Architecture diagram showing a pod's volume mount resolving through a PVC and PV to the actual storage backend via a CSI driver.Open full screen ↗

Volume Types

Kubernetes supports various types of volumes:

1. Ephemeral Volumes:

   • emptyDir: Starts as an empty directory and is deleted when the pod is deleted
   • configMap: Mounts ConfigMap as a volume
   • secret: Mounts Secret as a volume
   • downwardAPI: Exposes pod and container information as files

2. Persistent Volumes:

   • Cloud block storage via CSI: AWS EBS, Azure Disk, and GCE Persistent Disk; their legacy in-tree implementations have been removed
   • nfs: NFS volumes
   • csi: Volumes through CSI drivers

Volume Example:

apiVersion: v1
kind: Pod
metadata:
  name: test-pd
spec:
  containers:
  - name: test-container
    image: nginx
    volumeMounts:
    - mountPath: /test-pd
      name: test-volume
  volumes:
  - name: test-volume
    persistentVolumeClaim:
      claimName: test-pvc

Persistent Volumes and Claims

Persistent Volumes (PV) are storage resources in the cluster that are provisioned by administrators or dynamically provisioned through storage classes. Persistent Volume Claims (PVC) are user storage requests.

Install the EBS CSI driver with IAM permissions first. For the static PV below, replace the volume ID and zone with an existing EBS volume and its actual zone. EBS cannot mount on Fargate; EKS Auto Mode uses ebs.csi.eks.amazonaws.com instead.

Persistent Volume Example:

apiVersion: v1
kind: PersistentVolume
metadata:
  name: pv-example
spec:
  capacity:
    storage: 10Gi
  accessModes:
    - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  storageClassName: standard
  csi:
    driver: ebs.csi.aws.com
    volumeHandle: vol-0123456789abcdef0
    fsType: ext4
  nodeAffinity:
    required:
      nodeSelectorTerms:
      - matchExpressions:
        - key: topology.kubernetes.io/zone
          operator: In
          values: [ap-northeast-2a]

Persistent Volume Claim Example:

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: pvc-example
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 5Gi
  storageClassName: standard

Storage Classes

Storage classes describe the "classes" of storage that administrators provide. Storage classes allow dynamic provisioning of PVs when PVCs are requested.

Storage Class Example:

apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  name: standard
provisioner: ebs.csi.aws.com
parameters:
  type: gp3
  csi.storage.k8s.io/fstype: ext4
  encrypted: "true"
reclaimPolicy: Delete
allowVolumeExpansion: true
volumeBindingMode: WaitForFirstConsumer

CSI (Container Storage Interface)

CSI provides a standard interface between Kubernetes and storage systems. Through CSI, storage providers can develop their own storage drivers without modifying Kubernetes code.

CSI Architecture:

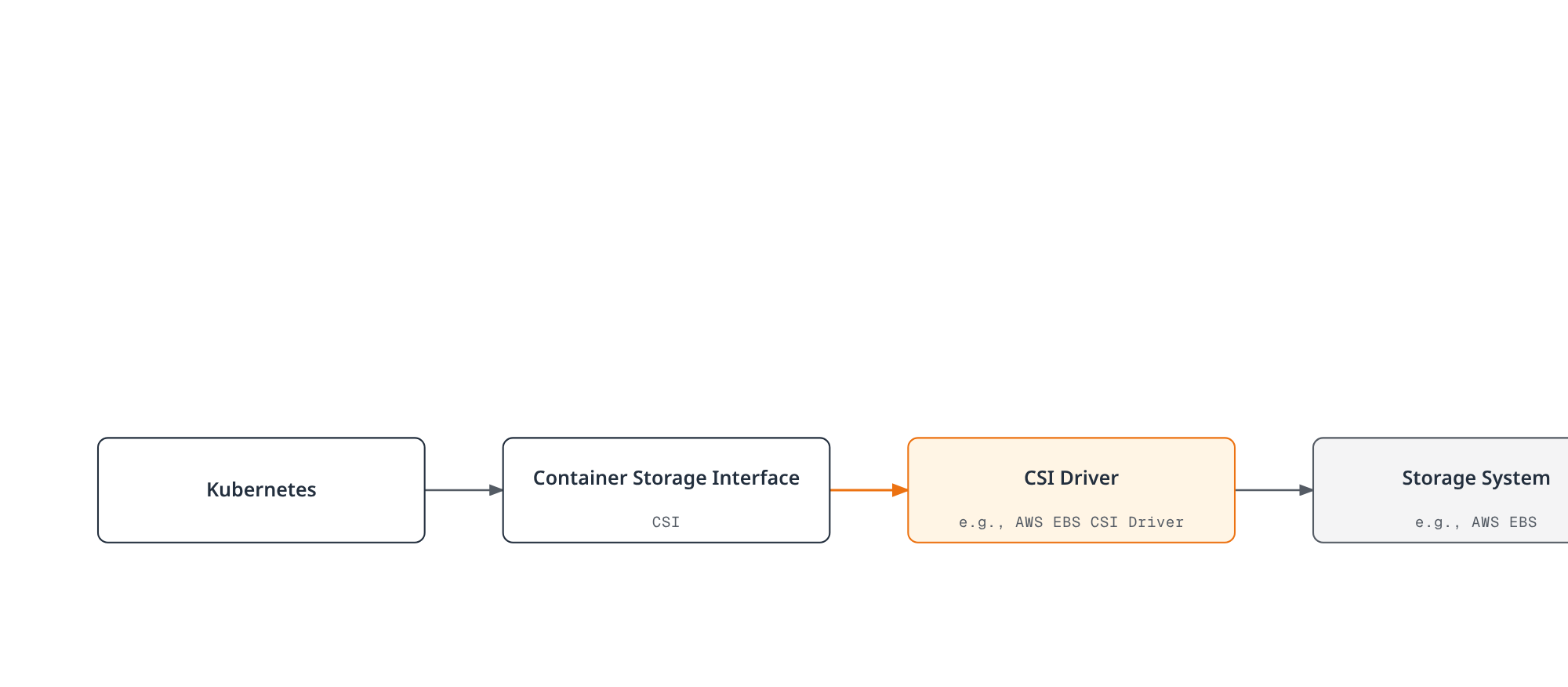

Architecture diagram showing Kubernetes calling the Container Storage Interface, which delegates to a vendor CSI driver that provisions the underlying storage system.Open full screen ↗

CSI Driver Deployment Example:

apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  name: ebs-sc
provisioner: ebs.csi.aws.com
parameters:
  type: gp3
  csi.storage.k8s.io/fstype: ext4
  encrypted: "true"
volumeBindingMode: WaitForFirstConsumer

Storage Best Practices

Best practices for using Kubernetes storage:

1. Choose Appropriate Storage Type: Select storage type that matches workload characteristics
2. Use Dynamic Provisioning: Utilize dynamic provisioning through storage classes
3. Choose Appropriate Access Modes: Select access modes that match workload requirements
4. Set Resource Requests and Limits: Request appropriate storage capacity
5. Establish Backup and Recovery Strategy: Prepare backup and recovery strategies for critical data
6. Monitor Storage: Monitor storage usage and performance

Cluster Scalability

Kubernetes cluster scalability refers to the cluster's ability to handle increasing loads and requirements. Scalability can be implemented through horizontal scaling (scale out) and vertical scaling (scale up).

Cluster Scale Limits

The upstream large-cluster guidance describes a tested support envelope: 5,000 nodes, 150,000 total Pods, 300,000 total containers, and 110 Pods per node. These criteria apply together; they are not universal hard API limits. There is no general 20-containers-per-Pod limit. Service capacity also depends on the address range and data plane. Cloud networking limits and quotas may be lower.

Horizontal Scaling

Horizontal scaling increases cluster capacity by adding more nodes.

Node Auto Scaling: The Kubernetes Cluster Autoscaler automatically adjusts the number of nodes based on workload requirements.

# AWS Auto Scaling Group tags example
tags:
  k8s.io/cluster-autoscaler/enabled: "true"
  k8s.io/cluster-autoscaler/my-cluster: "owned"

Cluster Autoscaler Deployment fragment (v1.36 cluster example): Select a patched release matching the cluster minor version. Supply the ServiceAccount, Kubernetes RBAC, and a dedicated IAM role; this fragment is not a complete installation.

apiVersion: apps/v1
kind: Deployment
metadata:
  name: cluster-autoscaler
  namespace: kube-system
spec:
  replicas: 1
  selector:
    matchLabels:
      app: cluster-autoscaler
  template:
    metadata:
      labels:
        app: cluster-autoscaler
    spec:
      containers:
      - name: cluster-autoscaler
        image: registry.k8s.io/autoscaling/cluster-autoscaler:v1.36.0
        command:
        - ./cluster-autoscaler
        - --cloud-provider=aws
        - --nodes=2:10:my-asg-group
        - --scale-down-unneeded-time=10m

Karpenter: Karpenter is a new node auto-scaling tool developed by AWS that provides faster and more efficient node provisioning.

apiVersion: karpenter.sh/v1
kind: NodePool
metadata:
  name: default
spec:
  template:
    spec:
      requirements:
        - key: karpenter.sh/capacity-type
          operator: In
          values: ["spot", "on-demand"]
      nodeClassRef:
        group: karpenter.k8s.aws
        kind: EC2NodeClass
        name: default-class
  limits:
    cpu: 1000
    memory: 1000Gi
---
apiVersion: karpenter.k8s.aws/v1
kind: EC2NodeClass
metadata:
  name: default-class
spec:
  role: KarpenterNodeRole-my-cluster
  amiSelectorTerms:
    - alias: al2023@latest
  subnetSelectorTerms:
    - tags:
        karpenter.sh/discovery: my-cluster
  securityGroupSelectorTerms:
    - tags:
        karpenter.sh/discovery: my-cluster

Vertical Scaling

Vertical workload scaling adjusts Pod CPU/memory requests. VPA does not resize the underlying node; additional node capacity must be provisioned separately.

Vertical Pod Autoscaler (VPA): VPA automatically adjusts CPU and memory requests for pods.

apiVersion: autoscaling.k8s.io/v1
kind: VerticalPodAutoscaler
metadata:
  name: my-app-vpa
spec:
  targetRef:
    apiVersion: "apps/v1"
    kind: Deployment
    name: my-app
  updatePolicy:
    updateMode: "Recreate"
  resourcePolicy:
    containerPolicies:
    - containerName: '*'
      minAllowed:
        cpu: 100m
        memory: 50Mi
      maxAllowed:
        cpu: 1
        memory: 500Mi

Application Scaling

Application-level scaling is implemented by adjusting the number of pod replicas.

Horizontal Pod Autoscaler (HPA): HPA automatically adjusts the number of pod replicas based on CPU utilization or custom metrics.

apiVersion: autoscaling/v2
kind: HorizontalPodAutoscaler
metadata:
  name: my-app-hpa
spec:
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: my-app
  minReplicas: 2
  maxReplicas: 10
  metrics:
  - type: Resource
    resource:
      name: cpu
      target:
        type: Utilization
        averageUtilization: 80

KEDA (Kubernetes Event-driven Autoscaling): KEDA provides event-driven autoscaling, enabling scaling based on various event sources.

apiVersion: keda.sh/v1alpha1
kind: ScaledObject
metadata:
  name: my-app-scaledobject
spec:
  scaleTargetRef:
    name: my-app
  minReplicaCount: 0
  maxReplicaCount: 10
  triggers:
  - type: kafka
    metadata:
      bootstrapServers: kafka.svc:9092
      consumerGroup: my-group
      topic: my-topic
      lagThreshold: "10"

Scalability Best Practices

Best practices for Kubernetes cluster scalability:

1. Set Resource Requests and Limits: Set appropriate resource requests and limits for all pods
2. Node Pool Strategy: Configure multiple node pools for different workload characteristics
3. Configure Auto Scaling: Properly configure Cluster Autoscaler, HPA, VPA
4. Efficient Pod Placement: Utilize node affinity, pod affinity/anti-affinity
5. Cluster Monitoring: Continuously monitor resource usage and performance
6. Load Testing: Regular load testing to validate scaling strategies

Cluster Security

Kubernetes cluster security must be implemented at multiple layers. This includes authentication, authorization, network policies, pod security, and more.

Authentication

Methods for authenticating access to the Kubernetes API server:

1. X.509 Certificates: Authentication using TLS client certificates
2. Service Account Tokens: Tokens for API server access within pods
3. OpenID Connect (OIDC): Authentication through external identity providers
4. Webhook Token Authentication: Authentication through external authentication services
5. Authentication Proxy: Authentication through authentication proxies

kubeconfig Example:

apiVersion: v1
kind: Config
clusters:
- name: my-cluster
  cluster:
    certificate-authority-data: <CA-DATA>
    server: https://api.my-cluster.example.com
users:
- name: admin
  user:
    client-certificate-data: <CERT-DATA>
    client-key-data: <KEY-DATA>
contexts:
- name: my-context
  context:
    cluster: my-cluster
    user: admin
current-context: my-context

Authorization

Methods for controlling actions of authenticated users:

1. RBAC (Role-Based Access Control): Role-based access control
2. ABAC (Attribute-Based Access Control): Attribute-based access control
3. Node Authorization: Special authorization for nodes
4. Webhook Authorization: Authorization through external services

RBAC Example:

# Role definition
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  namespace: default
  name: pod-reader
rules:
- apiGroups: [""]
  resources: ["pods"]
  verbs: ["get", "watch", "list"]
---
# Role binding
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: read-pods
  namespace: default
subjects:
- kind: User
  name: jane
  apiGroup: rbac.authorization.k8s.io
roleRef:
  kind: Role
  name: pod-reader
  apiGroup: rbac.authorization.k8s.io

Network Security

Methods for protecting network traffic within the cluster:

1. Network Policies: Control pod-to-pod communication
2. Encrypted Communication: Communication encryption through TLS
3. Service Mesh: Advanced network security through Istio, Linkerd, etc.

Network Policy Example:

apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: default-deny-all
spec:
  podSelector: {}
  policyTypes:
  - Ingress
  - Egress

Pod Security

Security implementation at the pod level:

1. Pod Security Context: Security settings at pod and container level
2. Pod Security Standards: Defines pod security requirements
3. seccomp Profiles: System call restrictions
4. AppArmor/SELinux: Mandatory access control

Pod Security Context Example:

apiVersion: v1
kind: Pod
metadata:
  name: security-context-pod
spec:
  securityContext:
    runAsUser: 1000
    runAsGroup: 3000
    fsGroup: 2000
  containers:
  - name: app
    image: myapp:1.0
    securityContext:
      allowPrivilegeEscalation: false
      capabilities:
        drop:
        - ALL

Secret Management

Methods for securely managing sensitive information:

1. Kubernetes Secrets: Use basic secret resources
2. Encrypted etcd: Encrypt secrets stored in etcd
3. External Secret Management: Utilize HashiCorp Vault, AWS Secrets Manager, etc.

Encrypted etcd Configuration Example:

apiVersion: apiserver.config.k8s.io/v1
kind: EncryptionConfiguration
resources:
  - resources:
    - secrets
    providers:
    - aescbc:
        keys:
        - name: key1
          secret: <base64-encoded-key>
    - identity: {}

Security Best Practices

Best practices for Kubernetes cluster security:

1. Principle of Least Privilege: Grant only the minimum necessary privileges
2. Regular Updates: Regularly update cluster and components
3. Network Isolation: Restrict pod-to-pod communication through network policies
4. Image Security: Use only trusted images, implement vulnerability scanning
5. Audit Logging: Enable audit logs for cluster activity
6. Security Benchmarks: Comply with security standards like CIS benchmarks

Cluster Upgrades

Kubernetes cluster upgrades are necessary to apply new features, security patches, and bug fixes. Upgrades must be carefully planned and executed.

August 2026 Update: Kubernetes v1.37 "Garhwal" Released

Kubernetes v1.37 "Garhwal" was released on schedule on August 26, 2026. The release consists of 67 enhancements: 16 graduated to Stable, 23 graduated to Beta, and the rest entered as Alpha. Highlights:

• Pod certificates and ClusterTrustBundles graduate to Stable: the PodCertificate feature, which automatically issues and rotates X.509 certificates for workloads as an alternative to service account tokens, and the ClusterTrustBundle resource for distributing trust anchors are now standard features (detailed post)
• Metrics API (metrics.k8s.io) goes GA: the resource metrics API used by kubectl top and the HPA has graduated to stable (detailed post)
• Also Stable: several DRA (Dynamic Resource Allocation) features, resilient watchcache initialization, and more / Beta: HPA scale-to-zero, manifest-based admission control configuration, and more / Alpha: pod-level checkpoint and restore, and more
• Deprecations: kube-dns and kubectl run --filename/-f are deprecated; ipvs was already deprecated in v1.35, and static Pods can no longer reference Secrets or ConfigMaps. The removal of cgroup v1 support also continues to progress.

Before upgrading, be sure to review the deprecations and removals in the official release notes.

September 2026 Update: v1.37.1 and Other Routine Patch Releases

On September 23, 2026, patch releases shipped for every supported minor version: v1.37.1, v1.36.5, v1.35.9 and v1.34.12. v1.37.1 is a routine bug-fix release: it moves the build to Go 1.26.8 and fixes, among others, a bug where a DeviceTaintRule without spec.deviceSelector made every DRA device unschedulable, and a panic that could terminate the Windows kube-proxy (winkernel) when it enumerated an HNS load balancer without port mappings.

Also published that week is the v1.37 deep-dive post Tracking When a PersistentVolumeClaim Was Last Used (Beta): the PersistentVolumeClaimUnusedSinceTime feature gate graduated to Beta (enabled by default), so the PVC protection controller now adds an Unused condition to each PVC, letting you identify orphaned PVCs that no running pod references without custom tooling.

September 2026 Update: v1.37 Feature Deep Dives

Between September 14–16, 2026, the Kubernetes blog published a series of deep-dive posts on v1.37 features:

• Memory QoS graduates to Beta: the MemoryQoS feature gate is now Beta and enabled by default on v1.37 kubelets. On Linux nodes running cgroup v2, it uses the memory controller to give the kernel better guidance on how to treat container memory. The default kubelet configuration writes no memory.high/memory.min/memory.low values, so nothing changes until you explicitly set fields such as memoryThrottlingFactor.
• Pod-Level Resource Managers graduate to Beta (disabled by default): the kubelet's Topology Manager, CPU Manager, and Memory Manager can now use pod-level resource declarations (.spec.resources) directly for NUMA-aligned placement. This enables hybrid allocation — exclusive cores for primary containers while lightweight sidecars share a pod-isolated pool.
• Hardening container storage: new emptyDir permission modes and bind mount options (noexec, nosuid, nodev) let you enforce security policies — such as prohibiting execution of arbitrary binaries from writable volumes — directly in Kubernetes without workarounds.

Upgrade Strategies

Strategies for Kubernetes cluster upgrades:

1. Blue/Green Upgrade: Create a new version cluster separately and migrate workloads
2. In-Place Upgrade: Directly upgrade the existing cluster
3. Canary Upgrade: Upgrade only some nodes first for validation

Upgrade Order

Typical order for Kubernetes cluster upgrades:

1. Control Plane Upgrade: kube-apiserver, kube-controller-manager, kube-scheduler, etcd
2. DNS and CNI Upgrade: CoreDNS, CNI plugins, and other major add-ons
3. Worker Node Upgrade: Sequential upgrade of worker nodes

kubeadm upgrade sequence:

Follow the version-specific kubeadm upgrade guide and configure the target minor's pkgs.k8s.io package repository. Upgrade only one minor at a time.

1. Back up etcd and verify add-on compatibility. Upgrade kubeadm on the first control plane node, run kubeadm upgrade plan, then kubeadm upgrade apply <target-version>.
2. On additional control plane nodes, upgrade kubeadm and run kubeadm upgrade node.
3. Drain each node before upgrading its kubelet; upgrade the kubelet/kubectl packages to the chosen patch, reload systemd, restart kubelet, verify readiness, and uncordon.
4. On workers, upgrade kubeadm, run kubeadm upgrade node, then perform the drain/kubelet/uncordon sequence. Keep kubelet no newer than the API server.

Upgrade Considerations

Considerations when upgrading Kubernetes clusters:

1. API Changes: Check API changes in new versions
2. Feature Gates: Check new feature gates and default value changes
3. Dependencies: Check compatibility of dependent components like CNI, CSI
4. Downtime: Plan for expected downtime during upgrades
5. Rollback Plan: Establish rollback plan in case of issues

Upgrade Best Practices

Best practices for Kubernetes cluster upgrades:

1. Test in Test Environment First: Validate in test environment before production upgrade
2. Gradual Upgrade: Upgrade one minor version at a time
3. Backup: Backup etcd data before upgrade
4. Documentation: Document upgrade procedures and results
5. Monitoring: Monitor cluster status during and after upgrade
6. Upgrade Window: Perform upgrades during low-traffic periods

Amazon EKS Cluster Architecture

Amazon EKS (Elastic Kubernetes Service) is a managed Kubernetes service provided by AWS. EKS provides all the basic Kubernetes features while adding integration with AWS services and management convenience.

EKS Architecture Overview

EKS clusters consist of the following components:

1. EKS Control Plane: Kubernetes control plane managed by AWS
2. EKS Nodes: Worker nodes managed by users (EC2 instances)
3. EKS Managed Node Groups: Node groups managed by AWS
4. EKS Fargate Profiles: Serverless container execution environment
5. VPC and Subnets: VPC and subnets for cluster networking

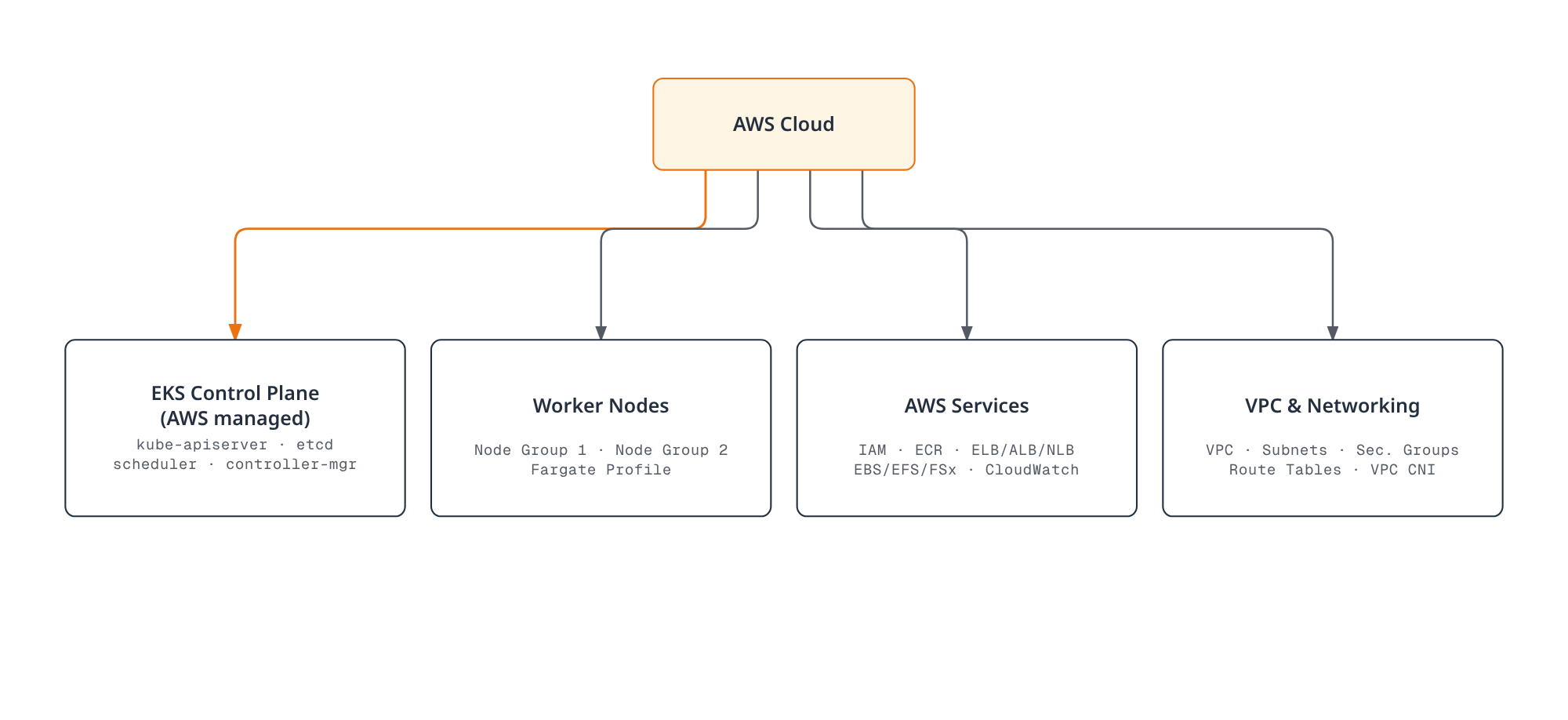

EKS Architecture Diagram:

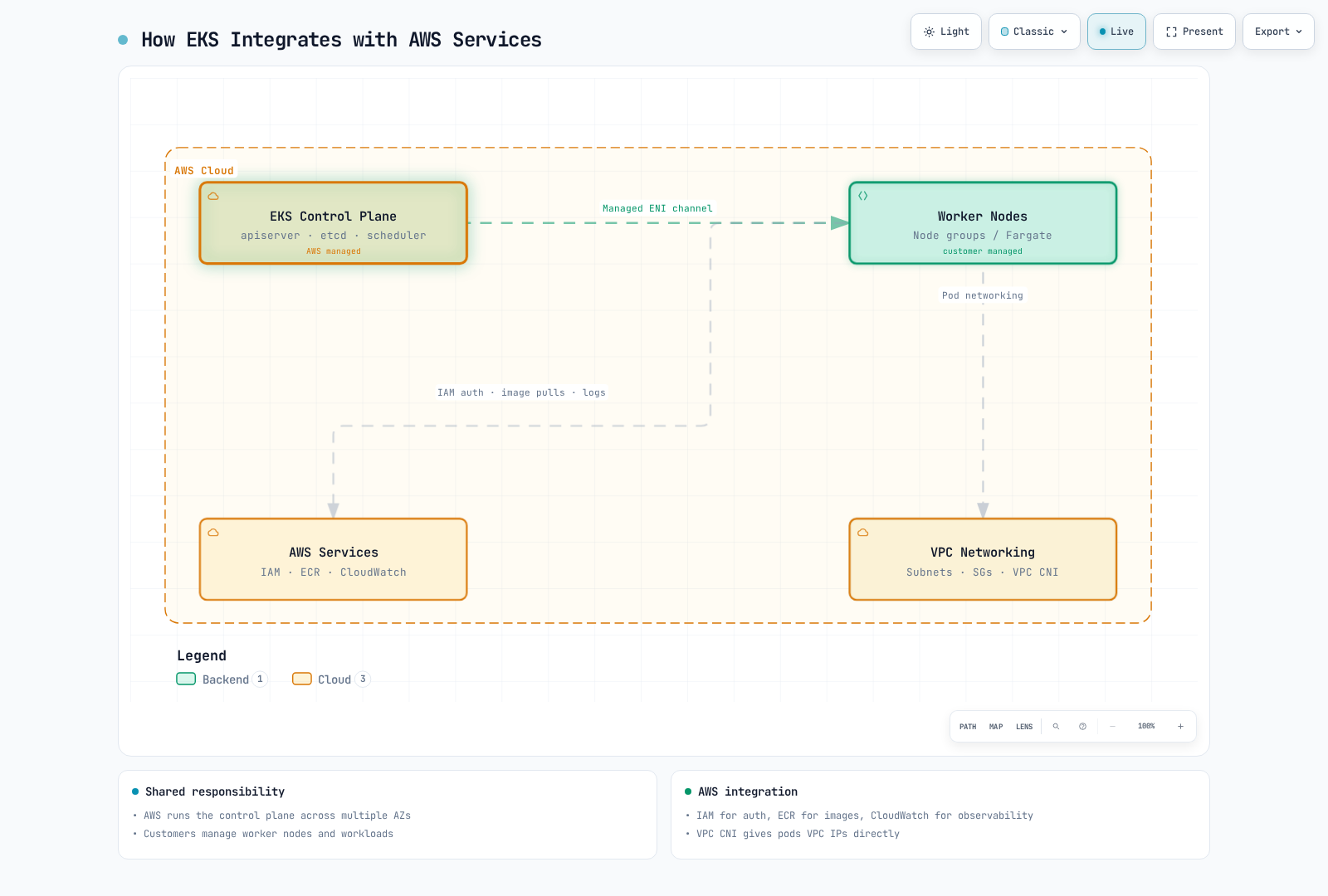

Architecture diagram showing AWS Cloud hosting a managed EKS control plane, customer-operated worker nodes, and the supporting AWS services and VPC networking that the cluster depends on.Open full screen ↗

EKS Control Plane

The EKS control plane is managed by AWS and provides high availability across multiple availability zones.

Key Features:

1. Managed Service: AWS manages control plane maintenance and upgrades
2. High Availability: Deployed across multiple availability zones
3. Auto Scaling: Automatically scales based on load
4. Security: Integrated with AWS security services

EKS Node Types

EKS supports various types of nodes:

1. Self-Managed Nodes: Users directly manage EC2 instances
2. Managed Node Groups: AWS manages node lifecycle
3. Fargate: Serverless container execution environment
4. EKS Auto Mode: AWS manages compute and integrated infrastructure
5. EKS Hybrid Nodes: Customer-managed on-premises nodes

Bottlerocket is a node operating system, not a separate compute management type.

Managed Node Group Example:

apiVersion: eksctl.io/v1alpha5
kind: ClusterConfig
metadata:
  name: my-cluster
  region: ap-northeast-2
managedNodeGroups:
  - name: ng-1
    instanceType: m5.large
    desiredCapacity: 3
    minSize: 2
    maxSize: 5
    volumeSize: 80
    privateNetworking: true
    labels:
      role: worker
    tags:
      nodegroup-role: worker

EKS Networking

EKS networking is based on Amazon VPC and includes the following components:

1. VPC CNI Plugin: Integration with AWS VPC networking
2. Security Groups: Network security at node and pod level
3. Load Balancer Integration: Integration with ELB, ALB, NLB
4. VPC Endpoints: Private communication with AWS services

VPC CNI add-on configuration example (JSON configuration values, not a ConfigMap):

{
  "enableNetworkPolicy": "true",
  "env": {
    "WARM_IP_TARGET": "5",
    "MINIMUM_IP_TARGET": "10"
  }
}

Merge these values with the installed add-on's configuration and validate its schema before updating it. Pod ENI support uses the ENABLE_POD_ENI environment variable and additionally requires compatible nodes, IAM permissions, and a SecurityGroupPolicy; a ConfigMap key alone does not enable it. See the network policy setup.

EKS Storage

EKS integrates with various AWS storage services:

1. EBS CSI Driver: Amazon EBS volume management
2. EFS CSI Driver: Amazon EFS file system management
3. FSx for Lustre CSI Driver: FSx for Lustre file system management
4. S3: Object storage

EBS CSI Driver Example:

apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  name: ebs-sc
provisioner: ebs.csi.aws.com
parameters:
  type: gp3
  encrypted: "true"
volumeBindingMode: WaitForFirstConsumer

EKS Security

EKS integrates with AWS security services to provide strong security:

1. IAM Integration: Integration of AWS IAM and Kubernetes RBAC
2. VPC Security: VPC security groups and network ACLs
3. AWS KMS: KMS integration for secret encryption
4. AWS WAF: Web application firewall integration
5. AWS Shield: DDoS protection

IAM Role Service Account Example:

apiVersion: v1
kind: ServiceAccount
metadata:
  name: s3-reader
  namespace: default
  annotations:
    eks.amazonaws.com/role-arn: arn:aws:iam::123456789012:role/s3-reader-role

EKS Monitoring and Logging

EKS integrates with AWS monitoring and logging services:

1. CloudWatch Container Insights: Container monitoring
2. CloudWatch Logs: Log collection and analysis
3. X-Ray: Distributed tracing
4. Prometheus and Grafana: Open source monitoring tool integration

CloudWatch Container Insights Example:

apiVersion: v1
kind: Namespace
metadata:
  name: amazon-cloudwatch
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: cloudwatch-agent
  namespace: amazon-cloudwatch
spec:
  selector:
    matchLabels:
      name: cloudwatch-agent
  template:
    metadata:
      labels:
        name: cloudwatch-agent
    spec:
      containers:
      - name: cloudwatch-agent
        image: amazon/cloudwatch-agent:1.247347.6b250880
        # ... additional configuration

EKS Cost Optimization

Methods to optimize EKS cluster costs:

1. Spot Instances: Utilize cost-effective Spot instances
2. Fargate: Reduce idle resource costs with serverless container execution
3. Auto Scaling: Resource optimization through cluster autoscaler
4. Graviton Processors: Utilize ARM-based Graviton instances
5. Resource Request Optimization: Set appropriate resource requests and limits

Spot Instance Node Group Example:

apiVersion: eksctl.io/v1alpha5
kind: ClusterConfig
metadata:
  name: my-cluster
  region: ap-northeast-2
managedNodeGroups:
  - name: spot-ng
    instanceTypes: ["m5.large", "m5a.large", "m5d.large", "m5ad.large"]
    spot: true
    desiredCapacity: 3
    minSize: 2
    maxSize: 10

Learn More

To deepen your understanding of the cluster architecture covered in this document, refer to the following topics:

• Kubernetes Introduction - Basic concepts and history of Kubernetes
• Pods and Workloads - Managing workloads running in the cluster
• Services and Networking - Networking configuration within the cluster
• Scheduling, Preemption, and Eviction - How pods are placed on nodes
• Cluster Administration - Cluster operation and management
• EKS Introduction - Amazon EKS service overview
• EKS Cluster Creation - How to create EKS clusters

Hands-on and Advanced Learning

• Kubernetes Official Tutorials - Learning through hands-on practice
• Kubernetes The Hard Way - Building a Kubernetes cluster manually
• Cilium Networking - Advanced networking and security features

Conclusion

In this document, we have examined the architecture of Kubernetes clusters, the main components, and how they work together. We also covered important aspects such as cluster networking, storage, scalability, security, and upgrades, as well as the architecture of Amazon EKS clusters.

Understanding Kubernetes cluster architecture is the foundation for effective cluster design, deployment, and operation. With this knowledge, you can build stable, scalable, and security-enhanced Kubernetes environments.

Quiz

To test what you learned in this chapter, try the Cluster Architecture Quiz.

References

• Kubernetes Official Documentation
• Amazon EKS Documentation
• Kubernetes The Hard Way
• Kubernetes Patterns
• Kubernetes Up & Running
• Kubernetes Best Practices
