Traffic Mirroring

Traffic Mirroring (or Shadow Traffic) is a technique that replicates production traffic in real-time to test new versions.

Table of Contents

1. Traffic Mirroring Overview
2. Basic Configuration
3. Partial Mirroring
4. Best Practices

Traffic Mirroring Overview

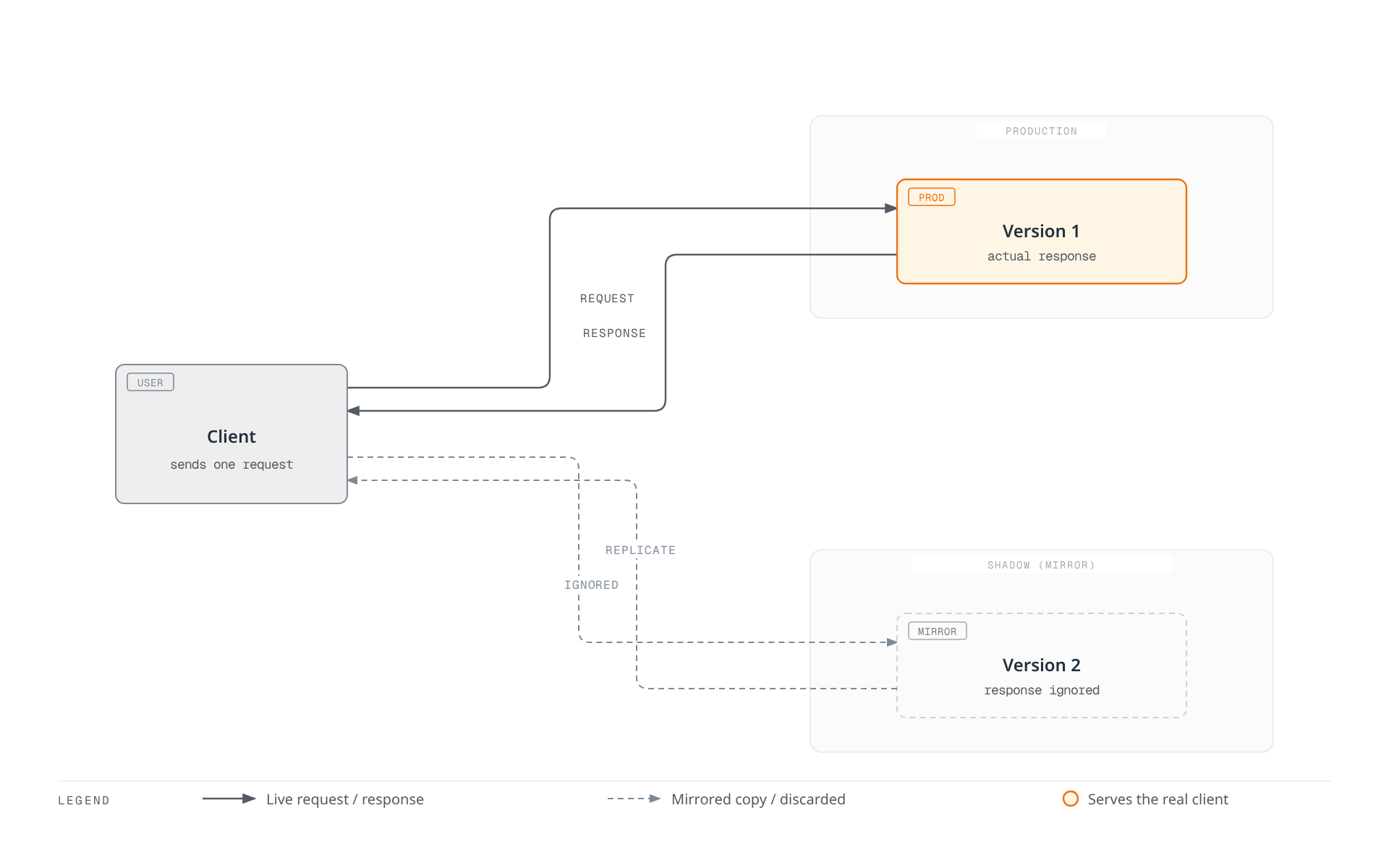

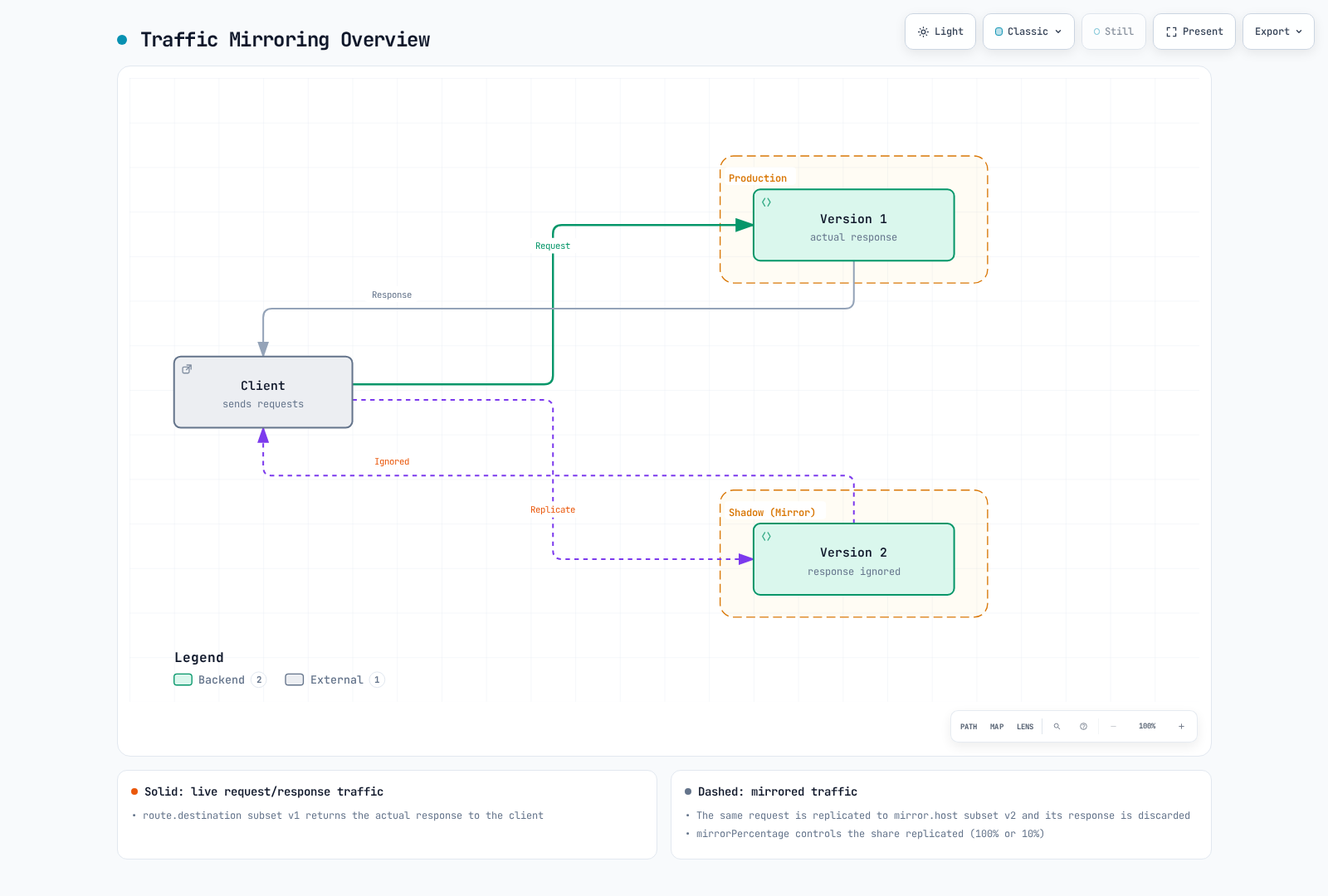

A client sends a request that Version 1 answers on the live path, while the same request is replicated to Version 2 in a shadow copy whose response is discarded and never reaches the client.Open full screen ↗

Basic Configuration

These sidecar examples require a reviews Service and DestinationRule subsets v1/v2 matching pod labels. Apply one alternative VirtualService for this host at a time. The mirror does not receive a share of the primary route weight: it receives an additional copy.

apiVersion: networking.istio.io/v1
kind: VirtualService
metadata:
  name: reviews-mirror
spec:
  hosts:
  - reviews
  http:
  - route:
    - destination:
        host: reviews
        subset: v1
      weight: 100
    mirror:
      host: reviews
      subset: v2
    mirrorPercentage:
      value: 100  # 100% mirroring

Partial Mirroring

apiVersion: networking.istio.io/v1
kind: VirtualService
metadata:
  name: reviews-partial-mirror
spec:
  hosts:
  - reviews
  http:
  - route:
    - destination:
        host: reviews
        subset: v1
    mirror:
      host: reviews
      subset: v2
    mirrorPercentage:
      value: 10  # Mirror only 10%

Best Practices

• Mirrored responses are discarded; this is not failover or automatic response comparison.
• Writes still execute at the shadow destination. Isolate its databases, queues, and external side effects before mirroring production requests.
• Start with a small percentage and monitor both primary latency and shadow capacity. Mirroring adds traffic and processing cost.
• By default, the mirrored Host/Authority gets a -shadow suffix; configure the shadow service to accept it. Evaluate the selected release’s routing API for ambient waypoints.

References

• Istio Traffic Mirroring
