ArgoCD ApplicationSets

Reviewed Against: Argo CD 3.5.2, including its bundled ApplicationSet controller; updated to patch 3.5.4 after release-note review (examples not re-run) Last Updated: October 12, 2026

ApplicationSet Overview
Generators
Go Templating

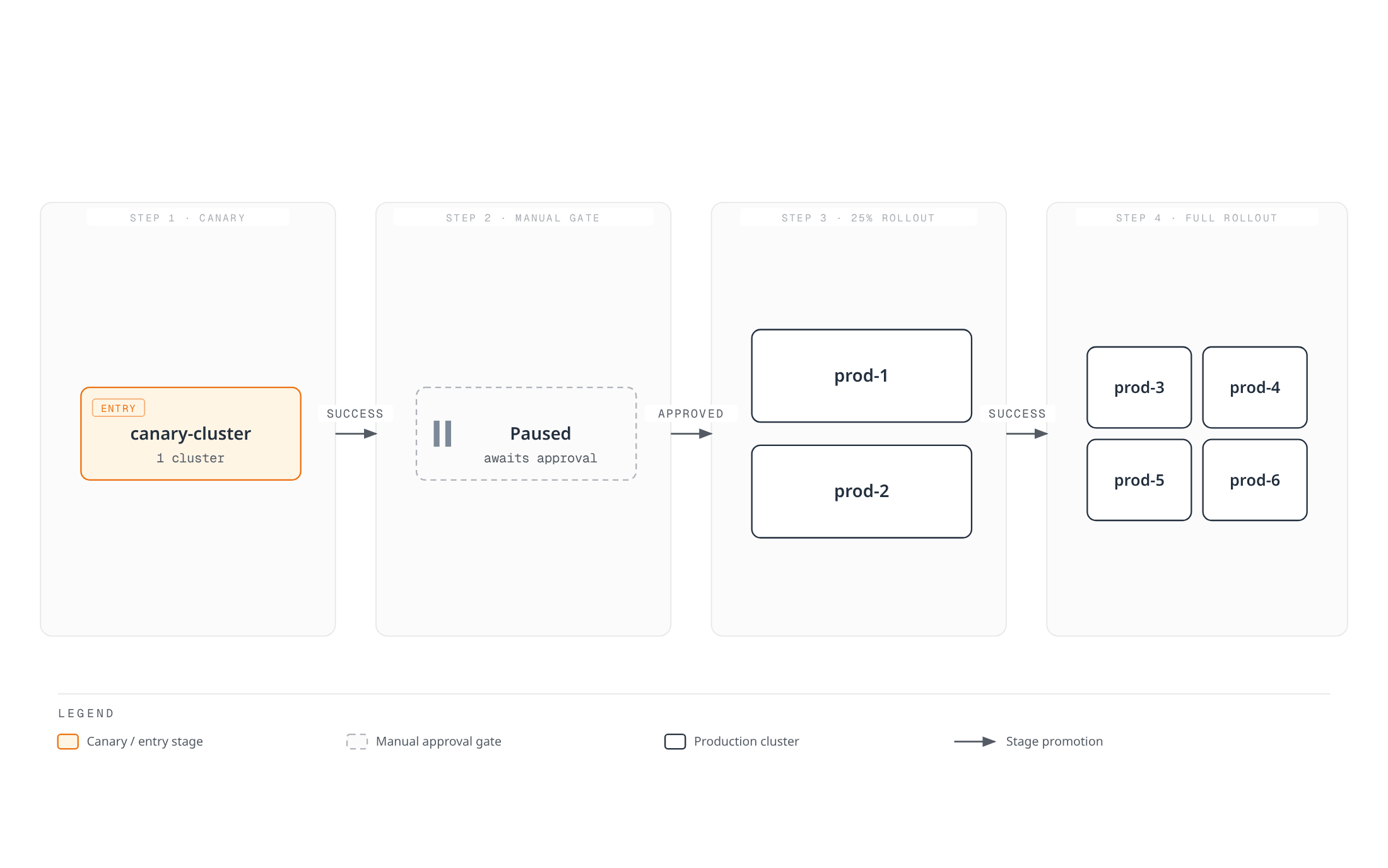

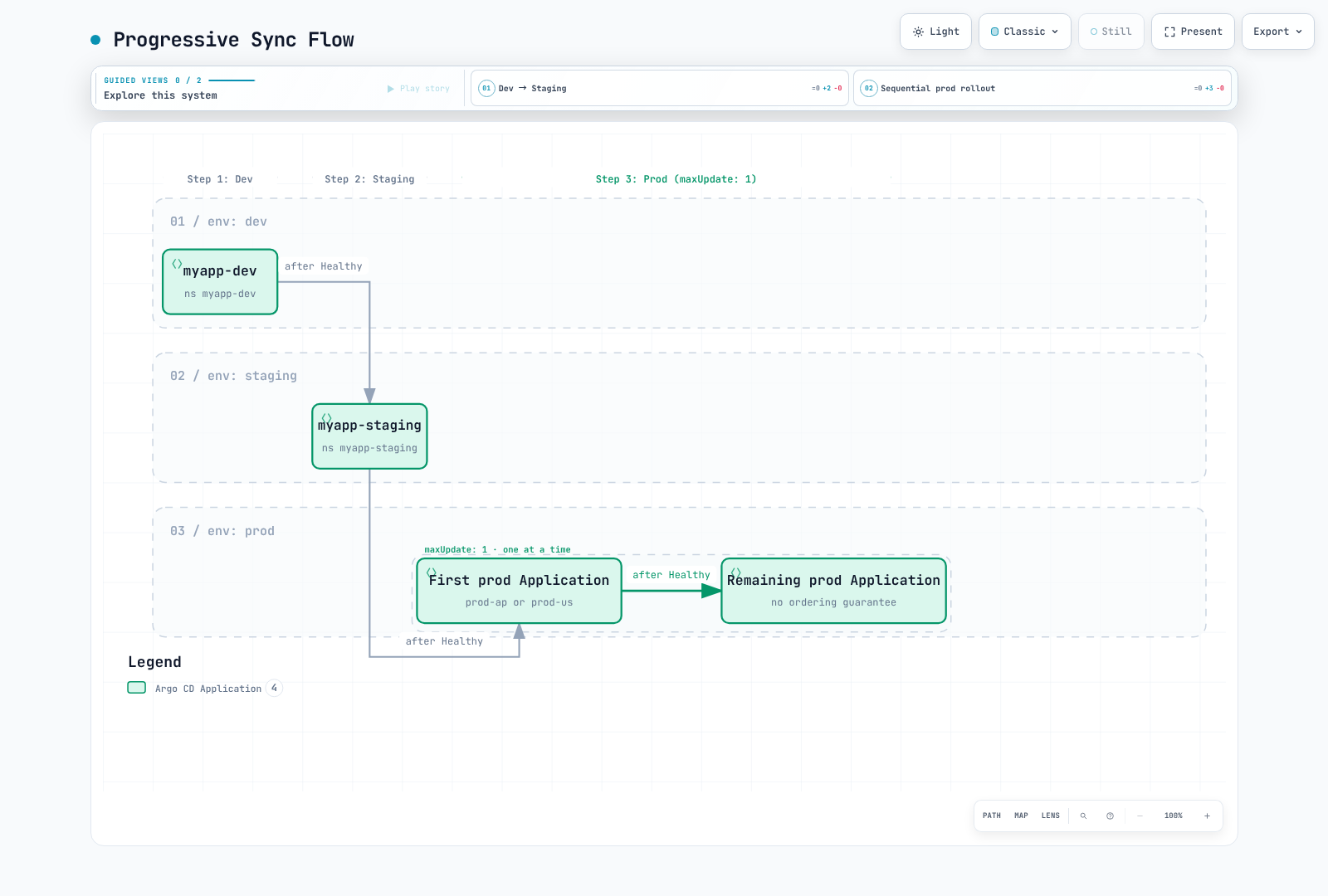

Progressive Sync
Multi-Cluster Patterns
Template Patches

ApplicationSet Overview

ApplicationSet is a Kubernetes controller that adds support for generating ArgoCD Applications from templates. It enables managing multiple applications with similar configurations across clusters, environments, or repositories.

When to Use ApplicationSet

Scenario	Use ApplicationSet?
Same app across multiple clusters	Yes
Multiple environments (dev/staging/prod)	Yes
Monorepo with many services	Yes
Dynamic environments from PRs	Yes
Single application deployment	No (use Application)

myorg, example.com, cluster URLs and private charts below are placeholders. Supply real repository paths, charts, values files, registered clusters, AppProject permissions and credentials before applying them. ApplicationSet does not register clusters or create AppProjects. CreateNamespace=true only creates an authorized destination Namespace. All full examples explicitly enable Go templates.

Restrict ApplicationSet authoring and generator inputs to trusted administrators. A Git/PR input that controls the project, source or destination can expand deployment privileges; use fixed, scoped AppProjects and reviewed inputs.

Basic Structure

yaml

apiVersion: argoproj.io/v1alpha1
kind: ApplicationSet
metadata:
  name: my-appset
  namespace: argocd
spec:
  generators:
  - list:
      elements:
      - cluster: dev
        url: https://dev.k8s.local
      - cluster: prod
        url: https://prod.k8s.local
  template:
    metadata:
      name: '{{ .cluster }}-myapp'
    spec:
      project: default
      source:
        repoURL: https://github.com/myorg/myrepo.git
        targetRevision: HEAD
        path: overlays/{{ .cluster }}
      destination:
        server: '{{ .url }}'
        namespace: myapp
      syncPolicy:
        syncOptions:
        - CreateNamespace=true
  goTemplate: true
  goTemplateOptions:
  - missingkey=error

Generators

Generators produce parameters that are substituted into the template to create Applications.

1. List Generator

The simplest generator - defines a static list of values:

yaml

apiVersion: argoproj.io/v1alpha1
kind: ApplicationSet
metadata:
  name: list-example
  namespace: argocd
spec:
  generators:
  - list:
      elements:
      - cluster: dev
        url: https://kubernetes.default.svc
        namespace: dev
        values:
          replicas: '1'
          logLevel: debug
      - cluster: staging
        url: https://staging.k8s.local
        namespace: staging
        values:
          replicas: '2'
          logLevel: info
      - cluster: production
        url: https://production.k8s.local
        namespace: production
        values:
          replicas: '5'
          logLevel: warn
  template:
    metadata:
      name: myapp-{{ .cluster }}
      labels:
        environment: '{{ .cluster }}'
    spec:
      project: default
      source:
        repoURL: https://github.com/myorg/myapp.git
        targetRevision: HEAD
        path: charts/myapp
        helm:
          parameters:
          - name: replicaCount
            value: '{{ .values.replicas }}'
          - name: logging.level
            value: '{{ .values.logLevel }}'
      destination:
        server: '{{ .url }}'
        namespace: '{{ .namespace }}'
      syncPolicy:
        automated:
          prune: true
          selfHeal: true
        syncOptions:
        - CreateNamespace=true
  goTemplate: true
  goTemplateOptions:
  - missingkey=error

2. Cluster Generator

Automatically targets registered ArgoCD clusters:

yaml

apiVersion: argoproj.io/v1alpha1
kind: ApplicationSet
metadata:
  name: cluster-example
  namespace: argocd
spec:
  generators:
  - clusters:
      selector: {}
      values:
        clusterName: '{{ .name }}'
  template:
    metadata:
      name: '{{ .nameNormalized }}-guestbook'
    spec:
      project: default
      source:
        repoURL: https://github.com/argoproj/argocd-example-apps.git
        targetRevision: HEAD
        path: guestbook
      destination:
        server: '{{ .server }}'
        namespace: guestbook
      syncPolicy:
        syncOptions:
        - CreateNamespace=true
  goTemplate: true
  goTemplateOptions:
  - missingkey=error

Cluster Labels for Targeting

First, add labels to your cluster secrets:

yaml

apiVersion: v1
kind: Secret
metadata:
  name: production-cluster
  namespace: argocd
  labels:
    argocd.argoproj.io/secret-type: cluster
    environment: production
    region: us-west-2
    tier: critical
type: Opaque
stringData:
  name: production
  server: https://production.k8s.local
  config: |
    {
      "tlsClientConfig": {
        "insecure": false,
        "caData": "..."
      }
    }

Then select clusters by label:

yaml

generators:
  - clusters:
      selector:
        matchLabels:
          environment: production
        matchExpressions:
          - key: tier
            operator: In
            values:
              - critical
              - high

An empty Cluster selector can include the local cluster. The default local cluster has no Secret and may not match label selectors; create/configure its cluster Secret when label selection is needed. Use nameNormalized for Application names, and separately respect Namespace/Label limits. Secret snippets show the shape only: ... is not a valid CA or credential.

3. Git Generator - Directories

Scan a Git repository for directories:

yaml

apiVersion: argoproj.io/v1alpha1
kind: ApplicationSet
metadata:
  name: git-directories
  namespace: argocd
spec:
  generators:
  - git:
      repoURL: https://github.com/myorg/gitops-repo.git
      revision: HEAD
      directories:
      - path: apps/*
      - path: apps/excluded-app
        exclude: true
  template:
    metadata:
      name: '{{ .path.basename }}'
    spec:
      project: default
      source:
        repoURL: https://github.com/myorg/gitops-repo.git
        targetRevision: HEAD
        path: '{{ .path.path }}'
      destination:
        server: https://kubernetes.default.svc
        namespace: '{{ .path.basename }}'
      syncPolicy:
        syncOptions:
        - CreateNamespace=true
  goTemplate: true
  goTemplateOptions:
  - missingkey=error

Repository Structure for Directory Generator

gitops-repo/
├── apps/
│   ├── frontend/
│   │   ├── deployment.yaml
│   │   └── service.yaml
│   ├── backend/
│   │   ├── deployment.yaml
│   │   └── service.yaml
│   ├── database/
│   │   ├── statefulset.yaml
│   │   └── service.yaml
│   └── excluded-app/    # Excluded via generator
│       └── ...

4. Git Generator - Files

Read configuration from JSON/YAML files in Git:

yaml

apiVersion: argoproj.io/v1alpha1
kind: ApplicationSet
metadata:
  name: git-files
  namespace: argocd
spec:
  generators:
  - git:
      repoURL: https://github.com/myorg/gitops-repo.git
      revision: HEAD
      files:
      - path: config/**/config.json
  template:
    metadata:
      name: '{{ .cluster.name }}-{{ .app.name }}'
      labels:
        environment: '{{ .cluster.environment }}'
    spec:
      project: default
      source:
        repoURL: '{{ .app.repoURL }}'
        targetRevision: '{{ .app.revision }}'
        path: '{{ .app.path }}'
        helm:
          valueFiles:
          - values.yaml
          - values-{{ .cluster.environment }}.yaml
      destination:
        server: '{{ .cluster.server }}'
        namespace: '{{ .app.namespace }}'
      syncPolicy:
        syncOptions:
        - CreateNamespace=true
  goTemplate: true
  goTemplateOptions:
  - missingkey=error

Config File Example

json

{
  "cluster": {
    "name": "prod-us-west-2",
    "server": "https://prod-usw2.k8s.local",
    "environment": "production"
  },
  "app": {
    "name": "myapp",
    "repoURL": "https://github.com/myorg/myapp.git",
    "revision": "v1.2.3",
    "path": "charts/myapp",
    "namespace": "myapp-prod"
  }
}

5. Matrix Generator

Combine two generators to create a Cartesian product:

yaml

apiVersion: argoproj.io/v1alpha1
kind: ApplicationSet
metadata:
  name: matrix-example
  namespace: argocd
spec:
  generators:
  - matrix:
      generators:
      - clusters:
          selector:
            matchLabels:
              environment: production
      - git:
          repoURL: https://github.com/myorg/apps.git
          revision: HEAD
          directories:
          - path: apps/*
  template:
    metadata:
      name: '{{ .nameNormalized }}-{{ .path.basename }}'
    spec:
      project: default
      source:
        repoURL: https://github.com/myorg/apps.git
        targetRevision: HEAD
        path: '{{ .path.path }}'
      destination:
        server: '{{ .server }}'
        namespace: '{{ .path.basename }}'
      syncPolicy:
        syncOptions:
        - CreateNamespace=true
  goTemplate: true
  goTemplateOptions:
  - missingkey=error

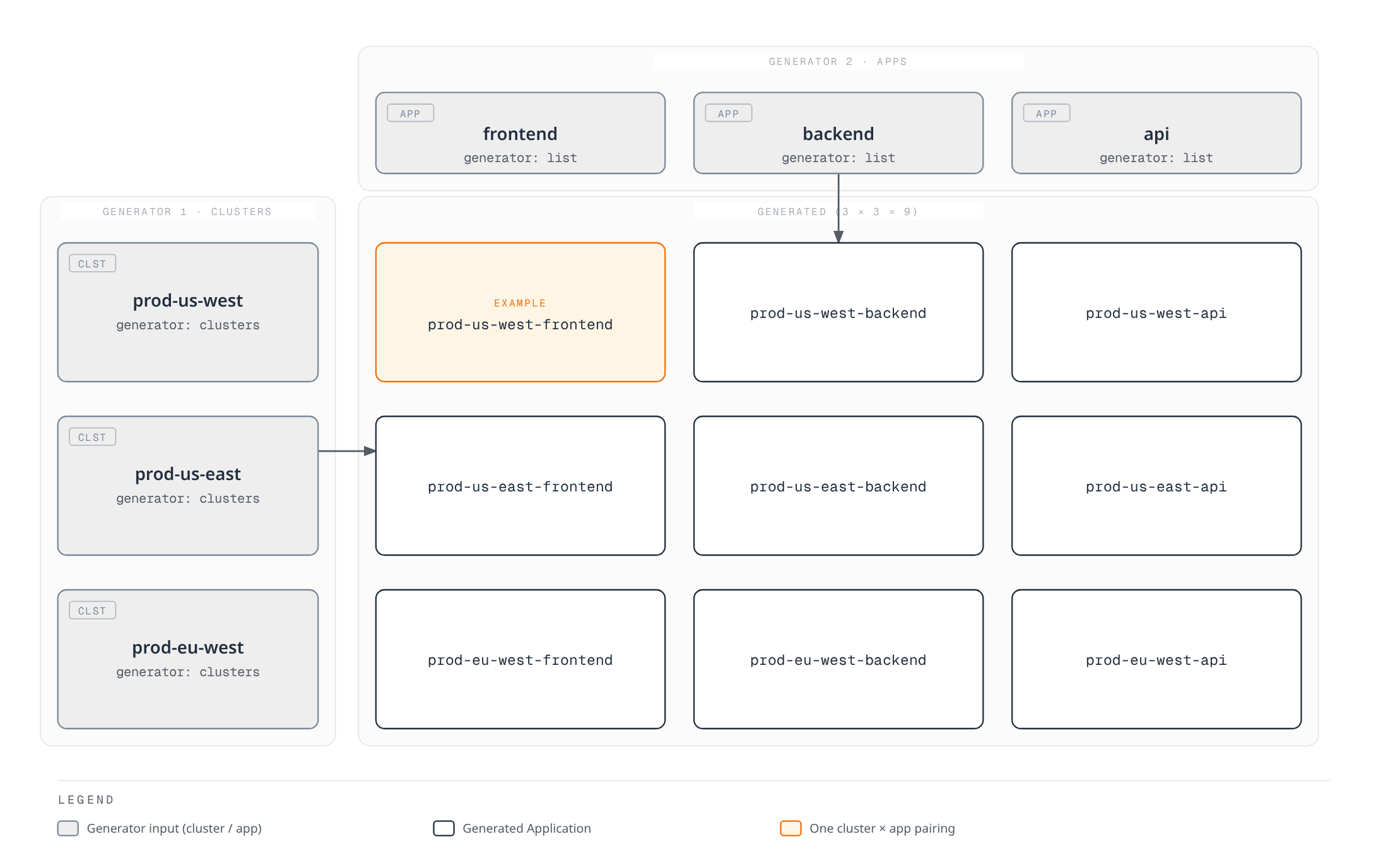

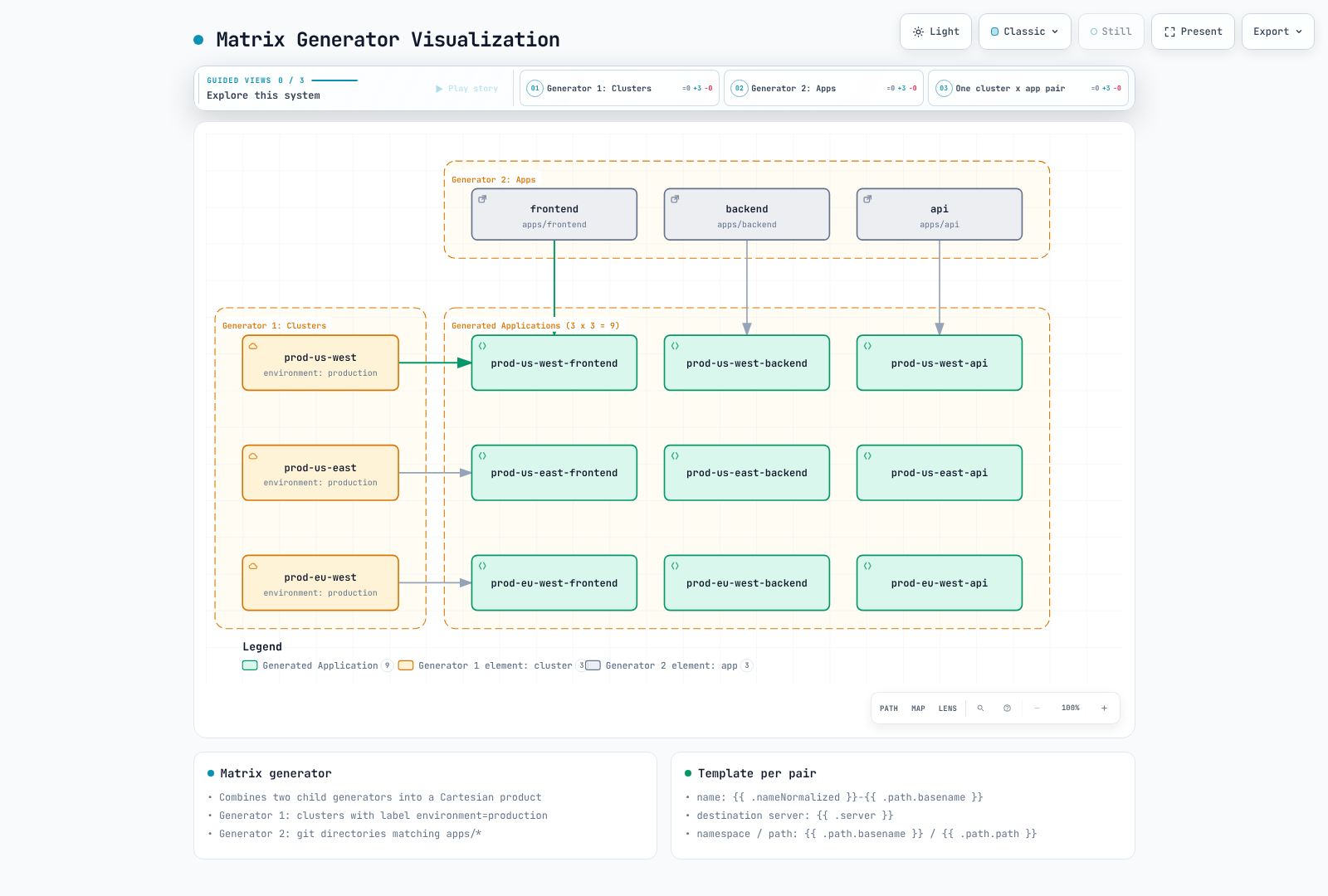

Matrix Visualization

Diagram showing an ArgoCD ApplicationSet's matrix generator combining a cluster list and an app list so every cluster-app pair produces one generated Application, three clusters by three apps yielding nine Applications.

Matrix combines exactly two child generators; combination generators support only one nesting level. Use pathParamPrefix when two Git generators would produce conflicting path parameters.

6. Merge Generator

Merge outputs from multiple generators, combining parameters:

yaml

apiVersion: argoproj.io/v1alpha1
kind: ApplicationSet
metadata:
  name: merge-example
  namespace: argocd
spec:
  generators:
  - merge:
      mergeKeys:
      - cluster
      generators:
      - list:
          elements:
          - cluster: dev
            replicas: '1'
            enableHA: 'false'
          - cluster: staging
            replicas: '2'
            enableHA: 'false'
          - cluster: production
            replicas: '5'
            enableHA: 'false'
      - list:
          elements:
          - cluster: production
            replicas: '10'
            enableHA: 'true'
  template:
    metadata:
      name: myapp-{{ .cluster }}
    spec:
      project: default
      source:
        repoURL: https://github.com/myorg/myapp.git
        targetRevision: HEAD
        path: charts/myapp
        helm:
          parameters:
          - name: replicas
            value: '{{ .replicas }}'
          - name: highAvailability
            value: '{{ .enableHA }}'
      destination:
        server: https://kubernetes.default.svc
        namespace: '{{ .cluster }}'
      syncPolicy:
        syncOptions:
        - CreateNamespace=true
  goTemplate: true
  goTemplateOptions:
  - missingkey=error

Merge keeps the base generator's entries and applies matching overrides by mergeKeys; later generators take precedence, and unmatched override entries are discarded. Nested merge keys are unsupported with Go templates.

7. SCM Provider Generator

Scan GitHub/GitLab organizations for repositories:

GitHub

yaml

apiVersion: argoproj.io/v1alpha1
kind: ApplicationSet
metadata:
  name: github-org-apps
  namespace: argocd
spec:
  generators:
  - scmProvider:
      github:
        organization: myorg
      filters:
      - repositoryMatch: ^service-.*
        pathsExist:
        - kubernetes/
        labelMatch: ^deploy-to-k8s$
  template:
    metadata:
      name: '{{ .repository }}'
    spec:
      project: default
      source:
        repoURL: '{{ .url }}'
        targetRevision: '{{ .branch }}'
        path: kubernetes
      destination:
        server: https://kubernetes.default.svc
        namespace: '{{ .repository }}'
      syncPolicy:
        syncOptions:
        - CreateNamespace=true
  goTemplate: true
  goTemplateOptions:
  - missingkey=error

GitLab

yaml

apiVersion: argoproj.io/v1alpha1
kind: ApplicationSet
metadata:
  name: gitlab-group-apps
  namespace: argocd
spec:
  generators:
  - scmProvider:
      gitlab:
        group: mygroup
        includeSubgroups: true
      filters:
      - pathsExist:
        - deploy/
  template:
    metadata:
      name: '{{ .repository }}'
    spec:
      project: default
      source:
        repoURL: '{{ .url }}'
        targetRevision: '{{ .branch }}'
        path: deploy
      destination:
        server: https://kubernetes.default.svc
        namespace: '{{ .repository }}'
      syncPolicy:
        syncOptions:
        - CreateNamespace=true
  goTemplate: true
  goTemplateOptions:
  - missingkey=error

scmProvider.filters sits beside the provider object. Conditions within one filter are AND; separate filter entries are OR. The example combines name, path and label requirements into one filter. Private repositories and API rate limits require an appropriately scoped token or GitHub App.

8. Pull Request Generator

Create environments for pull requests:

yaml

apiVersion: argoproj.io/v1alpha1
kind: ApplicationSet
metadata:
  name: pr-environments
  namespace: argocd
spec:
  generators:
  - pullRequest:
      github:
        owner: myorg
        repo: myapp
        tokenRef:
          secretName: github-token
          key: token
        labels:
        - preview
      requeueAfterSeconds: 180
  template:
    metadata:
      name: pr-{{ .number }}-{{ .branch_slug }}
      labels:
        preview: 'true'
        pr-number: '{{ .number }}'
    spec:
      project: previews
      source:
        repoURL: https://github.com/myorg/myapp.git
        targetRevision: '{{ .head_sha }}'
        path: kubernetes
        kustomize:
          nameSuffix: -pr-{{ .number }}
          images:
          - myapp:pr-{{ .number }}
      destination:
        server: https://kubernetes.default.svc
        namespace: preview-{{ .number }}
      syncPolicy:
        automated:
          prune: true
          selfHeal: true
        syncOptions:
        - CreateNamespace=true
  goTemplate: true
  goTemplateOptions:
  - missingkey=error

Use the PR example only with a pre-created previews AppProject restricting the preview cluster/namespaces. GitHub requires all listed labels; a label does not make untrusted PR code safe. Do not expose production secrets or cluster-admin credentials to preview workloads. Under the default deletion policy, closed/unmatched PR Applications are removed on reconciliation; resource cleanup follows finalizers/preservation settings, and a Namespace created only through CreateNamespace=true is not automatically a tracked cleanup target.

9. Cluster Decision Resource Generator

Defer cluster selection to an external resource:

yaml

apiVersion: argoproj.io/v1alpha1
kind: ApplicationSet
metadata:
  name: cluster-decision
  namespace: argocd
spec:
  generators:
  - clusterDecisionResource:
      configMapRef: cluster-decisions
      labelSelector:
        matchLabels:
          cluster.open-cluster-management.io/placement: production
      requeueAfterSeconds: 180
  template:
    metadata:
      name: '{{ normalize .name }}-addon'
    spec:
      project: default
      source:
        repoURL: https://github.com/myorg/myapp.git
        targetRevision: HEAD
        path: manifests
      destination:
        server: '{{ .server }}'
        namespace: myapp
      syncPolicy:
        syncOptions:
        - CreateNamespace=true
  goTemplate: true
  goTemplateOptions:
  - missingkey=error

Decision resource configuration:

yaml

apiVersion: v1
kind: ConfigMap
metadata:
  name: cluster-decisions
  namespace: argocd
data:
  apiVersion: cluster.open-cluster-management.io/v1beta1
  kind: placementdecisions
  statusListKey: decisions
  matchKey: clusterName

This requires an existing Open Cluster Management installation and a production Placement generating PlacementDecision objects. Grant the ApplicationSet controller read access to those objects in the argocd namespace. Each status.decisions[].clusterName must match an Argo CD registered cluster; use the generated server value for its API endpoint. Select decisions by either name or labelSelector.

10. Plugin Generator

Execute custom generator logic via ConfigMap:

yaml

apiVersion: argoproj.io/v1alpha1
kind: ApplicationSet
metadata:
  name: plugin-example
  namespace: argocd
spec:
  generators:
  - plugin:
      configMapRef:
        name: my-plugin
      input:
        parameters:
          environment: production
          region: us-west-2
      requeueAfterSeconds: 300
  template:
    metadata:
      name: '{{ .name }}'
    spec:
      project: default
      source:
        repoURL: '{{ .repoURL }}'
        targetRevision: '{{ .revision }}'
        path: '{{ .path }}'
      destination:
        server: '{{ .server }}'
        namespace: '{{ .namespace }}'
      syncPolicy:
        syncOptions:
        - CreateNamespace=true
  goTemplate: true
  goTemplateOptions:
  - missingkey=error

Plugin connection configuration:

yaml

apiVersion: v1
kind: ConfigMap
metadata:
  name: my-plugin
  namespace: argocd
data:
  token: "$appset-plugin-token:token"
  baseUrl: "https://appset-plugin.example.com"
  requestTimeout: "30"

The ConfigMap does not execute code. A separately deployed HTTP service must handle POST /api/v1/getparams.execute and return an output.parameters array. Replace the example domain with a TLS-validated endpoint. Provision Secret appset-plugin-token in argocd, with key token and label app.kubernetes.io/part-of: argocd; keep its value out of Git. Implement authentication, input validation and the documented response schema before connecting it.

Go Templating

Set spec.goTemplate: true to use Go templates; the default engine in 3.5.4 remains fasttemplate. The examples on this page explicitly enable Go templates with missingkey=error. Each string field is rendered independently: control statements cannot span YAML fields, and booleans/objects/lists require templatePatch. Use dig for optional keys because direct access to a missing key fails before default can run.

Basic Syntax

yaml

template:
  metadata:
    name: '{{ .cluster }}-{{ .app }}'           # Simple substitution
    labels:
      env: '{{ .values.environment }}'       # Nested values

Functions

yaml

template:
  metadata:
    # Normalize strings
    name: '{{normalize .cluster}}'

    # String manipulation
    labels:
      lower: '{{.cluster | lower}}'
      upper: '{{.cluster | upper}}'
      trimmed: '{{.cluster | trim}}'

    annotations:
      # Conditional
      tier: '{{if eq .env "prod"}}critical{{ else }}standard{{ end }}'

Advanced Templating

yaml

apiVersion: argoproj.io/v1alpha1
kind: ApplicationSet
metadata:
  name: advanced-template
  namespace: argocd
spec:
  goTemplate: true
  goTemplateOptions:
  - missingkey=error
  generators:
  - list:
      elements:
      - name: app1
        env: prod
        regions:
        - us-west-2
        - us-east-1
  template:
    metadata:
      name: '{{.name}}-{{.env}}'
      annotations:
        regions: '{{range $i, $r := .regions}}{{if $i}},{{ end }}{{$r}}{{ end }}'
    spec:
      project: default
      source:
        repoURL: https://github.com/myorg/myapp.git
        targetRevision: main
        path: manifests
      destination:
        server: https://kubernetes.default.svc
        namespace: '{{ .name }}'
      syncPolicy:
        syncOptions:
        - CreateNamespace=true

Progressive Sync

Progressive Syncs is Beta since 3.3 and must still be explicitly enabled in 3.5.4. Merge applicationsetcontroller.enable.progressive.syncs: "true" into the existing argocd-cmd-params-cm.data, then restart the ApplicationSet controller. For Helm, manage the corresponding key under configs.params.

RollingSync selects labels on generated Applications and waits for every Application in a group to become Healthy before proceeding. It disables child autosync and requests syncs through the ApplicationSet controller, respecting sync windows and Application retry settings. Applications matching no step require manual sync.

maxUpdate: 0 pauses automatic sync for that group; it does not grant approval or advance into a duplicate group. Manually sync the paused group or apply a reviewed strategy change. Positive percentages round down with a minimum of one. Ordering within a group is not guaranteed. The example below uses namespaces in one cluster; region is grouping metadata, not a cluster destination.

Control rollout across applications with RollingSync.

RollingSync Strategy

yaml

apiVersion: argoproj.io/v1alpha1
kind: ApplicationSet
metadata:
  name: progressive-rollout
  namespace: argocd
spec:
  generators:
  - list:
      elements:
      - name: dev
        env: dev
      - name: staging
        env: staging
      - name: prod-ap
        env: prod
        region: ap-northeast-2
      - name: prod-us
        env: prod
        region: us-west-2
  strategy:
    type: RollingSync
    rollingSync:
      steps:
      - matchExpressions:
        - key: env
          operator: In
          values:
          - dev
        maxUpdate: 100%
      - matchExpressions:
        - key: env
          operator: In
          values:
          - staging
        maxUpdate: 100%
      - matchExpressions:
        - key: env
          operator: In
          values:
          - prod
        maxUpdate: 1
  template:
    metadata:
      name: myapp-{{ .name }}
      labels:
        env: '{{ .env }}'
        region: '{{ dig "region" "global" . }}'
    spec:
      project: default
      source:
        repoURL: https://github.com/myorg/myapp.git
        targetRevision: HEAD
        path: envs/{{ .env }}
      destination:
        server: https://kubernetes.default.svc
        namespace: myapp-{{ .name }}
      syncPolicy:
        syncOptions:
        - CreateNamespace=true
  goTemplate: true
  goTemplateOptions:
  - missingkey=error

Progressive Sync Flow

Three-step Progressive Sync waits for Dev and Staging to become Healthy, then syncs the two Prod Applications one at a time. The order within Prod is not guaranteed.

Three-step Progressive Sync waits for Dev and Staging to become Healthy, then syncs the two Prod Applications one at a time. The order within Prod is not guaranteed.Open full screen ↗

Multi-Cluster Patterns

Hub-and-Spoke Pattern

Central ArgoCD managing multiple clusters:

yaml

apiVersion: argoproj.io/v1alpha1
kind: ApplicationSet
metadata:
  name: hub-spoke-platform
  namespace: argocd
spec:
  generators:
  - matrix:
      generators:
      - clusters:
          selector:
            matchLabels:
              managed-by: hub
      - list:
          elements:
          - app: monitoring
            chart: kube-prometheus-stack
            repo: https://prometheus-community.github.io/helm-charts
            version: 90.0.0
          - app: logging
            chart: loki
            repo: https://grafana-community.github.io/helm-charts
            version: 18.12.1
          - app: gateway
            chart: gateway-helm
            repo: docker.io/envoyproxy
            version: v1.9.1
  template:
    metadata:
      name: '{{ .nameNormalized }}-{{ .app }}'
    spec:
      project: platform
      destination:
        server: '{{ .server }}'
        namespace: '{{ .app }}'
      syncPolicy:
        automated:
          prune: true
          selfHeal: true
        syncOptions:
        - CreateNamespace=true
      sources:
      - repoURL: '{{ .repo }}'
        chart: '{{ .chart }}'
        targetRevision: '{{ .version }}'
        helm:
          valueFiles:
          - $values/platform/{{ .nameNormalized }}/{{ .app }}/values.yaml
      - repoURL: https://github.com/myorg/platform-config.git
        targetRevision: main
        ref: values
  goTemplate: true
  goTemplateOptions:
  - missingkey=error

The hub-and-spoke example requires reviewed values files for every cluster/app pair. Prepare Loki object storage/schema/deployment-mode settings, Grafana credentials, persistence and Gateway API prerequisites in that configuration repository. Register docker.io/envoyproxy as a Helm repository with OCI enabled as described in the installation chapter. Missing $values files intentionally fail rendering; do not replace them with empty values. Loki replaces the retired loki-stack bundle, and Envoy Gateway replaces the retired community ingress-nginx example; this is a migration requiring route/value changes, not a drop-in upgrade.

Environment Promotion Pattern

yaml

apiVersion: argoproj.io/v1alpha1
kind: ApplicationSet
metadata:
  name: environment-promotion
  namespace: argocd
spec:
  generators:
  - git:
      repoURL: https://github.com/myorg/env-config.git
      revision: HEAD
      files:
      - path: environments/*/config.yaml
  template:
    metadata:
      name: myapp-{{ .environment }}
    spec:
      project: default
      source:
        repoURL: https://github.com/myorg/myapp.git
        targetRevision: '{{ .gitRevision }}'
        path: kubernetes
        kustomize:
          images:
          - myapp:{{ .imageTag }}
      destination:
        server: '{{ .clusterUrl }}'
        namespace: '{{ .namespace }}'
      syncPolicy:
        syncOptions:
        - CreateNamespace=true
  goTemplate: true
  goTemplateOptions:
  - missingkey=error

Save each YAML document below as the separately named file; the separators show file boundaries. Promote reviewed, immutable artifact versions through Git. Application annotations such as sync-wave alone do not order independently reconciled Applications; use RollingSync and labels when coordinated rollout is required.

Config files:

yaml

# environments/dev/config.yaml
environment: dev
namespace: myapp-dev
clusterUrl: https://dev.k8s.local
gitRevision: HEAD
imageTag: git-8c9f1a2
---

# environments/staging/config.yaml
environment: staging
namespace: myapp-staging
clusterUrl: https://staging.k8s.local
gitRevision: release-candidate
imageTag: rc-1.2.3
---

# environments/production/config.yaml
environment: production
namespace: myapp-prod
clusterUrl: https://production.k8s.local
gitRevision: v1.2.3
imageTag: v1.2.3

Template Patches

Override template fields based on generator output.

Basic Patch

yaml

apiVersion: argoproj.io/v1alpha1
kind: ApplicationSet
metadata:
  name: patched-apps
  namespace: argocd
spec:
  generators:
  - list:
      elements:
      - name: app1
        env: dev
      - name: app2
        env: prod
  template:
    metadata:
      name: '{{ .name }}'
    spec:
      project: default
      source:
        repoURL: https://github.com/myorg/apps.git
        targetRevision: HEAD
        path: '{{ .name }}'
      destination:
        server: https://kubernetes.default.svc
        namespace: '{{ .name }}'
      syncPolicy:
        syncOptions:
        - CreateNamespace=true
  templatePatch: |
    {{- if eq .env "prod" }}
    spec:
      syncPolicy:
        automated:
          prune: true
          selfHeal: true
    {{- end }}
  goTemplate: true
  goTemplateOptions:
  - missingkey=error

Conditional Strategic Merge Patch

yaml

apiVersion: argoproj.io/v1alpha1
kind: ApplicationSet
metadata:
  name: strategic-patch
  namespace: argocd
spec:
  generators:
  - list:
      elements:
      - cluster: dev
        autoSync: 'false'
      - cluster: prod
        autoSync: 'true'
  template:
    metadata:
      name: app-{{ .cluster }}
    spec:
      project: default
      source:
        repoURL: https://github.com/myorg/apps.git
        targetRevision: HEAD
        path: app
      destination:
        server: https://kubernetes.default.svc
        namespace: app-{{ .cluster }}
      syncPolicy:
        syncOptions:
        - CreateNamespace=true
  templatePatch: |
    spec:
      {{- if eq .autoSync "true" }}
      syncPolicy:
        automated:
          prune: true
          selfHeal: true
      {{- else }}
      syncPolicy: {}
      {{- end }}
  goTemplate: true
  goTemplateOptions:
  - missingkey=error

Deletion and Preservation

Deleting an ApplicationSet normally garbage-collects its generated Applications via ownerReferences. preserveResourcesOnDeletion: true prevents adding the resource-deletion finalizer to Applications, preserving their deployed resources; it does not preserve the Application objects themselves. Inspect finalizers on existing Applications before changing lifecycle settings.

To remove only the parent, use kubectl delete applicationset NAME -n argocd --cascade=orphan. Orphaned Applications retain autosync and any existing finalizer; deleting one later may still delete its deployed resources. applicationsSync: create-update restricts reconciliation-driven deletions, not owner-reference garbage collection when the parent is removed.

templatePatch requires goTemplate: true. In 3.5.4 it uses Kubernetes strategic merge patch with the Application type. Arrays without merge tags in the Application spec, such as Helm valueFiles, are replaced; do not assume the name-based merging used for Pod containers. Avoid a value-less spec: (null) that clears existing configuration, do not patch spec.project, and escape untrusted inserted strings with functions such as toJson.

References

Quiz

To test what you've learned, try the ArgoCD ApplicationSets quiz.

Traffic Management

Security

Observability

Resilience

Advanced

Comparison Guide

ArgoCD

Metrics

Logging

Tracing

Alerting

Observability End-to-End Labs

ArgoCD ApplicationSets ​

Table of Contents ​

ApplicationSet Overview ​

When to Use ApplicationSet ​

Basic Structure ​

Generators ​

1. List Generator ​

2. Cluster Generator ​

Cluster Labels for Targeting ​

3. Git Generator - Directories ​

Repository Structure for Directory Generator ​

4. Git Generator - Files ​

Config File Example ​

5. Matrix Generator ​

Matrix Visualization ​

6. Merge Generator ​

7. SCM Provider Generator ​

GitHub ​

GitLab ​

8. Pull Request Generator ​

9. Cluster Decision Resource Generator ​

10. Plugin Generator ​

Go Templating ​

Basic Syntax ​

Functions ​

Advanced Templating ​

Progressive Sync ​

RollingSync Strategy ​

Progressive Sync Flow ​

Multi-Cluster Patterns ​

Hub-and-Spoke Pattern ​

Environment Promotion Pattern ​

Template Patches ​

Basic Patch ​

Conditional Strategic Merge Patch ​

Deletion and Preservation ​

References ​

Quiz ​

ArgoCD ApplicationSets

Table of Contents

ApplicationSet Overview

When to Use ApplicationSet

Basic Structure

Generators

1. List Generator

2. Cluster Generator

Cluster Labels for Targeting

3. Git Generator - Directories

Repository Structure for Directory Generator

4. Git Generator - Files

Config File Example

5. Matrix Generator

Matrix Visualization

6. Merge Generator

7. SCM Provider Generator

GitHub

GitLab

8. Pull Request Generator

9. Cluster Decision Resource Generator

10. Plugin Generator

Go Templating

Basic Syntax

Functions

Advanced Templating

Progressive Sync

RollingSync Strategy

Progressive Sync Flow

Multi-Cluster Patterns

Hub-and-Spoke Pattern

Environment Promotion Pattern

Template Patches

Basic Patch

Conditional Strategic Merge Patch

Deletion and Preservation

References

Quiz
