OPA Gatekeeper

Validation baseline: Gatekeeper/Gator 3.23.1 · Helm chart 3.23.1

Last Updated: September 13, 2026

Overview

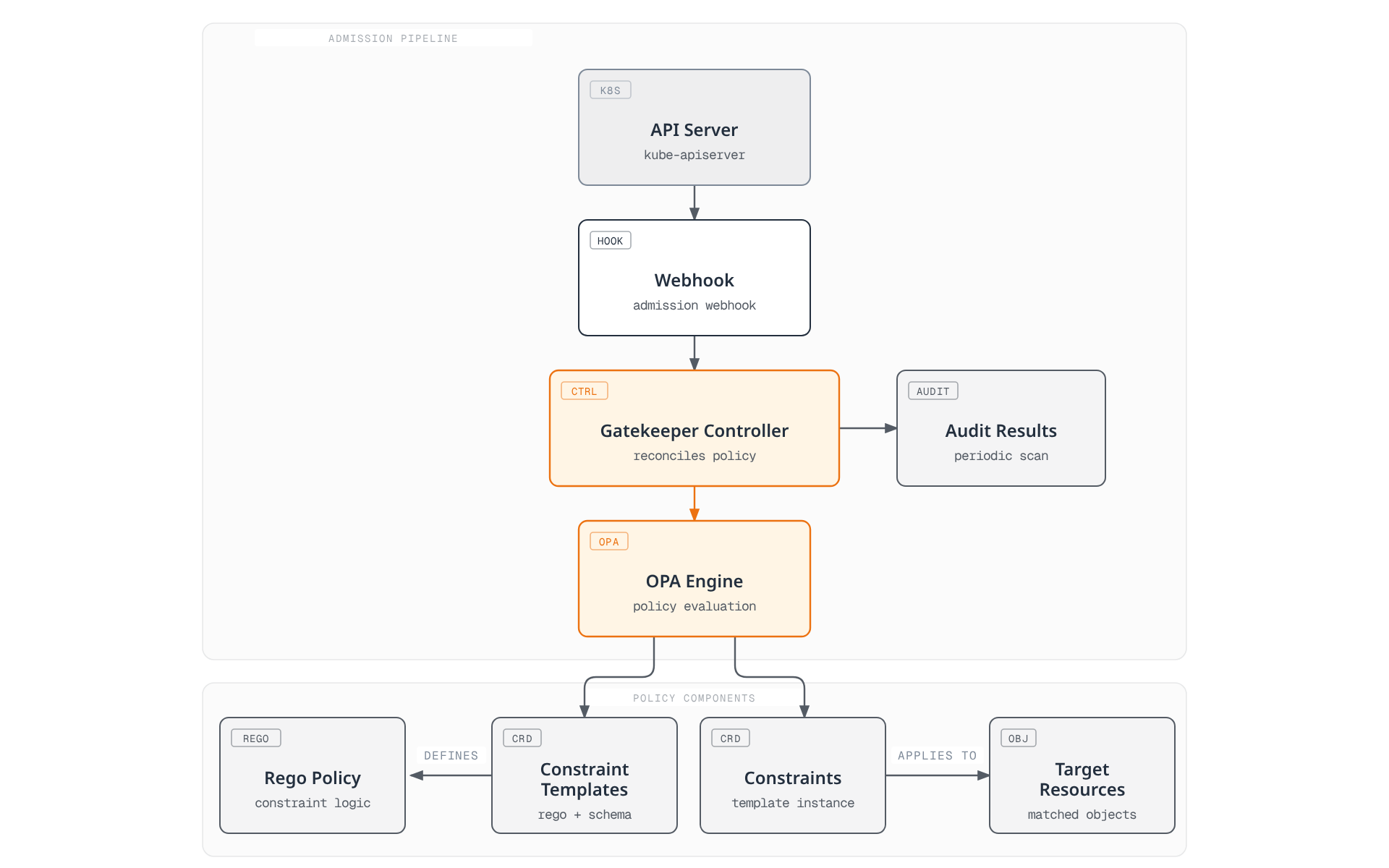

Gatekeeper evaluates policies during Kubernetes admission and periodic audit. ConstraintTemplates define logic and parameter schemas; Constraints define scope, values and enforcementAction. The complete examples use a dedicated policy-lab namespace and local tests. Do not apply every test fixture to a production cluster.

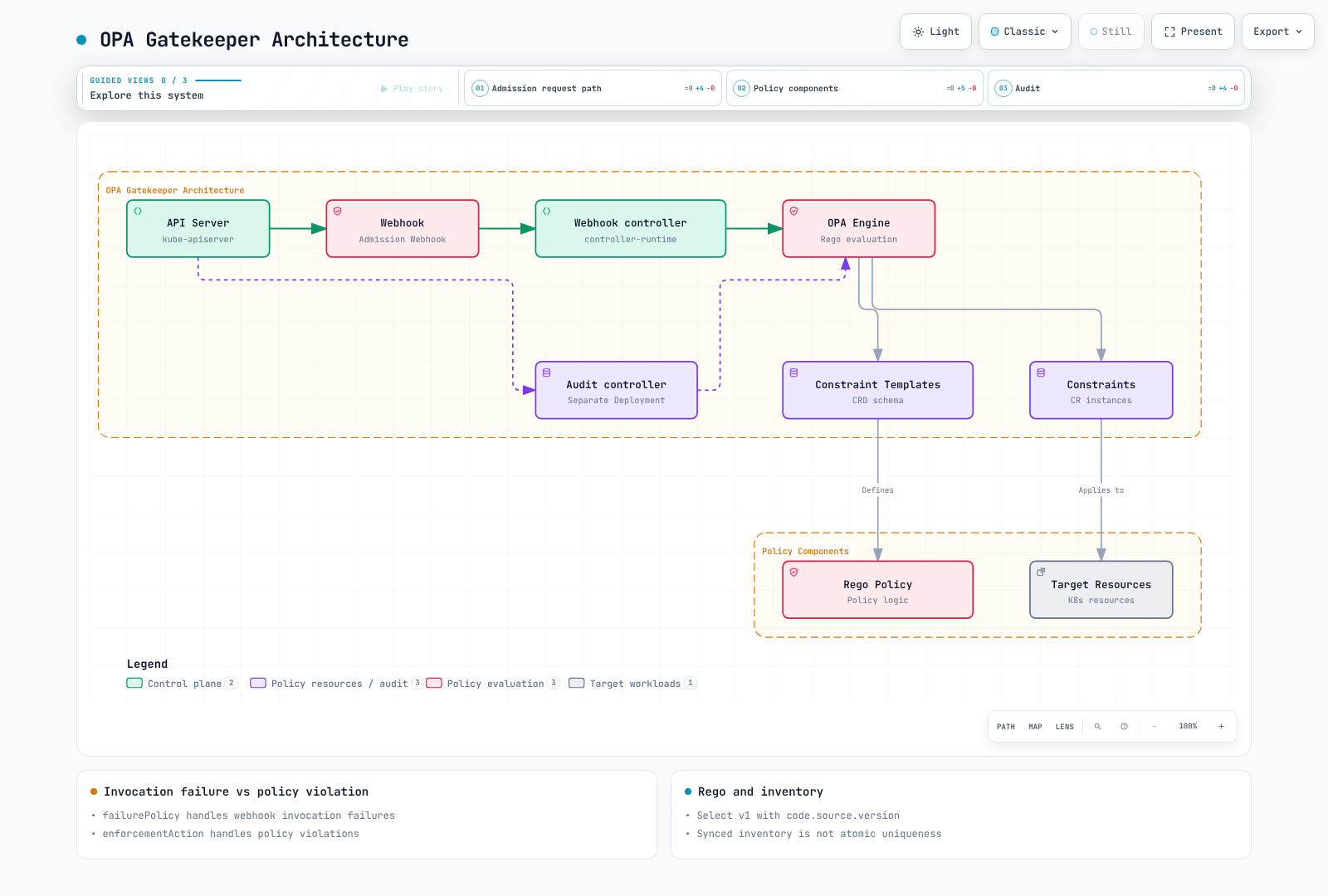

Gatekeeper admission and periodic audit, with templates defining logic and Constraints selecting scope.Open full screen ↗

Choosing Gatekeeper and Kyverno

Choose between Gatekeeper’s Rego/Constraint model and Kyverno’s Kubernetes-oriented policy model based on your requirements, tests and operating model. Gatekeeper also supports optional CEL-based Kubernetes native validation. Avoid unsupported fixed resource-usage rankings or claims that another engine cannot express complex logic. OPA’s CNCF graduation does not establish Gatekeeper as a separately graduated project.

Installing Gatekeeper

Use the pinned chart and supported values from the example directory. auditInterval and logLevel are top-level chart fields; do not assume arbitrary audit.replicas or audit.logLevel values take effect. The profile renders three webhook replicas and one audit Deployment. Verify the EKS control-plane-to-webhook network path, certificates, placement and available resources.

helm repo add gatekeeper https://open-policy-agent.github.io/gatekeeper/charts
helm repo update gatekeeper
helm upgrade --install gatekeeper gatekeeper/gatekeeper --version 3.23.1 \
  --namespace gatekeeper-system --create-namespace --values values.yaml --wait
kubectl -n gatekeeper-system rollout status deployment/gatekeeper-controller-manager
kubectl -n gatekeeper-system rollout status deployment/gatekeeper-audit

For staged rollout, values.yaml explicitly retains webhook failurePolicy: Ignore. Webhook invocation failures can therefore allow requests even when a Constraint says deny. Evaluate Fail together with API availability, recovery and exempt namespaces. Webhook scope can be broader than individual Constraint scope.

Template and Constraint Ordering

Templates generate corresponding Constraint CRDs. Wait for Established CRDs and check template Pod status before applying Constraints. All example Constraints start in dryrun; review image prefixes, parameters and namespaces for the target environment.

kubectl create namespace policy-lab --dry-run=client -o yaml | kubectl apply -f -
kubectl apply -f templates/
kubectl wait --for=condition=Established --timeout=90s \
  crd/docsrequiredlabels.constraints.gatekeeper.sh \
  crd/docsnoprivileged.constraints.gatekeeper.sh \
  crd/docsapprovedimages.constraints.gatekeeper.sh \
  crd/k8scontainerlimits.constraints.gatekeeper.sh \
  crd/docsuniqueingress.constraints.gatekeeper.sh
kubectl apply -f constraints/

Rego and the Input Contract

Gatekeeper policies use input.review, not input.request from a generic OPA AdmissionReview example. input.parameters supplies Constraint values and data.inventory supplies synchronized Kubernetes objects. Existing targets[].rego uses supported Rego v0 by default. Rego v1 is selected explicitly with code[].source.version: v1; older v0 Templates are not automatically invalid.

apiVersion: templates.gatekeeper.sh/v1
kind: ConstraintTemplate
metadata:
  name: docsrequiredlabels
spec:
  crd:
    spec:
      names:
        kind: DocsRequiredLabels
      validation:
        openAPIV3Schema:
          type: object
          properties:
            labels:
              type: array
              minItems: 1
              items:
                type: string
                minLength: 1
          required:
          - labels
  targets:
  - target: admission.k8s.gatekeeper.sh
    code:
    - engine: Rego
      source:
        version: v1
        rego: "package docsrequiredlabels\nvalid_label(key) if {\n  value := input.review.object.metadata.labels[key]\n\
          \  is_string(value)\n  value != \"\"\n}\nviolation contains {\"msg\": sprintf(\"\
          required nonempty label: %v\", [key])} if {\n  some key in input.parameters.labels\n\
          \  not valid_label(key)\n}\n"

violation contains ... if is a v1 partial-set rule. Multiple definitions contribute to that set; this does not mean conflicting complete-document rules always combine as OR. Conditions within a rule body must all hold. Distinguish recursive user-defined rules from JSON traversal built-ins such as walk.

package examples
items := [x | some x in input.items; x > 10]
keys := object.keys(object.get(input, "labels", {}))
missing := {"app", "team"} - keys

obj[_] selects object values. Use object.keys or bind the key explicitly when you need label keys. Set difference -, intersection & and union | are useful policy operations.

Policies and Scope

Template	Checks	Scope and limits
DocsRequiredLabels	Required nonempty labels	Pod metadata; Deployment metadata differs from Pod template labels
DocsNoPrivileged	Reject privileged=true	Regular, init and ephemeral containers; not a full PSS suite
DocsApprovedImages	Approved registry/path prefixes	All three container types; schema requires a trailing / boundary
K8sContainerLimits	CPU/memory limit presence and maximum	Pinned upstream policy; regular/init containers, since ephemeral containers cannot set resource fields
DocsUniqueIngress	Exact host conflicts in synced inventory	Excludes same-object updates; no wildcard or atomic concurrent-creation guarantee

Image Boundaries and Exceptions

registry.example.com/team/ differs from registry.example.com/team-evil/ and registry.example.com.evil/. Prefix matching needs a separator boundary and a fully qualified image-name contract. The example does not offer a workload-controlled bypass label such as skip-privileged-check=true. Namespace exceptions require controlled RBAC, authorization, expiry and audit records for label changes.

Resource Quantities

A Gi/Mi/Ki-only parser can return undefined for 9G or plain bytes and silently miss violations. The example pins the upstream K8sContainerLimits policy, which reports unsupported strings as violations. It does not accept every quantity representation Kubernetes permits; document its format restrictions. Native tests distinguish millicores, decimal/binary memory, plain bytes, numeric inputs and explicitly quoted exponent strings. Quote string fixtures such as 8e9 to prevent YAML parsers from converting them to numbers.

PSS and Controller Resources

Do not label a few privileged/runAsNonRoot checks as complete Baseline/Restricted enforcement. Versioned PSS also covers host namespaces, seccomp, capabilities, OS distinctions, Pod-level inheritance and ephemeral containers; use the Pod Security Standards guide. These examples check Pod admission. To evaluate controller Pod templates earlier, configure separate template or ExpansionTemplate tests.

Synchronized Data and Referential Policies

sync.yaml synchronizes networking.k8s.io/v1 Ingress objects into inventory. This differs from connecting an external HTTP provider or arbitrary OPA bundle. Synchronize only necessary objects and review RBAC, memory and sensitive data.

apiVersion: config.gatekeeper.sh/v1alpha1
kind: Config
metadata:
  name: config
  namespace: gatekeeper-system
spec:
  sync:
    syncOnly:
    - group: networking.k8s.io
      version: v1
      kind: Ingress

A different name in the same namespace, or the same name in another namespace, can still conflict. Requiring both namespace and name to differ misses those cases. The example excludes only the same namespace/name as a self-update. Because inventory is eventually consistent, it cannot atomically guarantee uniqueness for concurrent creations.

Mutation

AssignMetadata adds supported metadata labels/annotations; it is not a general overwrite mechanism. Assign sets a field. Assigning a whole toleration list can discard existing entries, so this example uses ModifySet merge. The toleration permits a dedicated lab taint; it does not select Spot nodes.

apiVersion: mutations.gatekeeper.sh/v1
kind: ModifySet
metadata:
  name: docs-dedicated-toleration
spec:
  applyTo:
  - groups:
    - ''
    versions:
    - v1
    kinds:
    - Pod
  match:
    scope: Namespaced
    namespaces:
    - policy-lab
  location: spec.tolerations
  parameters:
    operation: merge
    values:
      fromList:
      - key: dedicated
        operator: Equal
        value: policy-lab
        effect: NoSchedule

Separate mutation/defaulting from validation. Review CREATE/UPDATE scope, repeat application, convergence with other mutators and effects on existing objects. Creating a mutator does not automatically rewrite every existing object.

Audit and Monitoring

Set audit frequency with chart auditInterval. Config validation.traces is for debugging selected admission evaluations, not scheduling audit. Admission inputs and Rego prints can contain sensitive object data; enable them only for the needed scope. constraintViolationsLimit bounds the status detail list, which can differ from totalViolations.

kubectl get constraints
kubectl describe docsrequiredlabels required-labels
kubectl get constrainttemplatepodstatuses -n gatekeeper-system
kubectl get constraintpodstatuses -n gatekeeper-system

The chart webhook Service exposes only HTTPS webhook traffic, not metrics. podmonitor.yaml selects the actual named metrics:8888 container port on both audit and webhook Deployments. Install Prometheus Operator CRDs and align PodMonitor label/namespace selectors first.

Metric	Interpretation
gatekeeper_validation_request_count	Validation requests with actual admission_status labels
gatekeeper_validation_request_duration_seconds	Validation latency histogram
gatekeeper_violations	Audited violations by enforcement_action; no assumed default constraint_name label
gatekeeper_audit_last_run_end_time	Last completed audit timestamp
gatekeeper_constraint_templates	Template status counts

sum by (enforcement_action) (gatekeeper_violations)
histogram_quantile(0.99, sum by (le) (rate(gatekeeper_validation_request_duration_seconds_bucket[5m])))

Gator Tests and CI

Install the official 3.23.1 release asset and verify its published checksum. The ARM64 binary reports +dirty in GitVersion; the audit verified the published archive hash rather than assuming that text means a local modification. Do not replace versioned evidence with an unpinned @latest CLI run.

gator version
gator verify tests/suite.yaml --verbose
gator test -f templates/docsnoprivileged.yaml \
  -f constraints/no-privileged.yaml \
  -f tests/fixtures/tenant-skip-label-no-bypass.yaml --output=json

verify checks expected violations in Suites; test -f evaluates manifests against Templates/Constraints. Verify can ignore a directory with no Suites, so check that all five tests and 33 cases ran instead of trusting exit status alone. Fixture images are policy inputs, not pullable workloads. CI runs the local suite without credentials; any cluster dry-run belongs in a separate trusted environment with authorized access.

Rollout and Troubleshooting

Move the same populated Constraint through dryrun→warn→deny and review audit/admission results and exceptions. Do not create three parameterless Constraints as a rollout mechanism. Dryrun/warn can return violations with a zero Gator test exit status; deny violations return one. Observe webhook availability failures separately from policy violations.

kubectl get validatingwebhookconfiguration gatekeeper-validating-webhook-configuration -o yaml
kubectl -n gatekeeper-system logs deployment/gatekeeper-controller-manager --tail=100
kubectl -n gatekeeper-system logs deployment/gatekeeper-audit --tail=100

Check policy input, match scope, CRD/template errors, webhook certificates/network, audit timestamps and inventory freshness. Diagnose the cause before changing webhook enforcement or broadening namespace exceptions.

Validation Scope and Related Reading

Gator 3.23.1 executed 33 policy cases and three enforcement modes. Checks covered the pinned Helm render, eight Gatekeeper CRD objects and audit/webhook PodMonitor bindings. They did not execute Kubernetes admission, EKS networking, live audit-cache synchronization or API failover. Separate native mutation validation is recorded in the review report.
