Part 4: Amazon MWAA Integration
Last Updated: October 12, 2026; MWAA Airflow 3.3.1 / Python 3.12; Kubernetes provider 10.21.0. Latest upstream patch checked: Airflow 3.3.2 (not listed by MWAA as of October 12, 2026).
This chapter targets provisioned Amazon MWAA environments submitting work to customer EKS clusters. MWAA Serverless, with YAML workflow definitions, is a separate deployment option; do not transfer this environment/DAG-file/cost model to it unchanged.
1. Management boundaries and current versions
MWAA schedulers/workers use AWS-managed Fargate infrastructure connected to private subnets in the selected customer VPC. AWS also manages the metadata database. The service is therefore not unrelated to your VPC. However, MWAA scheduler pods are not deployed into your EKS cluster for kubectl management. In Airflow 3, the MWAA webserver also hosts the Execution API.
AWS operates the underlying service. You still manage DAGs, dependencies, IAM, VPC connectivity, capacity settings, alarms, recovery procedures and upgrades to supported versions. Managed infrastructure does not remove environment failures or capacity planning.
The official support table lists Airflow 3.3.1 available since 2026-09-01 and 3.2.1 since 2026-05-19. Upstream 3.3.1 was released on 2026-08-12. Upstream 3.3.2 followed on 2026-09-17; as of 2026-10-12 the MWAA table still lists 3.3.1 as the newest version. An upstream patch is not automatically available in MWAA. Check the AWS MWAA supported-version table for current versions and Region availability. Instead of assuming a fixed three-month delay, check the required patch, providers, region and actual environment version. Existing environments do not automatically switch to each newly supported Airflow release.
| Aspect | Self-managed Airflow on EKS | Provisioned MWAA |
|---|---|---|
| Operations | Design Kubernetes resources, database, upgrades and recovery | AWS manages the service infrastructure; users still own DAGs, permissions, connectivity, capacity choices and upgrades |
| Versions/executors | Validate your chosen combinations | Choose within supported runtime/configuration options |
| Python packages | Build your own images or other delivery mechanisms | S3 requirements.txt with matching version constraints |
| System dependencies | Configure within image/node policies | Startup scripts can install Linux runtimes; validate support, startup time and networking |
| DAG delivery | Configure GitDagBundle, git-sync or other paths | Documented baseline: S3 DAG folder and supporting-file synchronization |
| External workloads | Use KPO and other integrations for separate images | KPO/EKS integration can also run separate workload images |
Startup scripts run before requirements installation and Airflow startup; official examples include sudo-based runtime installation. A blanket prohibition on system packages is therefore incorrect. This capability is different from unrestricted replacement of the managed base image or executor.

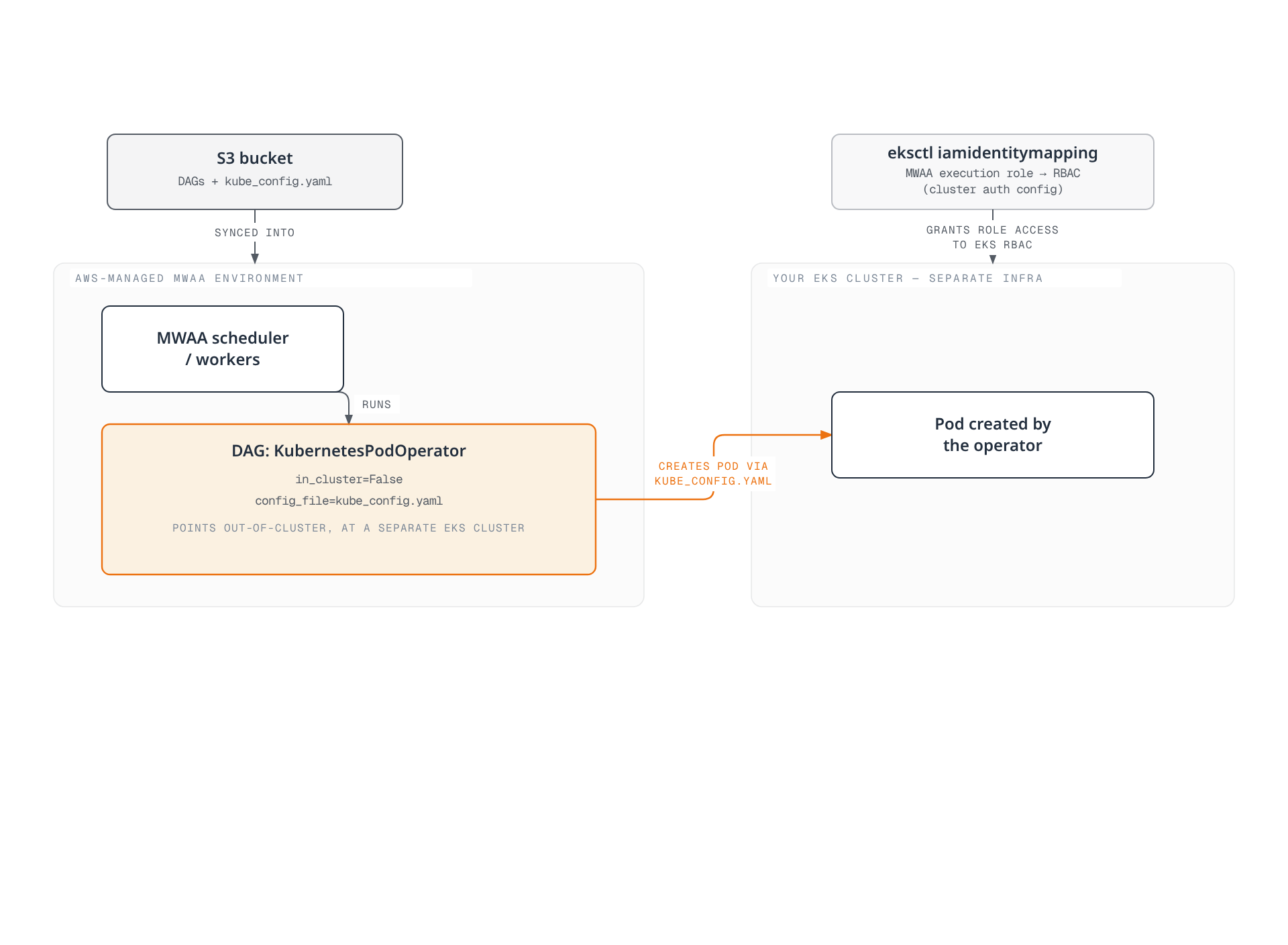

This example uses Git → CI → S3 → MWAA. S3 delivery alone does not prove that every Airflow 3 bundle capability is unavailable. Validate allowed configuration and support for a particular MWAA release before adopting a separate bundle setup. Both Git polling and S3 synchronization include parsing delays; neither guarantees execution immediately after a push or merge.

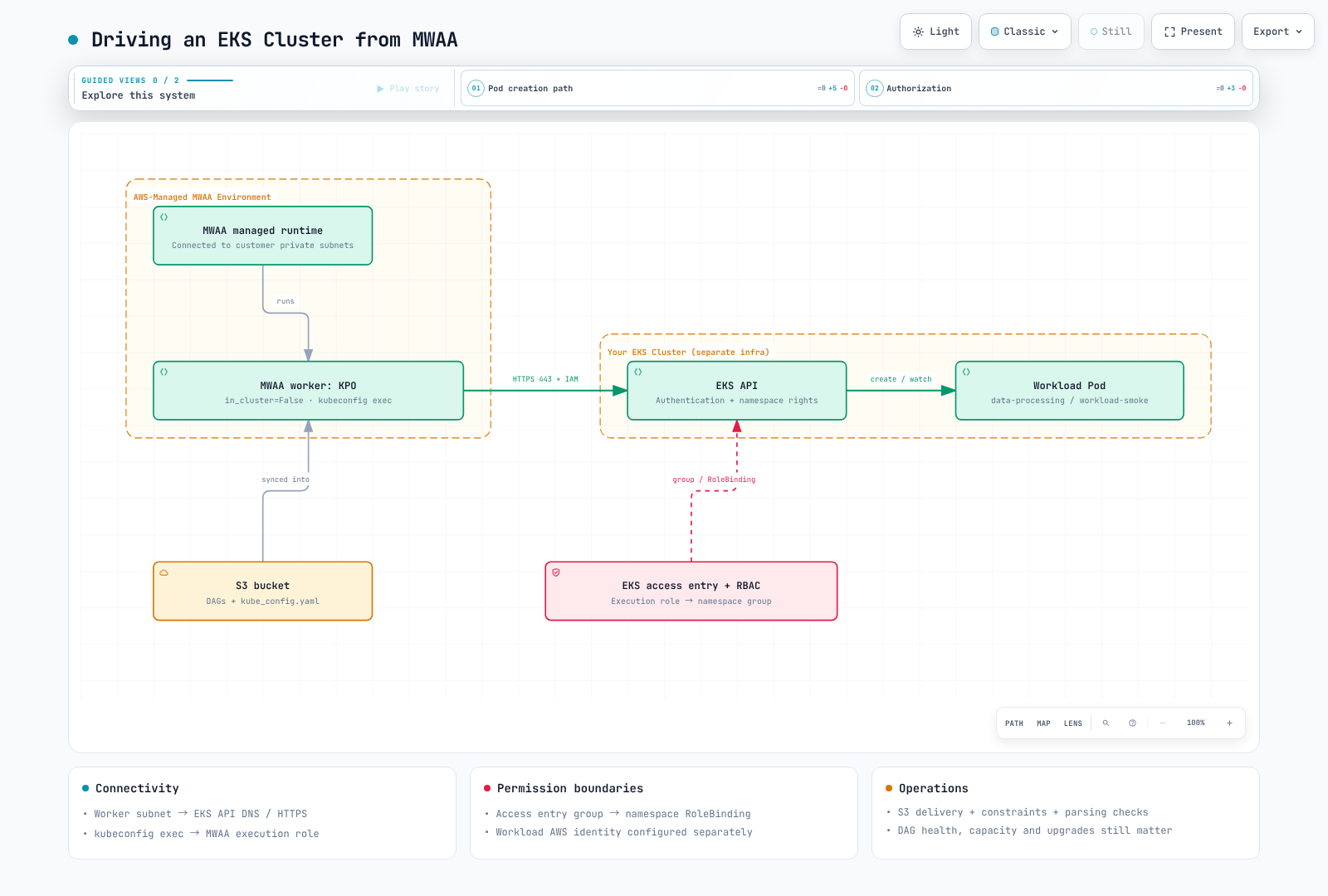

2. Three requirements for EKS access
- Networking: Worker subnets need DNS and HTTPS 443 access to the EKS API endpoint. For private endpoints, check routes, security groups and DNS. Adding authentication does not resolve a connection timeout.
- Authentication: The MWAA execution role must be recognized through an EKS access entry or an existing aws-auth configuration. The kubeconfig exec plugin uses IAM credentials available at execution time.
- Authorization: Bind the mapped Kubernetes group to a namespace Role. EKS authentication, Kubernetes RBAC and the child pod's AWS data permissions are distinct layers.
Use an existing MWAA 3.3.1 environment, an existing EKS cluster, AWS CLI v2 and kubectl. Check current EKS support and provider/client compatibility. This chapter does not require a new cluster or broad administrator identity.
Access entry and namespace RBAC
The following setup is performed by a cluster administrator. Replace the role ARN, cluster and region, and inspect any existing access entry first.
aws eks describe-cluster \
--name data-eks-cluster --region us-east-1 \
--query 'cluster.accessConfig.authenticationMode'
# Administrator action; API or API_AND_CONFIG_MAP mode is required.
aws eks create-access-entry \
--cluster-name data-eks-cluster --region us-east-1 \
--principal-arn arn:aws:iam::123456789012:role/mwaa-execution-role-my-environment \
--type STANDARD \
--kubernetes-groups mwaa-pod-launcherAccess entries also work in API_AND_CONFIG_MAP mode. Editing aws-auth does not grant access in API-only mode. For legacy CONFIG_MAP clusters, use the existing mapping or plan a migration. Authentication-mode transitions include irreversible changes, so this example does not silently change the mode.
Save and apply workload-access.yaml below. The RoleBinding limits this grant to data-processing. A ClusterRoleBinding does not express that namespace boundary.
apiVersion: v1
kind: Namespace
metadata:
name: data-processing
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: workload-smoke
namespace: data-processing
automountServiceAccountToken: false
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
name: mwaa-pod-launcher
namespace: data-processing
rules:
- apiGroups:
- ''
resources:
- pods
verbs:
- create
- get
- list
- watch
- patch
- delete
- apiGroups:
- ''
resources:
- pods/log
verbs:
- get
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
name: mwaa-pod-launcher
namespace: data-processing
subjects:
- kind: Group
name: mwaa-pod-launcher
apiGroup: rbac.authorization.k8s.io
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: mwaa-pod-launcherThe Role can affect pods throughout that namespace. Other access-policy/RBAC grants are additive, so inspect the complete permission set. Use admission controls for untrusted authors who could select other service accounts or dangerous pod specs. This synchronous example does not require XCom/exec permissions.
3. Kubeconfig and dependency delivery
Generate a fresh file rather than merging personal kubeconfig contexts into the artifact. Its generating administrator needs eks:DescribeCluster on the target.
set -eu
mkdir -p ./mwaa-staging
test ! -e ./mwaa-staging/kube_config.yaml
aws eks update-kubeconfig \
--name data-eks-cluster --region us-east-1 \
--alias data-eks-cluster \
--kubeconfig ./mwaa-staging/kube_config.yamlInspect the generated cluster, context, CA and exec.command. Remove exec.env entries that refer to a developer's local AWS_PROFILE so the MWAA execution role's default credential chain can be used. Do not add exec --role arguments unless a separate role assumption is intended. Do not store long-lived keys or a static token. Verify the aws executable and get-token path in the MWAA runtime as well.
The following requirements.txt targets this chapter's 3.3.1/Python 3.12 environment. First inspect providers already included in the image; validate actual installed versions after additions or changes. Do not use an unversioned apache-airflow extra to unintentionally change core Airflow.
--constraint https://raw.githubusercontent.com/apache/airflow/constraints-3.3.1/constraints-3.12.txt
apache-airflow-providers-cncf-kubernetes==10.21.0Enable bucket versioning and Block Public Access as required by MWAA. After uploading requirements.txt, update the environment's referenced object version and check installation logs. Overwriting the object alone is not the entire dependency-update procedure.
Preserve this structure under the configured S3 DAG prefix. Review the generated kube_config.yaml before placing it beside the DAG.
dags/
mwaa_eks_smoke.py
kube_config.yaml
templates/
base-pod-template.yamlapiVersion: v1
kind: Pod
metadata:
labels:
app: airflow-kpo-smoke
spec:
serviceAccountName: workload-smoke
automountServiceAccountToken: false
restartPolicy: Never
securityContext:
runAsNonRoot: true
runAsUser: 65532
seccompProfile:
type: RuntimeDefault
containers:
- name: base
image: python:3.12-slim
resources:
requests:
cpu: 100m
memory: 64Mi
limits:
cpu: 500m
memory: 128Mi
securityContext:
allowPrivilegeEscalation: false
readOnlyRootFilesystem: true
capabilities:
drop:
- ALLfrom datetime import datetime, timedelta, timezone
from pathlib import Path
from airflow.sdk import DAG
from airflow.providers.cncf.kubernetes.operators.pod import KubernetesPodOperator
BUNDLE_DIR = Path(__file__).resolve().parent
with DAG(
dag_id="mwaa_eks_smoke",
start_date=datetime(2026, 9, 1, tzinfo=timezone.utc),
schedule=None,
catchup=False,
) as dag:
run_smoke = KubernetesPodOperator(
task_id="run_smoke",
name="mwaa-eks-smoke",
namespace="data-processing",
image="python:3.12-slim",
cmds=["python", "-B", "-c"],
arguments=["import sys; print('MWAA_EKS_OK run_id=' + sys.argv[1])", "{{ run_id }}"],
pod_template_file=str(BUNDLE_DIR / "templates/base-pod-template.yaml"),
in_cluster=False,
config_file=str(BUNDLE_DIR / "kube_config.yaml"),
service_account_name="workload-smoke",
random_name_suffix=True,
reattach_on_restart=True,
deferrable=False,
do_xcom_push=False,
get_logs=True,
log_events_on_failure=False,
startup_timeout_seconds=120,
active_deadline_seconds=180,
execution_timeout=timedelta(minutes=5),
on_finish_action="delete_pod",
on_kill_action="delete_pod",
)
4. Verify execution and choose an operating model
After successful DAG parsing, manually trigger mwaa_eks_smoke and inspect task status and MWAA_EKS_OK logs. While running, inspect the pod's actual service account, image and resources. Deletion after success is configured cleanup behavior. Use MWAA CloudWatch task logging for retained logs.
| Symptom | Boundary to inspect |
|---|---|
| DNS/connection timeout | Worker subnet → EKS API routes, DNS and security groups |
| Unauthorized | Exec credentials, actual IAM role and access entry |
| Forbidden | Namespace, group, RoleBinding and required verbs |
| ImagePullBackOff | EKS node/Fargate image-pull identity and registry connectivity |
| DAG import/exec-binary error | Installed MWAA packages, synchronized files and aws executable |
The workload pod does not automatically inherit the MWAA execution role. Real S3 work needs separate data permissions, such as IRSA or Pod Identity for its service account. KPO can run other images; MWAA is not limited to PyPI-only or low-importance pipelines.
Compare executor/runtime flexibility, supported versions, operating capacity, network boundaries and recovery requirements. For cost, hold throughput/latency targets constant and include environment class/worker range, EKS, database, storage, NAT, logging and engineering effort. Do not base the choice on an unsupported claim of 30–60% self-hosting savings.
Validation scope and references
The version table, official constraints, provider source and example Python/YAML/ shell structure were reviewed. No MWAA update, EKS access-entry creation, RBAC application or end-to-end execution was performed. Verify account-specific connectivity and execution using the checks above.
