DestinationRule

Reviewed Version: Istio 1.31.0 API Version: networking.istio.io/v1Last Updated: September 11, 2026

DestinationRule is a core Istio resource that defines how to handle traffic after VirtualService routes it to the destination.

What is DestinationRule?
VirtualService vs DestinationRule
Subset Concept
Basic Structure
Defining Subsets
Traffic Policy Overview
Using with VirtualService
Practical Examples
Best Practices
Troubleshooting

What is DestinationRule?

The examples are independent sidecar configuration patterns. DestinationRule and VirtualService are configuration inputs compiled by istiod, not separate traffic-processing hops. DestinationRule also applies when no VirtualService exists. Subsets only select endpoints already discovered for the Service; they do not create workloads, isolate environments, or assign traffic percentages. Use matching pod-template labels and explicit routes to subsets.

DestinationRule defines traffic policies after routing. If VirtualService determines "where" to send traffic, DestinationRule determines "how" to handle it.

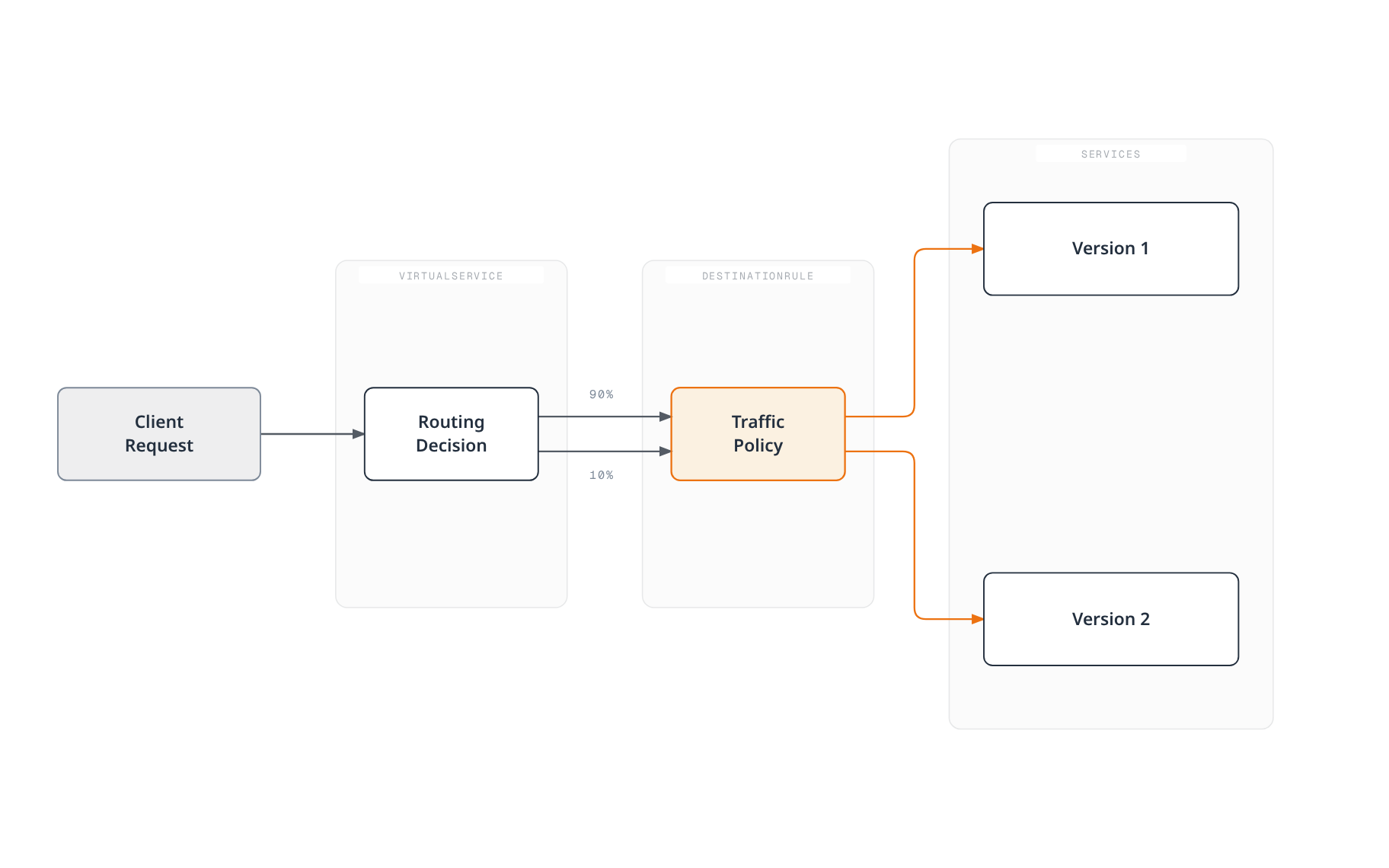

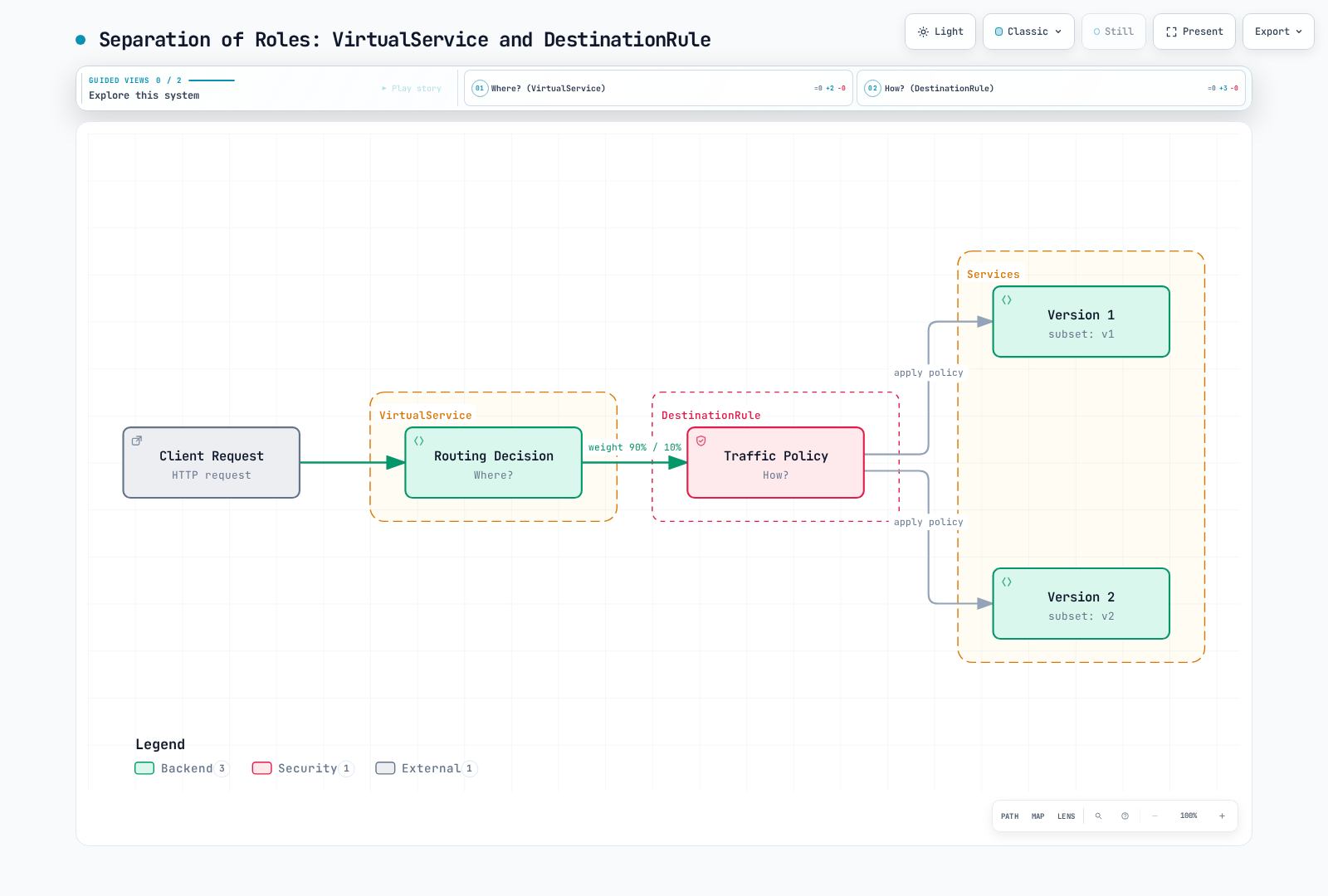

Diagram showing a client request passing through VirtualService's routing decision (where?) and DestinationRule's traffic policy (how?) before reaching the two service versions, subset v1 and v2.

Diagram showing a client request passing through VirtualService's routing decision (where?) and DestinationRule's traffic policy (how?) before reaching the two service versions, subset v1 and v2.Open full screen ↗

Key Roles of DestinationRule

Role	Description	Example
Subset Definition	Group service versions	v1, v2, canary, stable
Load Balancing	Load distribution algorithm	ROUND_ROBIN, LEAST_REQUEST
Connection Pool	Connection pool settings	Max connections, Timeout
Circuit Breaker	Failure isolation	Outlier Detection
TLS Settings	Encryption policy	mTLS, SIMPLE TLS

VirtualService vs DestinationRule

These two resources work together to provide complete traffic management.

Role Comparison

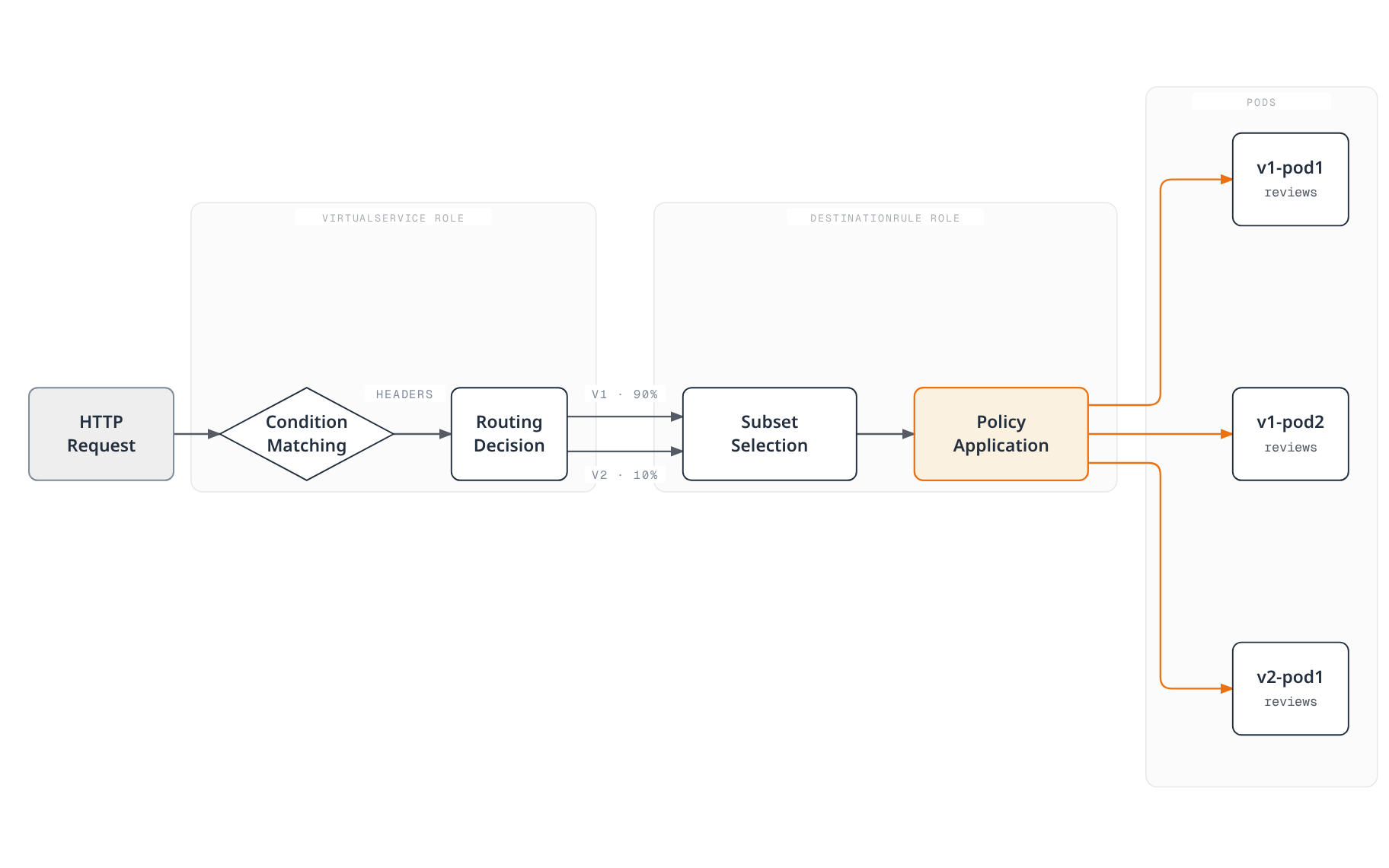

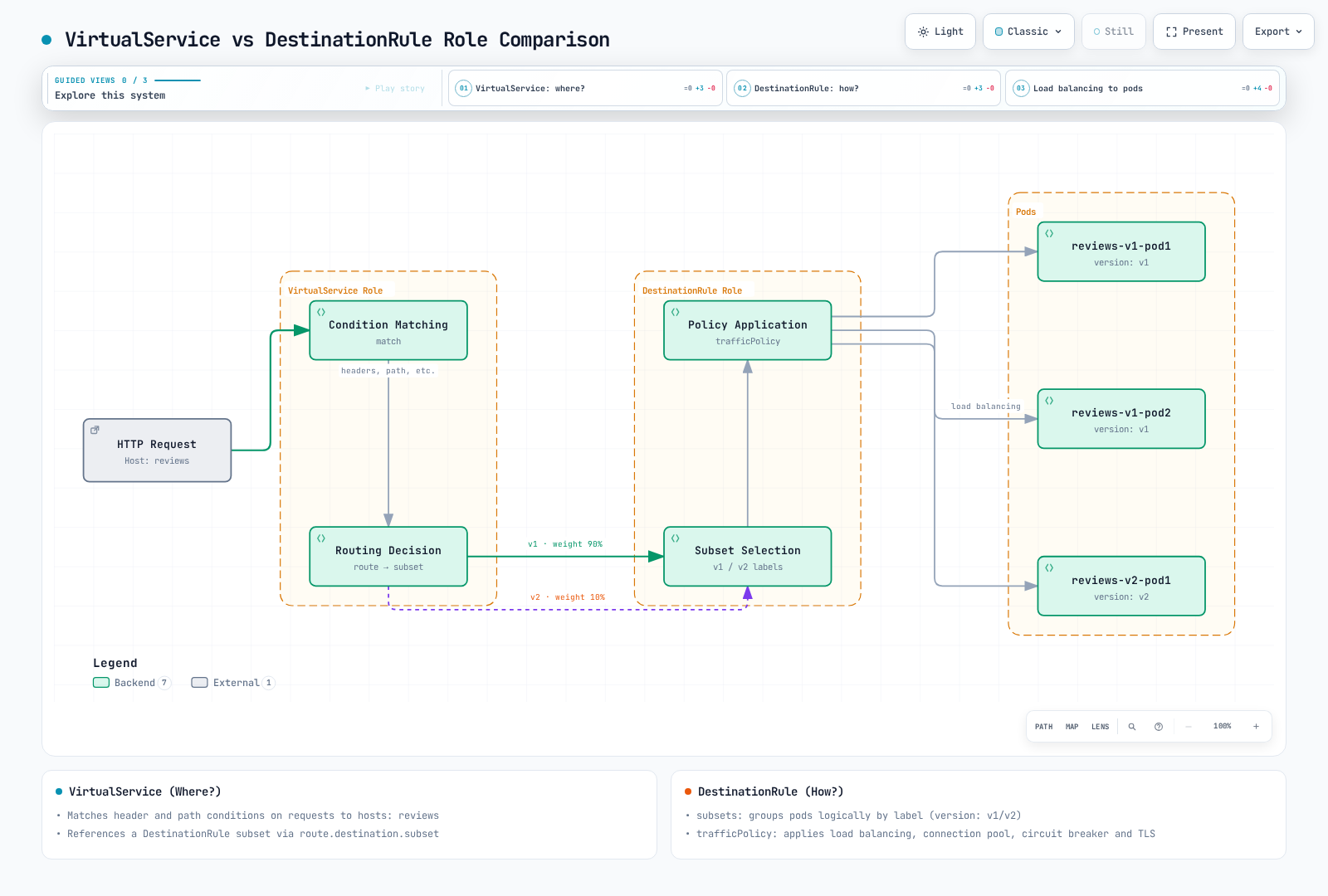

Diagram showing an HTTP request condition-matched and routed by VirtualService to a named subset, then DestinationRule selecting that subset and load-balancing across its three matching pods.

Diagram showing an HTTP request condition-matched and routed by VirtualService to a named subset, then DestinationRule selecting that subset and load-balancing across its three matching pods.Open full screen ↗

Separation of Responsibilities

VirtualService (Where?):

yaml

apiVersion: networking.istio.io/v1
kind: VirtualService
metadata:
  name: reviews
spec:
  hosts:
  - reviews
  http:
  - match:
    - headers:
        end-user:
          exact: jason
    route:
    - destination:
        host: reviews
        subset: v2  # ← References subset from DestinationRule
  - route:
    - destination:
        host: reviews
        subset: v1  # ← References subset from DestinationRule

DestinationRule (How?):

yaml

apiVersion: networking.istio.io/v1
kind: DestinationRule
metadata:
  name: reviews
spec:
  host: reviews
  trafficPolicy:  # ← Default policy applied to all subsets
    loadBalancer:
      simple: LEAST_REQUEST
  subsets:  # ← Subset definitions referenced by VirtualService
  - name: v1
    labels:
      version: v1
  - name: v2
    labels:
      version: v2
    trafficPolicy:  # ← Policy applied only to v2
      loadBalancer:
        simple: ROUND_ROBIN

Subset Concept

A Subset defines a logical group of a service. It's typically distinguished by version, deployment stage, region, etc.

The Essence of Subsets

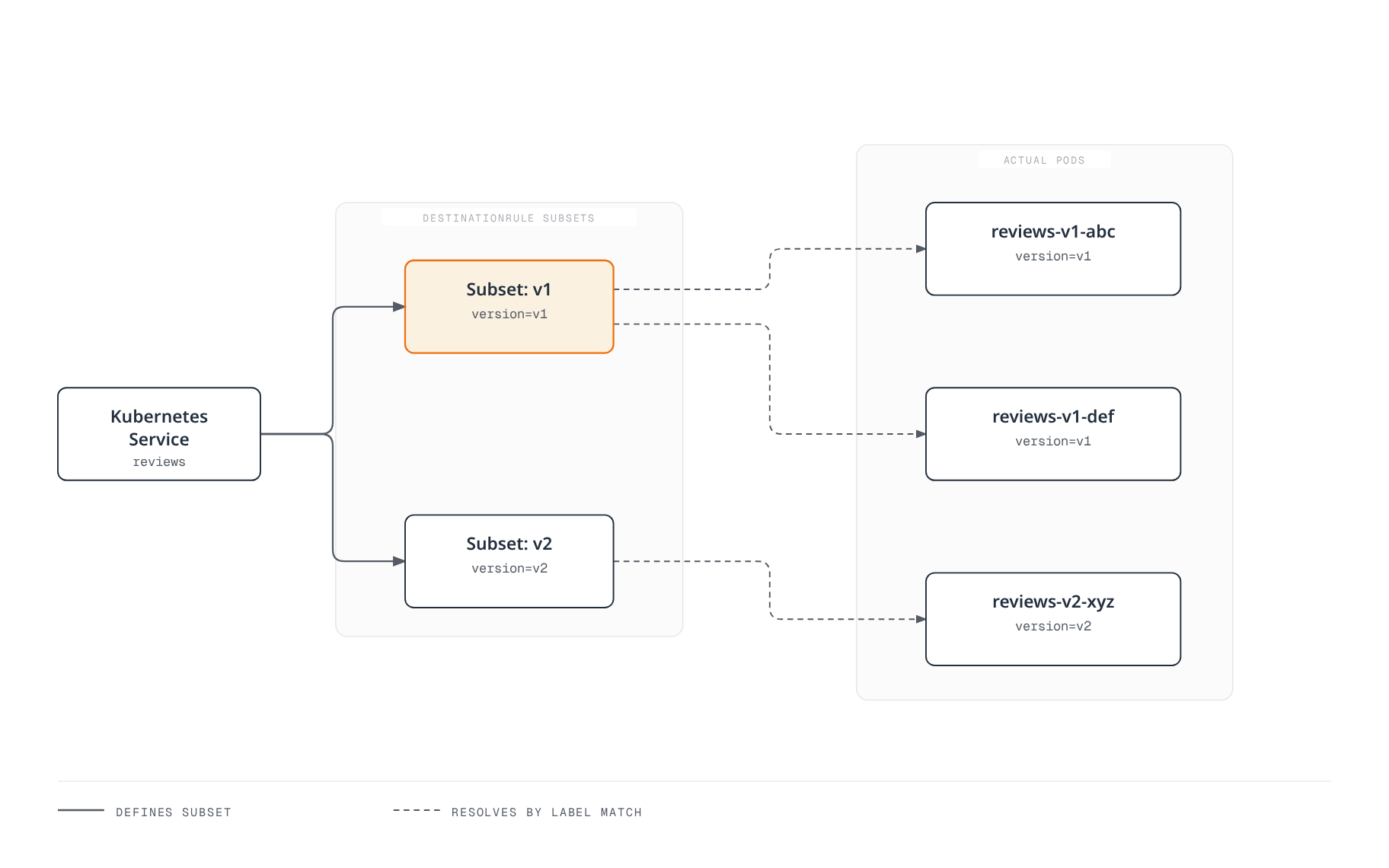

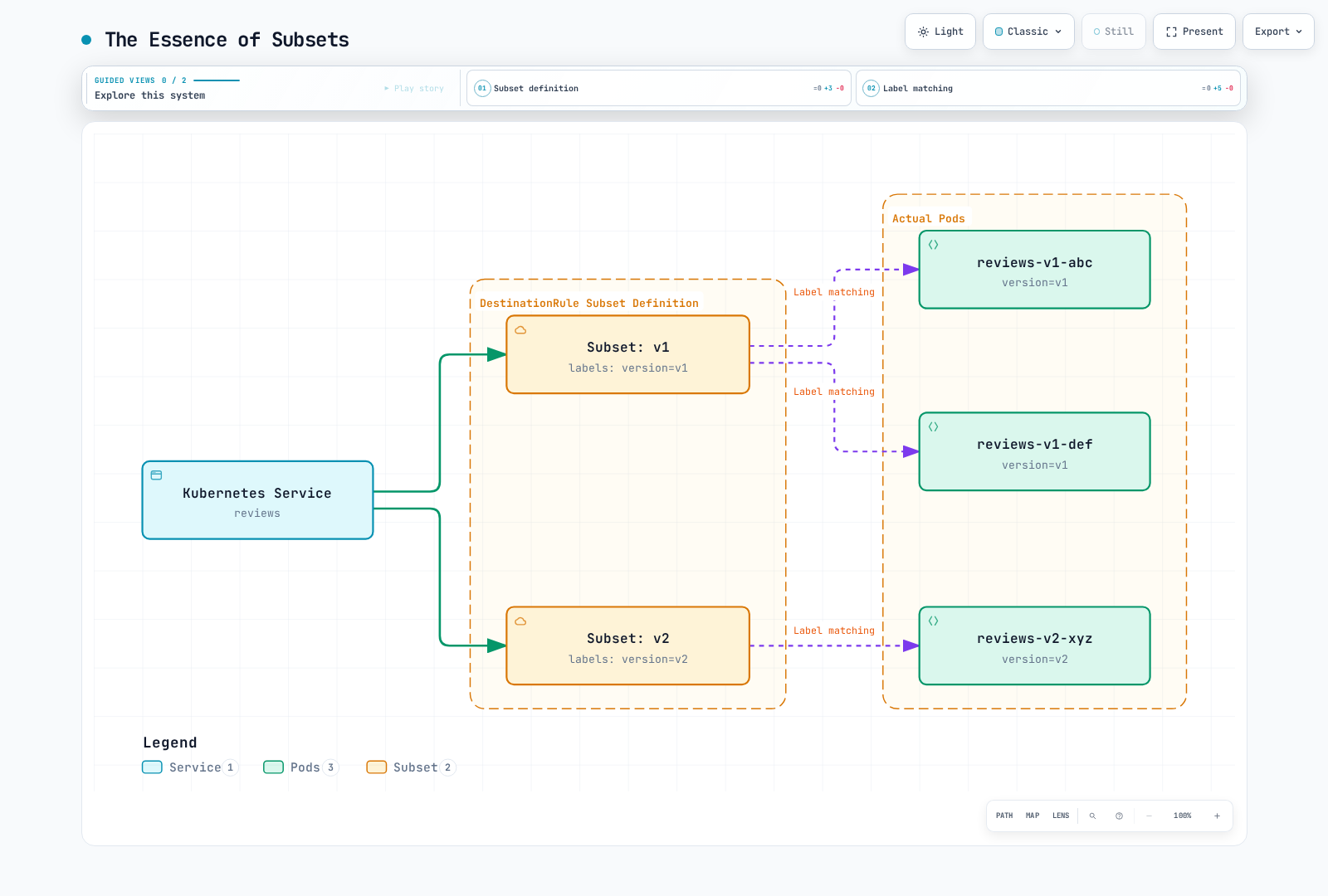

Diagram showing a Kubernetes Service pointing to two DestinationRule subsets, v1 and v2, each resolving by label matching to the actual pods carrying that version label.

Diagram showing a Kubernetes Service pointing to two DestinationRule subsets, v1 and v2, each resolving by label matching to the actual pods carrying that version label.Open full screen ↗

Subset Use Cases

1. Version-based Routing

yaml

apiVersion: networking.istio.io/v1
kind: DestinationRule
metadata:
  name: reviews-versions
spec:
  host: reviews
  subsets:
  - name: v1
    labels:
      version: v1
  - name: v2
    labels:
      version: v2
  - name: v3
    labels:
      version: v3

yaml

# Pod-template label excerpt
metadata:
  labels:
    app: reviews
    version: v1  # ← Matches Subset

2. Deployment Stage Separation

yaml

apiVersion: networking.istio.io/v1
kind: DestinationRule
metadata:
  name: reviews-deployment-stages
spec:
  host: reviews
  subsets:
  - name: stable
    labels:
      stage: stable
  - name: canary
    labels:
      stage: canary
  - name: test
    labels:
      stage: test

3. Regional Separation

yaml

apiVersion: networking.istio.io/v1
kind: DestinationRule
metadata:
  name: api-regions
spec:
  host: api-service
  subsets:
  - name: us-west
    labels:
      region: us-west
  - name: us-east
    labels:
      region: us-east
  - name: eu-central
    labels:
      region: eu-central

4. Environment Separation

yaml

apiVersion: networking.istio.io/v1
kind: DestinationRule
metadata:
  name: payment-environments
spec:
  host: payment-service
  subsets:
  - name: production
    labels:
      env: production
  - name: staging
    labels:
      env: staging

Basic Structure

Required Fields

yaml

apiVersion: networking.istio.io/v1
kind: DestinationRule
metadata:
  name: my-destination-rule
  namespace: default
spec:
  host: my-service  # Required: Target service
  subsets:          # Optional: Subset definitions
  - name: v1
    labels:
      version: v1
  trafficPolicy:    # Optional: Traffic policy
    loadBalancer:
      simple: ROUND_ROBIN

Host Specification Methods

1. Service Name (Same Namespace)

yaml

spec:
  host: reviews

2. FQDN (Different Namespace)

yaml

spec:
  host: reviews.production.svc.cluster.local

3. Wildcard

yaml

spec:
  host: "*.example.com"

4. External Service (with ServiceEntry)

yaml

spec:
  host: api.external.com

Defining Subsets

Simple Subset

yaml

apiVersion: networking.istio.io/v1
kind: DestinationRule
metadata:
  name: reviews-simple
spec:
  host: reviews
  subsets:
  - name: v1
    labels:
      version: v1
  - name: v2
    labels:
      version: v2

Subset-specific Policies

yaml

apiVersion: networking.istio.io/v1
kind: DestinationRule
metadata:
  name: reviews-subset-policies
spec:
  host: reviews
  trafficPolicy:  # Default policy (all subsets)
    loadBalancer:
      simple: LEAST_REQUEST
  subsets:
  - name: v1
    labels:
      version: v1
    # v1 uses default policy

  - name: v2
    labels:
      version: v2
    trafficPolicy:  # v2-only policy (overrides default)
      loadBalancer:
        simple: ROUND_ROBIN
      connectionPool:
        http:
          http1MaxPendingRequests: 10

Complex Label Matching

yaml

apiVersion: networking.istio.io/v1
kind: DestinationRule
metadata:
  name: api-complex
spec:
  host: api-service
  subsets:
  - name: us-west-v2
    labels:
      version: v2
      region: us-west
      tier: premium
  - name: us-east-v1
    labels:
      version: v1
      region: us-east
      tier: standard

Traffic Policy Overview

The trafficPolicy in DestinationRule provides various traffic control features.

Traffic Policy Hierarchy

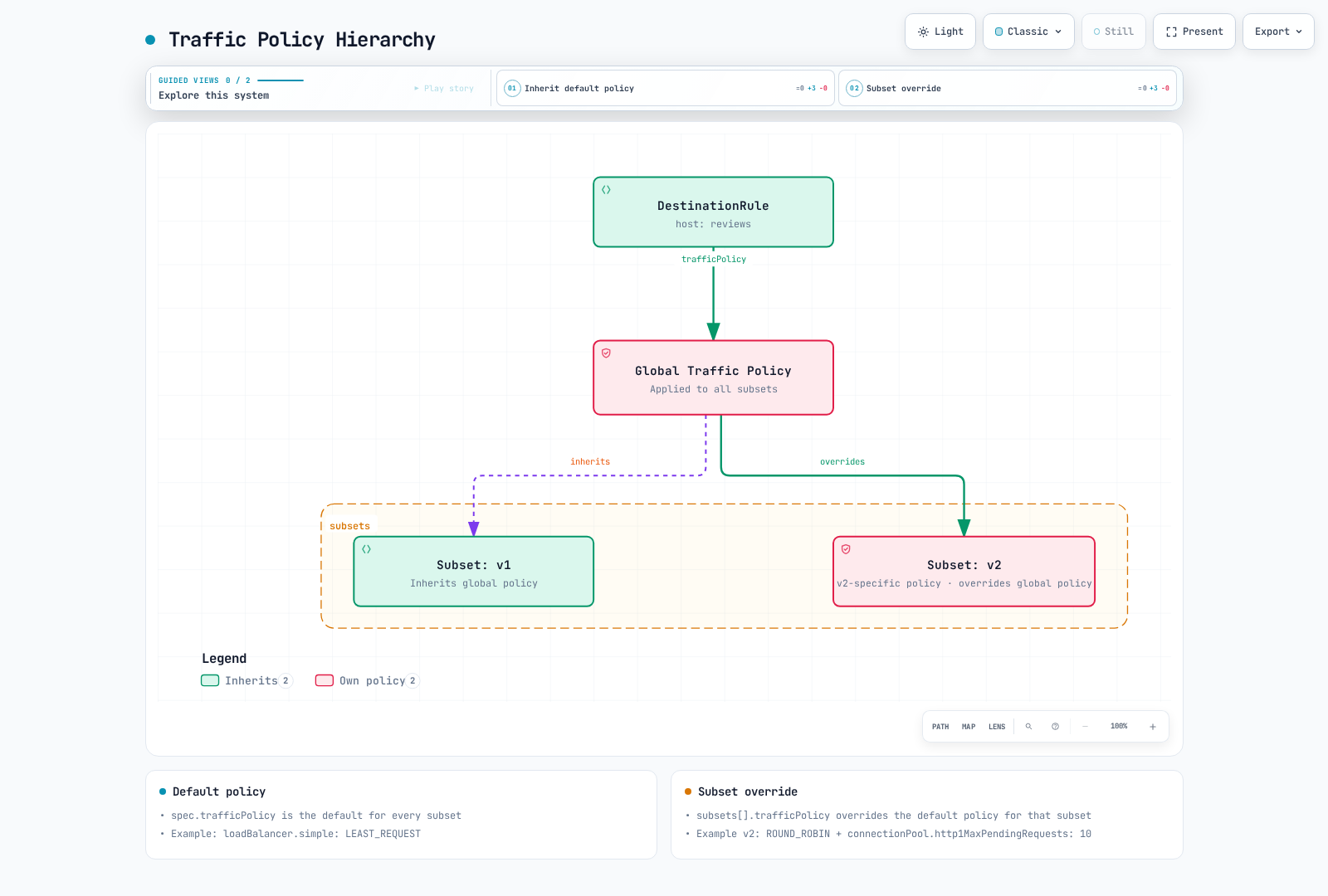

Tree diagram of a DestinationRule whose global trafficPolicy is the default for every subset: subset v1 inherits it unchanged while subset v2 overrides it with its own trafficPolicy.

Tree diagram of a DestinationRule whose global trafficPolicy is the default for every subset: subset v1 inherits it unchanged while subset v2 overrides it with its own trafficPolicy.Open full screen ↗

Traffic Policy Components

1. Load Balancer

yaml

trafficPolicy:
  loadBalancer:
    simple: ROUND_ROBIN  # LEAST_REQUEST, RANDOM, PASSTHROUGH

See Load Balancing for details

2. Connection Pool

yaml

trafficPolicy:
  connectionPool:
    tcp:
      maxConnections: 100
    http:
      http1MaxPendingRequests: 50
      http2MaxRequests: 100
      maxRequestsPerConnection: 2

See Circuit Breaker for details

3. Outlier Detection

yaml

trafficPolicy:
  outlierDetection:
    consecutive5xxErrors: 5
    interval: 30s
    baseEjectionTime: 30s
    maxEjectionPercent: 50

See Circuit Breaker for details

4. TLS Settings

yaml

trafficPolicy:
  tls:
    mode: ISTIO_MUTUAL  # DISABLE, SIMPLE, MUTUAL

See Security for details

5. Port Level Settings

yaml

trafficPolicy:
  portLevelSettings:
  - port:
      number: 80
    loadBalancer:
      simple: ROUND_ROBIN
  - port:
      number: 443
    tls:
      mode: SIMPLE

Using with VirtualService

VirtualService and DestinationRule work together to provide complete traffic control.

Basic Pattern: Canary Deployment

For a live rollout, apply the DestinationRule first, confirm its new subset appears in proxy cluster configuration, then update the VirtualService. A single multi-document apply does not guarantee propagation order. Remove route references before deleting a subset.

yaml

# DestinationRule: Subset definition
apiVersion: networking.istio.io/v1
kind: DestinationRule
metadata:
  name: reviews
spec:
  host: reviews
  subsets:
  - name: v1
    labels:
      version: v1
  - name: v2
    labels:
      version: v2
---
# VirtualService: Traffic distribution
apiVersion: networking.istio.io/v1
kind: VirtualService
metadata:
  name: reviews
spec:
  hosts:
  - reviews
  http:
  - route:
    - destination:
        host: reviews
        subset: v1  # ← References DestinationRule subset
      weight: 90
    - destination:
        host: reviews
        subset: v2  # ← References DestinationRule subset
      weight: 10

Header-based Routing

yaml

# DestinationRule
apiVersion: networking.istio.io/v1
kind: DestinationRule
metadata:
  name: reviews
spec:
  host: reviews
  subsets:
  - name: v1
    labels:
      version: v1
  - name: v2
    labels:
      version: v2
---
# VirtualService
apiVersion: networking.istio.io/v1
kind: VirtualService
metadata:
  name: reviews
spec:
  hosts:
  - reviews
  http:
  # Developers use v2
  - match:
    - headers:
        x-dev-user:
          exact: "true"
    route:
    - destination:
        host: reviews
        subset: v2
  # Regular users use v1
  - route:
    - destination:
        host: reviews
        subset: v1

URI-based Routing + Subset-specific Policies

yaml

# DestinationRule: Different policies per subset
apiVersion: networking.istio.io/v1
kind: DestinationRule
metadata:
  name: api-service
spec:
  host: api-service
  subsets:
  - name: v1
    labels:
      version: v1
    trafficPolicy:
      loadBalancer:
        simple: ROUND_ROBIN
  - name: v2
    labels:
      version: v2
    trafficPolicy:
      loadBalancer:
        simple: LEAST_REQUEST
      connectionPool:
        http:
          http1MaxPendingRequests: 10
---
# VirtualService: URI-based routing
apiVersion: networking.istio.io/v1
kind: VirtualService
metadata:
  name: api-service
spec:
  hosts:
  - api-service
  http:
  - match:
    - uri:
        prefix: "/api/v2"
    route:
    - destination:
        host: api-service
        subset: v2
  - route:
    - destination:
        host: api-service
        subset: v1

Practical Examples

Example 1: Microservice Version Management

yaml

apiVersion: networking.istio.io/v1
kind: DestinationRule
metadata:
  name: reviews-versions
  namespace: production
spec:
  host: reviews
  trafficPolicy:
    loadBalancer:
      simple: LEAST_REQUEST
    connectionPool:
      tcp:
        maxConnections: 100
      http:
        http1MaxPendingRequests: 50
        maxRequestsPerConnection: 2
  subsets:
  - name: v1
    labels:
      version: v1
  - name: v2
    labels:
      version: v2
  - name: v3
    labels:
      version: v3

Use Cases:

v1: Stable version (most traffic)
v2: Canary version (10% traffic)
v3: Test version (developers only)

Example 2: Multi-Region Deployment

This assumes the mesh can already discover and reach endpoints in each region. Custom region pod labels select subsets; node topology labels supply Envoy locality separately. Region subsets need explicit routing, and locality failover requires outlier detection plus healthy reachable capacity.

yaml

apiVersion: networking.istio.io/v1
kind: DestinationRule
metadata:
  name: api-multi-region
spec:
  host: api-service
  trafficPolicy:
    loadBalancer:
      simple: LEAST_REQUEST
      localityLbSetting:
        enabled: true
  subsets:
  - name: us-west
    labels:
      region: us-west
    trafficPolicy:
      connectionPool:
        tcp:
          maxConnections: 1000
  - name: us-east
    labels:
      region: us-east
    trafficPolicy:
      connectionPool:
        tcp:
          maxConnections: 1000
  - name: eu-central
    labels:
      region: eu-central
    trafficPolicy:
      connectionPool:
        tcp:
          maxConnections: 500

Example 3: Deployment Stage Policies

yaml

apiVersion: networking.istio.io/v1
kind: DestinationRule
metadata:
  name: payment-service-stages
spec:
  host: payment-service
  subsets:
  # Production: Strict policy
  - name: production
    labels:
      stage: production
    trafficPolicy:
      connectionPool:
        tcp:
          maxConnections: 100
        http:
          http1MaxPendingRequests: 10
          maxRequestsPerConnection: 1
      outlierDetection:
        consecutive5xxErrors: 3
        interval: 10s
        baseEjectionTime: 60s

  # Canary: Moderate policy
  - name: canary
    labels:
      stage: canary
    trafficPolicy:
      connectionPool:
        tcp:
          maxConnections: 50
        http:
          http1MaxPendingRequests: 20
      outlierDetection:
        consecutive5xxErrors: 5
        interval: 30s
        baseEjectionTime: 30s

  # Staging: Lenient policy
  - name: staging
    labels:
      stage: staging
    trafficPolicy:
      connectionPool:
        tcp:
          maxConnections: 200
        http:
          http1MaxPendingRequests: 100
      outlierDetection:
        consecutive5xxErrors: 10
        interval: 60s
        baseEjectionTime: 30s

Example 4: External Service Integration

yaml

# ServiceEntry: Register external API
apiVersion: networking.istio.io/v1
kind: ServiceEntry
metadata:
  name: external-payment-api
spec:
  hosts:
  - api.payment-gateway.com
  ports:
  - number: 80
    name: http
    protocol: HTTP
    targetPort: 443
  location: MESH_EXTERNAL
  resolution: DNS
---
# DestinationRule: External API policy
apiVersion: networking.istio.io/v1
kind: DestinationRule
metadata:
  name: external-payment-api
spec:
  host: api.payment-gateway.com
  trafficPolicy:
    connectionPool:
      tcp:
        maxConnections: 10
      http:
        http1MaxPendingRequests: 5
        maxRequestsPerConnection: 1
    outlierDetection:
      consecutive5xxErrors: 3
      interval: 30s
      baseEjectionTime: 120s
    tls:
      mode: SIMPLE
      sni: api.payment-gateway.com
      subjectAltNames:
      - api.payment-gateway.com

This variant expects the application to send HTTP to the registered port 80; the sidecar originates verified TLS to port 443. Replace the example host with your endpoint. If the application already sends HTTPS, omit TLS origination and HTTP-only policy settings for that opaque TLS path to avoid double encryption.

Example 5: Database Connection Pool

yaml

apiVersion: networking.istio.io/v1
kind: DestinationRule
metadata:
  name: postgres-connection-pool
spec:
  host: postgres-primary
  trafficPolicy:
    connectionPool:
      tcp:
        maxConnections: 50  # DB connection limit
        connectTimeout: 5s
        tcpKeepalive:
          time: 7200s
          interval: 75s
    outlierDetection:
      consecutive5xxErrors: 3
      interval: 60s
      baseEjectionTime: 120s
  subsets:
  - name: primary
    labels:
      role: primary
  - name: replica
    labels:
      role: replica
    trafficPolicy:
      connectionPool:
        tcp:
          maxConnections: 100  # More for replicas

TCP connection limits above are applied by each proxy; they are not a global database connection budget. PostgreSQL does not use HTTP connection settings. Primary/replica subsets must both be present in the selected Service endpoints, and the application must choose read/write destinations correctly.

Best Practices

1. Subset Naming Conventions

yaml

# ✅ Good example: Meaningful names
subsets:
- name: v1
- name: v2
- name: stable
- name: canary
- name: us-west
- name: production

yaml

# ❌ Bad example: Vague names
subsets:
- name: subset1
- name: test
- name: new

2. Default Policy + Override Pattern

yaml

# ✅ Good example: Define default policy and override when needed
apiVersion: networking.istio.io/v1
kind: DestinationRule
metadata:
  name: reviews
spec:
  host: reviews
  trafficPolicy:  # Default policy
    loadBalancer:
      simple: LEAST_REQUEST
  subsets:
  - name: v1
    labels:
      version: v1
    # v1 uses default policy
  - name: v2
    labels:
      version: v2
    trafficPolicy:  # Override only for v2
      loadBalancer:
        simple: ROUND_ROBIN

3. Tune Failure Isolation

yaml

# Tune outlierDetection for the service and failure model
apiVersion: networking.istio.io/v1
kind: DestinationRule
metadata:
  name: api-service
spec:
  host: api-service
  trafficPolicy:
    loadBalancer:
      simple: LEAST_REQUEST
    outlierDetection:  # Optional policy
      consecutive5xxErrors: 5
      interval: 30s
      baseEjectionTime: 30s

4. Connection Pool Settings

yaml

# ✅ Connection Pool appropriate for service characteristics
apiVersion: networking.istio.io/v1
kind: DestinationRule
metadata:
  name: high-traffic-service
spec:
  host: api-gateway
  trafficPolicy:
    connectionPool:
      tcp:
        maxConnections: 1000
      http:
        http2MaxRequests: 1000
        maxRequestsPerConnection: 100

5. Gradual Rollout

yaml

# ✅ Gradually increase canary ratio
# Step 1: 5%
apiVersion: networking.istio.io/v1
kind: VirtualService
metadata:
  name: reviews-canary-step1
spec:
  hosts:
  - reviews
  http:
  - route:
    - destination:
        host: reviews
        subset: v1
      weight: 95
    - destination:
        host: reviews
        subset: v2
      weight: 5

# Step 2: After monitoring, increase to 10%
# Step 3: 25% → 50% → 100%

6. Documentation

yaml

apiVersion: networking.istio.io/v1
kind: DestinationRule
metadata:
  name: payment-service
  annotations:
    description: "Payment service traffic management"
    owner: "payments-team"
    subset-purpose: |
      - production: Main production traffic
      - canary: New version testing (10%)
      - staging: Pre-production testing
spec:
  host: payment-service
  # ...

Troubleshooting

Subset Not Working

Symptom:

bash

# VirtualService exists but traffic isn't routed
kubectl get virtualservice reviews -o yaml

Cause and Solution:

bash

# 1. Check DestinationRule
kubectl get destinationrule reviews -o yaml

# 2. Verify subset names match
# VirtualService: subset: v2
# DestinationRule: name: v2

# 3. Check pod labels
kubectl get pods --show-labels | grep reviews

# 4. Verify pods have version=v2 label
kubectl get deployment reviews-v2 -o jsonpath='{.spec.template.metadata.labels}'

Traffic Policy Not Applied

bash

# Check Envoy configuration
istioctl proxy-config clusters <pod-name> --fqdn reviews.default.svc.cluster.local -o json

# Check Circuit Breaker settings
istioctl proxy-config clusters <pod-name> -o json | jq '.[] | select(.name=="outbound|9080||reviews.default.svc.cluster.local") | .circuitBreakers'

Subset Conflicts

Istio can merge applicable DestinationRule fragments for one host. The two distinct subsets below do not inherently conflict. Duplicate subset names use the first definition without merging, and multiple top-level trafficPolicy blocks also keep only the first processed one. Namespace lookup/visibility still matters; a single owner-managed rule is easier to reason about.

Problem:

yaml

# Same-host DestinationRule fragments can merge with restrictions
apiVersion: networking.istio.io/v1
kind: DestinationRule
metadata:
  name: reviews-1
spec:
  host: reviews
  subsets:
  - name: v1
    labels:
      version: v1
---
# Unique subset names can merge; duplicate names/policies are the problem
apiVersion: networking.istio.io/v1
kind: DestinationRule
metadata:
  name: reviews-2
spec:
  host: reviews
  subsets:
  - name: v2
    labels:
      version: v2

Solution:

yaml

# ✅ Define all subsets in one DestinationRule
apiVersion: networking.istio.io/v1
kind: DestinationRule
metadata:
  name: reviews
spec:
  host: reviews
  subsets:
  - name: v1
    labels:
      version: v1
  - name: v2
    labels:
      version: v2

istioctl Analysis

bash

# Validate DestinationRule
istioctl analyze

# Specific namespace
istioctl analyze -n production

# Example output
# Inspect actual analyzer messages and confirm subset clusters in proxy-config output

Next Steps

After understanding DestinationRule, move on to these topics:

Traffic Splitting: Canary, Blue/Green deployments
Load Balancing: Various algorithms and policies
Circuit Breaker: Failure isolation and resilience
Retry and Timeout: Retry and timeout settings

Traffic Management

Security

Observability

Resilience

Advanced

Comparison Guide

ArgoCD

Metrics

Logging

Tracing

Alerting

Observability End-to-End Labs

DestinationRule ​

Table of Contents ​

What is DestinationRule? ​

Key Roles of DestinationRule ​

VirtualService vs DestinationRule ​

Role Comparison ​

Separation of Responsibilities ​

Subset Concept ​

The Essence of Subsets ​

Subset Use Cases ​

1. Version-based Routing ​

2. Deployment Stage Separation ​

3. Regional Separation ​

4. Environment Separation ​

Basic Structure ​

Required Fields ​

Host Specification Methods ​

Defining Subsets ​

Simple Subset ​

Subset-specific Policies ​

Complex Label Matching ​

Traffic Policy Overview ​

Traffic Policy Hierarchy ​

Traffic Policy Components ​

1. Load Balancer ​

2. Connection Pool ​

3. Outlier Detection ​

4. TLS Settings ​

5. Port Level Settings ​

Using with VirtualService ​

Basic Pattern: Canary Deployment ​

Header-based Routing ​

URI-based Routing + Subset-specific Policies ​

Practical Examples ​

Example 1: Microservice Version Management ​

Example 2: Multi-Region Deployment ​

Example 3: Deployment Stage Policies ​

Example 4: External Service Integration ​

Example 5: Database Connection Pool ​

Best Practices ​

1. Subset Naming Conventions ​

2. Default Policy + Override Pattern ​

3. Tune Failure Isolation ​

4. Connection Pool Settings ​

5. Gradual Rollout ​

6. Documentation ​

Troubleshooting ​

Subset Not Working ​

Traffic Policy Not Applied ​

Subset Conflicts ​

DestinationRule

Table of Contents

What is DestinationRule?

Key Roles of DestinationRule

VirtualService vs DestinationRule

Role Comparison

Separation of Responsibilities

Subset Concept

The Essence of Subsets

Subset Use Cases

1. Version-based Routing

2. Deployment Stage Separation

3. Regional Separation

4. Environment Separation

Basic Structure

Required Fields

Host Specification Methods

Defining Subsets

Simple Subset

Subset-specific Policies

Complex Label Matching

Traffic Policy Overview

Traffic Policy Hierarchy

Traffic Policy Components

1. Load Balancer

2. Connection Pool

3. Outlier Detection

4. TLS Settings

5. Port Level Settings

Using with VirtualService

Basic Pattern: Canary Deployment

Header-based Routing

URI-based Routing + Subset-specific Policies

Practical Examples

Example 1: Microservice Version Management

Example 2: Multi-Region Deployment

Example 3: Deployment Stage Policies

Example 4: External Service Integration

Example 5: Database Connection Pool

Best Practices

1. Subset Naming Conventions

2. Default Policy + Override Pattern

3. Tune Failure Isolation

4. Connection Pool Settings

5. Gradual Rollout

6. Documentation

Troubleshooting

Subset Not Working

Traffic Policy Not Applied

Subset Conflicts
