Part 2: Observability Stack Deployment

Difficulty: Advanced Estimated Time: 90 minutes Last Updated: February 22, 2026

Learning Objectives

Deploy the three pillars of observability: Metrics, Logs, and Traces
Configure OpenTelemetry Collector as the central telemetry pipeline
Implement multi-backend fan-out for redundancy and flexibility
Set up Grafana with unified data source integration
Configure basic alerting with Alertmanager and SNS

Prerequisites

[ ] Completed Part 1: Infrastructure Setup
[ ] Managed Cluster and Service Cluster running
[ ] AWS managed services (AMP, OpenSearch) available
[ ] ArgoCD configured for multi-cluster deployment

Architecture Overview

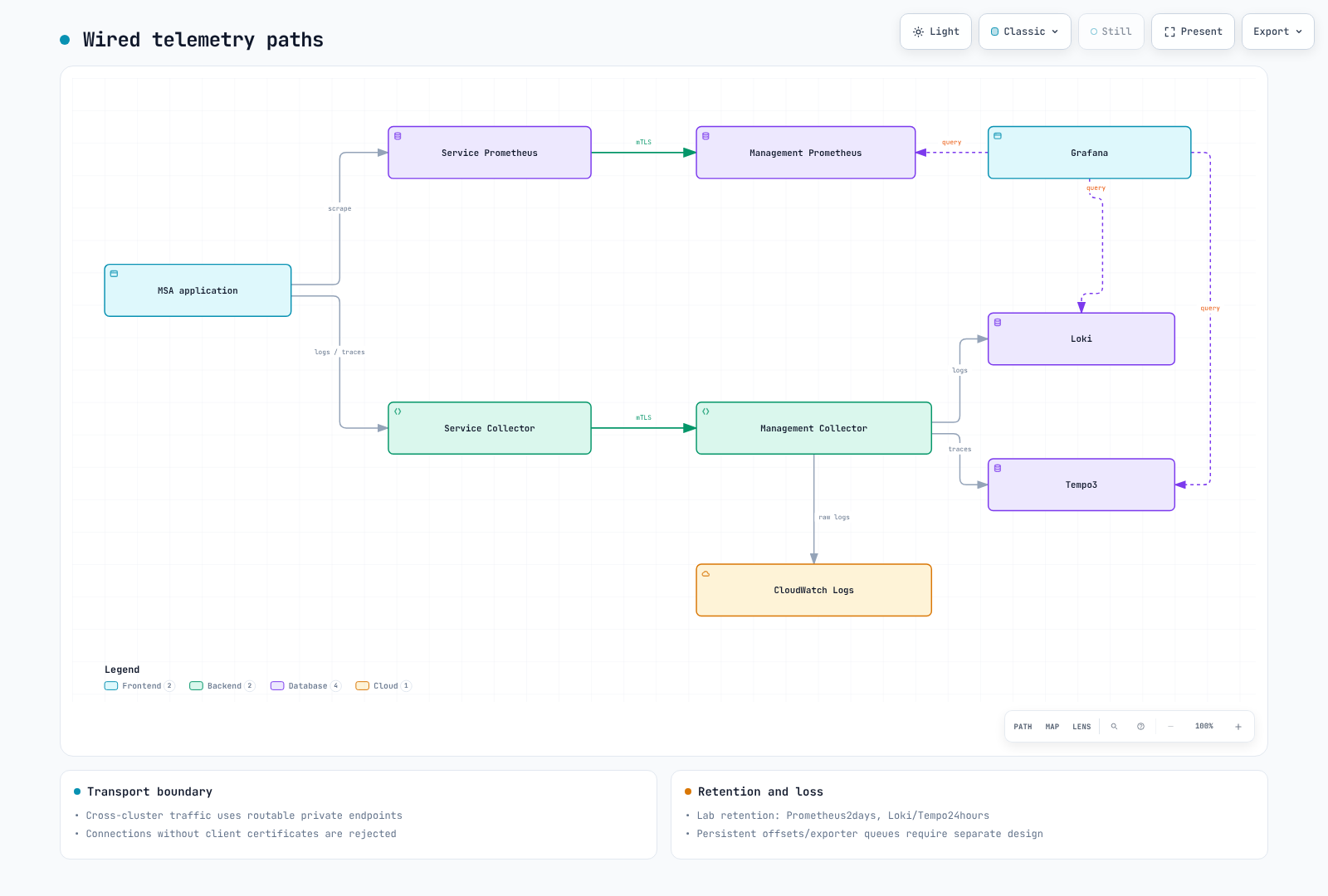

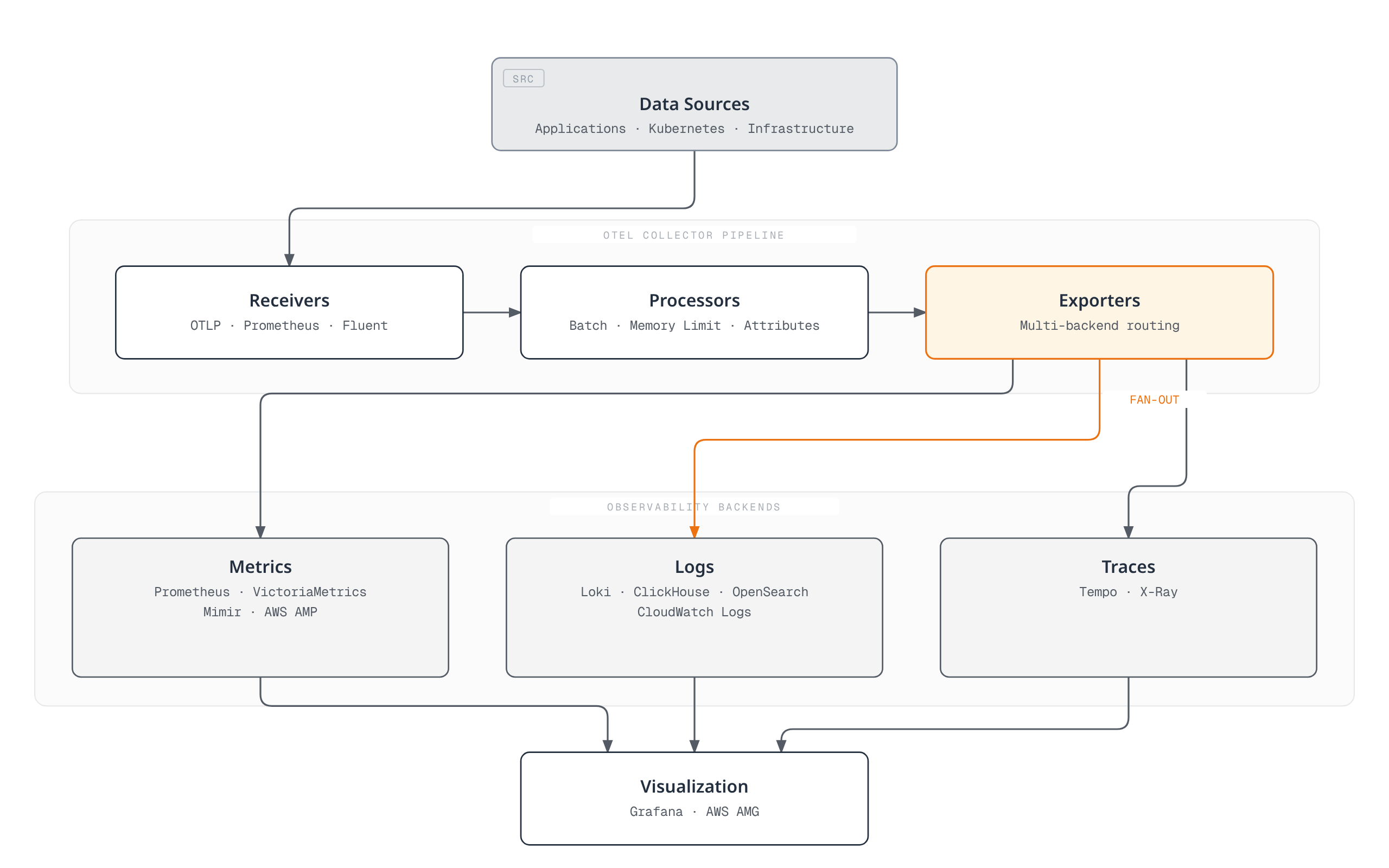

Diagram showing applications, Kubernetes, and infrastructure data sources flowing through an OpenTelemetry Collector pipeline of receivers, processors, and exporters, which fans out to separate metrics, logs, and traces backends, all unified for visualization in Grafana.

Exercise 1: OpenTelemetry Collector Deployment

Steps

Step 1.1: Switch to Managed Cluster

bash

kubectl config use-context $(kubectl config get-contexts -o name | grep obs-managed)
kubectl config current-context

Step 1.2: Create OpenTelemetry namespace and ConfigMap

bash

kubectl create namespace opentelemetry

cat <<'EOF' | kubectl apply -f -
apiVersion: v1
kind: ConfigMap
metadata:
  name: otel-collector-config
  namespace: opentelemetry
data:
  config.yaml: |
    receivers:
      otlp:
        protocols:
          grpc:
            endpoint: 0.0.0.0:4317
          http:
            endpoint: 0.0.0.0:4318

      prometheus:
        config:
          scrape_configs:
            - job_name: 'otel-collector'
              scrape_interval: 15s
              static_configs:
                - targets: ['localhost:8888']

      filelog:
        include:
          - /var/log/pods/*/*/*.log
        exclude:
          - /var/log/pods/*/otel-collector/*.log
        start_at: beginning
        include_file_path: true
        include_file_name: false
        operators:
          - type: router
            id: get-format
            routes:
              - output: parser-docker
                expr: 'body matches "^\\{"'
              - output: parser-crio
                expr: 'body matches "^[^ Z]+ "'
              - output: parser-containerd
                expr: 'body matches "^[^ Z]+Z"'
          - type: regex_parser
            id: parser-docker
            regex: '^(?P<time>[^ Z]+) (?P<stream>stdout|stderr) (?P<logtag>[^ ]*) ?(?P<log>.*)$'
          - type: regex_parser
            id: parser-crio
            regex: '^(?P<time>[^ Z]+) (?P<stream>stdout|stderr) (?P<logtag>[^ ]*) ?(?P<log>.*)$'
          - type: regex_parser
            id: parser-containerd
            regex: '^(?P<time>[^ ^Z]+Z) (?P<stream>stdout|stderr) (?P<logtag>[^ ]*) ?(?P<log>.*)$'

    processors:
      batch:
        timeout: 10s
        send_batch_size: 1024
        send_batch_max_size: 2048

      memory_limiter:
        check_interval: 1s
        limit_mib: 1000
        spike_limit_mib: 200

      attributes:
        actions:
          - key: cluster
            value: obs-managed
            action: upsert
          - key: environment
            value: lab
            action: upsert

      resource:
        attributes:
          - key: service.instance.id
            from_attribute: k8s.pod.uid
            action: insert

    exporters:
      # Prometheus remote write to AMP
      prometheusremotewrite:
        endpoint: "${AMP_REMOTE_WRITE_URL}"
        auth:
          authenticator: sigv4auth

      # Local Prometheus
      prometheus:
        endpoint: "0.0.0.0:8889"
        namespace: otel

      # Loki
      loki:
        endpoint: "http://loki-gateway.logging.svc.cluster.local:80/loki/api/v1/push"
        labels:
          resource:
            k8s.namespace.name: "namespace"
            k8s.pod.name: "pod"
            k8s.container.name: "container"

      # Tempo
      otlp/tempo:
        endpoint: "tempo-distributor.tracing.svc.cluster.local:4317"
        tls:
          insecure: true

      # CloudWatch Logs
      awscloudwatchlogs:
        log_group_name: "/obs-lab/otel"
        log_stream_name: "collector"
        region: "${AWS_REGION}"

      # X-Ray
      awsxray:
        region: "${AWS_REGION}"

      # Debug (for troubleshooting)
      debug:
        verbosity: detailed

    extensions:
      health_check:
        endpoint: 0.0.0.0:13133

      sigv4auth:
        region: "${AWS_REGION}"
        service: "aps"

    service:
      extensions: [health_check, sigv4auth]
      pipelines:
        metrics:
          receivers: [otlp, prometheus]
          processors: [memory_limiter, batch, attributes]
          exporters: [prometheusremotewrite, prometheus]

        logs:
          receivers: [otlp, filelog]
          processors: [memory_limiter, batch, attributes]
          exporters: [loki, awscloudwatchlogs]

        traces:
          receivers: [otlp]
          processors: [memory_limiter, batch, attributes, resource]
          exporters: [otlp/tempo, awsxray]

      telemetry:
        logs:
          level: info
        metrics:
          address: 0.0.0.0:8888
EOF

Step 1.3: Deploy OTel Collector DaemonSet (Agent)

bash

cat <<'EOF' | kubectl apply -f -
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: otel-collector-agent
  namespace: opentelemetry
  labels:
    app: otel-collector
    component: agent
spec:
  selector:
    matchLabels:
      app: otel-collector
      component: agent
  template:
    metadata:
      labels:
        app: otel-collector
        component: agent
    spec:
      serviceAccountName: otel-collector
      containers:
        - name: otel-collector
          image: otel/opentelemetry-collector-contrib:0.95.0
          args:
            - --config=/conf/config.yaml
          ports:
            - containerPort: 4317
              hostPort: 4317
              protocol: TCP
            - containerPort: 4318
              hostPort: 4318
              protocol: TCP
            - containerPort: 8888
              protocol: TCP
          env:
            - name: K8S_NODE_NAME
              valueFrom:
                fieldRef:
                  fieldPath: spec.nodeName
            - name: K8S_POD_NAME
              valueFrom:
                fieldRef:
                  fieldPath: metadata.name
            - name: K8S_NAMESPACE
              valueFrom:
                fieldRef:
                  fieldPath: metadata.namespace
          resources:
            limits:
              cpu: 500m
              memory: 512Mi
            requests:
              cpu: 100m
              memory: 128Mi
          volumeMounts:
            - name: config
              mountPath: /conf
            - name: varlog
              mountPath: /var/log
              readOnly: true
            - name: varlibdockercontainers
              mountPath: /var/lib/docker/containers
              readOnly: true
      volumes:
        - name: config
          configMap:
            name: otel-collector-config
        - name: varlog
          hostPath:
            path: /var/log
        - name: varlibdockercontainers
          hostPath:
            path: /var/lib/docker/containers
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: otel-collector
  namespace: opentelemetry
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: otel-collector
rules:
  - apiGroups: [""]
    resources: ["pods", "namespaces", "nodes"]
    verbs: ["get", "list", "watch"]
  - apiGroups: ["apps"]
    resources: ["replicasets", "deployments"]
    verbs: ["get", "list", "watch"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: otel-collector
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: otel-collector
subjects:
  - kind: ServiceAccount
    name: otel-collector
    namespace: opentelemetry
EOF

Step 1.4: Deploy OTel Collector Gateway (Deployment)

bash

cat <<'EOF' | kubectl apply -f -
apiVersion: apps/v1
kind: Deployment
metadata:
  name: otel-collector-gateway
  namespace: opentelemetry
  labels:
    app: otel-collector
    component: gateway
spec:
  replicas: 2
  selector:
    matchLabels:
      app: otel-collector
      component: gateway
  template:
    metadata:
      labels:
        app: otel-collector
        component: gateway
    spec:
      serviceAccountName: otel-collector
      containers:
        - name: otel-collector
          image: otel/opentelemetry-collector-contrib:0.95.0
          args:
            - --config=/conf/config.yaml
          ports:
            - containerPort: 4317
              protocol: TCP
            - containerPort: 4318
              protocol: TCP
            - containerPort: 8888
              protocol: TCP
            - containerPort: 8889
              protocol: TCP
          resources:
            limits:
              cpu: 1000m
              memory: 2Gi
            requests:
              cpu: 200m
              memory: 256Mi
          volumeMounts:
            - name: config
              mountPath: /conf
      volumes:
        - name: config
          configMap:
            name: otel-collector-config
---
apiVersion: v1
kind: Service
metadata:
  name: otel-collector-gateway
  namespace: opentelemetry
spec:
  selector:
    app: otel-collector
    component: gateway
  ports:
    - name: otlp-grpc
      port: 4317
      targetPort: 4317
    - name: otlp-http
      port: 4318
      targetPort: 4318
    - name: metrics
      port: 8888
      targetPort: 8888
    - name: prometheus
      port: 8889
      targetPort: 8889
EOF

Verification

bash

kubectl get pods -n opentelemetry
kubectl logs -n opentelemetry -l app=otel-collector --tail=50
# Expected: All collectors running, no errors in logs

Exercise 2: Metrics Stack Deployment

Steps

Step 2.1: Install kube-prometheus-stack

bash

kubectl create namespace monitoring

helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
helm repo update

cat <<'EOF' > /tmp/prometheus-values.yaml
prometheus:
  prometheusSpec:
    replicas: 2
    retention: 7d
    retentionSize: 40GB
    resources:
      requests:
        cpu: 500m
        memory: 2Gi
      limits:
        cpu: 2000m
        memory: 8Gi
    storageSpec:
      volumeClaimTemplate:
        spec:
          storageClassName: gp3
          accessModes: ["ReadWriteOnce"]
          resources:
            requests:
              storage: 50Gi
    remoteWrite:
      - url: "${AMP_REMOTE_WRITE_URL}"
        sigv4:
          region: "${AWS_REGION}"
        queueConfig:
          maxSamplesPerSend: 1000
          maxShards: 200
          capacity: 2500
    enableFeatures:
      - exemplar-storage
    exemplars:
      maxExemplars: 100000
    serviceMonitorSelector: {}
    serviceMonitorNamespaceSelector: {}
    podMonitorSelector: {}
    podMonitorNamespaceSelector: {}

alertmanager:
  alertmanagerSpec:
    replicas: 2
    storage:
      volumeClaimTemplate:
        spec:
          storageClassName: gp3
          accessModes: ["ReadWriteOnce"]
          resources:
            requests:
              storage: 10Gi

grafana:
  enabled: false  # We'll deploy Grafana separately

nodeExporter:
  enabled: true

kubeStateMetrics:
  enabled: true

prometheusOperator:
  resources:
    requests:
      cpu: 100m
      memory: 128Mi
    limits:
      cpu: 500m
      memory: 512Mi
EOF

helm install kube-prometheus-stack prometheus-community/kube-prometheus-stack \
  --namespace monitoring \
  --version 57.0.0 \
  -f /tmp/prometheus-values.yaml \
  --wait

Step 2.2: Install VictoriaMetrics (alternative metrics backend)

bash

helm repo add vm https://victoriametrics.github.io/helm-charts/
helm repo update

cat <<'EOF' > /tmp/vm-values.yaml
server:
  retentionPeriod: 14d
  resources:
    requests:
      cpu: 500m
      memory: 1Gi
    limits:
      cpu: 2000m
      memory: 4Gi
  persistentVolume:
    enabled: true
    size: 50Gi
    storageClass: gp3
  scrape:
    enabled: true
    configMap: ""
  extraArgs:
    dedup.minScrapeInterval: 30s
    search.latencyOffset: 30s

vmagent:
  enabled: true
  spec:
    scrapeInterval: 30s
    resources:
      requests:
        cpu: 100m
        memory: 128Mi
      limits:
        cpu: 500m
        memory: 512Mi

vmalert:
  enabled: true
  spec:
    resources:
      requests:
        cpu: 50m
        memory: 64Mi
      limits:
        cpu: 200m
        memory: 256Mi
EOF

helm install victoria-metrics vm/victoria-metrics-single \
  --namespace monitoring \
  --version 0.9.16 \
  -f /tmp/vm-values.yaml \
  --wait

Step 2.3: Install Mimir (scalable long-term storage)

bash

helm repo add grafana https://grafana.github.io/helm-charts
helm repo update

cat <<'EOF' > /tmp/mimir-values.yaml
mimir:
  structuredConfig:
    limits:
      max_global_series_per_user: 1000000
      ingestion_rate: 100000
      ingestion_burst_size: 200000

    blocks_storage:
      backend: s3
      s3:
        endpoint: s3.${AWS_REGION}.amazonaws.com
        bucket_name: obs-lab-mimir-${ACCOUNT_ID}
        region: ${AWS_REGION}

    ruler_storage:
      backend: s3
      s3:
        endpoint: s3.${AWS_REGION}.amazonaws.com
        bucket_name: obs-lab-mimir-${ACCOUNT_ID}
        region: ${AWS_REGION}

distributor:
  replicas: 2
  resources:
    requests:
      cpu: 100m
      memory: 256Mi

ingester:
  replicas: 3
  persistentVolume:
    enabled: true
    size: 10Gi
  resources:
    requests:
      cpu: 100m
      memory: 512Mi

querier:
  replicas: 2
  resources:
    requests:
      cpu: 100m
      memory: 256Mi

query_frontend:
  replicas: 1
  resources:
    requests:
      cpu: 100m
      memory: 128Mi

compactor:
  replicas: 1
  persistentVolume:
    enabled: true
    size: 20Gi
  resources:
    requests:
      cpu: 100m
      memory: 512Mi

store_gateway:
  replicas: 1
  persistentVolume:
    enabled: true
    size: 10Gi
  resources:
    requests:
      cpu: 100m
      memory: 256Mi

minio:
  enabled: false  # We use S3

nginx:
  enabled: true
  replicas: 1
EOF

# Create S3 bucket for Mimir
aws s3 mb s3://obs-lab-mimir-${ACCOUNT_ID} --region $AWS_REGION

helm install mimir grafana/mimir-distributed \
  --namespace monitoring \
  --version 5.2.0 \
  -f /tmp/mimir-values.yaml \
  --wait

Verification

bash

kubectl get pods -n monitoring
kubectl get svc -n monitoring

# Check Prometheus targets
kubectl port-forward -n monitoring svc/kube-prometheus-stack-prometheus 9090:9090 &
curl -s http://localhost:9090/api/v1/targets | jq '.data.activeTargets | length'

Exercise 3: Logging Stack Deployment

Steps

Step 3.1: Install Loki

bash

kubectl create namespace logging

cat <<'EOF' > /tmp/loki-values.yaml
loki:
  auth_enabled: false

  commonConfig:
    replication_factor: 1

  schemaConfig:
    configs:
      - from: 2024-01-01
        store: tsdb
        object_store: s3
        schema: v13
        index:
          prefix: loki_index_
          period: 24h

  storage:
    type: s3
    s3:
      endpoint: s3.${AWS_REGION}.amazonaws.com
      region: ${AWS_REGION}
      bucketnames: obs-lab-loki-${ACCOUNT_ID}
      insecure: false
      sse_encryption: false
      s3ForcePathStyle: false

  limits_config:
    enforce_metric_name: false
    reject_old_samples: true
    reject_old_samples_max_age: 168h
    max_cache_freshness_per_query: 10m
    split_queries_by_interval: 15m
    ingestion_rate_mb: 16
    ingestion_burst_size_mb: 32
    per_stream_rate_limit: 5MB
    per_stream_rate_limit_burst: 15MB

write:
  replicas: 2
  persistence:
    enabled: true
    size: 10Gi
    storageClass: gp3

read:
  replicas: 2

backend:
  replicas: 1
  persistence:
    enabled: true
    size: 10Gi
    storageClass: gp3

gateway:
  enabled: true
  replicas: 1

minio:
  enabled: false
EOF

# Create S3 bucket for Loki
aws s3 mb s3://obs-lab-loki-${ACCOUNT_ID} --region $AWS_REGION

helm install loki grafana/loki \
  --namespace logging \
  --version 5.43.0 \
  -f /tmp/loki-values.yaml \
  --wait

Step 3.2: Install ClickHouse for high-performance log analytics

bash

helm repo add clickhouse https://docs.altinity.com/clickhouse-operator/
helm repo update

cat <<'EOF' > /tmp/clickhouse-values.yaml
clickhouse:
  replicas: 1
  shards: 1
  image: clickhouse/clickhouse-server:24.1
  resources:
    requests:
      cpu: 500m
      memory: 2Gi
    limits:
      cpu: 2000m
      memory: 8Gi
  persistence:
    enabled: true
    size: 50Gi
    storageClass: gp3
  users:
    - name: obslab
      password: ObsLab2026!
      profile: default
      quota: default
      networks:
        - ::/0
      grants:
        - GRANT ALL ON *.*
EOF

# Install ClickHouse Operator first
kubectl apply -f https://raw.githubusercontent.com/Altinity/clickhouse-operator/master/deploy/operator/clickhouse-operator-install-bundle.yaml

# Create ClickHouse instance
cat <<'EOF' | kubectl apply -f -
apiVersion: "clickhouse.altinity.com/v1"
kind: "ClickHouseInstallation"
metadata:
  name: obs-lab-clickhouse
  namespace: logging
spec:
  configuration:
    clusters:
      - name: logs
        layout:
          shardsCount: 1
          replicasCount: 1
    users:
      obslab/password: ObsLab2026!
      obslab/networks/ip: "::/0"
      obslab/profile: default
      obslab/quota: default
  defaults:
    templates:
      podTemplate: clickhouse-pod
      dataVolumeClaimTemplate: data-volume
  templates:
    podTemplates:
      - name: clickhouse-pod
        spec:
          containers:
            - name: clickhouse
              image: clickhouse/clickhouse-server:24.1
              resources:
                requests:
                  cpu: 500m
                  memory: 2Gi
                limits:
                  cpu: 2000m
                  memory: 8Gi
    volumeClaimTemplates:
      - name: data-volume
        spec:
          accessModes:
            - ReadWriteOnce
          storageClassName: gp3
          resources:
            requests:
              storage: 50Gi
EOF

Step 3.3: Install Fluent Bit for log collection

bash

helm repo add fluent https://fluent.github.io/helm-charts
helm repo update

cat <<'EOF' > /tmp/fluentbit-values.yaml
config:
  service: |
    [SERVICE]
        Daemon Off
        Flush 5
        Log_Level info
        Parsers_File /fluent-bit/etc/parsers.conf
        HTTP_Server On
        HTTP_Listen 0.0.0.0
        HTTP_Port 2020
        Health_Check On

  inputs: |
    [INPUT]
        Name tail
        Path /var/log/containers/*.log
        multiline.parser docker, cri
        Tag kube.*
        Mem_Buf_Limit 50MB
        Skip_Long_Lines On
        Refresh_Interval 10

  filters: |
    [FILTER]
        Name kubernetes
        Match kube.*
        Merge_Log On
        Keep_Log Off
        K8S-Logging.Parser On
        K8S-Logging.Exclude On
        Labels On
        Annotations Off

    [FILTER]
        Name modify
        Match kube.*
        Add cluster obs-managed
        Add environment lab

  outputs: |
    [OUTPUT]
        Name loki
        Match kube.*
        Host loki-gateway.logging.svc.cluster.local
        Port 80
        Labels job=fluentbit, namespace=$kubernetes['namespace_name'], pod=$kubernetes['pod_name'], container=$kubernetes['container_name']
        Label_keys $kubernetes['namespace_name'],$kubernetes['pod_name']
        Remove_keys kubernetes,stream
        Auto_Kubernetes_Labels Off
        Line_Format json

    [OUTPUT]
        Name opensearch
        Match kube.*
        Host ${OPENSEARCH_ENDPOINT}
        Port 443
        Index obs-lab-logs
        Type _doc
        tls On
        tls.verify Off
        AWS_Auth On
        AWS_Region ${AWS_REGION}
        Suppress_Type_Name On

    [OUTPUT]
        Name cloudwatch_logs
        Match kube.*
        region ${AWS_REGION}
        log_group_name /obs-lab/kubernetes
        log_stream_prefix fluentbit-
        auto_create_group true

serviceAccount:
  create: true
  name: fluent-bit
  annotations:
    eks.amazonaws.com/role-arn: arn:aws:iam::${ACCOUNT_ID}:role/obs-lab-fluentbit

resources:
  requests:
    cpu: 100m
    memory: 128Mi
  limits:
    cpu: 500m
    memory: 512Mi
EOF

helm install fluent-bit fluent/fluent-bit \
  --namespace logging \
  --version 0.43.0 \
  -f /tmp/fluentbit-values.yaml \
  --wait

Verification

bash

kubectl get pods -n logging
kubectl logs -n logging -l app.kubernetes.io/name=fluent-bit --tail=20

# Test Loki query
kubectl port-forward -n logging svc/loki-gateway 3100:80 &
curl -G -s "http://localhost:3100/loki/api/v1/labels" | jq

Exercise 4: Tracing Stack Deployment

Steps

Step 4.1: Install Tempo

bash

kubectl create namespace tracing

cat <<'EOF' > /tmp/tempo-values.yaml
tempo:
  retention: 72h
  reportingEnabled: false
  metricsGenerator:
    enabled: true
    remoteWriteUrl: "http://kube-prometheus-stack-prometheus.monitoring.svc.cluster.local:9090/api/v1/write"

  storage:
    trace:
      backend: s3
      s3:
        bucket: obs-lab-tempo-${ACCOUNT_ID}
        endpoint: s3.${AWS_REGION}.amazonaws.com
        region: ${AWS_REGION}
        insecure: false
        forcepathstyle: false

distributor:
  replicas: 2
  config:
    log_received_spans:
      enabled: true
  resources:
    requests:
      cpu: 100m
      memory: 256Mi

ingester:
  replicas: 2
  config:
    replication_factor: 2
  persistence:
    enabled: true
    size: 10Gi
    storageClass: gp3
  resources:
    requests:
      cpu: 100m
      memory: 512Mi

querier:
  replicas: 2
  resources:
    requests:
      cpu: 100m
      memory: 256Mi

queryFrontend:
  replicas: 1
  resources:
    requests:
      cpu: 100m
      memory: 128Mi

compactor:
  replicas: 1
  config:
    compaction:
      block_retention: 72h
  resources:
    requests:
      cpu: 100m
      memory: 256Mi

metricsGenerator:
  enabled: true
  replicas: 1
  resources:
    requests:
      cpu: 100m
      memory: 256Mi

gateway:
  enabled: true
  replicas: 1
EOF

# Create S3 bucket for Tempo
aws s3 mb s3://obs-lab-tempo-${ACCOUNT_ID} --region $AWS_REGION

helm install tempo grafana/tempo-distributed \
  --namespace tracing \
  --version 1.8.0 \
  -f /tmp/tempo-values.yaml \
  --wait

Step 4.2: Configure X-Ray integration via OTel

The OTel Collector configured in Exercise 1 already exports traces to X-Ray. Verify the configuration:

bash

kubectl get configmap -n opentelemetry otel-collector-config -o yaml | grep -A5 "awsxray"

Verification

bash

kubectl get pods -n tracing
kubectl logs -n tracing -l app.kubernetes.io/name=tempo --tail=20

# Check Tempo health
kubectl port-forward -n tracing svc/tempo-query-frontend 3200:3200 &
curl -s http://localhost:3200/ready

Exercise 5: Grafana Deployment and Data Source Configuration

Steps

Step 5.1: Install Grafana

bash

cat <<'EOF' > /tmp/grafana-values.yaml
replicas: 1

persistence:
  enabled: true
  size: 10Gi
  storageClassName: gp3

adminUser: admin
adminPassword: ObsLab2026!

service:
  type: LoadBalancer

resources:
  requests:
    cpu: 100m
    memory: 256Mi
  limits:
    cpu: 500m
    memory: 1Gi

datasources:
  datasources.yaml:
    apiVersion: 1
    datasources:
      # Prometheus
      - name: Prometheus
        type: prometheus
        access: proxy
        url: http://kube-prometheus-stack-prometheus.monitoring.svc.cluster.local:9090
        isDefault: true
        jsonData:
          timeInterval: 15s
          exemplarTraceIdDestinations:
            - name: traceID
              datasourceUid: tempo
        editable: true

      # VictoriaMetrics
      - name: VictoriaMetrics
        type: prometheus
        access: proxy
        url: http://victoria-metrics-single-server.monitoring.svc.cluster.local:8428
        jsonData:
          timeInterval: 30s
        editable: true

      # Mimir
      - name: Mimir
        type: prometheus
        access: proxy
        url: http://mimir-nginx.monitoring.svc.cluster.local/prometheus
        jsonData:
          timeInterval: 15s
        editable: true

      # Amazon Managed Prometheus
      - name: AMP
        type: prometheus
        access: proxy
        url: ${AMP_QUERY_URL}
        jsonData:
          sigV4Auth: true
          sigV4AuthType: default
          sigV4Region: ${AWS_REGION}
        editable: true

      # Loki
      - name: Loki
        type: loki
        access: proxy
        url: http://loki-gateway.logging.svc.cluster.local:80
        jsonData:
          derivedFields:
            - name: TraceID
              matcherRegex: '"traceId":"(\w+)"'
              url: '$${__value.raw}'
              datasourceUid: tempo
        editable: true

      # Tempo
      - name: Tempo
        type: tempo
        access: proxy
        uid: tempo
        url: http://tempo-query-frontend.tracing.svc.cluster.local:3200
        jsonData:
          httpMethod: GET
          tracesToLogs:
            datasourceUid: loki
            tags: ['namespace', 'pod']
            mappedTags: [{ key: 'service.name', value: 'service' }]
            mapTagNamesEnabled: true
            spanStartTimeShift: '-1h'
            spanEndTimeShift: '1h'
            filterByTraceID: true
            filterBySpanID: false
          tracesToMetrics:
            datasourceUid: prometheus
            tags: [{ key: 'service.name', value: 'service' }]
            queries:
              - name: 'Request Rate'
                query: 'sum(rate(http_server_request_count{$$__tags}[5m]))'
              - name: 'Error Rate'
                query: 'sum(rate(http_server_request_count{$$__tags,http_status_code=~"5.."}[5m]))'
          serviceMap:
            datasourceUid: prometheus
          nodeGraph:
            enabled: true
          lokiSearch:
            datasourceUid: loki
        editable: true

      # CloudWatch
      - name: CloudWatch
        type: cloudwatch
        access: proxy
        jsonData:
          authType: default
          defaultRegion: ${AWS_REGION}
        editable: true

dashboardProviders:
  dashboardproviders.yaml:
    apiVersion: 1
    providers:
      - name: 'default'
        orgId: 1
        folder: ''
        type: file
        disableDeletion: false
        editable: true
        options:
          path: /var/lib/grafana/dashboards/default

dashboards:
  default:
    kubernetes-cluster:
      gnetId: 7249
      revision: 1
      datasource: Prometheus

    node-exporter:
      gnetId: 1860
      revision: 33
      datasource: Prometheus

    kubernetes-pods:
      gnetId: 6336
      revision: 1
      datasource: Prometheus

plugins:
  - grafana-piechart-panel
  - grafana-clock-panel
  - grafana-worldmap-panel

grafana.ini:
  server:
    root_url: "%(protocol)s://%(domain)s/"

  feature_toggles:
    enable: tempoSearch tempoBackendSearch tempoServiceGraph traceQLStreaming

  unified_alerting:
    enabled: true

  alerting:
    enabled: false
EOF

helm install grafana grafana/grafana \
  --namespace monitoring \
  --version 7.3.0 \
  -f /tmp/grafana-values.yaml \
  --wait

Step 5.2: Get Grafana URL

bash

GRAFANA_URL=$(kubectl -n monitoring get svc grafana \
  -o jsonpath='{.status.loadBalancer.ingress[0].hostname}')

echo "Grafana URL: http://$GRAFANA_URL"
echo "Username: admin"
echo "Password: ObsLab2026!"

Step 5.3: Verify data source connectivity

bash

# Port-forward for testing
kubectl port-forward -n monitoring svc/grafana 3000:80 &

# Test data sources via API
curl -s -u admin:ObsLab2026! "http://localhost:3000/api/datasources" | jq '.[].name'

# Test each data source health
for ds in Prometheus Loki Tempo; do
  echo "Testing $ds..."
  curl -s -u admin:ObsLab2026! "http://localhost:3000/api/datasources/name/$ds" | jq '.type'
done

Verification

bash

# Open Grafana in browser and verify:
# 1. All data sources show green "Data source is working" status
# 2. Explore view shows data from each source
# 3. Imported dashboards display metrics

Exercise 6: Alerting Configuration

Steps

Step 6.1: Configure Alertmanager with SNS

bash

cat <<'EOF' | kubectl apply -f -
apiVersion: v1
kind: Secret
metadata:
  name: alertmanager-config
  namespace: monitoring
stringData:
  alertmanager.yaml: |
    global:
      resolve_timeout: 5m

    route:
      group_by: ['alertname', 'namespace', 'severity']
      group_wait: 30s
      group_interval: 5m
      repeat_interval: 4h
      receiver: 'sns-notifications'
      routes:
        - match:
            severity: critical
          receiver: 'sns-critical'
          continue: true
        - match:
            severity: warning
          receiver: 'sns-notifications'

    receivers:
      - name: 'sns-notifications'
        sns_configs:
          - topic_arn: '${SNS_TOPIC_ARN}'
            sigv4:
              region: '${AWS_REGION}'
            subject: '[{{ .Status | toUpper }}] {{ .GroupLabels.alertname }}'
            message: |
              {{ range .Alerts }}
              Alert: {{ .Labels.alertname }}
              Severity: {{ .Labels.severity }}
              Namespace: {{ .Labels.namespace }}
              Description: {{ .Annotations.description }}
              {{ end }}

      - name: 'sns-critical'
        sns_configs:
          - topic_arn: '${SNS_TOPIC_ARN}'
            sigv4:
              region: '${AWS_REGION}'
            subject: '[CRITICAL] {{ .GroupLabels.alertname }}'
            message: |
              CRITICAL ALERT
              {{ range .Alerts }}
              Alert: {{ .Labels.alertname }}
              Namespace: {{ .Labels.namespace }}
              Description: {{ .Annotations.description }}
              Runbook: {{ .Annotations.runbook_url }}
              {{ end }}

    inhibit_rules:
      - source_match:
          severity: 'critical'
        target_match:
          severity: 'warning'
        equal: ['alertname', 'namespace']
EOF

Step 6.2: Create basic PrometheusRules

bash

cat <<'EOF' | kubectl apply -f -
apiVersion: monitoring.coreos.com/v1
kind: PrometheusRule
metadata:
  name: obs-lab-alerts
  namespace: monitoring
  labels:
    prometheus: kube-prometheus-stack-prometheus
    role: alert-rules
spec:
  groups:
    - name: kubernetes-apps
      rules:
        - alert: KubePodCrashLooping
          expr: |
            max_over_time(kube_pod_container_status_waiting_reason{reason="CrashLoopBackOff"}[5m]) >= 1
          for: 15m
          labels:
            severity: warning
          annotations:
            summary: "Pod {{ $labels.namespace }}/{{ $labels.pod }} is crash looping"
            description: "Pod {{ $labels.namespace }}/{{ $labels.pod }} is restarting {{ $value }} times / 5 minutes."

        - alert: KubePodNotReady
          expr: |
            sum by (namespace, pod) (
              max by(namespace, pod) (
                kube_pod_status_phase{phase=~"Pending|Unknown"}
              ) * on(namespace, pod) group_left(owner_kind) topk by(namespace, pod) (
                1, max by(namespace, pod, owner_kind) (kube_pod_owner{owner_kind!="Job"})
              )
            ) > 0
          for: 15m
          labels:
            severity: warning
          annotations:
            summary: "Pod {{ $labels.namespace }}/{{ $labels.pod }} not ready"
            description: "Pod {{ $labels.namespace }}/{{ $labels.pod }} has been in a non-ready state for longer than 15 minutes."

    - name: kubernetes-resources
      rules:
        - alert: KubeMemoryOvercommit
          expr: |
            sum(namespace_memory:kube_pod_container_resource_requests:sum{})
              /
            sum(kube_node_status_allocatable{resource="memory"})
              > 1
          for: 10m
          labels:
            severity: warning
          annotations:
            summary: "Cluster memory overcommit"
            description: "Cluster memory requests exceed allocatable memory."

        - alert: KubeCPUOvercommit
          expr: |
            sum(namespace_cpu:kube_pod_container_resource_requests:sum{})
              /
            sum(kube_node_status_allocatable{resource="cpu"})
              > 1
          for: 10m
          labels:
            severity: warning
          annotations:
            summary: "Cluster CPU overcommit"
            description: "Cluster CPU requests exceed allocatable CPU."
EOF

Step 6.3: Install Grafana OnCall (optional)

bash

helm repo add grafana https://grafana.github.io/helm-charts
helm repo update

cat <<'EOF' > /tmp/oncall-values.yaml
base_url: oncall.obs-lab.local

grafana:
  enabled: false

celery:
  enabled: true

engine:
  replicaCount: 1

oncall:
  slack:
    enabled: false
  telegram:
    enabled: false

postgresql:
  enabled: true
  auth:
    postgresPassword: ObsLab2026!
  primary:
    persistence:
      enabled: true
      size: 5Gi

redis:
  enabled: true
  architecture: standalone
  auth:
    enabled: false
EOF

helm install grafana-oncall grafana/oncall \
  --namespace monitoring \
  --version 1.3.48 \
  -f /tmp/oncall-values.yaml \
  --wait

Verification

bash

# Check Alertmanager status
kubectl get pods -n monitoring -l app.kubernetes.io/name=alertmanager

# Check PrometheusRule
kubectl get prometheusrules -n monitoring

# Verify Alertmanager config
kubectl exec -n monitoring -it alertmanager-kube-prometheus-stack-alertmanager-0 -- \
  cat /etc/alertmanager/config_out/alertmanager.env.yaml

Summary

In this lab, you have deployed the complete observability stack:

Component	Tool	Purpose
Telemetry Pipeline	OTel Collector	Central collection and fan-out
Metrics	Prometheus, VictoriaMetrics, Mimir	Time-series storage
Metrics (AWS)	AMP	Managed Prometheus
Logging	Loki, ClickHouse, Fluent Bit	Log aggregation
Logging (AWS)	CloudWatch Logs, OpenSearch	Managed logging
Tracing	Tempo	Distributed tracing
Tracing (AWS)	X-Ray	Managed tracing
Visualization	Grafana	Unified dashboards
Alerting	Alertmanager, Grafana OnCall	Alert routing

Cleanup

Cleanup will be performed in Part 6.

Troubleshooting

OTel Collector not receiving data

Check collector logs: kubectl logs -n opentelemetry -l app=otel-collector
Verify ports are exposed: kubectl get svc -n opentelemetry
Test OTLP endpoint: curl -v http://localhost:4318/v1/traces

Loki not storing logs

Check S3 bucket permissions
Verify Fluent Bit output: kubectl logs -n logging -l app.kubernetes.io/name=fluent-bit
Test Loki push: curl -X POST http://localhost:3100/loki/api/v1/push ...

Grafana data sources not connecting

Verify service DNS: kubectl run -it --rm debug --image=busybox -- nslookup loki-gateway.logging.svc.cluster.local
Check data source configuration in Grafana UI
Test direct connection: kubectl port-forward svc/loki-gateway 3100:80

Next Steps

Continue to Part 3: MSA Deployment and Canary to deploy the sample application with observability instrumentation.

Traffic Management

Security

Observability

Resilience

Advanced

Comparison Guide

ArgoCD

Metrics

Logging

Tracing

Alerting

Observability End-to-End Labs

Part 2: Observability Stack Deployment ​

Learning Objectives ​

Prerequisites ​

Architecture Overview ​

Exercise 1: OpenTelemetry Collector Deployment ​

Steps ​

Verification ​

Exercise 2: Metrics Stack Deployment ​

Steps ​

Verification ​

Exercise 3: Logging Stack Deployment ​

Steps ​

Verification ​

Exercise 4: Tracing Stack Deployment ​

Steps ​

Verification ​

Exercise 5: Grafana Deployment and Data Source Configuration ​

Steps ​

Verification ​

Exercise 6: Alerting Configuration ​

Steps ​

Verification ​

Summary ​

Cleanup ​

Troubleshooting ​

Next Steps ​

References ​

Part 2: Observability Stack Deployment

Learning Objectives

Prerequisites

Architecture Overview

Exercise 1: OpenTelemetry Collector Deployment

Steps

Verification

Exercise 2: Metrics Stack Deployment

Steps

Verification

Exercise 3: Logging Stack Deployment

Steps

Verification

Exercise 4: Tracing Stack Deployment

Steps

Verification

Exercise 5: Grafana Deployment and Data Source Configuration

Steps

Verification

Exercise 6: Alerting Configuration

Steps

Verification

Summary

Cleanup

Troubleshooting

Next Steps

References
