Ambient Mode

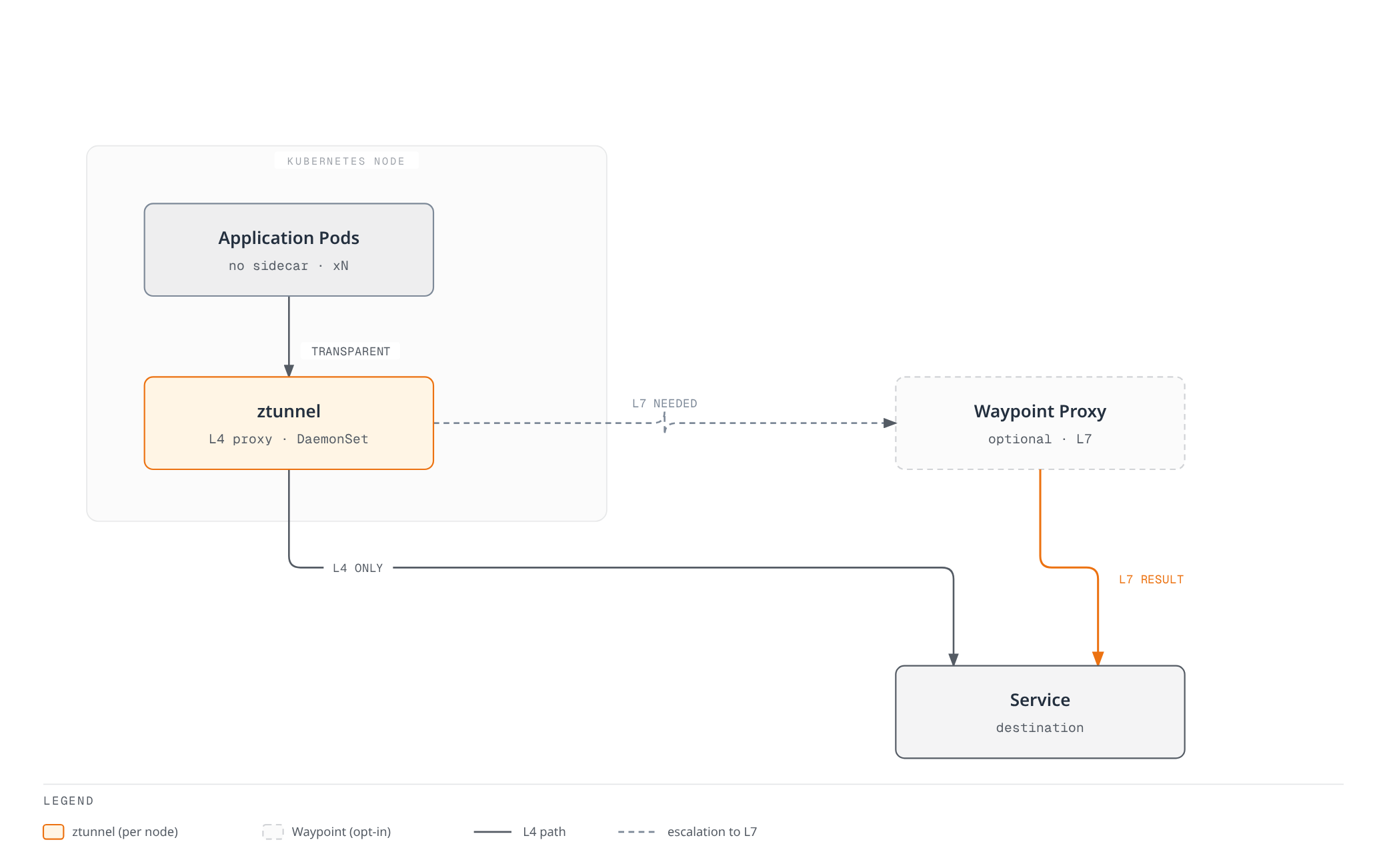

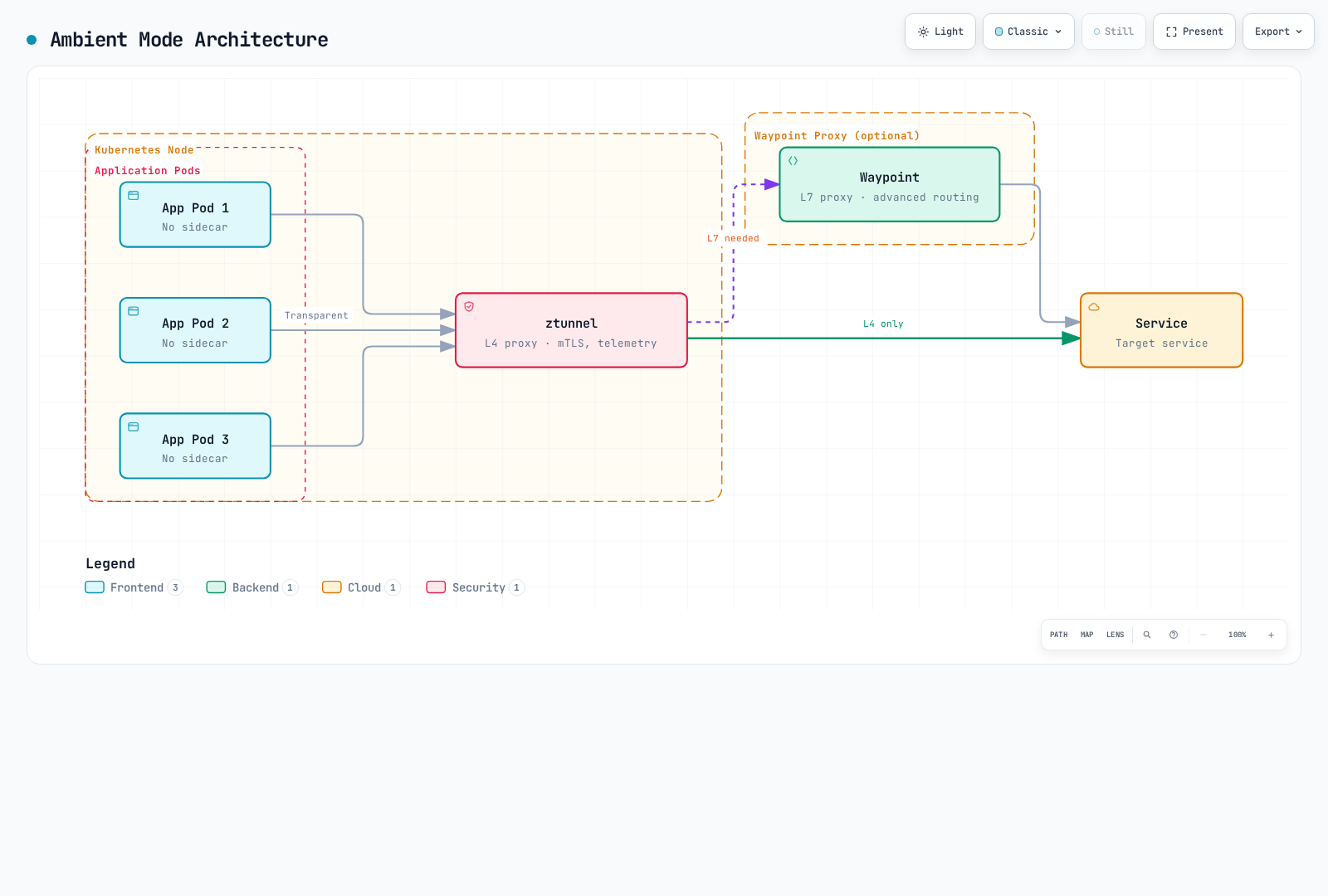

Architecture diagram showing many application pods sending traffic transparently to one node-level ztunnel, which serves the target service directly for L4 traffic and uses the optional waypoint path when the resource is enrolled for it.

Characteristics:

One ztunnel per node
L4 features provided by default
L7 features require waypoint
Unmeshed-Pod enrollment need not restart Pods; removing a sidecar does

Detailed Comparison Table

Item	Sidecar Mode	Ambient Mode
Deployment method	Sidecar injection into pod	Node-level ztunnel + optional waypoint
Resource accounting	Per-Pod Envoy + control plane	Node ztunnels + all waypoint replicas + control plane; measure under load
Pod recreation	Needed to add/remove an injected proxy	Not normally needed for unmeshed enrollment; needed to remove a sidecar
Startup coordination	Proxy/application lifecycle and readiness	CNI capture and ztunnel readiness
L4 features	Supported	Supported
L7 features	Release-specific support	Waypoint and supported API required; not every extension is GA
mTLS	Automatic	Automatic
Telemetry	Detailed	Basic (L4), Detailed (L7 with waypoint)
Circuit Breaker	Supported	Requires Waypoint
Retry/Timeout	Supported	Requires Waypoint
Header manipulation	Supported	Requires Waypoint
Performance overhead	Workload/configuration dependent	Path/identity/waypoint/load dependent; compare equivalent policies
Operational scope	Per-workload proxy lifecycle	Node/CNI and shared waypoint lifecycle
Production readiness	Mature	GA (Istio 1.24+)

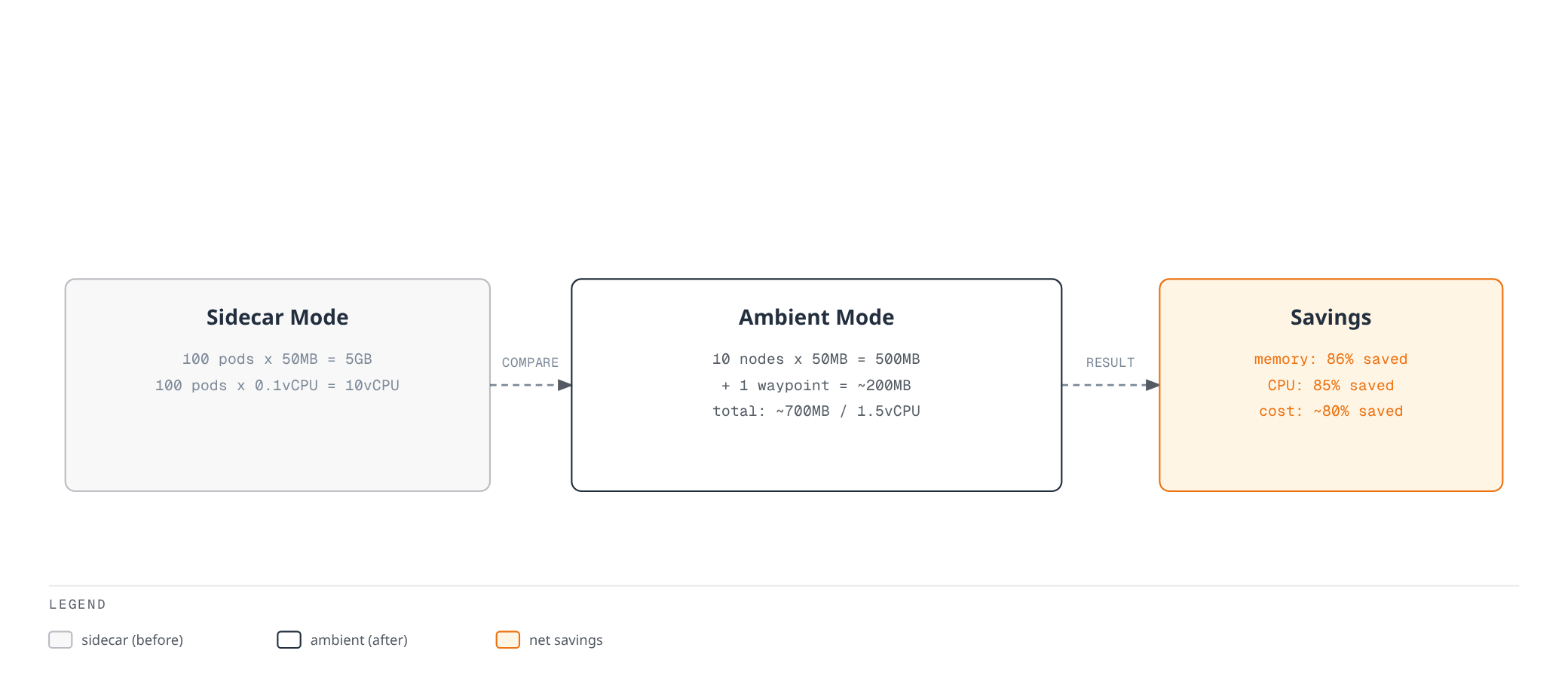

Resource Usage Comparison

The 100-Pod calculation below is a hypothetical planning example, not an official benchmark. Count all node/waypoint replicas and compare equivalent security, telemetry and routing requirements before estimating resource or bill savings.

Architecture

The Ambient Mode data plane consists of two core components: ztunnel and Waypoint Proxy.

ztunnel (Zero Trust Tunnel)

ztunnel is the core component of Ambient Mode, a lightweight L4 proxy running at the node level. It runs as a DaemonSet on eligible Linux nodes and handles supported traffic for enrolled workloads. This is not all traffic from every Pod; host-network/excluded workloads and non-TCP application protocols require checking current support.

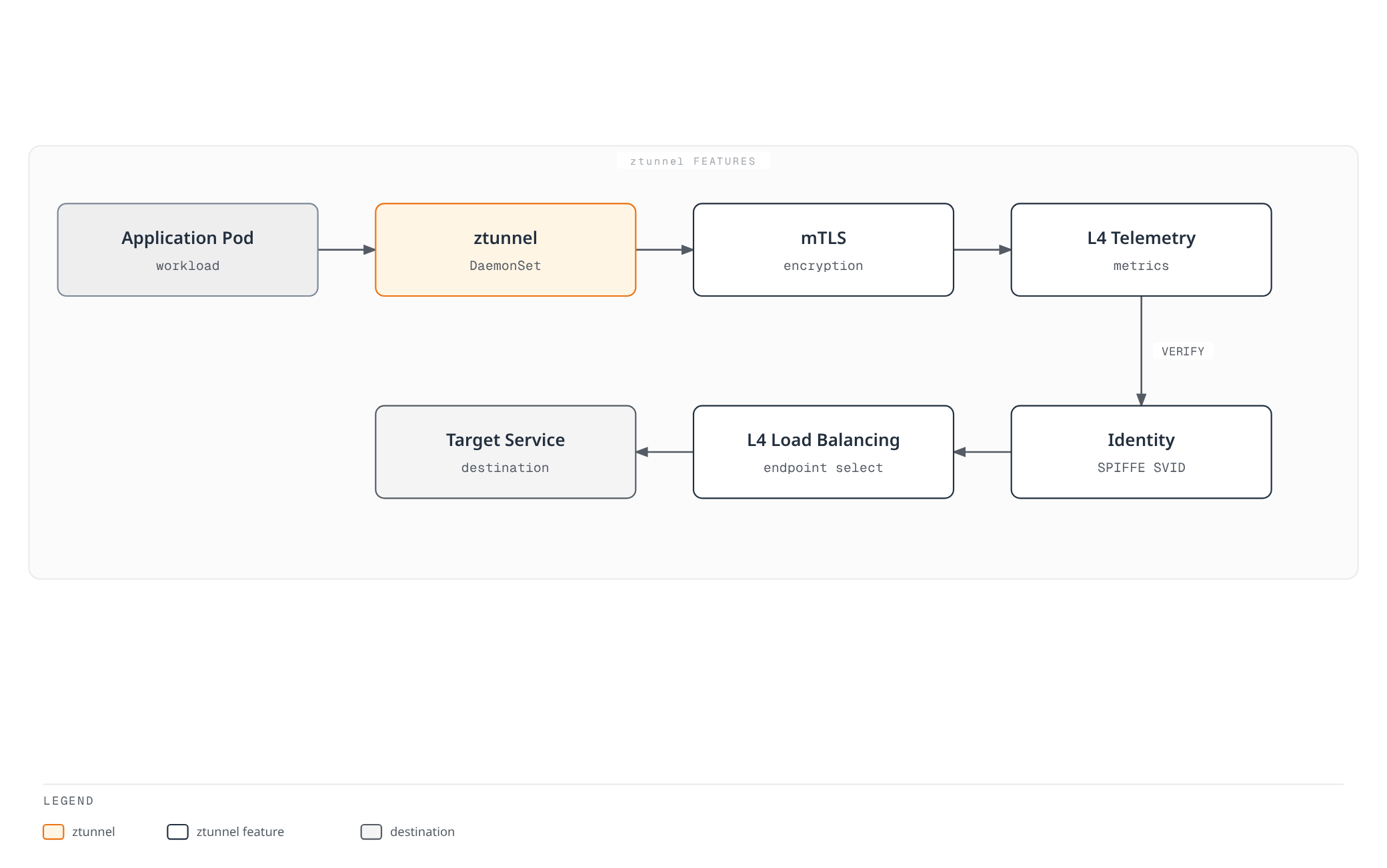

How ztunnel Works

Traffic capture: Transparently intercepts pod network traffic through Istio CNI in-pod netfilter/iptables rules and network-namespace handoff
mTLS application: Automatically applies mTLS encryption using SPIFFE-based Identity
Load balancing: Performs L4 load balancing between endpoints
Telemetry collection: Collects connection metrics and logs
Forwarding: Forwards traffic to destination ztunnel or Waypoint

ztunnel Technology Stack:

Language: Rust (high performance, low memory usage)
Protocol: HBONE (HTTP-Based Overlay Network Environment)
Identity: SPIFFE workload identities; Istiod CA by default, separate integration for SPIRE
CNI: Tight integration with Istio CNI plugin

ztunnel Role

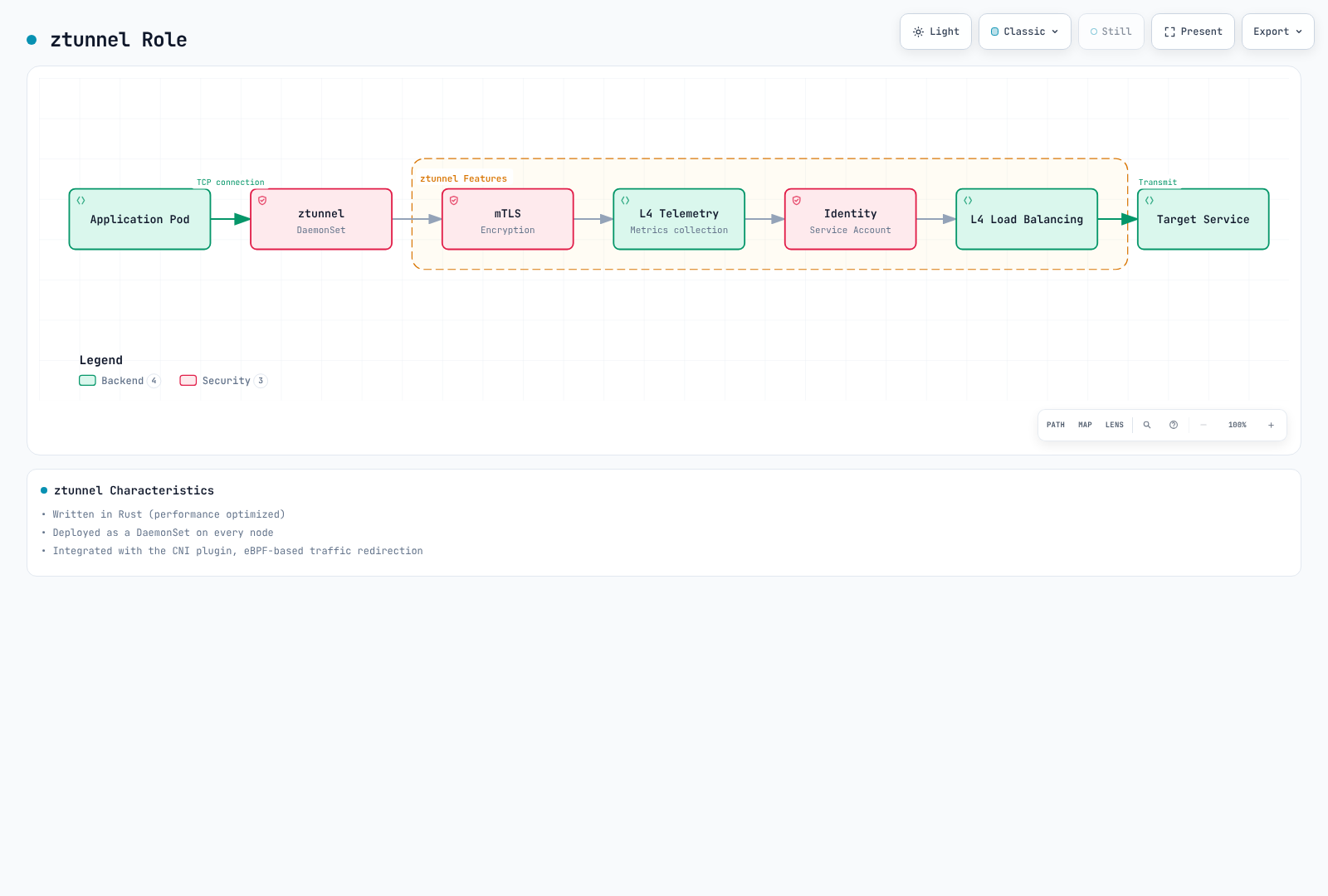

Diagram showing a TCP connection from an application pod passing through ztunnel's built-in mTLS encryption, L4 telemetry collection, identity verification, and L4 load balancing before reaching the target service.

ztunnel Characteristics:

Written in Rust (performance optimized)
Deployed as DaemonSet
Integrated with CNI plugin
In-pod netfilter/iptables redirection coordinated with Istio CNI

ztunnel Deployment

Use the released ambient installation/charts. The original minimal DaemonSet omitted token/CA/socket mounts and used incorrect hostNetwork/privileged settings. The 1.31 chart supplies specific capabilities and in-pod namespace access; it does not set hostNetwork: true or privileged: true. Do not copy or reduce privileges without the full chart/platform context.

bash

# Offline inspection; use the same reviewed values as the actual installation
istioctl manifest generate --set profile=ambient > ambient-rendered.yaml
# Inspect a deployed resource if a mesh already exists
kubectl get daemonset ztunnel -n istio-system -o yaml

Waypoint Proxy

Waypoint is an optional proxy used when L7 features are needed. A configured waypoint is placed in the traffic path of enrolled resources to provide advanced traffic management features.

Key Characteristics of Waypoint

Selective deployment: Used only for services that need L7 features, not all services
Shared proxy: Multiple workloads share a single Waypoint (according to namespace/Service/Pod enrollment)
Envoy-based: Uses the same Envoy proxy as traditional Sidecar, with release-specific L7 API support
On-demand: Can be dynamically added/removed at runtime

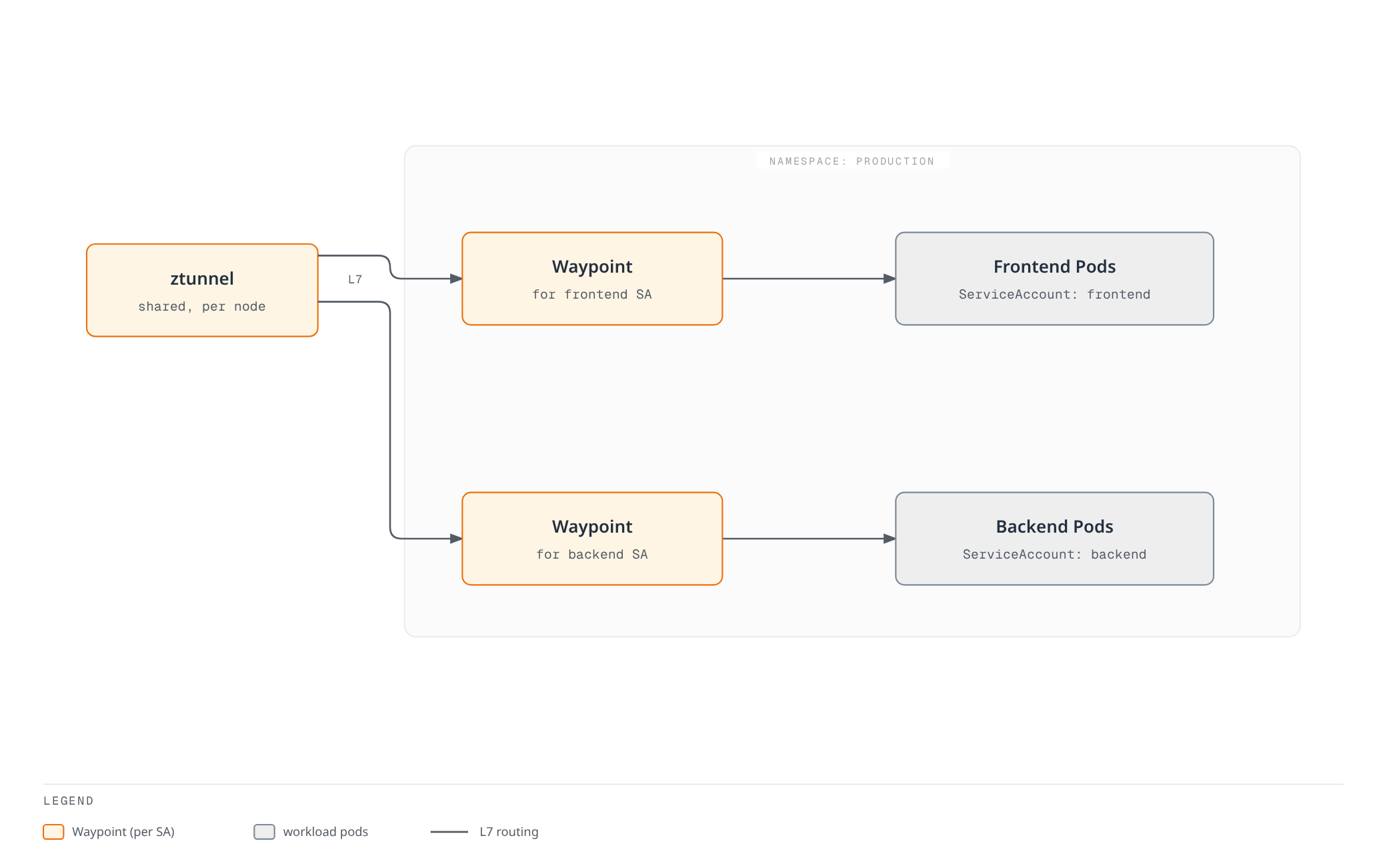

Waypoint Deployment Units

A ServiceAccount supplies workload identity; labeling it does not select a waypoint. Use istio.io/use-waypoint on a Namespace, Service or Pod, with a Gateway whose istio.io/waypoint-for traffic type matches the intended traffic.

Enrollment	Scope
Namespace	Default waypoint selection for eligible resources in that namespace
Service	Traffic to that Service; default waypoint type is `service`
Pod	Direct workload/Pod-IP traffic with a `workload` or `all` waypoint

Deployment labels alone do not label existing Pods; use Pod-template labels for workload enrollment. A service waypoint does not automatically cover direct Pod-IP traffic.

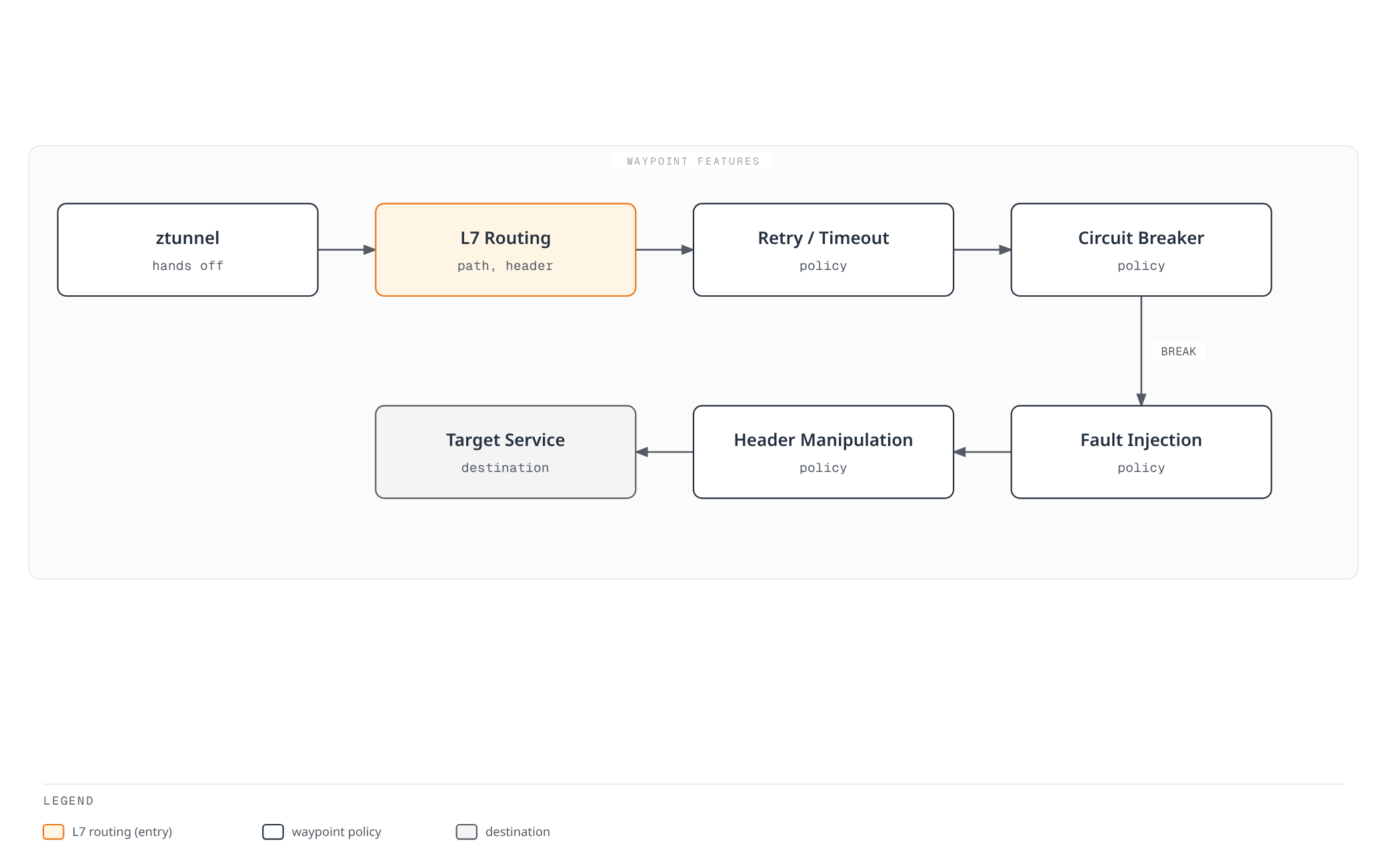

Waypoint Role

Waypoint Characteristics:

Deployed as a Gateway, then selected by supported resource enrollment
Based on Envoy proxy
Verify per-API support; arbitrary EnvoyFilter patches are not a supported waypoint API
Selective use for required services only

Waypoint Deployment

yaml

apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: reviews-waypoint
  namespace: ambient-demo
  labels:
    istio.io/waypoint-for: service
spec:
  gatewayClassName: istio-waypoint
  listeners:
  - name: mesh
    port: 15008
    protocol: HBONE

The default istio-waypoint class uses Envoy. Core ambient GA does not make every API GA: current docs describe ambient VirtualService as Alpha and prohibit mixing it with Gateway API routes. Use HTTPRoute here. EnvoyFilter is not a supported waypoint extension. L7 policies protect traffic that reaches the waypoint; mandatory traversal also needs the documented ztunnel authorization guard and correct enrollment/readiness.

Complete Traffic Flow

The following is a comprehensive diagram showing how traffic flows in Ambient Mode without Sidecars:

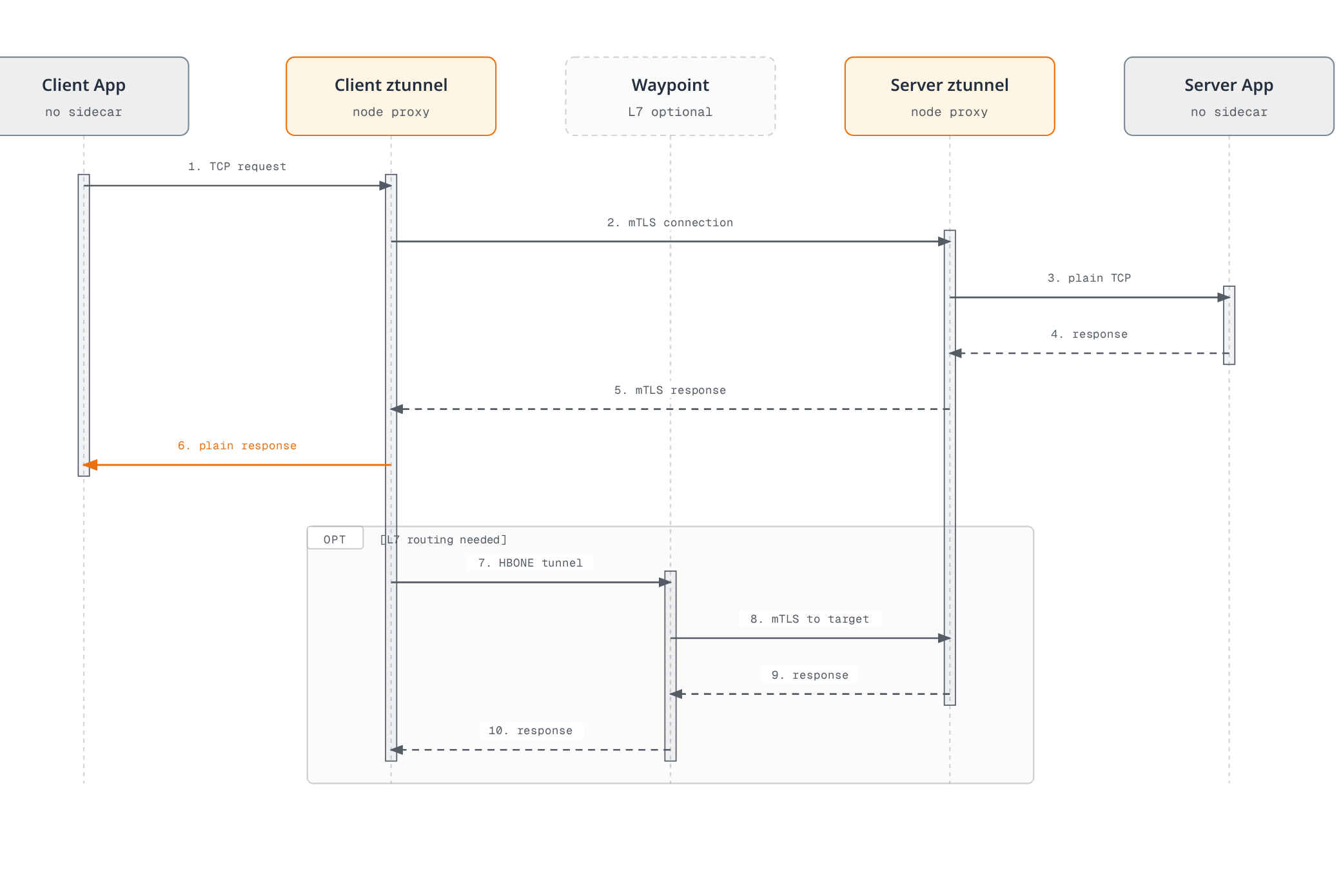

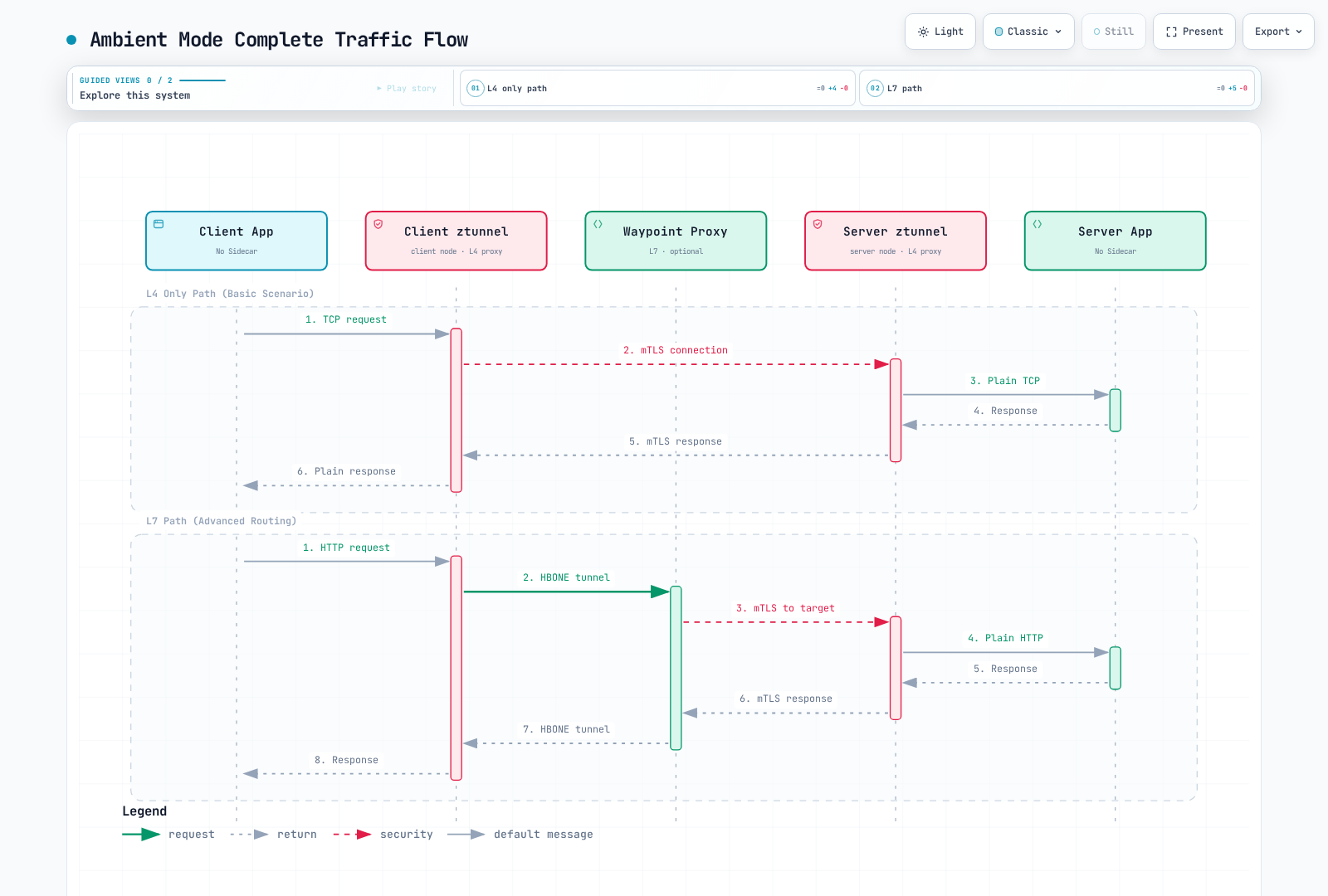

Sequence diagram tracing a request from an unsidecarred client app through client and server ztunnels for the plain L4 path, and, in an optional branch, through a waypoint proxy for L7 routing before reaching the server app.

Traffic Flow Analysis:

L4 Only Path (using ztunnel only):
- Measure path latency under representative load
- mTLS automatically applied
- Basic telemetry
- Suitable when actual requirements are L4-only
L7 Path (ztunnel + Waypoint):
- Header-based routing
- Circuit Breaking
- Retry/Timeout
- When complex traffic policies are needed

HBONE Protocol

HBONE (HTTP-Based Overlay Network Environment) is the tunneling protocol used in Ambient Mode:

HTTP/2 based: Compatibility with existing infrastructure
Built-in mTLS: Secure communication
Multiplexing: TCP streams share tunnels for the same source/destination identity pair
Network policy: HBONE conventionally uses TCP15008; allow the required mesh path explicitly

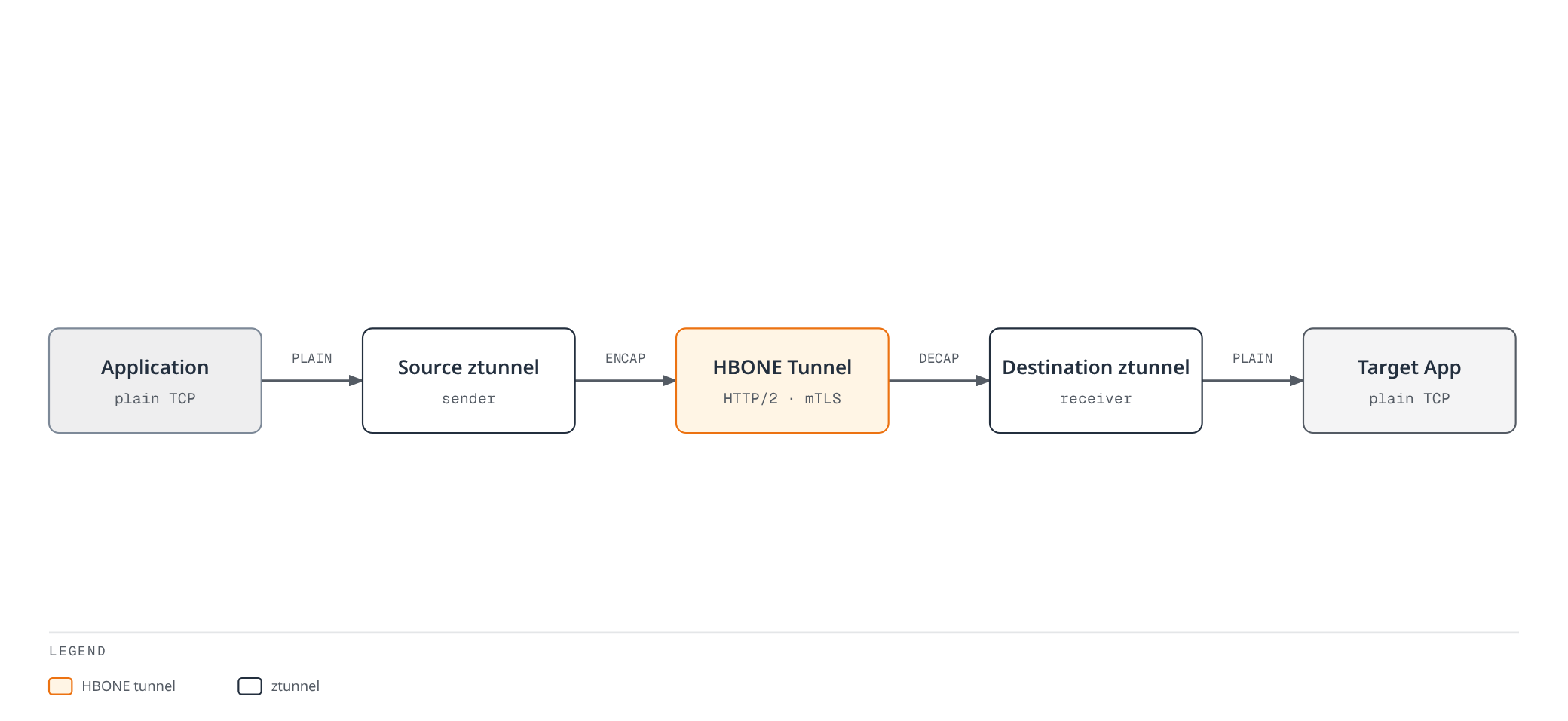

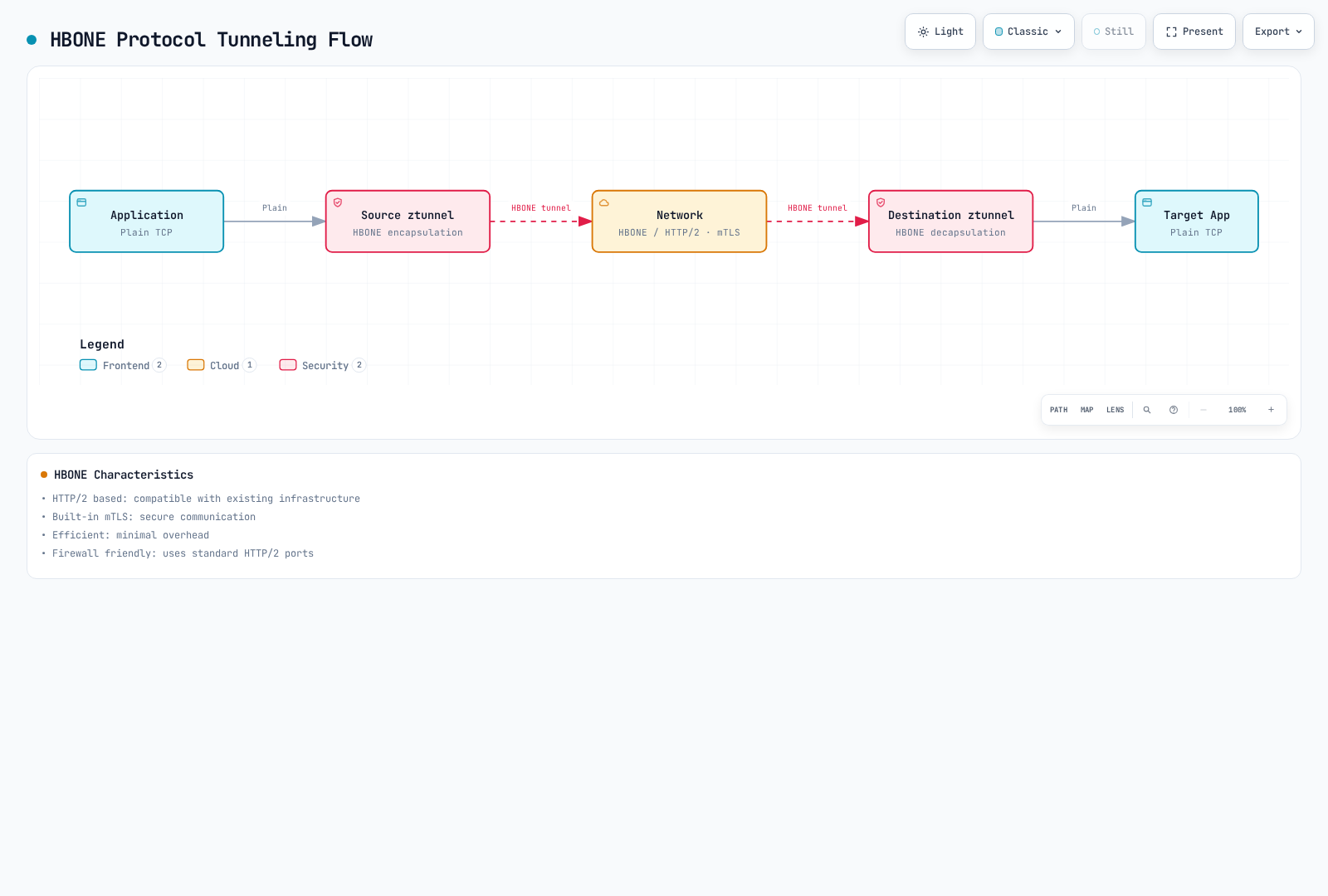

Diagram showing plain TCP traffic from an application wrapped into an HTTP/2 mTLS HBONE tunnel by the source ztunnel, carried across the network, and unwrapped back to plain TCP by the destination ztunnel before reaching the target app.

HBONE in this guide transports TCP streams. Application UDP is not carried by that tunnel; DNS capture/proxying is a separate function. The local application stream can remain plaintext while the mesh transport between proxies is encrypted.

Installation and Configuration

The lab needs compatible Linux nodes and the required Istio CNI/ztunnel DaemonSets. EKS Fargate cannot run these node DaemonSets; use supported EC2-backed placement and review the actual node/CNI platform. Platform prerequisites cover CNI paths, permissions and health probes. VPC CNI Pod ENI trunking with SecurityGroupPolicy can require standard enforcing mode or appropriate exec probes; assess the policy implications. GKE, OpenShift, k3s and other platforms may need different settings.

Istio1.31 supports Kubernetes1.32–1.37; see the installation guide for EKS compatibility. Gateway API1.6.0 below matches Istio1.31’s dependency and official ambient tutorial. Check an existing bundle's compatibility; do not downgrade a newer compatible bundle merely to copy the example.

1. Istio Installation (Ambient Mode)

Use this installation command only for a fresh lab mesh after reviewing the installer and platform settings. Preserve an existing mesh's installation method/values using the migration procedure.

bash

curl -fsSL https://istio.io/downloadIstio -o download-istio.sh
ISTIO_VERSION=1.31.0 sh download-istio.sh
cd istio-1.31.0
export PATH="$PWD/bin:$PATH"

# Fresh cluster without Gateway API; review an existing bundle separately
if ! kubectl get crd gateways.gateway.networking.k8s.io >/dev/null 2>&1; then
  kubectl apply --server-side -f https://github.com/kubernetes-sigs/gateway-api/releases/download/v1.6.0/experimental-install.yaml
fi
kubectl wait --for=condition=Established crd/gateways.gateway.networking.k8s.io --timeout=60s
kubectl get crd httproutes.gateway.networking.k8s.io

# Fresh lab mesh only; include required platform-specific values
istioctl install --set profile=ambient -y
kubectl get pods,daemonsets -n istio-system

2. Enable Ambient Mode and Deploy the Application

Use a fresh disposable namespace with no sidecar-injection/revision override. Existing sidecar Pods are not converted by adding the ambient label. The complete Bookinfo manifest from the1.31 distribution supplies the reviews Service, version labels, ServiceAccounts and ratings dependency missing from the old single-Deployment example; it uses Bookinfo1.20.3 images.

bash

kubectl create namespace ambient-demo
kubectl label namespace ambient-demo istio.io/dataplane-mode=ambient
kubectl get namespace ambient-demo -L istio-injection,istio.io/rev,istio.io/dataplane-mode
kubectl apply -n ambient-demo -f samples/bookinfo/platform/kube/bookinfo.yaml
kubectl apply -n ambient-demo -f samples/curl/curl.yaml
for deployment in reviews-v1 reviews-v2 ratings-v1 curl; do
  kubectl rollout status "deployment/$deployment" -n ambient-demo --timeout=120s
done
istioctl ztunnel-config workloads --workload-namespace ambient-demo

3. Deploy and Select a Waypoint

The current CLI takes a waypoint name and traffic type, not a ServiceAccount enrollment flag. Wait for readiness and explicitly enroll the Service.

bash

istioctl waypoint apply --name reviews-waypoint --for service -n ambient-demo --wait
kubectl label service reviews -n ambient-demo istio.io/use-waypoint=reviews-waypoint --overwrite
kubectl get gateways.gateway.networking.k8s.io reviews-waypoint -n ambient-demo
kubectl get service reviews -n ambient-demo --show-labels

4. Use L7 Features

Create version-specific backend Services and attach an HTTPRoute to the enrolled reviews Service. This demonstrates GET/header routing; the header is not authenticated identity. Do not combine the old VirtualService with this Gateway API route. Direct calls to another Service/Pod IP are a separate path.

yaml

apiVersion: v1
kind: Service
metadata:
  name: reviews-v1
  namespace: ambient-demo
spec:
  selector:
    app: reviews
    version: v1
  ports:
  - name: http
    port: 9080
    targetPort: 9080
---
apiVersion: v1
kind: Service
metadata:
  name: reviews-v2
  namespace: ambient-demo
spec:
  selector:
    app: reviews
    version: v2
  ports:
  - name: http
    port: 9080
    targetPort: 9080
---
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: reviews
  namespace: ambient-demo
spec:
  parentRefs:
  - group: ''
    kind: Service
    name: reviews
    port: 9080
  rules:
  - matches:
    - method: GET
      headers:
      - name: end-user
        type: Exact
        value: jason
    backendRefs:
    - name: reviews-v2
      port: 9080
  - matches:
    - method: GET
    backendRefs:
    - name: reviews-v1
      port: 9080

bash

kubectl describe httproutes.gateway.networking.k8s.io reviews -n ambient-demo
kubectl exec -n ambient-demo deploy/curl -c curl -- \
  curl -sS --max-time 5 -H "end-user: jason" http://reviews:9080/reviews/0

Check Accepted/ResolvedRefs conditions and the selected backend through logs/telemetry. HTTP success alone proves neither mTLS nor mandatory waypoint traversal. L7 authorization needs the appropriate targetRefs; mandatory traversal also needs the documented ztunnel authorization guard. See waypoint policy attachment.

Migration

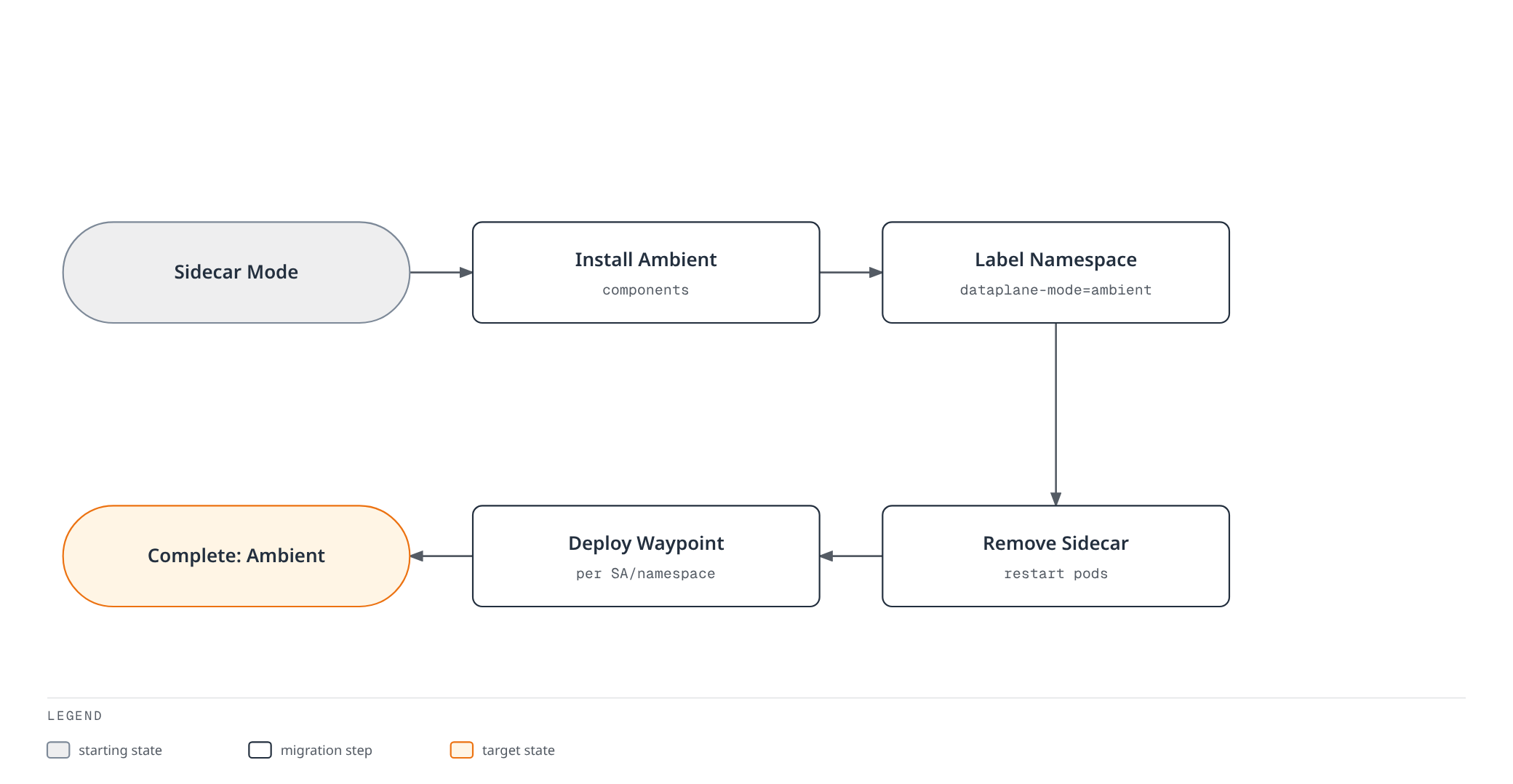

From Sidecar Mode to Ambient Mode

Migration is a policy/workload rollout, not a label-only change. Preserve the installed revision, CA/trust, gateways, CNI options and declarative workload configuration. Existing sidecars take precedence over ambient enrollment. Prepare compatible L7 routing/authorization and ready waypoints before removing sidecars from workloads that require those policies.

Step 1: Install Ambient Components

Use the existing installation method and reviewed values to add ambient support at a compatible version. Do not overwrite a Helm-managed mesh with an unrelated bare istioctl install --set profile=ambient command. Render/diff the intended configuration and verify the CNI/ztunnel node agents.

Step 2: Apply to Test Namespace

This independent ambient test deploys both client and server from the1.31 distribution. The httpbin Service exposes8000 and targets8080.

bash

kubectl create namespace test-ambient
kubectl label namespace test-ambient istio.io/dataplane-mode=ambient
kubectl apply -n test-ambient -f samples/curl/curl.yaml
kubectl apply -n test-ambient -f samples/httpbin/httpbin.yaml
kubectl rollout status deployment/curl -n test-ambient --timeout=120s
kubectl rollout status deployment/httpbin -n test-ambient --timeout=120s
kubectl exec -n test-ambient deploy/curl -c curl -- \
  curl -sS --max-time 5 http://httpbin:8000/headers

Step 3: Verification

The HBONE workload column shows intended transport. For actual traffic, inspect expected source/destination identities in the correct node's ztunnel logs, or TCP metrics with connection_security_policy="mutual_tls". HTTP success alone is not mTLS proof. HBONE enrollment does not reject every plaintext caller; use PeerAuthentication STRICT if required. See mTLS verification.

bash

istioctl ztunnel-config workloads --workload-namespace test-ambient
source_pod=$(kubectl get pod -n test-ambient -l app=curl -o jsonpath='{.items[0].metadata.name}')
source_node=$(kubectl get pod "$source_pod" -n test-ambient -o jsonpath='{.spec.nodeName}')
ztunnel_pod=$(kubectl get pod -n istio-system -l app=ztunnel \
  --field-selector "spec.nodeName=$source_node" -o jsonpath='{.items[0].metadata.name}')
kubectl logs "$ztunnel_pod" -n istio-system --since=5m

Step 4: Switch Selected Workloads

The next example assumes a separate existing migration-demo namespace containing only reviewed, namespace-injected curl/httpbin Deployments with L4-only requirements. Check for Pod-template injection overrides or manually injected proxies; these commands do not remove those. For L7 workloads, first validate waypoint enrollment and policy translation, including targetRefs and any mandatory-traversal guard. Plan policy coexistence during migration; a selector-based L7 policy enforced by ztunnel can fail closed.

bash

# Reference snapshots, not manifests to blindly reapply with stale server metadata
kubectl get namespace migration-demo -o json > migration-namespace-before.json
kubectl get deployment curl httpbin -n migration-demo -o yaml > migration-workloads-before.yaml

kubectl label namespace migration-demo istio.io/dataplane-mode=ambient --overwrite
kubectl label namespace migration-demo istio-injection- istio.io/rev-
kubectl get namespace migration-demo -L istio-injection,istio.io/rev,istio.io/dataplane-mode
for deployment in curl httpbin; do
  kubectl rollout restart "deployment/$deployment" -n migration-demo
  kubectl rollout status "deployment/$deployment" -n migration-demo --timeout=120s
done

# Check both classic containers and native-sidecar initContainers
kubectl get pods -n migration-demo -o json | jq -r '
  .items[] | [.metadata.name,
    any((.spec.containers + (.spec.initContainers // []))[]; .name == "istio-proxy")] | @tsv'
istioctl ztunnel-config workloads --workload-namespace migration-demo

Step 5: Validate the Chosen Data Path

Repeat readiness, connectivity, identity and policy tests for the named workloads. For an L7 cohort, inspect the actual Namespace/Service/Pod enrollment, Gateway traffic type/readiness and route/policy attachment; do not create one waypoint per ServiceAccount. Use workload-specific stop/rollback criteria. This lab sequence is not a zero-downtime production guarantee.

Rollback Strategy

Restore the recorded injection mode and original Pod-template/policy configuration. The code below only handles the namespace-injection case above; the old revision must still exist and be healthy. A cohort with waypoints needs its enrollment/routing policies restored as part of the reviewed rollback. Delete only a specifically identified, unreferenced waypoint created for that cohort—never every Gateway in a namespace.

bash

original_revision=$(jq -r '.metadata.labels["istio.io/rev"] // ""' migration-namespace-before.json)
original_injection=$(jq -r '.metadata.labels["istio-injection"] // ""' migration-namespace-before.json)

# Restore the recorded namespace-injection mode; do not invent a revision
if [ "$original_injection" = "enabled" ]; then
  kubectl label namespace migration-demo istio-injection=enabled --overwrite
elif [ -n "$original_revision" ]; then
  kubectl label namespace migration-demo "istio.io/rev=$original_revision" --overwrite
else
  echo "No supported namespace-injection mode recorded; restore the original workload configuration." >&2
  exit 1
fi
kubectl label namespace migration-demo istio.io/dataplane-mode-
for deployment in curl httpbin; do
  kubectl rollout restart "deployment/$deployment" -n migration-demo
  kubectl rollout status "deployment/$deployment" -n migration-demo --timeout=120s
done

Performance Comparison

Benchmark Results

The removed perf.png URL returned404 and did not substantiate the old “official benchmark” table. No source established its per-Pod CPU/memory, latency or throughput percentages. Use published performance results with their original release, load, payload, hardware and policy conditions; do not relabel historical measurements as a current-release test.

Measure	Keep comparable
Memory/CPU	Application count, identities/connections, node count, all waypoint replicas and equivalent policies
P50/P99 latency	Request size/rate, connection reuse, mTLS, L7 policy, telemetry and overload conditions
Throughput	The same application/backend capacity and error definition
Cost	Actual provisioned capacity, utilization and billing; lower requests/usage alone is not a bill reduction

Resource Savings Calculation

The original100-Pod arithmetic is preserved below only as a what-if budget model. Its50MB/0.1CPU and waypoint values are assumed inputs, not recommended requests/limits or measured costs. Include every waypoint/ztunnel replica, HA placement and control-plane resources in a real comparison. Additional waypoint replicas change the result.

python

# Hypothetical planning inputs, not measured resource consumption or billing
sidecar_memory = 100 * 50       # MB, decimal
sidecar_cpu = 100 * 0.1        # vCPU
ambient_memory = 10 * 50 + 200  # 10 ztunnels + one assumed waypoint budget
ambient_cpu = 10 * 0.1 + 0.5

memory_saved = sidecar_memory - ambient_memory  # 4300 MB, 86% of assumed baseline
cpu_saved = sidecar_cpu - ambient_cpu           # 8.5 vCPU, 85% of assumed baseline

Use Cases

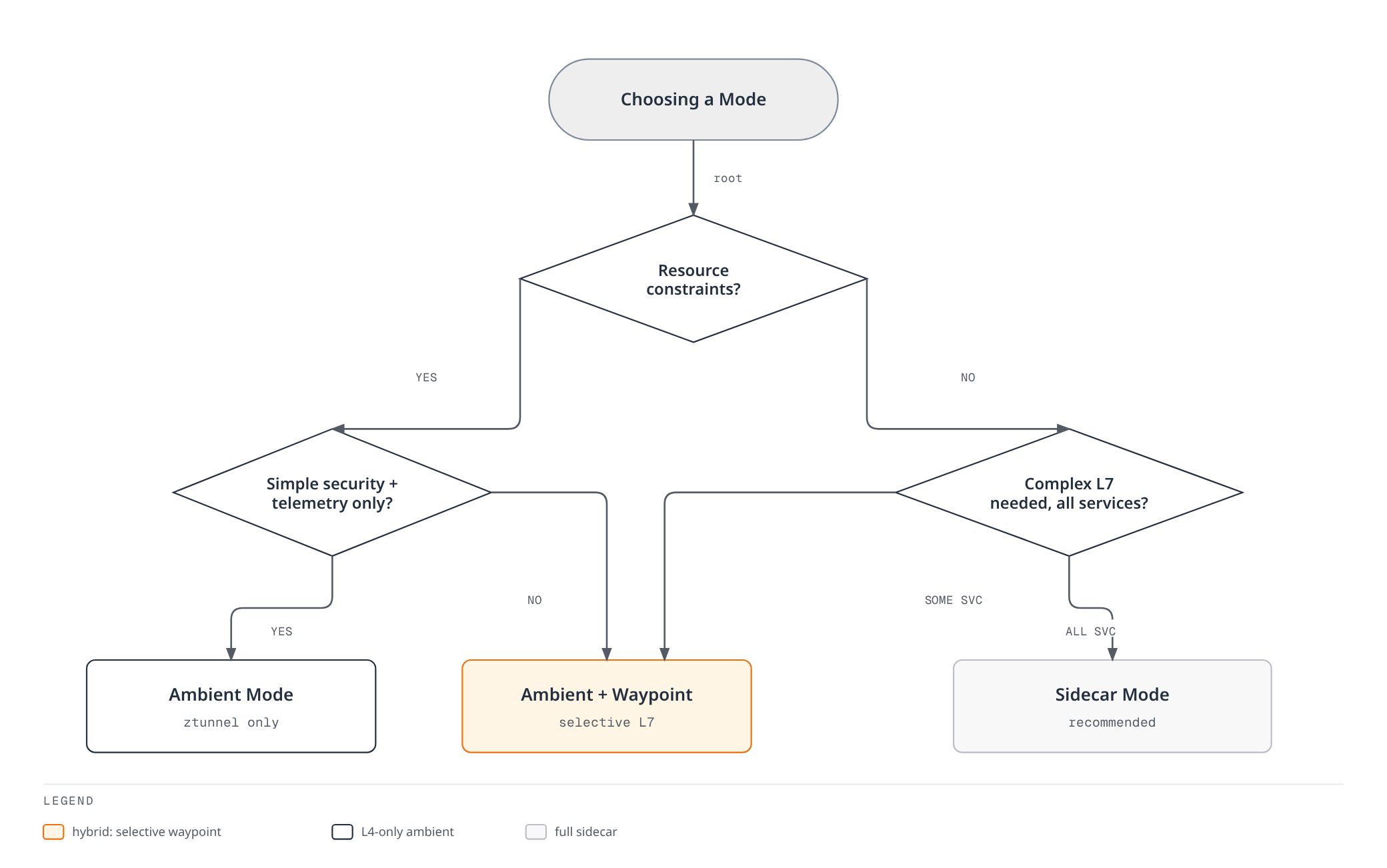

When Should You Choose Ambient Mode?

Recommended scenarios for Ambient Mode:

Hundreds or more microservices
Resource cost optimization is important
Most services need only simple communication
Only some services need advanced routing
Minimize operational complexity

Recommended scenarios for Sidecar Mode:

Required APIs/extensions or platform behavior are supported only by the chosen sidecar setup
Need a proven mature solution
Need fine-grained control per service
Independent proxy version management per pod

1. When Only L4 Features Are Needed

For compatible existing TCP workloads, enroll a namespace after verifying platform, policy and capture prerequisites. This Namespace is not a complete database deployment; database replication/storage/HA must be designed separately.

yaml

apiVersion: v1
kind: Namespace
metadata:
  name: backend
  labels:
    istio.io/dataplane-mode: ambient

2. Selective L7 Feature Usage

The demo selects the ready reviews waypoint at the Service level. Namespace and direct-workload enrollment are separate supported scopes; a ServiceAccount label is not a selector.

bash

kubectl label service reviews -n ambient-demo istio.io/use-waypoint=reviews-waypoint --overwrite

L7 requirements do not automatically require sidecars: compare the supported waypoint APIs and extensions with the application's actual needs. Conversely, core GA does not imply feature parity for every advanced API.

3. Gradual Migration

Inventory injection and enrollment first, then migrate a reviewed cohort with explicit readiness/security/rollback criteria. Do not blindly label every dev/staging/production namespace or assume the change converts existing sidecars.

bash

kubectl get namespaces -L istio-injection,istio.io/rev,istio.io/dataplane-mode,istio.io/use-waypoint

Troubleshooting

ztunnel Not Working

bash

# Check ztunnel status
kubectl get daemonset -n istio-system ztunnel
kubectl logs -n istio-system -l app=ztunnel

# Check CNI
kubectl get daemonset -n istio-system istio-cni-node
kubectl logs -n istio-system -l k8s-app=istio-cni-node

Traffic Not Going to Waypoint

bash

# Check Waypoint status
kubectl get gateways.gateway.networking.k8s.io -n <namespace>

# Check supported enrollment scopes and Gateway readiness
kubectl get namespace <namespace> -L istio.io/use-waypoint
kubectl get services -n <namespace> -L istio.io/use-waypoint
istioctl waypoint list -n <namespace>
istioctl ztunnel-config services

# Check Envoy configuration
istioctl proxy-config clusters <waypoint-pod> -n <namespace>

References

Current Official Documentation

Historical Introductions

These2022 pages describe the experimental preview, not current installation or ServiceAccount-waypoint commands.

Verified Milestones and Current Limits

Milestone	Evidence
2022 preview	Experimental implementation announced; not the main1.15 feature release
1.18 Alpha (2023)	First Istio release shipping ambient
1.22 Beta (2024)	Beta milestone
1.24 core GA (2024)	Core ztunnel/waypoint/API milestone; individual features retain their own status

Current ambient multicluster documentation describes Beta multi-primary, multi-network support. Primary/remote is unsupported and single-network deployments are untested; waypoint naming/configuration and service scope must be coordinated across clusters. The old1.26/1.27 roadmap and unattributed enterprise savings are not evidence of supported behavior or guaranteed cost reduction.

Summary

Ambient separates shared L4 transport from selected L7 waypoint processing. It can simplify unmeshed-workload enrollment and proxy lifecycle management, but resource savings, policy preservation and availability require equivalent-policy measurements and a validated migration plan. Account for Linux/CNI/platform constraints, TCP15008 connectivity and the feature status of each API.

Traffic Management

Security

Observability

Resilience

Advanced

Comparison Guide

ArgoCD

Metrics

Logging

Tracing

Alerting

Observability End-to-End Labs

Ambient Mode ​

Table of Contents ​

Overview ​

Why is Ambient Mode Needed? ​

Core Concepts ​

Advantages of Ambient Mode ​

Sidecar Mode vs Ambient Mode ​

Architecture Comparison ​

Sidecar Mode ​

Ambient Mode ​

Detailed Comparison Table ​

Resource Usage Comparison ​

Architecture ​

ztunnel (Zero Trust Tunnel) ​

How ztunnel Works ​

ztunnel Role ​

ztunnel Deployment ​

Waypoint Proxy ​

Key Characteristics of Waypoint ​

Waypoint Deployment Units ​

Waypoint Role ​

Waypoint Deployment ​

Complete Traffic Flow ​

HBONE Protocol ​

Installation and Configuration ​

1. Istio Installation (Ambient Mode) ​

2. Enable Ambient Mode and Deploy the Application ​

3. Deploy and Select a Waypoint ​

4. Use L7 Features ​

Migration ​

From Sidecar Mode to Ambient Mode ​

Step 1: Install Ambient Components ​

Step 2: Apply to Test Namespace ​

Step 3: Verification ​

Step 4: Switch Selected Workloads ​

Step 5: Validate the Chosen Data Path ​

Rollback Strategy ​

Performance Comparison ​

Benchmark Results ​

Resource Savings Calculation ​

Use Cases ​

When Should You Choose Ambient Mode? ​

1. When Only L4 Features Are Needed ​

2. Selective L7 Feature Usage ​

3. Gradual Migration ​

Troubleshooting ​

ztunnel Not Working ​

Traffic Not Going to Waypoint ​

References ​

Current Official Documentation ​

Ambient Mode

Table of Contents

Overview

Why is Ambient Mode Needed?

Core Concepts

Advantages of Ambient Mode

Sidecar Mode vs Ambient Mode

Architecture Comparison

Sidecar Mode

Ambient Mode

Detailed Comparison Table

Resource Usage Comparison

Architecture

ztunnel (Zero Trust Tunnel)

How ztunnel Works

ztunnel Role

ztunnel Deployment

Waypoint Proxy

Key Characteristics of Waypoint

Waypoint Deployment Units

Waypoint Role

Waypoint Deployment

Complete Traffic Flow

HBONE Protocol

Installation and Configuration

1. Istio Installation (Ambient Mode)

2. Enable Ambient Mode and Deploy the Application

3. Deploy and Select a Waypoint

4. Use L7 Features

Migration

From Sidecar Mode to Ambient Mode

Step 1: Install Ambient Components

Step 2: Apply to Test Namespace

Step 3: Verification

Step 4: Switch Selected Workloads

Step 5: Validate the Chosen Data Path

Rollback Strategy

Performance Comparison

Benchmark Results

Resource Savings Calculation

Use Cases

When Should You Choose Ambient Mode?

1. When Only L4 Features Are Needed

2. Selective L7 Feature Usage

3. Gradual Migration

Troubleshooting

ztunnel Not Working

Traffic Not Going to Waypoint

References

Current Official Documentation
