CloudWatch Metrics ​

Last Updated: September 13, 2026 Helm example: amazon-cloudwatch-observability 6.6.0. Historical April/July announcements below retain their actual dates.

Introduction ​

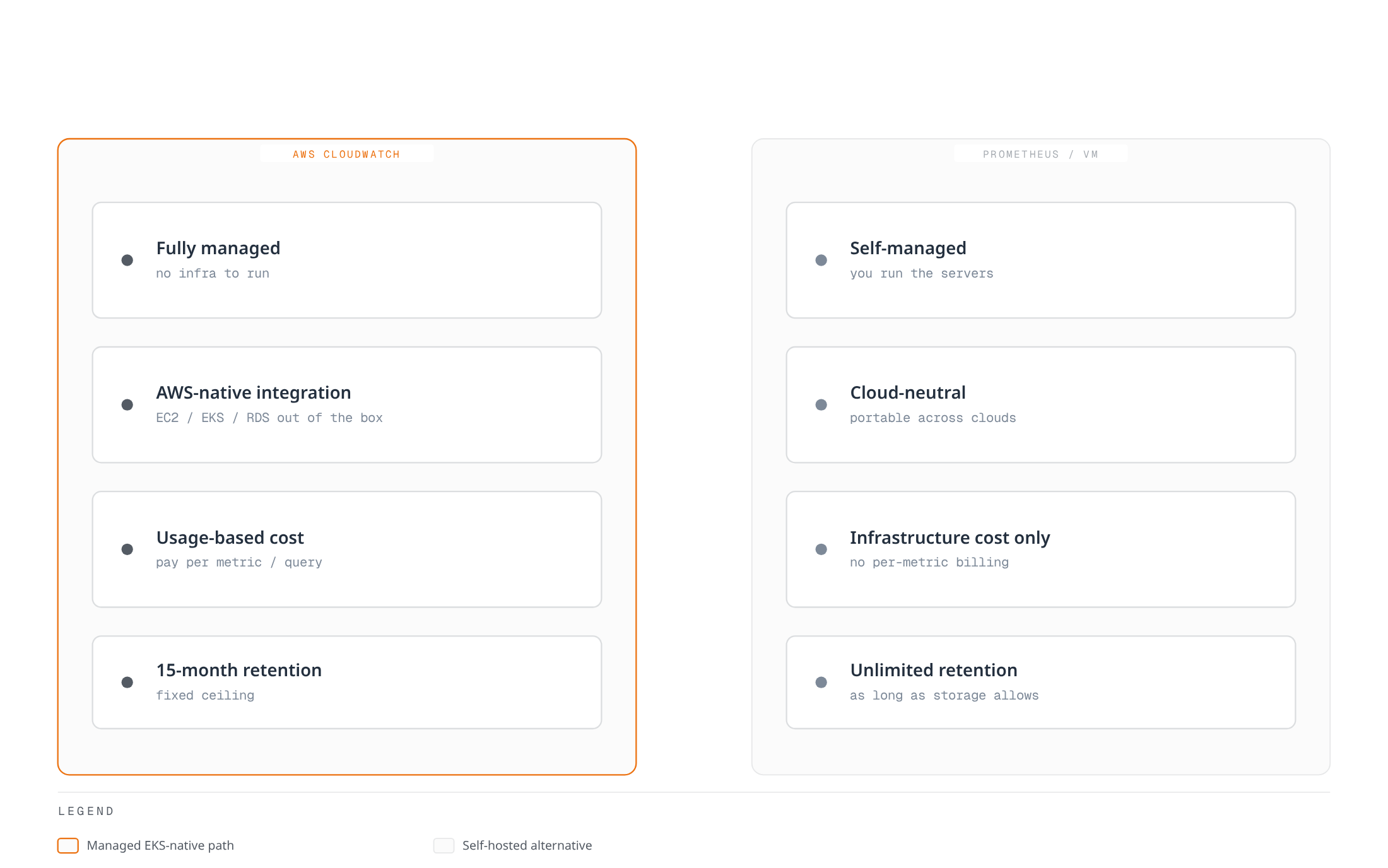

CloudWatch manages storage, query, dashboards and alarms. Teams still configure collectors, workload identity, network access, cardinality, retention and response ownership. A managed backend does not remove these operating responsibilities.

TopicCloudWatchSelf-managed Prometheus / VictoriaMetrics
BackendAWS-managed service; feature/Region availability variesOperate capacity, storage, upgrades and recovery
CollectionAWS service metrics plus configured agents/SDKs/OTLPExporters, agents, scraping and remote write
QueryMetric Math, Metrics Insights; PromQL for OTel metricsPromQL / MetricsQL
CostMetric/observation or OTLP ingestion model, logs, queries and alarmsCompute/storage/network plus operations
PlatformsAWS and supported hybrid/multicloud collectionCloud-neutral deployment choices
RetentionDepends on metric model and resolution; logs have separate retentionConfigured storage/retention policy

Container Insights: choose a metric model ​

The CloudWatch Observability EKS add-on and Helm chart configure an Operator and collection components. Traditional Container Insights uses performance log events and extracted CloudWatch metrics; OTel-based Container Insights sends OpenTelemetry metrics and can use PromQL. These are distinct naming, dimension and billing models.

Traditional ContainerInsights metricMeaning and example dimension set
cluster_node_countNode count; ClusterName
cluster_failed_node_countNodes with failure conditions; ClusterName. Not exclusively NotReady
node_cpu_utilization, node_memory_utilizationNode utilization; ClusterName, or NodeName,ClusterName,InstanceId
node_network_total_bytesNetwork throughput in bytes/second, not a cumulative byte counter
namespace_number_of_running_podsPod count; Namespace,ClusterName
pod_cpu_utilization, pod_memory_utilizationPod usage relative to the node limit; use the documented _over_pod_limit metrics for pod-limit ratios
pod_number_of_container_restartsTotal restarts in a pod; PodName,Namespace,ClusterName

The documented list does not contain cluster_cpu_utilization or cluster_memory_utilization. A node metric with only ClusterName is not automatically a capacity-weighted cluster utilization calculation. Match the exact published dimension set. Some fields appear only in performance logs, and enhanced metrics have additional sets such as FullPodName; do not invent metric names from log fields. Network receive/transmit metrics are also rates. Avoid applying RATE() to them as if they were monotonic byte counters.

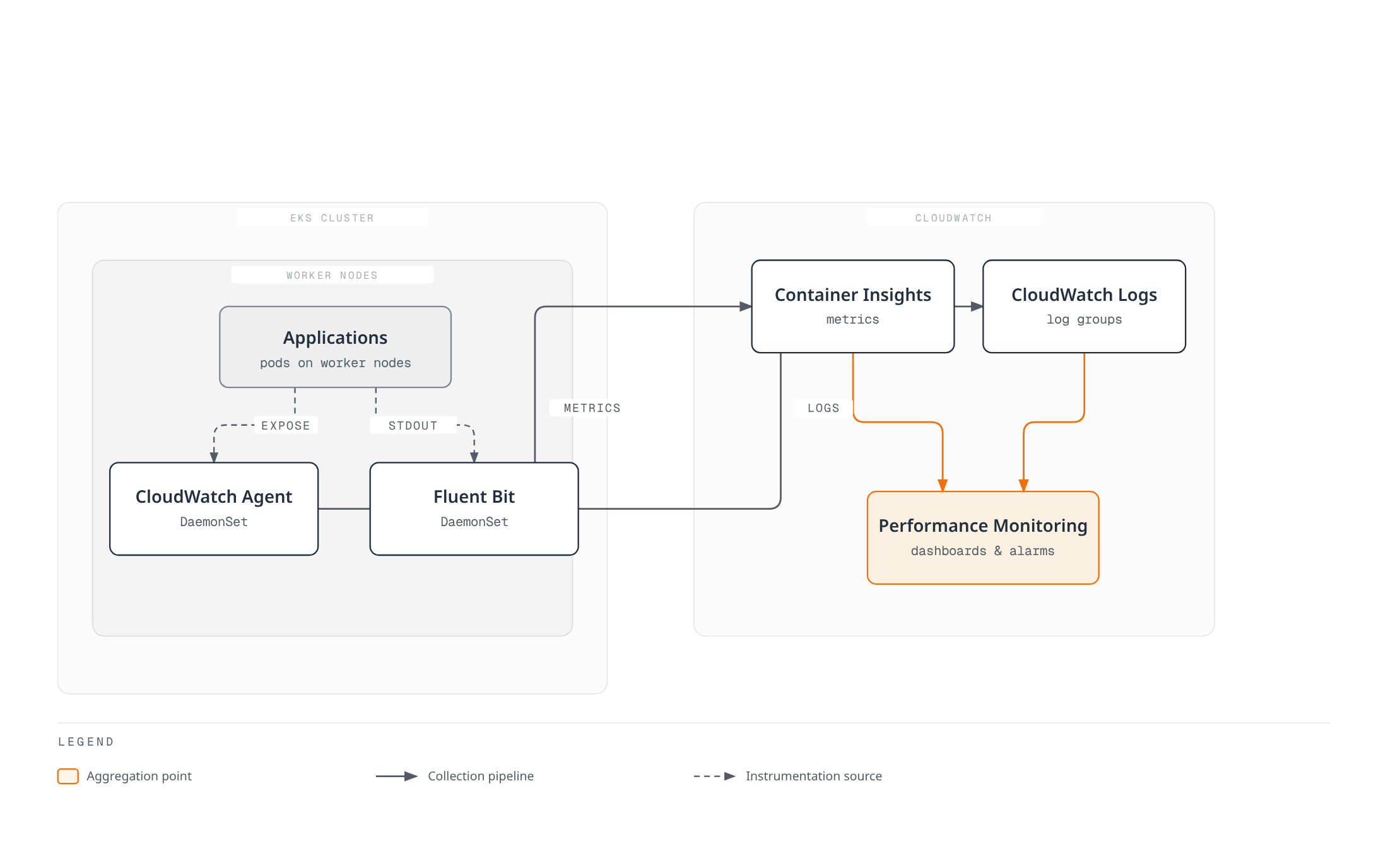

The diagram separates traditional metric extraction, optional OTLP metrics and application logs.

Installation and platform scope ​

Use either the EKS managed add-on or a Helm-owned installation for the same components. Establish ownership before switching; do not install both blindly. For the managed add-on, discover compatibility with the actual Kubernetes version, architecture, compute type and Region. A Helm version is not an EKS v…-eksbuild.… version.

bash
# Read-only discovery. Use the intended account, Region and cluster.
export AWS_REGION=ap-northeast-2
export CLUSTER_NAME=my-cluster
K8S_VERSION=$(aws eks describe-cluster --name "$CLUSTER_NAME" \
  --region "$AWS_REGION" --query 'cluster.version' --output text)
aws eks describe-addon-versions \
  --addon-name amazon-cloudwatch-observability \
  --kubernetes-version "$K8S_VERSION" --region "$AWS_REGION" \
  --query 'addons[0].addonVersions[].{version:addonVersion,architectures:architecture,computeTypes:computeTypes,compatibilities:compatibilities}'

# Set ADDON_VERSION to the exact compatible version selected above.
: "${ADDON_VERSION:?Select a compatible EKS add-on version}"
aws eks describe-addon-configuration \
  --addon-name amazon-cloudwatch-observability \
  --addon-version "$ADDON_VERSION" --region "$AWS_REGION" \
  --query configurationSchema --output text > addon-schema.json

Prepare the add-on's documented IAM permissions and workload identity separately. EKS Pod Identity is recommended by the add-on guide for supported versions; it requires an Agent and an association for the actual namespace/service account. IRSA is an alternative requiring the cluster OIDC provider, trust policy and service account annotation. A local aws sts get-caller-identity only identifies that caller, not credentials used inside the collector.

The add-on supports Container Insights on Linux and Windows worker nodes, with Windows support from 1.5.0; Application Signals on EKS Windows is not supported. Fargate does not run this host-mounted DaemonSet; use its documented collection path. Check Auto Mode and mixed clusters against the selected add-on's supported compute types and collection requirements. Do not promise identical host metrics on every platform. Workloads, collectors and AWS endpoints also need the relevant network paths and RBAC.

The following Helm example targets Linux EC2 worker nodes. Chart 6.6.0 declares agent image 1.300072.0b1766; the public agent GitHub release v1.300071.0 is a different release channel. The chart is pinned and its default image is retained. This review rendered the chart, not a live EKS deployment.

yaml
# cloudwatch-values.yaml: reviewed Helm chart 6.6.0, Linux EC2 example
clusterName: my-cluster
region: ap-northeast-2
containerInsights:
  enabled: true
containerLogs:
  enabled: true
applicationSignals:
  enabled: false
otelContainerInsights:
  enabled: false
  logs:
    enabled: false

In this chart the CloudWatch agent and Fluent Bit use the cloudwatch-agent service account in the release namespace. Prepare its Pod Identity association before expecting telemetry. For IRSA, configure and maintain the annotation on that actual service account; the top-level chart roleArn is not an EKS IRSA shortcut. Review generated CRDs, ClusterRoles, Secrets, host mounts and node selectors. The Operator creates agent workloads from AmazonCloudWatchAgent custom resources; helm template alone does not execute that reconciliation.

Chart 6.6.0 also renders two Windows-specific agent CRs, selected for Windows nodes, even in this Linux example. The Linux applicationSignals.enabled: false setting does not remove those Windows CRs. This example assumes Linux-only nodes; review the generated Windows configuration separately before using it on a mixed cluster.

bash
helm repo add aws-observability https://aws-observability.github.io/helm-charts
helm repo update aws-observability
helm template cloudwatch aws-observability/amazon-cloudwatch-observability \
  --version 6.6.0 --namespace amazon-cloudwatch \
  --include-crds --values cloudwatch-values.yaml > cloudwatch-rendered.yaml

# Installation changes the cluster; run only after reviewing ownership and prerequisites.
helm upgrade --install cloudwatch aws-observability/amazon-cloudwatch-observability \
  --version 6.6.0 --namespace amazon-cloudwatch --create-namespace \
  --values cloudwatch-values.yaml

eksctl utils update-cluster-logging configures EKS control-plane logs. It does not install CloudWatch Agent or enable Container Insights.

OTel migration and historical announcements ​

The current OTel Container Insights guide recommends the OTel path for new development and describes the traditional path as maintenance mode. OTel is disabled by default; the guide requires add-on 6.2.0 or later. Check actual compatible add-on versions and feature availability, not just that minimum.

For the reviewed chart, enable otelContainerInsights.enabled after evaluating the OTel metric model. Keeping containerInsights.enabled: true allows both metric paths during migration, with additional ingestion/cost to assess. The example keeps otelContainerInsights.logs.enabled: false while Fluent Bit collects logs; choose log ownership deliberately instead of duplicating collection.

OTel metrics retain source names such as container_cpu_usage_seconds_total and support up to 150 labels from source/resource/Kubernetes metadata. Traditional PutMetricData metrics have a separate limit of 30 dimensions. Extra labels increase payload size and may expose metadata; they are not a free or unlimited cardinality budget. Accelerator metrics still require supported drivers/plugins/toolkits.

The 2026-04-02 preview announcement listed N. Virginia, Oregon, Sydney, Singapore and Ireland. That is a dated launch record, not today's full availability or pricing table. The 2026-07-06 Service Events announcement describes error, latency and deployment events for active Application Signals applications, supported Java/Python/JavaScript instrumentation and optional function metrics. Application Signals must actually be enabled and instrumented; the metrics-only example above does not enable it. Keep the July date even though the announcement URL contains /06/.

CloudWatch Agent configuration ​

Correct traditional Container Insights JSON ​

The Kubernetes collector belongs under logs.metrics_collected.kubernetes. This fragment shows that traditional collection configuration; it is not a complete DaemonSet, identity policy or replacement for all generated add-on settings. JSON does not permit inline comments.

json
{
  "logs": {
    "metrics_collected": {
      "kubernetes": {
        "cluster_name": "my-cluster",
        "metrics_collection_interval": 60,
        "enhanced_container_insights": true
      }
    }
  }
}

Do not put a second Kubernetes collector under metrics.metrics_collected. With the Helm chart, a custom agent.config overrides generated defaults and can remove Application Signals, trace or other configured collection. Start with the effective rendered configuration and preserve the features you intend to keep. Changing a ConfigMap that is not mounted by the running workload has no effect.

The chart/Operator supplies service accounts, discovery RBAC, configuration mounts and runtime-specific host paths. A hand-written DaemonSet needs all of them and must account for its platform. Do not copy a Docker socket-only deployment into containerd/Fargate/Auto Mode environments and assume equivalent behavior. Host-level collection is privileged access; limit who can alter its workload and service account.

Enhanced observability adds metrics and dimensions, but several reserved-capacity metrics already exist in the traditional list. Verify the enhanced metric catalogue and billing model instead of treating every reserved/GPU metric as enhanced-only. GPU/EFA/Neuron collection also depends on the relevant supported node hardware and software.

Custom Metric Collection ​

Target selection and dimension labels ​

Use one collection owner per target: CloudWatch Agent Prometheus collection, ADOT/EMF, or an appropriate OTLP path. Scraping all pods from every DaemonSet replica can multiply samples and charges. A singleton Deployment is one simple ownership model; HA/sharding requires a reviewed allocation strategy.

This example expects a gauge named queue_depth on /metrics, a pod container port named metrics, annotation prometheus.io/scrape: "true" and label app.kubernetes.io/name in namespace default. The target must be reachable and authorized; add TLS/authentication to match the actual endpoint. This HTTP scrape fragment assumes an allowed internal endpoint, not a public metrics service.

Save the following as prometheus.yaml. It selects the named port and creates all three label values needed by the EMF declaration. An EMF dimension list does not create missing labels. A pod label used for Service is a logical service identity; it is not proof that a Kubernetes Service object exists.

yaml
global:
  scrape_interval: 30s
  scrape_timeout: 10s
scrape_configs:
- job_name: my-app
  kubernetes_sd_configs:
  - role: pod
    namespaces:
      names:
      - default
  relabel_configs:
  - source_labels:
    - __meta_kubernetes_pod_annotation_prometheus_io_scrape
    action: keep
    regex: 'true'
  - source_labels:
    - __meta_kubernetes_pod_container_port_name
    action: keep
    regex: metrics
  - source_labels:
    - __meta_kubernetes_namespace
    target_label: Namespace
  - source_labels:
    - __meta_kubernetes_pod_label_app_kubernetes_io_name
    target_label: Service
  - source_labels:
    - Service
    action: keep
    regex: .+
  - target_label: ClusterName
    replacement: my-cluster
  metric_relabel_configs:
  - source_labels:
    - __name__
    action: keep
    regex: queue_depth

CloudWatch Agent Prometheus configuration ​

The agent's JSON and Prometheus YAML are two separate files. Mount the former in the agent's configured input path and the latter at the exact /etc/prometheusconfig/prometheus.yaml path referenced below. This is the config for a separately owned collector, not a complete installation or an override to paste into every Container Insights DaemonSet.

json
{
  "logs": {
    "metrics_collected": {
      "prometheus": {
        "cluster_name": "my-cluster",
        "log_group_name": "/aws/containerinsights/my-cluster/prometheus",
        "prometheus_config_path": "/etc/prometheusconfig/prometheus.yaml",
        "emf_processor": {
          "metric_declaration_dedup": true,
          "metric_namespace": "CustomMetrics",
          "metric_unit": {
            "queue_depth": "Count"
          },
          "metric_declaration": [
            {
              "source_labels": [
                "job"
              ],
              "label_matcher": "^my-app$",
              "dimensions": [
                [
                  "ClusterName",
                  "Namespace",
                  "Service"
                ]
              ],
              "metric_selectors": [
                "^queue_depth$"
              ]
            }
          ]
        }
      }
    }
  }
}

The official traditional Prometheus integration documents gauge, counter and summary support, not automatic import of Prometheus histograms. Counter deltas, first samples, resets and summary fields require their own interpretation. This example deliberately uses a gauge: Average/Maximum describe queue depth, while summing snapshots does not count processed requests. Use the OTel path where appropriate and verify its actual histogram/temporality mapping separately.

AWS Distro for OpenTelemetry (ADOT) ​

For the EMF path, an ADOT collector with the prometheus receiver and awsemf exporter can use the following config.yaml. The reviewed ADOT release is v0.50.0; confirm its image/platform and enabled components for your deployment. The exporter sends EMF log events, which CloudWatch extracts into traditional metrics. It is not a statement that every modern CloudWatch/OTLP path uses EMF.

yaml
receivers:
  prometheus:
    config:
      global:
        scrape_interval: 30s
        scrape_timeout: 10s
      scrape_configs:
      - job_name: my-app
        kubernetes_sd_configs:
        - role: pod
          namespaces:
            names:
            - default
        relabel_configs:
        - source_labels:
          - __meta_kubernetes_pod_annotation_prometheus_io_scrape
          action: keep
          regex: 'true'
        - source_labels:
          - __meta_kubernetes_pod_container_port_name
          action: keep
          regex: metrics
        - source_labels:
          - __meta_kubernetes_namespace
          target_label: Namespace
        - source_labels:
          - __meta_kubernetes_pod_label_app_kubernetes_io_name
          target_label: Service
        - source_labels:
          - Service
          action: keep
          regex: .+
        - target_label: ClusterName
          replacement: my-cluster
        metric_relabel_configs:
        - source_labels:
          - __name__
          action: keep
          regex: queue_depth
processors:
  memory_limiter:
    check_interval: 1s
    limit_mib: 384
    spike_limit_mib: 64
  batch:
    timeout: 10s
exporters:
  awsemf:
    region: ap-northeast-2
    namespace: CustomMetrics
    log_group_name: /aws/containerinsights/my-cluster/prometheus
    dimension_rollup_option: NoDimensionRollup
    metric_declarations:
    - dimensions:
      - - ClusterName
        - Namespace
        - Service
      metric_name_selectors:
      - ^queue_depth$
service:
  pipelines:
    metrics:
      receivers:
      - prometheus
      processors:
      - memory_limiter
      - batch
      exporters:
      - awsemf

The collector must run with a config mount and --config pointing to that file, workload IAM credentials allowed to write the intended Standard-class EMF log group/streams, and memory limits consistent with the limiter. It also needs Kubernetes discovery RBAC and network access to the selected targets and AWS Logs. The following Role is scoped to the one discovered namespace; create the amazon-cloudwatch namespace first and bind this SA to the actual collector.

yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: metrics-scraper
  namespace: amazon-cloudwatch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: metrics-pod-discovery
  namespace: default
rules:
- apiGroups:
  - ''
  resources:
  - pods
  verbs:
  - get
  - list
  - watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: metrics-pod-discovery
  namespace: default
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: metrics-pod-discovery
subjects:
- kind: ServiceAccount
  name: metrics-scraper
  namespace: amazon-cloudwatch

IAM and Kubernetes RBAC are separate. Associate the collector SA with its own Pod Identity role or correctly configured IRSA role; no role is created by this RBAC manifest. Pre-create/own the log group or explicitly authorize its creation. When using more replicas or namespaces, review target ownership and expand only the necessary discovery permissions. The config fragments were not deployed or used to send metrics during this audit.

Send Custom Metrics via SDK ​

These are reusable helpers, not standalone executables. The caller creates and reuses a boto3/AWS SDK for Go v2 CloudWatch client with the intended Region, workload credentials, timeouts and retry policy. Errors propagate to that caller. No credentials are embedded. The Python timestamp is timezone-aware UTC. The value is the count for the application's reporting interval; query it with Sum for a matching window rather than treating it as a cumulative counter. PutMetricData has no idempotency token, so ambiguous retries can duplicate samples; do not treat telemetry submission as an exactly-once business ledger.

python
from datetime import datetime, timezone


def put_orders_processed(cloudwatch, count):
    """The caller supplies a configured boto3 CloudWatch client."""
    if isinstance(count, bool) or not isinstance(count, int) or count < 0:
        raise ValueError("count must be a non-negative integer")
    return cloudwatch.put_metric_data(
        Namespace="MyApp/Production",
        MetricData=[{
            "MetricName": "OrdersProcessed",
            "Dimensions": [
                {"Name": "Service", "Value": "order-service"},
                {"Name": "Environment", "Value": "production"},
            ],
            "Timestamp": datetime.now(timezone.utc),
            "Value": count,
            "Unit": "Count",
            "StorageResolution": 60,
        }],
    )
go
package metrics

import (
    "context"
    "time"

    "github.com/aws/aws-sdk-go-v2/aws"
    "github.com/aws/aws-sdk-go-v2/service/cloudwatch"
    "github.com/aws/aws-sdk-go-v2/service/cloudwatch/types"
)

func PutOrdersProcessed(ctx context.Context, client *cloudwatch.Client, count uint64) error {
    _, err := client.PutMetricData(ctx, &cloudwatch.PutMetricDataInput{
        Namespace: aws.String("MyApp/Production"),
        MetricData: []types.MetricDatum{{
            MetricName: aws.String("OrdersProcessed"),
            Dimensions: []types.Dimension{
                {Name: aws.String("Service"), Value: aws.String("order-service")},
                {Name: aws.String("Environment"), Value: aws.String("production")},
            },
            Timestamp: aws.Time(time.Now().UTC()),
            Value: aws.Float64(float64(count)),
            Unit: types.StandardUnitCount,
            StorageResolution: aws.Int32(60),
        }},
    })
    return err
}

Namespace, metric name and the complete dimension set identify a traditional metric. Omitting Environment queries a different identity; custom dimensions do not automatically produce all aggregate series. Batch within the documented API limits and constrain cloudwatch:PutMetricData to the intended namespace with the cloudwatch:namespace IAM condition.

Metric Math and Anomaly Detection ​

Metric Math ​

Use the same time period, dimensions and compatible units for related series. ALB target-error and request metrics are counts, so the widget uses Sum. Confirm the actual load-balancer dimension value and that both metrics belong to it.

json
{
  "metrics": [
    [{"expression": "IF(m2>0,100*m1/m2)", "label": "Target 5xx / requests (%)", "id": "e1"}],
    ["AWS/ApplicationELB", "HTTPCode_Target_5XX_Count", "LoadBalancer", "app/replace-with-your-alb/id", {"id": "m1", "visible": false}],
    [".", "RequestCount", ".", ".", {"id": "m2", "visible": false}]
  ],
  "view": "timeSeries",
  "region": "ap-northeast-2",
  "period": 60,
  "stat": "Sum"
}

CloudWatch arithmetic treats missing datapoints as zero; division by zero drops the result. The IF keeps zero-traffic periods out of this ratio. For request traffic with no published target-5xx count, the missing numerator contributes zero. Distinguish that documented sparse metric behavior from a broken collection path; missing request telemetry must not be presented as a healthy zero-error result.

Expression or settingMeaning / limitation
SUM(METRICS()), AVG(METRICS())Combine the widget's metric time series; not a temporal moving average
AVG(m1), STDDEV(m1)Scalar summaries of one series; cannot be the final time-series result alone
DIFF(m1), RATE(m1)Difference/rate of datapoints; inspect source semantics, sparsity and resets
FILL(m1,0)Explicit fill; may hide a telemetry outage if used without an independent freshness check
Metric statistic p95Percentile of the selected metric's eligible samples
period: 300, stat: "Average"Five-minute aggregation buckets; not a sliding five-minute mean
SEARCH(...)Array of matching metric series for a dashboard; not directly alarmable
SLICE(SORT(SEARCH(...), AVG, DESC), 0, 10)Rank matching series by average over the evaluated range and keep ten

PERCENTILE(m1,95) and AVG(METRICS()) PERIOD(300) are not valid Metric Math. Choose p95 as a metric statistic when supported. Averaging or taking the percentile of service-level p95 values does not reconstruct a global request-latency p95: that requires a compatible distribution/sample aggregation at the collection layer. Do not mix CloudWatch Metric Math semantics with PromQL.

Anomaly Detection ​

CloudWatch Anomaly Detection automatically detects abnormal metric patterns using ML.

bash
# Enable anomaly detection via CLI
aws cloudwatch put-anomaly-detector \
  --namespace ContainerInsights \
  --metric-name pod_cpu_utilization \
  --stat Average \
  --dimensions Name=ClusterName,Value=my-cluster

# Create anomaly detection alarm
aws cloudwatch put-metric-alarm \
  --alarm-name "AnomalyDetection-PodCPU" \
  --comparison-operator LessThanLowerOrGreaterThanUpperThreshold \
  --evaluation-periods 2 \
  --metrics '[
    {
      "Id": "m1",
      "MetricStat": {
        "Metric": {
          "Namespace": "ContainerInsights",
          "MetricName": "pod_cpu_utilization",
          "Dimensions": [{"Name": "ClusterName", "Value": "my-cluster"}]
        },
        "Period": 300,
        "Stat": "Average"
      },
      "ReturnData": true
    },
    {
      "Id": "ad1",
      "Expression": "ANOMALY_DETECTION_BAND(m1, 2)",
      "ReturnData": true
    }
  ]' \
  --threshold-metric-id ad1 \
  --alarm-actions arn:aws:sns:ap-northeast-2:123456789012:my-alerts

Anomaly Detection with Terraform ​

hcl
resource "aws_cloudwatch_metric_alarm" "anomaly_detection" {
  alarm_name          = "pod-cpu-anomaly"
  comparison_operator = "LessThanLowerOrGreaterThanUpperThreshold"
  evaluation_periods  = 2
  threshold_metric_id = "ad1"

  metric_query {
    id          = "m1"
    return_data = true

    metric {
      metric_name = "pod_cpu_utilization"
      namespace   = "ContainerInsights"
      period      = 300
      stat        = "Average"

      dimensions = {
        ClusterName = var.cluster_name
      }
    }
  }

  metric_query {
    id          = "ad1"
    expression  = "ANOMALY_DETECTION_BAND(m1, 2)"
    label       = "Anomaly Detection Band"
    return_data = true
  }

  alarm_actions = [var.alert_topic_arn]

  tags = {
    Environment = "production"
  }
}

Dashboard Creation ​

CloudFormation ​

This template preserves node CPU/memory/count, namespace pod count, network throughput and top-ten pod views. Use the actual published namespace/dimensions. namespace_number_of_running_pods is a pod count; counting running containers does not give the same value. Count snapshots use Average, not repeated-sample Sum. The network metric is already bytes/second. The top-ten view ranks series over the selected range; it is not a separate ten-pod alarm.

yaml
AWSTemplateFormatVersion: '2010-09-09'
Description: Traditional Container Insights dashboard
Parameters:
  ClusterName:
    Type: String
    MinLength: 1
  NamespaceName:
    Type: String
    Default: default
    MinLength: 1
Resources:
  Dashboard:
    Type: AWS::CloudWatch::Dashboard
    Properties:
      DashboardName:
        Fn::Sub: ${AWS::StackName}-${AWS::Region}
      DashboardBody:
        Fn::Sub: |-
          {
            "widgets": [
              {
                "type": "metric",
                "x": 0,
                "y": 0,
                "width": 8,
                "height": 6,
                "properties": {
                  "title": "Node CPU (ClusterName series)",
                  "region": "${AWS::Region}",
                  "period": 60,
                  "stat": "Average",
                  "view": "timeSeries",
                  "metrics": [
                    [
                      "ContainerInsights",
                      "node_cpu_utilization",
                      "ClusterName",
                      "${ClusterName}"
                    ]
                  ]
                }
              },
              {
                "type": "metric",
                "x": 8,
                "y": 0,
                "width": 8,
                "height": 6,
                "properties": {
                  "title": "Node memory (ClusterName series)",
                  "region": "${AWS::Region}",
                  "period": 60,
                  "stat": "Average",
                  "view": "timeSeries",
                  "metrics": [
                    [
                      "ContainerInsights",
                      "node_memory_utilization",
                      "ClusterName",
                      "${ClusterName}"
                    ]
                  ]
                }
              },
              {
                "type": "metric",
                "x": 16,
                "y": 0,
                "width": 8,
                "height": 6,
                "properties": {
                  "title": "Node count",
                  "region": "${AWS::Region}",
                  "period": 60,
                  "stat": "Average",
                  "view": "singleValue",
                  "metrics": [
                    [
                      "ContainerInsights",
                      "cluster_node_count",
                      "ClusterName",
                      "${ClusterName}"
                    ]
                  ]
                }
              },
              {
                "type": "metric",
                "x": 0,
                "y": 6,
                "width": 8,
                "height": 6,
                "properties": {
                  "title": "Running pods in namespace",
                  "region": "${AWS::Region}",
                  "period": 60,
                  "stat": "Average",
                  "view": "timeSeries",
                  "metrics": [
                    [
                      "ContainerInsights",
                      "namespace_number_of_running_pods",
                      "Namespace",
                      "${NamespaceName}",
                      "ClusterName",
                      "${ClusterName}"
                    ]
                  ]
                }
              },
              {
                "type": "metric",
                "x": 8,
                "y": 6,
                "width": 8,
                "height": 6,
                "properties": {
                  "title": "Node network (bytes/second)",
                  "region": "${AWS::Region}",
                  "period": 60,
                  "stat": "Average",
                  "view": "timeSeries",
                  "metrics": [
                    [
                      "ContainerInsights",
                      "node_network_total_bytes",
                      "ClusterName",
                      "${ClusterName}"
                    ]
                  ]
                }
              },
              {
                "type": "metric",
                "x": 16,
                "y": 6,
                "width": 8,
                "height": 6,
                "properties": {
                  "title": "Top 10 pod series by average CPU",
                  "region": "${AWS::Region}",
                  "view": "timeSeries",
                  "period": 60,
                  "metrics": [
                    [
                      {
                        "expression": "SLICE(SORT(SEARCH('{ContainerInsights,ClusterName,Namespace,PodName} MetricName=\"pod_cpu_utilization\" ClusterName=\"${ClusterName}\"', 'Average', 60), AVG, DESC), 0, 10)",
                        "id": "top10",
                        "label": "Pod CPU"
                      }
                    ]
                  ]
                }
              }
            ]
          }

Terraform ​

Use the following HCL fragments in a root module with an AWS provider pinned by your version constraints/lock file and configured for the intended account/Region. Declare these inputs once for the anomaly, dashboard and alarm examples; supply the existing SNS topic ARN rather than referencing an undeclared topic resource.

hcl
variable "cluster_name" {
  type = string
}
variable "namespace_name" {
  type    = string
  default = "default"
}
variable "region" {
  type = string
}
variable "alert_topic_arn" {
  type = string
}
hcl
resource "aws_cloudwatch_dashboard" "eks_monitoring" {
  dashboard_name = "${var.cluster_name}-${var.region}-metrics"
  dashboard_body = jsonencode({
  "widgets": [
    {
      "type": "metric",
      "x": 0,
      "y": 0,
      "width": 8,
      "height": 6,
      "properties": {
        "title": "Node CPU (ClusterName series)",
        "region": "${var.region}",
        "period": 60,
        "stat": "Average",
        "view": "timeSeries",
        "metrics": [
          [
            "ContainerInsights",
            "node_cpu_utilization",
            "ClusterName",
            "${var.cluster_name}"
          ]
        ]
      }
    },
    {
      "type": "metric",
      "x": 8,
      "y": 0,
      "width": 8,
      "height": 6,
      "properties": {
        "title": "Node memory (ClusterName series)",
        "region": "${var.region}",
        "period": 60,
        "stat": "Average",
        "view": "timeSeries",
        "metrics": [
          [
            "ContainerInsights",
            "node_memory_utilization",
            "ClusterName",
            "${var.cluster_name}"
          ]
        ]
      }
    },
    {
      "type": "metric",
      "x": 16,
      "y": 0,
      "width": 8,
      "height": 6,
      "properties": {
        "title": "Node count",
        "region": "${var.region}",
        "period": 60,
        "stat": "Average",
        "view": "singleValue",
        "metrics": [
          [
            "ContainerInsights",
            "cluster_node_count",
            "ClusterName",
            "${var.cluster_name}"
          ]
        ]
      }
    },
    {
      "type": "metric",
      "x": 0,
      "y": 6,
      "width": 8,
      "height": 6,
      "properties": {
        "title": "Running pods in namespace",
        "region": "${var.region}",
        "period": 60,
        "stat": "Average",
        "view": "timeSeries",
        "metrics": [
          [
            "ContainerInsights",
            "namespace_number_of_running_pods",
            "Namespace",
            "${var.namespace_name}",
            "ClusterName",
            "${var.cluster_name}"
          ]
        ]
      }
    },
    {
      "type": "metric",
      "x": 8,
      "y": 6,
      "width": 8,
      "height": 6,
      "properties": {
        "title": "Node network (bytes/second)",
        "region": "${var.region}",
        "period": 60,
        "stat": "Average",
        "view": "timeSeries",
        "metrics": [
          [
            "ContainerInsights",
            "node_network_total_bytes",
            "ClusterName",
            "${var.cluster_name}"
          ]
        ]
      }
    },
    {
      "type": "metric",
      "x": 16,
      "y": 6,
      "width": 8,
      "height": 6,
      "properties": {
        "title": "Top 10 pod series by average CPU",
        "region": "${var.region}",
        "view": "timeSeries",
        "period": 60,
        "metrics": [
          [
            {
              "expression": "SLICE(SORT(SEARCH('{ContainerInsights,ClusterName,Namespace,PodName} MetricName=\"pod_cpu_utilization\" ClusterName=\"${var.cluster_name}\"', 'Average', 60), AVG, DESC), 0, 10)",
              "id": "top10",
              "label": "Pod CPU"
            }
          ]
        ]
      }
    }
  ]
})
}

Alert Configuration ​

The following CloudFormation template is independent of the dashboard template; it declares its inputs. Thresholds are examples, not universal incident criteria. A ClusterName-only node series can conceal one hot node; inspect per-node series and the aggregation you need. Validate alarm delivery and missing-data behavior.

yaml
AWSTemplateFormatVersion: '2010-09-09'
Description: Example traditional metric alarms; tune thresholds
Parameters:
  ClusterName:
    Type: String
    MinLength: 1
  NamespaceName:
    Type: String
    Default: default
    MinLength: 1
  PodMetricName:
    Type: String
    Description: Exact published PodName dimension value
    MinLength: 1
  AlertTopicArn:
    Type: String
    Description: Existing authorized SNS topic with confirmed delivery
    AllowedPattern: ^arn:[^:]+:sns:[^:]+:[0-9]{12}:.+$
Resources:
  HighCPU:
    Type: AWS::CloudWatch::Alarm
    Properties:
      AlarmDescription: Node CPU ClusterName series exceeds the example threshold
      Namespace: ContainerInsights
      MetricName: node_cpu_utilization
      Dimensions:
      - Name: ClusterName
        Value:
          Ref: ClusterName
      Statistic: Average
      Period: 300
      EvaluationPeriods: 2
      DatapointsToAlarm: 2
      Threshold: 80
      ComparisonOperator: GreaterThanThreshold
      TreatMissingData: missing
      AlarmActions:
      - Ref: AlertTopicArn
  HighMemory:
    Type: AWS::CloudWatch::Alarm
    Properties:
      AlarmDescription: Node memory ClusterName series exceeds the example threshold
      Namespace: ContainerInsights
      MetricName: node_memory_utilization
      Dimensions:
      - Name: ClusterName
        Value:
          Ref: ClusterName
      Statistic: Average
      Period: 300
      EvaluationPeriods: 2
      DatapointsToAlarm: 2
      Threshold: 85
      ComparisonOperator: GreaterThanThreshold
      TreatMissingData: missing
      AlarmActions:
      - Ref: AlertTopicArn
  PodRestartTotal:
    Type: AWS::CloudWatch::Alarm
    Properties:
      AlarmDescription: Observed restart total exceeds 5; not five new restarts per
        period
      Namespace: ContainerInsights
      MetricName: pod_number_of_container_restarts
      Dimensions:
      - Name: ClusterName
        Value:
          Ref: ClusterName
      - Name: Namespace
        Value:
          Ref: NamespaceName
      - Name: PodName
        Value:
          Ref: PodMetricName
      Statistic: Maximum
      Period: 300
      EvaluationPeriods: 2
      DatapointsToAlarm: 2
      Threshold: 5
      ComparisonOperator: GreaterThanThreshold
      TreatMissingData: missing
      AlarmActions:
      - Ref: AlertTopicArn

The restart alarm evaluates a total, not five new restarts within five minutes. Use the exact PodName metric dimension; it may represent a workload-normalized name rather than a full Kubernetes pod name. Pod replacement and metric identity changes can reset/split observations. For a recent-restart alert, define and validate the delta/rate collection and reset behavior separately.

Anomaly detection models need suitable history and are not instant proof of an incident. The observed series and ANOMALY_DETECTION_BAND query can both have ReturnData: true in the documented anomaly-alarm form; do not apply the generic single-output math-alarm rule to remove the required series blindly.

Terraform alarms ​

hcl
resource "aws_cloudwatch_metric_alarm" "high_cpu" {
  alarm_name          = "${var.cluster_name}-node-cpu"
  comparison_operator = "GreaterThanThreshold"
  evaluation_periods  = 2
  datapoints_to_alarm  = 2
  metric_name         = "node_cpu_utilization"
  namespace           = "ContainerInsights"
  period              = 300
  statistic           = "Average"
  threshold           = 80
  treat_missing_data  = "missing"
  alarm_description   = "Node CPU ClusterName series exceeds the example threshold"
  dimensions          = { ClusterName = var.cluster_name }
  alarm_actions       = [var.alert_topic_arn]
  ok_actions          = [var.alert_topic_arn]
}

resource "aws_cloudwatch_metric_alarm" "failed_nodes" {
  alarm_name          = "${var.cluster_name}-failed-nodes"
  comparison_operator = "GreaterThanThreshold"
  evaluation_periods  = 2
  datapoints_to_alarm  = 2
  metric_name         = "cluster_failed_node_count"
  namespace           = "ContainerInsights"
  period              = 60
  statistic           = "Maximum"
  threshold           = 0
  treat_missing_data  = "missing"
  alarm_description   = "Node failure conditions; inspect the actual conditions"
  dimensions          = { ClusterName = var.cluster_name }
  alarm_actions       = [var.alert_topic_arn]
}

cluster_failed_node_count covers node failure conditions, not only NotReady. TreatMissingData: missing makes telemetry gaps visible as insufficient data when appropriate; it does not itself send a notification unless that action is configured. Use a separate collection-health check and verify SNS subscriptions, policies and delivery. A successful template/plan does not prove a metric has datapoints.

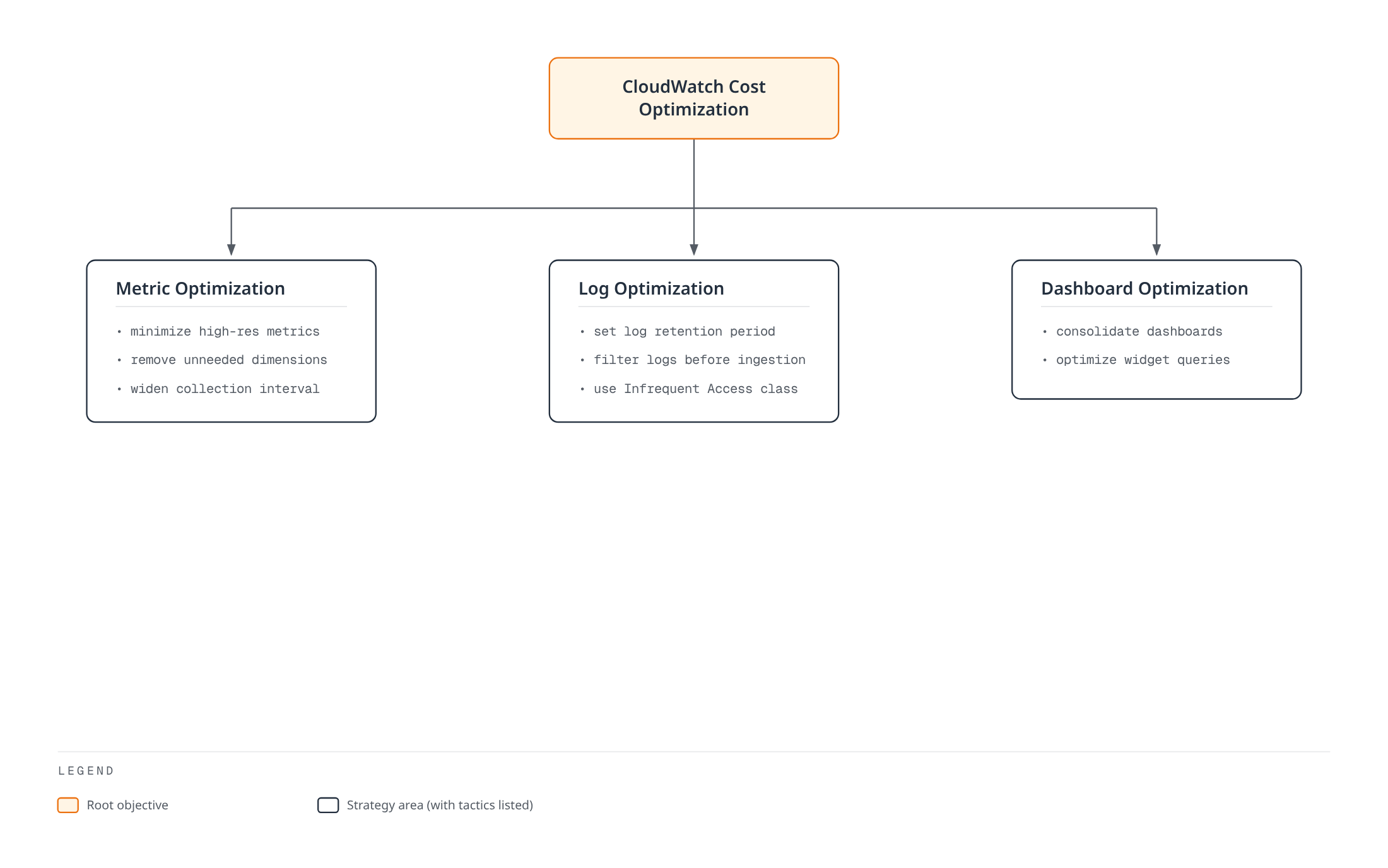

Cost Optimization ​

Match the billing model to collection ​

PathCost drivers to verify
Traditional custom metrics / PutMetricDataPublished metric/dimension identities, API usage, queries and alarms
EKS Container Insights with enhanced observabilityObservation-based tiers; performance-log storage and container logs are additional
OTel metricsOTLP ingestion bytes including attributes/resource metadata; applicable query and centralization charges
LogsIngestion, storage, query scans and enabled features

Do not reuse a fixed Seoul price table or a blanket “first ten metrics/1M API calls are free” assumption across all products and account offers. Consult the current Region/product pricing and account eligibility. OTel pricing is not the traditional per-unique-metric model. More labels still increase bytes and disclosure risk. Enabling both traditional and OTel collection may incur both models' costs.

One-second custom metrics do not have a universal tenfold per-metric storage rate. More frequent PutMetricData requests and high-resolution alarms can increase charges. Batch supported requests, collect only required series and choose resolution against the detection objective. Standard metric retention rolls up older samples; “15 months” does not mean every one-second sample remains queryable for 15 months.

Retention is a data-deletion decision ​

Set retention for an explicit, approved log group. A shorter retention can expire existing history; it is not just a future billing preference. Never loop over every account log group without retention and assign a short period.

bash
# Inspect exactly one owned log group and its current retention before changing it.
: "${AWS_REGION:?Set the intended Region}"
: "${OWNED_LOG_GROUP:?Set one approved log group name}"
aws logs describe-log-groups --region "$AWS_REGION" \
  --log-group-name-prefix "$OWNED_LOG_GROUP" \
  --query 'logGroups[].{name:logGroupName,retention:retentionInDays,class:logGroupClass}'

# Only after checking exact name, ownership and the approved retention requirement:
aws logs put-retention-policy --region "$AWS_REGION" \
  --log-group-name "$OWNED_LOG_GROUP" --retention-in-days 30

The prefix query can return additional groups. Inspect the exact name; the write uses only OWNED_LOG_GROUP. Apply the organization's legal/incident retention requirement instead of treating this illustrative 30-day value as universal. For repeatable operations, manage this in the log group's owned IaC.

Infrequent Access has feature constraints ​

Standard and Infrequent Access differ in ingestion price; storage and Logs Insights query pricing are the same. A log group's class cannot be changed after creation. Infrequent Access does not support EMF, Container Insights log ingestion, metric filters, subscription filters or Live Tail. Do not move this guide's performance/ EMF logs to that class as a blanket saving. Evaluate it for eligible forensic/archive logs, with its supported query features. A lower ingestion price does not imply 50% savings on the total observability bill.

Cost visibility ​

Use billed usage and cost allocation for cost analysis. ListMetrics is discovery, not an invoice or a complete historical-series inventory; inactive metrics may not appear. Counting dimension names does not measure unique dimension-value combinations, and therefore is not cardinality measurement.

CloudWatch AWS/Billing estimated-charge metrics require billing alerts to be enabled and are published in us-east-1. Verify the applicable account/payer scope and actual Currency/service dimensions. They update periodically and are not a spending cap. Use AWS Budgets/Cost Explorer for service cost tracking and alerts; an SNS subscription must also be confirmed and its delivery tested.

Best Practices ​

  • Separate application namespaces from AWS/collector-owned namespaces. Namespace is metric identity, not an IAM security boundary by itself.
  • Use stable service/environment dimensions; avoid user IDs, request IDs, raw URLs or other sensitive/high-cardinality labels. Missing or renamed dimensions change identity.
  • Classify each metric as a gauge, interval count, cumulative counter or distribution before choosing Average, Sum, percentile or rate. Inspect actual samples/resets.
  • Define detection windows, missing-data behavior and delivery ownership together. Use SLO/customer impact plus resource/collection health rather than CPU alone.
  • Record the collection model, pinned versions, IAM/SA ownership, retention decisions and measured cost. Do not switch models or delete history merely to match a sample.

Troubleshooting ​

No metrics or unexpected values ​

Check the selected model first: an OTel source name is not necessarily a traditional ContainerInsights name. Check Region, namespace, complete dimension set, requested time range/statistic and the delay between collection and visibility. Inspect collector health/logs, actual mounted configuration and scrape target/label selection. An annotation alone does not guarantee the target port/path is correct.

bash
# Read-only checks; use the actual Region and installation owner.
aws eks describe-addon --cluster-name "$CLUSTER_NAME" \
  --addon-name amazon-cloudwatch-observability --region "$AWS_REGION" \
  --query 'addon.{version:addonVersion,status:status,health:health,config:configurationValues}'
kubectl get amazoncloudwatchagents -n amazon-cloudwatch
kubectl get pods,daemonsets,deployments,serviceaccounts -n amazon-cloudwatch

aws cloudwatch list-metrics --region "$AWS_REGION" \
  --namespace ContainerInsights --metric-name node_cpu_utilization \
  --dimensions "Name=ClusterName,Value=$CLUSTER_NAME"

: "${ALARM_NAME:?Set one alarm name}"
aws cloudwatch describe-alarms --alarm-names "$ALARM_NAME" --region "$AWS_REGION"
aws cloudwatch describe-alarm-history --alarm-name "$ALARM_NAME" \
  --history-item-type StateUpdate --region "$AWS_REGION"

describe-addon applies to a managed add-on; a Helm-only installation has no corresponding add-on record. ListMetrics filtering matches metrics containing the requested dimensions and can return additional dimensions. Inspect the returned complete set before querying. Discovery does not prove recent datapoints, complete historical inventory or current billed cardinality.

Check Kubernetes discovery authorization separately from IAM. Review the actual collector SA/association or IRSA trust and the credential provider selected inside that workload. A local STS command or IAM policy simulation alone does not prove end-to-end authorization: SCPs, resource policies, endpoints and runtime identity can change the result. Do not log temporary credentials or tokens while diagnosing.

High cost or inactive alarms ​

Use billing usage categories to separate duplicate scrapes, extra dimension sets, enhanced observations, OTLP payload, logs, scans and alarm/query usage. Remove unneeded collection at its owner; do not shorten every log group's retention. For an inactive alarm, inspect its actual metric data, state reason, missing-data policy and history. Then verify action enablement, SNS topic permissions, subscription confirmation and delivery. A non-breaching alarm and an alarm with no usable telemetry are different states.

Validation scope ​

This guide distinguishes configuration/structure checks from deployed behavior. No EKS installation, identity/credential lookup, metric/log submission, retention change, CloudFormation/Terraform apply, real alarm delivery or pricing measurement was performed during the audit. Collector fragments require the stated runtime, mount, RBAC, identity and network prerequisites. Validate actual targets and end-to-end results before operational use.

Local checks included Helm 6.6.0 rendering, the agent v1.300071.0 JSON schema, Python 3.12.13/boto3 1.42.97 requests under Stubber, HCL syntax and Markdown/diagram rendering. The chart retains its newer declared image; the schema check is not validation of that running binary. ADOT v0.50.0 component fields and Go SDK CloudWatch v1.72.0 API types were inspected in source; neither collector execution nor Go compilation was performed. Metric Math was checked against the reference and arithmetic cases, without calling the CloudWatch expression engine.

References ​

Quiz
