ArgoCD Projects and RBAC
Reviewed Against: Argo CD 3.5.2; updated to patch 3.5.4 after release-note review (examples not re-run) Last Updated: October 12, 2026
Table of Contents
- AppProject Overview
- Default Project
- Custom Projects
- RBAC Configuration

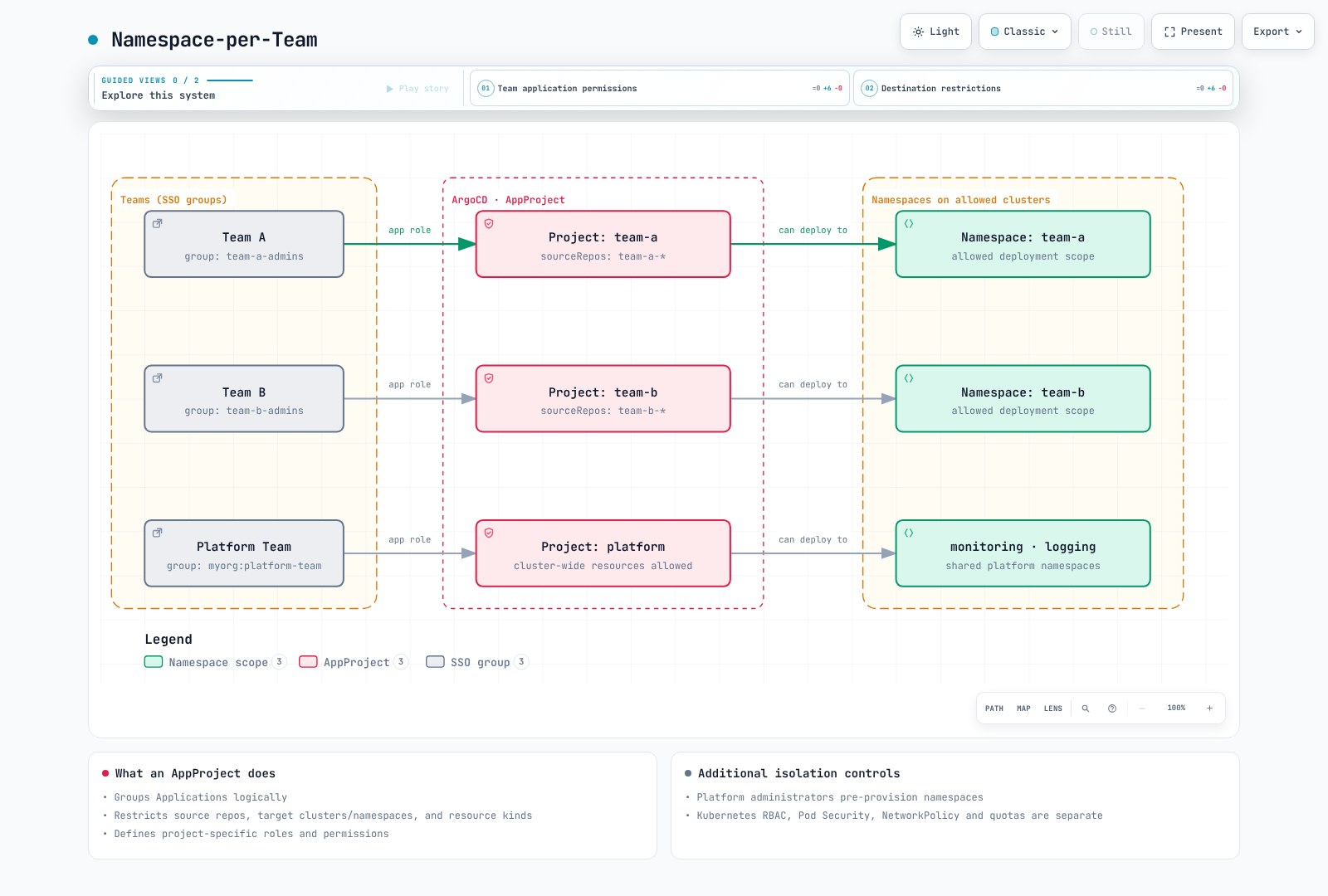

- Multi-Tenancy Patterns
- JWT Tokens for CI/CD
- Orphaned Resource Monitoring

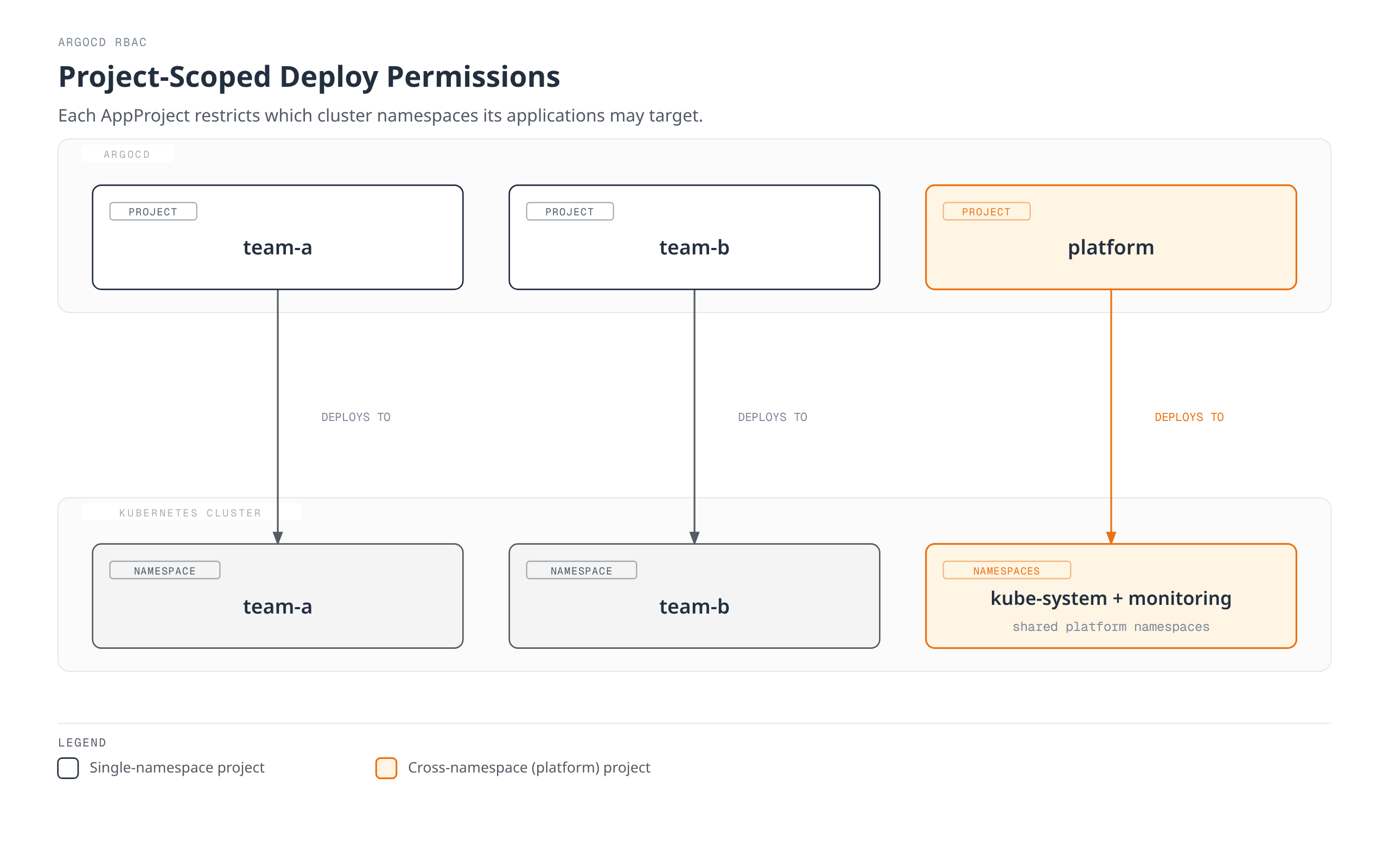

AppProject Overview
AppProjects provide logical grouping of Applications and define access controls for what resources can be deployed, where they can be deployed, and who can manage them.
AppProject restricts sources, destinations, rendered resource kinds and Argo CD API permissions. It does not replace Kubernetes RBAC, Pod Security Admission, NetworkPolicy or ResourceQuota. Denying the Pod kind does not prevent a Deployment from creating privileged Pods.
Supply real repository URLs, groups, registered clusters and namespaces. Platform administrators pre-create application namespaces and own their security/quota policies. Team/environment projects below do not allow cluster-scoped resources; the separate platform project is for trusted administrators. Full project examples are independent alternatives, including those sharing a name.
Key Capabilities
| Feature | Description |
|---|---|
| Source Restrictions | Limit which Git repositories can be used |
| Destination Restrictions | Limit target clusters and namespaces |
| Resource Allowlist/Denylist | Control which K8s resources can be created |
| Role Definitions | Define project-specific RBAC roles |
| Sync Windows | Define when applications can sync |
AppProject Configuration Example
apiVersion: argoproj.io/v1alpha1
kind: AppProject
metadata:
name: my-project
namespace: argocd
finalizers:
- resources-finalizer.argocd.argoproj.io
spec:
description: Project description
sourceRepos:
- https://github.com/myorg/*
- https://stefanprodan.github.io/podinfo
destinations:
- namespace: my-app-*
server: https://kubernetes.default.svc
- namespace: my-project-*
server: https://production.k8s.local
clusterResourceWhitelist: []
namespaceResourceWhitelist:
- group: '*'
kind: '*'
namespaceResourceBlacklist:
- group: ''
kind: LimitRange
- group: ''
kind: ResourceQuota
roles:
- name: developer
description: Developer access
policies:
- p, proj:my-project:developer, applications, get, my-project/*, allow
- p, proj:my-project:developer, applications, sync, my-project/*, allow
groups:
- my-org:developers
syncWindows:
- kind: allow
schedule: 0 9 * * 1-5
duration: 8h
applications:
- '*'
timeZone: Asia/Seoul
orphanedResources:
warn: true
ignore:
- group: ''
kind: ConfigMap
name: kube-root-ca.crtDefault Project
ArgoCD creates a default project permitting all sources, destinations and resource kinds. It can be restricted but not deleted.
Default Project Specification
apiVersion: argoproj.io/v1alpha1
kind: AppProject
metadata:
name: default
namespace: argocd
spec:
description: Default project
sourceRepos:
- '*'
destinations:
- namespace: '*'
server: '*'
clusterResourceWhitelist:
- group: '*'
kind: '*'When to Use Default Project
- Development environments
- Quick testing
- Small teams without multi-tenancy requirements
Restricting the Default Project
For production, restrict the default project:
apiVersion: argoproj.io/v1alpha1
kind: AppProject
metadata:
name: default
namespace: argocd
spec:
description: Restricted default project
sourceRepos: []
destinations: []
sourceNamespaces: []
clusterResourceWhitelist: []
namespaceResourceBlacklist:
- group: '*'
kind: '*'Custom Projects
Team-Based Project
apiVersion: argoproj.io/v1alpha1
kind: AppProject
metadata:
name: team-frontend
namespace: argocd
spec:
description: Frontend team project
sourceRepos:
- https://github.com/myorg/frontend-*
- https://github.com/myorg/shared-libs
destinations:
- namespace: frontend-*
server: https://kubernetes.default.svc
- namespace: frontend-*
server: https://staging.k8s.local
- namespace: frontend-*
server: https://production.k8s.local
clusterResourceWhitelist: []
roles:
- name: admin
description: Project admin
policies:
- p, proj:team-frontend:admin, applications, *, team-frontend/*, allow
- p, proj:team-frontend:admin, repositories, *, team-frontend/*, allow
groups:
- myorg:frontend-leads
- name: developer
description: Developer access
policies:
- p, proj:team-frontend:developer, applications, get, team-frontend/*, allow
- p, proj:team-frontend:developer, applications, sync, team-frontend/*, allow
- p, proj:team-frontend:developer, applications, action/apps/Deployment/restart, team-frontend/*, allow
groups:
- myorg:frontend-devs
- name: viewer
description: Read-only access
policies:
- p, proj:team-frontend:viewer, applications, get, team-frontend/*, allow
groups:
- myorg:frontend-viewersEnvironment-Based Project
apiVersion: argoproj.io/v1alpha1
kind: AppProject
metadata:
name: production
namespace: argocd
spec:
description: Production environment project
sourceRepos:
- https://github.com/myorg/gitops-prod
destinations:
- namespace: prod-*
server: https://production.k8s.local
- namespace: prod-*
server: https://production-dr.k8s.local
clusterResourceWhitelist: []
namespaceResourceBlacklist:
- group: ''
kind: ResourceQuota
- group: ''
kind: LimitRange
syncWindows:
- kind: allow
schedule: 0 9 * * 1-5
duration: 8h
applications:
- '*'
manualSync: true
timeZone: Asia/Seoul
roles:
- name: sre
description: SRE team with full access
policies:
- p, proj:production:sre, applications, *, production/*, allow
groups:
- myorg:sre-team
- name: deployer
description: CI/CD deployment access
policies:
- p, proj:production:deployer, applications, sync, production/*, allow
- p, proj:production:deployer, applications, get, production/*, allowPlatform Infrastructure Project
apiVersion: argoproj.io/v1alpha1
kind: AppProject
metadata:
name: platform
namespace: argocd
spec:
description: Platform infrastructure components
sourceRepos:
- https://github.com/myorg/platform-*
- https://prometheus-community.github.io/helm-charts
- https://grafana-community.github.io/helm-charts
- https://charts.jetstack.io
- docker.io/envoyproxy
destinations:
- namespace: kube-system
server: https://dev-cluster.example.com
- namespace: kube-system
server: https://staging-cluster.example.com
- namespace: kube-system
server: https://prod-cluster.example.com
- namespace: monitoring
server: https://dev-cluster.example.com
- namespace: monitoring
server: https://staging-cluster.example.com
- namespace: monitoring
server: https://prod-cluster.example.com
- namespace: logging
server: https://dev-cluster.example.com
- namespace: logging
server: https://staging-cluster.example.com
- namespace: logging
server: https://prod-cluster.example.com
- namespace: envoy-gateway-system
server: https://dev-cluster.example.com
- namespace: envoy-gateway-system
server: https://staging-cluster.example.com
- namespace: envoy-gateway-system
server: https://prod-cluster.example.com
- namespace: cert-manager
server: https://dev-cluster.example.com
- namespace: cert-manager
server: https://staging-cluster.example.com
- namespace: cert-manager
server: https://prod-cluster.example.com
clusterResourceWhitelist:
- group: '*'
kind: '*'
roles:
- name: platform-admin
description: Platform team admin
policies:
- p, proj:platform:platform-admin, applications, *, platform/*, allow
- p, proj:platform:platform-admin, clusters, *, platform/*, allow
- p, proj:platform:platform-admin, repositories, *, platform/*, allow
groups:
- myorg:platform-teamInterpreting Scope and Verification
- An AppProject destination matches
(server OR registered name) AND namespace; specifying both cluster identifiers does not add an AND constraint. These examples use server only. An Application's destination instead requires choosing server or name. - ResourceQuota and LimitRange are namespaced; clusterResourceBlacklist cannot block them. Use namespaceResourceBlacklist for the Argo CD deployment path.
- Omitting namespaceResourceWhitelist permits namespaced kinds by default; explicit allow/deny lists are evaluated together. Cluster-scoped kinds require an allowlist. Argo CD 3.5.4 also supports name patterns in cluster resource lists.
- If delegating Namespace management, restrict its name too (group:'', kind:Namespace, name:team-a-*). This still permits Namespace label changes; pre-provisioning and admission controls are safer for tenant boundaries.
- manualSync permits manual exceptions outside an allow window; it does not disable automated sync or limit the exception to an on-call role. Review overlapping deny windows and explicit time zones in the sync chapter.
- Move existing Applications to explicit projects and verify access before restricting default.
RBAC Configuration
ArgoCD RBAC is configured in the argocd-rbac-cm ConfigMap.
RBAC Policy Syntax
p, <subject>, <resource>, <action>, <object>, <effect>
g, <subject>, <role>| Field | Description |
|---|---|
subject | User, group, or role |
resource | applications, clusters, repositories, etc. |
action | get, create, update, delete, sync, etc. |
object | Resource identifier (project/app or *) |
effect | allow or deny |
Built-in Roles
| Role | Description |
|---|---|
role:readonly | Read-only access to all resources |
role:admin | Full access to all resources |
Complete RBAC Configuration
This example grants no implicit application access and assigns explicit group permissions. Developers are scoped to team-frontend. Leave role:authenticated without policy entries. Permissions granted by the default policy cannot be removed by a user deny; defaulting to role:readonly exposes cross-project reads. Do not copy/redefine built-in role rules in policy.csv.
apiVersion: v1
kind: ConfigMap
metadata:
name: argocd-rbac-cm
namespace: argocd
labels:
app.kubernetes.io/part-of: argocd
data:
policy.default: role:authenticated
policy.matchMode: glob
scopes: '[groups]'
policy.csv: |
# Built-in role:admin and role:readonly are already provided by Argo CD.
p, role:developer, applications, get, team-frontend/*, allow
p, role:developer, applications, sync, team-frontend/*, allow
p, role:developer, applications, action/apps/Deployment/restart, team-frontend/*, allow
p, role:developer, logs, get, team-frontend/*, allow
p, role:viewer, applications, get, team-frontend/*, allow
p, role:frontend-admin, applications, *, team-frontend/*, allow
p, role:frontend-admin, logs, get, team-frontend/*, allow
p, role:backend-admin, applications, *, team-b/*, allow
p, role:backend-admin, logs, get, team-b/*, allow
p, role:sre, applications, get, production/*, allow
p, role:sre, applications, sync, production/*, allow
p, role:sre, applications, action/apps/Deployment/restart, production/*, allow
p, role:sre, logs, get, production/*, allow
p, role:sre, exec, create, production/*, allow
p, role:security-auditor, applications, get, */*, allow
p, role:security-auditor, projects, get, *, allow
p, role:security-auditor, repositories, get, *, allow
g, platform-team, role:admin
g, developers, role:developer
g, frontend-team, role:frontend-admin
g, backend-team, role:backend-admin
g, viewers, role:viewer
g, sre-team, role:sre
g, security-team, role:security-auditor
p, role:developer, projects, get, team-frontend, allow
p, role:viewer, projects, get, team-frontend, allow
p, role:frontend-admin, projects, get, team-frontend, allow
p, role:backend-admin, projects, get, team-b, allow
p, role:sre, projects, get, production, allowCompose additional policy fragments into the existing ConfigMap data using Kustomize/Helm. Argo CD appends policy.example-N.csv keys to policy.csv. Do not apply each fragment as a replacement for the whole ConfigMap, and do not accumulate unrelated broad allow examples.
Argo CD API RBAC is separate from Kubernetes RBAC. The object project/app does not identify a destination namespace; Applications outside the control-plane namespace also use project/application-namespace/app. Glob matching does not treat slash as a separator, so include complete resource-action paths.
With the 3.x default, Application update/delete permissions do not automatically grant the same operation on child Kubernetes resources. Use update/<group>/<kind>/<namespace>/<name> or delete/... for those operations, considering server.rbac.disableApplicationFineGrainedRBACInheritance.
sync can create, update and prune deployed resources. Denying Application deletion does not prevent deletion through sync/prune. The rollback API also checks sync; there is no separate action/rollback or rollback-only permission. override allows source replacement such as local manifests, not simply force sync. application.sync.requireOverridePrivilegeForRevisionSync can require override when a revision is supplied.
Resource-Specific Permissions
policy.example-1.csv: |
# Applications - fine-grained permissions
p, role:deployer, applications, get, production/*, allow
p, role:deployer, applications, sync, production/*, allow
p, role:deployer, applications, update, production/*, deny
p, role:deployer, applications, delete, production/*, deny
# Cluster management
p, role:cluster-admin, clusters, *, *, allow
p, role:cluster-viewer, clusters, get, *, allow
# Repository management
p, role:repo-admin, repositories, *, *, allow
p, role:repo-viewer, repositories, get, *, allow
# Project-specific permissions
p, role:team-a-admin, applications, *, team-a/*, allow
p, role:team-a-admin, projects, get, team-a, allow
# Exec into running pods (debugging)
p, role:debugger, exec, create, production/*, allow
p, role:debugger, applications, get, production/*, allowApplication-Specific Actions
policy.example-2.csv: |
# Sync-only role (for CI/CD)
p, role:sync-only, applications, get, production/*, allow
p, role:sync-only, applications, sync, production/*, allow
# Explicit Deployment restart resource action
p, role:operator, applications, action/apps/Deployment/restart, production/*, allow
# Rollback API requires sync; update is for changing the Application
p, role:operator, applications, sync, production/*, allow
p, role:operator, applications, get, production/*, allowMulti-Tenancy Patterns
Namespace-per-Team
Implementation:
apiVersion: argoproj.io/v1alpha1
kind: AppProject
metadata:
name: team-a
namespace: argocd
spec:
sourceRepos:
- https://github.com/myorg/team-a-*
destinations:
- namespace: team-a
server: https://kubernetes.default.svc
- namespace: team-a-*
server: https://kubernetes.default.svc
clusterResourceWhitelist: []
roles:
- name: admin
policies:
- p, proj:team-a:admin, applications, *, team-a/*, allow
groups:
- team-a-admins
---
apiVersion: argoproj.io/v1alpha1
kind: AppProject
metadata:
name: team-b
namespace: argocd
spec:
sourceRepos:
- https://github.com/myorg/team-b-*
destinations:
- namespace: team-b
server: https://kubernetes.default.svc
- namespace: team-b-*
server: https://kubernetes.default.svc
clusterResourceWhitelist: []
roles:
- name: admin
policies:
- p, proj:team-b:admin, applications, *, team-b/*, allow
groups:
- team-b-adminsCluster-per-Environment
apiVersion: argoproj.io/v1alpha1
kind: AppProject
metadata:
name: development
namespace: argocd
spec:
sourceRepos:
- https://github.com/myorg/dev-*
destinations:
- namespace: dev-*
server: https://dev.k8s.local
clusterResourceWhitelist: []
---
apiVersion: argoproj.io/v1alpha1
kind: AppProject
metadata:
name: production
namespace: argocd
spec:
sourceRepos:
- https://github.com/myorg/gitops-prod
destinations:
- namespace: prod-*
server: https://prod.k8s.local
clusterResourceWhitelist: []
syncWindows:
- kind: deny
schedule: 0 0 * * 6
duration: 48h
applications:
- '*'
timeZone: Asia/Seoul
namespaceResourceBlacklist:
- group: ''
kind: ResourceQuota
- group: ''
kind: LimitRangeJWT Tokens for CI/CD
Create project-scoped tokens for automation.
Create JWT Token
An operator authorized to update the project issues/revokes tokens; the CI role itself has get/sync only. Prepare my-project, its ci-deployer role and the my-app Application first. Rotate before expiration; the CLI default is no expiration.
set -euo pipefail
umask 077
# Run as an operator authorized to update my-project.
argocd proj role create-token my-project ci-deployer \
--expires-in 24h --token-only > ./argocd-ci.token
# Store this file's value in the approved CI secret store; do not commit or print it.Use --id UNIQUE_ID when an explicit identifier is needed; --token-id is not a 3.5.4 flag. expires-in accepts a duration such as 24h. The signed token value is returned at issuance, not stored for later retrieval.
Use Token in CI/CD
Merge this role into the existing my-project AppProject; it does not create source/destination permissions or an Application by itself:
spec:
roles:
- name: ci-deployer
policies:
- p, proj:my-project:ci-deployer, applications, get, my-project/*, allow
- p, proj:my-project:ci-deployer, applications, sync, my-project/*, allowThe workflow syncs the revision declared by the Application, rather than forcing the workflow SHA. Pin targetRevision in Git when immutable revisions are required. Review the server override setting before using --revision. Configure the production Environment's approval/protection rules separately.
name: Sync declared Argo CD application
'on':
push:
branches:
- main
workflow_dispatch: {}
permissions: {}
concurrency:
group: argocd-my-project-my-app
cancel-in-progress: false
jobs:
sync:
runs-on: ubuntu-24.04
timeout-minutes: 15
environment: production
steps:
- name: Install verified CLI
shell: bash
run: |
set -euo pipefail
ARGOCD_VERSION=v3.5.4
case "$(uname -m)" in
x86_64) cli_arch=amd64 ;;
aarch64|arm64) cli_arch=arm64 ;;
*) echo "Unsupported runner architecture" >&2; exit 1 ;;
esac
cli_asset="argocd-linux-${cli_arch}"
cli_dir="$(mktemp -d)"
trap 'rm -rf "$cli_dir"' EXIT
cli_base="https://github.com/argoproj/argo-cd/releases/download/${ARGOCD_VERSION}"
curl --fail --location --retry 3 "$cli_base/$cli_asset" -o "$cli_dir/$cli_asset"
curl --fail --location --retry 3 "$cli_base/cli_checksums.txt" -o "$cli_dir/checksums.txt"
awk -v artifact="$cli_asset" '$2 == artifact { print }' "$cli_dir/checksums.txt" > "$cli_dir/selected.sha256"
test -s "$cli_dir/selected.sha256"
(cd "$cli_dir" && sha256sum --check selected.sha256)
install -m 0755 "$cli_dir/$cli_asset" "$RUNNER_TEMP/argocd"
- name: Sync and wait
shell: bash
env:
ARGOCD_SERVER: ${{ secrets.ARGOCD_SERVER }}
ARGOCD_AUTH_TOKEN: ${{ secrets.ARGOCD_TOKEN }}
run: |
set -euo pipefail
"$RUNNER_TEMP/argocd" app sync my-app --server "$ARGOCD_SERVER" --grpc-web --timeout 300
"$RUNNER_TEMP/argocd" app wait my-app --server "$ARGOCD_SERVER" --grpc-web --sync --health --timeout 300Token Management
Token metadata is stored/normalized in the project's role/status records. Manually declaring iat/exp/id does not issue a signed token. Role-policy changes affect already-issued tokens. Use operator credentials to revoke one token by its ISSUED AT integer, not its ID label:
argocd proj role list-tokens my-project ci-deployer --unixtime
# Select one token's ISSUED AT value from the list, using operator credentials.
: "${SELECTED_ISSUED_AT:?Set the selected integer ISSUED AT value}"
argocd proj role delete-token my-project ci-deployer "$SELECTED_ISSUED_AT"Token Storage for In-Cluster CI
A Kubernetes Secret can store a previously issued token for a CI job. It is not an Argo CD token issuer, and there is no special argocd-token Secret type. Use the CI job's namespace and secure file input, for example:
kubectl create secret generic argocd-ci-token -n ci \
--from-file=token=./argocd-ci.tokenProvision the ci namespace and job RBAC first. Mount/read the Secret only in the authorized CI job, and rotate its value before token expiration. Do not put the token value in Git.
Orphaned Resource Monitoring
Detect resources in target namespaces not managed by ArgoCD.
Enable Orphaned Resource Monitoring
apiVersion: argoproj.io/v1alpha1
kind: AppProject
metadata:
name: my-project
namespace: argocd
spec:
orphanedResources:
warn: true
ignore:
- group: ''
kind: ConfigMap
name: kube-root-ca.crt
- group: ''
kind: ServiceAccount
name: default
- group: ''
kind: Secret
name: default-token-*
clusterResourceWhitelist: []View Orphaned Resources
argocd app resources my-app --orphaned
: "${ARGOCD_AUTH_TOKEN:?Provide an authorized token securely}"
curl --fail --silent --show-error --max-time 30 \
-H "Authorization: Bearer $ARGOCD_AUTH_TOKEN" \
https://argocd.example.com/api/v1/applications/my-app/resource-tree \
| jq '.orphanedNodes'Warnings are optional: warn:false still permits viewing orphan candidates. Resources denied by the project and built-in default objects have exceptions; narrow the monitored namespaces to avoid large kube-system scans.
Review Before Cleanup
Orphan monitoring reports top-level namespaced resources that are not tracked by an Argo CD Application. They can still belong to another operator or be intentionally managed outside GitOps. The label selector managed-by!=argocd also matches resources with no such label and does not implement Argo CD tracking. Do not turn that selector into a PostSync deletion job.
Inspect the orphan list, owner references, the actual Argo CD tracking metadata and the owning controller before deciding whether a resource is obsolete. Exclude legitimate resources with narrowly scoped orphan-monitoring ignore rules. Any deletion should use an explicitly reviewed resource list and the appropriate backup/recovery procedure; the examples here only report candidates.
Policy Validation
Save the base ConfigMap example as argocd-rbac-cm.yaml. The CLI also initializes a valid kubeconfig, but policy-file checks do not modify live settings. Check dynamic AppProject roles, actual SSO claims and Kubernetes admission separately.
argocd admin settings rbac validate --policy-file ./argocd-rbac-cm.yaml
argocd admin settings rbac can developers sync applications team-frontend/my-app \
--policy-file ./argocd-rbac-cm.yaml
# Expected: No (exit 1)
argocd admin settings rbac can developers get applications team-b/my-app \
--policy-file ./argocd-rbac-cm.yamlvalidate may warn that built-in role:admin is absent from user CSV. can includes built-in policy by default; do not duplicate built-in roles to silence the warning. Check local-user/SSO-group collisions and actual group claims. An exec policy does not itself enable the terminal: also check exec.enabled and underlying Kubernetes permissions.
References
Quiz
To test what you've learned, try the ArgoCD Projects and RBAC quiz.
