Feature Flags and OpenFeature
Review baseline: flagd 0.16.3, OpenFeature Operator 0.9.3, Flagger 1.45.0; SDK versions are pinned in their examples Last Updated: September 11, 2026
Feature flags separate code deployment from runtime feature exposure. This guide covers OpenFeature, flagd, Kubernetes Operator configuration, SDK integration, and GitOps workflows. Changes depend on synchronization and consumer state; they do not guarantee instantaneous rollback.
Validation scope: the four SDK examples were compiled/run in local-file mode. Native flagd HTTP evaluation and Prometheus metrics were checked in an isolated test network. Helm, Kustomize, schemas, and scripts were also checked. This does not validate a real EKS deployment, application images, every RPC/TLS path, or production load. Adapt deployment URLs, images, and policies to the actual environment.
Table of Contents
- Overview and Learning Objectives
- OpenFeature Architecture
- flagd on Kubernetes
- OpenFeature Operator
- Application Integration
- Canary Release and Feature Flag Combination
- GitOps Integration
- Observability
- Production Best Practices
- References
Overview and Learning Objectives
Learning Objectives
After completing this section, you will be able to:
- Explain the role of feature flags in progressive delivery and continuous deployment
- Compare feature flag platforms and select the right tool for your environment
- Deploy flagd on Kubernetes using the OpenFeature Operator
- Integrate OpenFeature SDKs in Go, Java, Python, and Node.js applications
- Combine feature flags with canary releases for sophisticated rollout strategies
- Manage feature flag configuration as code through GitOps workflows
- Monitor flag evaluations with Prometheus and Grafana
What Are Feature Flags?
A feature flag (also called a feature toggle or feature switch) is a mechanism that allows you to enable or disable functionality at runtime without deploying new code. The core idea is simple: wrap a code path in a conditional that checks a flag value, and control that value externally.
if featureEnabled("new-checkout"):
renderNewCheckout()
else:
renderLegacyCheckout()Feature flags serve several distinct purposes in software delivery:
| Category | Purpose | Lifetime | Example |
|---|---|---|---|

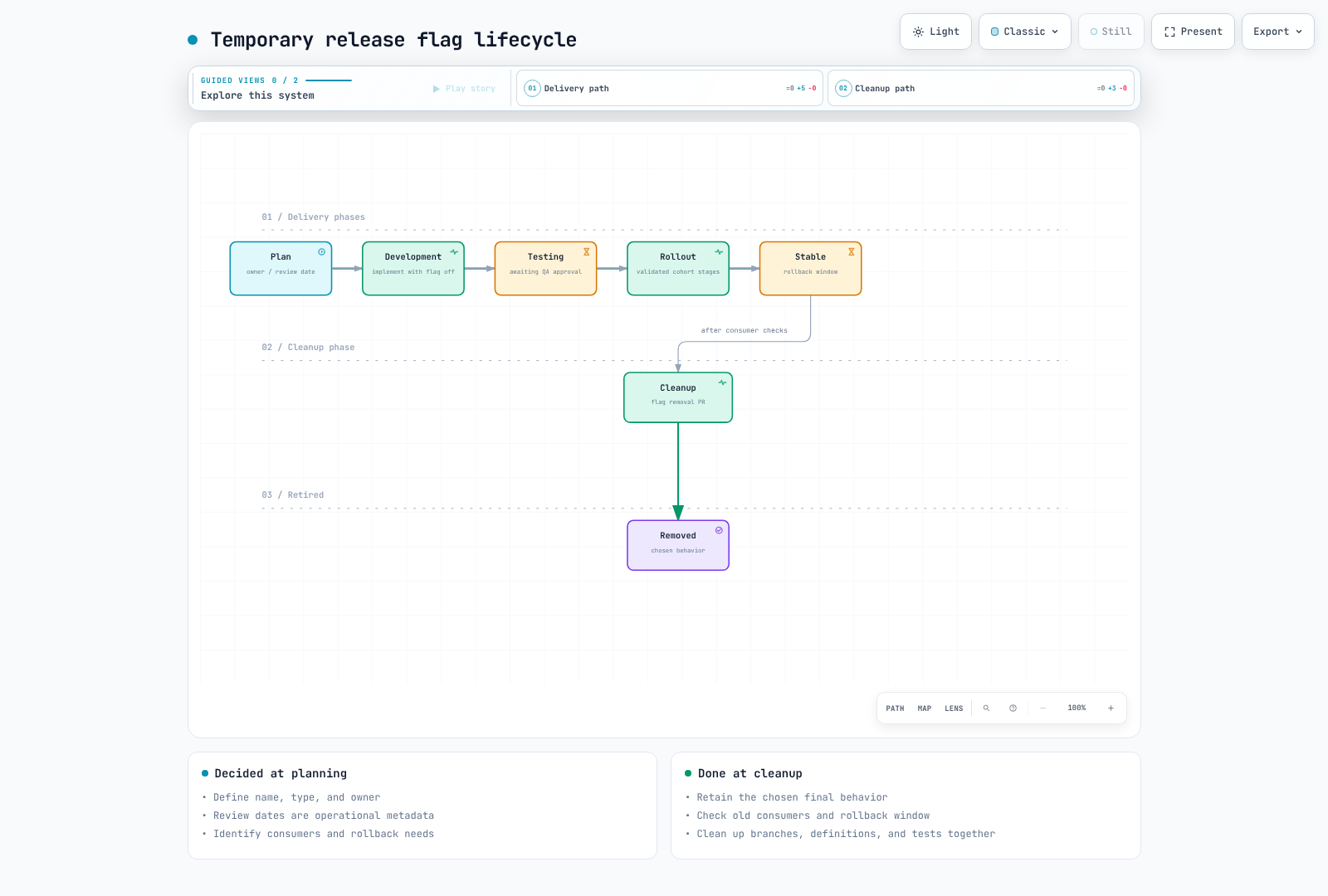

| Release Flags | Decouple deployment from release | Days to weeks | Hide an unfinished feature behind a flag during development |
| Experiment Flags | A/B testing and data-driven decisions | Weeks to months | Show variant B of a pricing page to 10% of users |
| Ops Flags | Operational control and circuit breakers | Permanent | Kill switch for a non-critical downstream dependency |
| Permission Flags | Entitlements and access control | Permanent | Enable a premium feature for paying customers only |
Feature exposure does not replace authentication or authorization. Disabled code can still be present in an image; flags are not a secret store or an access-control boundary.

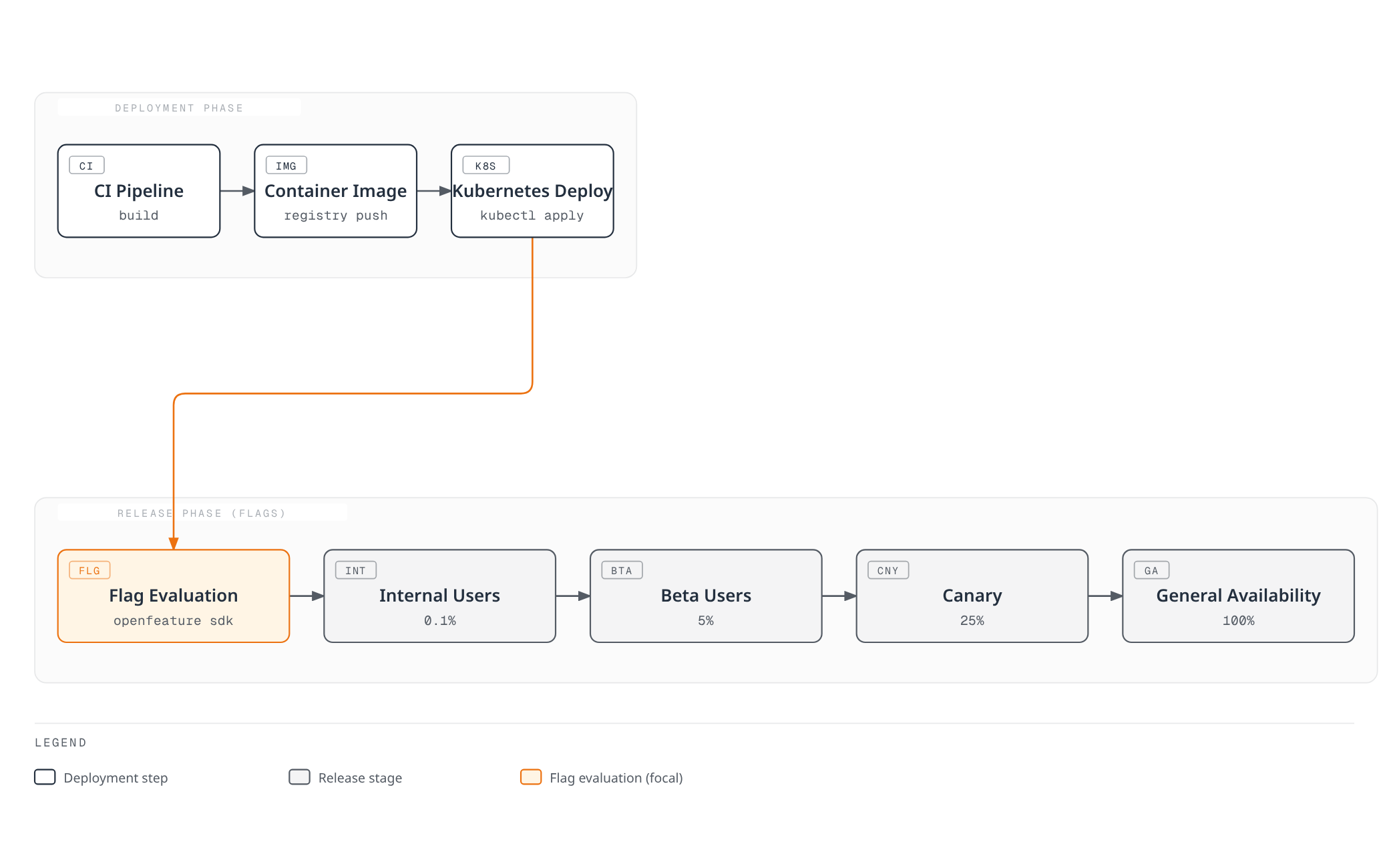

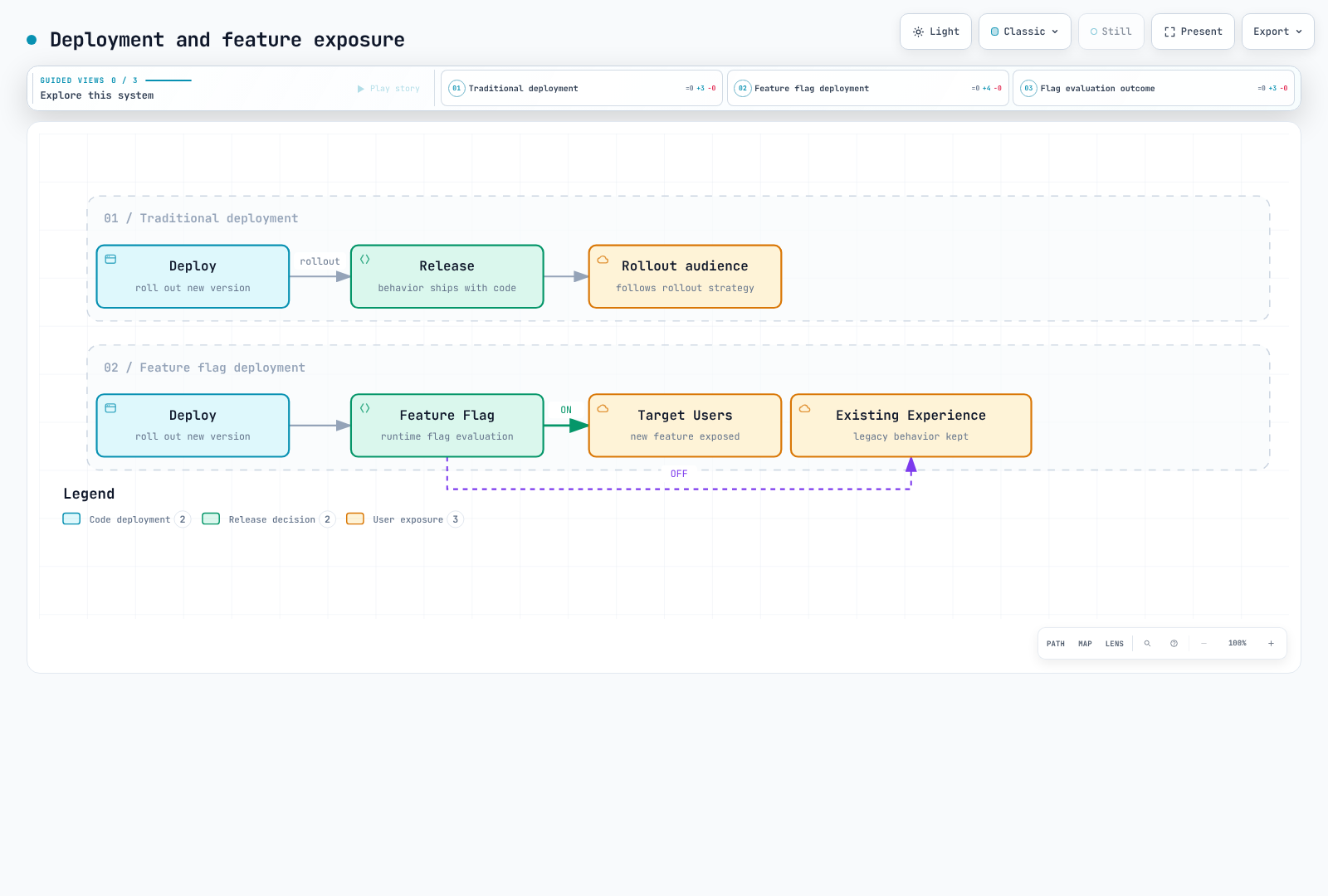

Feature Flags in Progressive Delivery
Progressive delivery extends continuous delivery by adding fine-grained control over which users see new functionality and when. Feature flags are a critical building block in this model:
Code still follows the workload deployment strategy, such as a rolling update. Feature flags separately control which application behavior is selected. This is fundamentally different from traffic-splitting approaches (like canary deployments), which control which pod version a request hits. The two techniques complement each other, as described in the Canary Release and Feature Flag Combination section.
Feature Flag Tool Comparison
Evaluate management features, runtime evaluation, and language-specific provider support together. Provider availability does not imply identical hooks, events, or targeting semantics across languages. Check current vendor documentation for pricing and contract features; this comparison focuses on integration and operational ownership.
| Tool | Role | Integration and operational checks |
|---|---|---|
| flagd | Self-managed evaluation and rule synchronization | Configure sources, RPC/in-process mode, Operator, availability, and observability |
| LaunchDarkly | Managed feature-flag service | Check each language provider, context/event mapping, and underlying SDK capabilities |
| Flagsmith | Managed or self-hosted flag platform | Check server/web provider differences and language coverage |
| Harness FME | Feature management and experimentation | Check migration from existing Split setups, providers, and experiment-data integration |
| Unleash | Provider ecosystem backed by Unleash SDKs | Check context translation, stickiness, and optional features; the Node provider does not implement the tracking API |
This guide directly validates the flagd path. It does not test commercial-account connections or feature equivalence across every provider.
The OpenFeature Standard
OpenFeature is a CNCF incubating project that provides a vendor-neutral, community-driven API for feature flag evaluation. It solves the problem of vendor lock-in by defining a standard interface that works with any backend provider.
Key benefits of OpenFeature:
- Vendor-neutral API: Reduce changes to evaluation calls while migrating provider configuration and rules
- Consistent evaluation model: Boolean, string, number, and object flag types with a uniform evaluation API
- Hooks: Lifecycle hooks for logging, metrics, validation, and tracing
- Evaluation context: Structured context (user attributes, environment info) passed to every evaluation
- Multi-language support: Official SDKs for Go, Java, Python, Node.js, .NET, PHP, and more
OpenFeature Architecture
SDK Structure

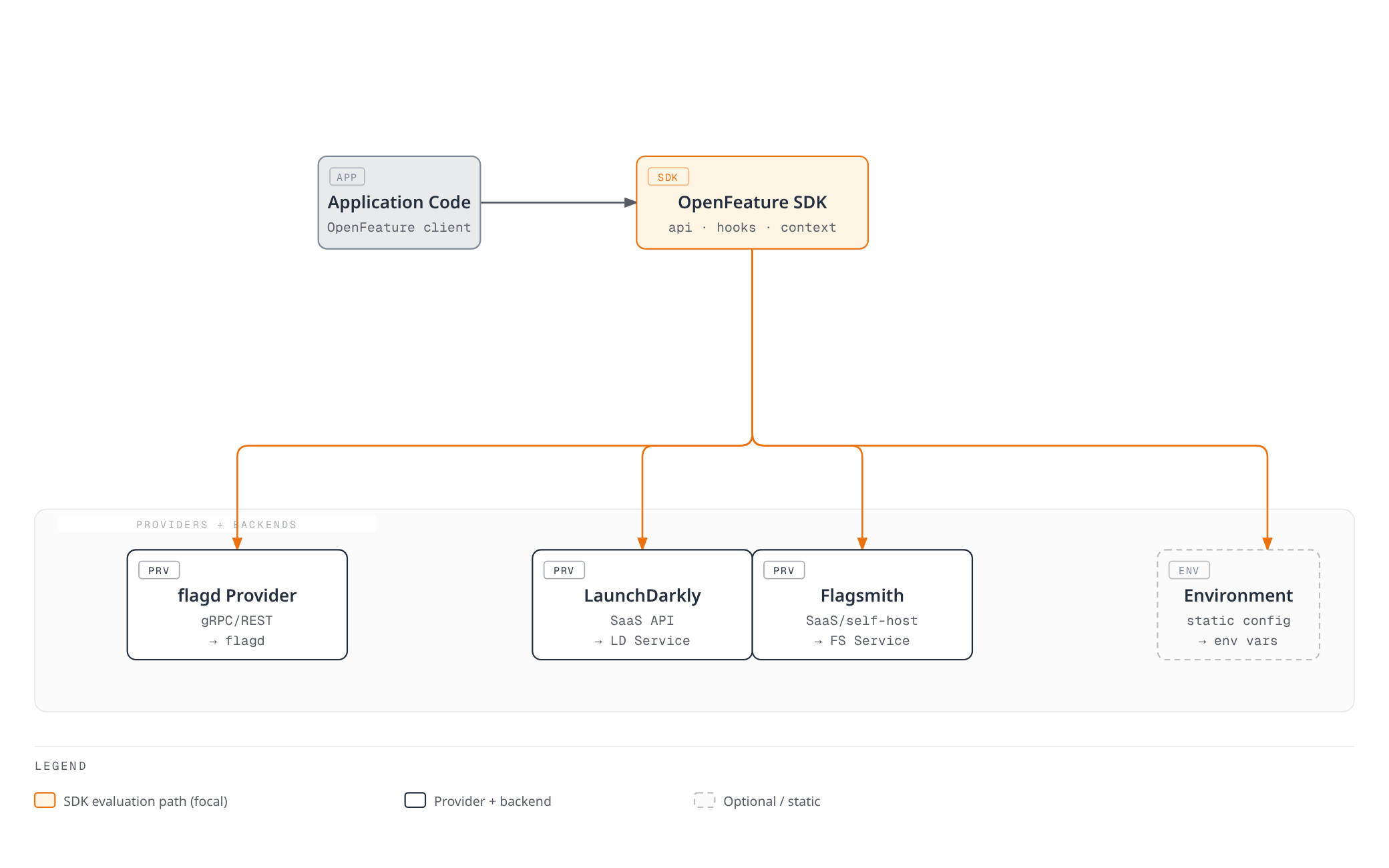

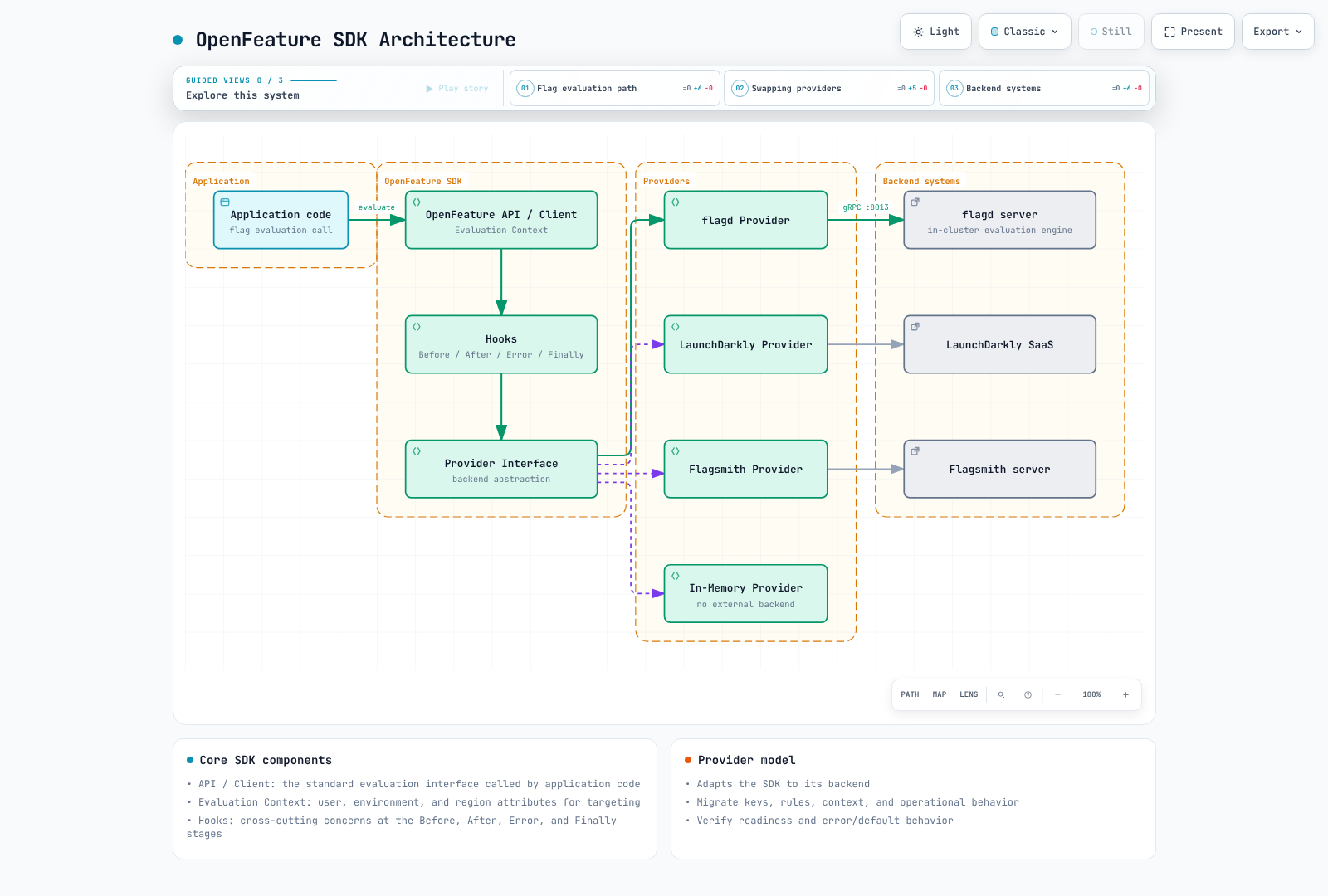

The OpenFeature SDK follows a layered architecture that separates the evaluation API from the flag management backend:
Core Components
Evaluation API: The primary interface that application code interacts with. It provides typed evaluation methods (getBooleanValue, getStringValue, getNumberValue, getObjectValue) and a Client abstraction for scoping evaluations.
Provider: A provider is a concrete implementation that connects the OpenFeature SDK to a specific flag management backend. Only one provider is active at any time (per domain), and the SDK delegates all flag resolution to it.
Evaluation Context: A set of key-value attributes that provide context for flag evaluation. Common attributes include targetingKey (user ID), email, region, environment, and custom properties. The context flows through the entire evaluation pipeline.
Hooks: Hooks intercept the flag evaluation lifecycle at four stages:
| Stage | Timing | Common Use Cases |
|---|---|---|
before | Before evaluation | Enrich context, validate inputs |
after | After successful evaluation | Record metrics, log decisions |
error | On evaluation failure | Error reporting, fallback logic |
finally | Always runs (like try/finally) | Cleanup, span completion |
Provider Model

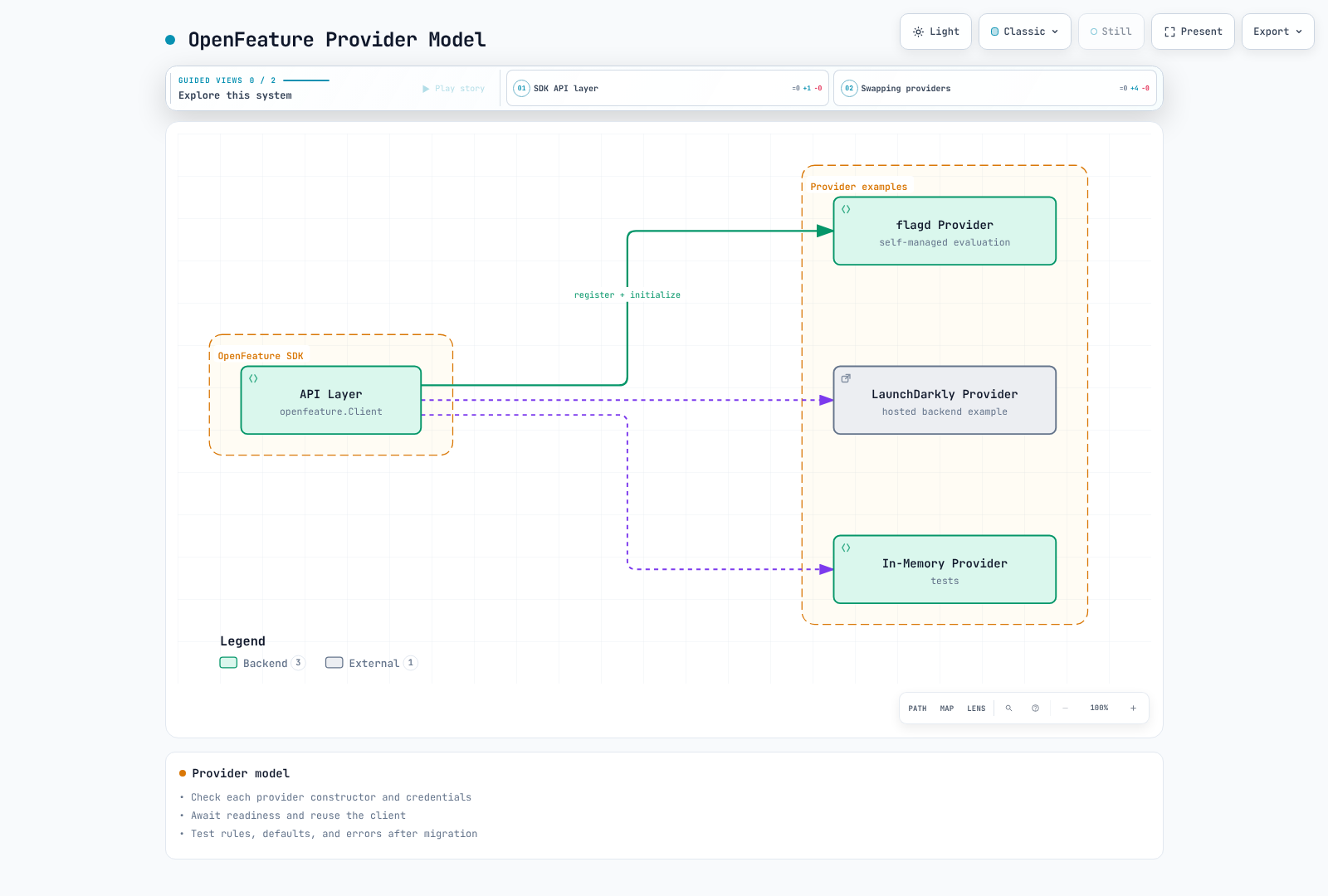

The provider abstraction reduces coupling to a backend. The following is a schematic interface, not a language-specific implementation contract; initialization, events, and context-change support vary by SDK:
Provider Interface:
- resolveBooleanValue(flagKey, defaultValue, context) -> ResolutionDetails
- resolveStringValue(flagKey, defaultValue, context) -> ResolutionDetails
- resolveNumberValue(flagKey, defaultValue, context) -> ResolutionDetails
- resolveObjectValue(flagKey, defaultValue, context) -> ResolutionDetails
- initialize(context) -> void
- shutdown() -> voidSwitching providers preserves the evaluation API where supported, but flag keys, variants, targeting, credentials, context semantics, and operational behavior still need migration and testing. Check each provider's constructor and await readiness before reusing a client. See the complete Go SDK example below. The diagram is an example of provider selection, not a rule that limits flagd to development.

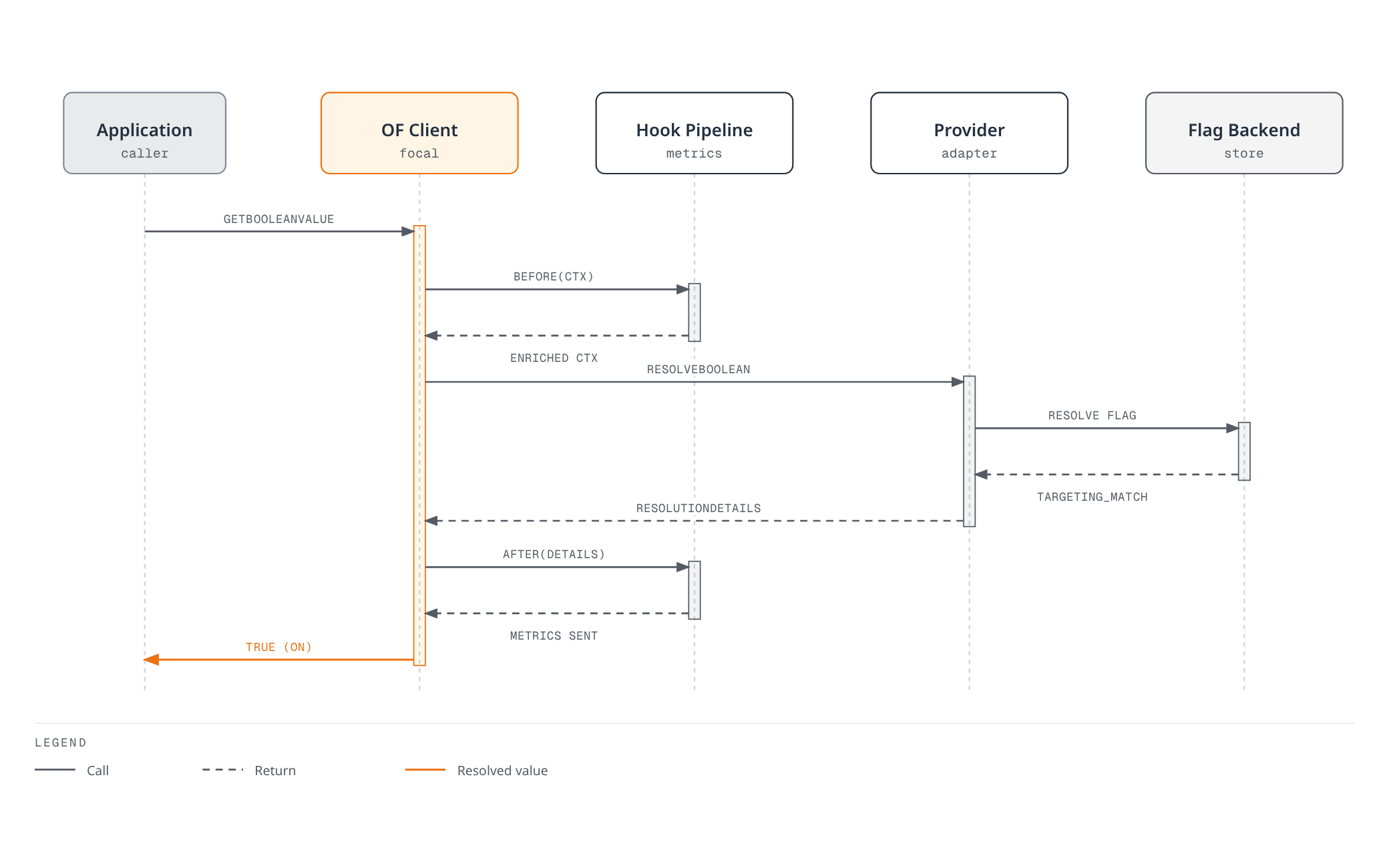

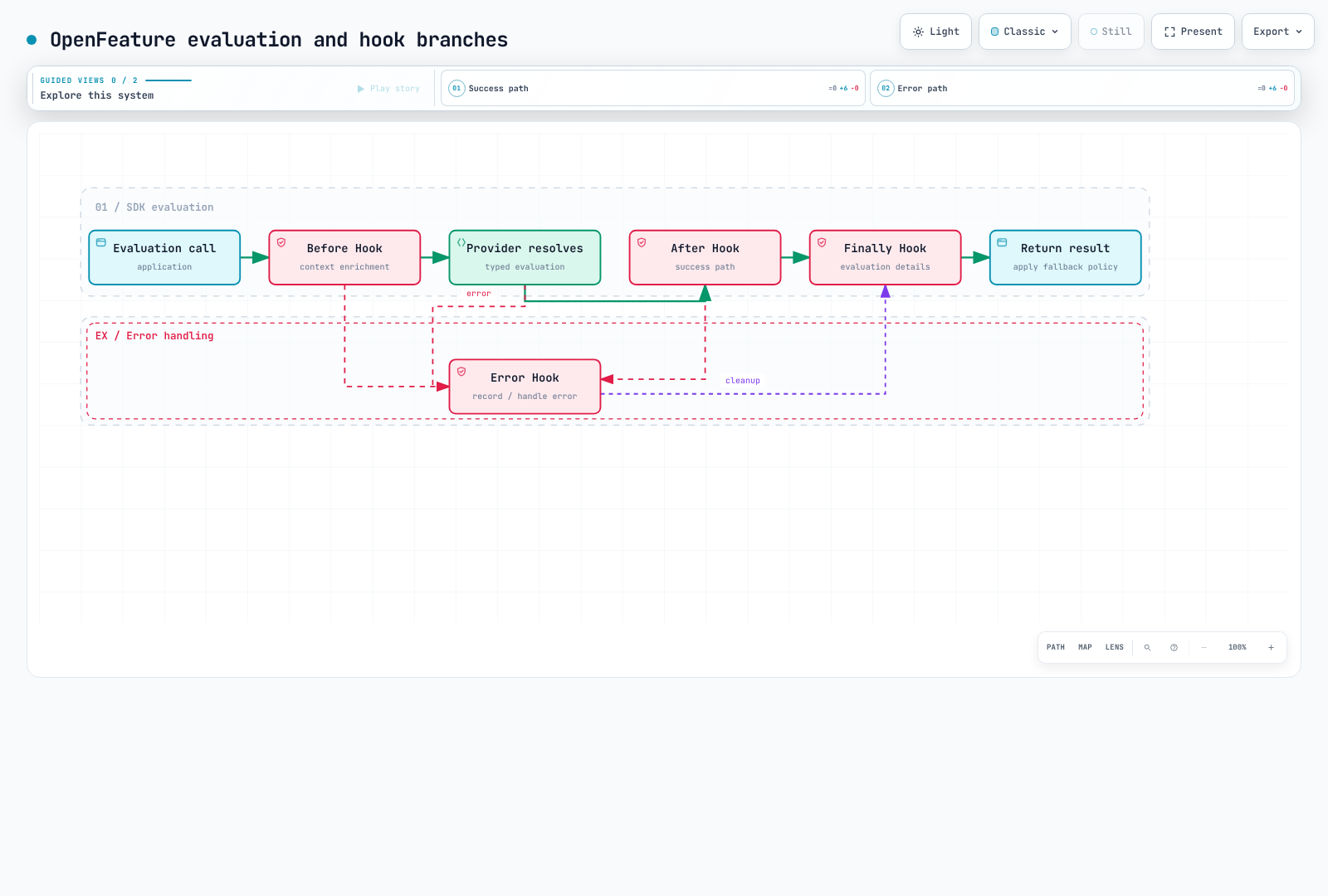

Evaluation Flow
The success path runs Before, provider resolution, After, and Finally. Errors in Before, provider resolution, or After use the Error path before finalization. Finally receives evaluation details in the current Go interface.
flagd on Kubernetes
What Is flagd?
flagd is a lightweight, open-source feature flag daemon and the reference implementation of an OpenFeature-compliant flag evaluation engine. It is designed specifically for cloud-native environments and runs natively on Kubernetes.
Key characteristics:
- Lightweight: A Go service whose CPU and memory needs depend on flag count, sources, traffic, and enabled telemetry
- Kubernetes-native: Reads flag configuration from FeatureFlag CRDs, ConfigMaps, or files
- gRPC and HTTP: The evaluation service uses port 8013; the separate OFREP HTTP endpoint uses port 8016. Management/metrics use 8014 and definition sync uses 8015 by default
- Real-time sync: Synchronizes definitions from configured sources; updates are asynchronous and consumer freshness must be checked
- Fractional evaluation: Built-in support for percentage-based rollouts using consistent hashing
- Targeting rules: JSON Logic-based targeting for complex audience segmentation

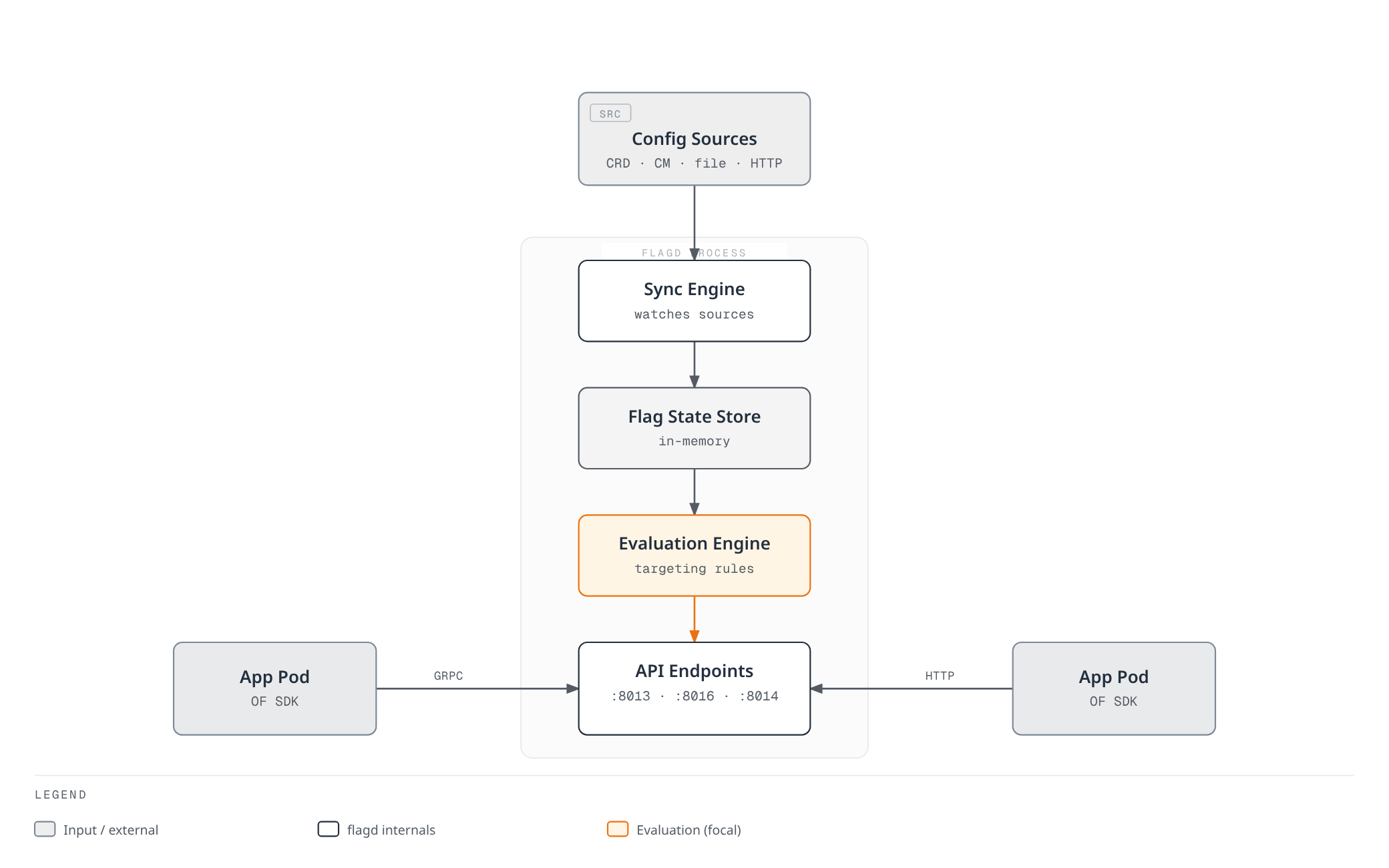

flagd Architecture
Helm Installation
The official repository publishes the open-feature-operator chart. Do not assume a separate openfeature/flagd chart exists. After installing the Operator, configure Pod injection or a Flagd resource to create an evaluation service. Prepare cert-manager for the webhook certificates first.
Save openfeature-values.yaml. Operator v0.9.3 defaults to flagd v0.16.2; this example pins both the sidecar and shared-deployment images to v0.16.3. Resource values are a lab starting point, not measured production sizing.
sidecarConfiguration:
image:
repository: ghcr.io/open-feature/flagd
tag: v0.16.3
resources:
requests:
cpu: 50m
memory: 64Mi
limits:
cpu: 200m
memory: 256Mi
flagdConfiguration:
image:
repository: ghcr.io/open-feature/flagd
tag: v0.16.3helm repo add openfeature https://open-feature.github.io/open-feature-operator/
helm repo update
helm upgrade --install open-feature-operator openfeature/open-feature-operator \
--version v0.9.3 \
--namespace open-feature-operator-system --create-namespace \
-f openfeature-values.yaml --wait --timeout 5msidecarConfiguration and flagdConfiguration configure different placements. The older sidecarConfig, flagdProxyConfig, and controllerManager.manager.env examples do not use this chart's configuration paths. The webhook defaults to failurePolicy: Ignore, so an unavailable webhook can leave Pods without a sidecar. Scope the affected workloads and assess failure impact before choosing Fail, and define application provider-initialization and fallback behavior.
FeatureFlag CRD
The OpenFeature Operator introduces a FeatureFlag Custom Resource Definition that allows you to declare feature flags as Kubernetes resources. This is the primary mechanism for managing flag configuration in a Kubernetes-native way.
Here is a complete FeatureFlag CR example demonstrating all major flag types and targeting rules:
apiVersion: v1
kind: Namespace
metadata:
name: flag-demo
---
apiVersion: core.openfeature.dev/v1beta1
kind: FeatureFlag
metadata:
name: product-flags
namespace: flag-demo
spec:
flagSpec:
flags:
new-checkout:
state: ENABLED
variants:
'on': true
'off': false
defaultVariant: 'off'
targeting:
if:
- ==:
- var: tier
- internal
- 'on'
- fractional:
- - 'on'
- 10
- - 'off'
- 90
banner-color:
state: ENABLED
variants:
blue: '#0055ff'
green: '#008855'
defaultVariant: blue
targeting:
if:
- ==:
- var: tier
- enterprise
- green
- blue
rate-limit:
state: ENABLED
variants:
standard: 100
premium: 500
defaultVariant: standard
targeting:
if:
- in:
- var: tier
- - premium
- enterprise
- premium
- standard
feature-config:
state: ENABLED
variants:
default:
maxUploadBytes: 10485760
enableOCR: false
enhanced:
maxUploadBytes: 52428800
enableOCR: true
defaultVariant: default
targeting:
if:
- and:
- ==:
- var: environment
- production
- in:
- var: tier
- - premium
- enterprise
- enhanced
- defaultSidecar Injection vs Standalone Deployment

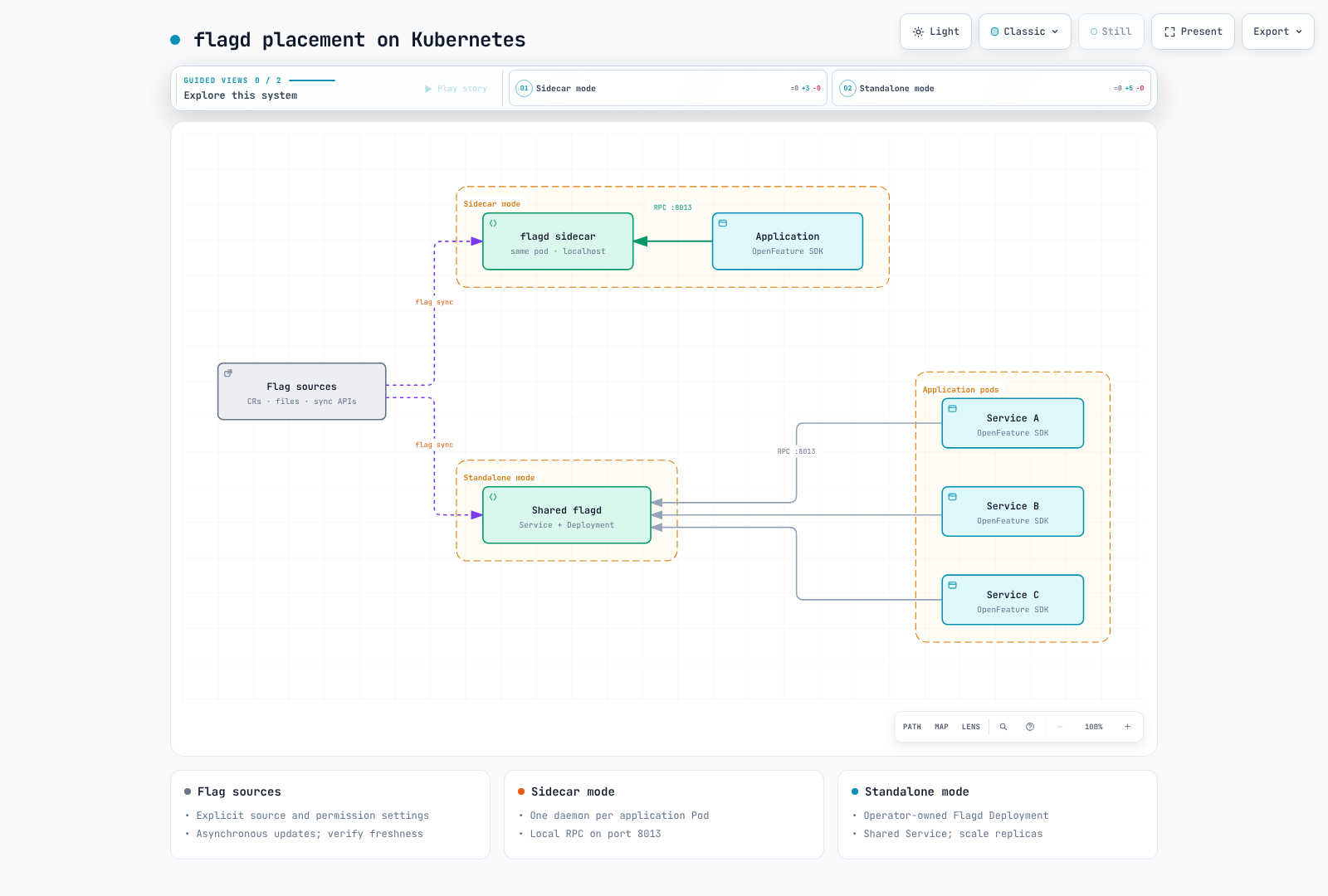

flagd can run in two modes on Kubernetes. The choice depends on your latency requirements, operational model, and resource budget.

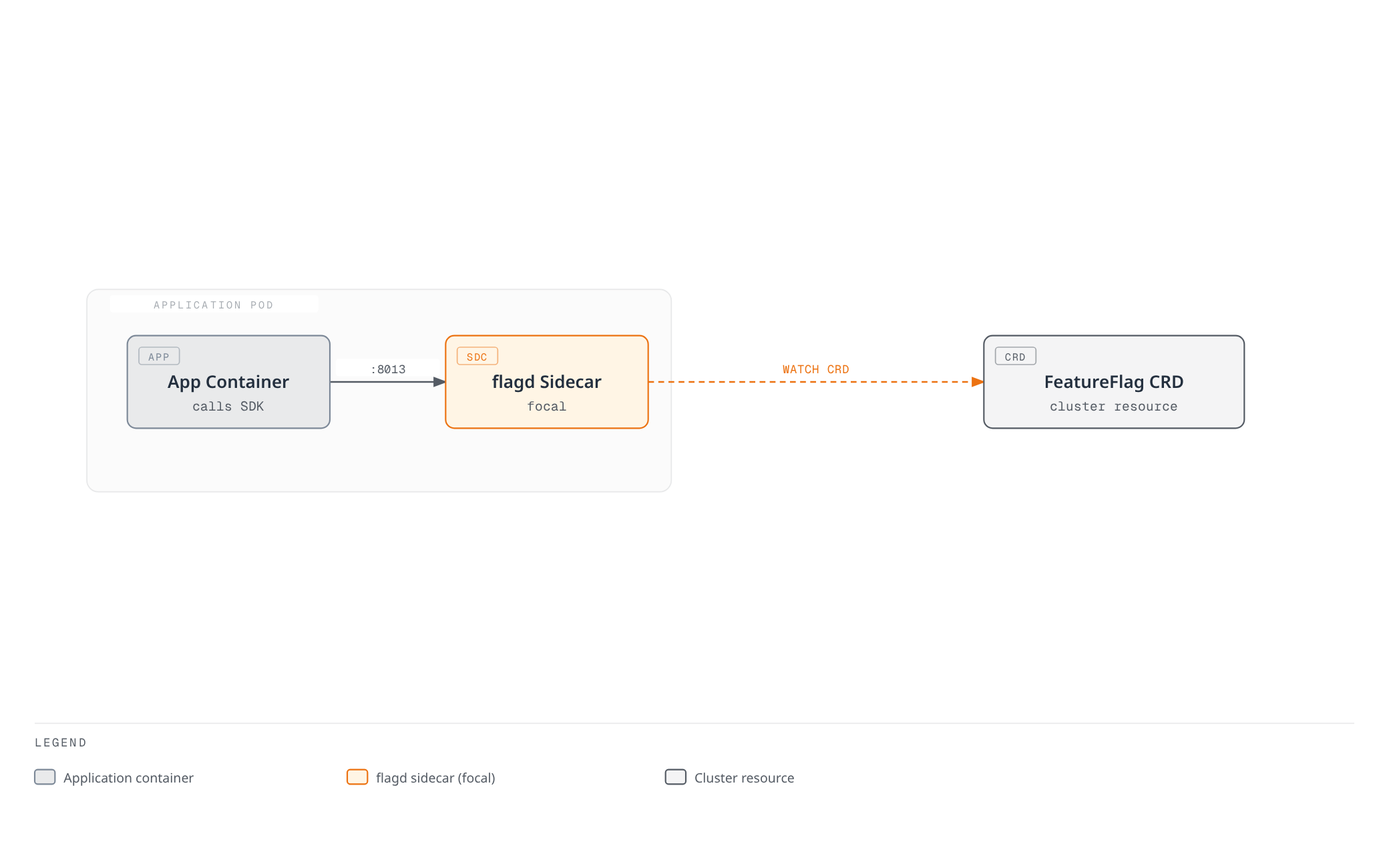

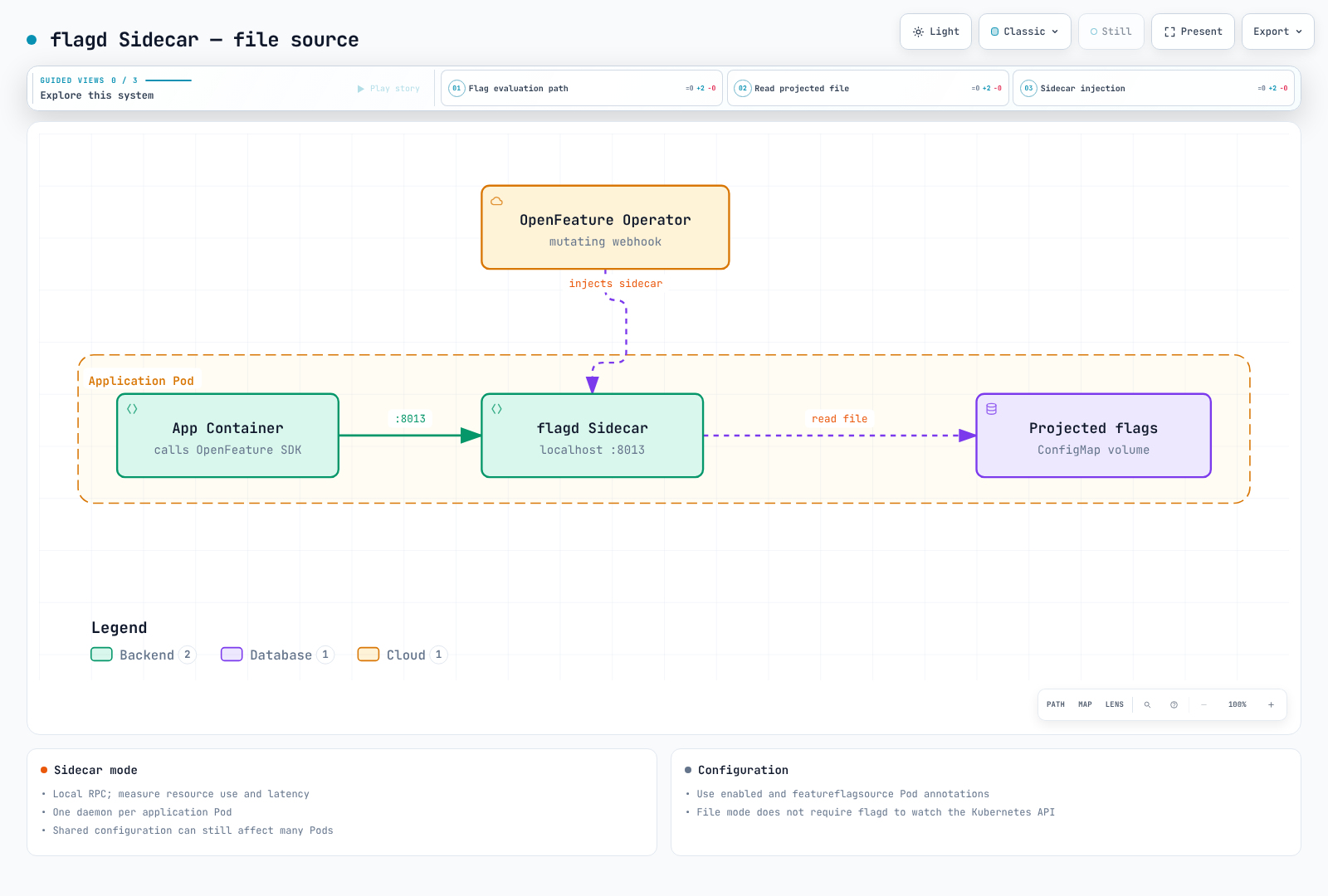

Sidecar Mode (injected by the OpenFeature Operator):

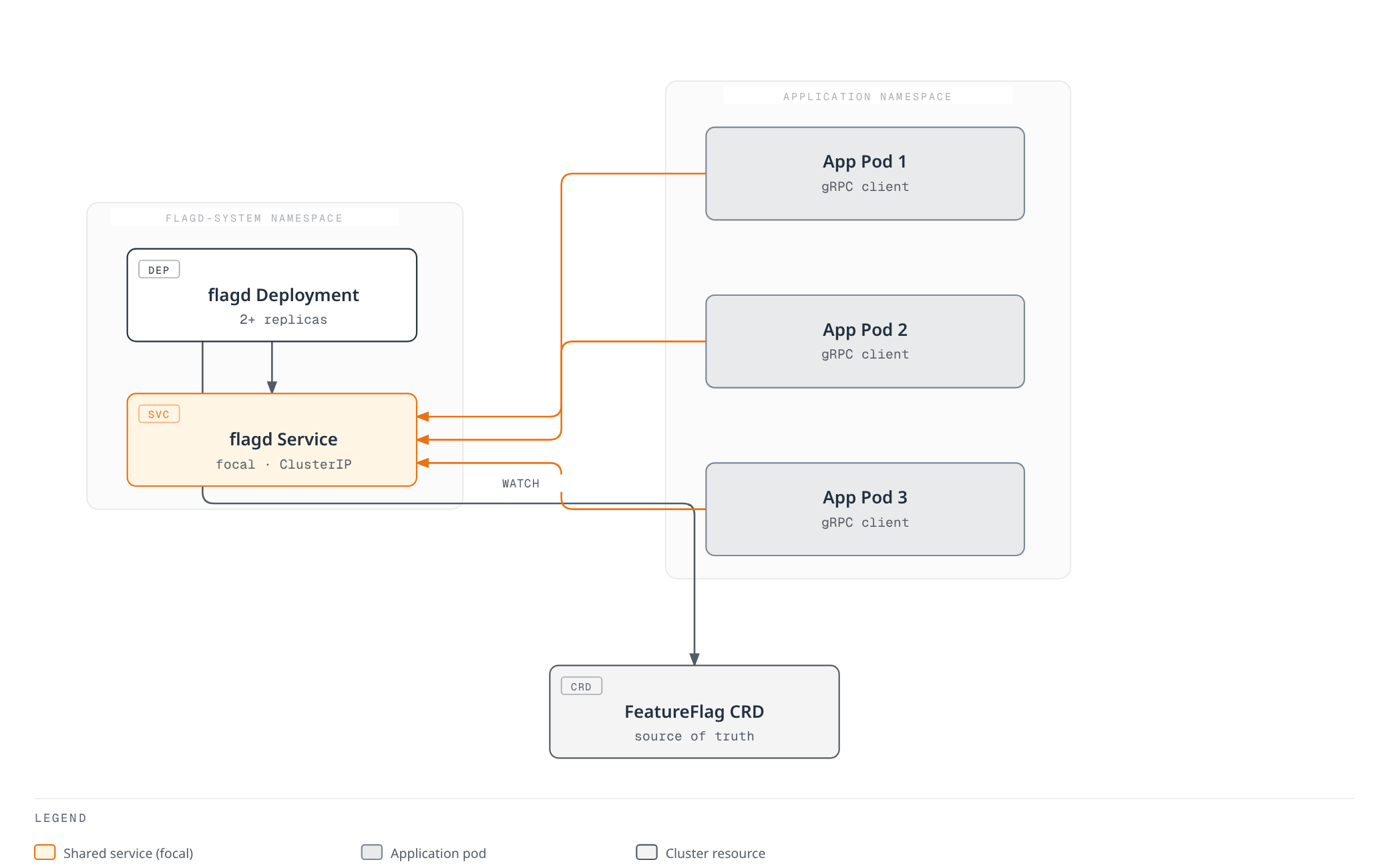

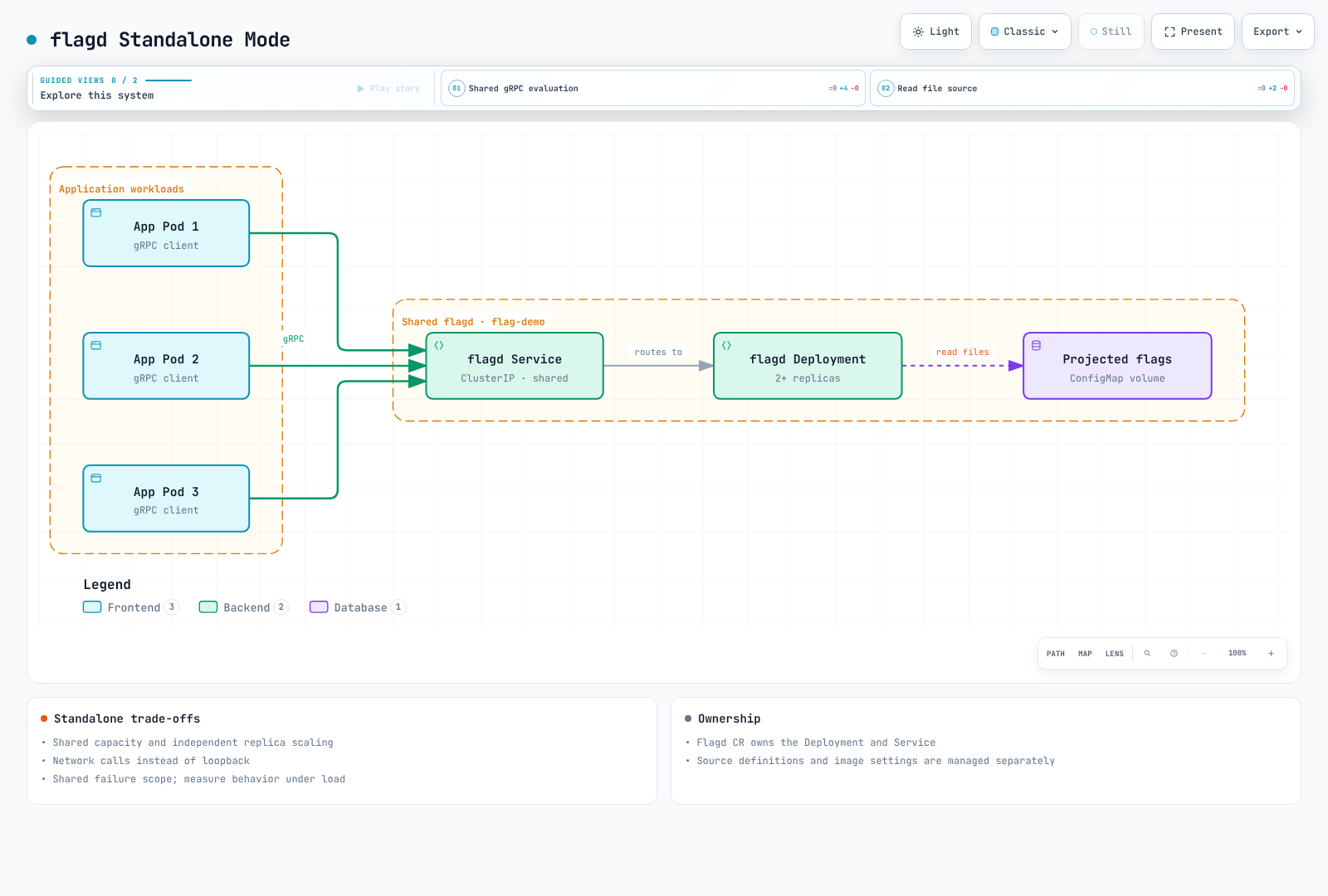

Standalone Mode (centralized deployment):
| Aspect | Sidecar | Standalone |
|---|---|---|
| RPC path | Localhost call | Shared Service call; measure actual latency |
| Resource Usage | One flagd per pod | Shared across pods |
| Failure scope | Local daemon failure is per Pod; shared configuration can affect many Pods | Shared service failure can affect multiple consumers |
| Scaling | Scales with app pods | Independent scaling |
| Configuration | Operator Pod admission and source reference | Operator-managed Flagd CR or a separately managed deployment |
| Tradeoff | Per-Pod runtime and operational overhead | Shared capacity and a service dependency |
Create the FeatureFlag and the FeatureFlagSource described below before applying this shared Flagd. The Operator owns its Deployment and ClusterIP Service. The file source does not need an API token mounted into the flagd Pod. Its service is flagd.flag-demo.svc.cluster.local, with RPC on port 8013.
apiVersion: v1
kind: ServiceAccount
metadata:
name: flagd-demo
namespace: flag-demo
automountServiceAccountToken: false
---
apiVersion: core.openfeature.dev/v1beta1
kind: Flagd
metadata:
name: flagd
namespace: flag-demo
spec:
replicas: 2
serviceType: ClusterIP
serviceAccountName: flagd-demo
featureFlagSource: product-flags-sourceOpenFeature Operator

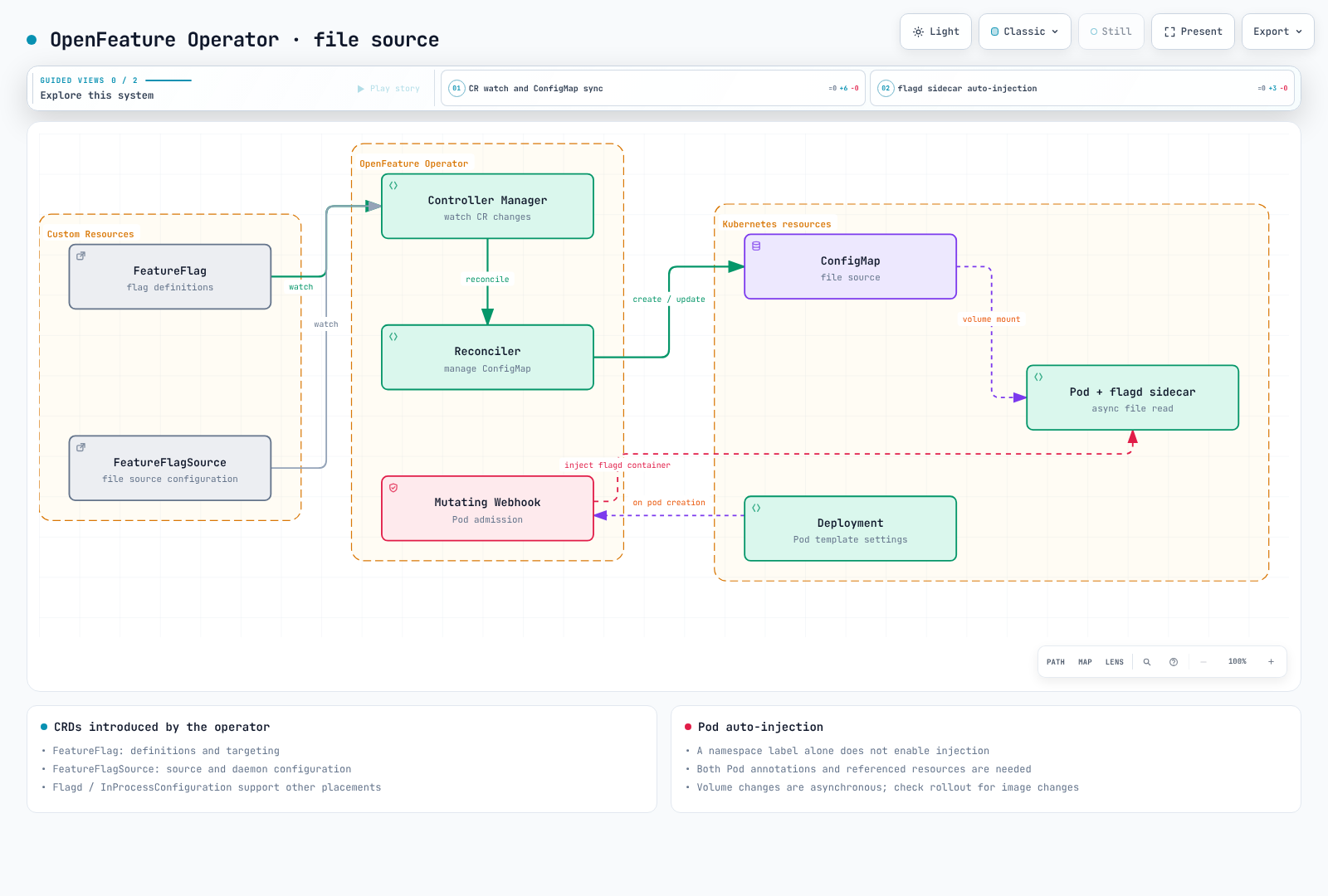

The OpenFeature Operator is a Kubernetes operator that manages the lifecycle of flagd instances and synchronizes feature flag configurations. It is the recommended way to run flagd in production Kubernetes environments.
Installation
Use the pinned Operator installation and image overrides in Helm Installation. Installing the Operator does not automatically deploy a shared flagd service for every application.
CRDs Introduced by the Operator
The operator introduces several CRDs for managing feature flags:
| CRD | Purpose |
|---|---|
FeatureFlag | Declares feature flag definitions inline (flag key, variants, targeting rules) |
FeatureFlagSource | Points to the source(s) of flag configuration for a workload (CRD, file, HTTP) |
FeatureFlagSource CRD
FeatureFlagSource configures sources and settings for injected or shared flagd instances. This baseline uses the file source to reference flag-demo/product-flags. The Operator supplies a ConfigMap volume, so the flagd container does not need to watch Kubernetes directly. Create that FeatureFlag first.
apiVersion: core.openfeature.dev/v1beta1
kind: FeatureFlagSource
metadata:
name: product-flags-source
namespace: flag-demo
spec:
sources:
- source: flag-demo/product-flags
provider: file
port: 8013
managementPort: 8014
evaluator: json
logFormat: json
probesEnabled: true| Source | source form | Prerequisite |
|---|---|---|
file | namespace/FeatureFlag-name | ConfigMap volume supplied by the Operator |
kubernetes | namespace/FeatureFlag-name | Kubernetes API permissions and credentials for flagd |
flagd-proxy | Operator's documented proxy source configuration | Proxy service and access boundary |
http | A real HTTPS JSON endpoint | Connectivity, authentication, and server trust |
grpc | A real host:port | Sync server, TLS, and required authentication |
Every configured source must actually exist. These are FeatureFlagSource values, not flagd CLI auto-detection URIs. The CLI accepts core.openfeature.dev/flag-demo/product-flags for Kubernetes auto-detection. Do not commit authentication tokens inside a CR. evaluator: json selects the evaluation engine; it does not enable caching or a log of every flag evaluation.
When adding another FeatureFlag CR, reference it in the FeatureFlagSource or merge its definitions into the existing product-flags map. Creating a CR alone does not make every flagd instance or SDK consume it.
Pod Auto-Injection
Set both annotations on the Deployment Pod template; a namespace label alone does not enable injection. The following integration template requires a real application image that uses the SDK and serves HTTP on port 8080. With the file source, the sidecar does not need a Kubernetes API token.
apiVersion: v1
kind: ServiceAccount
metadata:
name: order-service
namespace: flag-demo
automountServiceAccountToken: false
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: order-service
namespace: flag-demo
spec:
replicas: 3
selector:
matchLabels:
app: order-service
template:
metadata:
labels:
app: order-service
annotations:
# This annotation triggers flagd sidecar injection
openfeature.dev/enabled: "true"
# Reference the FeatureFlagSource to use
openfeature.dev/featureflagsource: "product-flags-source"
spec:
serviceAccountName: order-service
automountServiceAccountToken: false
containers:
- name: order-service
image: YOUR_REGISTRY/order-service:YOUR_VERSION
ports:
- containerPort: 8080
name: http
env:
# The flagd provider connects to localhost because the sidecar
# runs in the same pod
- name: FLAGD_HOST
value: "localhost"
- name: FLAGD_PORT
value: "8013"Inspect the admitted Pod to confirm that injection succeeded and that its image, arguments, and volumes match the intended FeatureFlagSource. A running Pod alone is not proof of successful injection when the webhook failure policy is Ignore.

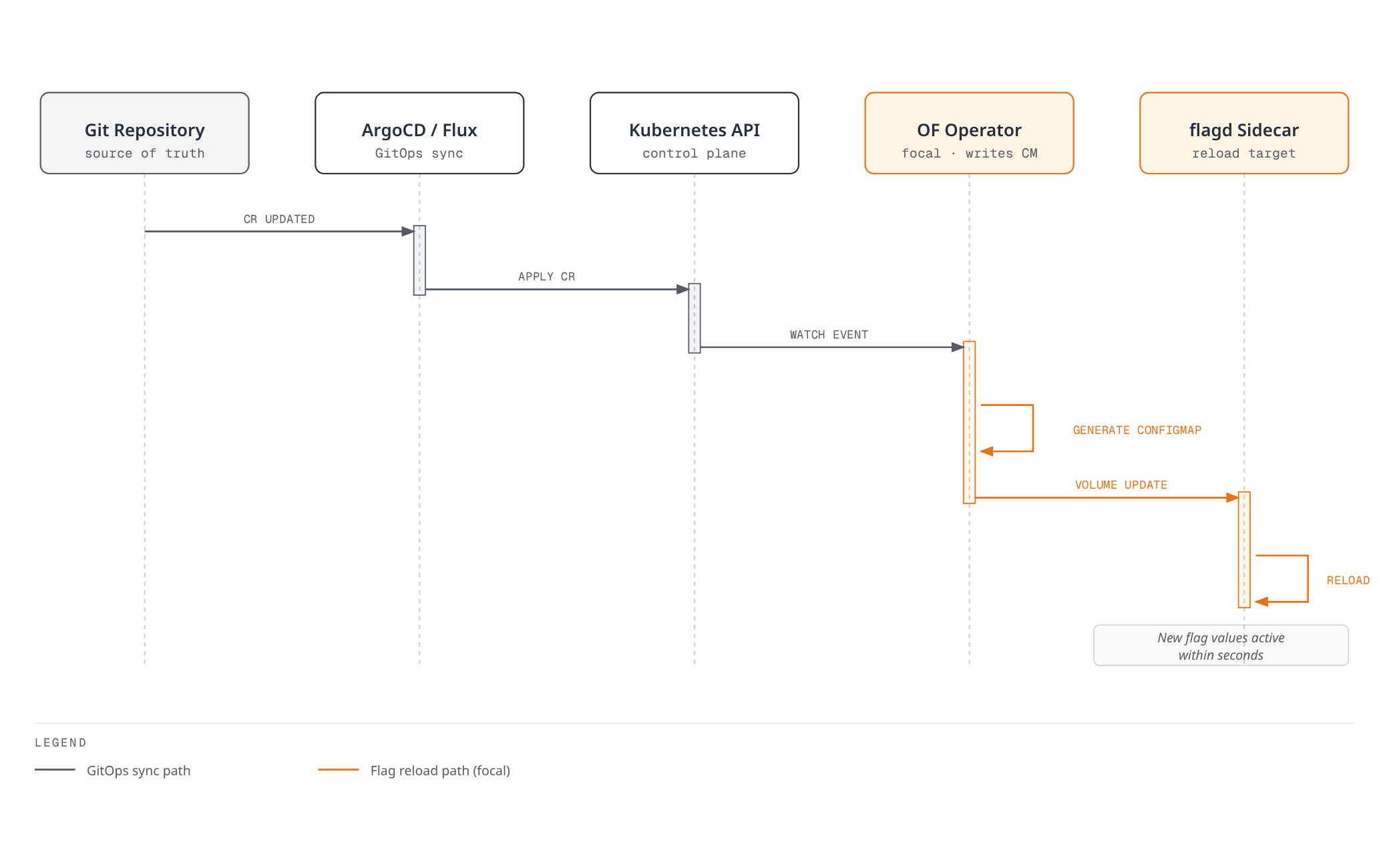

ConfigMap and CRD Synchronization
For the file source used here, the Operator supplies FeatureFlag definitions through ConfigMap volumes. Direct Kubernetes and proxy sources follow different paths. The following diagram describes the file-source path:
File-source definition changes can be consumed without restarting the Pod, but ConfigMap projection and file reading are asynchronous. Inspect the deployed Pod configuration and required rollout separately when changing an image or source configuration. Initial readiness is not proof that every consumer has the latest definition.
Application Integration
Go SDK
This example uses Go 1.25+, OpenFeature Go SDK v1.18.0, and flagd Provider v0.6.0. NewProvider returns both a provider and an error. Select local file resolution with WithFileResolver and WithOfflineFilePath; older examples using WithResolverType or flagd.GRPC do not match this provider API.
Save the JSON object inside spec.flagSpec as flags.json, rather than the entire Kubernetes resource. It must contain the four flag keys read below. When exporting an existing resource, select its actual namespace.
kubectl get featureflag product-flags -n flag-demo -o json | jq '.spec.flagSpec' > flags.json
mkdir go-flag-demo
cp flags.json go-flag-demo/
cd go-flag-demo
go mod init example.com/go-flag-demo
go get github.com/open-feature/go-sdk@v1.18.0
go get github.com/open-feature/go-sdk-contrib/providers/flagd@v0.6.0
# Save the code below as main.go, then run it.
go run . flags.jsonFile mode is a local validation path; it does not call Kubernetes or a flagd server. In production, obtain attributes such as tier from authenticated server state. Untrusted request headers must not determine entitlements or authorization.
package main
import (
"context"
"encoding/json"
"errors"
"log"
"os"
"time"
"github.com/open-feature/go-sdk/openfeature"
flagd "github.com/open-feature/go-sdk-contrib/providers/flagd/pkg"
)
func run(flagFile string) error {
provider, err := flagd.NewProvider(
flagd.WithFileResolver(),
flagd.WithOfflineFilePath(flagFile),
)
if err != nil {
return err
}
if err := openfeature.SetProviderAndWait(provider); err != nil {
return err
}
defer openfeature.Shutdown()
client := openfeature.NewClient("docs-demo")
ctx, cancel := context.WithTimeout(context.Background(), time.Second)
defer cancel()
evaluation := openfeature.NewEvaluationContext("synthetic-user", map[string]interface{}{
"tier": "internal",
"region": "ap-northeast-2",
"environment": "development",
})
enabled, errBool := client.BooleanValue(ctx, "new-checkout", false, evaluation)
color, errString := client.StringValue(ctx, "banner-color", "#000000", evaluation)
limit, errInteger := client.IntValue(ctx, "rate-limit", 10, evaluation)
config, errObject := client.ObjectValue(ctx, "feature-config", map[string]interface{}{}, evaluation)
if err := errors.Join(errBool, errString, errInteger, errObject); err != nil {
return err
}
return json.NewEncoder(os.Stdout).Encode(map[string]interface{}{
"enabled": enabled,
"color": color,
"limit": limit,
"config": config,
})
}
func main() {
if len(os.Args) != 2 {
log.Fatal("usage: go run . flags.json")
}
if err := run(os.Args[1]); err != nil {
log.Fatal(err)
}
}To use RPC with a flagd sidecar, replace only the constructor with the following. Keep provider readiness, evaluation error handling, and shutdown. For a shared Flagd deployment, use its Service DNS name instead of loopback, and match the network and TLS settings to that deployment.
provider, err := flagd.NewProvider(
flagd.WithHost("127.0.0.1"),
flagd.WithPort(8013),
)Java SDK
This example uses JDK 21, Maven 3.9, OpenFeature Java SDK 1.22.1, and flagd Provider 0.14.1. Select the resolver using Config.Resolver, not FlagdOptions.ResolverType. MutableContext.add has overloads for strings, integers, booleans, and other supported context values.
Save this pom.xml in a new project.
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>example.docs</groupId><artifactId>flag-demo</artifactId><version>1.0.0</version>
<properties><maven.compiler.release>21</maven.compiler.release><project.build.sourceEncoding>UTF-8</project.build.sourceEncoding></properties>
<dependencies>
<dependency><groupId>dev.openfeature</groupId><artifactId>sdk</artifactId><version>1.22.1</version></dependency>
<dependency><groupId>dev.openfeature.contrib.providers</groupId><artifactId>flagd</artifactId><version>0.14.1</version></dependency>
</dependencies>
<build><plugins><plugin><groupId>org.apache.maven.plugins</groupId><artifactId>maven-compiler-plugin</artifactId><version>3.14.1</version></plugin></plugins></build>
</project>Save the following as src/main/java/FlagDemo.java and place the same flags.json in the project root. File mode evaluates flags without connecting to a server.
import dev.openfeature.contrib.providers.flagd.Config;
import dev.openfeature.contrib.providers.flagd.FlagdOptions;
import dev.openfeature.contrib.providers.flagd.FlagdProvider;
import dev.openfeature.sdk.Client;
import dev.openfeature.sdk.FlagEvaluationDetails;
import dev.openfeature.sdk.MutableContext;
import dev.openfeature.sdk.MutableStructure;
import dev.openfeature.sdk.OpenFeatureAPI;
import dev.openfeature.sdk.Value;
import java.nio.file.Path;
import java.util.List;
public class FlagDemo {
public static void main(String[] args) {
if (args.length != 1) throw new IllegalArgumentException("usage: FlagDemo flags.json");
OpenFeatureAPI api = OpenFeatureAPI.getInstance();
FlagdOptions options = FlagdOptions.builder()
.resolverType(Config.Resolver.FILE)
.offlineFlagSourcePath(Path.of(args[0]).toAbsolutePath().toString())
.build();
try {
api.setProviderAndWait(new FlagdProvider(options));
Client client = api.getClient("docs-demo");
MutableContext context = new MutableContext("synthetic-user");
context.add("tier", "internal");
FlagEvaluationDetails<Boolean> enabled = client.getBooleanDetails("new-checkout", false, context);
FlagEvaluationDetails<String> color = client.getStringDetails("banner-color", "#000000", context);
FlagEvaluationDetails<Integer> limit = client.getIntegerDetails("rate-limit", 10, context);
Value fallback = new Value(new MutableStructure().add("maxUploadBytes", 0).add("enableOCR", false));
FlagEvaluationDetails<Value> config = client.getObjectDetails("feature-config", fallback, context);
for (FlagEvaluationDetails<?> result : List.of(enabled, color, limit, config)) {
if (result.getErrorCode() != null) throw new IllegalStateException(result.getErrorCode().toString());
}
System.out.printf("enabled=%s color=%s limit=%d config=%s%n", enabled.getValue(), color.getValue(), limit.getValue(), config.getValue().asStructure().asObjectMap());
} finally {
api.shutdown();
}
}
}mvn compile org.apache.maven.plugins:maven-dependency-plugin:3.8.1:build-classpath \
-Dmdep.outputFile=classpath.txt
java -cp "target/classes:$(cat classpath.txt)" FlagDemo flags.jsonFor RPC, choose Config.Resolver.RPC, configure host, port, and deadline, and remove offlineFlagSourcePath. Use setProviderAndWait against a ready server and call shutdown at application exit. This standalone example does not add a logging implementation, so SLF4J can report its NOP-logger warning. Use the application's existing SLF4J logging configuration in a real service.
Python SDK
This complete local-file example uses Python 3.10+, openfeature-sdk==0.10.0, and openfeature-provider-flagd==0.5.2. Reuse the same flags.json. The public constructor parameter is resolver_type, with an enum value such as ResolverType.FILE; ResolverType.GRPC and a plain "rpc" string do not match this configuration API.
python -m venv python-flag-demo/.venv
python-flag-demo/.venv/bin/python -m pip install \
openfeature-sdk==0.10.0 openfeature-provider-flagd==0.5.2
# Save the code below as python-flag-demo/main.py.
python-flag-demo/.venv/bin/python python-flag-demo/main.py flags.jsonimport json
import sys
from pathlib import Path
from openfeature import api
from openfeature.contrib.provider.flagd import FlagdProvider
from openfeature.contrib.provider.flagd.config import ResolverType
from openfeature.evaluation_context import EvaluationContext
if len(sys.argv) != 2:
raise SystemExit("usage: python main.py flags.json")
provider = FlagdProvider(
resolver_type=ResolverType.FILE,
offline_flag_source_path=str(Path(sys.argv[1]).resolve()),
)
try:
api.set_provider_and_wait(provider)
client = api.get_client("docs-demo")
context = EvaluationContext(targeting_key="synthetic-user", attributes={"tier": "internal"})
results = {
"enabled": client.get_boolean_details("new-checkout", False, context),
"color": client.get_string_details("banner-color", "#000000", context),
"limit": client.get_integer_details("rate-limit", 10, context),
"config": client.get_object_details("feature-config", {"maxUploadBytes": 0, "enableOCR": False}, context),
}
for name, result in results.items():
if result.error_code is not None:
raise RuntimeError(f"{name}: {result.error_code}")
print(json.dumps({name: result.value for name, result in results.items()}))
finally:
api.shutdown()For RPC, use FlagdProvider(host="127.0.0.1", port=8013, resolver_type=ResolverType.RPC, deadline_ms=500) instead. Remove the offline file option and initialize against a ready flagd server. Keep set_provider_and_wait and shutdown. When a fallback must be distinguished from a successful evaluation, check the detailed result's error_code as shown above.
Node.js SDK
This TypeScript example uses Node.js 22, @openfeature/server-sdk@1.23.0, and @openfeature/flagd-provider@0.16.1. resolverType accepts rpc or in-process, not grpc. In this SDK, adding offlineFlagSourcePath to the in-process resolver selects local files instead of network synchronization.
mkdir node-flag-demo
cp flags.json node-flag-demo/
cd node-flag-demo
npm init -y
npm pkg set type=module
npm install @openfeature/server-sdk@1.23.0 @openfeature/flagd-provider@0.16.1
npm install --save-dev typescript@5.9.3 @types/node@22.19.0
# Save the code below as main.ts.
npx tsc main.ts --target ES2022 --module NodeNext --moduleResolution NodeNext \
--strict --skipLibCheck --outDir dist
node dist/main.js flags.jsonimport { OpenFeature, type EvaluationContext } from '@openfeature/server-sdk';
import { FlagdProvider } from '@openfeature/flagd-provider';
const flagFile = process.argv[2];
if (!flagFile) throw new Error('usage: node dist/main.js flags.json');
const provider = new FlagdProvider({
resolverType: 'in-process',
offlineFlagSourcePath: flagFile,
});
try {
await OpenFeature.setProviderAndWait(provider);
const client = OpenFeature.getClient('docs-demo');
const context: EvaluationContext = {targetingKey: 'synthetic-user', tier: 'internal'};
const results = {
enabled: await client.getBooleanDetails('new-checkout', false, context),
color: await client.getStringDetails('banner-color', '#000000', context),
limit: await client.getNumberDetails('rate-limit', 10, context),
config: await client.getObjectDetails('feature-config', {maxUploadBytes: 0, enableOCR: false}, context),
};
for (const [name, result] of Object.entries(results)) {
if (result.errorCode) throw new Error(`${name}: ${result.errorCode}`);
}
console.log(JSON.stringify(Object.fromEntries(Object.entries(results).map(([name, result]) => [name, result.value]))));
} finally {
await OpenFeature.clearProviders();
}For RPC, configure resolverType: 'rpc', the server host, and port: 8013, and remove offlineFlagSourcePath. Await setProviderAndWait before accepting requests, and await clearProviders at application shutdown. Do not construct a provider per request. This local-file test does not validate an actual RPC connection.
Targeting Rules Deep Dive
targeting must ultimately return a variant name present in variants. fractional returns a variant name, not a user list, so do not test whether a user key is in that result. Combine an internal-user rule with a rollout as in the baseline: if: [internal condition, on, fractional rule].
Reference this additional CR in the source or merge its definitions into the baseline flags map. Use trusted attributes and normalize app_version as SemVer.
apiVersion: core.openfeature.dev/v1beta1
kind: FeatureFlag
metadata:
name: targeting-examples
namespace: flag-demo
spec:
flagSpec:
flags:
premium-feature:
state: ENABLED
variants:
'on': true
'off': false
defaultVariant: 'off'
targeting:
if:
- and:
- ==:
- var: tier
- enterprise
- '>=':
- var: account_age_days
- 30
- 'on'
- 'off'
new-search-algo:
state: ENABLED
variants:
'on': true
'off': false
defaultVariant: 'off'
targeting:
fractional:
- - 'on'
- 20
- - 'off'
- 80
api-v2:
state: ENABLED
variants:
'on': true
'off': false
defaultVariant: 'off'
targeting:
if:
- sem_ver:
- var: app_version
- '>='
- 2.0.0
- 'on'
- 'off'Fractional integer weights are relative. The example divides the hash space 20/80; it does not guarantee exactly 20% of actual users or requests. The default bucket key combines the flag key and targetingKey. Use a stable, non-empty key, and do not assign every anonymous visitor the same key. Repeated evaluation with the same rule and key is stable; changing weights, keys, or evaluator implementations can change assignments.
A flag's defaultVariant when targeting produces no result is distinct from the SDK caller's default. In the tested Go flagd provider, DISABLED returns the caller's default without an error and reports reason DISABLED. Disabling a flag does not necessarily produce false. Design a kill switch to select an explicit off variant while ENABLED, and verify values, errors, reasons, and propagation to consumers.
Canary Release and Feature Flag Combination
This sequence assumes a healthy, initialized v1 primary. Distinguish first-time Canary initialization from analysis of a subsequent workload revision. Confirm initial OFF through actual evaluation, including targeting; an off default alone is insufficient.
Feature flags and canary releases are complementary strategies. Canary releases control traffic at the infrastructure level (which pod version serves a request), while feature flags control behavior at the application level (which code path executes). Combining both provides the highest level of release safety.

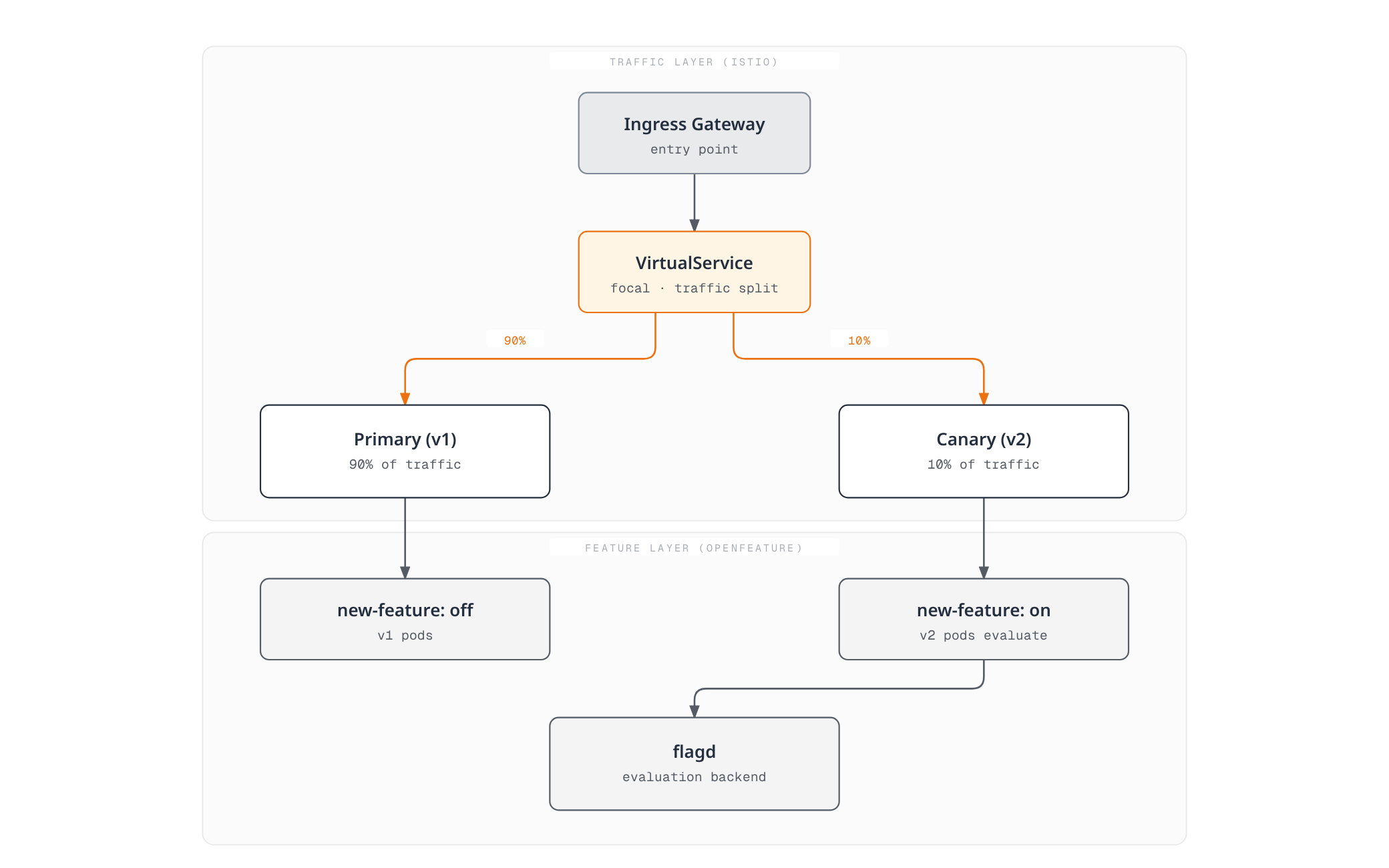

Architecture: Flagger + Feature Flags
This is an Istio integration template for Flagger 1.45. The controller must watch flag-demo, and the Deployment, Istio, and Prometheus metrics must already exist. The application image must actually integrate the SDK. threshold: 5 is the cumulative failed-check limit for an analysis, not a required success count. These numbers are illustrative policies to adapt to the real SLO.
An application-supplied, trusted release_id can scope eligibility for new behavior. Do not confuse a Pod's canary role with the application release ID. Workload promotion does not automatically open the feature flag to 100%; flag expansion and restoration need separate approval, Git changes, or implemented automation.

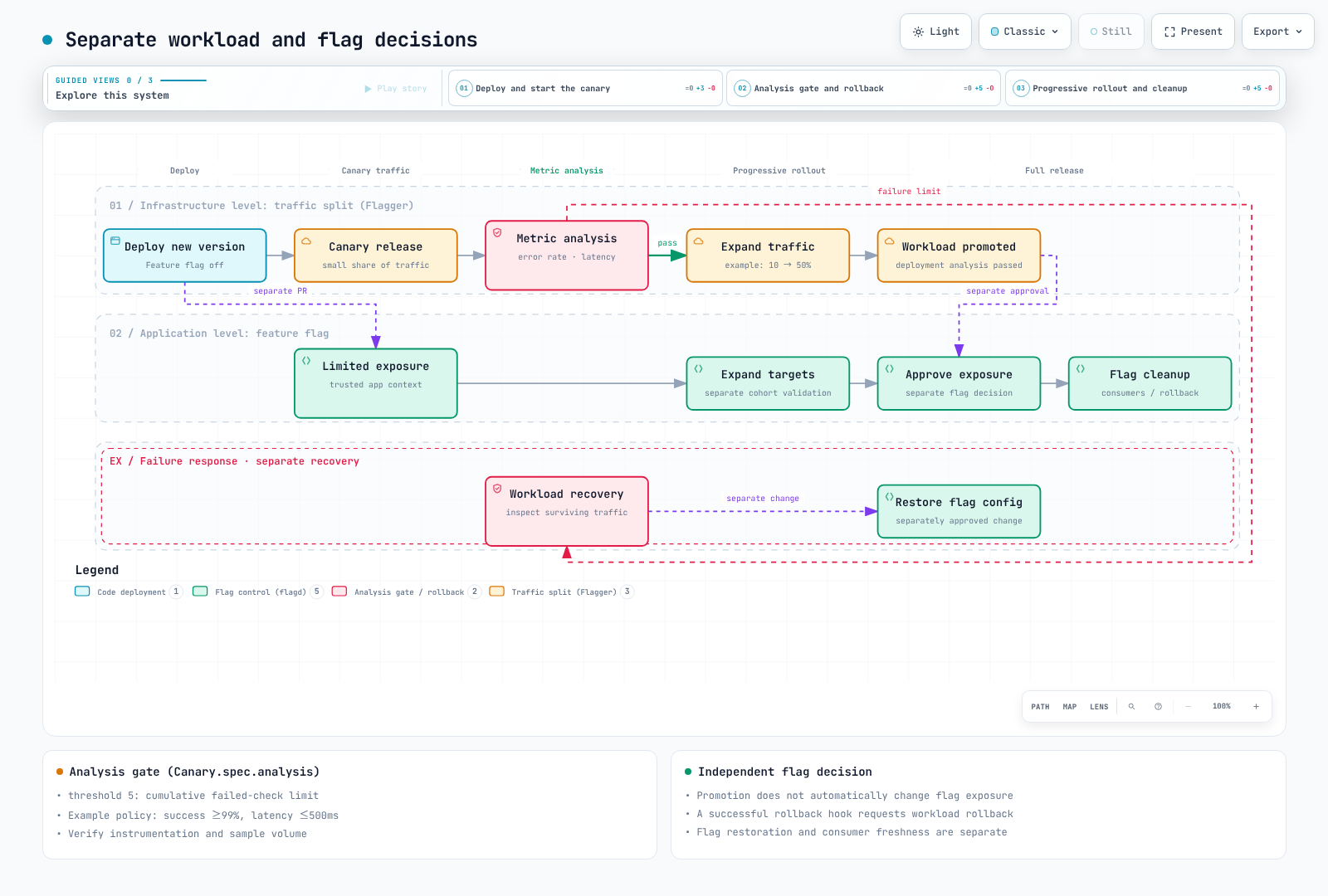

Flagger + Feature Flag Workflow
The following workflow uses Flagger for traffic management and feature flags for fine-grained control within the canary pods:
Phase 1 -- Deploy with flag off: Ship v2 with a new feature behind a flag (default: off). Flagger begins routing a small percentage of traffic to v2.
Phase 2 -- Enable a limited cohort: Use trusted attributes such as tier: internal and the intended release ID. Confirm the actual consumer revision and exposure before expanding.
Phase 3 -- Cohort expansion: Change the approved flag weights separately and monitor application outcomes alongside the workload analysis.
Phase 4 -- Separate promotion decisions: Flagger can promote the workload after its analysis. Opening the feature to 100% is a separate configuration change with its own validation.
Example Flagger Canary resource:
apiVersion: flagger.app/v1beta1
kind: Canary
metadata:
name: order-service
namespace: flag-demo
spec:
targetRef:
apiVersion: apps/v1
kind: Deployment
name: order-service
progressDeadlineSeconds: 600
service:
port: 8080
targetPort: 8080
analysis:
interval: 1m
threshold: 5
maxWeight: 50
stepWeight: 10
metrics:
- name: request-success-rate
thresholdRange:
min: 99
interval: 1m
- name: request-duration
thresholdRange:
max: 500
interval: 1mWebhook integration requires a real receiver, authentication, retry handling, and revision checks. A successful rollback hook requests rollback; it is not an after-rollback notification. post-rollout can run on success or failure, so inspect the outcome. Metadata strings are literal, not Go-template expressions. No external flag-controller service is installed by this example.
A/B Testing with Feature Flags
A stable targeting key and unchanged rule produce a stable variant assignment. Add this CR to the source or merge it into the existing flag map. The 34/33/33 weights are not quotas guaranteeing exact user counts.
apiVersion: core.openfeature.dev/v1beta1
kind: FeatureFlag
metadata:
name: ab-test-checkout
namespace: flag-demo
spec:
flagSpec:
flags:
checkout-variant:
state: ENABLED
variants:
control: classic
variant-a: streamlined
variant-b: one-click
defaultVariant: control
targeting:
fractional:
- - control
- 34
- - variant-a
- 33
- - variant-b
- 33Use string evaluation details to inspect the value, variant, and error. Record exposure when the selected experience is actually delivered; an evaluation alone does not prove exposure or conversion. Define conversion events, sample size, experiment duration, and outcome metrics separately. Stable bucketing does not guarantee an identical experience across old/new app versions or stale rule sets.
Dark Launch Pattern
A dark launch deploys new functionality to production but only exposes it to internal users or a shadow pipeline. Feature flags make this straightforward:
apiVersion: core.openfeature.dev/v1beta1
kind: FeatureFlag
metadata:
name: dark-launch-quote-v2
namespace: flag-demo
spec:
flagSpec:
flags:
shadow-quote-v2:
state: ENABLED
variants:
"on": true
"off": false
defaultVariant: "off"
targeting:
# Only enable for specific internal test accounts
if:
- in:
- var: targetingKey
- - "test-user-001"
- "test-user-002"
- "qa-bot-001"
- "on"
- "off"Shadow execution must not perform the business operation twice. In particular, do not call two payment processors for the same order. Compare a read-only calculation, or replay sanitized inputs in an isolated environment that cannot charge, write business records, or send notifications. The caller still receives the existing implementation's result.
The following is an integration fragment: calculateLegacyQuote, calculateCandidateQuote, and compareQuotes are application functions. Both calculators must be side-effect free and honor context cancellation. This synchronous example can add up to the candidate's timeout to the request; an asynchronous implementation needs a bounded queue and its own timeout.
func quoteOrder(ctx context.Context, order Order,
evalCtx openfeature.EvaluationContext) (Quote, error) {
original, err := calculateLegacyQuote(ctx, order)
if err != nil {
return original, err
}
shadowEnabled, flagErr := client.BooleanValue(
ctx, "shadow-quote-v2", false, evalCtx,
)
if flagErr == nil && shadowEnabled {
shadowCtx, cancel := context.WithTimeout(ctx, 50*time.Millisecond)
defer cancel()
candidate, err := calculateCandidateQuote(shadowCtx, order)
if err == nil {
compareQuotes(original, candidate)
}
}
return original, nil
}Metrics-Based Auto-Rollout
The following templates require the application instrumentation and PodMonitor shown in Observability. The app label must identify the target Deployment and exclude primary. Replace the Prometheus URL with the real service address. Shared flagd server metrics cannot identify one canary's evaluation failures reliably.
apiVersion: flagger.app/v1beta1
kind: MetricTemplate
metadata:
name: app-flag-errors
namespace: flag-demo
spec:
provider:
type: prometheus
address: http://prometheus.monitoring.svc:9090
query: |-
100 * (
sum(rate(app_feature_flag_evaluations_total{namespace="{{ namespace }}",app="{{ target }}",flag_key="new-checkout",reason="ERROR"}[{{ interval }}]))
or vector(0)
) / sum(rate(app_feature_flag_evaluations_total{namespace="{{ namespace }}",app="{{ target }}",flag_key="new-checkout"}[{{ interval }}]))
---
apiVersion: flagger.app/v1beta1
kind: MetricTemplate
metadata:
name: app-flag-samples
namespace: flag-demo
spec:
provider:
type: prometheus
address: http://prometheus.monitoring.svc:9090
query: sum(increase(app_feature_flag_evaluations_total{namespace="{{ namespace }}",app="{{
target }}",flag_key="new-checkout"}[{{ interval }}]))Append these items to the Canary's existing spec.analysis.metrics list after confirming the series exist. These illustrative policies require at least 100 SDK evaluations in a minute and at most 1% errors; they do not count distinct users or prove business correctness. DISABLED/default results need separate monitoring.
- name: app-flag-error-rate
templateRef:
name: app-flag-errors
thresholdRange:
max: 1
interval: 1m
- name: app-flag-evaluation-count
templateRef:
name: app-flag-samples
thresholdRange:
min: 100
interval: 1mA successful Flagger analysis only permits workload promotion. Feature-flag changes remain a separate decision. Missing observations and NaN must not be treated as success.
GitOps Integration
Feature Flags as Code
Use the resources verified above: product-flags.yaml contains the Namespace and FeatureFlag; feature-source.yaml contains the file-mode FeatureFlagSource; and flagd.yaml contains the shared service's ServiceAccount and Flagd. Install the Operator and cert-manager first. Replace the repository URL and configure repository authentication where required.
gitops-config/
├── base/feature-flags/
│ ├── kustomization.yaml
│ ├── product-flags.yaml
│ ├── feature-source.yaml
│ └── flagd.yaml
├── overlays/dev/feature-flags/kustomization.yaml
├── overlays/production/feature-flags/kustomization.yaml
├── validate-flags.py
└── .github/workflows/feature-flags.ymlbase/feature-flags/kustomization.yaml:
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization
resources:
- product-flags.yaml
- feature-source.yaml
- flagd.yamlEnvironment-Specific Overrides with Kustomize
These are patches within a Kustomization, not incomplete FeatureFlags to apply directly. To enable every development user, remove the existing targeting rule as well as setting the default variant to on. Targeting can take precedence over a changed default. The other three flags remain intact.
overlays/dev/feature-flags/kustomization.yaml:
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization
resources:
- ../../../base/feature-flags
patches:
- target:
group: core.openfeature.dev
version: v1beta1
kind: FeatureFlag
name: product-flags
patch: |
- op: remove
path: /spec/flagSpec/flags/new-checkout/targeting
- op: replace
path: /spec/flagSpec/flags/new-checkout/defaultVariant
value: 'on'overlays/production/feature-flags/kustomization.yaml:
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization
resources:
- ../../../base/feature-flags
patches:
- target:
group: core.openfeature.dev
version: v1beta1
kind: FeatureFlag
name: product-flags
patch: |
- op: replace
path: /spec/flagSpec/flags/new-checkout/targeting
value:
if:
- ==:
- var: tier
- internal
- 'on'
- fractional:
- - 'on'
- 5
- - 'off'
- 95Render both configurations with Kustomize 5.8.1 and review the complete output before deployment.
kustomize build overlays/dev/feature-flags
kustomize build overlays/production/feature-flagsArgoCD FeatureFlag CR Deployment
The existing platform AppProject must allow the actual repository, the flag-demo destination, and the Namespace, ServiceAccount, and OpenFeature resource kinds in this path. A successful sync does not prove that the Operator-created Deployment or every SDK has consumed the latest flag definitions.
apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
name: feature-flags
namespace: argocd
spec:
project: platform
source:
repoURL: https://github.com/YOUR_ORG/gitops-config.git
targetRevision: main
path: overlays/production/feature-flags
destination:
server: https://kubernetes.default.svc
namespace: flag-demo
syncPolicy:
automated:
prune: true
selfHeal: true
retry:
limit: 3
backoff:
duration: 5s
factor: 2
maxDuration: 1mFlux FeatureFlag CR Deployment
This assumes an existing Operator installation, so it does not reference a nonexistent Kustomization through dependsOn. If Flux manages the Operator too, use its actual dependency name. The health check observes the Operator-created flagd Deployment's initial readiness; it is not continuous proof of flag freshness.
apiVersion: source.toolkit.fluxcd.io/v1
kind: GitRepository
metadata:
name: feature-flags
namespace: flux-system
spec:
interval: 1m
url: https://github.com/YOUR_ORG/gitops-config.git
ref:
branch: main
---
apiVersion: kustomize.toolkit.fluxcd.io/v1
kind: Kustomization
metadata:
name: feature-flags-production
namespace: flux-system
spec:
interval: 5m
sourceRef:
kind: GitRepository
name: feature-flags
path: ./overlays/production/feature-flags
prune: true
timeout: 3m
healthChecks:
- apiVersion: apps/v1
kind: Deployment
name: flagd

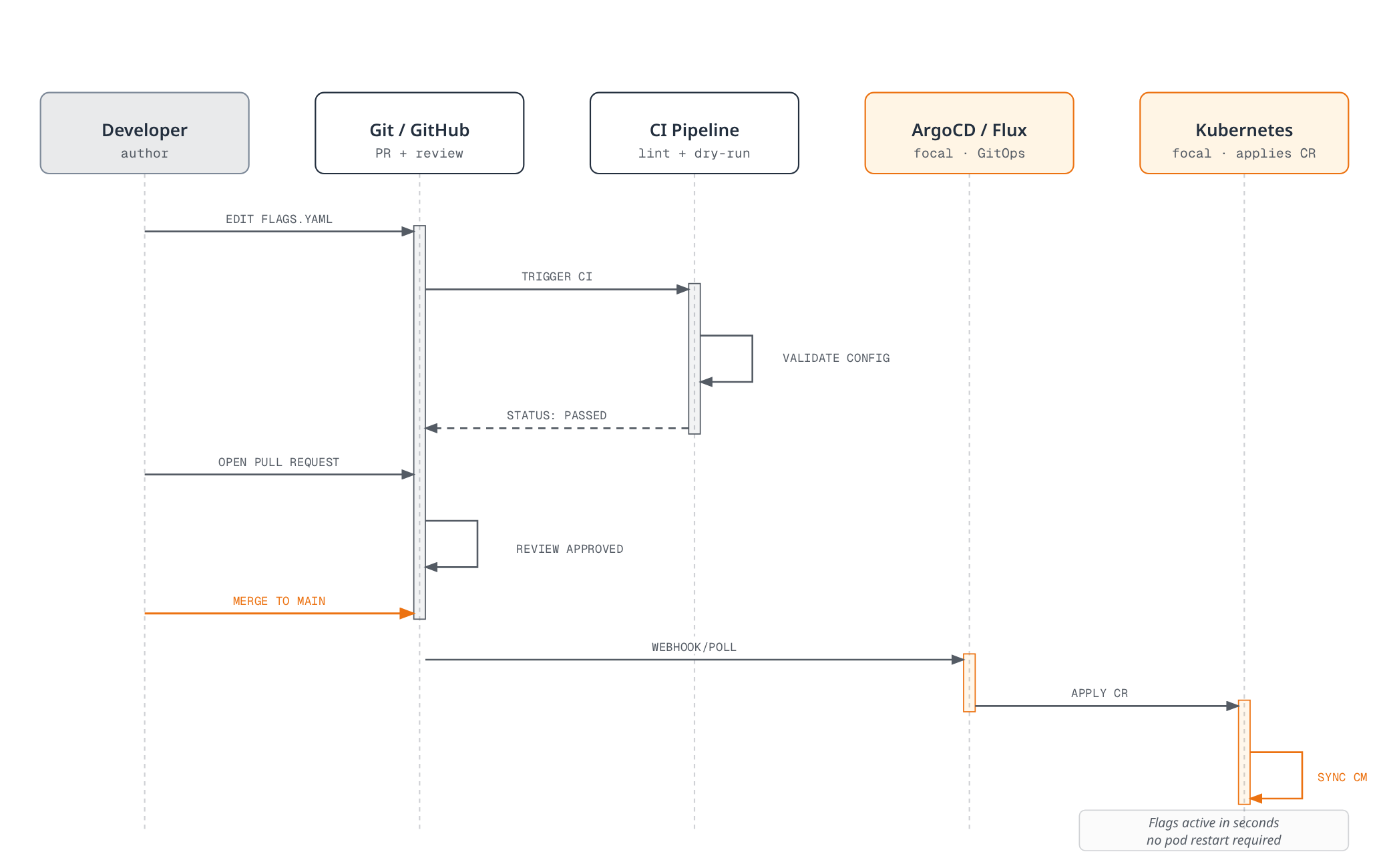

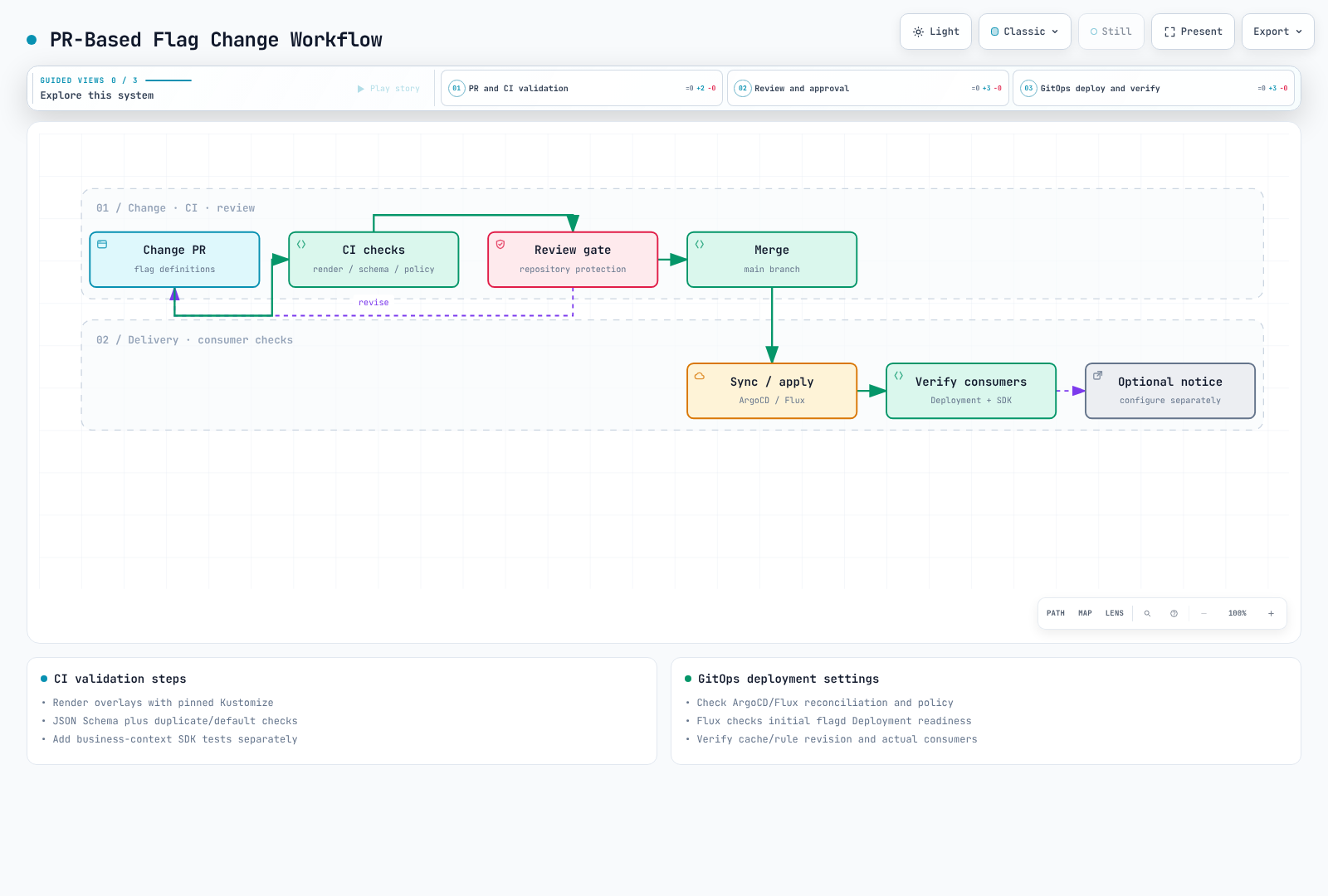

namespace: flag-demoPR-Based Flag Change Workflow
The following .github/workflows/feature-flags.yml validates rendered definitions. It pins tools and schemas and verifies checksums. It uses no cluster access, secrets, or permission to write PR comments. Configure CODEOWNERS and required reviews through repository protection separately.
name: Validate Feature Flags
'on':
pull_request:
paths:
- base/feature-flags/**
- overlays/**/feature-flags/**
- validate-flags.py
- .github/workflows/feature-flags.yml
permissions:
contents: read
jobs:
validate:
runs-on: ubuntu-24.04
steps:
- uses: actions/checkout@3d3c42e5aac5ba805825da76410c181273ba90b1
- uses: actions/setup-python@ece7cb06caefa5fff74198d8649806c4678c61a1
with:
python-version: '3.12'
- name: Install pinned tools and schemas
run: |
curl -fsSL https://github.com/kubernetes-sigs/kustomize/releases/download/kustomize%2Fv5.8.1/kustomize_v5.8.1_linux_amd64.tar.gz -o kustomize.tgz
echo '029a7f0f4e1932c52a0476cf02a0fd855c0bb85694b82c338fc648dcb53a819d kustomize.tgz' | sha256sum --check
tar -xzf kustomize.tgz kustomize
mkdir -p .flag-schemas rendered
curl -fsSL https://raw.githubusercontent.com/open-feature/flagd-schemas/58d732724359b272001ee6a5b8b7a96c549397e4/json/flags.json -o .flag-schemas/flags.json
curl -fsSL https://raw.githubusercontent.com/open-feature/flagd-schemas/58d732724359b272001ee6a5b8b7a96c549397e4/json/targeting.json -o .flag-schemas/targeting.json
echo 'a9b065cc3e140d10a5e139a3f2bbd2f24d4fe8a728ce824a5f2a1231ed60680b .flag-schemas/flags.json' | sha256sum --check
echo 'fb94d3d24f0edab22b28d1895ee045c698eed0ff8d4c151c791a92a07738a605 .flag-schemas/targeting.json' | sha256sum --check
python -m pip install PyYAML==6.0.3 jsonschema==4.26.0
- name: Validate rendered definitions
run: |
for environment in dev production; do
./kustomize build "overlays/${environment}/feature-flags" > "rendered/${environment}.yaml"
done
python validate-flags.py rendered .flag-schemasSave this complete validate-flags.py in the repository root. It rejects duplicate YAML keys, missing default variants, malformed definitions, and an empty set of checked resources. Kebab-case is this example's team policy, not an OpenFeature-wide requirement. This does not replace Kubernetes admission/CEL, reference checks, or business-intent tests. Add SDK evaluations for representative contexts and verify consumers after deployment.
import json
import re
import sys
from pathlib import Path
from urllib.parse import urljoin
import jsonschema
import yaml
from referencing import Registry, Resource
class UniqueKeys(yaml.SafeLoader):
pass
def unique_mapping(loader, node, deep=False):
loader.flatten_mapping(node)
result = {}
for key_node, value_node in node.value:
key = loader.construct_object(key_node, deep=deep)
if key in result:
raise ValueError(f"duplicate YAML key: {key}")
result[key] = loader.construct_object(value_node, deep=deep)
return result
UniqueKeys.add_constructor(yaml.resolver.BaseResolver.DEFAULT_MAPPING_TAG, unique_mapping)
rendered, schema_dir = map(Path, sys.argv[1:3])
registry, schemas = Registry(), {}
for name in ("flags.json", "targeting.json"):
uri = f"https://flagd.dev/schema/v0/{name}"
schema = json.loads((schema_dir / name).read_text())
schema["$id"] = uri
def normalize_refs(value):
if isinstance(value, dict):
for key, item in list(value.items()):
if key == "$ref" and isinstance(item, str) and not item.startswith("#"):
value[key] = urljoin(uri, item)
else:
normalize_refs(item)
elif isinstance(value, list):
for item in value:
normalize_refs(item)
normalize_refs(schema)
schemas[name] = schema
registry = registry.with_resource(uri, Resource.from_contents(schema))
validator = jsonschema.Draft7Validator(schemas["flags.json"], registry=registry)
checked = 0
for path in sorted(rendered.glob("*.yaml")):
for resource in yaml.load_all(path.read_text(), Loader=UniqueKeys):
if not isinstance(resource, dict) or resource.get("kind") != "FeatureFlag":
continue
definition = resource["spec"]["flagSpec"]
validator.validate(definition)
for key, flag in definition["flags"].items():
if not re.fullmatch(r"[a-z0-9]+(?:-[a-z0-9]+)*", key):
raise ValueError(f"example naming policy failed: {key}")
if flag["defaultVariant"] not in flag["variants"]:
raise ValueError(f"default variant missing: {key}")
checked += 1
if checked == 0:
raise ValueError("no rendered FeatureFlag resources were checked")
print(f"validated {checked} rendered FeatureFlag resources")Observability
Flag Evaluation Metrics (Prometheus)
These names were verified with synthetic requests against flagd 0.16.3's default Prometheus exporter at port 8014, /metrics. Do not mix OTLP and Prometheus naming.
| Metric | Meaning and limit |
|---|---|
feature_flag_flagd_impression_total | Successful flag/variant evaluations; not the denominator for all errors |
feature_flag_flagd_result_reason_total | Evaluation reasons including errors; error samples can omit feature_flag_key |
http_server_request_duration_seconds | HTTP processing histogram, not end-to-end latency for every SDK/transport |
In the probe, a missing flag returned HTTP 404 but the HTTP-duration status label recorded 200. Do not use that label to decide flag-evaluation success in this version. Successful variant information and error reasons can appear in different counters.
The shared Flagd Service uses app: flagd and a Service port named metrics. Prometheus Operator must already exist, and its release-label/namespace selectors must include this ServiceMonitor.
apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
name: flagd
namespace: flag-demo
labels:
release: prometheus
spec:
selector:
matchLabels:
app: flagd
namespaceSelector:
matchNames:
- flag-demo
endpoints:
- port: metrics
path: /metrics
interval: 15sFor a sidecar PodMonitor, inspect the admitted Pod and refer to its named management port. A string "8014" can be interpreted as a port name, not a numeric port. In-process SDK evaluations do not automatically increment a remote flagd server's evaluation counters.
Application Evaluation Metrics
This code was validated with Go SDK 1.18.0 and github.com/prometheus/client_golang@v1.24.1. Call through this wrapper and expose its registry through the application's HTTP server. Installing an SDK or declaring counters does not automatically instrument evaluations. Do not label metrics with user IDs or flag values; control the set of flag keys used by the application.
package main
import (
"context"
"time"
"github.com/open-feature/go-sdk/openfeature"
"github.com/prometheus/client_golang/prometheus"
)
type FlagMetrics struct {
evaluations *prometheus.CounterVec
duration *prometheus.HistogramVec
}
func NewFlagMetrics(reg prometheus.Registerer) *FlagMetrics {
m := &FlagMetrics{
evaluations: prometheus.NewCounterVec(prometheus.CounterOpts{
Name: "app_feature_flag_evaluations_total",
Help: "SDK evaluations, including explicit fallback reasons.",
}, []string{"flag_key", "variant", "reason"}),
duration: prometheus.NewHistogramVec(prometheus.HistogramOpts{
Name: "app_feature_flag_evaluation_duration_seconds",
Help: "SDK evaluation duration including local or remote resolution.",
Buckets: prometheus.DefBuckets,
}, []string{"flag_key"}),
}
reg.MustRegister(m.evaluations, m.duration)
return m
}
func (m *FlagMetrics) Boolean(ctx context.Context, client *openfeature.Client,
key string, fallback bool, evaluation openfeature.EvaluationContext) (bool, error) {
start := time.Now()
result, err := client.BooleanValueDetails(ctx, key, fallback, evaluation)
reason, variant := string(result.Reason), result.Variant
if err != nil { reason = "ERROR" }
if variant == "" { variant = "fallback" }
m.evaluations.WithLabelValues(key, variant, reason).Inc()
m.duration.WithLabelValues(key).Observe(time.Since(start).Seconds())
return result.Value, err
}Wire the following fragment into application initialization and evaluation. promhttp is part of the same Prometheus client module. The application's existing lifecycle owns the HTTP server.
registry := prometheus.NewRegistry()
flagMetrics := NewFlagMetrics(registry)
http.Handle("/metrics", promhttp.HandlerFor(registry, promhttp.HandlerOpts{}))
value, err := flagMetrics.Boolean(ctx, client, "new-checkout", false, evaluation)Track success, ERROR, and DISABLED separately. DISABLED can use the SDK caller's default without an error. The histogram measures SDK-call duration, not the complete user request.
This PodMonitor assumes the application exposes metrics on a port named http. It copies the Pod's app label to distinguish the Flagger target from primary. Confirm namespace and app labels in actual Prometheus series before using the queries.
apiVersion: monitoring.coreos.com/v1
kind: PodMonitor
metadata:
name: order-service-flags
namespace: flag-demo
labels:
release: prometheus
spec:
namespaceSelector:
matchNames:
- flag-demo
selector:
matchExpressions:
- key: app
operator: In
values:
- order-service
- order-service-primary
podTargetLabels:
- app
podMetricsEndpoints:
- port: http
path: /metrics
interval: 15sGrafana Dashboard
Build panels from these queries, configuring time range, units, and data sources. A shared flagd server's error rate is not a particular canary application's error rate. Export a dashboard verified in Grafana for provisioning. Do not use an API request's {"dashboard": ...} envelope as the dashboard file itself.
Server-wide evaluation error rate (%):
100 * (
sum(rate(feature_flag_flagd_result_reason_total{namespace="flag-demo",feature_flag_reason="ERROR"}[5m]))
or vector(0)
) / sum(rate(feature_flag_flagd_result_reason_total{namespace="flag-demo"}[5m]))Variant share among successful evaluations (%), distinct from exposure/conversion:
100 * sum by (feature_flag_result_variant) (
rate(feature_flag_flagd_impression_total{namespace="flag-demo",feature_flag_key="new-checkout"}[5m])
) / scalar(sum(rate(feature_flag_flagd_impression_total{namespace="flag-demo",feature_flag_key="new-checkout"}[5m])))Application-target flag error rate (%):
100 * (
sum(rate(app_feature_flag_evaluations_total{namespace="flag-demo",app="order-service",flag_key="new-checkout",reason="ERROR"}[5m]))
or vector(0)
) / sum(rate(app_feature_flag_evaluations_total{namespace="flag-demo",app="order-service",flag_key="new-checkout"}[5m]))Application SDK evaluation P99 (seconds):
histogram_quantile(0.99, sum by (le) (
rate(app_feature_flag_evaluation_duration_seconds_bucket{namespace="flag-demo",app="order-service",flag_key="new-checkout"}[5m])
))Missing observations or zero evaluations can produce no result or NaN. Do not convert that into a healthy 0% error rate. Deployment decisions also need sufficient samples, actual exposure, and business outcomes.
Change History Tracking
The Git author, Kubernetes API actor, and ArgoCD/Flux reconciler can be different identities. Correlate Git history, deployed revisions, and API audit logs. Do not assume an undocumented FlagConfigurationUpdated event is always emitted.
kubectl get events -n flag-demo --sort-by='.metadata.creationTimestamp'Kubernetes Events are short-lived operational signals, not a durable audit trail. /readyz also remains 200 after every source has synchronized once; it does not prove later freshness. Verify metadata revisions, actual SDK responses, and source/provider state separately.
Audit Logging
A self-managed Kubernetes audit-policy file configures the API server; it is not a regular resource to apply. On EKS, use supported control-plane audit logging. Choose retention and access through team policy. evaluator: json or logFormat: json does not guarantee an audit record of every evaluation.
Use the validated services, triggers, and templates in ArgoCD notifications. Do not overwrite an existing notifications ConfigMap with a separate abbreviated example.
Production Best Practices

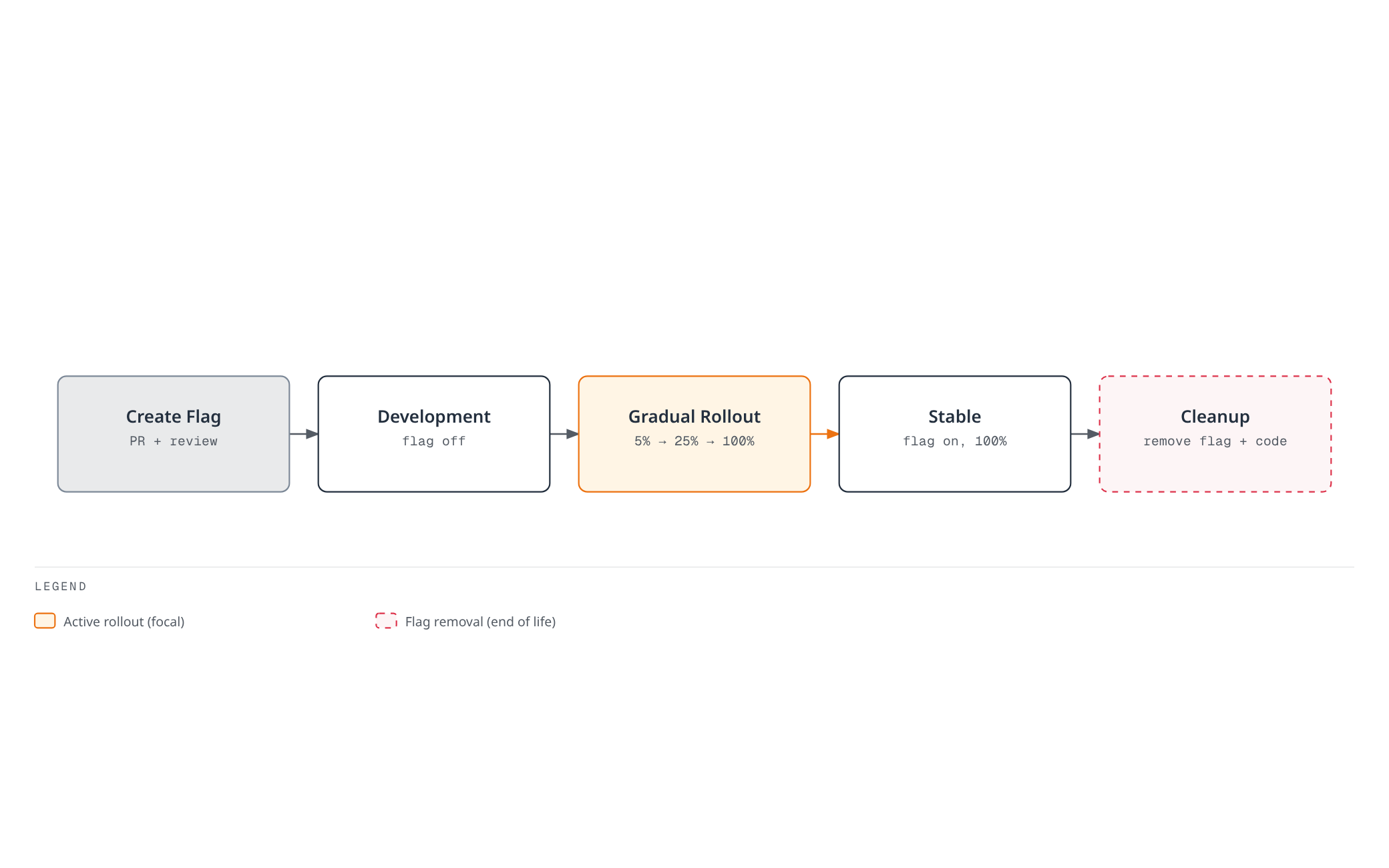

Flag Lifecycle Management
Give release/experiment flags owners and review dates, while distinguishing long-lived operational switches. Check all application versions, other consumers, and the rollback window before removing branches and definitions. Do not delete a definition while code still depends on that key.
Technical Debt Prevention
This is a metadata fragment to add to an existing FeatureFlag. When one CR holds multiple flags, these annotations apply to the whole resource. The review date is team policy; the Operator does not automatically delete or disable flags on that date.
metadata:
annotations:
example.com/owner: checkout-team
example.com/review-on: "2026-12-31"This read-only CronJob reports resources due for review through today in UTC and invalid dates. It can only list FeatureFlags in its namespace and follows pagination. Its service account token authenticates the API request. It does not change or delete flags, and a successful Job is not proof that reviews are complete. Log review/alerting is separate.
apiVersion: v1
kind: ServiceAccount
metadata:
name: flag-review
namespace: flag-demo
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
name: flag-review
namespace: flag-demo
rules:
- apiGroups:
- core.openfeature.dev
resources:
- featureflags
verbs:
- list
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
name: flag-review
namespace: flag-demo
subjects:
- kind: ServiceAccount
name: flag-review
namespace: flag-demo
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: flag-review
---
apiVersion: batch/v1
kind: CronJob
metadata:
name: flag-review
namespace: flag-demo
spec:
schedule: 0 9 * * 1
timeZone: Etc/UTC
concurrencyPolicy: Forbid
successfulJobsHistoryLimit: 1
failedJobsHistoryLimit: 1
jobTemplate:
spec:
backoffLimit: 1
activeDeadlineSeconds: 60
template:
spec:
serviceAccountName: flag-review
restartPolicy: Never
securityContext:
runAsNonRoot: true
runAsUser: 65532
seccompProfile:
type: RuntimeDefault
containers:
- name: review
image: python:3.12.13-slim@sha256:229a2c5bfa27522db7815ea81f9bed70af17ccb9de9fc7ad142b1877b5830d36
command:
- python
- -I
- -B
- -c
- |
import datetime
import json
import re
import ssl
import urllib.parse
import urllib.request
from pathlib import Path
ANNOTATION = "example.com/review-on"
def review_dates(items, today):
results = []
for item in items:
metadata = item.get("metadata", {})
value = metadata.get("annotations", {}).get(ANNOTATION)
if value is None:
continue
identity = {"namespace": metadata.get("namespace"), "name": metadata.get("name")}
try:
if not re.fullmatch(r"\d{4}-\d{2}-\d{2}", value):
raise ValueError("expected YYYY-MM-DD")
due = datetime.date.fromisoformat(value)
except (ValueError, TypeError):
results.append({**identity, "status": "invalid-review-date"})
continue
if due <= today:
results.append({**identity, "status": "review-due", "reviewOn": due.isoformat()})
return results
def fetch_flags(namespace, token, tls_context, open_url=urllib.request.urlopen):
endpoint = (
"https://kubernetes.default.svc/apis/core.openfeature.dev/v1beta1/namespaces/"
+ urllib.parse.quote(namespace, safe="") + "/featureflags"
)
items, cursor = [], ""
while True:
query = urllib.parse.urlencode({"limit": 500, "continue": cursor})
request = urllib.request.Request(endpoint + "?" + query, headers={
"Authorization": "Bearer " + token, "Accept": "application/json"
})
with open_url(request, context=tls_context, timeout=10) as response:
page = json.load(response)
items.extend(page.get("items", []))
cursor = page.get("metadata", {}).get("continue", "")
if not cursor:
return items
if __name__ == "__main__":
service_account = Path("/var/run/secrets/kubernetes.io/serviceaccount")
namespace = (service_account / "namespace").read_text().strip()
token = (service_account / "token").read_text().strip()
tls_context = ssl.create_default_context(cafile=str(service_account / "ca.crt"))
today = datetime.datetime.now(datetime.timezone.utc).date()
for result in review_dates(fetch_flags(namespace, token, tls_context), today):
print(json.dumps(result))
resources:
requests:
cpu: 50m
memory: 64Mi
limits:
cpu: 200m
memory: 128Mi
securityContext:
allowPrivilegeEscalation: false
readOnlyRootFilesystem: true
capabilities:
drop:
- ALL
metadata:
annotations:
sidecar.istio.io/inject: 'false'Emergency Kill Switch
Design switches to select an explicit Boolean value. This example stays ENABLED and changes defaultVariant between on/off without targeting. DISABLED can return the SDK caller's default, so it is not a way to guarantee false.
apiVersion: core.openfeature.dev/v1beta1
kind: FeatureFlag
metadata:
name: kill-switches
namespace: flag-demo
spec:
flagSpec:
flags:
external-payment-enabled:
state: ENABLED
variants:
'on': true
'off': false
defaultVariant: 'on'
recommendation-enabled:
state: ENABLED
variants:
'on': true
'off': false
defaultVariant: 'on'
notification-enabled:
state: ENABLED
variants:
'on': true
'off': false
defaultVariant: 'on'Reference this additional CR in the FeatureFlagSource or merge its flags into the existing map. Before a manual change, coordinate GitOps ownership/self-healing for that resource and prepare the matching Git update. Do not suspend unrelated applications globally.
This Bash/jq script rejects invalid actions, targeted flags, and incorrect Boolean variants. A resourceVersion test in the same JSON Patch prevents overwriting a concurrent change. On conflict, re-read the state and confirm the intended change.
#!/usr/bin/env bash
set -euo pipefail
FLAG_NAME="${1:?usage: emergency-kill-switch.sh FLAG on|off}"
FLAG_ACTION="${2:?usage: emergency-kill-switch.sh FLAG on|off}"
case "$FLAG_ACTION" in on|off) ;; *) echo 'action must be on or off' >&2; exit 2 ;; esac
[[ "$FLAG_NAME" =~ ^[a-z0-9]+(-[a-z0-9]+)*$ ]] || { echo 'invalid flag name' >&2; exit 2; }
FLAG_OBJECT_JSON="$(kubectl get featureflag kill-switches -n flag-demo -o json)"
jq -e --arg flag "$FLAG_NAME" '
.spec.flagSpec.flags[$flag] as $f |
($f != null) and ($f.state == "ENABLED") and
($f.variants.on == true) and ($f.variants.off == false) and
(($f | has("targeting")) | not)
' <<< "$FLAG_OBJECT_JSON" >/dev/null || { echo 'expected an ENABLED boolean kill switch without targeting' >&2; exit 2; }
FLAG_RESOURCE_VERSION="$(jq -er '.metadata.resourceVersion' <<< "$FLAG_OBJECT_JSON")"
FLAG_PATCH="$(jq -nc --arg version "$FLAG_RESOURCE_VERSION" --arg flag "$FLAG_NAME" --arg action "$FLAG_ACTION" '
[ {op:"test", path:"/metadata/resourceVersion", value:$version},
{op:"replace", path:("/spec/flagSpec/flags/" + $flag + "/defaultVariant"), value:$action} ]
')"
kubectl patch featureflag kill-switches -n flag-demo --type=json -p "$FLAG_PATCH"
echo 'Configuration updated; verify GitOps reconciliation and actual consumer behavior.'A successful Kubernetes response proves the configuration update. Verify consumer behavior and revision too: synchronization/caches can lag, and some providers retain older rules. A flag change and workload rollback do not automatically form a single transaction.
Gradual Rollout Strategies
Choose audience, observation window, and promotion criteria from the SLO and sample size. The following is an example sequence, not universal timing or percentage requirements.
| Stage | Main checks |
|---|---|
| Internal audience | Behavior, compatibility, SDK readiness/default policy |
| Limited cohort | Errors, latency, actual exposure and conversion |
| Expansion | Sufficient samples, capacity, and business outcomes |
| Full audience | Actual flag/workload propagation and rollback plan |
| Cleanup | Remaining consumers and rollback window before deleting code/definitions |
Change weights through the validated Kustomize/Git path. Hash allocation is not an exact traffic percentage, and evaluation counts are not unique-user counts.
Performance Impact Minimization
- Measure RPC/in-process latency, CPU, memory, and synchronization delay in the actual environment. There is no universal 20MB memory or 5ms latency guarantee.
- Use documented provider caching/invalidation behavior. Reuse results within a request when context is unchanged. A long-lived cache keyed only by flag and user ID can miss other attributes, rule updates, provider changes, and fallback values.
- In-process evaluation uses local rules. Whether disconnection retains old rules or returns errors/defaults depends on provider state/configuration; verify switch freshness.
- Set deadlines and application default policies. Observe DISABLED/DEFAULT and other reasons as well as errors. Initial readiness does not prove rule freshness.
- Bulk evaluation and network optimizations are product/provider capabilities, not one universally supported OpenFeature SDK API.
References
Official Documentation
Provider Documentation
- flagd Provider (Go)
- flagd Provider (Java)
- flagd Provider (Python)
- flagd Provider (Node.js)
- LaunchDarkly OpenFeature Providers
- Flagsmith OpenFeature Providers
Related Internal Documentation
- GitOps Overview -- GitOps principles and tool selection
- ArgoCD -- ArgoCD installation, applications, and sync strategies
- FluxCD -- FluxCD controllers and image automation
- ArgoCD Traffic Management -- Argo Rollouts and progressive delivery
- Istio Traffic Splitting -- Service mesh traffic management
- Prometheus -- Metrics collection and alerting
- Grafana -- Dashboard creation and visualization
Community Resources
- OpenFeature GitHub Organization
- OpenFeature Ecosystem -- Complete list of providers, hooks, and integrations
- Feature Flag Best Practices (Martin Fowler)
