Security

Reviewed Version: Istio 1.31.0 Last Updated: September 11, 2026

Istio provides robust security features within the service mesh. Based on the Zero Trust security model, it automatically encrypts service-to-service communication and provides fine-grained access control.

Table of Contents

1. Security Architecture Overview
2. Core Security Features
3. Security Components
4. Detailed Documentation
5. Security Best Practices
6. Security Monitoring

Security Architecture Overview

Istio implements a Zero Trust security model for enrolled mesh traffic. Traffic exclusions, plaintext clients, and unsupported protocols still need explicit controls. The following describes the main security responsibilities:

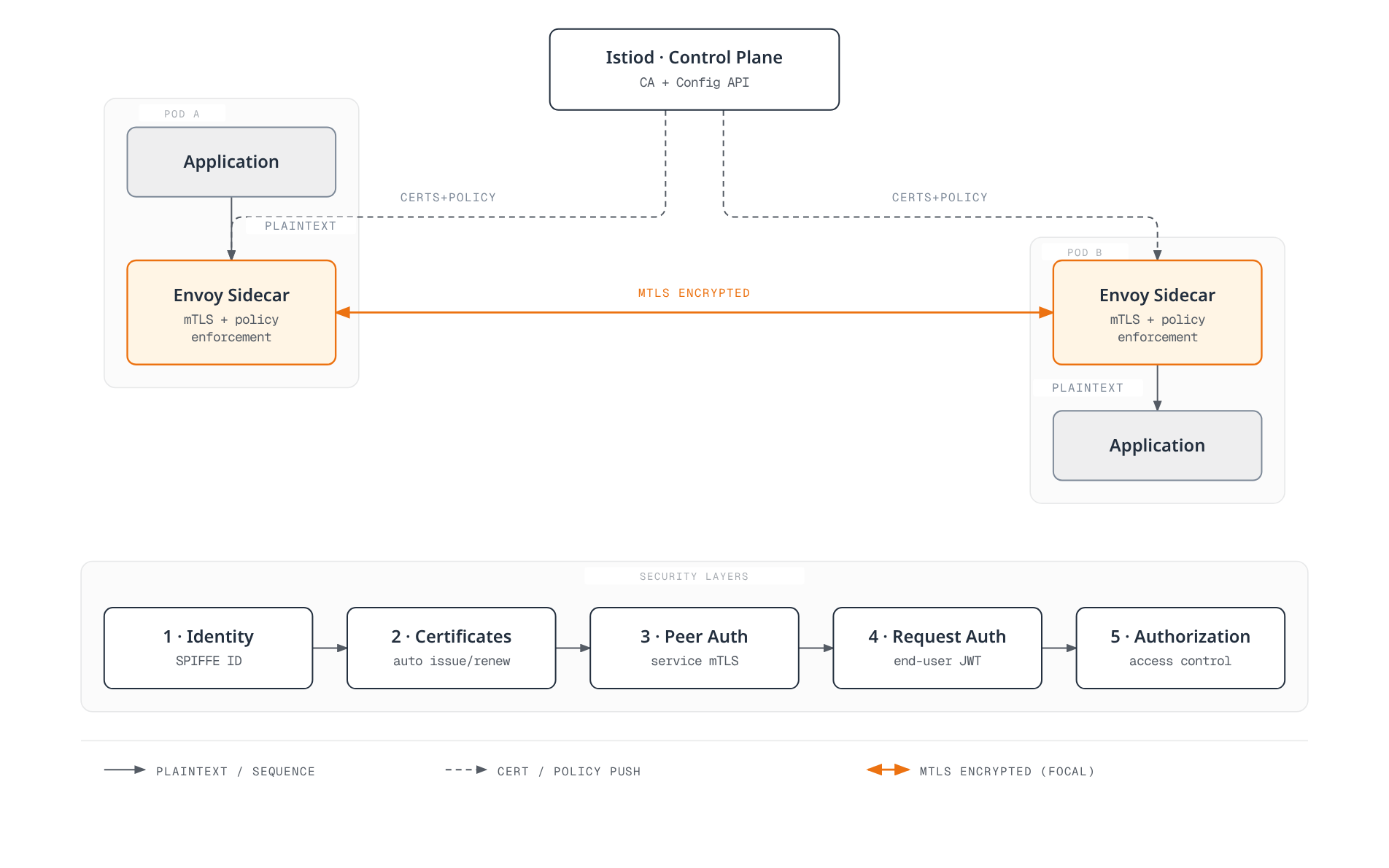

Security Architecture Layers

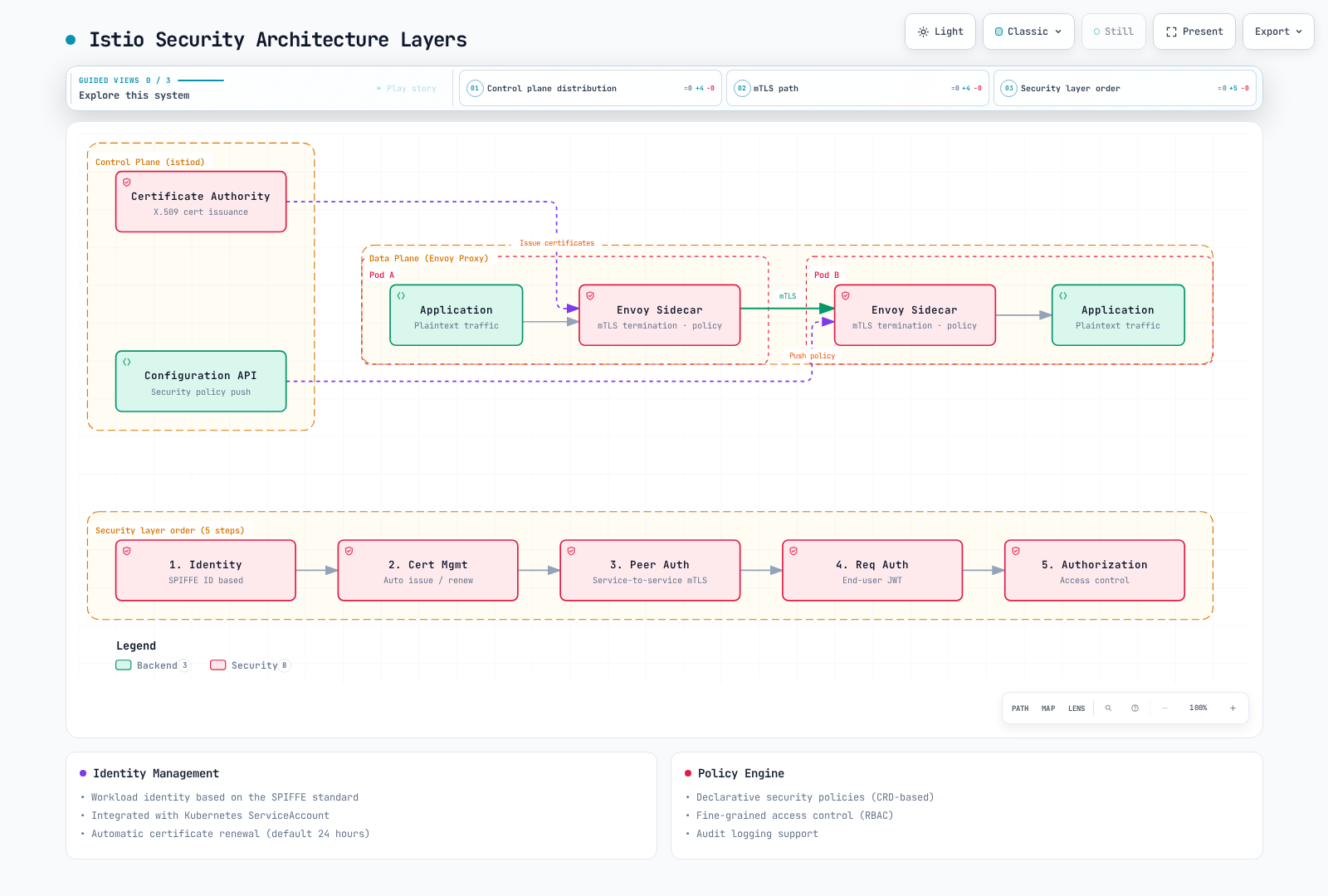

Diagram showing the istiod Certificate Authority and Configuration API distributing certificates and policy to the Envoy sidecars in two pods, which encrypt only the sidecar-to-sidecar hop with mTLS, above a five-step security-layer chain from identity to authorization.Open full screen ↗

Security Components

1. Control Plane (istiod)

   • Certificate Authority (CA): X.509 certificate issuance and management
   • Configuration API: Security policy distribution and management
   • Service Discovery: Workload identity management

2. Data Plane (Envoy sidecars or ambient ztunnel/waypoints)

   • mTLS Termination Points: Encrypted communication between services
   • Policy Enforcement: Authentication/authorization policy application
   • Security Telemetry: Security metrics collection

3. Identity Management

   • Strong identity management based on SPIFFE standard
   • Integration with Kubernetes ServiceAccount
   • Default certificate lifetime is 24 hours; rotation occurs before expiry

4. Policy Engine

   • Declarative security policies (CRD-based)
   • Fine-grained access control (RBAC)
   • Audit logging support

Core Security Features

Istio provides the following core security features:

1. Communication Security (mTLS)

Migrate enrolled workloads from PERMISSIVE to STRICT after verifying all required clients use mTLS.

Auto mTLS encrypts communication between enrolled mesh peers; PERMISSIVE also accepts plaintext. Use STRICT to require mesh mTLS on the selected inbound workloads.

apiVersion: security.istio.io/v1
kind: PeerAuthentication
metadata:
  name: default
  namespace: istio-system
spec:
  mtls:
    mode: STRICT  # Production: STRICT, Migration: PERMISSIVE

Mode Descriptions:

• STRICT: Only mTLS allowed (recommended for production)
• PERMISSIVE: Both mTLS and plaintext allowed (for migration)
• DISABLE: Disable Istio transport mTLS in sidecar mode; unsupported in ambient

The following policy examples use sidecar selectors. Ambient ztunnel enforces L4 security; JWT and other L7 policies require an appropriate waypoint and targetRefs attachment.

2. Authentication

Istio provides two layers of authentication:

• Peer Authentication: Service-to-service authentication (mTLS + SPIFFE ID)
• Request Authentication: JWT verification for supported issuers; login/OAuth flows remain external

Example:

# Request Authentication (JWT)
apiVersion: security.istio.io/v1
kind: RequestAuthentication
metadata:
  name: jwt-auth
  namespace: default
spec:
  jwtRules:
  - issuer: "https://accounts.google.com"
    jwksUri: "https://www.googleapis.com/oauth2/v3/certs"
    audiences: ["<your-google-client-id>"]

3. Authorization

Fine-grained access control policies are applied. AuthorizationPolicy controls based on:

• Service Account / Namespace
• HTTP Method / Path
• IP Address
• JWT Claims

apiVersion: security.istio.io/v1
kind: AuthorizationPolicy
metadata:
  name: allow-read
spec:
  action: ALLOW
  rules:
  - from:
    - source:
        principals: ["cluster.local/ns/default/sa/myapp"]
    to:
    - operation:
        methods: ["GET"]
        paths: ["/api/*"]

Security Best Practices

1. Defense in Depth

Combine transport identity, verified request credentials, and explicit authorization rules.

Implement defense in depth by applying security at multiple layers:

Network Layer:

# 1. Enable mTLS STRICT mode
apiVersion: security.istio.io/v1
kind: PeerAuthentication
metadata:
  name: default
  namespace: istio-system
spec:
  mtls:
    mode: STRICT

Application Layer:

# 2. Enable JWT authentication
apiVersion: security.istio.io/v1
kind: RequestAuthentication
metadata:
  name: require-jwt
  namespace: default
spec:
  jwtRules:
  - issuer: "https://your-auth-provider.com"
    jwksUri: "https://your-auth-provider.com/.well-known/jwks.json"
    audiences: ["<your-api-audience>"]

Access Control Layer:

# 3. Default deny policy
apiVersion: security.istio.io/v1
kind: AuthorizationPolicy
metadata:
  name: deny-all
  namespace: default
spec:
  action: ALLOW
  rules: []
---
# 4. Allow only required access
apiVersion: security.istio.io/v1
kind: AuthorizationPolicy
metadata:
  name: allow-specific
  namespace: default
spec:
  action: ALLOW
  rules:
  - from:
    - source:
        principals: ["cluster.local/ns/frontend/sa/webapp"]
        requestPrincipals: ["*"]
    to:
    - operation:
        methods: ["GET", "POST"]

RequestAuthentication alone accepts requests without a token. The ALLOW example above requires both the verified peer and a verified request principal; an empty ALLOW policy establishes default deny. A DENY-all rule would take precedence and block those exceptions. These namespace-wide examples affect every matching workload; scope selectors/targetRefs deliberately. AUDIT needs a configured audit implementation, and access logs must be enabled separately.

2. Principle of Least Privilege

• Grant only minimum required permissions to each service
• Separate ServiceAccounts granularly
• Utilize namespace isolation

3. Security Monitoring

• Enable Istio Access Logs
• Collect security metrics with Prometheus
• Monitor mTLS status with Kiali

Next Steps

1. mTLS: Service-to-service encryption and identity management
2. Authentication: JWT and OAuth/OIDC integration
3. Authorization: Fine-grained access control policies

References

Official Documentation

• Istio Security Concepts
• Security Best Practices
• Security Reference

Related Standards

• SPIFFE Specification
• OAuth 2.0 / OIDC
• JWT (RFC 7519)

Quiz

To test your knowledge from this chapter, try the Istio Security Quiz.
