Introduction to Kubernetes

Supported Versions: Upstream Kubernetes 1.35–1.37; EKS standard support 1.34–1.37 (as of October 12, 2026) Last Updated: October 12, 2026

The Kubernetes project maintains release branches for the three most recent minor releases (1.35–1.37). Upstream 1.34 is in maintenance mode and still receives patch releases until its end of life on October 27, 2026; that date is separate from AWS's EKS support end date. Check the AWS EKS lifecycle for EKS coverage and dates.

Kubernetes (K8s) is an open-source container orchestration platform that automates the deployment, scaling, and management of containerized applications. This document explains the basic concepts, architecture, main components, and features of Kubernetes.

These independent learning examples were reviewed statically against schemas and official documentation. They are not production configurations validated by deployment. Verify custom images, names/labels, TLS, IAM/RBAC, CNI and storage prerequisites in the target environment and replace placeholders.

Lab Environment Setup

To follow along with the examples in this document, you will need the following tools and environment:

Required Tools

kubectl: Command-line tool for interacting with Kubernetes clusters
Local cluster driver: A container engine or VM driver supported by minikube/kind; Kubernetes nodes use a CRI v1 runtime.
minikube or kind: Local Kubernetes cluster (for development and learning)

Installation Methods

kubectl Installation:

bash

# macOS: use a kubectl version within one minor of the API server.
brew install kubectl

bash

# Linux: select an explicit compatible version and architecture.
set -euo pipefail
: "${KUBECTL_VERSION:?Set a cluster-compatible version, e.g. v1.37.1}"
case "$(uname -m)" in
  x86_64) KUBECTL_ARCH=amd64 ;;
  aarch64|arm64) KUBECTL_ARCH=arm64 ;;
  *) echo "Choose a supported kubectl architecture" >&2; exit 1 ;;
esac
curl --fail --location --output kubectl "https://dl.k8s.io/release/$KUBECTL_VERSION/bin/linux/$KUBECTL_ARCH/kubectl"
curl --fail --location --output kubectl.sha256 "https://dl.k8s.io/release/$KUBECTL_VERSION/bin/linux/$KUBECTL_ARCH/kubectl.sha256"
echo "$(cat kubectl.sha256)  kubectl" | sha256sum --check
sudo install -m 0755 kubectl /usr/local/bin/kubectl

powershell

$ErrorActionPreference = "Stop"
$KubectlVersion = Read-Host "Cluster-compatible kubectl version (vX.Y.Z)"
$KubectlArch = Read-Host "Architecture (amd64 or arm64)"
if ($KubectlVersion -notmatch '^v\d+\.\d+\.\d+$' -or $KubectlArch -notin @('amd64','arm64')) { throw "Invalid version/architecture" }
$BaseUrl = "https://dl.k8s.io/release/$KubectlVersion/bin/windows/$KubectlArch"
Invoke-WebRequest "$BaseUrl/kubectl.exe" -OutFile kubectl.exe
Invoke-WebRequest "$BaseUrl/kubectl.exe.sha256" -OutFile kubectl.exe.sha256
if ((Get-FileHash kubectl.exe -Algorithm SHA256).Hash -ne (Get-Content kubectl.exe.sha256).Trim()) { throw "Checksum mismatch" }
# Move the verified binary to a directory included in PATH.

minikube Installation:

Use minikube’s official start guide to select the binary, checksum and driver for your OS/architecture. Run Linux and Windows instructions in their respective shells and add the verified binary to PATH. For macOS:

bash

brew install minikube
minikube version

Starting a Local Cluster

bash

minikube start

What is Kubernetes?

Kubernetes means 'helmsman' or 'pilot' in Greek and is an open-source system that automates the deployment, scaling, and operation of containerized applications. It was inspired by Google's internal Borg system and was released as open source in 2014.

Key Features of Kubernetes

Service Discovery and Load Balancing: Expose containers externally and distribute traffic
Storage Orchestration: Automatically mount local or cloud storage systems
Rollouts and Rollbacks: Gradually update applications and support operator/tool-triggered rollback; a failed Deployment does not automatically roll back.
Automatic Bin Packing: Place containers on nodes based on resource requirements
Self-healing: Restart failed containers and replace unresponsive containers
Secret and Configuration Management: Store sensitive information and update configuration
Horizontal Scaling: Scale applications through simple commands or UI
Batch Execution: Manage batch and CI workloads

Problems Kubernetes Solves

Container Orchestration: Efficiently manage hundreds or thousands of containers
High Availability: Supports resilient application design with replicas, placement, probes and capacity
Scalability: Auto scaling based on traffic increase
Recovery: Reconciles failed workloads; disaster recovery also requires tested backups and restore plans
Resource Efficiency: Efficiently utilize hardware resources
Declarative Configuration: Manage infrastructure as code
Multi-cloud and Hybrid Cloud: Consistent deployment and management across various environments

History of Kubernetes

Background

2003-2013: Google internally used a container orchestration system called Borg
June 2014: Google released Kubernetes as open source
July 2015: Kubernetes 1.0 released and donated to Cloud Native Computing Foundation (CNCF)
2016-2017: Major cloud providers launched managed Kubernetes services
2018 and beyond: Established as the de facto standard for container orchestration

Origin of the Name

Kubernetes (κυβερνήτης) means 'helmsman' or 'pilot' in Greek. This symbolizes its role in guiding containerized applications. The abbreviation K8s is used because there are 8 characters between 'K' and 's'.

Meaning of the Logo

The Kubernetes logo depicts a helm (ship's steering wheel) with 7 spokes, symbolizing Kubernetes' role in guiding the course of containerized applications.

Kubernetes Architecture

Kubernetes follows a master-node architecture. Master nodes (control plane) manage the cluster, and worker nodes run the actual application workloads.

Control Plane (Master) Components

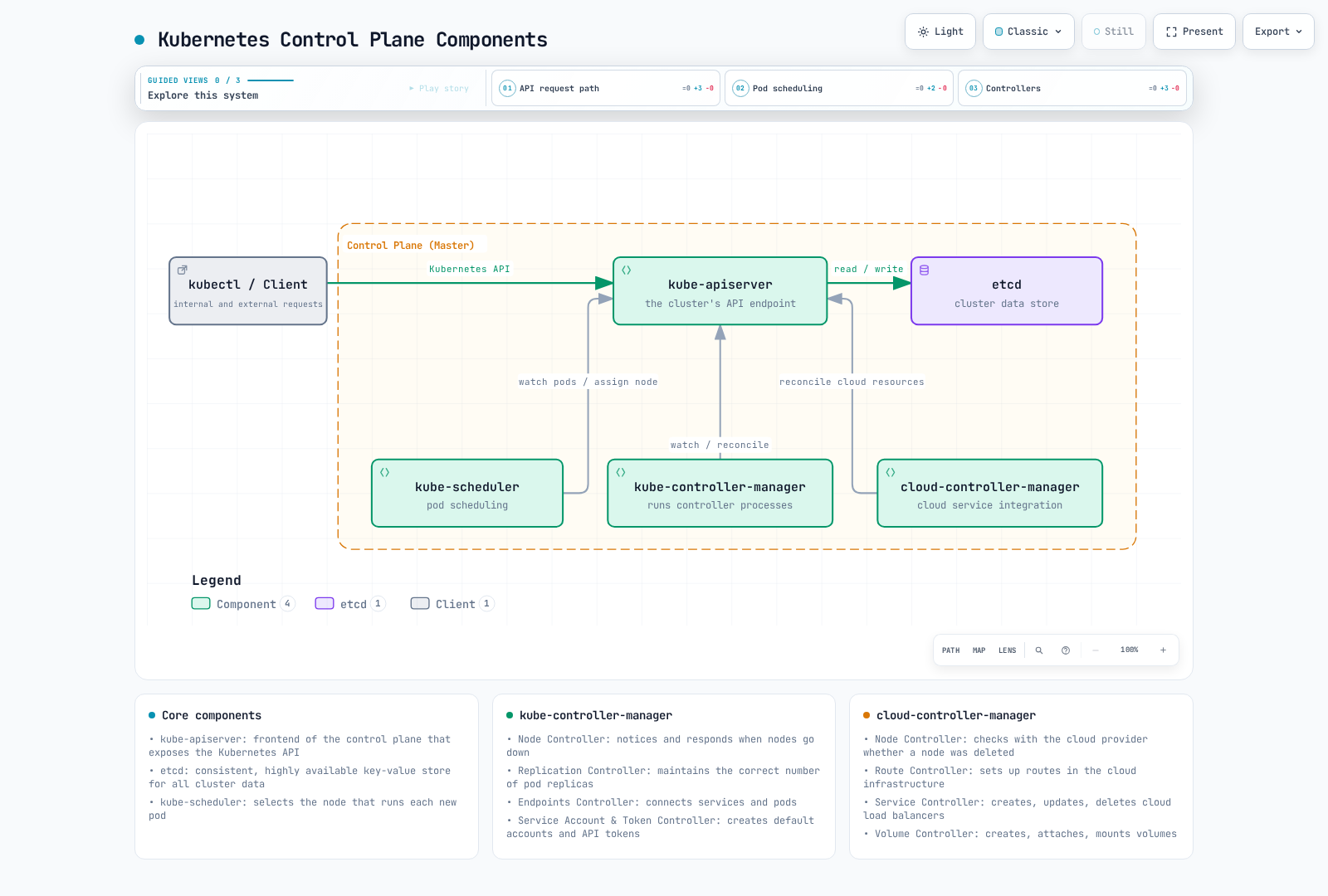

Kubernetes control plane: kubectl requests flow through kube-apiserver to etcd while kube-scheduler, kube-controller-manager, and cloud-controller-manager watch and reconcile through the API server.

Kubernetes control plane: kubectl requests flow through kube-apiserver to etcd while kube-scheduler, kube-controller-manager, and cloud-controller-manager watch and reconcile through the API server.Open full screen ↗

kube-apiserver: Frontend of the control plane that exposes the Kubernetes API
etcd: Consistent and highly available key-value store for Kubernetes API objects and cluster state (not application volume contents)
kube-scheduler: Component that assigns pods to nodes
kube-controller-manager: Component that runs controller processes
- Node Controller: Notification and response when nodes go down
- Replication Controller: Maintains correct number of pod replicas
- EndpointSlice Controller: Maintains Service endpoint records (legacy Endpoints is deprecated)
- ServiceAccount controller creates default accounts; projected Pod tokens use TokenRequest and kubelet rotation
cloud-controller-manager: Component containing cloud-specific control logic
- Node Controller: Checks with cloud provider if node has been deleted
- Route Controller: Sets up routes in cloud infrastructure
- Service Controller: Creates, updates, deletes cloud provider load balancers

Node Components

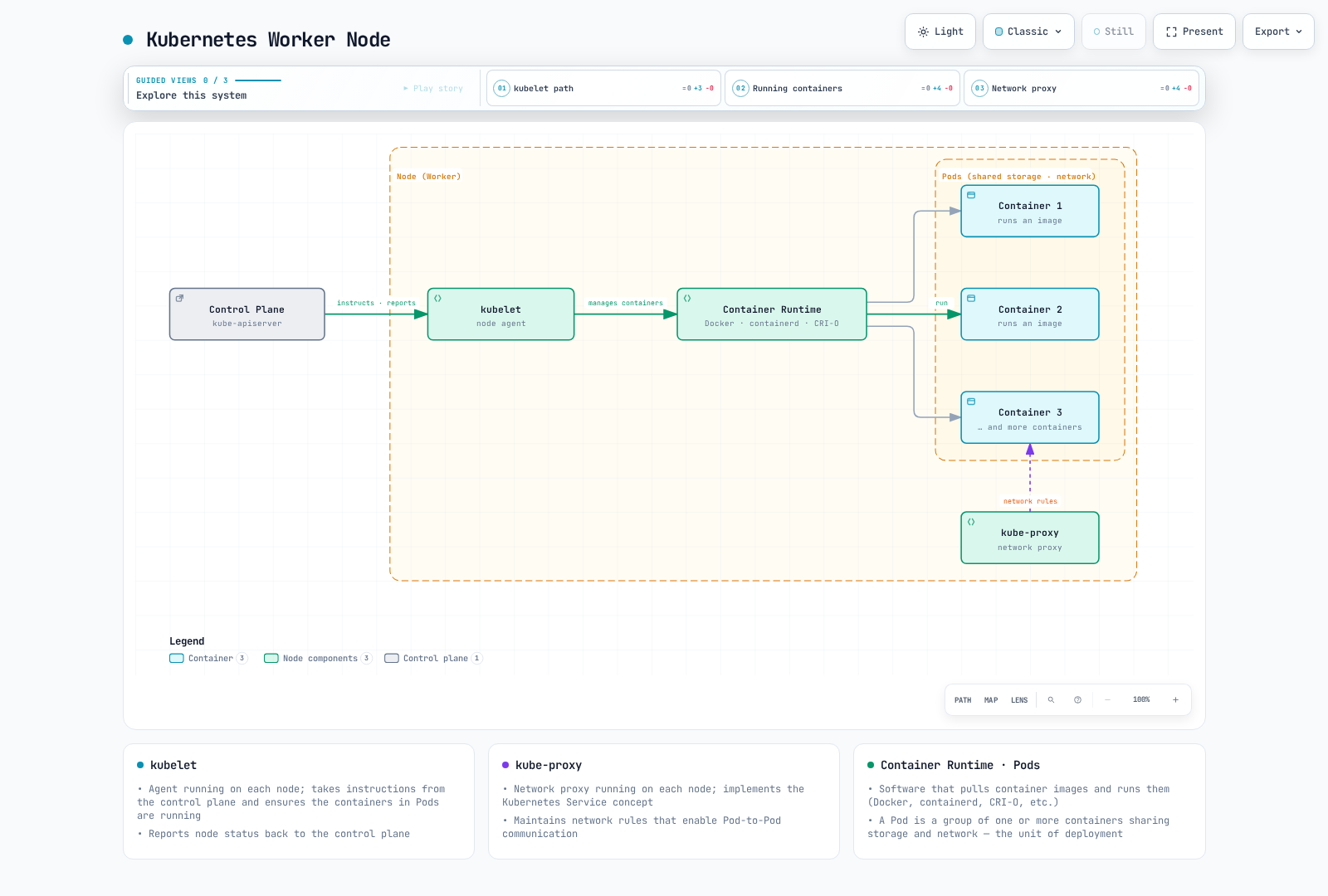

Kubernetes worker node: kubelet takes instructions from the control plane and drives the CRI runtime (containerd/CRI-O, or Docker Engine through an external adapter) that runs the Pod containers, while kube-proxy maintains their network rules.

kubelet: Agent running on each node that ensures containers in pods are running
kube-proxy: Network proxy running on each node that implements the Kubernetes Service concept
Container Runtime: Software implementing CRI v1, such as containerd or CRI-O; Docker Engine requires a separate CRI adapter

Full Architecture

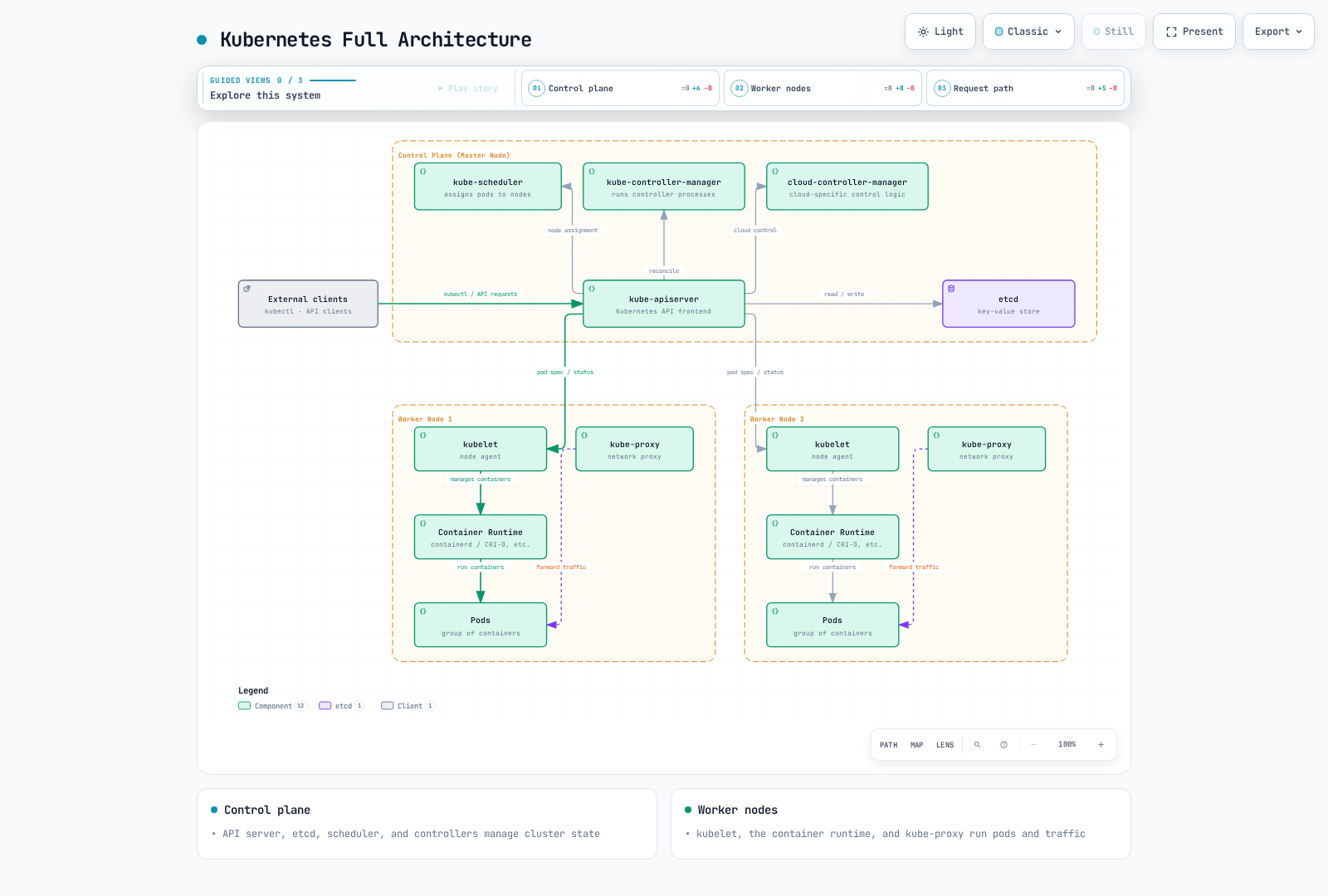

Full Kubernetes cluster: kubectl clients reach kube-apiserver, which coordinates etcd, kube-scheduler, kube-controller-manager, and cloud-controller-manager and drives the kubelet, container runtime, and kube-proxy on two worker nodes.

Kubernetes Main Components

API Server (kube-apiserver)

The API server is the frontend of the control plane that exposes the Kubernetes API. Kubernetes API requests pass through it; application traffic and storage I/O do not flow through the API server.

Key Functions:

Provides REST API
Authentication and authorization
Request validation
Communication with etcd
Horizontally scalable

etcd

etcd is a consistent and highly available key-value store that stores Kubernetes API objects and cluster state (not application volume contents).

Key Features:

Distributed system
Strong consistency
High availability
Secure data storage
Watch feature for monitoring changes

Scheduler (kube-scheduler)

The scheduler is a control plane component that selects nodes to run newly created pods.

Scheduling Process:

Filtering: Identify nodes that can run the pod
Scoring: Assign scores to suitable nodes
Binding: Assign pod to optimal node

Considerations:

Resource requirements (CPU, memory)
Hardware/software/policy constraints
Affinity/anti-affinity specifications
Data locality
Workload interference

Controller Manager (kube-controller-manager)

The controller manager is a control plane component that runs multiple controller processes.

Main Controllers:

Node Controller: Monitor and respond to node state
Replication Controller: Maintain pod replica count
EndpointSlice Controller: Maintains Service endpoint records (legacy Endpoints is deprecated)
ServiceAccount controller: Creates default accounts; modern Pod tokens are requested through TokenRequest and rotated by kubelet
Job Controller: Manage one-time tasks
CronJob Controller: Manage scheduled tasks
DaemonSet Controller: Reconcile a Pod on each eligible node
StatefulSet Controller: Manage stateful applications
PV Controller: Manage persistent volumes

Cloud Controller Manager (cloud-controller-manager)

The cloud controller manager contains cloud-specific control logic. CSI controller sidecars/drivers and kubelet/node plugins handle storage provisioning, attachment and mounting; this is not a CCM volume controller.

Main Controllers:

Node Controller: Check node state through cloud provider API
Route Controller: Set up routes in cloud environment
Service Controller: Create, update, delete cloud load balancers

kubelet

kubelet is an agent running on each node that ensures containers in pods are running.

Key Functions:

Run containers according to PodSpec
Report container status
Perform container health checks
Manage container lifecycle
Report node status

kube-proxy

kube-proxy is a network proxy running on each node that implements the Kubernetes Service concept.

Key Functions:

Maintain network rules for service IPs and ports
Forward connections
Implement load balancing

Operating Modes:

nftables mode: Stable since 1.33; verify kernel and network-plugin compatibility
iptables mode: NAT implementation using Linux iptables (default)
IPVS mode: Deprecated since 1.35; plan migration. The historical userspace mode was removed.

Kubernetes Basic Objects

Kubernetes objects are persistent entities that represent the state of the cluster. These objects describe running applications, available resources, policies, etc. in the cluster.

Pod

A Pod is the smallest deployable unit in Kubernetes, representing a group of one or more containers. Containers in a Pod share networking and can share explicitly mounted volumes; they run on the same node. They do not automatically share their root filesystems.

Key Features:

Has unique IP address
Shared network namespace (same IP and port space)
Shared IPC namespace
Shared hostname
Localhost communication between containers possible

Pod Example:

yaml

apiVersion: v1
kind: Pod
metadata:
  name: nginx-pod
  labels:
    app: nginx
spec:
  containers:
  - name: nginx
    image: nginx:1.30.4
    ports:
    - containerPort: 80
    volumeMounts:
    - name: logs
      mountPath: /var/log/nginx
  - name: log-sidecar
    image: busybox:1.37.0
    command:
    - /bin/sh
    - -c
    - until [ -f /var/log/nginx/access.log ]; do sleep 1; done; tail -F /var/log/nginx/access.log
    volumeMounts:
    - name: logs
      mountPath: /var/log/nginx
      readOnly: true
  volumes:
  - name: logs
    emptyDir: {}

Namespace

Namespaces provide a way to isolate resource groups within a single cluster. This helps organize teams/projects; namespaces alone do not enforce network or authorization isolation.

Default Namespaces:

default: Default namespace
kube-system: Namespace for objects created by the Kubernetes system
kube-public: Namespace conventionally used for public information; actual object access still depends on RBAC
kube-node-lease: Namespace for node heartbeats

Namespace Example:

yaml

apiVersion: v1
kind: Namespace
metadata:
  name: development

Labels and Selectors

Labels are key-value pairs attached to objects, used to identify and select objects. Selectors provide a way to filter objects based on labels.

Labels Example:

yaml

metadata:
  labels:
    app: nginx
    environment: production
    tier: frontend

Selector Types:

Equality-based: =, !=
Set-based: in, notin, exists

Selector Example:

yaml

selector:
  matchLabels:
    app: nginx
  matchExpressions:
    - {key: tier, operator: In, values: [frontend, middleware]}
    - {key: environment, operator: NotIn, values: [dev]}

Annotations

Annotations are key-value pairs that store non-identifying metadata about objects. Annotations are useful for storing information used by tools or libraries.

Annotations Example:

yaml

metadata:
  annotations:
    example.com/created-by: "admin"
    example.com/last-modified: "2023-07-01T12:00:00Z"
    prometheus.io/scrape: "true"
    prometheus.io/port: "9090"

Node

A node is a worker machine in a Kubernetes cluster that runs pods. A node can be a physical or virtual machine.

Node Status:

Addresses: Hostname, Internal IP, External IP
Conditions: Ready, DiskPressure, MemoryPressure, PIDPressure, NetworkUnavailable
Capacity: CPU, Memory, Maximum pods
Info: Kernel version, Container runtime version, kubelet version

Illustrative Node status (reported by the node/controllers, not a node-provisioning manifest):

yaml

apiVersion: v1
kind: Node
metadata:
  name: worker-1
  labels:
    kubernetes.io/hostname: worker-1
    node-role.kubernetes.io/worker: ""
    topology.kubernetes.io/zone: us-east-1a
status:
  capacity:
    cpu: "4"
    memory: 8Gi
    pods: "110"
  conditions:
    - type: Ready
      status: "True"
  # ...

Kubernetes Workload Resources

Workload resources are objects used to manage and run pods. These resources manage the creation, scaling, updates, and termination of pods.

ReplicaSet

A ReplicaSet reconciles a desired count of Pod objects; readiness also depends on capacity, valid configuration and the application. If pods fail or are deleted, the ReplicaSet automatically creates replacement pods.

Key Functions:

Maintain specified number of pod replicas
Define pod template
Identify pods through selectors

ReplicaSet Example:

yaml

apiVersion: apps/v1
kind: ReplicaSet
metadata:
  name: nginx-replicaset
  labels:
    app: nginx
spec:
  replicas: 3
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - name: nginx
        image: nginx:1.30.4
        ports:
        - containerPort: 80

Deployment

A Deployment abstracts ReplicaSets one level further, providing declarative updates for applications. Deployments provide features like rolling updates, rollbacks, and scaling.

Key Functions:

Declarative application updates
Rolling updates and rollbacks
Deployment history management
Scaling

Deployment Example:

yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-deployment
  labels:
    app: nginx
spec:
  replicas: 3
  selector:
    matchLabels:
      app: nginx
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxSurge: 1
      maxUnavailable: 0
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - name: nginx
        image: nginx:1.30.4
        ports:
        - containerPort: 80
        resources:
          requests:
            cpu: 100m
            memory: 128Mi
          limits:
            cpu: 200m
            memory: 256Mi
        livenessProbe:
          httpGet:
            path: /
            port: 80
          initialDelaySeconds: 30
          periodSeconds: 10
        readinessProbe:
          httpGet:
            path: /
            port: 80
          initialDelaySeconds: 5
          periodSeconds: 5

The MySQL example is a single persistent instance. StatefulSet does not configure database replication, failover or backups. First provide mysql-secret/password and replace the StorageClass placeholder. Increasing replicas alone creates independent databases; HA needs a tested database operator/replication setup.

StatefulSet

A StatefulSet is a workload resource for applications that require state maintenance. It assigns unique identifiers to each pod and provides stable network identifiers and persistent storage.

Key Functions:

Stable and unique network identifiers
Stable and persistent storage
Sequential deployment and scaling
Sequential updates

StatefulSet Example:

yaml

apiVersion: v1
kind: Service
metadata:
  name: mysql
spec:
  clusterIP: None
  selector:
    app: mysql
  ports:
  - name: mysql
    port: 3306
    targetPort: 3306
---
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: mysql
spec:
  selector:
    matchLabels:
      app: mysql
  serviceName: mysql
  replicas: 1
  template:
    metadata:
      labels:
        app: mysql
        role: db
    spec:
      containers:
      - name: mysql
        image: mysql:8.4
        env:
        - name: MYSQL_ROOT_PASSWORD
          valueFrom:
            secretKeyRef:
              name: mysql-secret
              key: password
        ports:
        - containerPort: 3306
          name: mysql
        volumeMounts:
        - name: data
          mountPath: /var/lib/mysql
        readinessProbe:
          tcpSocket:
            port: 3306
          initialDelaySeconds: 10
          periodSeconds: 5
  volumeClaimTemplates:
  - metadata:
      name: data
    spec:
      accessModes:
      - ReadWriteOnce
      storageClassName: replace-with-storage-class
      resources:
        requests:
          storage: 10Gi

The Linux Fluent Bit example sends CRI logs to stdout for demonstration. It excludes its own logs to prevent a feedback loop and persists its position DB separately. Do not deploy alongside another collector that republishes the same logs to stdout. Production needs an external destination and reviewed host paths, permissions and PSS exceptions.

DaemonSet

A DaemonSet creates a Pod on each eligible node; node selectors, taints, capacity and admission policies still apply. When nodes are added to the cluster, pods are automatically added, and when nodes are removed, pods are also removed.

Key Use Cases:

Log collectors (Fluentd, Logstash)
Monitoring agents (Prometheus Node Exporter)
Network plugins (Calico, Cilium)
Storage daemons (Ceph)

DaemonSet Example:

yaml

apiVersion: v1
kind: ConfigMap
metadata:
  name: intro-log-agent-config
  namespace: kube-system
data:
  fluent-bit.conf: |
    [SERVICE]
        Flush 5
        Parsers_File /fluent-bit/etc/parsers.conf
    [INPUT]
        Name tail
        Path /var/log/containers/*.log
        Exclude_Path /var/log/containers/intro-log-agent-*_kube-system_fluent-bit-*.log
        Parser cri
        Tag kube.*
        DB /var/lib/fluent-bit/tail.db
        Mem_Buf_Limit 5MB
        Skip_Long_Lines On
    [OUTPUT]
        Name stdout
        Match *
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: intro-log-agent
  namespace: kube-system
spec:
  selector:
    matchLabels:
      app: intro-log-agent
  template:
    metadata:
      labels:
        app: intro-log-agent
    spec:
      automountServiceAccountToken: false
      tolerations:
      - key: node-role.kubernetes.io/control-plane
        operator: Exists
        effect: NoSchedule
      containers:
      - name: fluent-bit
        image: cr.fluentbit.io/fluent/fluent-bit:5.1.2
        securityContext:
          runAsUser: 0
          allowPrivilegeEscalation: false
          readOnlyRootFilesystem: true
          capabilities:
            drop: [ALL]
        args:
        - -c
        - /fluent-bit/custom/fluent-bit.conf
        resources:
          requests:
            cpu: 100m
            memory: 100Mi
          limits:
            memory: 200Mi
        volumeMounts:
        - name: varlog
          mountPath: /var/log
          readOnly: true
        - name: config
          mountPath: /fluent-bit/custom
          readOnly: true
        - name: state
          mountPath: /var/lib/fluent-bit
      volumes:
      - name: varlog
        hostPath:
          path: /var/log
          type: Directory
      - name: config
        configMap:
          name: intro-log-agent-config
      - name: state
        hostPath:
          path: /var/lib/intro-log-agent
          type: DirectoryOrCreate
      nodeSelector:
        kubernetes.io/os: linux

Job

A Job creates one or more pods and continues execution until a specified number of pods successfully terminate. Suitable for batch processing tasks.

Key Functions:

One-time task execution
Parallel task execution
Tracks successful completions; failure/deadline limits can still fail the Job
Retry on failure

Job Example:

yaml

apiVersion: batch/v1
kind: Job
metadata:
  name: pi-calculator
spec:
  completions: 5
  parallelism: 2
  backoffLimit: 3
  template:
    spec:
      containers:
      - name: pi
        image: perl
        command: ["perl", "-Mbignum=bpi", "-wle", "print bpi(2000)"]
      restartPolicy: Never

Jobs can fail due to retry/deadline limits and may run the same work again, so tasks should be idempotent. CronJob scheduling is not exactly-once; Forbid only controls overlapping Jobs from that CronJob.

CronJob

A CronJob runs Jobs periodically according to a specified schedule. Works similarly to Linux cron jobs.

Key Functions:

Task execution according to schedule
Cron expression support
Concurrency policy settings
History limits

CronJob Example:

yaml

apiVersion: batch/v1
kind: CronJob
metadata:
  name: database-backup
spec:
  timeZone: Etc/UTC
  schedule: "0 2 * * *"  # Run at 02:00 daily
  concurrencyPolicy: Forbid
  successfulJobsHistoryLimit: 3
  failedJobsHistoryLimit: 1
  jobTemplate:
    spec:
      template:
        spec:
          containers:
          - name: backup
            image: database-backup:v1
            env:
            - name: DB_HOST
              value: "db.example.com"
          restartPolicy: OnFailure

Kubernetes Services and Networking

The Kubernetes networking model is based on the premise that Pod networking is provided by a compatible CNI; routability is subject to NetworkPolicy, firewalls and topology. Services provide stable endpoints for sets of pods.

Service

A Service provides a single endpoint and load balancing for a set of pods. Since pods are dynamically created and deleted, services provide stable network addresses despite these changes.

Service Types:

ClusterIP: Service accessible only within the cluster (default)
NodePort: Accessible externally through each node's IP and specific port
LoadBalancer: Accessible externally using cloud provider's load balancer
ExternalName: Creates CNAME record for external service

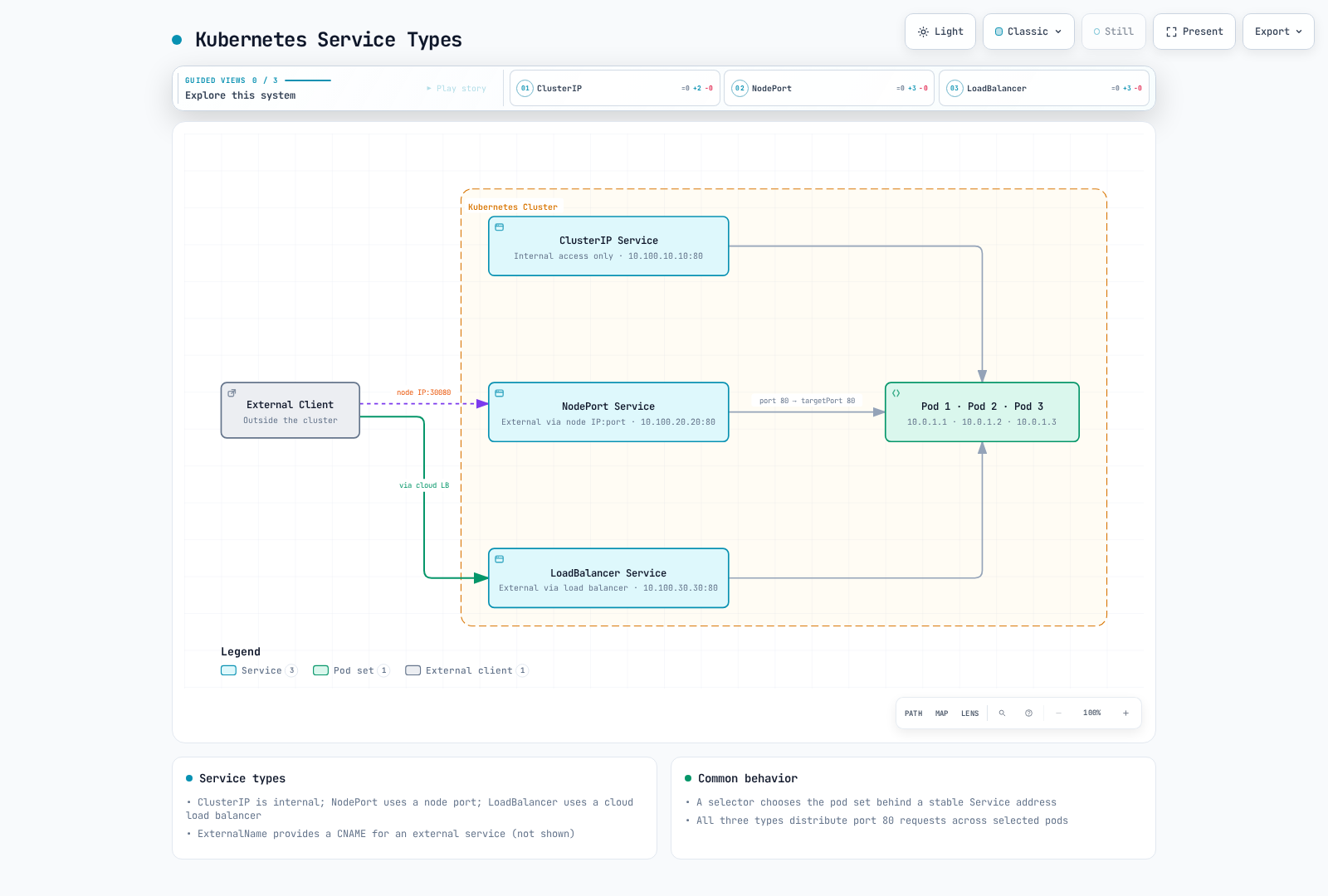

The diagram illustrates external access through NodePort and LoadBalancer services; other entry points such as Ingress/Gateway are also possible, a ClusterIP service stays internal, and all three service types load-balance port 80 requests to the same pods (Pod 1, 2, 3).

Service Example:

yaml

apiVersion: v1
kind: Service
metadata:
  name: nginx-service
spec:
  selector:
    app: nginx
  ports:
  - port: 80
    targetPort: 80
  type: ClusterIP

NodePort Service Example:

yaml

apiVersion: v1
kind: Service
metadata:
  name: nginx-nodeport
spec:
  selector:
    app: nginx
  ports:
  - port: 80
    targetPort: 80
    nodePort: 30080
  type: NodePort

This AWS example requires AWS Load Balancer Controller and its IAM/network prerequisites. EKS Auto Mode uses a different loadBalancerClass; local clusters require their own LoadBalancer implementation.

LoadBalancer Service Example:

yaml

apiVersion: v1
kind: Service
metadata:
  name: nginx-lb
  annotations:
    service.beta.kubernetes.io/aws-load-balancer-scheme: internet-facing
    service.beta.kubernetes.io/aws-load-balancer-nlb-target-type: ip
spec:
  selector:
    app: nginx
  ports:
  - port: 80
    targetPort: 80
  type: LoadBalancer
  loadBalancerClass: service.k8s.aws/nlb

This example requires installed Traefik, its traefik IngressClass, app1/app2 Services and the TLS Secret. Paths /app1 and /app2 are preserved and must be served by the backends. An Ingress resource does not install a controller.

Ingress

An Ingress is an API object that manages HTTP and HTTPS routing from outside the cluster to internal services. Ingress provides load balancing, SSL termination, name-based virtual hosting, etc.

Ingress Controllers:

ingress-nginx (retired March 2026): Historical community controller; choose a maintained controller for new installations. F5 NGINX Ingress Controller is a separate project.
AWS Load Balancer Controller: AWS Application Load Balancer-based ingress controller
Traefik: Cloud-native edge router
Istio Ingress: Service mesh-based ingress

Ingress Example:

yaml

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: example-ingress
spec:
  ingressClassName: traefik
  rules:
  - host: example.com
    http:
      paths:
      - path: /app1
        pathType: Prefix
        backend:
          service:
            name: app1-service
            port:
              number: 80
      - path: /app2
        pathType: Prefix
        backend:
          service:
            name: app2-service
            port:
              number: 80
  tls:
  - hosts:
    - example.com
    secretName: example-tls

NetworkPolicy

NetworkPolicy provides a way to control communication between pods. By default, all pods can communicate with each other, but you can restrict this using network policies.

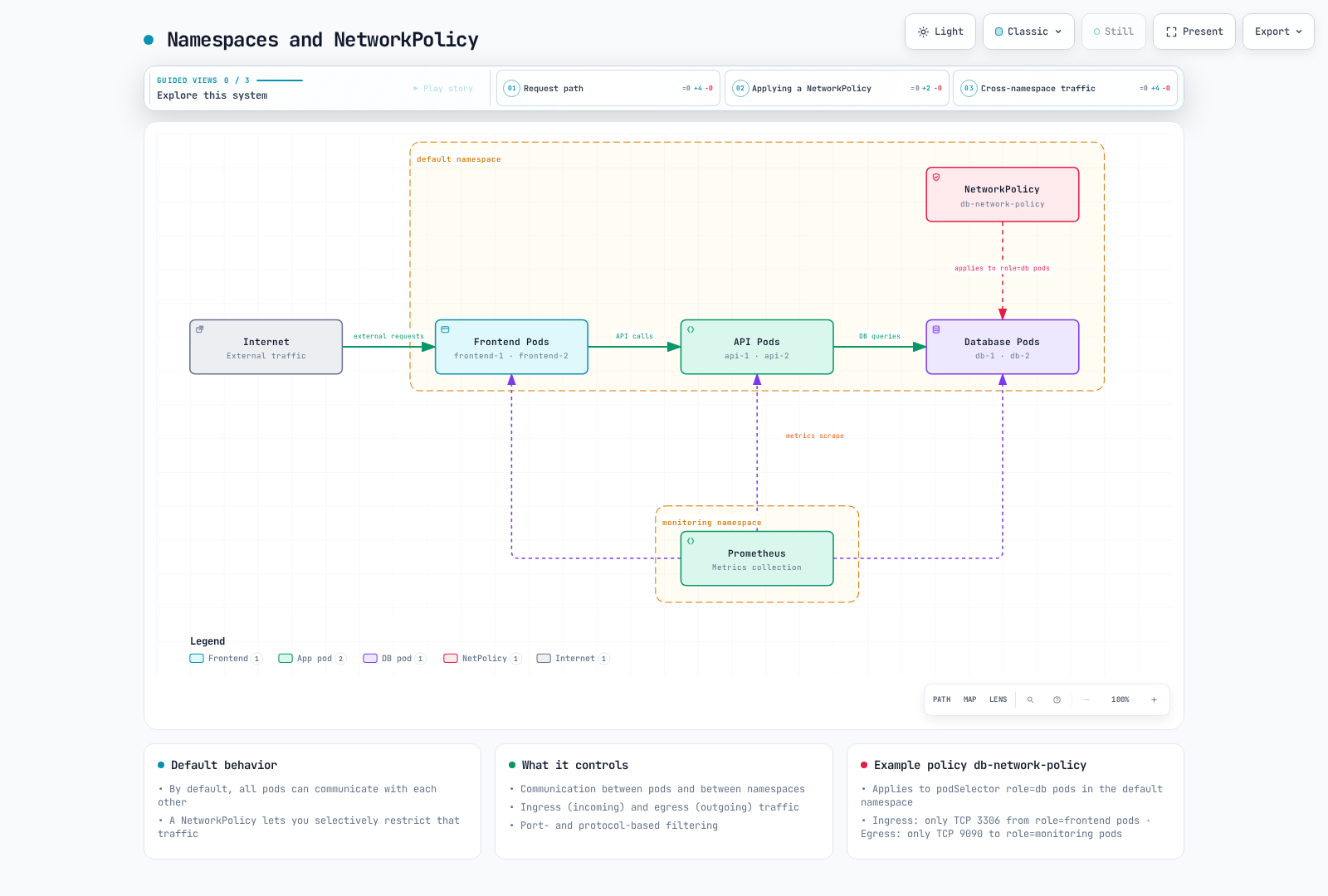

External requests flow through frontend, API, and database pods in the default namespace, a db-network-policy NetworkPolicy guards the role=db pods, and Prometheus in the monitoring namespace scrapes all three tiers.

Key Functions:

Control communication between pods
Control communication between namespaces
Control ingress (incoming) and egress (outgoing) traffic
Port and protocol-based filtering

NetworkPolicy Example:

yaml

apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: db-network-policy
  namespace: default
spec:
  podSelector:
    matchLabels:
      role: db
  policyTypes:
  - Ingress
  - Egress
  ingress:
  - from:
    - podSelector:
        matchLabels:
          role: api
    ports:
    - protocol: TCP
      port: 3306
  - from:
    - namespaceSelector:
        matchLabels:
          kubernetes.io/metadata.name: monitoring
      podSelector:
        matchLabels:
          app: prometheus
    ports:
    - protocol: TCP
      port: 9104
  egress:
  - to:
    - namespaceSelector:
        matchLabels:
          kubernetes.io/metadata.name: kube-system
      podSelector:
        matchLabels:
          k8s-app: kube-dns
    ports:
    - protocol: UDP
      port: 53
    - protocol: TCP
      port: 53

NetworkPolicy allows are additive. The policy permits role=api to DB port3306 and app=prometheus in monitoring to a separately installed DB exporter on9104. It does not make the DB connect to Prometheus9090. Adapt DNS egress selectors for the actual cluster DNS/NodeLocal DNS setup.

DNS

Kubernetes distributions commonly deploy CoreDNS for service discovery. Preserve distribution-managed settings when editing its ConfigMap. The pods insecure mode below provides legacy IP-based records without verifying Pod existence; use disabled if those records are unnecessary, or verified with its extra watch/memory cost.

DNS Name Format:

Service: <service-name>.<namespace>.svc.cluster.local
Pod: <pod-ip-with-dashes>.<namespace>.pod.cluster.local (IPv4 record; depends on CoreDNS pods mode)

DNS Configuration Example:

yaml

apiVersion: v1
kind: ConfigMap
metadata:
  name: coredns
  namespace: kube-system
data:
  Corefile: |
    .:53 {
        errors
        health
        ready
        kubernetes cluster.local in-addr.arpa ip6.arpa {
          pods insecure
          fallthrough in-addr.arpa ip6.arpa
        }
        prometheus :9153
        forward . /etc/resolv.conf
        cache 30
        loop
        reload
        loadbalance
    }

Service Mesh

A service mesh is an infrastructure layer that manages communication between microservices. Service meshes provide traffic management, security, and observability.

Major Service Meshes:

Istio: Most widely used service mesh
Linkerd: Lightweight service mesh
AWS App Mesh: Support ended 2026-09-30; AWS says its console and resources are no longer accessible.

Istio VirtualService Example:

yaml

apiVersion: networking.istio.io/v1
kind: VirtualService
metadata:
  name: reviews-route
spec:
  hosts:
  - reviews
  http:
  - match:
    - headers:
        end-user:
          exact: jason
    route:
    - destination:
        host: reviews
        subset: v2
  - route:
    - destination:
        host: reviews
        subset: v1
---
apiVersion: networking.istio.io/v1
kind: DestinationRule
metadata:
  name: reviews-subsets
spec:
  host: reviews
  subsets:
  - name: v1
    labels:
      version: v1
  - name: v2
    labels:
      version: v2

Kubernetes Storage

Kubernetes provides various storage options for containerized applications. It provides ways to persist data even when pods are restarted or rescheduled.

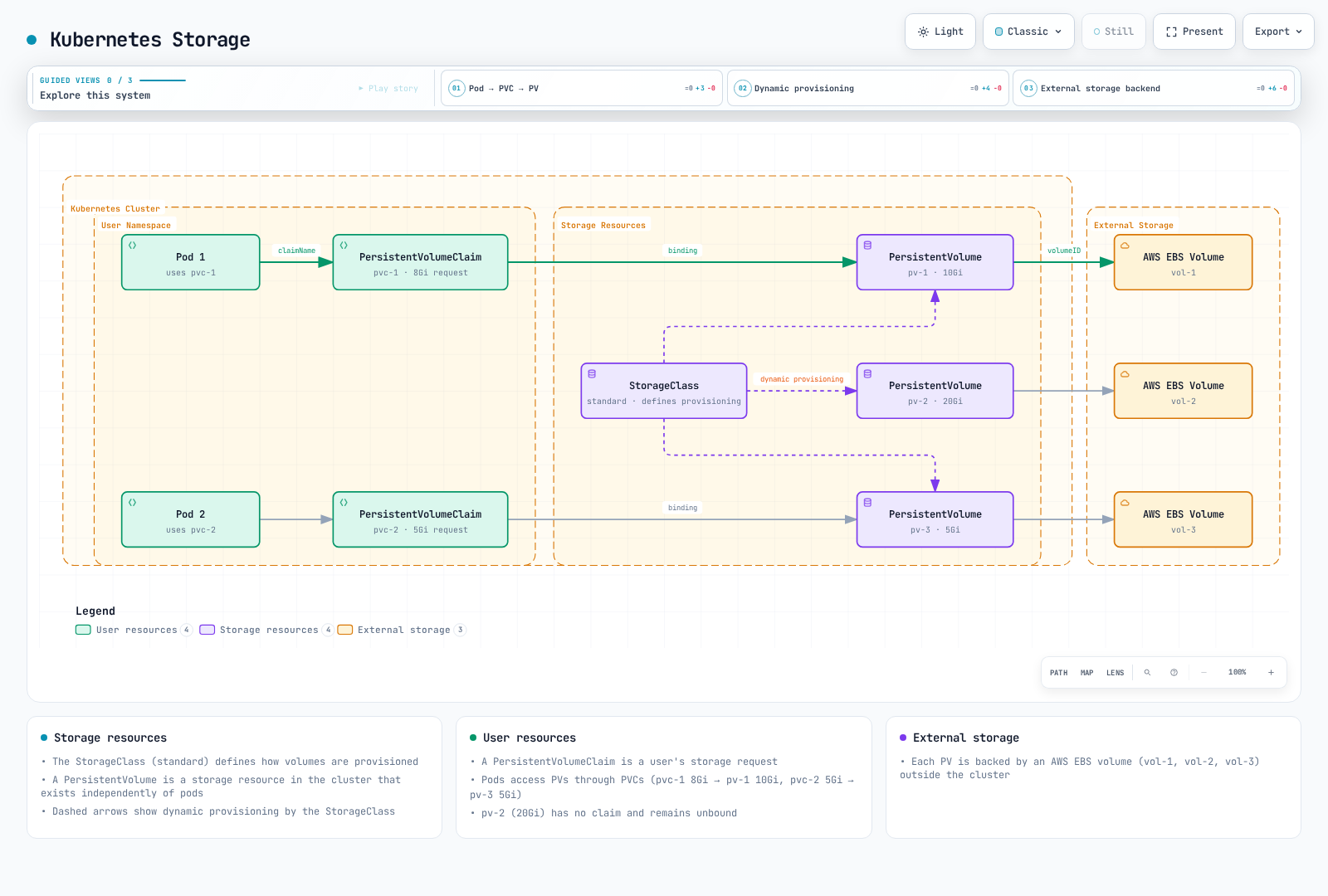

Kubernetes storage: Pod 1 and Pod 2 bind to PersistentVolumes (pv-1, pv-3) through PersistentVolumeClaims (pvc-1, pvc-2), the standard StorageClass provisions the PVs dynamically, and each PV maps to an AWS EBS volume.

Volume

A volume is a directory that can be mounted to containers in a pod, persisting data for the pod's lifecycle. Volumes are also used to share data between containers in a pod.

Main Volume Types:

emptyDir: Starts as empty directory, deleted when pod is deleted
hostPath: Mount from host node's file system to pod
configMap: Mount ConfigMap as volume
secret: Mount Secret as volume
persistentVolumeClaim: Mount persistent volume to pod

emptyDir Volume Example:

yaml

apiVersion: v1
kind: Pod
metadata:
  name: test-pd
spec:
  containers:
  - name: test-container
    image: nginx:1.30.4
    volumeMounts:
    - mountPath: /cache
      name: cache-volume
  volumes:
  - name: cache-volume
    emptyDir: {}

PersistentVolume (PV)

A PersistentVolume is an API object representing a storage resource in the cluster. It exists independently of pods and is provisioned statically by administrators or dynamically by a storage provisioner.

Access Modes:

ReadWriteOnce (RWO): Can be mounted read/write by a single node
ReadOnlyMany (ROX): Can be mounted read-only by multiple nodes
ReadWriteMany (RWX): Can be mounted read/write by multiple nodes
ReadWriteOncePod (RWOP): Single-Pod access for supporting CSI volumes; RWO alone still allows multiple Pods on the same node

The EBS CSI driver and IAM permissions must already be installed. Use an existing volume ID and its actual Availability Zone; never reuse a volume still in use elsewhere. These storage examples are AWS-specific; local clusters need their own provisioner.

PersistentVolume Example:

yaml

apiVersion: v1
kind: PersistentVolume
metadata:
  name: pv-example
spec:
  capacity:
    storage: 10Gi
  accessModes:
  - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  storageClassName: ebs-gp3
  csi:
    driver: ebs.csi.aws.com
    volumeHandle: vol-0123456789abcdef0
    fsType: ext4
  nodeAffinity:
    required:
      nodeSelectorTerms:
      - matchExpressions:
        - key: topology.kubernetes.io/zone
          operator: In
          values:
          - replace-with-volume-az

PersistentVolumeClaim (PVC)

A PersistentVolumeClaim is an API object representing a user's storage request. Pods access PVs through PVCs.

PersistentVolumeClaim Example:

yaml

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: pvc-example
spec:
  accessModes:
  - ReadWriteOnce
  resources:
    requests:
      storage: 5Gi
  storageClassName: ebs-gp3

Pod using PVC Example:

yaml

apiVersion: v1
kind: Pod
metadata:
  name: mypod
spec:
  containers:
    - name: myfrontend
      image: nginx:1.30.4
      volumeMounts:
      - mountPath: "/var/www/html"
        name: mypd
  volumes:
    - name: mypd
      persistentVolumeClaim:
        claimName: pvc-example

StorageClass

A StorageClass describes "classes" of storage provided by administrators. Different service quality levels, backup policies, or arbitrary policies determined by cluster administrators can be provided.

StorageClass Example:

yaml

apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  name: ebs-gp3
provisioner: ebs.csi.aws.com
parameters:
  type: gp3
  csi.storage.k8s.io/fstype: ext4
  encrypted: 'true'
reclaimPolicy: Delete
allowVolumeExpansion: true
volumeBindingMode: WaitForFirstConsumer

Dynamic Provisioning

Dynamic provisioning is a feature that automatically creates PVs when PVCs are requested using storage classes.

Dynamic Provisioning Example:

yaml

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: dynamic-pvc
spec:
  accessModes:
  - ReadWriteOnce
  resources:
    requests:
      storage: 10Gi
  storageClassName: ebs-gp3

CSI (Container Storage Interface)

CSI provides a standard interface between Kubernetes and storage systems. This allows storage providers to develop their own storage drivers without modifying Kubernetes code.

Major CSI Drivers:

AWS EBS CSI Driver: Amazon EBS volume management
AWS EFS CSI Driver: Amazon EFS file system management
AWS FSx for Lustre CSI Driver: FSx for Lustre file system management
GCE PD CSI Driver: Google Compute Engine persistent disk management
Azure Disk CSI Driver: Azure disk management

StorageClass using an installed CSI driver:

yaml

apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  name: ebs-sc
provisioner: ebs.csi.aws.com
parameters:
  type: gp3
  encrypted: 'true'
  csi.storage.k8s.io/fstype: ext4
volumeBindingMode: WaitForFirstConsumer

Kubernetes Configuration and Security

Kubernetes provides various objects and mechanisms for managing application configuration and security.

ConfigMap

A ConfigMap is an API object that stores configuration data as key-value pairs. Pods can use ConfigMap data as environment variables, command-line arguments, or configuration files.

ConfigMap Example:

yaml

apiVersion: v1
kind: ConfigMap
metadata:
  name: app-config
data:
  app.properties: |
    app.name=MyApp
    app.version=1.0.0
    app.environment=production
  log-level: INFO
  max-connections: "100"

Environment values do not refresh automatically; recreate Pods after changes. Volume updates are eventual and require application reload; subPath mounts do not receive updates.

Pod using ConfigMap Example:

yaml

apiVersion: v1
kind: Pod
metadata:
  name: config-pod
spec:
  containers:
  - name: app
    image: myapp:1.0
    env:
    - name: LOG_LEVEL
      valueFrom:
        configMapKeyRef:
          name: app-config
          key: log-level
    volumeMounts:
    - name: config-volume
      mountPath: /etc/config
  volumes:
  - name: config-volume
    configMap:
      name: app-config

Secret

A Secret is an API object that stores sensitive information such as passwords, tokens, and keys. Similar to ConfigMap but designed for sensitive data.

Secret Types:

Opaque: Arbitrary user-defined data (default)
kubernetes.io/service-account-token: Manually requested long-lived legacy token Secret; prefer TokenRequest/projected tokens
kubernetes.io/dockercfg: Serialized ~/.dockercfg file
kubernetes.io/dockerconfigjson: Serialized ~/.docker/config.json file
kubernetes.io/basic-auth: Credentials for basic authentication
kubernetes.io/ssh-auth: Credentials for SSH authentication
kubernetes.io/tls: Data for TLS client or server

The data field uses base64 encoding, not encryption. Protect Secrets with RBAC and encryption at rest appropriate to the cluster; EKS encrypts all Kubernetes API data by default for 1.28+. Values below are demonstration-only and must be replaced.

Secret Example:

yaml

apiVersion: v1
kind: Secret
metadata:
  name: db-credentials
type: Opaque
data:
  username: YWRtaW4=  # base64 encoded "admin"
  password: cGFzc3dvcmQxMjM=  # base64 encoded "password123"

Pod using Secret Example:

yaml

apiVersion: v1
kind: Pod
metadata:
  name: secret-pod
spec:
  containers:
  - name: db-client
    image: db-client:1.0
    env:
    - name: DB_USERNAME
      valueFrom:
        secretKeyRef:
          name: db-credentials
          key: username
    - name: DB_PASSWORD
      valueFrom:
        secretKeyRef:
          name: db-credentials
          key: password

RBAC (Role-Based Access Control)

RBAC is a mechanism for controlling access to the Kubernetes API. It grants specific permissions to users or service accounts using Roles and RoleBindings.

Main RBAC Objects:

Role: Defines a set of permissions within a namespace
ClusterRole: Reusable rules for cluster/namespaced resources; the binding determines their effective scope
RoleBinding: Binds a role to users, groups, or service accounts
ClusterRoleBinding: Binds a cluster role to users, groups, or service accounts

Role Example:

yaml

apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  namespace: default
  name: pod-reader
rules:
- apiGroups: [""]
  resources: ["pods"]
  verbs: ["get", "watch", "list"]

RoleBinding Example:

yaml

apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: read-pods
  namespace: default
subjects:
- kind: User
  name: jane
  apiGroup: rbac.authorization.k8s.io
roleRef:
  kind: Role
  name: pod-reader
  apiGroup: rbac.authorization.k8s.io

ServiceAccount

A ServiceAccount provides an identity for processes running inside a pod. Pods use service accounts to communicate with the Kubernetes API.

ServiceAccount Example:

yaml

apiVersion: v1
kind: ServiceAccount
metadata:
  name: app-sa
  namespace: default

Pod using ServiceAccount Example:

yaml

apiVersion: v1
kind: Pod
metadata:
  name: sa-pod
spec:
  serviceAccountName: app-sa
  containers:
  - name: app
    image: myapp:1.0

NetworkPolicy

NetworkPolicy provides a way to control communication between pods. By default, all pods can communicate with each other, but you can restrict this using network policies.

NetworkPolicy Example:

yaml

apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: db-network-policy
  namespace: default
spec:
  podSelector:
    matchLabels:
      role: db
  policyTypes:
  - Ingress
  - Egress
  ingress:
  - from:
    - podSelector:
        matchLabels:
          role: api
    ports:
    - protocol: TCP
      port: 3306
  - from:
    - namespaceSelector:
        matchLabels:
          kubernetes.io/metadata.name: monitoring
      podSelector:
        matchLabels:
          app: prometheus
    ports:
    - protocol: TCP
      port: 9104
  egress:
  - to:
    - namespaceSelector:
        matchLabels:
          kubernetes.io/metadata.name: kube-system
      podSelector:
        matchLabels:
          k8s-app: kube-dns
    ports:
    - protocol: UDP
      port: 53
    - protocol: TCP
      port: 53

Pod Security Admission and SecurityContext

PodSecurityPolicy was removed in 1.25. Pod Security Admission enforces the Pod Security Standards using namespace labels. SecurityContext configures the workload itself; it does not replace admission enforcement.

Pod SecurityContext Example:

yaml

apiVersion: v1
kind: Pod
metadata:
  name: security-context-pod
spec:
  securityContext:
    runAsUser: 1000
    runAsGroup: 3000
    fsGroup: 2000
    runAsNonRoot: true
    seccompProfile:
      type: RuntimeDefault
  containers:
  - name: app
    image: myapp:1.0
    securityContext:
      allowPrivilegeEscalation: false
      capabilities:
        drop:
        - ALL

Pod Security Standards

Pod Security Standards provide three policy levels that define security requirements for pods:

Privileged: No restrictions, all features allowed
Baseline: Prevent known privilege escalations
Restricted: Strong restrictions applying best practices

Pod Security Standards Application Example:

yaml

apiVersion: v1
kind: Namespace
metadata:
  name: my-namespace
  labels:
    pod-security.kubernetes.io/enforce: restricted
    pod-security.kubernetes.io/audit: restricted
    pod-security.kubernetes.io/warn: restricted

Kubernetes vs Amazon EKS

Amazon EKS (Elastic Kubernetes Service) is a managed Kubernetes service provided by AWS. EKS exposes the standard Kubernetes API with AWS integrations. The comparison below assumes conventional EC2 node groups; responsibilities and supported features differ for Auto Mode, Fargate and Hybrid Nodes.

Key Differences

Characteristic	Self-managed Kubernetes	Amazon EKS
Control Plane Management	User manages directly	Managed by AWS
High Availability	User must configure	Provided by default (deployed across multiple availability zones)
Upgrades	User performs directly	Control-plane upgrades managed by AWS; coordinate node/add-on upgrades
Security Patches	User applies directly	AWS patches control plane; managed-node AMI rollout remains your responsibility (Auto Mode differs)
Authentication	Various options need configuration	Integrated with AWS IAM
Networking	CNI plugin selection and configuration required	Amazon VPC CNI provided by default
Load Balancing	Manual configuration required	AWS Load Balancer Controller integration
Storage	Storage driver configuration required	EBS, EFS, FSx CSI driver integration
Monitoring	Manual setup required	CloudWatch Container Insights integration
Cost	Infrastructure plus operational effort	Control plane cost + infrastructure costs

Additional EKS Features

AWS IAM Integration: Integration of Kubernetes RBAC and AWS IAM
AWS Load Balancer Controller: Integration of ALB and NLB with Kubernetes services and ingress
EKS Managed Node Groups: Node lifecycle management automation
Fargate Profiles: Serverless Kubernetes pod execution
VPC CNI Plugin: Integration with AWS VPC networking
CloudWatch Container Insights: Container monitoring and logging
AWS App Mesh: Support ended 2026-09-30; AWS says its console and resources are no longer accessible
AWS Distro for OpenTelemetry: Distributed tracing and monitoring
EKS Console and CLI: Management interfaces
EKS Blueprints: Best practices-based cluster configuration

EKS-Specific Components

EKS Control Plane: High availability across multiple availability zones
EKS Node AMI: AWS-provided AL2023/Bottlerocket/Windows options and separately supplied compatible AMIs such as Ubuntu
EKS Managed Node Groups: Node-group update workflows; workload-driven node scaling needs an autoscaler
EKS Fargate: Serverless container execution environment
EKS Connector: Connect external Kubernetes clusters to AWS console
EKS Anywhere: Run EKS-compatible clusters in on-premises environments
EKS Distro: AWS-managed Kubernetes distribution

AWS Service Integration

EKS integrates with the following AWS services:

Amazon VPC: Networking infrastructure
AWS IAM: Authentication and authorization
Amazon ECR: Container image repository
AWS Load Balancer: Application traffic distribution
Amazon EBS/EFS/FSx: Persistent storage
AWS CloudWatch: Monitoring and logging
AWS CloudTrail: AWS API audit; Kubernetes API audit requires EKS audit logging
AWS KMS: Encryption key management
AWS WAF: Attach to supported application front doors such as ALB; not directly to the EKS API endpoint
AWS Shield: DDoS protection
AWS X-Ray: Distributed tracing
AWS App Mesh: Support ended 2026-09-30; existing workloads need migration
AWS SageMaker: Machine learning workloads
AWS Bedrock: Generative AI workloads

Getting Started with Kubernetes

There are several ways to get started with Kubernetes. Here we briefly introduce how to start Kubernetes in a local development environment and on AWS EKS.

Local Development Environment

Minikube

Minikube runs local Kubernetes clusters and supports both single-node and multi-node configurations.

Installation and Start:

bash

# Install
brew install minikube

# Start
minikube start

# Check status
minikube status

# Inspect workloads; see the maintained Headlamp UI section below.
kubectl get pods -A

Kind (Kubernetes in Docker)

Kind runs local clusters using containers as nodes, with supported Docker/Podman/nerdctl providers.

Installation and Start:

bash

# Install
brew install kind

# Create cluster
kind create cluster --name my-cluster

# Check cluster
kind get clusters
kubectl cluster-info --context kind-my-cluster

Docker Desktop

Docker Desktop provides a feature to easily run Kubernetes on Mac and Windows.

Setup:

Install Docker Desktop
Settings > Kubernetes > Check "Enable Kubernetes"
Click "Apply & Restart"

AWS EKS

Creating EKS Cluster with eksctl

eksctl is a simple CLI tool for creating and managing EKS clusters.

Installation and Cluster Creation:

bash

# Install a reviewed eksctl release from the official eksctl-io GitHub releases,
# verify eksctl_checksums.txt, and place the binary in PATH.
eksctl version
# Use an existing short-lived AWS login/SSO profile with required permissions.
aws sts get-caller-identity
# This example provisions real AWS resources. Choose the intended account/Region,
# supported EKS version, networking and IAM configuration before running it.
: "${EKS_VERSION:?Set a version supported by EKS, not upstream latest}"
eksctl create cluster \
  --name my-cluster \
  --region ap-northeast-2 \
  --version "$EKS_VERSION" \
  --nodegroup-name standard-workers \
  --node-type t3.medium \
  --node-ami-family AmazonLinux2023 \
  --node-private-networking \
  --nodes 3 --nodes-min 1 --nodes-max 4 --managed
kubectl get nodes

Creating EKS Cluster with AWS Management Console

You can also create EKS clusters through the AWS Management Console.

Steps:

Log in to AWS Management Console
Navigate to EKS service
Click "Create cluster"
Configure cluster name, IAM role, VPC and subnets
Configure security groups
Configure logging options
Create cluster
Add node groups

kubectl Installation and Configuration

kubectl is a command-line tool for interacting with Kubernetes clusters.

Installation:

bash

# macOS: use a kubectl version within one minor of the API server.
brew install kubectl

bash

# Linux: select an explicit compatible version and architecture.
set -euo pipefail
: "${KUBECTL_VERSION:?Set a cluster-compatible version, e.g. v1.37.1}"
case "$(uname -m)" in
  x86_64) KUBECTL_ARCH=amd64 ;;
  aarch64|arm64) KUBECTL_ARCH=arm64 ;;
  *) echo "Choose a supported kubectl architecture" >&2; exit 1 ;;
esac
curl --fail --location --output kubectl "https://dl.k8s.io/release/$KUBECTL_VERSION/bin/linux/$KUBECTL_ARCH/kubectl"
curl --fail --location --output kubectl.sha256 "https://dl.k8s.io/release/$KUBECTL_VERSION/bin/linux/$KUBECTL_ARCH/kubectl.sha256"
echo "$(cat kubectl.sha256)  kubectl" | sha256sum --check
sudo install -m 0755 kubectl /usr/local/bin/kubectl

powershell

$ErrorActionPreference = "Stop"
$KubectlVersion = Read-Host "Cluster-compatible kubectl version (vX.Y.Z)"
$KubectlArch = Read-Host "Architecture (amd64 or arm64)"
if ($KubectlVersion -notmatch '^v\d+\.\d+\.\d+$' -or $KubectlArch -notin @('amd64','arm64')) { throw "Invalid version/architecture" }
$BaseUrl = "https://dl.k8s.io/release/$KubectlVersion/bin/windows/$KubectlArch"
Invoke-WebRequest "$BaseUrl/kubectl.exe" -OutFile kubectl.exe
Invoke-WebRequest "$BaseUrl/kubectl.exe.sha256" -OutFile kubectl.exe.sha256
if ((Get-FileHash kubectl.exe -Algorithm SHA256).Hash -ne (Get-Content kubectl.exe.sha256).Trim()) { throw "Checksum mismatch" }
# Move the verified binary to a directory included in PATH.

Basic Commands:

bash

# Check cluster info
kubectl cluster-info

# List nodes
kubectl get nodes

# Check pods in all namespaces
kubectl get pods --all-namespaces

# Create deployment
kubectl create deployment nginx --image=nginx:1.30.4

# Expose service
kubectl expose deployment nginx --port=80 --type=ClusterIP
# Run port-forward in a separate terminal; stop it when finished.
kubectl port-forward service/nginx 8080:80

# Check logs
kubectl logs <pod-name>

# Execute command in pod container
kubectl exec -it <pod-name> -- /bin/bash

Using the Headlamp UI

Kubernetes Dashboard is archived and unmaintained. Use Headlamp with an identity limited by existing RBAC. The Helm example disables automatic cluster-admin binding and does not enable the unsafe shared service-account-token mode. An administrator can grant narrowly scoped permissions separately.

bash

helm repo add headlamp https://kubernetes-sigs.github.io/headlamp/
helm repo update headlamp
: "${HEADLAMP_CHART_VERSION:?Set a reviewed chart version}"
helm upgrade --install headlamp headlamp/headlamp \
  --namespace kube-system --version "$HEADLAMP_CHART_VERSION" \
  --set clusterRoleBinding.create=false \
  --set config.unsafeUseServiceAccountToken=false
kubectl -n kube-system port-forward service/headlamp 8080:80

Open http://localhost:8080 locally and follow the installed Headlamp version’s login flow. Public ingress requires separately configured TLS and authentication.

Conclusion

Kubernetes is a powerful platform that automates the deployment, scaling, and management of containerized applications. Summary of key content covered in this document:

Core Architecture

Control Plane: Brain of the cluster (API Server, etcd, Scheduler, Controller Manager)
Worker Nodes: Nodes that run actual applications (kubelet, kube-proxy, Container Runtime)
Declarative Configuration: Define desired state and Kubernetes matches current state to desired state

Main Objects and Resources

Basic Objects: Pod, Service, Volume, Namespace
Workload Resources: Deployment, StatefulSet, DaemonSet, Job, CronJob
Configuration and Security: ConfigMap, Secret, RBAC, ServiceAccount
Networking: Service, Ingress, NetworkPolicy
Storage: PersistentVolume, PersistentVolumeClaim, StorageClass

Recommended Learning Path

Step 1: Build Local Environment

Create local cluster with minikube or kind
Learn kubectl commands
Practice with basic objects (Pod, Deployment, Service)

Step 2: Master Core Concepts

Understand and practice workload resources
Configuration management with ConfigMap and Secret
Configure networking with Service and Ingress
Manage storage with PV and PVC

Step 3: Learn Advanced Features

RBAC and security policies
Auto scaling (HPA, VPA, Cluster Autoscaler)
Monitoring and logging (Prometheus, Grafana)
Service mesh (Istio, Linkerd)

Step 4: Production Operations

Use Amazon EKS or other managed Kubernetes
CI/CD pipeline integration
Disaster recovery and backup strategies
Cost optimization and resource management

Next Steps

EKS Deep Dive: EKS-specific features (Fargate, VPC CNI, ALB Controller)
Advanced Networking: CNI plugins (Calico, Cilium)
Observability: Metrics, logs, tracing
GitOps: ArgoCD, Flux
Security Hardening: Pod Security Standards, Network Policies, OPA/Gatekeeper

Kubernetes continues to evolve and has become a core element of cloud-native application development and operations. We hope this document helps you start your Kubernetes journey.

Additional Learning Resources

Official Documentation: Kubernetes Official Documentation provides the most accurate and up-to-date information
Interactive Tutorials: Hands-on practice available at Kubernetes Tutorials
Community: Kubernetes Slack, Reddit r/kubernetes
Certifications: CKA (Certified Kubernetes Administrator), CKAD (Certified Kubernetes Application Developer)
Korean Community: Kubernetes Korea User Group, AWS Korea User Group

Quiz

To test what you learned in this chapter, take the Introduction to Kubernetes Quiz.

Traffic Management

Security

Observability

Resilience

Advanced

Comparison Guide

ArgoCD

Metrics

Logging

Tracing

Alerting

Observability End-to-End Labs

Introduction to Kubernetes ​

Lab Environment Setup ​

Required Tools ​

Installation Methods ​

Starting a Local Cluster ​

Table of Contents ​

What is Kubernetes? ​

Key Features of Kubernetes ​

Problems Kubernetes Solves ​

History of Kubernetes ​

Background ​

Origin of the Name ​

Meaning of the Logo ​

Kubernetes Architecture ​

Control Plane (Master) Components ​

Node Components ​

Full Architecture ​

Kubernetes Main Components ​

API Server (kube-apiserver) ​

etcd ​

Scheduler (kube-scheduler) ​

Controller Manager (kube-controller-manager) ​

Cloud Controller Manager (cloud-controller-manager) ​

kubelet ​

kube-proxy ​

Kubernetes Basic Objects ​

Pod ​

Namespace ​

Labels and Selectors ​

Annotations ​

Node ​

Kubernetes Workload Resources ​

ReplicaSet ​

Deployment ​

StatefulSet ​

DaemonSet ​

Job ​

CronJob ​

Kubernetes Services and Networking ​

Service ​

Ingress ​

NetworkPolicy ​

DNS ​

Service Mesh ​

Kubernetes Storage ​

Volume ​

PersistentVolume (PV) ​

PersistentVolumeClaim (PVC) ​

StorageClass ​

Dynamic Provisioning ​

Introduction to Kubernetes

Lab Environment Setup

Required Tools

Installation Methods

Starting a Local Cluster

Table of Contents

What is Kubernetes?

Key Features of Kubernetes

Problems Kubernetes Solves

History of Kubernetes

Background

Origin of the Name

Meaning of the Logo

Kubernetes Architecture

Control Plane (Master) Components

Node Components

Full Architecture

Kubernetes Main Components

API Server (kube-apiserver)

etcd

Scheduler (kube-scheduler)

Controller Manager (kube-controller-manager)

Cloud Controller Manager (cloud-controller-manager)

kubelet

kube-proxy

Kubernetes Basic Objects

Pod

Namespace

Labels and Selectors

Annotations

Node

Kubernetes Workload Resources

ReplicaSet

Deployment

StatefulSet

DaemonSet

Job

CronJob

Kubernetes Services and Networking

Service

Ingress

NetworkPolicy

DNS

Service Mesh

Kubernetes Storage

Volume

PersistentVolume (PV)

PersistentVolumeClaim (PVC)

StorageClass

Dynamic Provisioning
