Cilium Service Mesh Traffic Management
Review baseline: Cilium 1.20.1 and Gateway API 1.6.1, September 11, 2026. See the overview for the Kubernetes/EKS test matrices and platform requirements.
Overview
Traffic management in Cilium Service Mesh combines eBPF-based L4 load balancing with Envoy-based L7 routing. This chapter explains advanced traffic management features through CiliumEnvoyConfig, L7 rules in CiliumNetworkPolicy, and Gateway API integration.

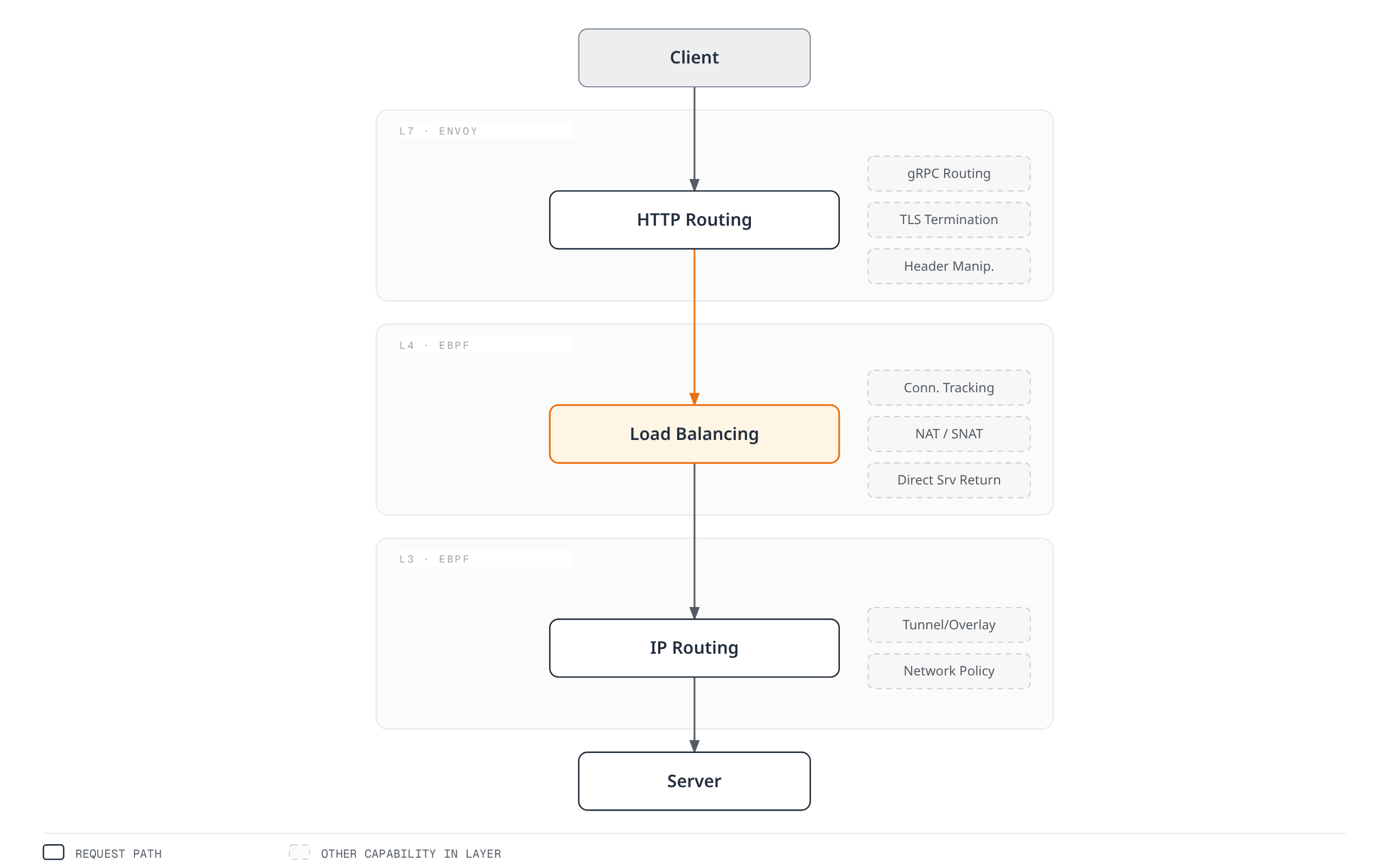

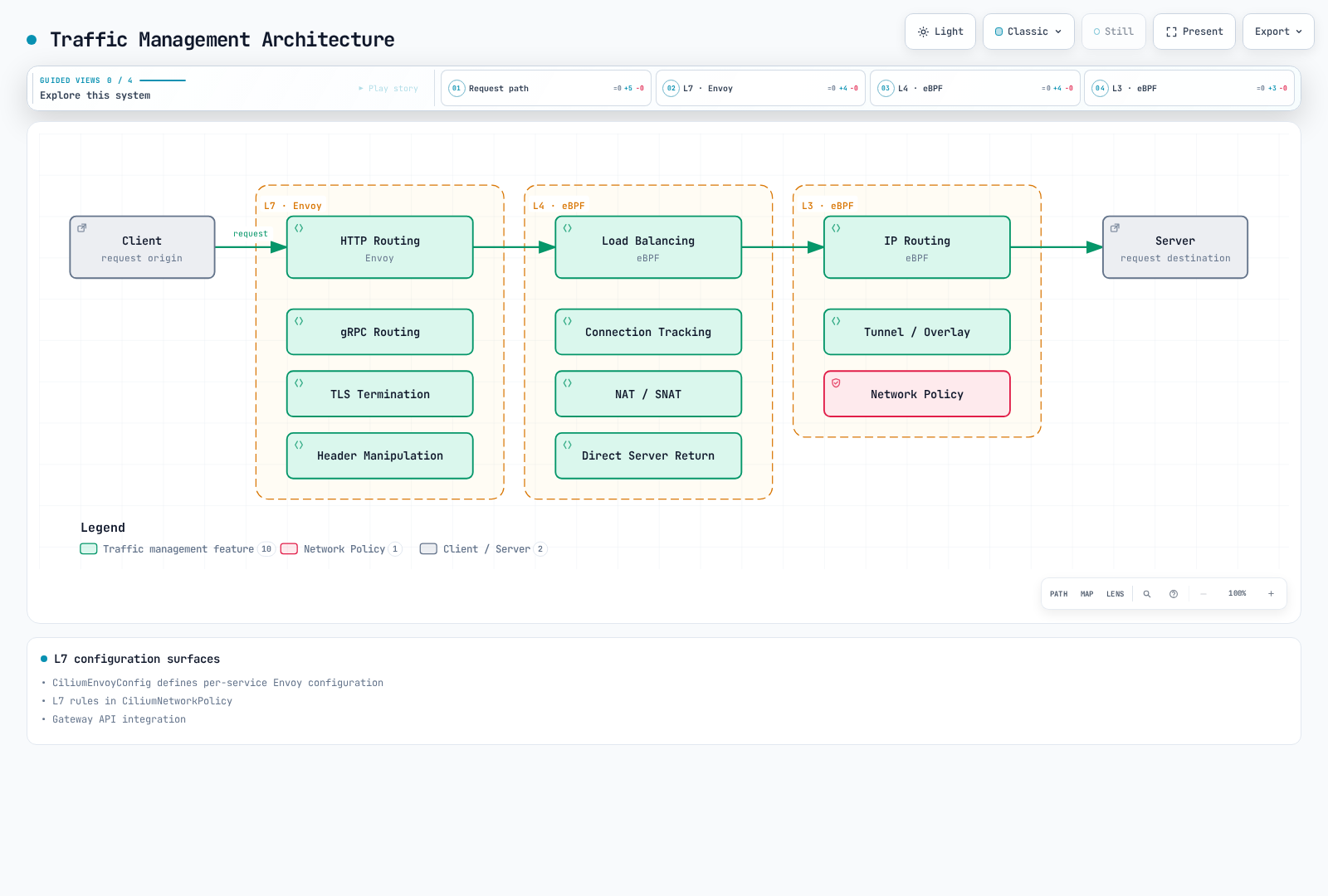

Traffic Management Architecture
The figure groups capabilities by layer. It is not a mandatory packet-processing order: L3/L4-only traffic can avoid Envoy, and the actual egress/ingress/Service path depends on configuration.
CiliumEnvoyConfig
These are independent configuration examples, not resources to install together. Several examples target the same frontend Service; choose one configuration owner to avoid conflicting listeners. The examples assume a prepared Cilium installation with l7Proxy: true, envoyConfig.enabled: true, appropriate kube-proxy replacement/routing settings, and the required CRDs.
Each named frontend and backend Service must already exist in default with port 8080, appropriate selectors and ready HTTP endpoints. The Kafka and gRPC sections specify their own namespace/port prerequisites. CEC examples do not create workloads, Services or certificates.
services selects a frontend for redirection and synchronizes its backends; backendServices synchronizes other backends without redirecting their own frontend traffic. EDS Cluster resources must still exist. Cilium intentionally supplies omitted Listener addresses/xDS sources. Kubernetes acceptance alone is insufficient: inspect agent/Envoy errors and verify actual requests. Refer to the architecture chapter for ownership and validation boundaries.
Basic Structure
CiliumEnvoyConfig defines Envoy configuration for specific services:
apiVersion: cilium.io/v2
kind: CiliumEnvoyConfig
metadata:
name: my-service-config
namespace: default
spec:
services:
- name: my-service
namespace: default
ports:
- 8080
backendServices:
- name: backend-v1
namespace: default
- name: backend-v2
namespace: default
resources:
- '@type': type.googleapis.com/envoy.config.listener.v3.Listener
name: my-service-listener
filter_chains:
- filters:
- name: envoy.filters.network.http_connection_manager
typed_config:
'@type': type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
stat_prefix: my-service-listener
route_config:
name: my-service-listener-routes
virtual_hosts:
- name: api
domains:
- '*'
routes:
- match:
prefix: /
route:
weighted_clusters:
clusters:
- name: default/backend-v1
weight: 50
- name: default/backend-v2
weight: 50
http_filters:
- name: envoy.filters.http.router
typed_config:
'@type': type.googleapis.com/envoy.extensions.filters.http.router.v3.Router
- '@type': type.googleapis.com/envoy.config.cluster.v3.Cluster
name: default/backend-v1
connect_timeout: 5s
type: EDS
lb_policy: ROUND_ROBIN
- '@type': type.googleapis.com/envoy.config.cluster.v3.Cluster
name: default/backend-v2
connect_timeout: 5s
type: EDS
lb_policy: ROUND_ROBINThis complete example distributes requests between two explicitly named backends. The Listener, HTTP route and EDS Clusters are separate pieces; listing backend Services alone does not define those Clusters.
HTTP Routing
Path-based Routing
apiVersion: cilium.io/v2
kind: CiliumEnvoyConfig
metadata:
name: path-routing
namespace: default
spec:
services:
- name: api-gateway
namespace: default
ports:
- 8080
backendServices:
- name: users-service
namespace: default
- name: orders-service
namespace: default
- name: products-service
namespace: default
resources:
- '@type': type.googleapis.com/envoy.config.listener.v3.Listener
name: api-gateway-listener
filter_chains:
- filters:
- name: envoy.filters.network.http_connection_manager
typed_config:
'@type': type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
stat_prefix: api-gateway
codec_type: AUTO
route_config:
name: api_routes
virtual_hosts:
- name: api
domains:
- '*'
routes:
- match:
path_separated_prefix: /users
route:
cluster: default/users-service
- match:
path_separated_prefix: /orders
route:
cluster: default/orders-service
- match:
path_separated_prefix: /products
route:
cluster: default/products-service
- match:
prefix: /
direct_response:
status: 404
body:
inline_string: Not Found
http_filters:
- name: envoy.filters.http.router
typed_config:
'@type': type.googleapis.com/envoy.extensions.filters.http.router.v3.Router
- '@type': type.googleapis.com/envoy.config.cluster.v3.Cluster
name: default/orders-service
connect_timeout: 5s
type: EDS
lb_policy: ROUND_ROBIN
- '@type': type.googleapis.com/envoy.config.cluster.v3.Cluster
name: default/products-service
connect_timeout: 5s
type: EDS
lb_policy: ROUND_ROBIN
- '@type': type.googleapis.com/envoy.config.cluster.v3.Cluster
name: default/users-service
connect_timeout: 5s
type: EDS
lb_policy: ROUND_ROBINEnvoy evaluates these routes in order. path_separated_prefix matches /users and /users/123, but not /users-old; the final / rule is the fallback. This differs from an arbitrary string prefix.
Header-based Routing
apiVersion: cilium.io/v2
kind: CiliumEnvoyConfig
metadata:
name: header-routing
namespace: default
spec:
services:
- name: api-service
namespace: default
ports:
- 8080
backendServices:
- name: api-v1
namespace: default
- name: api-v2
namespace: default
- name: api-beta
namespace: default
resources:
- '@type': type.googleapis.com/envoy.config.listener.v3.Listener
name: header-routing-listener
filter_chains:
- filters:
- name: envoy.filters.network.http_connection_manager
typed_config:
'@type': type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
stat_prefix: api-service
route_config:
name: header_routes
virtual_hosts:
- name: api
domains:
- '*'
routes:
- match:
prefix: /
headers:
- name: X-API-Version
string_match:
exact: v2
route:
cluster: default/api-v2
- match:
prefix: /
headers:
- name: X-Beta-User
string_match:
exact: 'true'
route:
cluster: default/api-beta
- match:
prefix: /
route:
cluster: default/api-v1
http_filters:
- name: envoy.filters.http.router
typed_config:
'@type': type.googleapis.com/envoy.extensions.filters.http.router.v3.Router
- '@type': type.googleapis.com/envoy.config.cluster.v3.Cluster
name: default/api-beta
connect_timeout: 5s
type: EDS
lb_policy: ROUND_ROBIN
- '@type': type.googleapis.com/envoy.config.cluster.v3.Cluster
name: default/api-v1
connect_timeout: 5s
type: EDS
lb_policy: ROUND_ROBIN
- '@type': type.googleapis.com/envoy.config.cluster.v3.Cluster
name: default/api-v2
connect_timeout: 5s
type: EDS
lb_policy: ROUND_ROBINThe first matching rule wins: a request carrying both headers selects v2. Client-controlled version/beta headers are routing hints, not proof that a user is authorized to access that backend.
Method-based Routing
apiVersion: cilium.io/v2
kind: CiliumEnvoyConfig
metadata:
name: method-routing
namespace: default
spec:
services:
- name: rest-api
namespace: default
ports:
- 8080
backendServices:
- name: read-service
namespace: default
- name: write-service
namespace: default
resources:
- '@type': type.googleapis.com/envoy.config.listener.v3.Listener
name: method-routing-listener
filter_chains:
- filters:
- name: envoy.filters.network.http_connection_manager
typed_config:
'@type': type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
stat_prefix: rest-api
route_config:
name: method_routes
virtual_hosts:
- name: api
domains:
- '*'
routes:
- match:
prefix: /
headers:
- name: :method
string_match:
safe_regex:
google_re2: {}
regex: ^(GET|HEAD)$
route:
cluster: default/read-service
- match:
prefix: /
headers:
- name: :method
string_match:
safe_regex:
google_re2: {}
regex: ^(POST|PUT|DELETE|PATCH)$
route:
cluster: default/write-service
- match:
prefix: /
direct_response:
status: 405
response_headers_to_add:
- header:
key: allow
value: GET, HEAD, POST, PUT, DELETE, PATCH
append_action: OVERWRITE_IF_EXISTS_OR_ADD
http_filters:
- name: envoy.filters.http.router
typed_config:
'@type': type.googleapis.com/envoy.extensions.filters.http.router.v3.Router
- '@type': type.googleapis.com/envoy.config.cluster.v3.Cluster
name: default/read-service
connect_timeout: 5s
type: EDS
lb_policy: ROUND_ROBIN
- '@type': type.googleapis.com/envoy.config.cluster.v3.Cluster
name: default/write-service
connect_timeout: 5s
type: EDS
lb_policy: ROUND_ROBINGET/HEAD select the read Service; POST/PUT/DELETE/PATCH select the write Service. Other methods receive 405. Add required OPTIONS/CORS or application-specific behavior deliberately. Routing a write to a dedicated backend does not itself implement authorization or idempotency.
L7 Traffic Policies
CiliumNetworkPolicy L7 Rules
CiliumNetworkPolicy enables fine-grained traffic control at the L7 level:
apiVersion: cilium.io/v2
kind: CiliumNetworkPolicy
metadata:
name: l7-http-policy
namespace: default
spec:
endpointSelector:
matchLabels:
k8s:app: backend-api
ingress:
- fromEndpoints:
- matchLabels:
k8s:app: frontend
k8s:io.kubernetes.pod.namespace: default
toPorts:
- ports:
- port: '8080'
protocol: TCP
rules:
http:
- method: ^GET$
path: ^/api/users/.*$
- method: ^GET$
path: ^/api/products/.*$
- method: ^POST$
path: ^/api/orders$
- method: ^GET$
path: ^/api/admin/.*$
headerMatches:
- name: X-API-Version
value: v1Rules are alternatives; the header condition applies only to the admin-path rule. X-API-Version: v1 is an exact routing/version condition, not an admin credential. Enforce user authentication and authorization in the application. The policy selects ingress traffic from the stated namespace, and other applicable policy grants may widen access.
Various Protocol Support
Kafka: Network Boundaries and Broker ACLs
apiVersion: cilium.io/v2
kind: CiliumNetworkPolicy
metadata:
name: kafka-l4-policy
namespace: kafka
spec:
endpointSelector:
matchLabels:
k8s:app: kafka-broker
ingress:
- fromEndpoints:
- matchLabels:
k8s:app: kafka-producer
k8s:io.kubernetes.pod.namespace: kafka
toPorts:
- ports:
- port: '9092'
protocol: TCP
- fromEndpoints:
- matchLabels:
k8s:app: kafka-consumer
k8s:io.kubernetes.pod.namespace: kafka
toPorts:
- ports:
- port: '9092'
protocol: TCPThe Cilium 1.20.1 L7 policy API supports HTTP and DNS; the old rules.kafka API is absent. The released CRD rejects this Kafka rules object. Removing its L7 rules would leave only L4 permission, not topic-level authorization. This replacement only permits the listed clients to the preconfigured broker listener on TCP 9092. Configure Kafka TLS/SASL and broker ACLs for topics, consumer groups and operations separately; network policy cannot distinguish produce from fetch here.
DNS L7 Policy
apiVersion: cilium.io/v2
kind: CiliumNetworkPolicy
metadata:
name: dns-l7-policy
namespace: default
spec:
endpointSelector:
matchLabels:
k8s:app: web-app
egress:
- toEndpoints:
- matchLabels:
k8s:io.kubernetes.pod.namespace: kube-system
k8s:k8s-app: kube-dns
toPorts:
- ports:
- port: '53'
protocol: UDP
- port: '53'
protocol: TCP
rules:
dns:
- matchPattern: '*.example.com'
- matchPattern: api.external-service.io
- matchName: database.internal.svc.cluster.localThis example permits DNS queries only, over UDP and TCP to the selected cluster resolver. It does not permit HTTPS/database connections to the returned addresses; add separate toFQDNs/endpoint and port rules for intended destinations. *.example.com does not include the apex example.com or arbitrary nested subdomains. Resolver search-list queries must also be considered, and NodeLocal DNS needs a different verified destination rule. Restricting names is not a guarantee against data exfiltration, DoH or misuse of allowed domains.
gRPC L7 Policy
apiVersion: cilium.io/v2
kind: CiliumNetworkPolicy
metadata:
name: grpc-l7-policy
namespace: default
spec:
endpointSelector:
matchLabels:
k8s:app: grpc-server
ingress:
- fromEndpoints:
- matchLabels:
k8s:app: grpc-client
k8s:io.kubernetes.pod.namespace: default
toPorts:
- ports:
- port: '50051'
protocol: TCP
rules:
http:
- method: ^POST$
path: ^/myapp\.UserService/GetUser$
- method: ^POST$
path: ^/myapp\.UserService/ListUsers$
- method: ^POST$
path: ^/myapp\.OrderService/.*$These HTTP/2 rules match the gRPC POST /package.Service/Method path. The dot in the package name is escaped and the expressions are anchored. Assume a supported inspectable HTTP/2 path; encrypted application traffic requires the corresponding TLS setup. Health/reflection and other methods are not implicitly permitted, and HTTP policy cannot authorize fields inside a protobuf message.
Load Balancing
L4 Load Balancing (eBPF)
eBPF-based L4 load balancing replaces kube-proxy:
kubeProxyReplacement: true
k8sServiceHost: <reachable-api-server-host>
k8sServicePort: 6443
loadBalancer:
algorithm: maglev
mode: snat
nodePort:
enableHealthCheck: trueThe API endpoint must be reachable during bootstrap; use its actual port (normally 443 for EKS). Preserve the chosen platform's IPAM/routing settings. nodePort.enableHealthCheck is the chart key; the former loadBalancer.healthCheckNodePort did not configure it. loadBalancer.serviceTopology concerns topology-aware routing, not ClientIP session affinity. DSR dispatch/routing combinations require a separate design; the documented dispatch choices are opt and geneve, not ipip. See the architecture discussion.

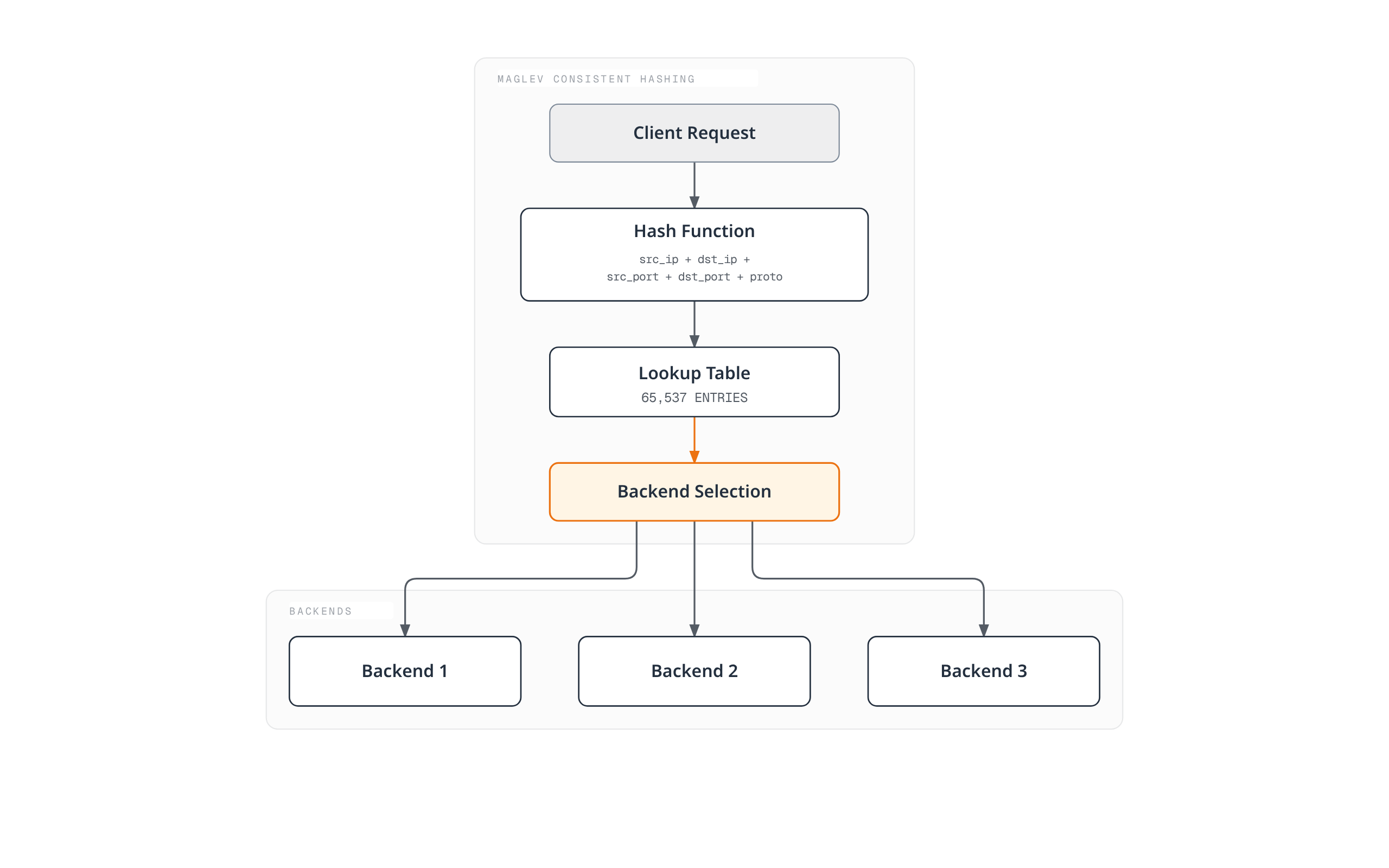

Maglev Hashing
Maglev maps a flow key through a lookup table to a backend for applicable external traffic. It minimizes reassignment when the backend set changes; it does not preserve a session on a removed backend or replace Service.spec.sessionAffinity: ClientIP.
Cilium 1.20.1's default eBPF Maglev table size is 16,381. Supported sizes include 65,521, while 65,537 belongs to the separate Envoy MAGLEV example below and is not a supported Cilium maglev.tableSize value. All nodes need consistent configuration. Socket-level east–west Service translation is not subject to this Maglev path.
L7 Load Balancing (Envoy)
L7 load balancing is provided through Envoy:
apiVersion: cilium.io/v2
kind: CiliumEnvoyConfig
metadata:
name: l7-load-balancing
namespace: default
spec:
services:
- name: api-service
namespace: default
ports:
- 8080
backendServices:
- name: api-backend
namespace: default
resources:
- '@type': type.googleapis.com/envoy.config.listener.v3.Listener
name: l7-load-balancer
filter_chains:
- filters:
- name: envoy.filters.network.http_connection_manager
typed_config:
'@type': type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
stat_prefix: l7-load-balancer
route_config:
name: l7-load-balancer-routes
virtual_hosts:
- name: api
domains:
- '*'
routes:
- match:
prefix: /
route:
cluster: default/api-backend
http_filters:
- name: envoy.filters.http.router
typed_config:
'@type': type.googleapis.com/envoy.extensions.filters.http.router.v3.Router
- '@type': type.googleapis.com/envoy.config.cluster.v3.Cluster
name: default/api-backend
connect_timeout: 5s
type: EDS
lb_policy: ROUND_ROBIN
outlier_detection:
consecutive_5xx: 5
interval: 10s
base_ejection_time: 30s
max_ejection_percent: 50
health_checks:
- timeout: 5s
interval: 10s
unhealthy_threshold: 3
healthy_threshold: 2
http_health_check:
path: /health
expected_statuses:
- start: 200
end: 300
circuit_breakers:
thresholds:
- priority: DEFAULT
max_connections: 1000
max_pending_requests: 1000
max_requests: 1000
max_retries: 3Active /health probes, passive outlier detection and circuit-breaker capacity limits are different mechanisms. The HTTP health range is [200, 300), so 299 is included. The backend must implement the health endpoint, and policy must permit the probe path. Outlier ejection is not a guarantee that every request avoids a failed endpoint. max_retries in circuit_breakers.thresholds limits concurrent retry resources; it is not the retry count for each request.
Load Balancing Algorithm Options
Choose one Cluster fragment below; they are alternatives, not a YAML mapping with repeated lb_policy keys. RING_HASH/MAGLEV also need an appropriate route hash_policy if requests should consistently use an application key; without a supplied hash, selection can fall back to a random key. Envoy's L7 MAGLEV table is separate from Cilium's eBPF Maglev table.
lb_policy: ROUND_ROBINlb_policy: LEAST_REQUEST
least_request_lb_config:
choice_count: 2lb_policy: RANDOMlb_policy: RING_HASH
ring_hash_lb_config:
hash_function: XX_HASH
minimum_ring_size: 1024
maximum_ring_size: 8388608lb_policy: MAGLEV
maglev_lb_config:
table_size: 65537Traffic Splitting (Canary Deployment)
Weight-based Traffic Splitting
apiVersion: cilium.io/v2
kind: CiliumEnvoyConfig
metadata:
name: canary-deployment
namespace: default
spec:
services:
- name: frontend
namespace: default
ports:
- 8080
backendServices:
- name: frontend-stable
namespace: default
- name: frontend-canary
namespace: default
resources:
- '@type': type.googleapis.com/envoy.config.listener.v3.Listener
name: canary-listener
filter_chains:
- filters:
- name: envoy.filters.network.http_connection_manager
typed_config:
'@type': type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
stat_prefix: frontend
route_config:
name: canary_routes
virtual_hosts:
- name: frontend
domains:
- '*'
routes:
- match:
prefix: /
route:
weighted_clusters:
clusters:
- name: default/frontend-stable
weight: 90
- name: default/frontend-canary
weight: 10
http_filters:
- name: envoy.filters.http.router
typed_config:
'@type': type.googleapis.com/envoy.extensions.filters.http.router.v3.Router
- '@type': type.googleapis.com/envoy.config.cluster.v3.Cluster
name: default/frontend-canary
connect_timeout: 5s
type: EDS
lb_policy: ROUND_ROBIN
- '@type': type.googleapis.com/envoy.config.cluster.v3.Cluster
name: default/frontend-stable
connect_timeout: 5s
type: EDS
lb_policy: ROUND_ROBINWeights 90 and 10 express relative selection probabilities, not an exact count in each ten requests or a per-user/session guarantee. Current Envoy uses the sum of weights; the deprecated total_weight field is omitted. This is traffic selection only, with no automatic health-analysis, promotion or rollback loop.
Header-based Canary
apiVersion: cilium.io/v2
kind: CiliumEnvoyConfig
metadata:
name: header-canary
namespace: default
spec:
services:
- name: api
namespace: default
ports:
- 8080
backendServices:
- name: api-stable
namespace: default
- name: api-canary
namespace: default
resources:
- '@type': type.googleapis.com/envoy.config.listener.v3.Listener
name: header-canary-listener
filter_chains:
- filters:
- name: envoy.filters.network.http_connection_manager
typed_config:
'@type': type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
stat_prefix: api
route_config:
name: header_canary_routes
virtual_hosts:
- name: api
domains:
- '*'
routes:
- match:
prefix: /
headers:
- name: X-Canary
string_match:
exact: 'true'
route:
cluster: default/api-canary
- match:
prefix: /
route:
cluster: default/api-stable
http_filters:
- name: envoy.filters.http.router
typed_config:
'@type': type.googleapis.com/envoy.extensions.filters.http.router.v3.Router
- '@type': type.googleapis.com/envoy.config.cluster.v3.Cluster
name: default/api-canary
connect_timeout: 5s
type: EDS
lb_policy: ROUND_ROBIN
- '@type': type.googleapis.com/envoy.config.cluster.v3.Cluster
name: default/api-stable
connect_timeout: 5s
type: EDS
lb_policy: ROUND_ROBINOnly the exact X-Canary: true value selects canary; other requests select stable. Treat this header as untrusted unless an authenticated boundary controls it. Keep stable/canary application state and compatibility requirements in the rollout plan.
Retry and Timeout
Retry Configuration
apiVersion: cilium.io/v2
kind: CiliumEnvoyConfig
metadata:
name: retry-config
namespace: default
spec:
services:
- name: api-service
namespace: default
ports:
- 8080
backendServices:
- name: api-backend
namespace: default
resources:
- '@type': type.googleapis.com/envoy.config.listener.v3.Listener
name: retry-listener
filter_chains:
- filters:
- name: envoy.filters.network.http_connection_manager
typed_config:
'@type': type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
stat_prefix: api-service
route_config:
name: retry_routes
virtual_hosts:
- name: api
domains:
- '*'
routes:
- match:
prefix: /
headers:
- name: :method
string_match:
exact: GET
route:
cluster: default/api-backend
timeout: 7s
retry_policy:
retry_on: 5xx,reset,connect-failure
num_retries: 2
per_try_timeout: 2s
retry_back_off:
base_interval: 0.025s
max_interval: 0.25s
retriable_request_headers:
- name: :method
string_match:
exact: GET
- match:
prefix: /
route:
cluster: default/api-backend
timeout: 7s
retry_policy:
num_retries: 0
http_filters:
- name: envoy.filters.http.router
typed_config:
'@type': type.googleapis.com/envoy.extensions.filters.http.router.v3.Router
early_header_mutation_extensions:
- name: envoy.http.early_header_mutation.header_mutation
typed_config:
'@type': type.googleapis.com/envoy.extensions.http.early_header_mutation.header_mutation.v3.HeaderMutation
mutations:
- remove: x-envoy-retry-on
- remove: x-envoy-retry-grpc-on
- remove: x-envoy-max-retries
- remove: x-envoy-hedge-on-per-try-timeout
- remove: x-envoy-retriable-header-names
- remove: x-envoy-retriable-status-codes
- remove: x-envoy-upstream-rq-timeout-ms
- remove: x-envoy-upstream-rq-per-try-timeout-ms
- remove: x-envoy-expected-rq-timeout-ms
- remove: x-envoy-upstream-stream-duration-ms
- '@type': type.googleapis.com/envoy.config.cluster.v3.Cluster
name: default/api-backend
connect_timeout: 5s
type: EDS
lb_policy: ROUND_ROBINOnly GET requests receive retries: at most two additional attempts, with a 2-second timeout per attempt and a 7-second route timeout. Per-try timeout includes the initial attempt; it is not the delay between retries. Backoff is separately configured. The non-GET fallback explicitly sets num_retries: 0.
The early-header mutation extension removes Envoy retry/timeout override headers before routing and timeout calculation. It is compiled into the Cilium 1.20.1 proxy image; the ordinary HTTP header_mutation and Lua filters are not enabled in that build. The former previous_priorities retry-priority extension is also unavailable in this image. Do not assume that every upstream Envoy extension is available.
Use this example for HTTP endpoints whose GET operation is safe to repeat. An application/client or another proxy may still retry independently. Keep writes single-attempt unless the application provides a reviewed idempotency mechanism. retriable_headers concerns upstream response headers and is consulted with retry_on: retriable-headers; retriable_request_headers instead restricts eligible requests. Those fields are not interchangeable. retriable-4xx is not a blanket retry of all 4xx responses.
Timeout Configuration
apiVersion: cilium.io/v2
kind: CiliumEnvoyConfig
metadata:
name: timeout-config
namespace: default
spec:
services:
- name: slow-service
namespace: default
ports:
- 8080
resources:
- '@type': type.googleapis.com/envoy.config.listener.v3.Listener
name: timeout-listener
filter_chains:
- filters:
- name: envoy.filters.network.http_connection_manager
typed_config:
'@type': type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
stat_prefix: slow-service
common_http_protocol_options:
idle_timeout: 300s
headers_with_underscores_action: REJECT_REQUEST
stream_idle_timeout: 60s
request_timeout: 0s
route_config:
name: timeout_routes
virtual_hosts:
- name: slow-service
domains:
- '*'
routes:
- match:
path_separated_prefix: /long-running
route:
cluster: default/slow-service
timeout: 300s
idle_timeout: 300s
retry_policy:
num_retries: 0
- match:
path_separated_prefix: /stream
route:
cluster: default/slow-service
timeout: 0s
idle_timeout: 60s
retry_policy:
num_retries: 0
- match:
prefix: /
route:
cluster: default/slow-service
timeout: 60s
retry_policy:
num_retries: 0
http_filters:
- name: envoy.filters.http.router
typed_config:
'@type': type.googleapis.com/envoy.extensions.filters.http.router.v3.Router
early_header_mutation_extensions:
- name: envoy.http.early_header_mutation.header_mutation
typed_config:
'@type': type.googleapis.com/envoy.extensions.http.early_header_mutation.header_mutation.v3.HeaderMutation
mutations:
- remove: x-envoy-retry-on
- remove: x-envoy-retry-grpc-on
- remove: x-envoy-max-retries
- remove: x-envoy-hedge-on-per-try-timeout
- remove: x-envoy-retriable-header-names
- remove: x-envoy-retriable-status-codes
- remove: x-envoy-upstream-rq-timeout-ms
- remove: x-envoy-upstream-rq-per-try-timeout-ms
- remove: x-envoy-expected-rq-timeout-ms
- remove: x-envoy-upstream-stream-duration-ms
- '@type': type.googleapis.com/envoy.config.cluster.v3.Cluster
name: default/slow-service
connect_timeout: 5s
type: EDS
lb_policy: ROUND_ROBINSpecific paths precede the fallback: /long-running receives a 300-second route/stream-idle budget; /stream disables only the route's overall response timeout and retains a 60-second idle limit; other paths use the 60-second route timeout. /streaming does not match /stream.
The upstream Cluster's connect_timeout is a connection-establishment limit. common_http_protocol_options.idle_timeout is a downstream connection idle limit. HCM request_timeout limits receipt of the client request, not backend processing; it is disabled here for streaming requests. This requires corresponding edge/header/body/connection controls for exposed services. A nonzero stream idle timeout, client deadlines, infrastructure limits and connection loss can still end a stream. timeout: 0s does not promise an unlimited connection.
Rate Limiting
Local Rate Limiting
apiVersion: cilium.io/v2
kind: CiliumEnvoyConfig
metadata:
name: local-ratelimit
namespace: default
spec:
services:
- name: api-service
namespace: default
ports:
- 8080
resources:
- '@type': type.googleapis.com/envoy.config.listener.v3.Listener
name: ratelimit-listener
filter_chains:
- filters:
- name: envoy.filters.network.http_connection_manager
typed_config:
'@type': type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
stat_prefix: api-service
route_config:
name: ratelimit_routes
virtual_hosts:
- name: api
domains:
- '*'
routes:
- match:
prefix: /
route:
cluster: default/api-service
http_filters:
- name: envoy.filters.http.local_ratelimit
typed_config:
'@type': type.googleapis.com/envoy.extensions.filters.http.local_ratelimit.v3.LocalRateLimit
stat_prefix: http_local_rate_limiter
token_bucket:
max_tokens: 1000
tokens_per_fill: 100
fill_interval: 1s
status:
code: TooManyRequests
filter_enabled:
default_value:
numerator: 100
denominator: HUNDRED
filter_enforced:
default_value:
numerator: 100
denominator: HUNDRED
enable_x_ratelimit_headers: DRAFT_VERSION_03
local_rate_limit_per_downstream_connection: false
- name: envoy.filters.http.router
typed_config:
'@type': type.googleapis.com/envoy.extensions.filters.http.router.v3.Router
- '@type': type.googleapis.com/envoy.config.cluster.v3.Cluster
name: default/api-service
connect_timeout: 5s
type: EDS
lb_policy: ROUND_ROBINThis bucket has burst capacity 1,000 and refills 100 tokens per second per Envoy process, shared across its workers. It is not a whole-cluster quota. Both enable/enforce percentages are explicit. enable_x_ratelimit_headers: DRAFT_VERSION_03 requests the filter's actual limit/remaining/reset headers; an invented dynamic-metadata key does not provide a reliable remaining-token count.
Per-Route Rate Limiting
apiVersion: cilium.io/v2
kind: CiliumEnvoyConfig
metadata:
name: per-route-ratelimit
namespace: default
spec:
services:
- name: api-service
namespace: default
ports:
- 8080
resources:
- '@type': type.googleapis.com/envoy.config.listener.v3.Listener
name: per-route-ratelimit-listener
filter_chains:
- filters:
- name: envoy.filters.network.http_connection_manager
typed_config:
'@type': type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
stat_prefix: api-service
route_config:
name: ratelimit_routes
virtual_hosts:
- name: api
domains:
- '*'
routes:
- match:
path_separated_prefix: /auth
route:
cluster: default/api-service
typed_per_filter_config:
envoy.filters.http.local_ratelimit:
'@type': type.googleapis.com/envoy.extensions.filters.http.local_ratelimit.v3.LocalRateLimit
stat_prefix: auth_rate_limiter
token_bucket:
max_tokens: 10
tokens_per_fill: 5
fill_interval: 60s
filter_enabled:
default_value:
numerator: 100
denominator: HUNDRED
filter_enforced:
default_value:
numerator: 100
denominator: HUNDRED
local_rate_limit_per_downstream_connection: false
enable_x_ratelimit_headers: DRAFT_VERSION_03
- match:
path_separated_prefix: /search
route:
cluster: default/api-service
typed_per_filter_config:
envoy.filters.http.local_ratelimit:
'@type': type.googleapis.com/envoy.extensions.filters.http.local_ratelimit.v3.LocalRateLimit
stat_prefix: search_rate_limiter
token_bucket:
max_tokens: 100
tokens_per_fill: 50
fill_interval: 1s
filter_enabled:
default_value:
numerator: 100
denominator: HUNDRED
filter_enforced:
default_value:
numerator: 100
denominator: HUNDRED
local_rate_limit_per_downstream_connection: false
enable_x_ratelimit_headers: DRAFT_VERSION_03
- match:
prefix: /
route:
cluster: default/api-service
typed_per_filter_config:
envoy.filters.http.local_ratelimit:
'@type': type.googleapis.com/envoy.extensions.filters.http.local_ratelimit.v3.LocalRateLimit
stat_prefix: default_rate_limiter
token_bucket:
max_tokens: 1000
tokens_per_fill: 100
fill_interval: 1s
filter_enabled:
default_value:
numerator: 100
denominator: HUNDRED
filter_enforced:
default_value:
numerator: 100
denominator: HUNDRED
local_rate_limit_per_downstream_connection: false
enable_x_ratelimit_headers: DRAFT_VERSION_03
http_filters:
- name: envoy.filters.http.local_ratelimit
typed_config:
'@type': type.googleapis.com/envoy.extensions.filters.http.local_ratelimit.v3.LocalRateLimit
stat_prefix: http_local_rate_limiter
- name: envoy.filters.http.router
typed_config:
'@type': type.googleapis.com/envoy.extensions.filters.http.router.v3.Router
- '@type': type.googleapis.com/envoy.config.cluster.v3.Cluster
name: default/api-service
connect_timeout: 5s
type: EDS
lb_policy: ROUND_ROBINEach route supplies a complete local-rate-limit override, including enable/enforce percentages. Auth has a burst of 10 and refills 5 per 60 seconds; search has a burst of 100/refill 50 per second; default has a burst of 1,000/refill 100 per second. These are process-local buckets, not per-user limits. A bucket without enabled/enforced fractions defaults to no effective enforcement.
URL Rewriting and Header Manipulation
URL Rewriting
apiVersion: cilium.io/v2
kind: CiliumEnvoyConfig
metadata:
name: url-rewrite
namespace: default
spec:
services:
- name: api-gateway
namespace: default
ports:
- 8080
backendServices:
- name: users-service
namespace: default
resources:
- '@type': type.googleapis.com/envoy.config.listener.v3.Listener
name: rewrite-listener
filter_chains:
- filters:
- name: envoy.filters.network.http_connection_manager
typed_config:
'@type': type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
stat_prefix: api-gateway
route_config:
name: rewrite_routes
virtual_hosts:
- name: api
domains:
- '*'
routes:
- match:
path_separated_prefix: /api/v1/users
route:
cluster: default/users-service
prefix_rewrite: /users
- match:
safe_regex:
google_re2: {}
regex: ^/v([0-9]+)/(.*)$
route:
cluster: default/users-service
regex_rewrite:
pattern:
google_re2: {}
regex: ^/v([0-9]+)/([^?]*)(\?.*)?$
substitution: /api/v\1/\2\3
- match:
path: /legacy
route:
cluster: default/users-service
host_rewrite_literal: legacy.internal.svc.cluster.local
prefix_rewrite: /
- match:
prefix: /legacy/
route:
cluster: default/users-service
host_rewrite_literal: legacy.internal.svc.cluster.local
prefix_rewrite: /
- match:
prefix: /
direct_response:
status: 404
http_filters:
- name: envoy.filters.http.router
typed_config:
'@type': type.googleapis.com/envoy.extensions.filters.http.router.v3.Router
- '@type': type.googleapis.com/envoy.config.cluster.v3.Cluster
name: default/users-service
connect_timeout: 5s
type: EDS
lb_policy: ROUND_ROBIN/api/v1/users/123 becomes /users/123; /v2/users?active=1 becomes /api/v2/users?active=1, preserving the existing query string. The separate legacy root/child matches avoid accidental double slashes. Host rewriting changes the HTTP authority sent to the selected Cluster; it does not resolve a different backend Service by itself.
Header Manipulation
apiVersion: cilium.io/v2
kind: CiliumEnvoyConfig
metadata:
name: header-manipulation
namespace: default
spec:
services:
- name: api-service
namespace: default
ports:
- 8080
resources:
- '@type': type.googleapis.com/envoy.config.listener.v3.Listener
name: header-listener
filter_chains:
- filters:
- name: envoy.filters.network.http_connection_manager
typed_config:
'@type': type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
stat_prefix: api-service
route_config:
name: header_routes
virtual_hosts:
- name: api
domains:
- '*'
request_headers_to_add:
- header:
key: X-Forwarded-By
value: cilium-envoy
append_action: OVERWRITE_IF_EXISTS_OR_ADD
response_headers_to_add:
- header:
key: X-Served-By
value: cilium-service-mesh
append_action: OVERWRITE_IF_EXISTS_OR_ADD
response_headers_to_remove:
- server
- x-powered-by
routes:
- match:
prefix: /
route:
cluster: default/api-service
request_headers_to_add:
- header:
key: X-Request-Start
value: '%START_TIME(%s.%3f)%'
append_action: OVERWRITE_IF_EXISTS_OR_ADD
- header:
key: X-Envoy-Original-Path
value: '%REQ(:PATH)%'
append_action: OVERWRITE_IF_EXISTS_OR_ADD
response_headers_to_add:
- header:
key: X-Response-Time
value: '%RESPONSE_DURATION%ms'
append_action: OVERWRITE_IF_EXISTS_OR_ADD
- header:
key: X-Upstream-Host
value: '%UPSTREAM_HOST%'
append_action: OVERWRITE_IF_EXISTS_OR_ADD
http_filters:
- name: envoy.filters.http.router
typed_config:
'@type': type.googleapis.com/envoy.extensions.filters.http.router.v3.Router
- '@type': type.googleapis.com/envoy.config.cluster.v3.Cluster
name: default/api-service
connect_timeout: 5s
type: EDS
lb_policy: ROUND_ROBINRoute header modifications belong beside the route action, not inside RouteAction. The response-time formatter is evaluated when response headers are created; it cannot report completion of a body that has not yet streamed. The upstream-host diagnostic exposes internal routing information, so use these diagnostic headers only in an appropriate test/internal interface.
Gateway API Integration
GatewayClass and Gateway
apiVersion: gateway.networking.k8s.io/v1
kind: GatewayClass
metadata:
name: cilium
spec:
controllerName: io.cilium/gateway-controller
---
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
name: api-gateway
namespace: default
spec:
gatewayClassName: cilium
listeners:
- name: http
protocol: HTTP
port: 80
allowedRoutes:
namespaces:
from: Same
- name: https
protocol: HTTPS
port: 443
tls:
mode: Terminate
certificateRefs:
- kind: Secret
name: api-gateway-tls
allowedRoutes:
namespaces:
from: SameGateway API 1.6.1 CRDs and Cilium's gatewayAPI.enabled: true, kubeProxyReplacement: true and l7Proxy: true are prerequisites. The GatewayClass shown describes the controller binding; if installation tooling already owns cilium, reuse it rather than creating a competing owner. Prepare api-gateway-tls as a valid TLS Secret in default, with a certificate for the hostname. LoadBalancer exposure/addressing is platform-dependent. Verify GatewayClass/Gateway Accepted/Programmed conditions and listener references; this manifest does not provision a complete EKS exposure design.
HTTPRoute
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
name: api-routes
namespace: default
spec:
parentRefs:
- name: api-gateway
namespace: default
sectionName: https
hostnames:
- api.example.com
rules:
- matches:
- path:
type: PathPrefix
value: /users
backendRefs:
- name: users-service
port: 8080
- matches:
- path:
type: PathPrefix
value: /orders
backendRefs:
- name: orders-service
port: 8080
- matches:
- path:
type: PathPrefix
value: /
headers:
- name: X-API-Version
value: v2
backendRefs:
- name: api-v2
port: 8080
- matches:
- path:
type: PathPrefix
value: /
backendRefs:
- name: api-stable
port: 8080
weight: 90
- name: api-canary
port: 8080
weight: 10This route attaches only to the https listener. Frontend listener ports 80/443 are separate from backend Service port 8080. The HTTP listener is not automatically an HTTPS redirect; configure a separate HTTP listener route if needed. Gateway API matching uses its specified precedence (for example path specificity and header matches), not an assumption that all rules are evaluated purely in YAML order. Check Accepted/ResolvedRefs and the actual listener status.
HTTPRoute Advanced Features
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
name: advanced-routes
namespace: default
spec:
parentRefs:
- name: api-gateway
sectionName: https
rules:
- matches:
- path:
type: PathPrefix
value: /api
filters:
- type: RequestHeaderModifier
requestHeaderModifier:
set:
- name: X-Doc-Route
value: api-v1
remove:
- X-Internal-Header
- type: ResponseHeaderModifier
responseHeaderModifier:
add:
- name: X-Frame-Options
value: DENY
- name: X-Content-Type-Options
value: nosniff
- type: URLRewrite
urlRewrite:
path:
type: ReplacePrefixMatch
replacePrefixMatch: /v1
backendRefs:
- name: api-service
port: 8080
- matches:
- path:
type: Exact
value: /old-endpoint
method: GET
filters:
- type: RequestRedirect
requestRedirect:
scheme: https
hostname: new.example.com
path:
type: ReplaceFullPath
replaceFullPath: /new-endpoint
statusCode: 301
hostnames:
- api.example.comThe header values here are portable literal Gateway API configuration. The API does not define Envoy %REQ(...)% templating; preserve/generate request IDs at the appropriate application/proxy layer. Do not force X-Forwarded-Proto: https independently of the actual transport. URLRewrite changes the upstream path without a client redirect. The legacy redirect matches GET only: a 301 can change the method in clients, so it should not silently redirect arbitrary writes.
Traffic Mirroring
apiVersion: cilium.io/v2
kind: CiliumEnvoyConfig
metadata:
name: traffic-mirror
namespace: default
spec:
services:
- name: production-service
namespace: default
ports:
- 8080
backendServices:
- name: production-backend
namespace: default
- name: shadow-backend
namespace: default
resources:
- '@type': type.googleapis.com/envoy.config.listener.v3.Listener
name: mirror-listener
filter_chains:
- filters:
- name: envoy.filters.network.http_connection_manager
typed_config:
'@type': type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
stat_prefix: production-service
route_config:
name: mirror_routes
virtual_hosts:
- name: production
domains:
- '*'
routes:
- match:
prefix: /
headers:
- name: :method
string_match:
safe_regex:
google_re2: {}
regex: ^(GET|HEAD)$
route:
cluster: default/production-backend
request_mirror_policies:
- cluster: default/shadow-backend
runtime_fraction:
default_value:
numerator: 100
denominator: HUNDRED
trace_sampled: false
- match:
prefix: /
route:
cluster: default/production-backend
http_filters:
- name: envoy.filters.http.router
typed_config:
'@type': type.googleapis.com/envoy.extensions.filters.http.router.v3.Router
- '@type': type.googleapis.com/envoy.config.cluster.v3.Cluster
name: default/production-backend
connect_timeout: 5s
type: EDS
lb_policy: ROUND_ROBIN
- '@type': type.googleapis.com/envoy.config.cluster.v3.Cluster
name: default/shadow-backend
connect_timeout: 5s
type: EDS
lb_policy: ROUND_ROBINThe mirror receives 100% of selected GET/HEAD requests; the fallback for other methods has no mirror policy. Test with synthetic or approved read-only traffic and an isolated shadow backend that cannot mutate production state or send external side effects. Mirroring consumes resources, copies request data, and may append -shadow to the authority unless configured otherwise. Mirror responses are not returned to the caller, but this does not guarantee zero user impact.
Next Steps
- Security: Review authentication, encryption and L7 network policies
- Observability: Monitor traffic with Hubble
- Ingress & Gateway: External traffic management
References
- Cilium 1.20.1 L7 policy
- Cilium L3/FQDN policy
- Cilium CEC example
- Cilium Envoy parser
- Cilium kube-proxy replacement
- Cilium Gateway API installation
- Cilium 1.20.1 chart values
- Cilium proxy image extension list
- Envoy 1.37.5 routing API
- Envoy retry implementation
- Envoy router timing and header processing
- Envoy early header mutation
- Envoy local rate limiting
- Envoy timeout definitions
- Gateway API 1.6.1 HTTPRoute specification
- Kafka broker ACLs
