Linkerd Multi-cluster ​

Supported Versions: Linkerd 2.16+ Last Updated: February 22, 2026

Overview ​

Linkerd's multi-cluster feature provides secure and transparent communication between multiple Kubernetes clusters through a Service Mirroring architecture. This document covers multi-cluster setup, service mirroring, failover, and configuration in EKS environments.

Multi-cluster Architecture ​

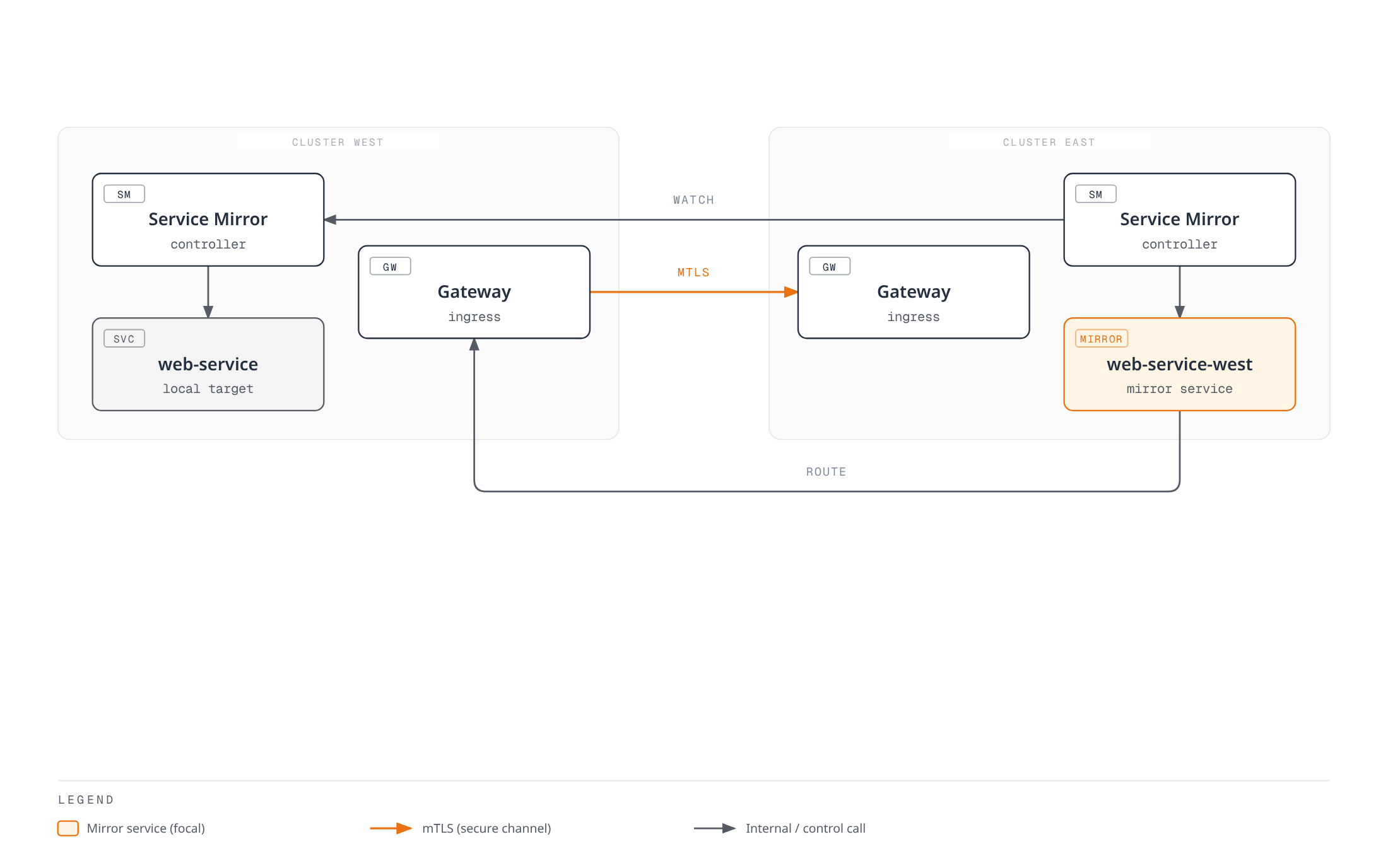

Architecture diagram showing the East cluster's service mirror controller watching the West cluster, creating a local mirror of web-service that routes traffic through the West gateway over an mTLS connection between the two clusters' gateways.

Service Mirroring Concept ​

How It Works ​

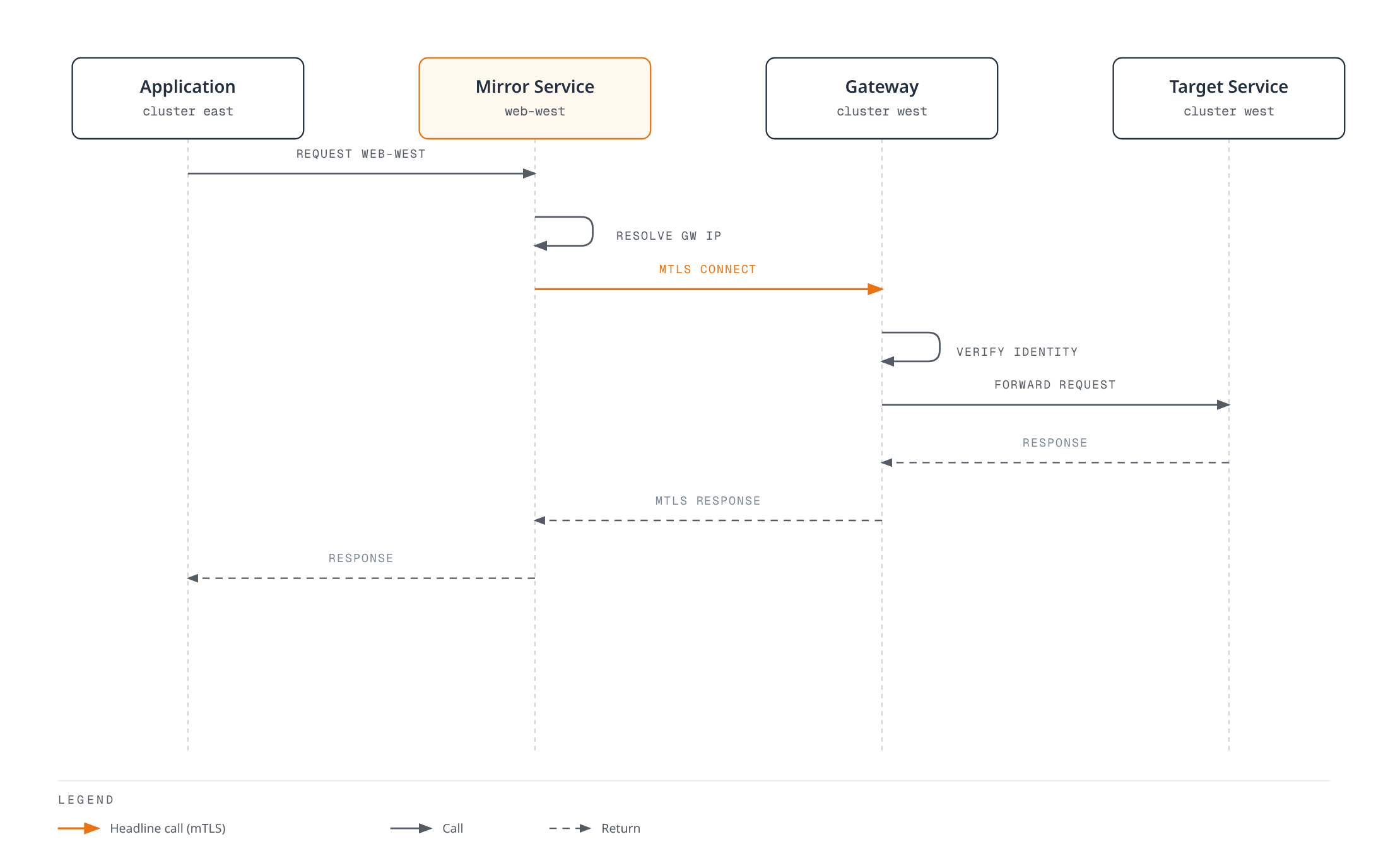

Sequence diagram showing an application call to a local mirror service resolve to the remote cluster's gateway, open an mTLS connection, verify identity, and forward the request to the real target service, with the response returning along the same path.

Service Mirroring Characteristics ​

CharacteristicDescription
Transparent DiscoveryRemote services appear as local services
mTLS SecurityCross-cluster communication is encrypted
Health ChecksAutomatic availability checks for remote services
Load BalancingLatency-based distribution with EWMA algorithm

Multi-cluster Setup ​

Prerequisites ​

bash
# Linkerd must be installed on both clusters
# Must use the same Trust Anchor (important!)

# Check cluster contexts
kubectl config get-contexts

# Example contexts:
# - west (us-west-2)
# - east (us-east-1)

Create Shared Trust Anchor ​

bash
# Both clusters need the same Trust Anchor for mutual trust

# Create Trust Anchor
step certificate create root.linkerd.cluster.local ca.crt ca.key \
  --profile root-ca \
  --no-password \
  --insecure \
  --not-after=87600h

# Create Issuer for each cluster
# Cluster West
step certificate create identity.linkerd.cluster.local issuer-west.crt issuer-west.key \
  --profile intermediate-ca \
  --ca ca.crt \
  --ca-key ca.key \
  --no-password \
  --insecure \
  --not-after=8760h

# Cluster East
step certificate create identity.linkerd.cluster.local issuer-east.crt issuer-east.key \
  --profile intermediate-ca \
  --ca ca.crt \
  --ca-key ca.key \
  --no-password \
  --insecure \
  --not-after=8760h

Install Linkerd on Both Clusters ​

bash
# Install on Cluster West
kubectl config use-context west

linkerd install --crds | kubectl apply -f -
linkerd install \
  --identity-trust-anchors-file ca.crt \
  --identity-issuer-certificate-file issuer-west.crt \
  --identity-issuer-key-file issuer-west.key \
  | kubectl apply -f -

# Install on Cluster East
kubectl config use-context east

linkerd install --crds | kubectl apply -f -
linkerd install \
  --identity-trust-anchors-file ca.crt \
  --identity-issuer-certificate-file issuer-east.crt \
  --identity-issuer-key-file issuer-east.key \
  | kubectl apply -f -

Install Multicluster Extension ​

bash
# Cluster West
kubectl config use-context west
linkerd multicluster install | kubectl apply -f -
linkerd multicluster check

# Cluster East
kubectl config use-context east
linkerd multicluster install | kubectl apply -f -
linkerd multicluster check
bash
# Register West cluster credentials to East
kubectl config use-context west

# Create Link (so East can see West)
linkerd multicluster link --cluster-name west | kubectl --context=east apply -f -

# Verify connection
kubectl --context=east get links

# Check gateway status
linkerd --context=east multicluster gateways

# Expected output:
# CLUSTER  ALIVE    NUM_SVC  LATENCY
# west     True           3      5ms

Bidirectional Connection ​

bash
# East -> West connection
kubectl config use-context east
linkerd multicluster link --cluster-name east | kubectl --context=west apply -f -

# Verify on both sides
linkerd --context=west multicluster gateways
linkerd --context=east multicluster gateways

Service Export and Import ​

Exporting Services ​

yaml
# Export service from West cluster
apiVersion: v1
kind: Service
metadata:
  name: web
  namespace: production
  labels:
    mirror.linkerd.io/exported: "true"  # Export with this label
spec:
  selector:
    app: web
  ports:
  - port: 80
    targetPort: 8080
bash
# Or add label to existing service
kubectl --context=west label svc web -n production mirror.linkerd.io/exported=true

Verify Mirror Services ​

bash
# Check mirror services in East cluster
kubectl --context=east get svc -n production

# Expected output:
# NAME        TYPE        CLUSTER-IP      PORT(S)
# web         ClusterIP   10.100.0.1      80/TCP      # Local service
# web-west    ClusterIP   10.100.0.2      80/TCP      # Mirrored from West

# Check endpoints
kubectl --context=east get endpoints web-west -n production

Using Mirror Services ​

yaml
# Call West service from application in East cluster
apiVersion: apps/v1
kind: Deployment
metadata:
  name: client
  namespace: production
spec:
  template:
    spec:
      containers:
      - name: client
        image: client:latest
        env:
        # Local service
        - name: WEB_URL
          value: "http://web.production.svc.cluster.local"
        # West cluster service
        - name: WEB_WEST_URL
          value: "http://web-west.production.svc.cluster.local"

Cross-Cluster Traffic Splitting ​

TrafficSplit for Cross-Cluster Traffic Distribution ​

yaml
# Split traffic between local and West in East cluster
apiVersion: split.smi-spec.io/v1alpha2
kind: TrafficSplit
metadata:
  name: web-split
  namespace: production
spec:
  service: web  # Main service
  backends:
  - service: web          # Local (East)
    weight: 80
  - service: web-west     # Remote (West)
    weight: 20

Failover Configuration ​

yaml
# Default: local priority, failover to remote on failure
apiVersion: split.smi-spec.io/v1alpha2
kind: TrafficSplit
metadata:
  name: web-failover
  namespace: production
spec:
  service: web
  backends:
  - service: web          # Primary (local)
    weight: 100
  - service: web-west     # Backup (remote)
    weight: 0
# Manual weight adjustment required when local service fails

Automatic Failover (Using Flagger) ​

yaml
# Configure automatic failover with Flagger
apiVersion: flagger.app/v1beta1
kind: Canary
metadata:
  name: web
  namespace: production
spec:
  targetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: web

  service:
    port: 80

  analysis:
    interval: 30s
    threshold: 3
    metrics:
    - name: request-success-rate
      thresholdRange:
        min: 99
      interval: 1m

    # Failover to remote cluster on failure
    webhooks:
    - name: failover-to-west
      type: rollback
      url: http://flagger-loadtester/failover
      metadata:
        cmd: |
          kubectl patch trafficsplit web-split -p '{"spec":{"backends":[{"service":"web","weight":0},{"service":"web-west","weight":100}]}}'

Cross-Cluster Traffic Flow ​

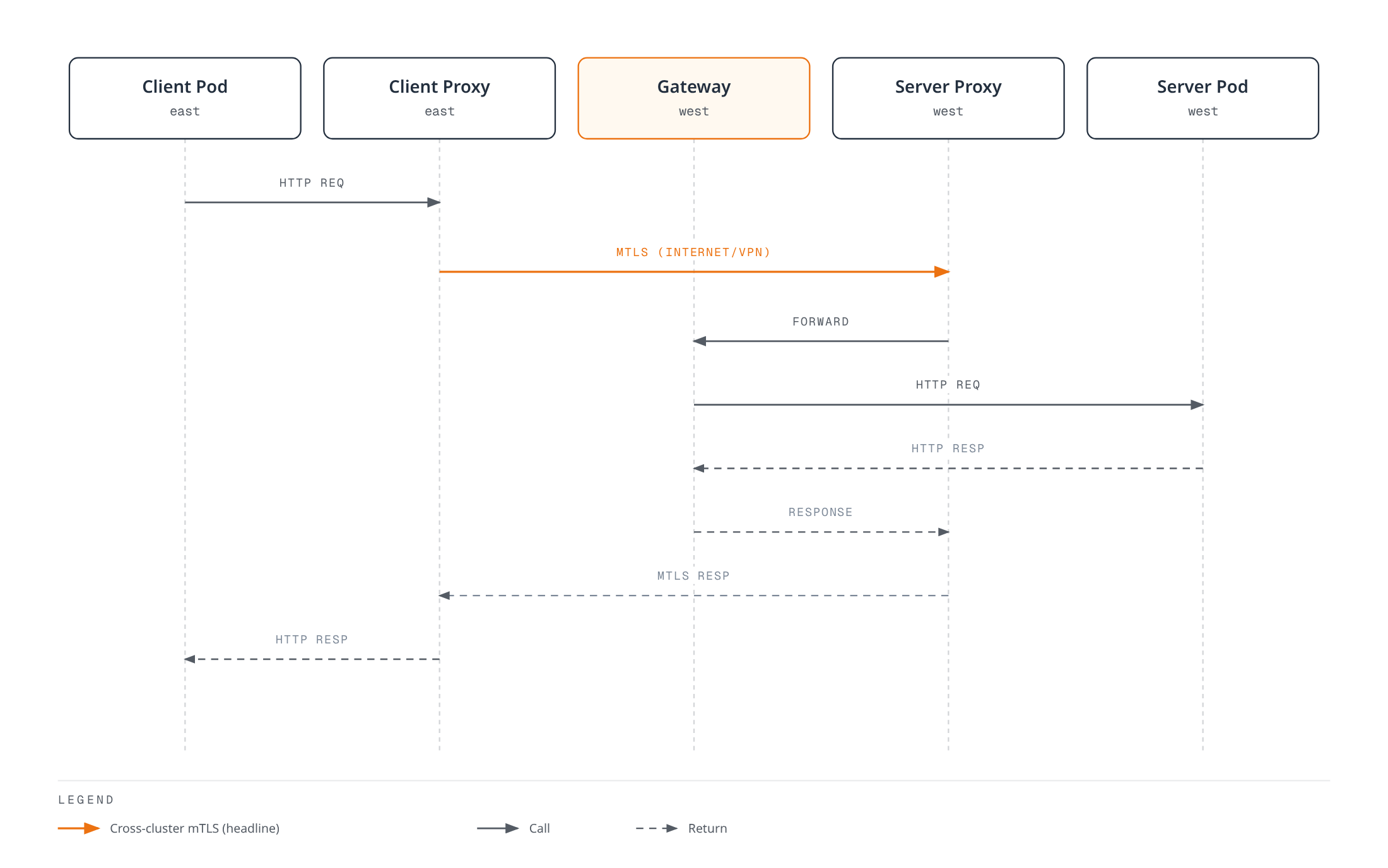

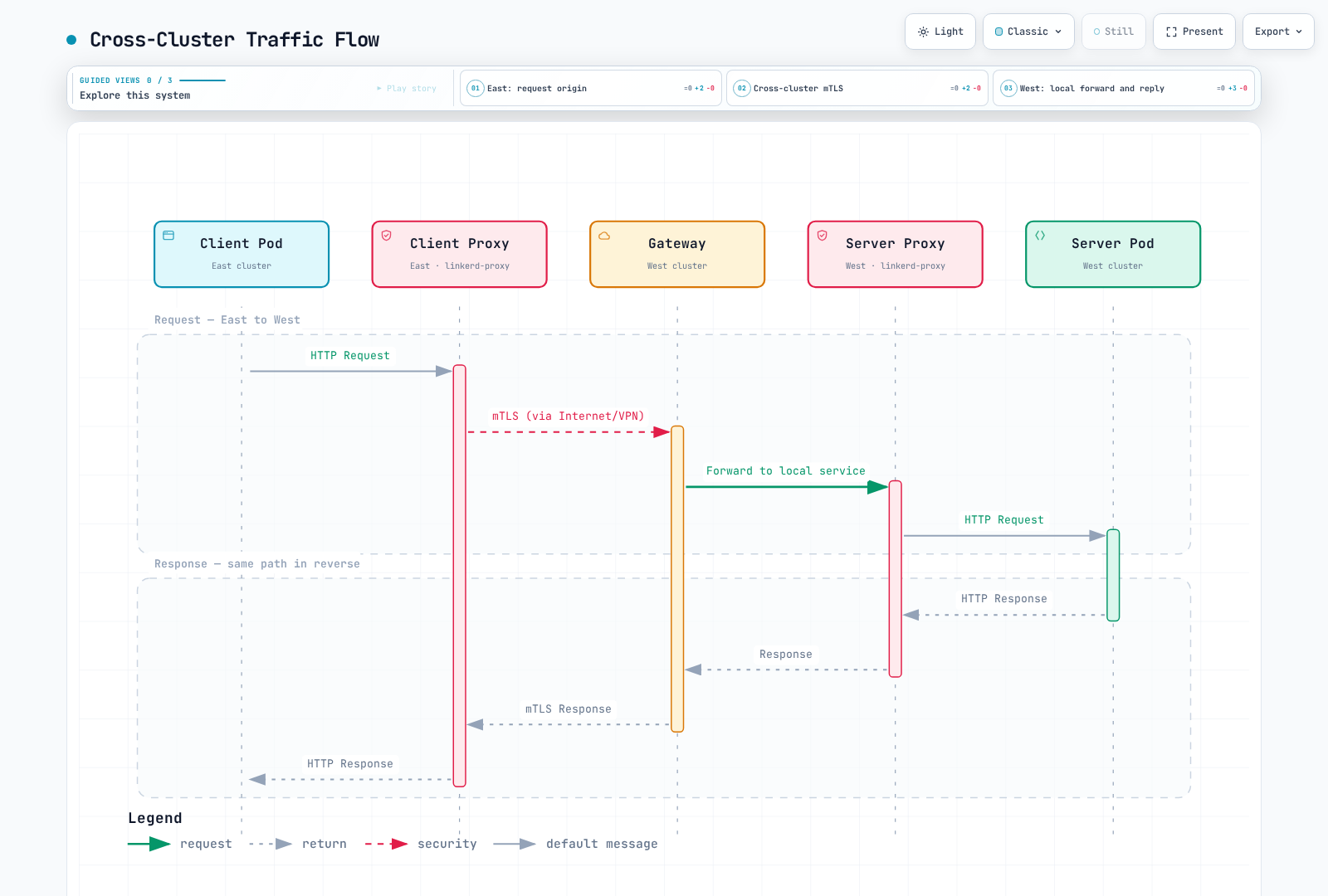

Sequence diagram showing a client pod's request pass through its local proxy, cross an mTLS connection over the internet or VPN into the remote cluster's gateway, reach the server proxy and server pod, then return the response along the same hops.

EKS Multi-cluster Patterns ​

Multi-Region Setup ​

bash
# Create clusters (eksctl)
# US West region
eksctl create cluster \
  --name linkerd-west \
  --region us-west-2 \
  --nodegroup-name workers \
  --node-type m5.large \
  --nodes 3

# US East region
eksctl create cluster \
  --name linkerd-east \
  --region us-east-1 \
  --nodegroup-name workers \
  --node-type m5.large \
  --nodes 3

NLB Gateway Configuration ​

yaml
# multicluster-values.yaml (for EKS)
gateway:
  serviceType: LoadBalancer
  serviceAnnotations:
    # Use NLB
    service.beta.kubernetes.io/aws-load-balancer-type: "nlb"
    # Internet facing (accessible from other regions)
    service.beta.kubernetes.io/aws-load-balancer-scheme: "internet-facing"
    # Cross-zone load balancing
    service.beta.kubernetes.io/aws-load-balancer-cross-zone-load-balancing-enabled: "true"
    # IP target
    service.beta.kubernetes.io/aws-load-balancer-nlb-target-type: "ip"
bash
# Install with Helm
helm install linkerd-multicluster linkerd/linkerd-multicluster \
  -n linkerd-multicluster \
  --create-namespace \
  -f multicluster-values.yaml
yaml
# Internal-only NLB configuration
gateway:
  serviceType: LoadBalancer
  serviceAnnotations:
    service.beta.kubernetes.io/aws-load-balancer-type: "nlb"
    service.beta.kubernetes.io/aws-load-balancer-scheme: "internal"
    service.beta.kubernetes.io/aws-load-balancer-nlb-target-type: "ip"

# Requires VPC Peering or Transit Gateway connection

Multi-Account Setup ​

bash
# Cluster in Account A
eksctl create cluster \
  --name linkerd-account-a \
  --region us-west-2

# Cluster in Account B
eksctl create cluster \
  --name linkerd-account-b \
  --region us-west-2

# Cross-account IAM role setup required
# VPC Peering or PrivateLink configuration required

Cross-Cluster Security ​

Shared Trust Anchor ​

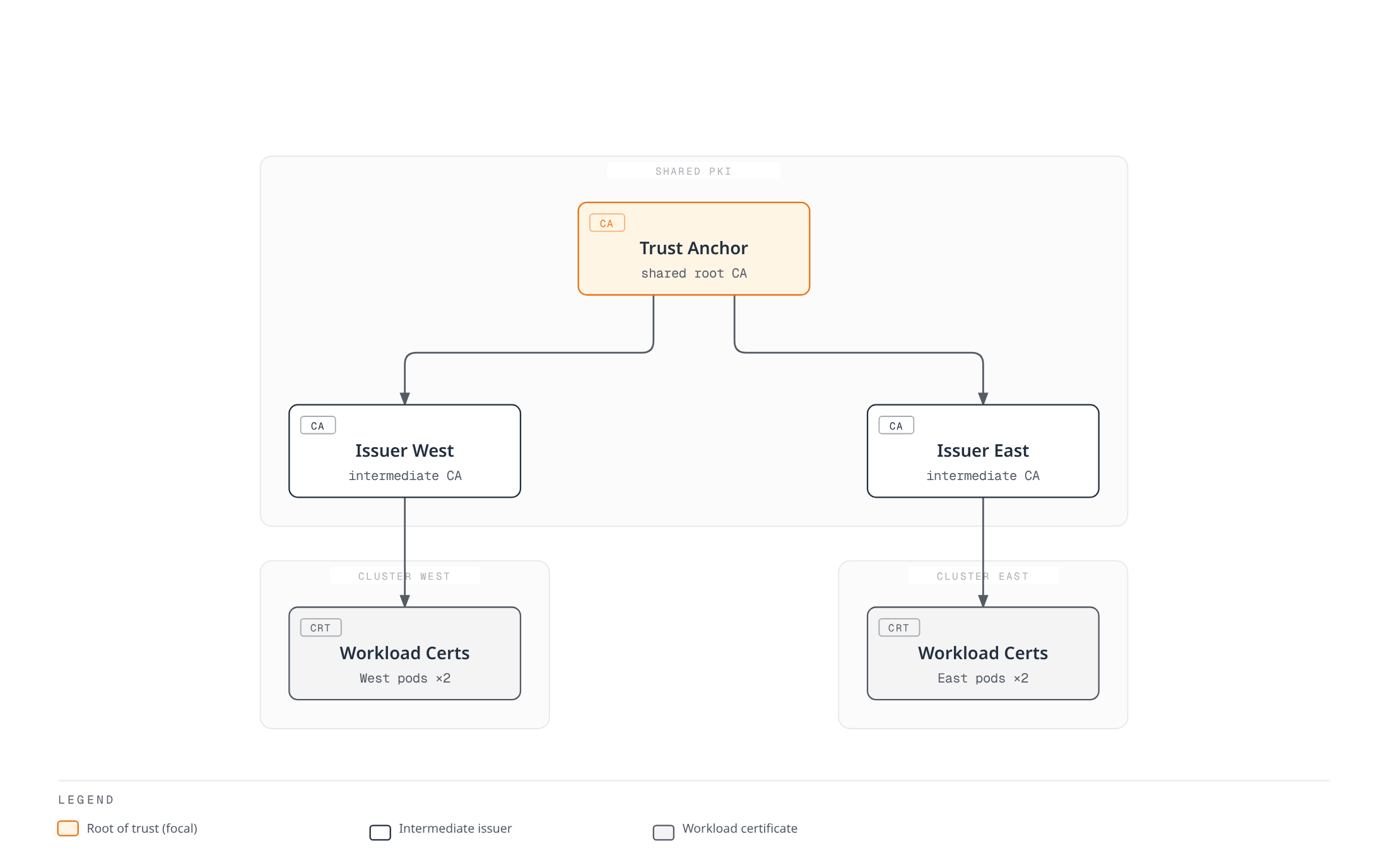

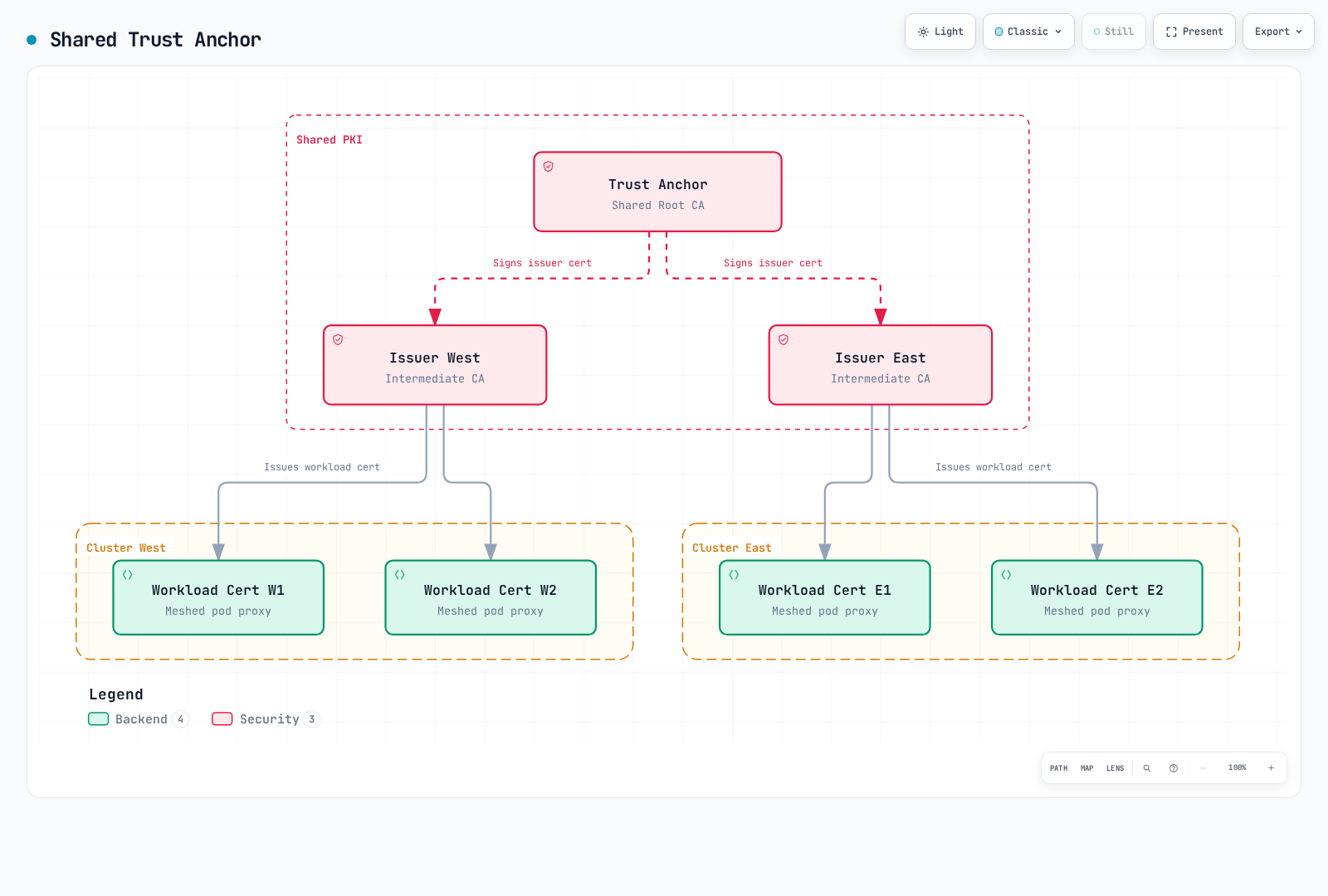

Architecture diagram showing a single shared root Trust Anchor issuing a per-cluster intermediate issuer certificate to each cluster, which in turn issues workload certificates to that cluster's meshed pods.

Per-Cluster Authorization Policies ​

yaml
# Allow only specific services from East cluster in West cluster
apiVersion: policy.linkerd.io/v1beta2
kind: ServerAuthorization
metadata:
  name: allow-east-cluster
  namespace: production
spec:
  server:
    name: web-server
  client:
    meshTLS:
      identities:
        # Allow only specific service from East cluster
        - "spiffe://root.linkerd.cluster.local/ns/production/sa/api-gateway"

Observability (Multi-cluster) ​

Cross-Cluster Metrics ​

bash
# Check gateway status
linkerd multicluster gateways

# Expected output:
# CLUSTER  ALIVE    NUM_SVC  LATENCY
# west     True           5      10ms
# east     True           3       8ms

# Mirror service status
linkerd viz stat deploy -n production --to svc/web-west

Prometheus Federation ​

yaml
# Collect metrics from each cluster in central Prometheus
# prometheus-federation.yaml
scrape_configs:
  - job_name: 'federate-west'
    honor_labels: true
    metrics_path: '/federate'
    params:
      'match[]':
        - '{__name__=~"response_total|request_total|response_latency_ms_bucket"}'
    static_configs:
      - targets:
        - 'prometheus-west.monitoring:9090'
    relabel_configs:
      - target_label: cluster
        replacement: west

  - job_name: 'federate-east'
    honor_labels: true
    metrics_path: '/federate'
    params:
      'match[]':
        - '{__name__=~"response_total|request_total|response_latency_ms_bucket"}'
    static_configs:
      - targets:
        - 'prometheus-east.monitoring:9090'
    relabel_configs:
      - target_label: cluster
        replacement: east

Cross-Cluster Dashboard ​

promql
# Success rate by cluster
sum(rate(response_total{classification="success"}[5m])) by (cluster)
/
sum(rate(response_total[5m])) by (cluster)

# Cross-cluster traffic latency
histogram_quantile(0.99,
  sum(rate(response_latency_ms_bucket{dst_cluster!=""}[5m])) by (le, src_cluster, dst_cluster)
)

Troubleshooting ​

Connection Issues ​

bash
# Check gateway connection
linkerd multicluster gateways

# If ALIVE is False:
# 1. Check network connectivity
kubectl --context=east get svc -n linkerd-multicluster

# 2. Check Gateway logs
kubectl --context=west logs -n linkerd-multicluster deploy/linkerd-gateway

# 3. Check probe status
linkerd --context=east diagnostics proxy-metrics -n linkerd-multicluster deploy/linkerd-gateway | grep probe

Service Mirroring Issues ​

bash
# Mirror controller logs
kubectl --context=east logs -n linkerd-multicluster deploy/linkerd-service-mirror-west

# Check mirror services
kubectl --context=east get svc -n production | grep west

# Check endpoints
kubectl --context=east get endpoints -n production | grep west

Certificate Issues ​

bash
# Verify Trust Anchor match
# Both clusters must have the same Trust Anchor

kubectl --context=west get cm linkerd-config -n linkerd -o yaml | grep -A5 "trustAnchorsPem"
kubectl --context=east get cm linkerd-config -n linkerd -o yaml | grep -A5 "trustAnchorsPem"

# Validate certificate chain
linkerd --context=west check --proxy
linkerd --context=east check --proxy
