Cilium Service Mesh Observability

Supported Versions: Cilium 1.16+, Kubernetes 1.28+ Last Updated: February 22, 2026

Overview

Cilium Service Mesh provides powerful network observability through Hubble. Hubble observes network flows in real-time based on eBPF, visualizes service dependencies, and collects detailed L7 metrics. This chapter explains Hubble's components and usage.

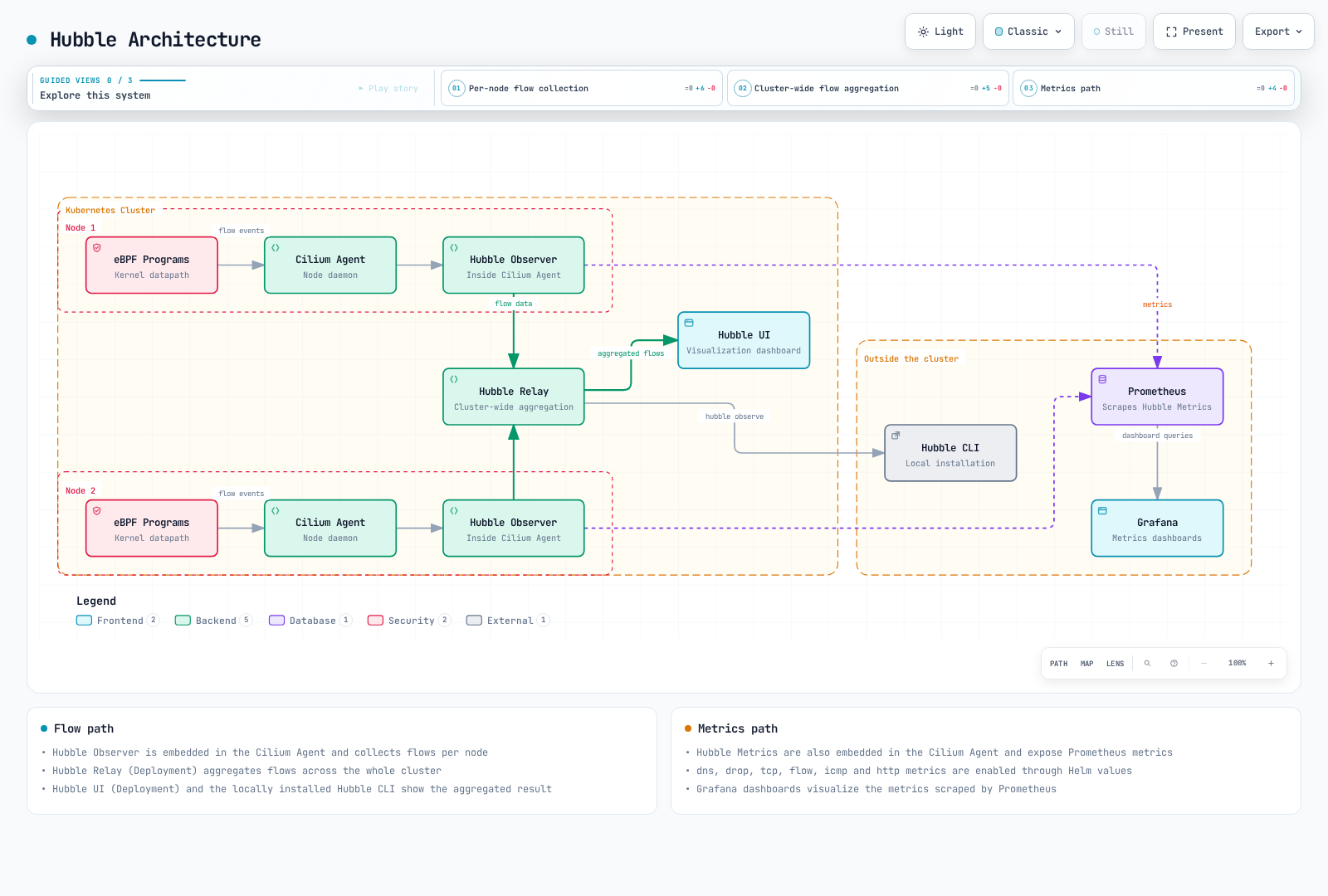

Hubble Architecture

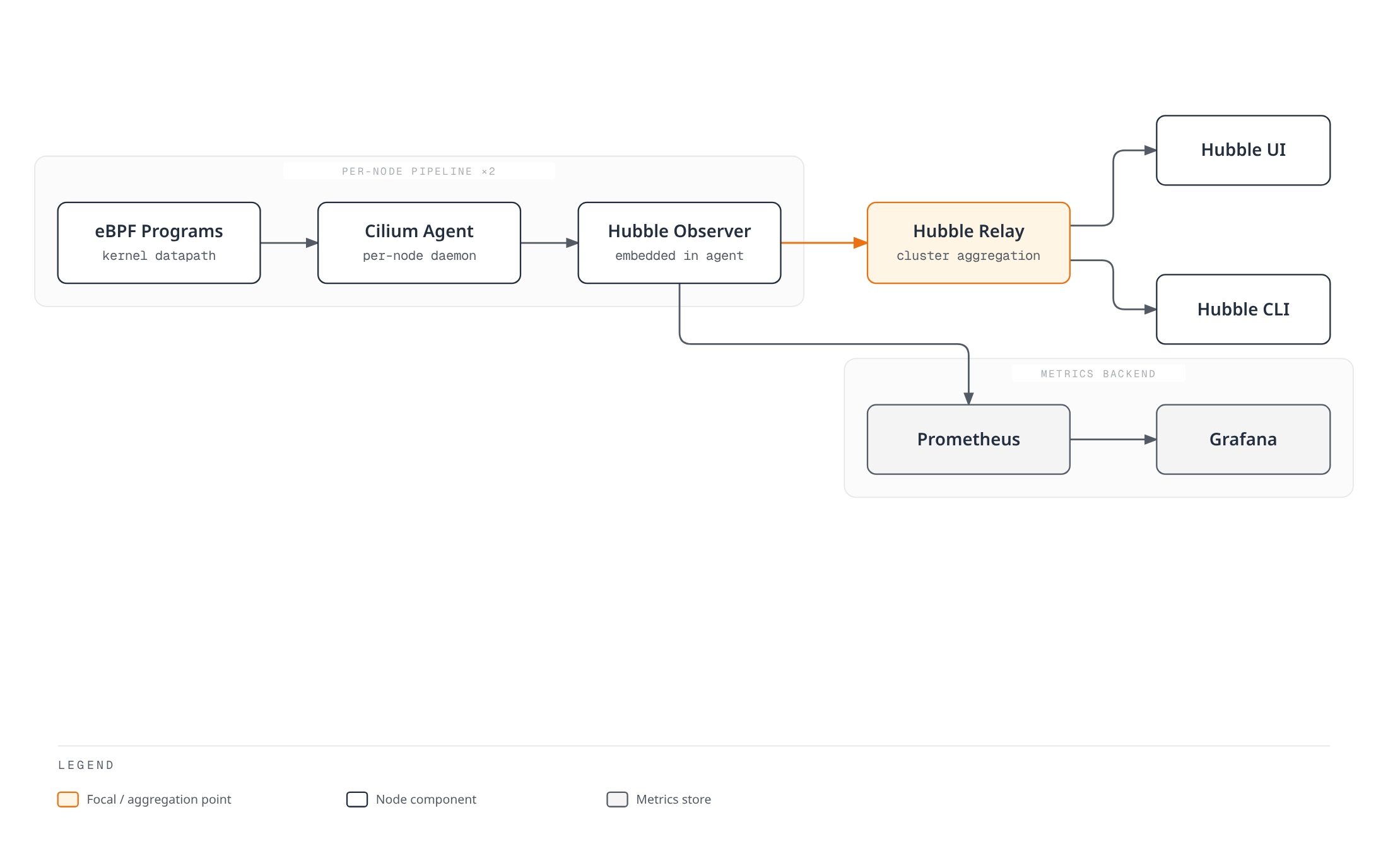

Diagram showing each cluster node's eBPF programs feeding the Cilium Agent and Hubble Observer, which forwards flow data to Hubble Relay for the UI and CLI, and separately to Prometheus and Grafana for metrics dashboards.

Components

Component	Role	Deployment
Hubble Observer	Per-node flow collection	Embedded in Cilium Agent
Hubble Relay	Cluster-wide flow aggregation	Deployment
Hubble UI	Visualization dashboard	Deployment
Hubble CLI	Command-line interface	Local installation
Hubble Metrics	Prometheus metrics	Embedded in Cilium Agent

Hubble Installation and Configuration

Installation via Helm

yaml

# values.yaml
hubble:
  enabled: true

  # Hubble Relay
  relay:
    enabled: true
    replicas: 1
    resources:
      limits:
        cpu: 1000m
        memory: 1024Mi
      requests:
        cpu: 100m
        memory: 128Mi

  # Hubble UI
  ui:
    enabled: true
    replicas: 1
    ingress:
      enabled: true
      hosts:
      - hubble.example.com
      tls:
      - secretName: hubble-tls
        hosts:
        - hubble.example.com

  # Hubble metrics
  metrics:
    enabled:
    - dns
    - drop
    - tcp
    - flow
    - icmp
    - http

    serviceMonitor:
      enabled: true

  # Flow log settings
  export:
    static:
      enabled: false
      filePath: /var/run/cilium/hubble/events.log

  # TLS settings
  tls:
    enabled: true
    auto:
      enabled: true
      method: helm
      certValidityDuration: 1095

Hubble CLI Installation

bash

# macOS
brew install hubble

# Linux
HUBBLE_VERSION=$(curl -s https://raw.githubusercontent.com/cilium/hubble/master/stable.txt)
curl -L --remote-name-all https://github.com/cilium/hubble/releases/download/$HUBBLE_VERSION/hubble-linux-amd64.tar.gz
tar xzvf hubble-linux-amd64.tar.gz
sudo mv hubble /usr/local/bin/

# Connection setup (port forwarding)
kubectl port-forward -n kube-system svc/hubble-relay 4245:80 &

# Check status
hubble status

# Expected output
Healthcheck (via localhost:4245): Ok
Current/Max Flows: 8190/8190 (100.00%)
Flows/s: 23.19
Connected Nodes: 3/3

Hubble CLI

Basic Usage

bash

# Real-time flow observation
hubble observe

# Observe specific namespace
hubble observe --namespace production

# Observe specific Pod
hubble observe --pod production/frontend-xxx

# Observe specific service
hubble observe --to-service backend

# Follow mode (real-time)
hubble observe -f

Flow Filtering

bash

# Filter by protocol
hubble observe --protocol http
hubble observe --protocol tcp
hubble observe --protocol dns

# Filter by IP address
hubble observe --ip-source 10.0.1.5
hubble observe --ip-destination 10.0.2.10

# Filter by port
hubble observe --port 80
hubble observe --port 443

# Filter by verdict (allow/deny)
hubble observe --verdict FORWARDED
hubble observe --verdict DROPPED

# Filter by HTTP status code
hubble observe --http-status 500
hubble observe --http-status 200-299

# Combined filters
hubble observe \
  --namespace production \
  --protocol http \
  --verdict DROPPED \
  -f

Output Formats

bash

# Default output
hubble observe

# JSON output
hubble observe -o json

# JSON output (for piping)
hubble observe -o jsonpb

# Dictionary format
hubble observe -o dict

# Compact format
hubble observe -o compact

# Table format
hubble observe -o table

Advanced Queries

bash

# Specific time range
hubble observe --since 5m
hubble observe --since 2024-01-15T10:00:00Z --until 2024-01-15T11:00:00Z

# Last N flows
hubble observe --last 100

# Filter by specific labels
hubble observe --from-label "app=frontend"
hubble observe --to-label "app=backend,version=v2"

# Inter-service flows
hubble observe --from-service frontend --to-service backend

# Filter by Identity
hubble observe --from-identity 12345
hubble observe --to-identity 12346

# Regex filtering
hubble observe --http-path "/api/v1/users/.*"
hubble observe --http-method "POST|PUT"

Hubble UI

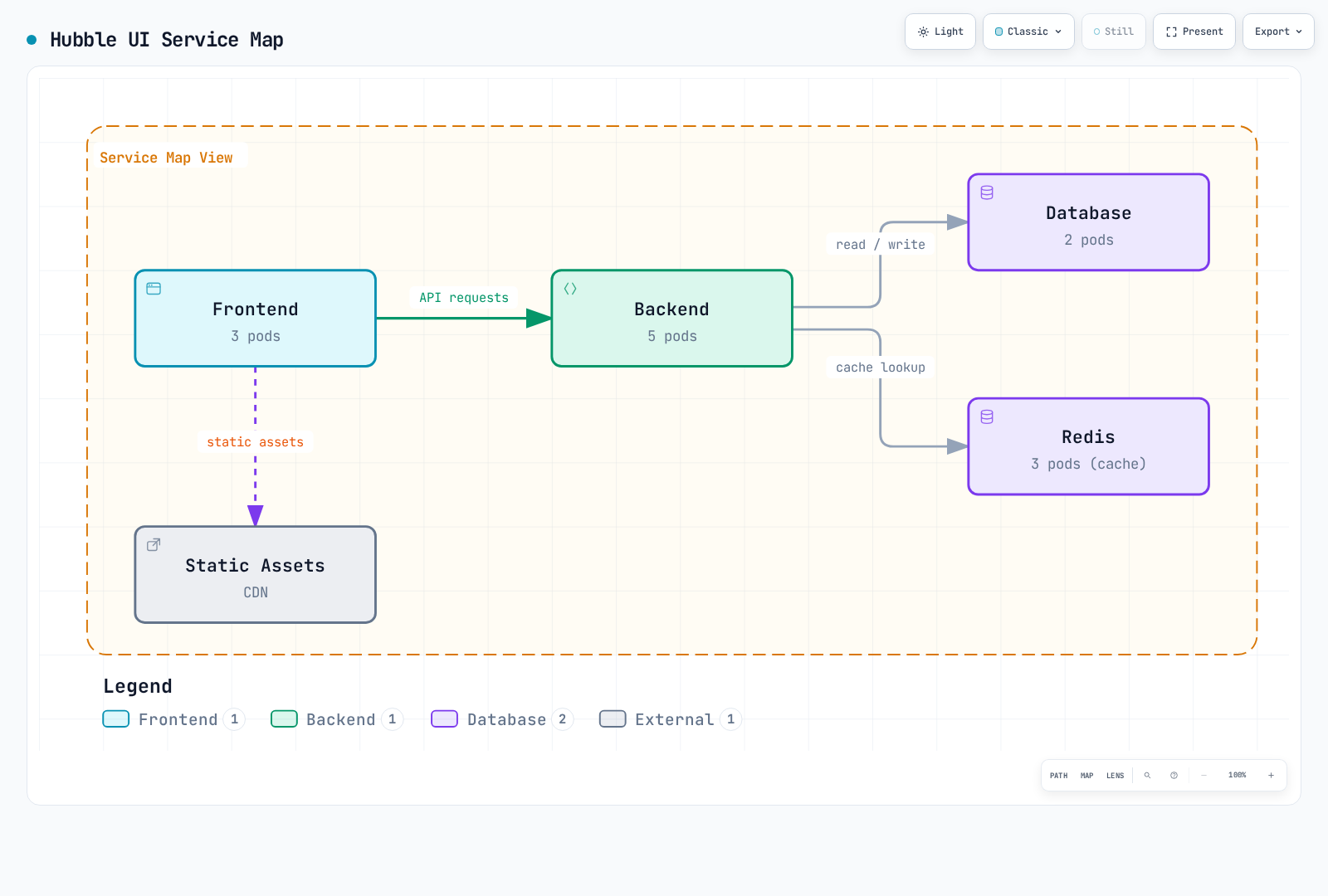

Service Map

Hubble UI visually shows service dependencies:

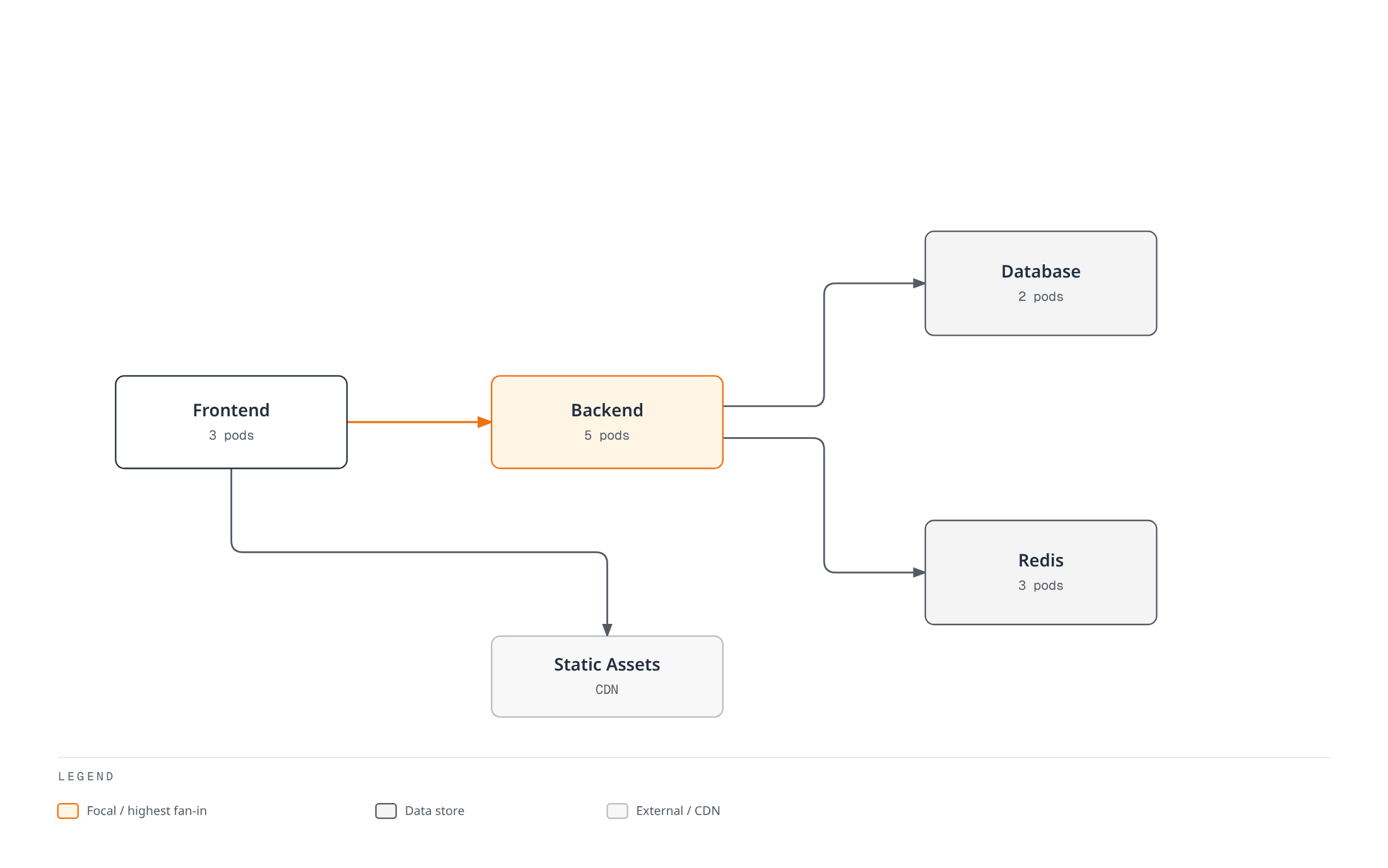

Diagram showing Hubble UI's service map: the frontend calls the backend and a CDN for static assets, while the backend reads and writes to a database and a Redis cache.

UI Features

Service Map: Real-time service dependency graph
Flow Timeline: Time-based network flows
Namespace Filter: View by namespace
Verdict Filter: Separate allowed/denied traffic
Detail View: L7 details of individual flows

UI Access

bash

# Port forwarding
kubectl port-forward -n kube-system svc/hubble-ui 12000:80

# Access in browser
# http://localhost:12000

L7 Flow Visibility

HTTP Flows

bash

# Observe HTTP requests
hubble observe --protocol http -o json | jq '.flow.l7.http'

# Example output
{
  "code": 200,
  "method": "GET",
  "url": "/api/v1/users",
  "protocol": "HTTP/1.1",
  "headers": [
    {"key": "Host", "value": "api.example.com"},
    {"key": "User-Agent", "value": "curl/7.79.1"}
  ]
}

# Track HTTP errors
hubble observe --protocol http --http-status 500-599

# Identify slow requests
hubble observe --protocol http -o json | jq 'select(.flow.l7.latency_ns > 1000000000)'

gRPC Flows

bash

# Observe gRPC calls
hubble observe --protocol http --http-path "/.*Service/.*"

# Filter by gRPC method
hubble observe --http-path "/myapp.UserService/GetUser"

DNS Queries

bash

# Observe DNS queries
hubble observe --protocol dns

# Specific domain queries
hubble observe --protocol dns -o json | jq '.flow.l7.dns | select(.query != null)'

# Filter by DNS response code
hubble observe --protocol dns --dns-rcode NXDOMAIN

Kafka Flows

bash

# Observe Kafka traffic
hubble observe --port 9092

# Filter by Kafka topic (when L7 policy applied)
hubble observe --protocol kafka -o json | jq '.flow.l7.kafka'

Prometheus Metrics

Enabling Metrics

yaml

# values.yaml
hubble:
  metrics:
    enabled:
    # DNS metrics
    - dns:query
    - dns:response

    # Packet drop metrics
    - drop

    # TCP metrics
    - tcp

    # Flow metrics
    - flow

    # ICMP metrics
    - icmp

    # HTTP metrics
    - http:requests
    - http:responses
    - http:duration

    # Port distribution
    - port-distribution

    # ServiceMonitor enabled
    serviceMonitor:
      enabled: true
      labels:
        release: prometheus

Key Metrics

promql

# Requests per second (RPS)
rate(hubble_http_requests_total[5m])

# HTTP error rate
sum(rate(hubble_http_responses_total{status=~"5.."}[5m])) /
sum(rate(hubble_http_responses_total[5m])) * 100

# HTTP latency (p99)
histogram_quantile(0.99, rate(hubble_http_request_duration_seconds_bucket[5m]))

# Packet drop count
rate(hubble_drop_total[5m])

# DNS query count
rate(hubble_dns_queries_total[5m])

# TCP connection count
hubble_tcp_flags_total{flag="SYN"}

# Network flow count
rate(hubble_flows_processed_total[5m])

Cilium Agent Metrics

promql

# Cilium agent status
cilium_agent_up

# Endpoint count
cilium_endpoint_count

# Policy count
cilium_policy_count

# BPF map usage
cilium_bpf_map_pressure

# Connection tracking table usage
cilium_datapath_conntrack_active

# Proxy redirect count
cilium_proxy_redirects

Grafana Dashboards

Installing Default Dashboards

bash

# Import Cilium official dashboards
# In Grafana UI: Dashboard > Import > Enter Dashboard ID

# Key Dashboard IDs
# - 16611: Cilium v1.12 Agent
# - 16612: Cilium v1.12 Operator
# - 16613: Cilium v1.12 Hubble

Custom Dashboard Example

json

{
  "title": "Cilium Service Mesh Overview",
  "panels": [
    {
      "title": "HTTP Requests/s",
      "type": "graph",
      "targets": [
        {
          "expr": "sum(rate(hubble_http_requests_total[5m])) by (destination_service)",
          "legendFormat": "{{destination_service}}"
        }
      ]
    },
    {
      "title": "HTTP Error Rate",
      "type": "gauge",
      "targets": [
        {
          "expr": "sum(rate(hubble_http_responses_total{status=~\"5..\"}[5m])) / sum(rate(hubble_http_responses_total[5m])) * 100"
        }
      ]
    },
    {
      "title": "P99 Latency",
      "type": "graph",
      "targets": [
        {
          "expr": "histogram_quantile(0.99, sum(rate(hubble_http_request_duration_seconds_bucket[5m])) by (le, destination_service))",
          "legendFormat": "{{destination_service}}"
        }
      ]
    },
    {
      "title": "Dropped Packets",
      "type": "graph",
      "targets": [
        {
          "expr": "sum(rate(hubble_drop_total[5m])) by (reason)",
          "legendFormat": "{{reason}}"
        }
      ]
    }
  ]
}

Service Dependency Maps

Dependency Visualization

bash

# Extract inter-service dependencies
hubble observe -o json | jq -r '[.flow.source.labels[] | select(startswith("k8s:app="))] | first' | sort | uniq -c

# Generate service dependency graph
hubble observe --namespace production -o json | \
  jq -r 'select(.flow.source.labels != null and .flow.destination.labels != null) |
    "\(.flow.source.labels | map(select(startswith("k8s:app="))) | first // "unknown") -> \(.flow.destination.labels | map(select(startswith("k8s:app="))) | first // "unknown")"' | \
  sort | uniq -c | sort -rn

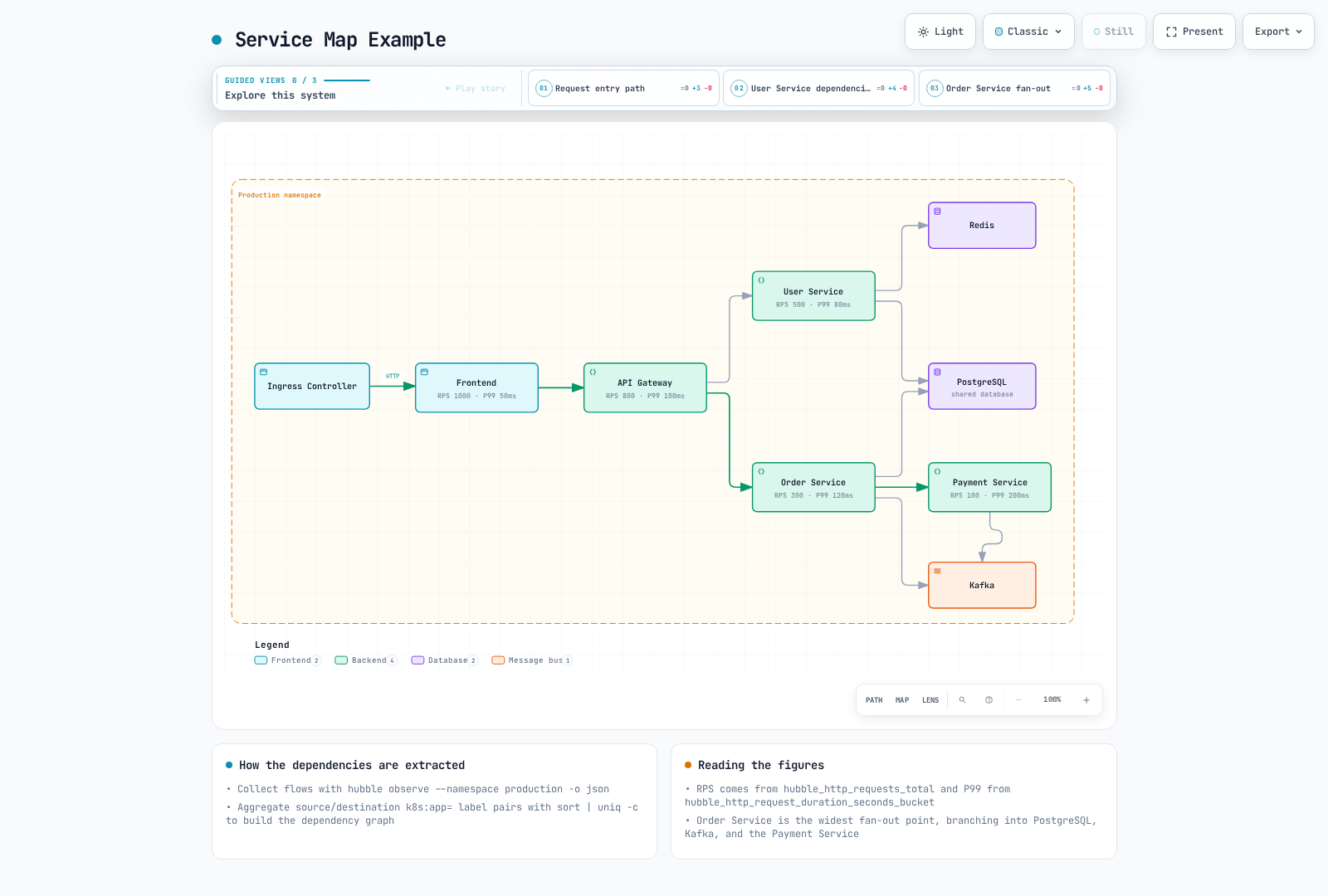

Service Map Example

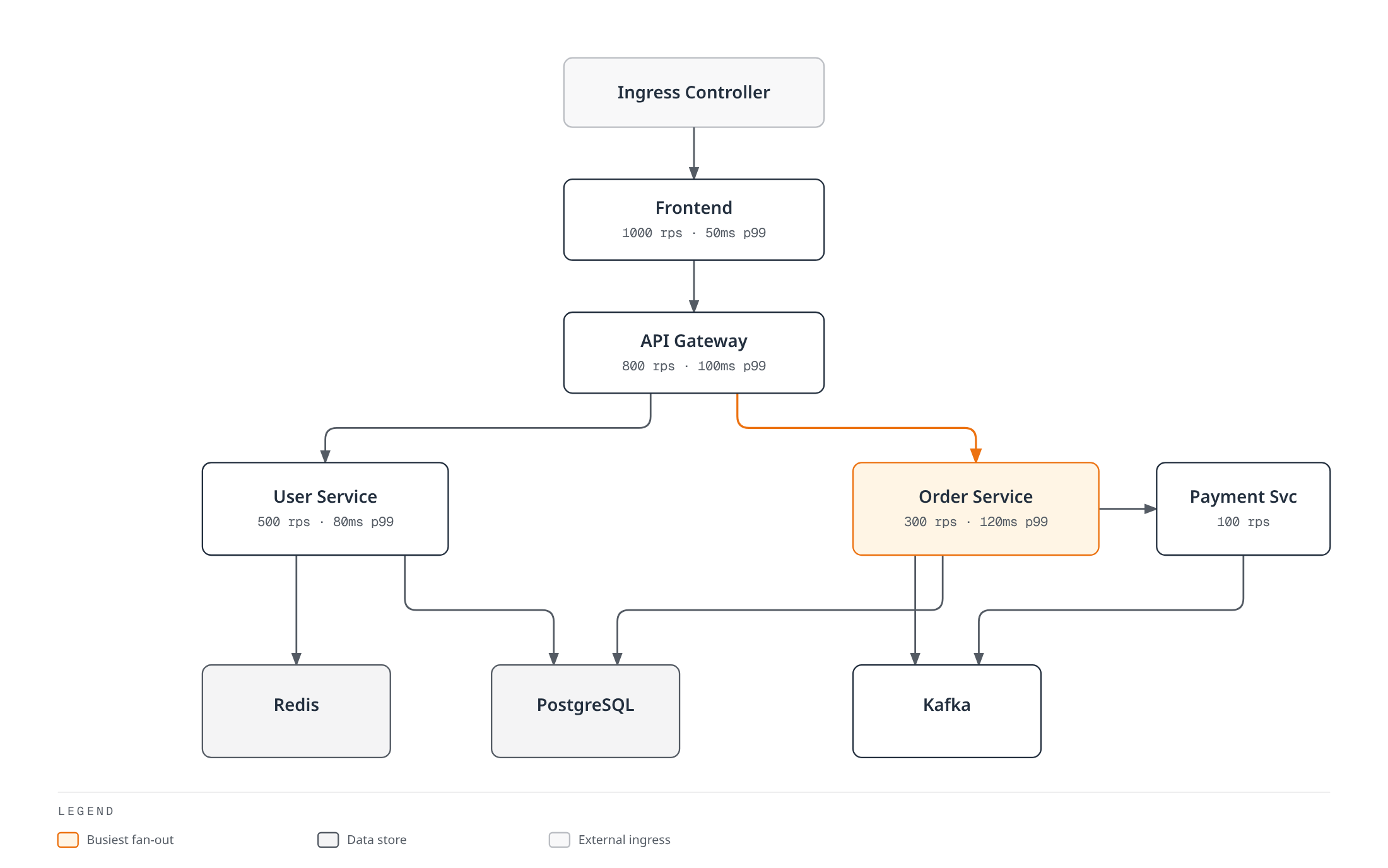

Diagram showing traffic flowing from an ingress controller through the frontend and API gateway to the User and Order services, with Order Service as the busiest fan-out point into Postgres, Kafka, and the Payment Service, alongside per-service RPS and P99 latency figures.

Golden Signals Monitoring

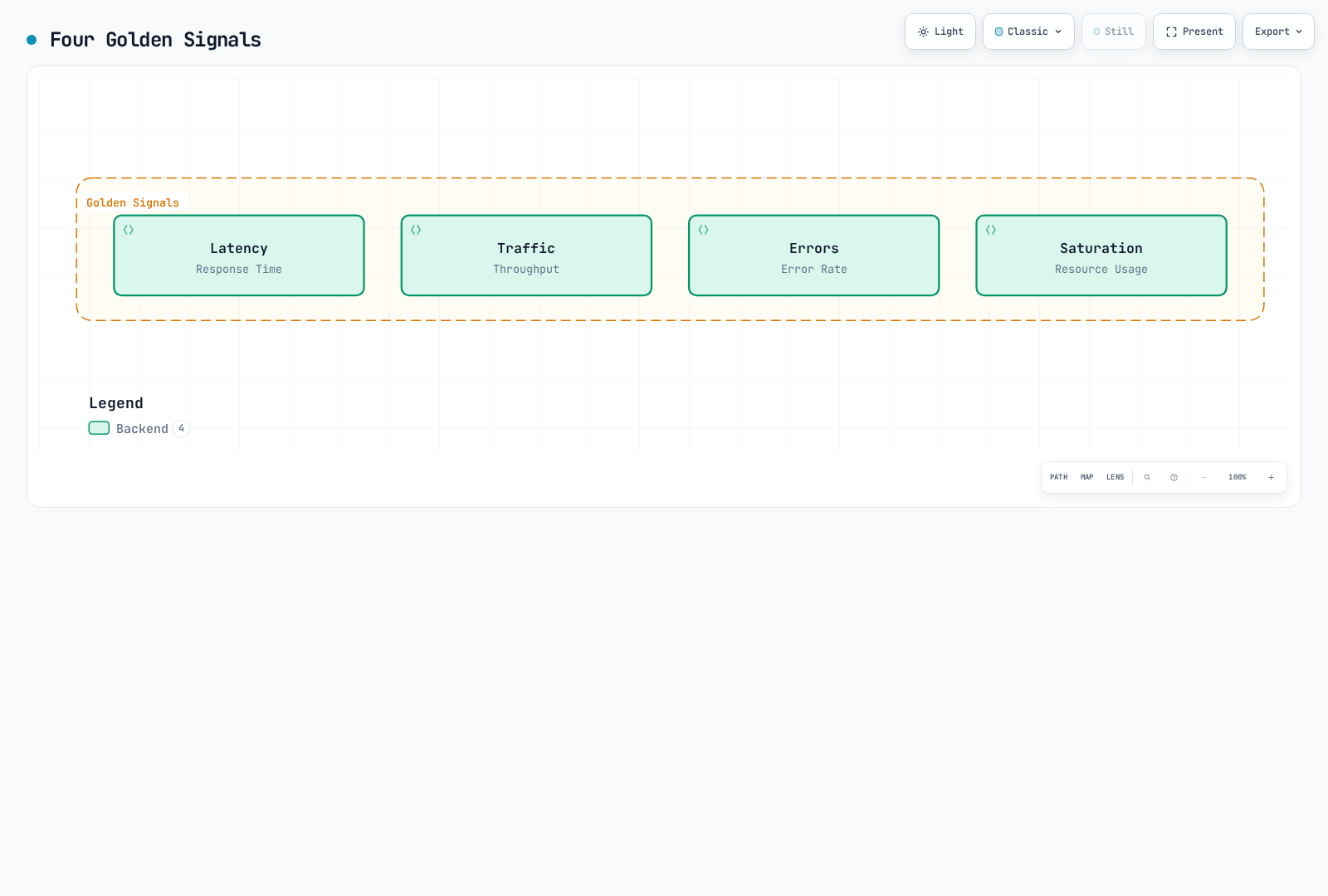

Four Golden Signals

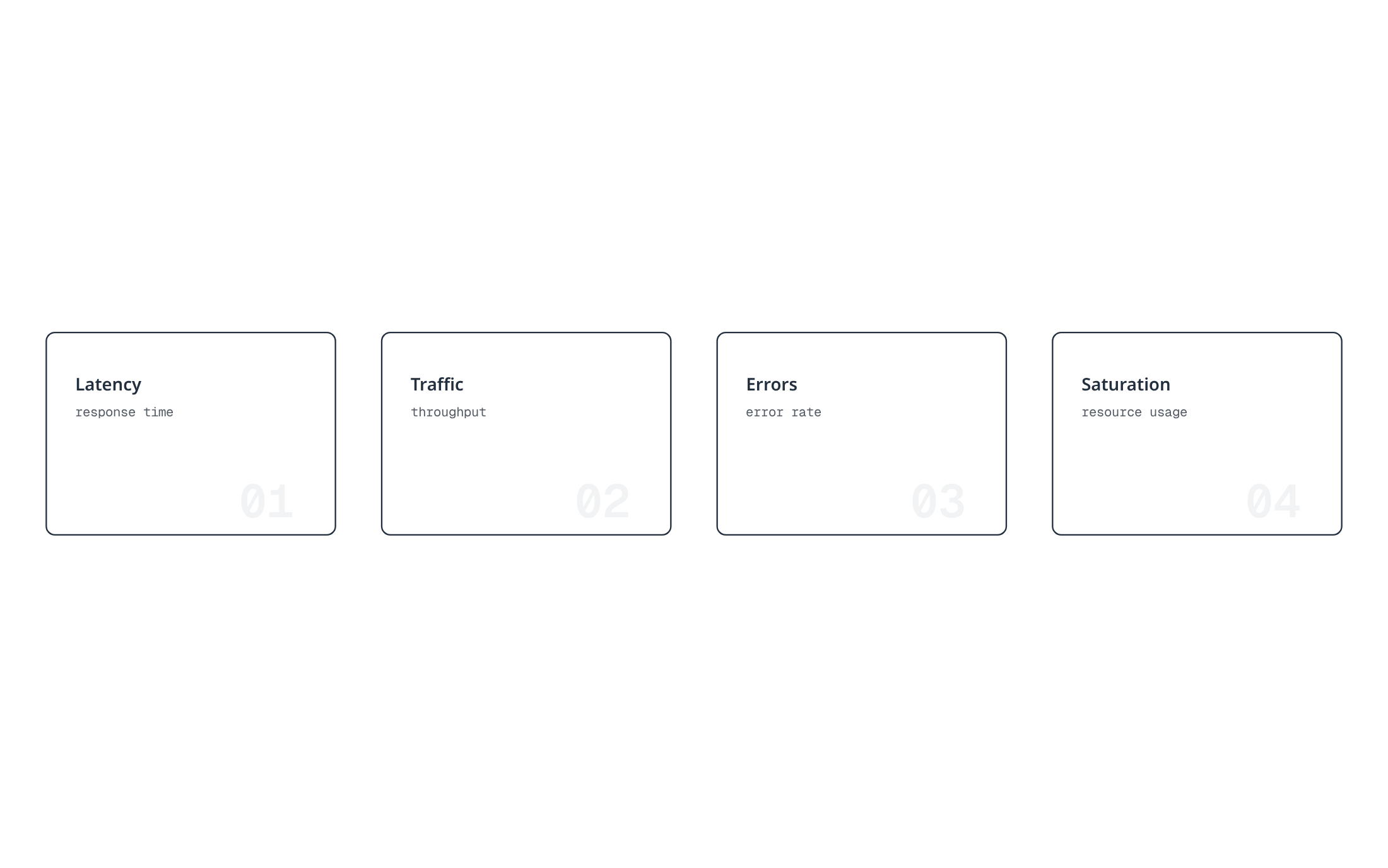

Diagram presenting the four golden signals of monitoring side by side: latency (response time), traffic (throughput), errors (error rate), and saturation (resource usage).

PromQL Queries

promql

# 1. Latency
# P50 latency
histogram_quantile(0.50, sum(rate(hubble_http_request_duration_seconds_bucket[5m])) by (le, destination_service))

# P99 latency
histogram_quantile(0.99, sum(rate(hubble_http_request_duration_seconds_bucket[5m])) by (le, destination_service))

# 2. Traffic (Throughput)
# Requests per second
sum(rate(hubble_http_requests_total[5m])) by (destination_service)

# Bytes per second
sum(rate(hubble_flows_processed_total[5m])) by (destination_service)

# 3. Errors (Error Rate)
# HTTP error rate
sum(rate(hubble_http_responses_total{status=~"5.."}[5m])) by (destination_service) /
sum(rate(hubble_http_responses_total[5m])) by (destination_service) * 100

# Packet drop rate
sum(rate(hubble_drop_total[5m])) by (reason)

# 4. Saturation
# TCP connection count
hubble_tcp_connections_total

# Connection tracking table utilization
cilium_datapath_conntrack_active / cilium_datapath_conntrack_max * 100

AlertManager Rules

yaml

# prometheus-rules.yaml
apiVersion: monitoring.coreos.com/v1
kind: PrometheusRule
metadata:
  name: cilium-alerts
  namespace: monitoring
spec:
  groups:
  - name: cilium.service-mesh
    rules:
    # High error rate
    - alert: HighHTTPErrorRate
      expr: |
        sum(rate(hubble_http_responses_total{status=~"5.."}[5m])) by (destination_service)
        / sum(rate(hubble_http_responses_total[5m])) by (destination_service) * 100 > 5
      for: 5m
      labels:
        severity: warning
      annotations:
        summary: "High HTTP error rate for {{ $labels.destination_service }}"
        description: "HTTP 5xx error rate is {{ $value }}%"

    # High latency
    - alert: HighLatency
      expr: |
        histogram_quantile(0.99, sum(rate(hubble_http_request_duration_seconds_bucket[5m])) by (le, destination_service)) > 1
      for: 5m
      labels:
        severity: warning
      annotations:
        summary: "High latency for {{ $labels.destination_service }}"
        description: "P99 latency is {{ $value }}s"

    # Packet drops
    - alert: HighDropRate
      expr: sum(rate(hubble_drop_total[5m])) by (reason) > 100
      for: 5m
      labels:
        severity: warning
      annotations:
        summary: "High packet drop rate"
        description: "Drop rate is {{ $value }}/s for reason {{ $labels.reason }}"

OpenTelemetry Integration

OTLP Export Configuration

yaml

# values.yaml
hubble:
  export:
    fileOutput:
      enabled: false
    opentelemetry:
      enabled: true
      otlp:
        endpoint: "otel-collector.observability.svc:4317"
        insecure: true
        headers:
          "x-api-key": "your-api-key"

OpenTelemetry Collector Configuration

yaml

# otel-collector-config.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: otel-collector-config
  namespace: observability
data:
  config.yaml: |
    receivers:
      otlp:
        protocols:
          grpc:
            endpoint: 0.0.0.0:4317

    processors:
      batch:
        timeout: 10s

    exporters:
      # Export to Jaeger
      jaeger:
        endpoint: jaeger-collector.observability.svc:14250
        tls:
          insecure: true

      # Export metrics to Prometheus
      prometheus:
        endpoint: 0.0.0.0:8889

      # Export logs to Loki
      loki:
        endpoint: http://loki.observability.svc:3100/loki/api/v1/push

    service:
      pipelines:
        traces:
          receivers: [otlp]
          processors: [batch]
          exporters: [jaeger]
        metrics:
          receivers: [otlp]
          processors: [batch]
          exporters: [prometheus]

Troubleshooting

Common Problem Diagnosis

bash

# Check Cilium status
cilium status

# Check Hubble status
hubble status

# Diagnose connection issues
hubble observe --verdict DROPPED --namespace problematic-namespace

# Check policy violations
hubble observe --verdict DROPPED -o json | jq '.flow.drop_reason_desc'

# Diagnose specific Pod issues
hubble observe --pod production/problematic-pod-xxx

# Diagnose DNS issues
hubble observe --protocol dns --dns-rcode NXDOMAIN

# Check connection tracking table
cilium bpf ct list global

No Flows Problem

bash

# Check if Hubble is enabled
kubectl get cm -n kube-system cilium-config -o yaml | grep hubble

# Check Hubble Relay status
kubectl get pods -n kube-system -l app.kubernetes.io/name=hubble-relay

# Check Hubble Observer status
cilium status | grep Hubble

# Check buffer size
kubectl exec -n kube-system ds/cilium -- cilium hubble status

Next Steps

Ingress & Gateway: External traffic monitoring
Best Practices: Observability configuration optimization

Traffic Management

Security

Observability

Resilience

Advanced

Comparison Guide

ArgoCD

Metrics

Logging

Tracing

Alerting

Observability End-to-End Labs

Cilium Service Mesh Observability ​

Overview ​

Hubble Architecture ​

Components ​

Hubble Installation and Configuration ​

Installation via Helm ​

Hubble CLI Installation ​

Hubble CLI ​

Basic Usage ​

Flow Filtering ​

Output Formats ​

Advanced Queries ​

Hubble UI ​

Service Map ​

UI Features ​

UI Access ​

L7 Flow Visibility ​

HTTP Flows ​

gRPC Flows ​

DNS Queries ​

Kafka Flows ​

Prometheus Metrics ​

Enabling Metrics ​

Key Metrics ​

Cilium Agent Metrics ​

Grafana Dashboards ​

Installing Default Dashboards ​

Custom Dashboard Example ​

Service Dependency Maps ​

Dependency Visualization ​

Service Map Example ​

Golden Signals Monitoring ​

Four Golden Signals ​

PromQL Queries ​

AlertManager Rules ​

OpenTelemetry Integration ​

OTLP Export Configuration ​

OpenTelemetry Collector Configuration ​

Troubleshooting ​

Common Problem Diagnosis ​

No Flows Problem ​

Next Steps ​

References ​

Cilium Service Mesh Observability

Overview

Hubble Architecture

Components

Hubble Installation and Configuration

Installation via Helm

Hubble CLI Installation

Hubble CLI

Basic Usage

Flow Filtering

Output Formats

Advanced Queries

Hubble UI

Service Map

UI Features

UI Access

L7 Flow Visibility

HTTP Flows

gRPC Flows

DNS Queries

Kafka Flows

Prometheus Metrics

Enabling Metrics

Key Metrics

Cilium Agent Metrics

Grafana Dashboards

Installing Default Dashboards

Custom Dashboard Example

Service Dependency Maps

Dependency Visualization

Service Map Example

Golden Signals Monitoring

Four Golden Signals

PromQL Queries

AlertManager Rules

OpenTelemetry Integration

OTLP Export Configuration

OpenTelemetry Collector Configuration

Troubleshooting

Common Problem Diagnosis

No Flows Problem

Next Steps

References
