Workload Placement Strategies
< Previous: GPU Integration | Table of Contents | Next: Node Lifecycle Management >
Supported Versions: Supported EKS versions with compatible Karpenter; reviewed Kubernetes 1.36.2 and Karpenter/provider 1.14.1 interfaces. Last Updated: September 13, 2026
This chapter places workloads on Hybrid and cloud nodes and explains the limits of cloud bursting and Pod deletion cost. The examples are locally validated configuration/patch patterns. No cloud capacity, node mutation, application or GPU workload was created during the audit.
Placement constraints and permissions
| Mechanism | What it does | What it does not guarantee |
|---|---|---|
nodeSelector / required node affinity | Filters eligible nodes when scheduling | Data presence, healthy dependencies or migration of existing Pods after labels change |
| Preferred node affinity | Adds scheduling preferences | Strict on-premises-first placement, a fixed ratio or automatic movement of running Pods |
| Taint / toleration | Excludes Pods lacking the applicable toleration | A matching toleration does not attract a Pod or prove it uses a GPU |
| Pod anti-affinity / topology spread | Controls or scores distribution among eligible domains | Complete availability across shared physical hosts, power, storage or network failures |
| PDB | Constrains supported voluntary eviction requests | General availability, placement or protection from every deletion/scale-down path |
Use the eks.amazonaws.com/compute-type=hybrid label together with owner-managed location labels. DoesNotExist for the compute-type label is not a definition of “cloud”: valid cloud nodes can carry compute-type labels, and an unlabeled node is not proof of an approved cloud location.
The examples use workload.example.com/location=onprem on Hybrid nodes, as in Node Bootstrap, and cloud on the specific Karpenter pool below. Labels are operational inputs, not standalone data-residency or security controls. Storage topology, egress, IAM and trustworthy node administration still matter.
Set the location label through the actual node owner's configuration: for example, nodeadm's --node-labels=workload.example.com/location=onprem kubelet flag or the corresponding Bottlerocket node-label setting. A minimal credential-only NodeConfig does not automatically add this custom label.
Optional taints
A Hybrid taint is optional. Before adding one, ensure required CNI, DNS, GPU infrastructure and application Pods have the necessary tolerations; the earlier GPU example does not automatically tolerate every newly invented taint.
# Identified node only; owner-approved scheduling-policy change.
set -euo pipefail
: "${KUBECONFIG:?}" "${CONTEXT:?}" "${NODE_NAME:?}"
kubectl --kubeconfig "$KUBECONFIG" --context "$CONTEXT" \
taint node "$NODE_NAME" eks.amazonaws.com/compute-type=hybrid:NoScheduleFor a GPU-specific taint, use a reviewed convention such as nvidia.com/gpu=present:NoSchedule and align infrastructure/workload tolerations. A CPU-only Pod can also tolerate that taint; admission and resource-request policy are separate concerns.
NoSchedule affects new scheduling, while PreferNoSchedule is a soft avoidance preference. NoExecute can evict existing Pods according to their tolerations and any tolerationSeconds. Neither changing a label nor a required affinity rule with IgnoredDuringExecution automatically relocates already running Pods.
Prepare the cloud burst pool
Karpenter creates EC2 capacity for eligible pending Pods. It does not add on-premises servers. HPA/KEDA or an application controller adjusts replica demand; the node provisioner is a separate control loop. AWS quotas, offering availability, subnet IPs, IAM, node bootstrap and workload dependencies can all prevent expansion.
Use a Karpenter version supported by the cluster's Kubernetes minor; the current compatibility matrix requires at least 1.13 for Kubernetes 1.36. This example was checked against the 1.14.1 CRDs. It is a self-managed Karpenter EC2NodeClass example, not an Auto Mode NodeClass.
apiVersion: karpenter.sh/v1
kind: NodePool
metadata:
name: cloud-burst-pool
spec:
template:
metadata:
labels:
workload.example.com/location: cloud
spec:
taints:
- key: workload.example.com/cloud-burst
value: "true"
effect: NoSchedule
requirements:
- key: kubernetes.io/arch
operator: In
values: [amd64]
- key: kubernetes.io/os
operator: In
values: [linux]
- key: topology.kubernetes.io/zone
operator: In
values: [ap-northeast-2a, ap-northeast-2b]
- key: karpenter.sh/capacity-type
operator: In
values: [spot, on-demand]
- key: node.kubernetes.io/instance-type
operator: In
values: [m6i.xlarge, m6i.2xlarge, m6i.4xlarge]
nodeClassRef:
group: karpenter.k8s.aws
kind: EC2NodeClass
name: hybrid-cloud-burst
limits:
cpu: "1000"
memory: 4000Gi
disruption:
consolidationPolicy: WhenEmpty
consolidateAfter: 30s
budgets:
- nodes: "1"
---
apiVersion: karpenter.k8s.aws/v1
kind: EC2NodeClass
metadata:
name: hybrid-cloud-burst
spec:
amiFamily: AL2023
amiSelectorTerms:
- id: ami-0123456789abcdef0
subnetSelectorTerms:
- id: subnet-0123456789abcdef0
- id: subnet-0fedcba9876543210
securityGroupSelectorTerms:
- id: sg-0123456789abcdef0
instanceProfile: REPLACE_WITH_APPROVED_EC2_NODE_INSTANCE_PROFILEReplace every sample AWS resource ID and the instance profile before applying. Select an approved immutable AL2023 AMI for the Region, architecture and Kubernetes version; amiFamily: AL2023 supplies the bootstrap family when selecting by AMI ID. The instance profile is a prepared EC2 node profile, not the SSM/IAM Roles Anywhere Hybrid role. Subnets/security groups must actually match the intended private networking and AZs.
The AZ restriction belongs in requirements; never forge an AWS zone by putting it into template labels. The pool's opt-in taint limits eligibility to workloads with the matching toleration. It does not grant data or registry access.
The retained 1000 CPU / 4000Gi limits are large planning examples, not a recommended allocation or spending cap. Size them before use. Karpenter checks limits with eventual consistency, so rapid provisioning can overrun them. budgets: [{nodes: "1"}] limits applicable voluntary disruption concurrency; it is not a minimum-capacity reservation.
Use one complete NodePool definition. Applying a second partial object with the same name is not a safe way to “inherit the settings above.” Changes to expiry, AMI selection and disruption policy need their own reviewed rollout.
Local, cloud-only and burst-eligible workloads
Create an approved lab namespace, such as hybrid-placement-lab, and prepare real image digests, application security settings, probes, storage and registry access before running workloads. These examples start with zero replicas and intentionally unusable images. The former 3/5/10 replica counts are possible sizing scenarios, not measured capacity or promises that the applications run.
apiVersion: apps/v1
kind: Deployment
metadata:
name: hybrid-local-processor
namespace: hybrid-placement-lab
spec:
replicas: 0
selector:
matchLabels:
app: hybrid-local-processor
template:
metadata:
labels:
app: hybrid-local-processor
spec:
nodeSelector:
eks.amazonaws.com/compute-type: hybrid
workload.example.com/location: onprem
tolerations:
- key: eks.amazonaws.com/compute-type
operator: Equal
value: hybrid
effect: NoSchedule
automountServiceAccountToken: false
securityContext:
runAsNonRoot: true
runAsUser: 65532
seccompProfile:
type: RuntimeDefault
containers:
- name: processor
image: registry.example.invalid/approved/data-processor:replace-with-approved-digest
securityContext:
allowPrivilegeEscalation: false
capabilities:
drop: ["ALL"]
resources:
requests:
cpu: "2"
memory: 4Gi
limits:
cpu: "4"
memory: 8Gi
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: hybrid-cloud-api
namespace: hybrid-placement-lab
spec:
replicas: 0
selector:
matchLabels:
app: hybrid-cloud-api
template:
metadata:
labels:
app: hybrid-cloud-api
spec:
nodeSelector:
workload.example.com/location: cloud
karpenter.sh/nodepool: cloud-burst-pool
tolerations:
- key: workload.example.com/cloud-burst
operator: Equal
value: "true"
effect: NoSchedule
automountServiceAccountToken: false
securityContext:
runAsNonRoot: true
runAsUser: 65532
seccompProfile:
type: RuntimeDefault
containers:
- name: api
image: registry.example.invalid/approved/inference-api:replace-with-approved-digest
securityContext:
allowPrivilegeEscalation: false
capabilities:
drop: ["ALL"]
resources:
requests:
cpu: "2"
memory: 4Gi
limits:
cpu: "4"
memory: 8Gi
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: hybrid-burst-app
namespace: hybrid-placement-lab
spec:
replicas: 0
selector:
matchLabels:
app: hybrid-burst-app
template:
metadata:
labels:
app: hybrid-burst-app
spec:
tolerations:
- key: eks.amazonaws.com/compute-type
operator: Equal
value: hybrid
effect: NoSchedule
- key: workload.example.com/cloud-burst
operator: Equal
value: "true"
effect: NoSchedule
affinity:
nodeAffinity:
requiredDuringSchedulingIgnoredDuringExecution:
nodeSelectorTerms:
- matchExpressions:
- key: eks.amazonaws.com/compute-type
operator: In
values: [hybrid]
- key: workload.example.com/location
operator: In
values: [onprem]
- matchExpressions:
- key: workload.example.com/location
operator: In
values: [cloud]
- key: karpenter.sh/nodepool
operator: In
values: [cloud-burst-pool]
preferredDuringSchedulingIgnoredDuringExecution:
- weight: 100
preference:
matchExpressions:
- key: workload.example.com/location
operator: In
values: [onprem]
topologySpreadConstraints:
- maxSkew: 2
topologyKey: topology.kubernetes.io/zone
whenUnsatisfiable: ScheduleAnyway
labelSelector:
matchLabels:
app: hybrid-burst-app
automountServiceAccountToken: false
securityContext:
runAsNonRoot: true
runAsUser: 65532
seccompProfile:
type: RuntimeDefault
containers:
- name: app
image: registry.example.invalid/approved/latency-app:replace-with-approved-digest
securityContext:
allowPrivilegeEscalation: false
capabilities:
drop: ["ALL"]
resources:
requests:
cpu: "1"
memory: 2Gi
limits:
cpu: "2"
memory: 4GiThe local processor requires both the Hybrid and on-premises labels. The cloud API requires the specifically owned cloud-burst pool. Other approved EC2 groups need their own explicit selection rules; missing labels are not a fallback authorization.
The burst application has two OR node-affinity terms: the approved on-premises set or the approved cloud pool. Expressions inside one term are AND conditions. It prefers on-premises placement, but scheduler scoring, resource requests, taints and topology preferences also apply. Karpenter can relax scheduling preferences when planning new nodes; this is not a saturation sensor or a guarantee to fill every on-premises slot first.
Weights such as 100 and 50 are scheduling scores, not 2:1 capacity allocation. A node can host multiple Pods or no compatible Pod, so “eight nodes means Pods1–8 locally and Pods9+ in unlimited cloud capacity” is not a valid model.
When on-premises capacity returns, running cloud Pods are not automatically moved back. Any rebalancing needs a separate controlled rollout/eviction policy, with data and availability considerations.
For on-premises GPU training and cloud CPU APIs, keep GPU requirements and data movement explicit. Use the bounded Job/allocation patterns in GPU Integration. The earlier 4 GPU / 16 CPU / 64Gi training request was a sizing example; it requires actual GPU capacity, compatible devices and durable input/checkpoint access. A Deployment repeatedly restarting a finite training process is not a substitute for a Job or the appropriate training controller.
Topology and data locality
Assign accurate failure-domain labels before using topology.kubernetes.io/zone; use real AWS AZ values for cloud nodes and meaningful on-premises domains. Do not label every Hybrid host as an AWS AZ to satisfy a selector.
With ScheduleAnyway, the spread rule in the burst example is a scoring preference and can exceed maxSkew. For DoNotSchedule, skew is checked relative to the global minimum across eligible domains, considering minDomains when configured; it is not always a simple maximum-minus-minimum across every zone in the cluster.
Strict spread or anti-affinity can leave Pods Pending when there are not enough eligible nodes/domains. Node eligibility also depends on affinity, taints and the topology policy. Strong spreading and maximum on-premises utilization can be competing goals; choose the tradeoff deliberately.
Required hostname anti-affinity can keep matching replicas off the same Kubernetes Node when sufficient capacity exists. It does not guarantee that the remaining replicas are healthy, have enough serving capacity or avoid a shared physical failure.
Data-local labels do not create or replicate data. For local persistent data, use a properly managed local PV/PVC with PV node affinity and the appropriate WaitForFirstConsumer binding workflow. A raw hostPath: /mnt/data neither verifies the dataset nor provides portable persistence. A Pod bound to local storage cannot simply fall back to an EC2 node; plan replication, accessible storage or a separate application path.

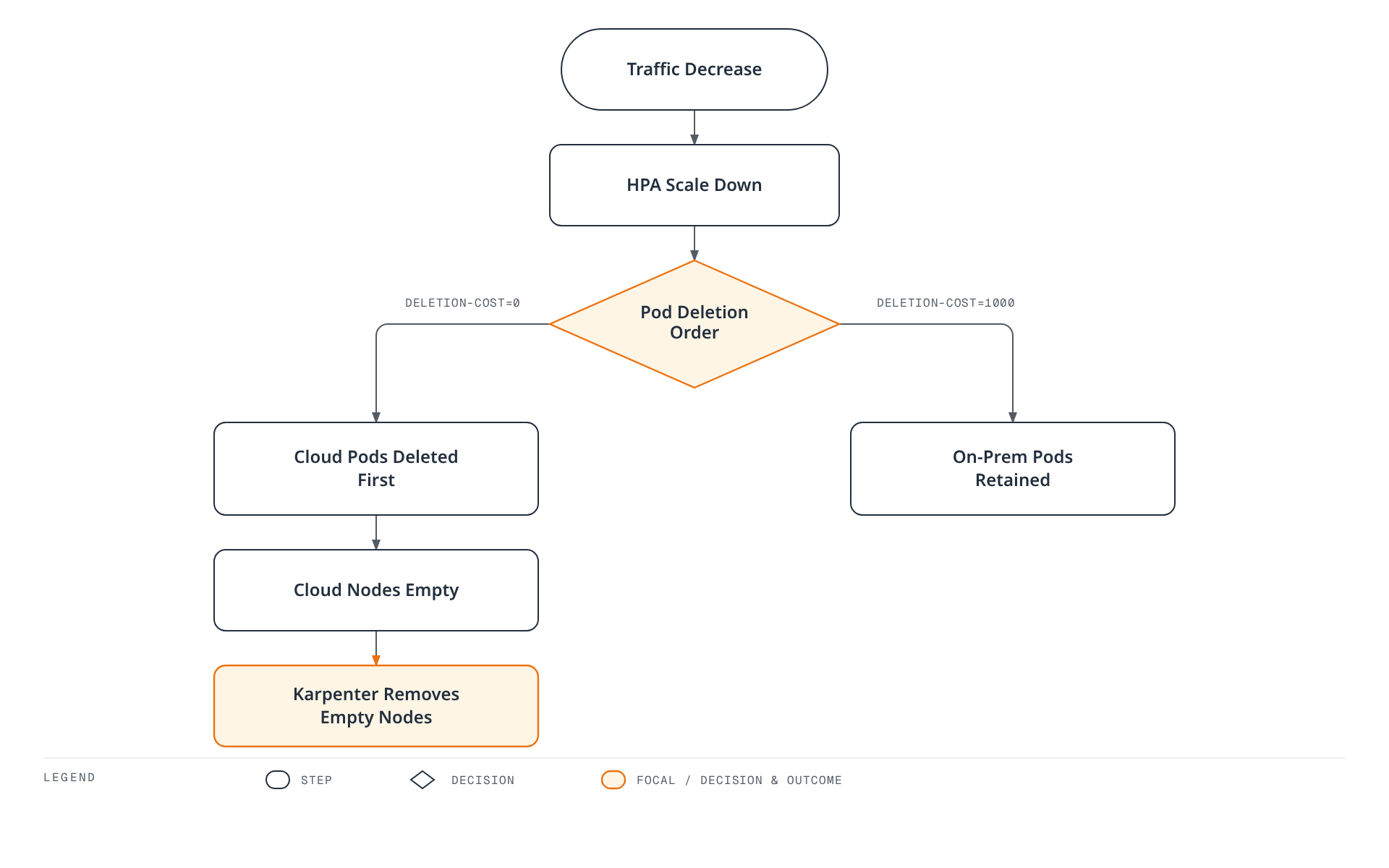

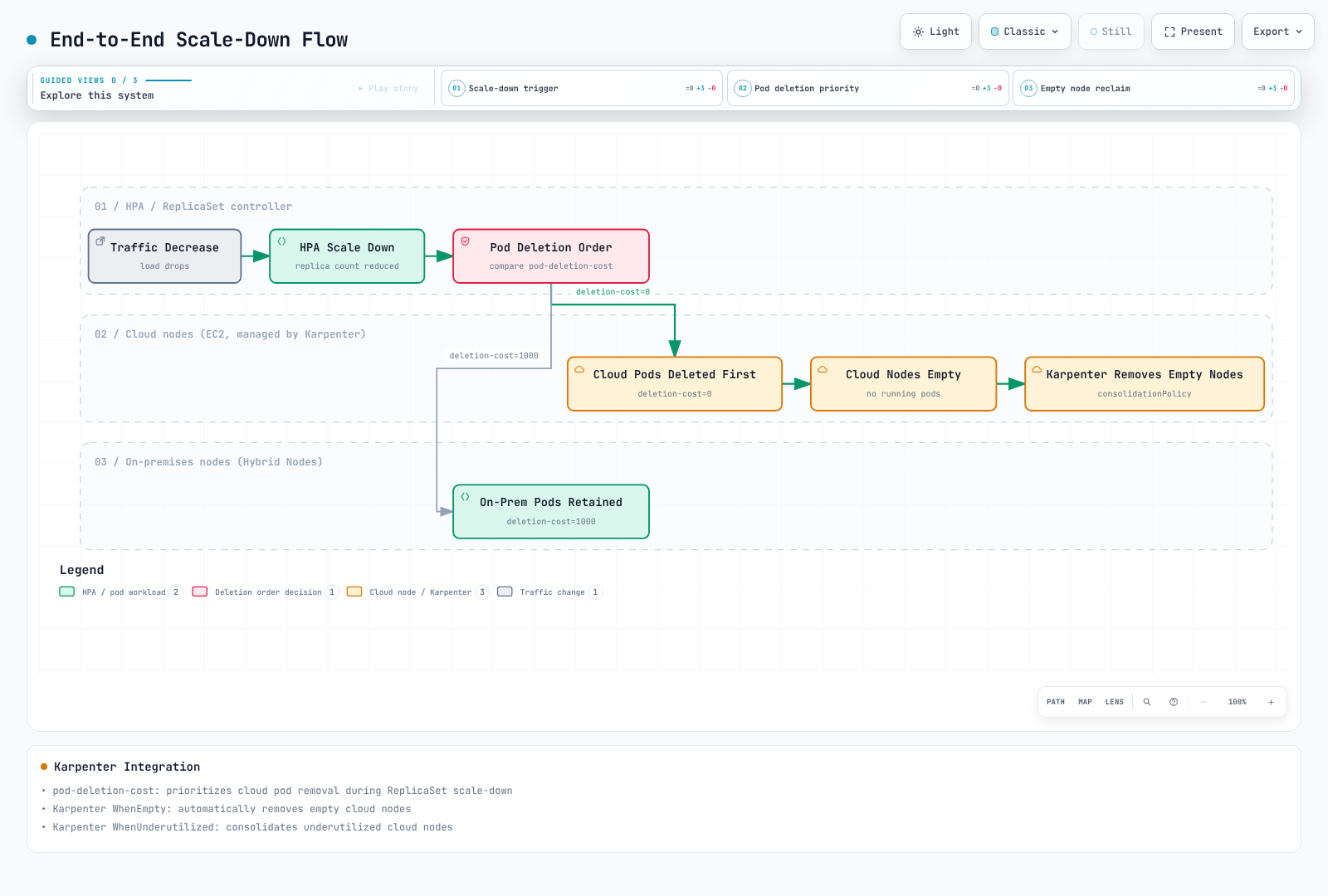

Pod deletion cost is a preference
controller.kubernetes.io/pod-deletion-cost is an integer annotation on a Pod. Its valid range is −2147483648 to2147483647, defaulting to0 when absent; negative values are allowed. ReplicaSet downscaling prefers lower values among its Pods on a best-effort basis.
For the reviewed Kubernetes1.36.2 controller, these comparisons precede deletion cost:
- Unassigned Pods before assigned Pods.
- Pending before Unknown before Running.
- NotReady before Ready.
- Only then, lower deletion cost before higher cost.
Further comparisons include replica co-location, readiness age, restart counts and creation age. Therefore an unhealthy on-premises Pod with cost1000 can be removed before a healthy cloud Pod with cost0. Cost1000 is not protection from eviction, rollout, node failure, manual deletion or another controller.
The original “10 replicas →4; delete all6 cloud Pods and retain all4 on-premises Pods” is a conditional illustration only: all Pods would need to belong to the same ReplicaSet with compatible higher-priority criteria and stable state. It is not a guaranteed outcome, especially across Deployment revisions.
On-premises capacity also has power, maintenance and opportunity costs; retaining it is an operating objective to evaluate, not a universal economic rule. Deletion-cost values do not themselves enforce a spend budget or availability target.
Assign cost after binding to one owned Pod
A normal Pod CREATE admission request usually has no assigned spec.nodeName. A CREATE-only mutating webhook cannot reliably derive the eventual node location. The former webhook example also lacked a working Service/TLS/backend/RBAC setup and could block Pod creation through its failure policy. Do not install it as a production solution.
For a small controlled operation, derive cost after scheduling. The following script reads one selected Pod, checks its controller ReplicaSet UID and node classification, and writes a private JSON Patch for review. It does not scan or mutate all namespaces.
Set NAMESPACE, POD_NAME and EXPECTED_RS_UID from the application owner's actual Deployment/ReplicaSet ownership chain—not just a shared label. It recognizes only the location conventions and cloud pool in this chapter.
#!/usr/bin/env bash
# Read one owned, scheduled ReplicaSet Pod and write a reviewable JSON Patch.
# This script does not mutate the cluster.
set -euo pipefail
umask 077
: "${KUBECONFIG:?}" "${CONTEXT:?}" "${NAMESPACE:?}" "${POD_NAME:?}"
: "${EXPECTED_RS_UID:?UID of the ReplicaSet owned by the application operator}"
[[ "$NAMESPACE" =~ ^[a-z0-9]([-a-z0-9]*[a-z0-9])?$ && ${#NAMESPACE} -le 63 ]]
[[ "$POD_NAME" =~ ^[a-z0-9]([-a-z0-9.]*[a-z0-9])?$ && ${#POD_NAME} -le 253 ]]
PLAN_DIR=$(mktemp -d ./deletion-cost-review.XXXXXXXX)
kubectl --kubeconfig "$KUBECONFIG" --context "$CONTEXT" \
get pod "$POD_NAME" -n "$NAMESPACE" -o json |
jq '{metadata: {name: .metadata.name, namespace: .metadata.namespace,
uid: .metadata.uid, resourceVersion: .metadata.resourceVersion,
ownerReferences: .metadata.ownerReferences,
deletionTimestamp: .metadata.deletionTimestamp},
nodeName: .spec.nodeName,
hasAnnotations: (.metadata.annotations | type == "object"),
currentCost: .metadata.annotations["controller.kubernetes.io/pod-deletion-cost"]}' \
> "$PLAN_DIR/pod.json"
jq -e --arg ns "$NAMESPACE" --arg pod "$POD_NAME" --arg owner "$EXPECTED_RS_UID" '
.metadata.namespace == $ns and .metadata.name == $pod and
(.metadata.uid | type == "string" and length > 0) and
(.metadata.resourceVersion | type == "string" and length > 0) and
.metadata.deletionTimestamp == null and
([.metadata.ownerReferences[]? | select(.controller == true)] | length == 1) and
any(.metadata.ownerReferences[]?; .controller == true and
.apiVersion == "apps/v1" and .kind == "ReplicaSet" and .uid == $owner) and
(.nodeName | type == "string" and length > 0)' "$PLAN_DIR/pod.json" > /dev/null
NODE_NAME=$(jq -er '.nodeName' "$PLAN_DIR/pod.json")
[[ "$NODE_NAME" =~ ^[a-z0-9]([-a-z0-9.]*[a-z0-9])?$ ]]
kubectl --kubeconfig "$KUBECONFIG" --context "$CONTEXT" \
get node "$NODE_NAME" -o json |
jq '{metadata: {name: .metadata.name, uid: .metadata.uid, labels: {
compute: .metadata.labels["eks.amazonaws.com/compute-type"],
location: .metadata.labels["workload.example.com/location"],
nodepool: .metadata.labels["karpenter.sh/nodepool"]}}}' > "$PLAN_DIR/node.json"
desired=$(jq -er --arg node "$NODE_NAME" '
if .metadata.name != $node or (.metadata.uid | type != "string" or length == 0) then
error("unexpected Node identity")
elif .metadata.labels.compute == "hybrid" and .metadata.labels.location == "onprem" then "1000"
elif .metadata.labels.compute != "hybrid" and .metadata.labels.location == "cloud"
and .metadata.labels.nodepool == "cloud-burst-pool" then "0"
else error("unknown or conflicting node classification") end' "$PLAN_DIR/node.json")
jq --arg cost "$desired" '
[{op:"test",path:"/metadata/uid",value:.metadata.uid},
{op:"test",path:"/metadata/resourceVersion",value:.metadata.resourceVersion},
{op:"test",path:"/spec/nodeName",value:.nodeName}]
+ (if .hasAnnotations then [] else
[{op:"add",path:"/metadata/annotations",value:{}}] end)
+ (if .currentCost == $cost then [] else
[{op:"add",path:"/metadata/annotations/controller.kubernetes.io~1pod-deletion-cost",
value:$cost}] end)' "$PLAN_DIR/pod.json" > "$PLAN_DIR/patch.json"
printf 'Review private snapshots and patch in %s; nothing was applied.\n' "$PLAN_DIR"Inspect the snapshots and desired annotation before applying. The patch tests the Pod UID, resourceVersion and bound node, so replacement or concurrent modification fails rather than overwriting the newer Pod. It adds only the deletion-cost key and preserves unrelated annotations.
Set PLAN_DIR in your shell to the directory printed by the script; a child process does not set that variable in its caller.
# Cluster write, only after the named Pod/owner and generated patch are reviewed.
set -euo pipefail
: "${KUBECONFIG:?}" "${CONTEXT:?}" "${NAMESPACE:?}" "${POD_NAME:?}" "${PLAN_DIR:?}"
kubectl --kubeconfig "$KUBECONFIG" --context "$CONTEXT" \
patch pod "$POD_NAME" -n "$NAMESPACE" --type=json \
--patch-file "$PLAN_DIR/patch.json"On a failed test or changed node classification, regenerate and review from fresh state. Do not drop the tests or use --overwrite across unrelated Pods. Coordinate ownership of the annotation with any existing controller.
Avoid continuously updating costs from fast-changing metrics; Kubernetes documents the API update overhead. A production post-binding controller would need narrowly scoped permissions, ownership checks, bounded retries and conflict handling. The former unimplemented all-namespace CronJob, missing ServiceAccount/ConfigMap and mutable bitnami/kubectl:latest image are not such a controller.
Namespace RBAC can limit the Pod patching boundary; ordinary RBAC does not express arbitrary Pod label selectors as authorization. A node-metadata reader and an application-namespace writer should be separated appropriately. This single-Pod administrative example does not grant cluster-wide write permissions.
Interaction with Karpenter
Karpenter1.14.1 also reads pod-deletion-cost in its normalized eviction-cost heuristic, alongside Pod priority; it is incorrect to say only ReplicaSet ever uses it. Karpenter combines Pod costs with node/disruption information. A value of1000 is not a thousandfold guarantee of retention.
| Control | Scope |
|---|---|
| ReplicaSet deletion cost | Preference among the ReplicaSet's scale-down candidates |
| Karpenter disruption cost | Heuristic for candidate evaluation; not an eviction prohibition |
WhenEmpty | Can consolidate eligible nodes with no relevant workload Pods after the configured delay/checks |
WhenEmptyOrUnderutilized | Can move workloads as part of consolidation, subject to applicable constraints |
| PDB / disruption budgets / lifecycle settings | Different controls with different scopes; none should be replaced by a cost annotation |
Empty nodes are not guaranteed to disappear immediately: reconciliation, disruption budgets, finalizers and cloud termination still apply. Affinity/spread preferences may also reduce consolidation opportunities. Assess them together instead of assuming that every HPA downscale produces a matching cloud-node deletion.
Diagram correction: cloud-first Pod deletion and complete on-premises retention are best-effort goals, not invariants. “Empty” can still include DaemonSet Pods. The older
WhenUnderutilizedlabel should readWhenEmptyOrUnderutilizedfor the v1 example. Read the ordering and lifecycle conditions above.
Primary references
- Assign Pods to nodes
- Taints and tolerations
- Pod topology spread
- ReplicaSet deletion cost
- Kubernetes1.36.2 scale-down comparison
- Pod disruptions and PDB scope
- Local volumes and PV node affinity
- StorageClass volume binding
- Karpenter NodePools and compatibility
- Karpenter disruption
- Karpenter1.14.1 eviction-cost implementation
< Previous: GPU Integration | Table of Contents | Next: Node Lifecycle Management >
