GitOps ​

Last Updated: October 12, 2026

Table of Contents ​

What is GitOps? ​

GitOps is an operational framework that applies DevOps best practices for infrastructure automation—such as version control, collaboration, compliance, and CI/CD—to infrastructure management. The term was coined by Weaveworks in 2017 and has since become a CNCF-recognized methodology for cloud-native application deployment.

At its core, GitOps uses Git repositories as the single source of truth for declarative infrastructure and application configurations. Changes to the desired state are made through Git commits, and automated processes ensure the actual system state matches the declared state.

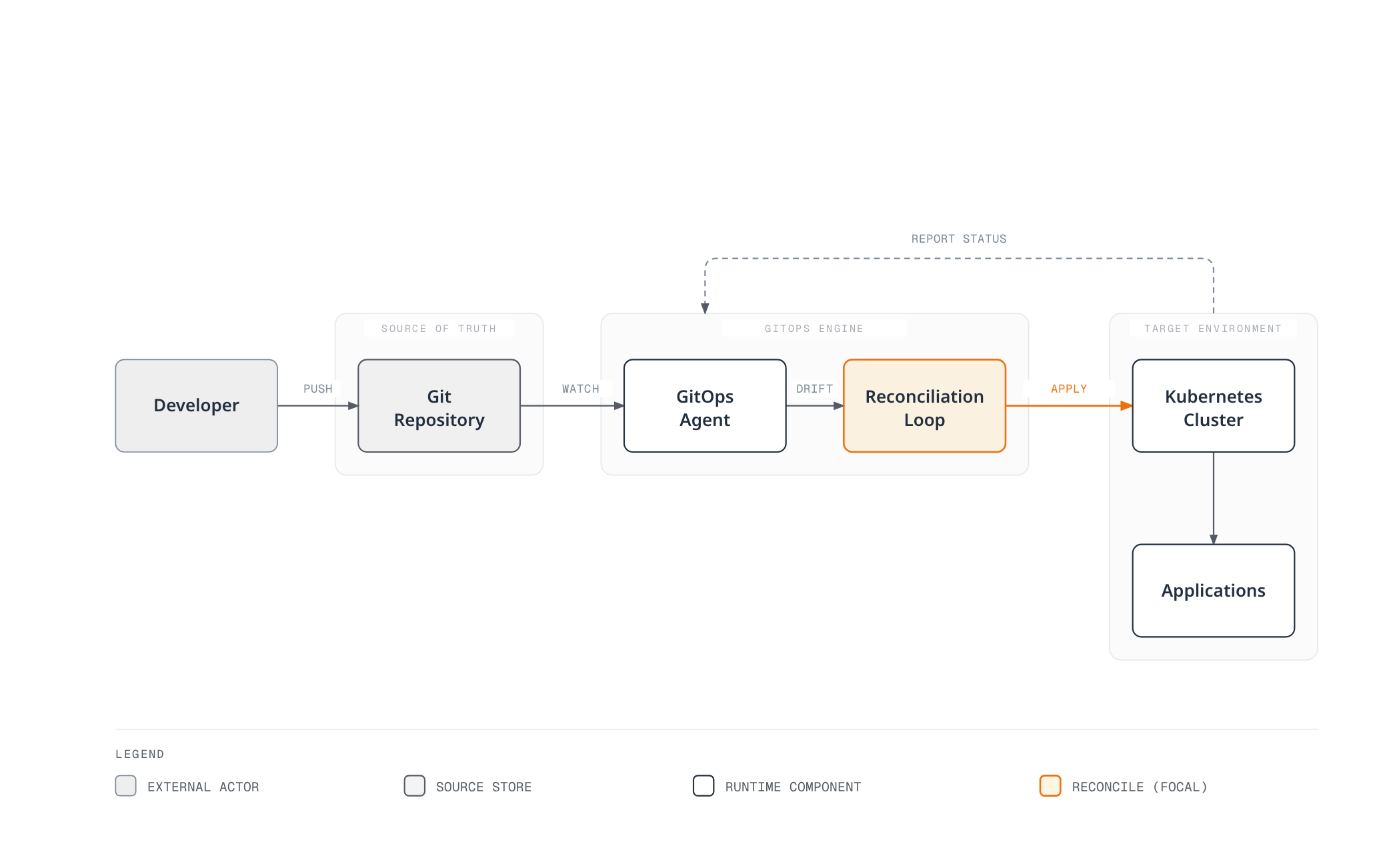

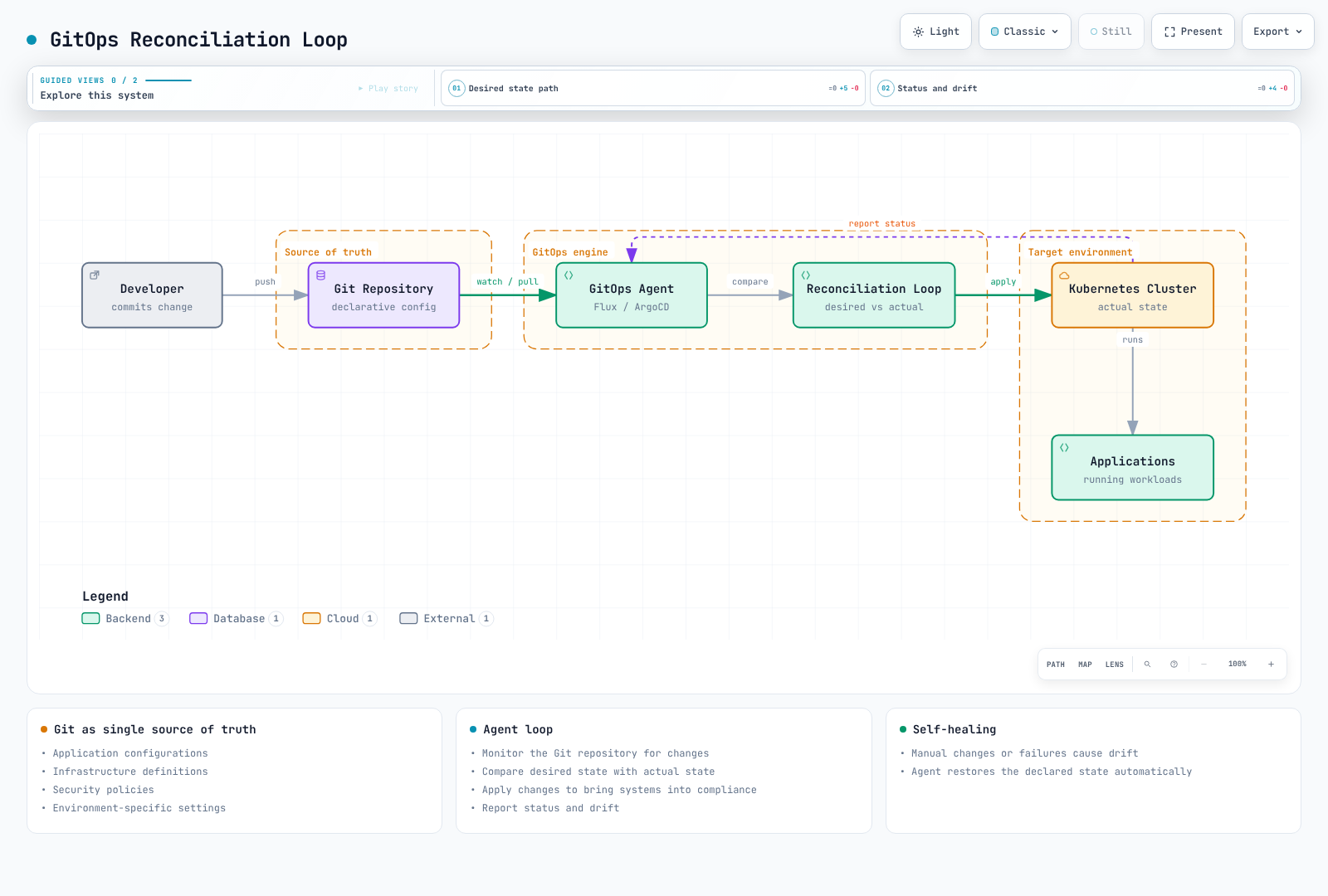

Architecture diagram showing a developer pushing changes to Git, which a GitOps agent watches and reconciles into a Kubernetes cluster, while the cluster reports status back to the agent.

Architecture diagram showing a developer pushing changes to Git, which a GitOps agent watches and reconciles into a Kubernetes cluster, while the cluster reports status back to the agent.Open full screen ↗

History and Evolution ​

MilestoneVerified project history
FluxCNCF Sandbox July 2019; Incubating March 2021; Graduated November 30, 2022
Argo projectCNCF Incubating March 2020; Graduated December 6, 2022
OpenGitOpsPublishes versioned principles; distinguish released documents from the working main branch

CNCF OpenGitOps Definition ​

The OpenGitOps project defines GitOps through four principles:

  1. Declarative: A system managed by GitOps must have its desired state expressed declaratively
  2. Versioned and Immutable: Desired state is stored in a way that enforces immutability, versioning, and retains a complete version history
  3. Pulled Automatically: Software agents automatically pull the desired state declarations from the source
  4. Continuously Reconciled: Software agents continuously observe actual system state and attempt to apply the desired state

Core Principles ​

Git history records desired configuration. A Git revert does not restore database migrations, deleted data or external state. Argo CD automated sync, prune and selfHeal are separate settings; GitOps describes a control loop attempting reconciliation.

Declarative Configuration ​

Everything is defined as code—infrastructure, applications, policies, and configurations. This enables:

  • Reproducibility: Versioned configuration plus available artifacts, secrets and data enable recreation
  • Auditability: Retained configuration history; runtime/API audit logs still need collection
  • Consistency: Shared bases with explicit, reviewed environment differences
yaml
# Example: Declarative application state
apiVersion: apps/v1
kind: Deployment
metadata:
  name: web-app
  labels:
    app: web-app
    version: v1.2.3
spec:
  replicas: 3
  selector:
    matchLabels:
      app: web-app
  template:
    metadata:
      labels:
        app: web-app
    spec:
      containers:
      - name: web-app
        image: myregistry/web-app:v1.2.3
        ports:
        - containerPort: 8080

Git as Single Source of Truth ​

Git repositories store the desired state of your entire system:

  • Application configurations
  • Infrastructure definitions
  • Security policies
  • Environment-specific settings

Automated Reconciliation ​

GitOps agents continuously:

  1. Monitor the Git repository for changes
  2. Compare desired state with actual state
  3. Apply changes to bring systems into compliance
  4. Report status and drift

Self-Healing Systems ​

Reconciliation attempts depend on sync/self-heal policy, permissions and health. For example, Argo CD automated sync and selfHeal require configuration; installation alone does not revert every manual change or recover lost data.

Push vs Pull Model ​

Compare traditional push deployment with pull-based GitOps. A CI-only kubectl apply pipeline does not by itself satisfy OpenGitOps automatic-pull and continuous-reconciliation principles:

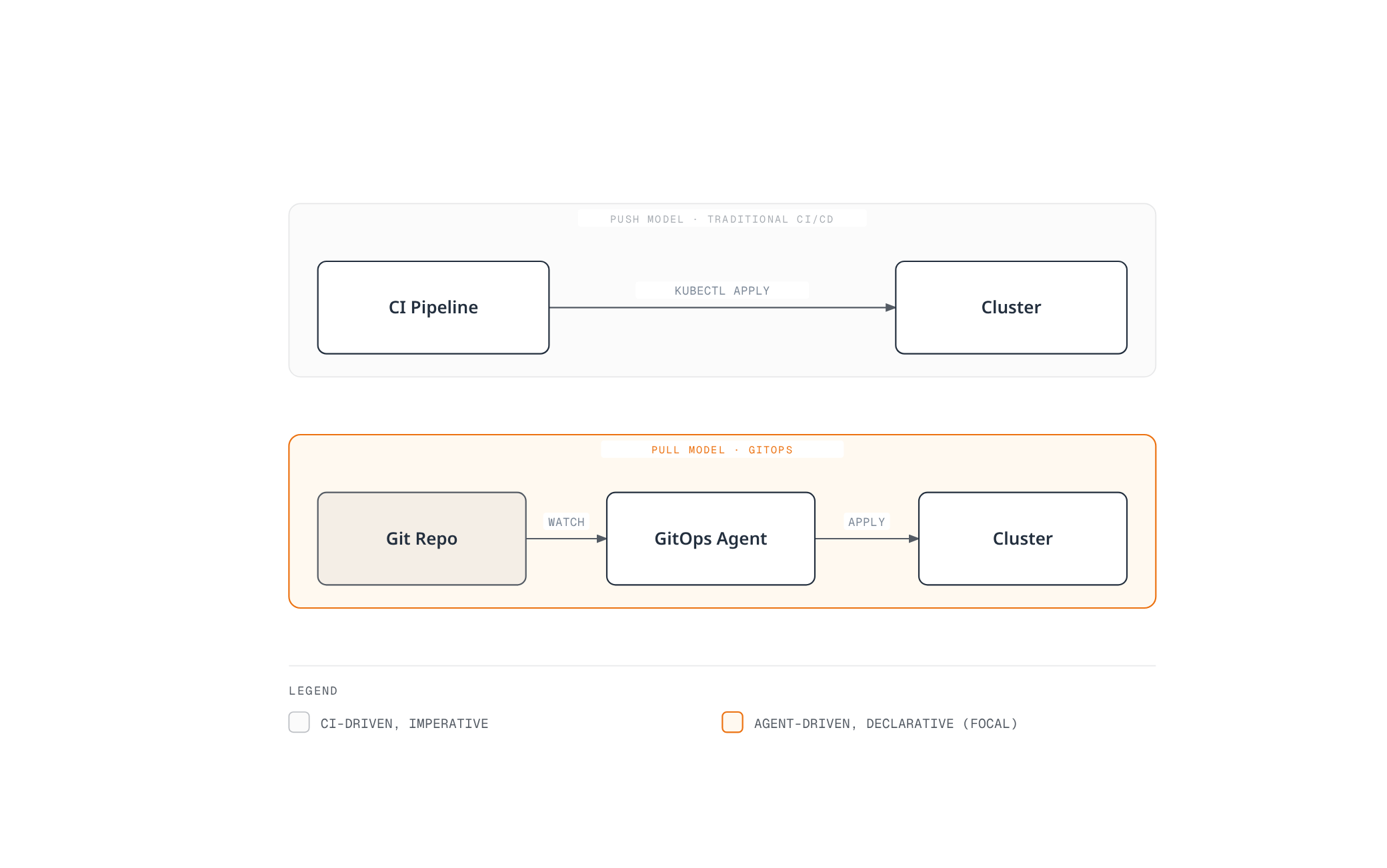

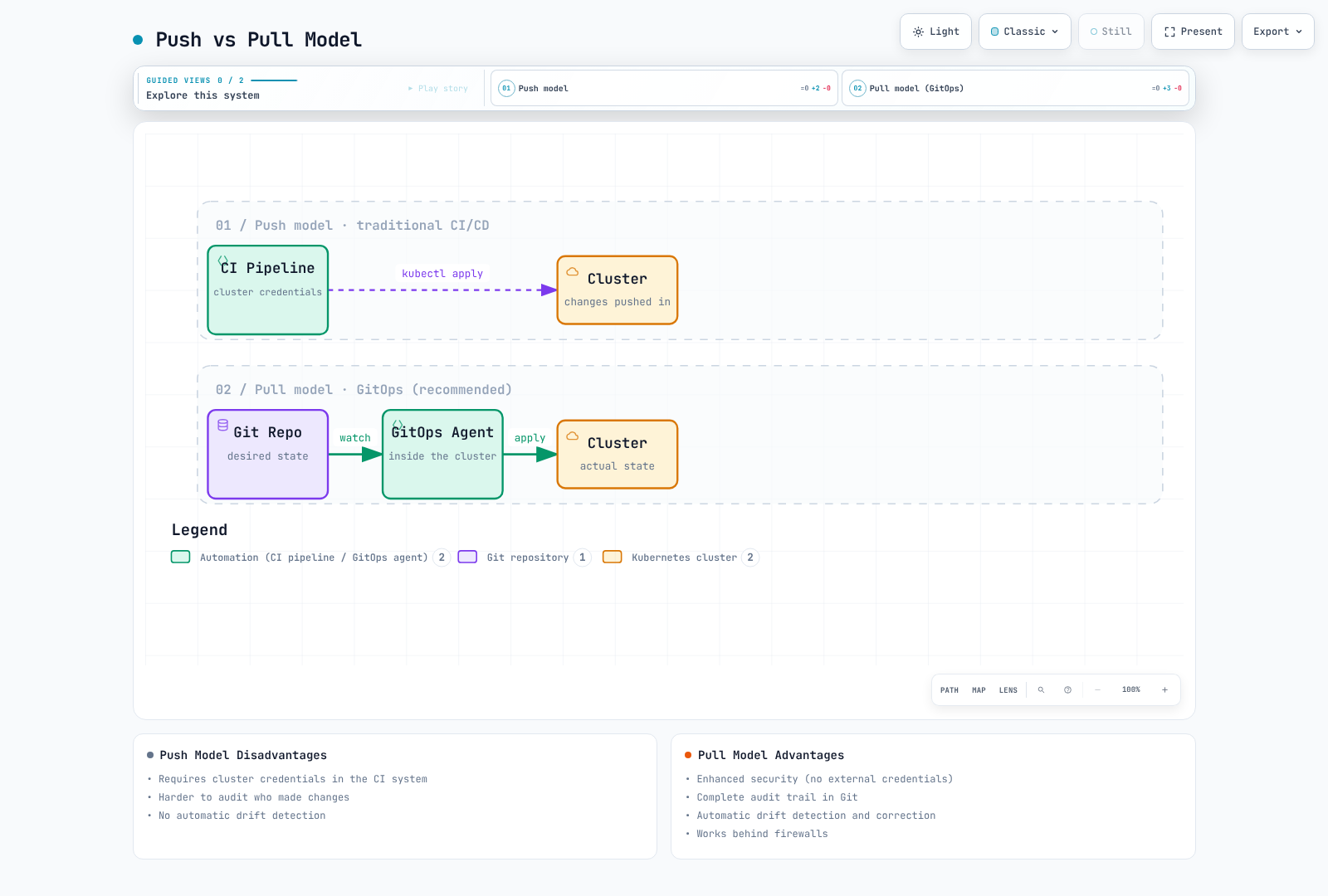

Flowchart contrasting traditional push-based CI/CD, where a pipeline applies changes directly to the cluster, with the GitOps pull model, where an agent watches Git and applies changes itself.

Flowchart contrasting traditional push-based CI/CD, where a pipeline applies changes directly to the cluster, with the GitOps pull model, where an agent watches Git and applies changes itself.Open full screen ↗

Push Model ​

In the traditional push model:

  • CI/CD pipeline has direct access to the cluster
  • Credentials stored in CI system
  • Changes pushed from outside the cluster

Disadvantages:

  • Requires cluster credentials in CI system
  • Harder to audit who made changes
  • No automatic drift detection

In the GitOps pull model:

  • Agent runs in the target cluster or a separate management cluster
  • Agent pulls changes from Git
  • Management-cluster agents still require authorized network/API access to remote targets

Advantages:

  • Can reduce target-cluster credentials in CI; agents still hold source/API access rights
  • Complete audit trail in Git
  • Automatic drift detection and correction
  • Works behind firewalls

GitOps Tools Overview ​

ArgoCD ​

ArgoCD is a declarative, GitOps continuous delivery tool for Kubernetes.

Key Features:

  • Web UI for visualization
  • Multi-cluster support
  • SSO integration
  • Rollback capabilities
  • Health status monitoring
  • ApplicationSet for fleet management

Best For: Teams wanting visual management, multi-cluster deployments, enterprise features

FluxCD ​

FluxCD is a set of continuous delivery solutions for Kubernetes that are open and extensible.

Key Features:

  • Lightweight and modular
  • Native Helm and Kustomize support
  • Image automation
  • Multi-tenancy
  • Notification controllers

Best For: Teams preferring CLI-first, lightweight solutions, image automation workflows

Jenkins X / JayeX ​

Jenkins X / JayeX provides CI/CD for cloud-native applications on Kubernetes.

Key Features:

  • Automated CI/CD pipelines
  • Preview environments
  • GitOps promotion
  • Tekton-based pipelines

Evaluate for: Integrated CI/CD and preview-environment workflows; JayeX/Jenkins X / JayeX is not simply Jenkins with GitOps enabled

Comparison Matrix ​

RequirementArgo CDFlux
Default UIBuilt-in Web UI and CLICore controllers/CLI; optional ecosystem UIs
Helm behaviorhelm template; Argo CD owns resource lifecycleHelm Controller owns Helm release lifecycle
Image updatesSeparate Argo CD Image UpdaterOptional Image Reflector/Automation controllers
Multi-tenancyAppProjects, RBAC, destination/source restrictionsKubernetes RBAC, ServiceAccount impersonation, cross-namespace restrictions
OCI sourcesGeneral OCI/Helm sources; validate layers/media typesOCIRepository/Helm sources; validate verification/layer settings
CapacityMeasure application/cluster count and reconcile loadMeasure installed controllers, sources and reconcile load

Tool Selection Guide ​

Choose ArgoCD When: ​

  • You need a visual dashboard for operations
  • Multi-cluster management is required
  • Enterprise SSO/RBAC is important
  • Team prefers UI-based workflows
  • You need ApplicationSet for fleet management

Choose FluxCD When: ​

  • You prefer lightweight, modular architecture
  • Image automation is a primary requirement
  • CLI-first workflow is preferred
  • Resource constraints are a concern
  • You need tight Helm controller integration

Decision Framework ​

The diagram illustrates selection questions, not exclusive capabilities. Compare current features, authorization boundaries and operational cost with the table and a representative trial.

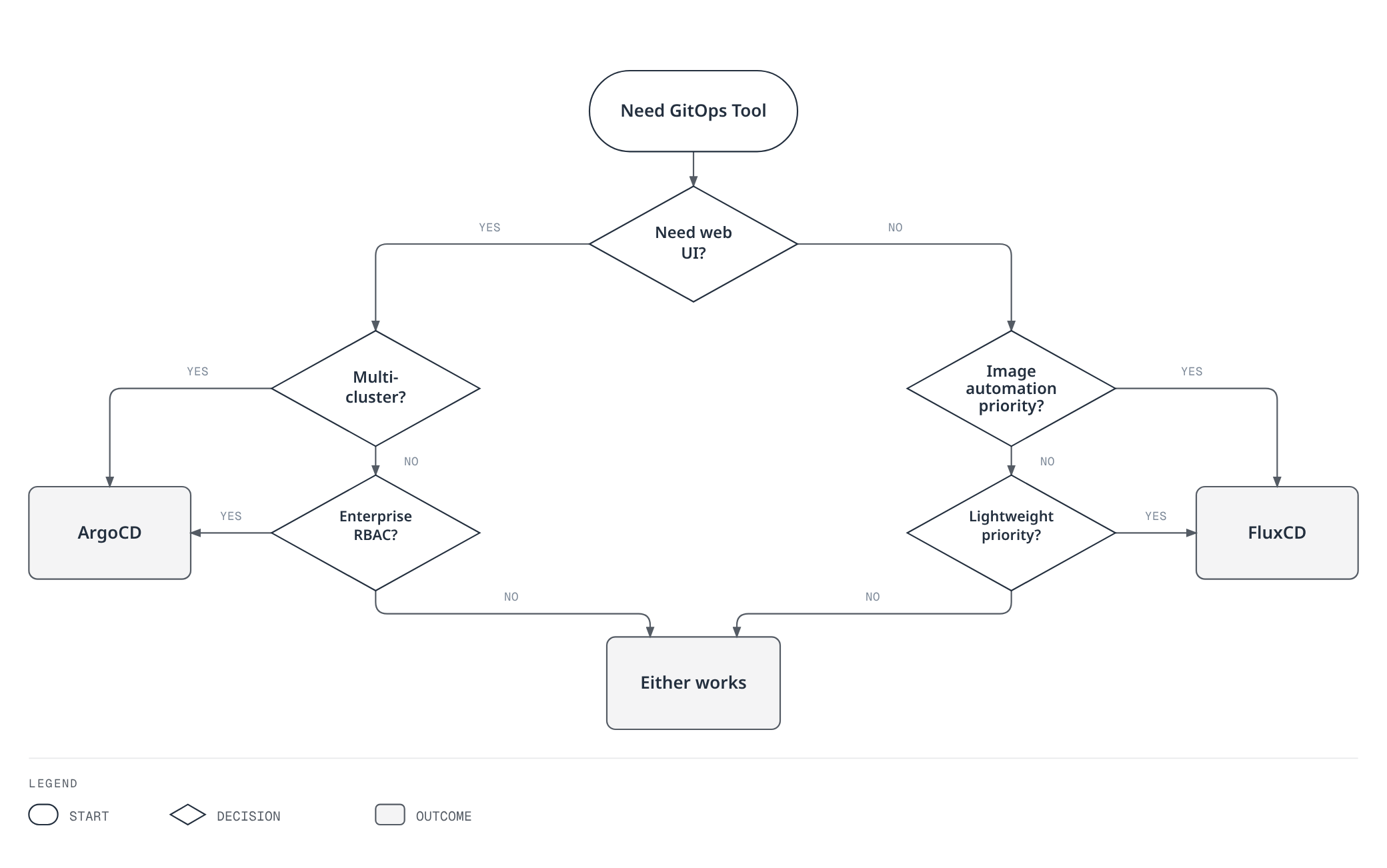

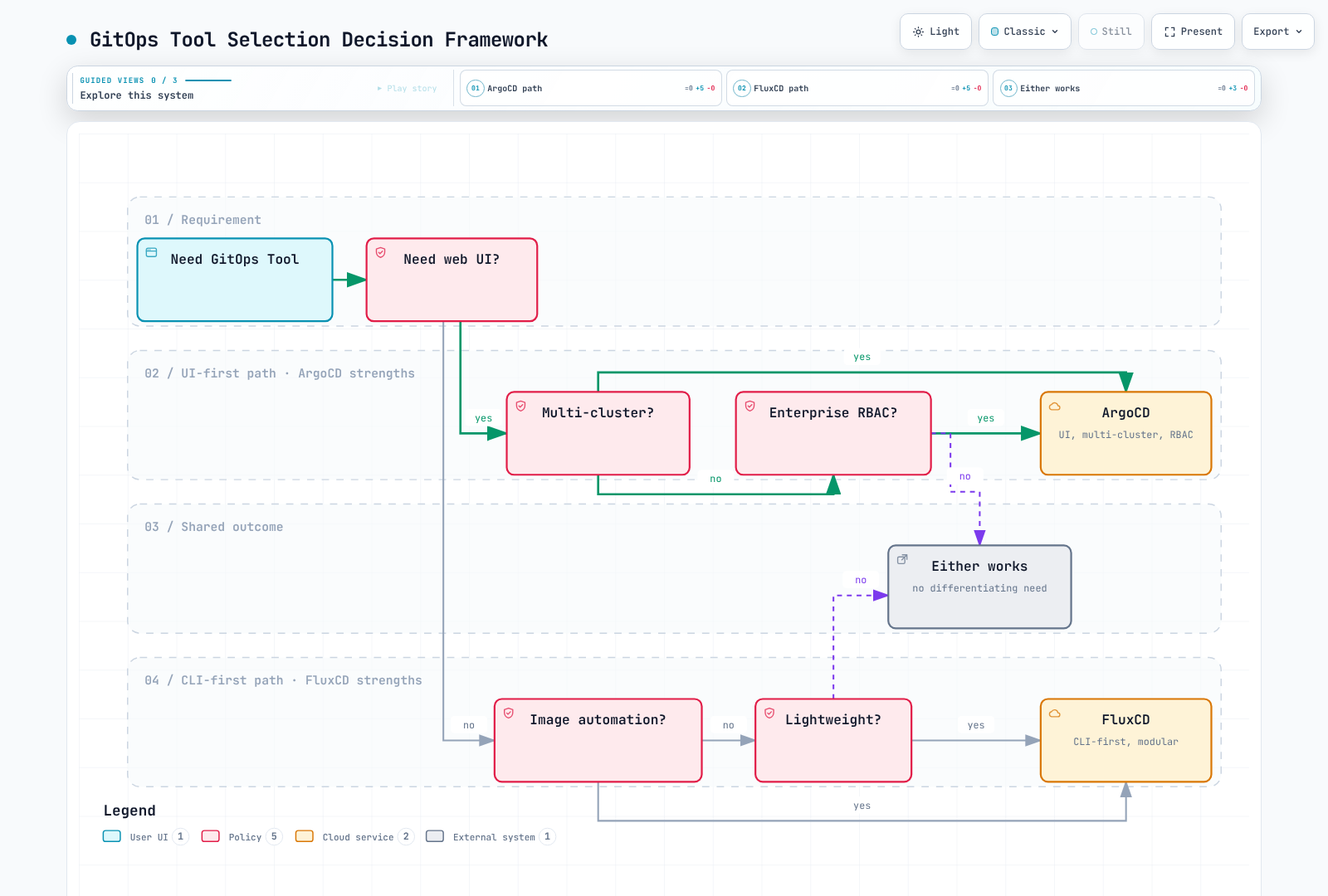

Decision tree guiding the choice between ArgoCD, FluxCD, or either tool based on web UI needs, multi-cluster scope, RBAC requirements, image automation priority, and lightweight footprint priority.

Decision tree guiding the choice between ArgoCD, FluxCD, or either tool based on web UI needs, multi-cluster scope, RBAC requirements, image automation priority, and lightweight footprint priority.Open full screen ↗

GitOps on Amazon EKS ​

EKS-Specific Considerations ​

When implementing GitOps on Amazon EKS:

IAM Integration ​

A ServiceAccount annotation alone does not establish IAM access. Configure the IRSA OIDC provider/trust policy/SDK support or an EKS Pod Identity association. AWS API permissions and target Kubernetes API authentication/RBAC are separate.

Use IAM Roles for Service Accounts (IRSA) for secure AWS API access:

yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: gitops-controller
  annotations:
    eks.amazonaws.com/role-arn: arn:aws:iam::123456789012:role/GitOpsRole

Multi-Account Architecture ​

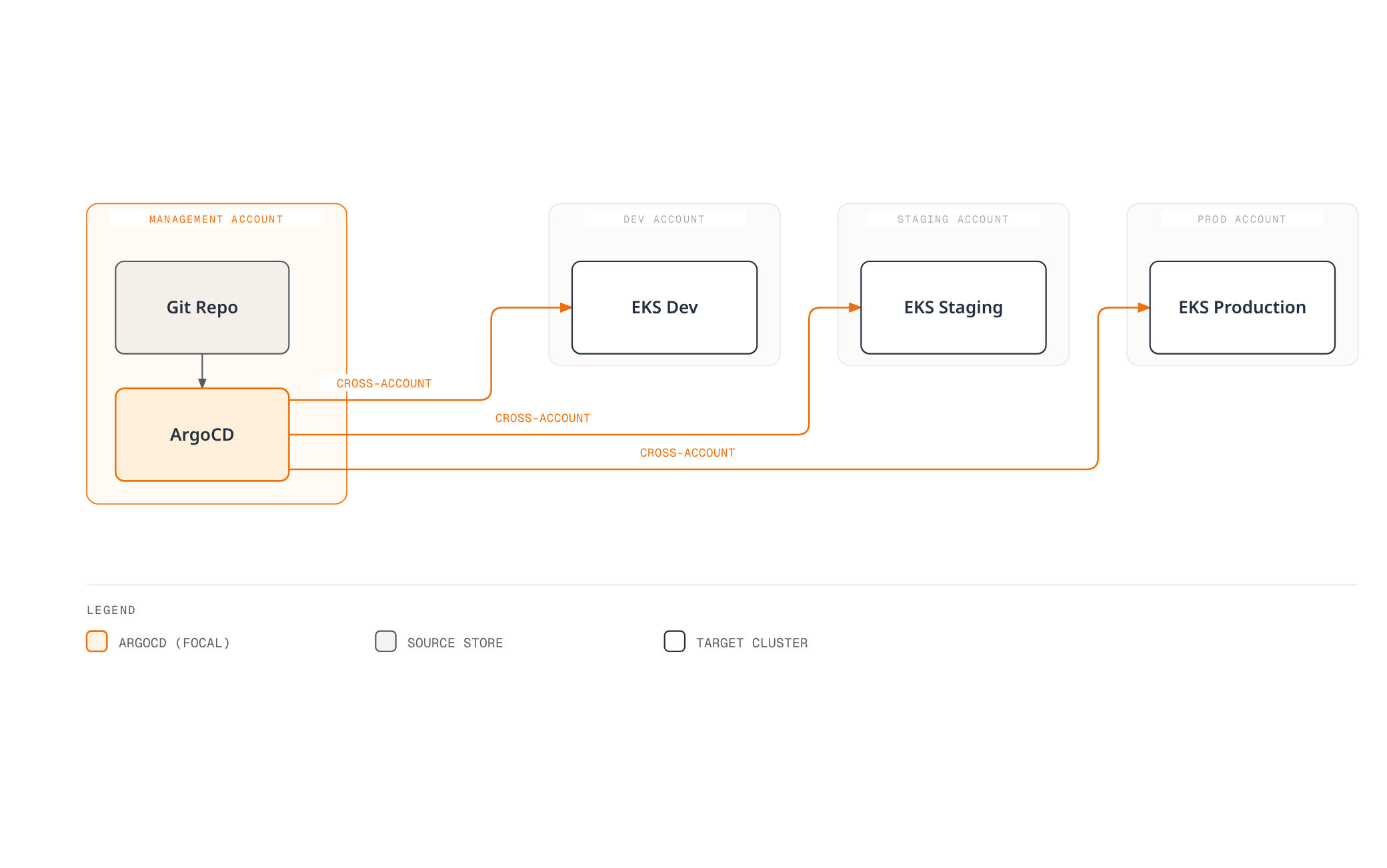

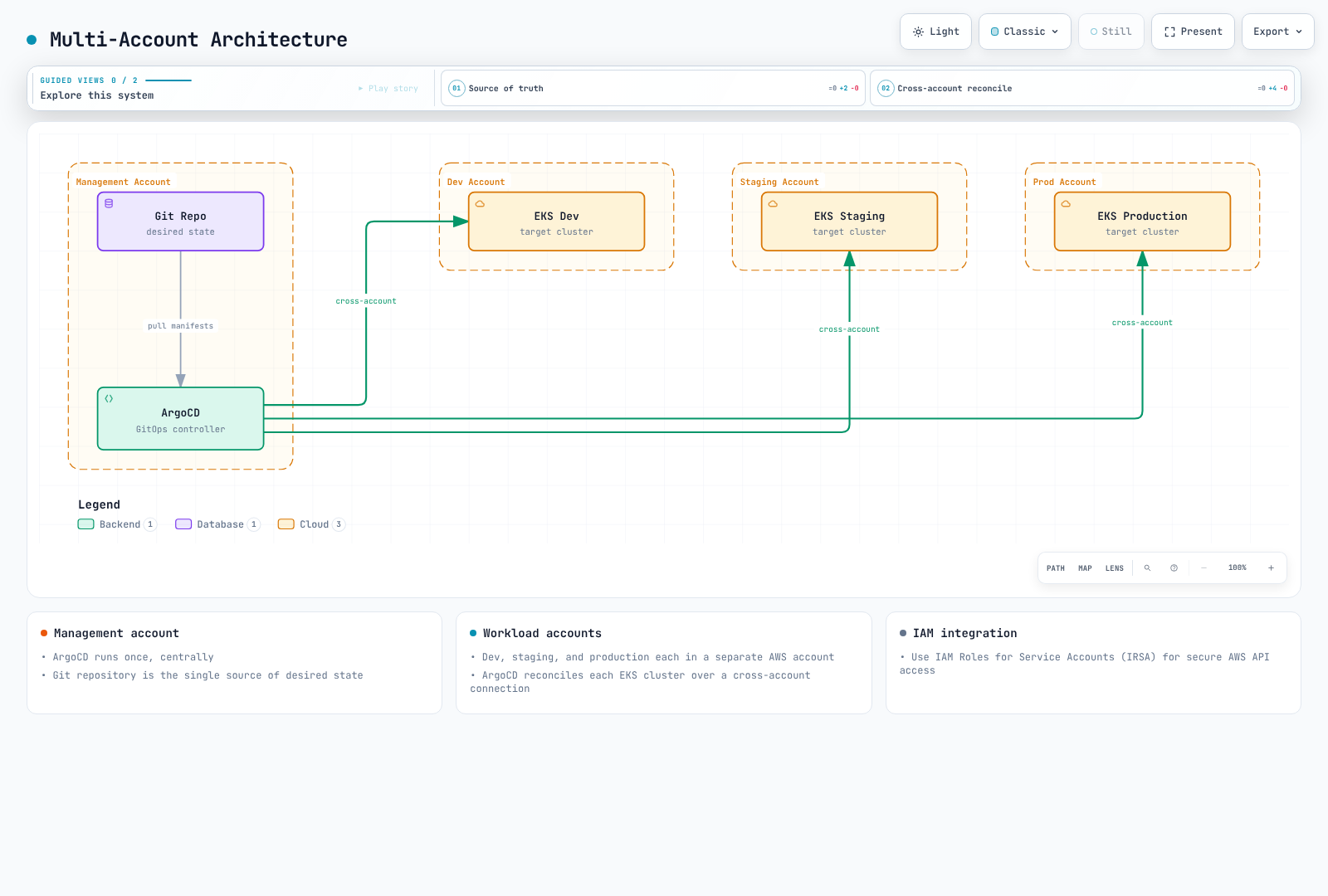

Architecture diagram showing ArgoCD in a management account reading from Git and reconciling EKS clusters in separate development, staging, and production accounts over cross-account connections.

Architecture diagram showing ArgoCD in a management account reading from Git and reconciling EKS clusters in separate development, staging, and production accounts over cross-account connections.Open full screen ↗

AWS Service Integration ​

GitOps can manage AWS resources through:

  • AWS Controllers for Kubernetes (ACK): Native K8s CRDs for AWS services
  • Crossplane: Multi-cloud resource provisioning
  • Terraform Controller: Terraform state management via GitOps
├── infrastructure/
│   ├── base/                    # Shared infrastructure
│   │   ├── vpc/
│   │   ├── eks/
│   │   └── iam/
│   └── environments/
│       ├── dev/
│       ├── staging/
│       └── production/
├── applications/
│   ├── base/                    # Application base configs
│   └── overlays/
│       ├── dev/
│       ├── staging/
│       └── production/
└── platform/
    ├── argocd/                  # GitOps tooling
    ├── monitoring/              # Observability stack
    └── security/                # Security policies

Getting Started ​

ArgoCD Quick Start ​

Use a compatible Kubernetes version, an empty dedicated namespace and cluster permissions for CRDs/RBAC. This non-HA installation example pins Argo CD 3.5.4; review the full installation guide before production. Initial admin credentials must be changed and the bootstrap Secret removed after use.

  1. Install ArgoCD:

    bash
    kubectl create namespace argocd
kubectl apply --server-side -n argocd -f https://raw.githubusercontent.com/argoproj/argo-cd/v3.5.4/manifests/install.yaml

  2. Access the UI:

    bash
    kubectl port-forward svc/argocd-server -n argocd 8080:443

  3. Get initial password:

    bash
    kubectl -n argocd get secret argocd-initial-admin-secret -o jsonpath="{.data.password}" | base64 -d

For detailed ArgoCD setup, see the ArgoCD documentation.

FluxCD Quick Start ​

Prepare GITHUB_ORG/GITOPS_REPOSITORY, the documented GitHub authentication and Kubernetes permissions. Bootstrap writes to Git and installs cluster controllers. Add --personal only for a personal owner and explicitly select optional image-automation controllers when needed.

  1. Install Flux CLI:

    bash
    curl --fail --location https://fluxcd.io/install.sh -o install-flux.sh
# Review the script and select a supported version before running it.
sudo bash install-flux.sh

  2. Bootstrap Flux:

    bash
    flux bootstrap github \
  --owner="$GITHUB_ORG" \
  --repository="$GITOPS_REPOSITORY" \
  --path=clusters/my-cluster

For detailed FluxCD setup, see the FluxCD documentation.
