VPC CNI Overview

Amazon VPC CNI supplies VPC-native Pod networking on standard EKS EC2 nodes. This guide's aws-node DaemonSet commands target that installation. Auto Mode runs managed networking components as node services; Fargate and Windows use different management paths. See the overview before applying EC2/Linux instructions to another compute mode.

Pods use VPC-routable addresses without an overlay encapsulation requirement. Routing, security groups, network policies, ENI/IP limits and application behavior still determine connectivity and performance. EKS supports IPv4 or IPv6 Pod/Service addressing, selected when creating the cluster; it does not support dual-stacked Pods or Services. A dual-stack VPC or an IPv6 Pod's IPv4 egress helper is a different concept.

Architecture

Component	Responsibility
Container runtime / CNI binary	The runtime invokes CNI for the Pod sandbox; the AWS plugin requests an address and configures its network namespace.
IPAMD	Maintains address pools and manages the required ordinary ENIs/IPs on Linux EC2 nodes.
EKS network policy controller / node agent	The managed controller resolves policy endpoints; aws-eks-nodeagent enforces supported policies using eBPF when enabled.
VPC resource controller	Manages features such as branch/trunk interfaces and Windows address allocation under their own prerequisites.

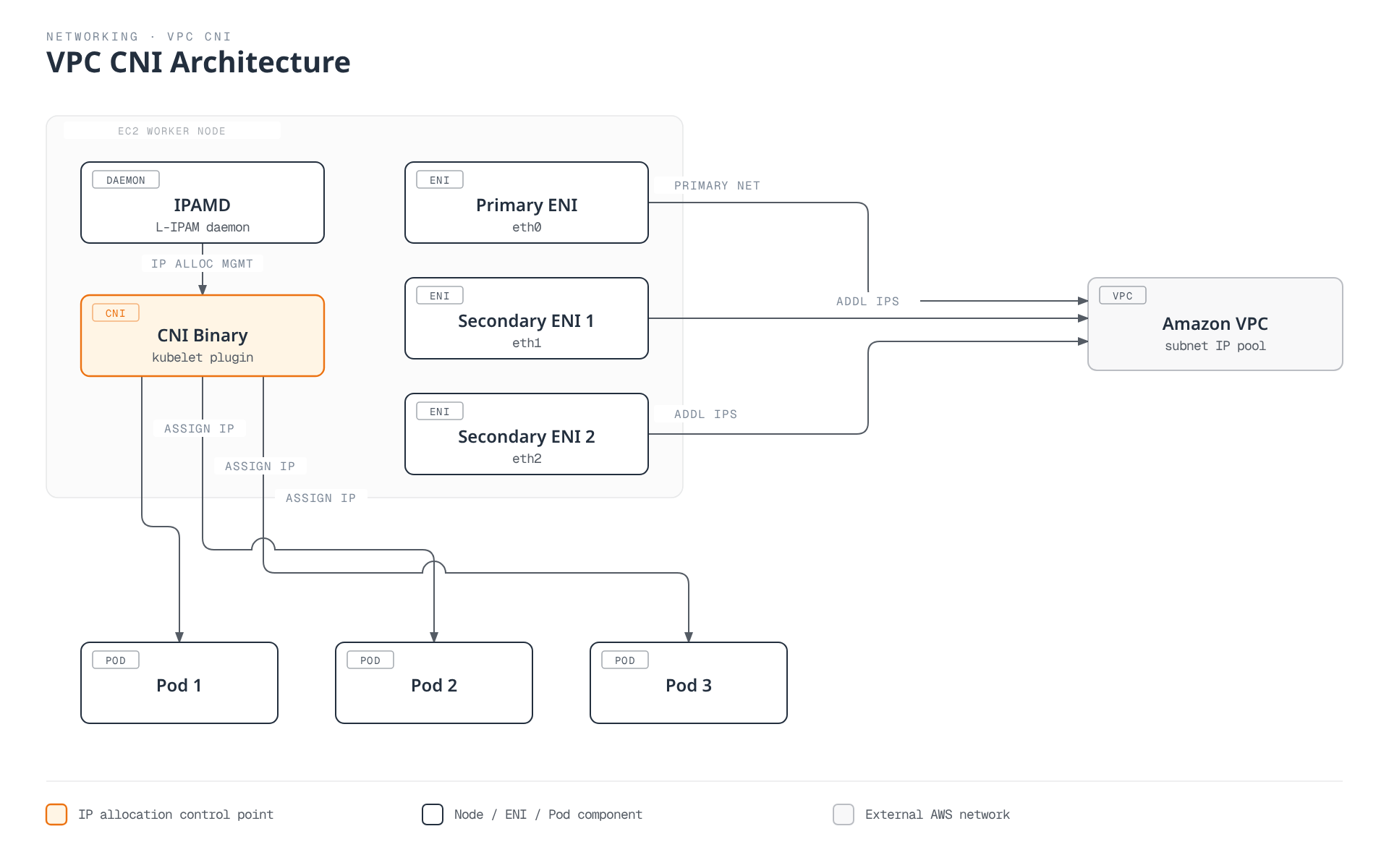

The former diagram labeled the CNI binary as directly called by kubelet. Current Kubernetes delegates CNI management to the container runtime.

IP Allocation Modes

Property	Secondary IPv4 addresses	Prefix delegation
Allocation	Individual secondary addresses on an ENI	IPv4 /28 prefixes with 16 addresses; IPv6 uses /80 prefixes
Capacity	Constrained by interface/address slots and kubelet settings	More addresses per slot, subject to supported hardware, free prefixes and kubelet/resource limits
Allocation tradeoff	Fine-grained address allocation	Allocates a block at once; warm targets can reserve unused addresses
Selection	Use according to compatibility and measured demand	Verify Nitro support, subnet fragmentation, workload churn and feature combinations

Prefix delegation is not a universal requirement for a large cluster, and does not manufacture address space in an exhausted subnet.

Networking Model

ENI Architecture

For ordinary secondary-IPv4 mode, each ENI has a primary address and additional addresses available to the CNI. The primary ENI also carries the node's primary address. Additional ENIs can supply more secondary Pod addresses. Custom networking changes which interfaces/subnets supply Pod addresses; prefix and branch-ENI modes have different allocation rules.

Linux EC2 node — ordinary secondary-IPv4 illustration
├── Primary ENI: node primary IP + secondary IPs for Pods
├── Additional ENI: its primary IP + secondary IPs for Pods
└── Additional ENI: its primary IP + secondary IPs for Pods

Instance Type ENI/IP Limits

Instance type	Max ENIs	IPv4 slots per ENI	Legacy secondary-IP bootstrap maxPods
t3.medium	3	6	17
t3.large	3	12	35
m5.large	3	10	29
m5.xlarge	4	15	58
m5.2xlarge	4	15	58
c5.4xlarge	8	30	234
m5.8xlarge	8	30	234

The historical calculation is ENIs × (IPv4 slots per ENI − 1) + 2. The +2 accounts for the two host-network system Pods in that bootstrap calculation; for m5.large, 3 × 9 + 2 = 29. It does not mean all current deployments always have exactly two host-network Pods.

These are legacy bootstrap values, not current universal Pod-density recommendations. Prefix delegation, custom networking, branch interfaces, multiple network cards, CPU/memory and kubelet maxPods all matter. EKS managed node groups cap maxPods at 110 for instances with fewer than 30 vCPUs and 250 otherwise. Inspect the actual node's allocatable capacity.

Prefix Delegation

An EKS managed add-on configuration fragment for Linux IPv4 prefix mode is:

{
  "env": {
    "ENABLE_PREFIX_DELEGATION": "true",
    "WARM_PREFIX_TARGET": "1"
  }
}

Merge this with the intended add-on configuration using the management procedure below. For a Helm-owned installation, the equivalent env mapping belongs in Helm values. Direct kubectl set env edits may be reconciled by the chosen manager.

IPv4 allocation needs suitable contiguous /28 blocks, not merely a positive AvailableIpAddressCount. Verify subnet reservations/fragmentation and supported Nitro instances. Enabling prefixes does not automatically raise every existing kubelet's Pod limit or increase the branch-ENI Pod limit.

Installation and Configuration

Establish Ownership and Compatibility

Use configured AWS CLI credentials and a Kubernetes context for the intended cluster. Start with reads:

EKS_REGION=ap-northeast-2
CLUSTER_NAME=my-cluster
KUBERNETES_MINOR="$(aws eks describe-cluster --region "$EKS_REGION" \
  --name "$CLUSTER_NAME" --query cluster.version --output text)"
aws eks describe-addon-versions --region "$EKS_REGION" \
  --addon-name vpc-cni --kubernetes-version "$KUBERNETES_MINOR"
aws eks describe-addon --region "$EKS_REGION" \
  --cluster-name "$CLUSTER_NAME" --addon-name vpc-cni
kubectl -n kube-system get daemonset aws-node -o yaml

An EKS ResourceNotFoundException for describe-addon does not prove that no CNI is installed: it may be self-managed. Inspect the existing DaemonSet, ServiceAccount, Helm releases, configuration and IAM model before choosing one manager. Auto Mode networking is not installed through this workflow.

Existing EKS Managed Add-on

Export the existing settings and inspect the selected compatible build's schema:

umask 077
aws eks describe-addon --region "$EKS_REGION" \
  --cluster-name "$CLUSTER_NAME" --addon-name vpc-cni > vpc-cni-before.json
jq -r '.addon.configurationValues // "{}"' vpc-cni-before.json > vpc-cni-config.json
: "${VPC_CNI_ADDON_VERSION:?Select a compatible EKS add-on build from the metadata}"
aws eks describe-addon-configuration --region "$EKS_REGION" \
  --addon-name vpc-cni --addon-version "$VPC_CNI_ADDON_VERSION"

Review required intermediate upgrade versions and release changes. Edit vpc-cni-config.json to retain the intended existing configuration and incorporate only the selected changes. Do not assume a partial payload or a conflict flag preserves every setting automatically. Confirm the CNI's IAM permissions and its configured IRSA/Pod Identity role; IPv6 needs the corresponding permissions.

For an already managed add-on, a reviewed update can use:

set -eu
VPC_CNI_UPDATE_ID="$(aws eks update-addon --region "$EKS_REGION" \
  --cluster-name "$CLUSTER_NAME" --addon-name vpc-cni \
  --addon-version "$VPC_CNI_ADDON_VERSION" \
  --configuration-values file://vpc-cni-config.json --resolve-conflicts PRESERVE \
  --query update.id --output text)"
aws eks describe-update --region "$EKS_REGION" --name "$CLUSTER_NAME" \
  --addon-name vpc-cni --update-id "$VPC_CNI_UPDATE_ID"

PRESERVE is an explicit conflict-handling choice; verify the resulting environment, images and behavior. Recheck the captured update ID until its status is Successful; if it is Failed or Cancelled, inspect its errors before proceeding. Only then check the resulting add-on and DaemonSet:

aws eks describe-addon --region "$EKS_REGION" \
  --cluster-name "$CLUSTER_NAME" --addon-name vpc-cni
kubectl -n kube-system rollout status daemonset/aws-node --timeout=10m

An accepted API request or an earlier DaemonSet's ready state does not prove this update and network validation have completed.

For an absent managed add-on after installation/ownership preparation, the create operation is separate:

aws eks create-addon --region "$EKS_REGION" \
  --cluster-name "$CLUSTER_NAME" --addon-name vpc-cni \
  --addon-version "$VPC_CNI_ADDON_VERSION" \
  --configuration-values file://vpc-cni-config.json

Do not repeatedly call create-addon to turn on individual features, and do not force OVERWRITE over an existing customized installation without a migration plan.

Helm-owned Installation

Pin the whole chart, which also selects the matching init and policy-agent components. Overriding only two image tags does not update the rest of the chart:

helm repo add eks https://aws.github.io/eks-charts
helm repo update eks
helm show values eks/aws-vpc-cni --version 1.23.0 > chart-defaults.yaml
helm template aws-vpc-cni eks/aws-vpc-cni --namespace kube-system \
  --version 1.23.0 -f helm-values.yaml > rendered-cni.yaml

Prepare helm-values.yaml for the actual IP family, CNI ServiceAccount/IAM and selected features. The basic Linux examples in this guide use IPv4. Review the rendered resources before applying:

helm upgrade --install aws-vpc-cni eks/aws-vpc-cni --namespace kube-system \
  --version 1.23.0 -f helm-values.yaml --wait --timeout 10m

These commands assume a clean or Helm-owned installation. Existing EKS-managed or bootstrap-owned resources need a planned ownership migration. EKS partition/registry access and image-pull prerequisites must also match the environment.

Important Configuration Values

Setting	Meaning	Baseline/default distinction
WARM_IP_TARGET	Desired free addresses for new ordinary Pod assignments	Unset by default; not a hard maximum
MINIMUM_IP_TARGET	Floor for total allocated addresses	Unset by default; pair with a positive warm-IP target when used
WARM_ENI_TARGET	Desired warm ENI capacity	Released default: 1; IP targets override it
WARM_PREFIX_TARGET	Desired free IPv4 prefixes	Released chart/manifest sets 1; bare daemon documentation says unset
ENABLE_PREFIX_DELEGATION	Select prefix allocation	Linux chart default: "false"
AWS_VPC_K8S_CNI_CUSTOM_NETWORK_CFG	Select custom-networking behavior	Default: "false"
ENI_CONFIG_LABEL_DEF	Node label key selecting ENIConfig	Daemon default: k8s.amazonaws.com/eniConfig; zone-based examples override it
ENABLE_POD_ENI	Enable the EC2 Pod-ENI integration	Default: "false"; other SGPP prerequisites still apply
POD_SECURITY_GROUP_ENFORCING_MODE	SGPP routing/SNAT/security-group behavior	Default: strict
NETWORK_POLICY_ENFORCING_MODE	Network-policy behavior while a new Pod's rules are being configured	Default: standard

The two enforcing-mode settings control different systems. Environment values in EKS configuration payloads are strings.

Custom Networking (ENIConfig)

Create actual Pod subnets and security groups in the intended VPC/AZ, then reference their IDs:

apiVersion: crd.k8s.amazonaws.com/v1alpha1
kind: ENIConfig
metadata:
  name: ap-northeast-2a
spec:
  subnet: subnet-0123456789abcdef0
  securityGroups:
  - sg-0123456789abcdef0
---
apiVersion: crd.k8s.amazonaws.com/v1alpha1
kind: ENIConfig
metadata:
  name: ap-northeast-2b
spec:
  subnet: subnet-0abcdef0123456789
  securityGroups:
  - sg-0123456789abcdef0

Enable custom networking and use the node's actual zone label:

{
  "env": {
    "AWS_VPC_K8S_CNI_CUSTOM_NETWORK_CFG": "true",
    "ENI_CONFIG_LABEL_DEF": "topology.kubernetes.io/zone"
  }
}

An explicit ENIConfig node annotation takes precedence over the label. ENIConfig objects alone do not enable custom networking. Plan routing, DNS/security rules, address capacity and workload/node transition; current Pods do not move to a new subnet simply because a new CIDR or ENIConfig exists.

IP Address Management

Warm-pool Tuning

Use measured Pod demand and churn, available address space and EC2 API limits. These are alternative example targets, not prescriptions based only on cluster size:

{
  "env": {
    "WARM_IP_TARGET": "2",
    "MINIMUM_IP_TARGET": "4"
  }
}

{
  "env": {
    "WARM_IP_TARGET": "5",
    "MINIMUM_IP_TARGET": "10"
  }
}

MINIMUM_IP_TARGET is a total allocation floor; WARM_IP_TARGET targets free addresses. They take precedence over the ENI/prefix warm-target strategy. With prefix delegation, allocations still happen in prefix-sized units. More warm capacity can reduce allocation waits but consumes addresses, and aggressive changes can increase API calls.

Adding a Secondary CIDR

First review existing associations, connected-network overlap, VPC CIDR restrictions and subnet/routing requirements:

VPC_ID=vpc-0123456789abcdef0
aws ec2 describe-vpcs --region "$EKS_REGION" --vpc-ids "$VPC_ID" \
  --query 'Vpcs[0].CidrBlockAssociationSet'

The following uses illustrative IDs and address space; perform it only as part of the reviewed VPC plan:

aws ec2 associate-vpc-cidr-block --region "$EKS_REGION" \
  --vpc-id "$VPC_ID" --cidr-block 100.64.0.0/16
aws ec2 describe-vpcs --region "$EKS_REGION" --vpc-ids "$VPC_ID" \
  --query 'Vpcs[0].CidrBlockAssociationSet'

Confirm that the new CIDR association is associated, rather than still associating, before creating a subnet in it:

aws ec2 create-subnet --region "$EKS_REGION" --vpc-id "$VPC_ID" \
  --cidr-block 100.64.0.0/19 --availability-zone ap-northeast-2a

The subnet also needs its intended route table, security rules and CNI selection. Existing Pods keep their current networking until the planned transition. RFC 6598 100.64.0.0/10 is shared address space, not globally unique private capacity; check overlaps with every connected environment.

IPv6 Cluster Configuration

IP family is selected at cluster creation and cannot be changed afterward. The official eksctl interface uses a configuration file, not an --ip-family flag. A schema example is:

apiVersion: eksctl.io/v1alpha5
kind: ClusterConfig
metadata:
  name: ipv6-example
  region: ap-northeast-2
  version: '1.35'
kubernetesNetworkConfig:
  ipFamily: IPv6
iam:
  withOIDC: true
addons:
- name: vpc-cni
- name: coredns
- name: kube-proxy
managedNodeGroups:
- name: linux-nitro
  amiFamily: AmazonLinux2023
  instanceType: m5.large
  desiredCapacity: 2
  privateNetworking: true

Replace the example version/Region, choose supported node images and review VPC endpoint/access and IAM settings before creation. Add-on versions omitted here resolve through the supported EKS/eksctl path; inspect and pin the required compatible builds for a controlled deployment. iam.withOIDC and the managed add-ons/node group reflect the documented eksctl IPv6 prerequisites.

eksctl create cluster --config-file ipv6-cluster.yaml

This audit did not create a cluster. Local CLI help/schema checks used eksctl 0.229.0; they are not a live validation of networking, IAM or the Region's available builds.

IPv6 requires supported Linux Nitro/Fargate paths and prefix allocation; Windows is unsupported. IPv6 Pods may have an egress-only IPv4 helper interface. The policy agent documents that IPv6 policy on the primary interface does not protect that helper's IPv4 traffic. If the design requires removing that path, review ENABLE_V4_EGRESS, dependencies and Pod rollout rather than assuming IPv6 policy alone blocks it.

Network Policy Support

Native Enforcement

Standard native eBPF policy support was introduced in VPC CNI 1.14. Current EKS documentation lists VPC CNI 1.21.0 or later for both standard NetworkPolicy and Admin ClusterNetworkPolicy (EKS network policy requirements); the reviewed 1.23 baseline must still be matched to the cluster and platform.

{
  "enableNetworkPolicy": "true"
}

"enableNetworkPolicy": "true" is the documented string-valued configuration. Supported EC2 Linux nodes can use this implementation; Fargate and Windows do not use its enforcement. Auto Mode has its own managed implementation. EKS ClusterNetworkPolicy Admin/Baseline controls and Auto Mode DNS ApplicationNetworkPolicy are extensions, not aliases of standard NetworkPolicy.

In standard mode, new Pods initially allow traffic while policy rules are resolved. A stricter startup behavior can be selected deliberately:

{
  "enableNetworkPolicy": "true",
  "env": {
    "NETWORK_POLICY_ENFORCING_MODE": "strict"
  }
}

Strict mode requires correct policy coverage for DNS and other required traffic before workloads start. It does not configure SGPP's separate POD_SECURITY_GROUP_ENFORCING_MODE.

NetworkPolicy Example

Prerequisites: the app namespace contains controller-managed frontend/backend workloads; backend Pods listen on TCP 8080. AWS currently documents metadata.ownerReferences as important for reliable enforcement and requires matching Service/container port numbers (and matching names for named ports).

apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: allow-frontend-to-backend
  namespace: app
spec:
  podSelector:
    matchLabels:
      app: backend
  policyTypes:
  - Ingress
  ingress:
  - from:
    - podSelector:
        matchLabels:
          app: frontend
    ports:
    - protocol: TCP
      port: 8080

The source Pod selector is limited to the same namespace. This rule isolates selected backend ingress and permits matching frontend traffic to 8080; it does not deny backend egress or authenticate an application user. Consider other matching policies and Admin-tier behavior. Validate both allowed and denied flows with Deployment/Job-managed Pods rather than relying on standalone diagnostic Pods.

Verification and Diagnostics

kubectl -n kube-system logs -l k8s-app=aws-node -c aws-eks-nodeagent --tail=200
kubectl get networkpolicy -A
kubectl get policyendpoints.networking.k8s.aws -A

These are node-agent logs; the policy controller runs in the EKS-managed control plane. PolicyEndpoint objects are generated state, not objects to edit/delete casually.

On an authorized Linux node with the installed policy CLI:

sudo /opt/cni/bin/aws-eks-na-cli ebpf progs
sudo /opt/cni/bin/aws-eks-na-cli ebpf maps

The tool is aws-eks-na-cli, not ebpf-sdk list-maps. Inspect the affected node and distinguish process logs from configured policy-event logs and CloudWatch delivery. Enabling external log delivery also requires the appropriate IAM/configuration.

Advanced Features

Security Groups for Pods

The selected security groups must already exist with appropriate DNS, API, application and return-path rules:

apiVersion: vpcresources.k8s.aws/v1beta1
kind: SecurityGroupPolicy
metadata:
  name: my-security-group-policy
  namespace: app
spec:
  podSelector:
    matchLabels:
      app: database
  securityGroups:
    groupIds:
    - sg-0123456789abcdef0
    - sg-0abcdef0123456789

An example EC2 configuration choosing standard SGPP behavior is:

{
  "env": {
    "ENABLE_POD_ENI": "true",
    "POD_SECURITY_GROUP_ENFORCING_MODE": "standard"
  }
}

This is not a complete SGPP installation. Verify supported trunking instance types, the cluster role's VPC resource-controller permissions, CNI permissions, subnet capacity and the relevant EKS prerequisites. T-family instances are not supported for trunking merely because they are Nitro-based. Newly created/recreated selected Pods receive the intended setup.

The managed resource controller attaches an additional trunk ENI and associates branch ENIs with it. The trunk is not the node's primary eth0 ENI. A selected Pod uses a branch interface with its security groups; prefix delegation does not increase the branch-Pod limit. Fargate security groups use their separate managed path.

Mode / feature	Consequence to verify
SGPP strict	Branch security-group behavior and no Pod source NAT; NodeLocal DNSCache and instance-target LoadBalancer/NodePort with externalTrafficPolicy: Local have documented restrictions
SGPP standard	Supports the documented combined policy/DNS paths; with default external-SNAT behavior, out-of-VPC traffic uses the node primary address/security groups
Custom networking plus SGPP	The Pod security groups take precedence over ENIConfig security groups
IPv6	Supported by the EKS service guide under its version/platform conditions, including EC2 CNI 1.16+; the older README feature-table “No” cell must not override that detailed guidance
Windows / Auto Mode	This SGPP mechanism is unsupported; Auto Mode has separate node-class networking controls

Mode changes affect newly launched Pods; plan recreation and verify the traffic path. Do not assume the same security groups govern every packet after SNAT.

Multiple Interfaces and Multus

VPC CNI 1.20+ has native multi-NIC support for suitable instances with multiple network cards. Its ENABLE_MULTI_NIC and Pod NIC configuration are distinct from Multus, and applications must use the additional interfaces to gain their benefits.

Multus is a meta-plugin. AWS's supported Multus arrangement uses VPC CNI as the primary delegate; using VPC CNI for higher-order interfaces is unsupported. Additional interfaces need their own compatible plugin, address assignment and lifecycle management.

Additional-interface requirement	Why it matters
Dedicated, identified interface	A hard-coded eth1 can refer to an interface managed by IPAMD
node.k8s.amazonaws.com/no_manage=true on the additional ENI	Prevents VPC CNI from managing the Multus interface
AWS-assigned/routable addresses and correct subnet/SG/routes	An arbitrary 192.168.1.0/24 allocation is not automatically valid on an EC2 ENI
Coordinated IPAM	A shared host-local range can allocate duplicates on different nodes
Interface-specific policy tests	Extra interfaces and IPv4 helper paths are not automatically covered by every primary-interface policy

A NetworkAttachmentDefinition's spec.config contains the chosen CNI JSON, including its supported version, plugin, actual parent interface and IPAM configuration. The former generic ipvlan/eth1/host-local manifest omitted the prerequisites above and has been replaced by these implementation requirements. This guide does not claim a deployed Multus/IPAM solution.

Windows

Windows uses the VPC resource-controller IPAM path. Prepare the cluster role permissions, Windows node-role authentication/access entry (EC2_WINDOWS where applicable), and Linux/Fargate capacity for CoreDNS. Windows Fargate, Auto Mode, Hybrid Nodes, IPv6, custom networking, SGPP and native VPC-CNI network policy have documented restrictions.

The controller's resulting ConfigMap must include the following Windows IPAM entry. This shows the required data, not an instruction to overwrite a manager-owned ConfigMap:

apiVersion: v1
kind: ConfigMap
metadata:
  name: amazon-vpc-cni
  namespace: kube-system
data:
  enable-windows-ipam: 'true'

For a Helm-owned installation, Windows prefix targets use different keys from Linux:

enableWindowsIpam: 'true'
enableWindowsPrefixDelegation: 'true'
warmWindowsPrefixTarget: 1
warmWindowsIPTarget: 0
minimumWindowsIPTarget: 0

Review the matching build's schema, field ownership and resulting ConfigMap. Do not assume a Helm value is accepted unchanged as an EKS add-on configuration property. The Windows chart flags map to enable-windows-ipam and enable-windows-prefix-delegation; the warm-target fields are also Windows-specific here.

After those prerequisites and AMI/version checks, a node-group command can use:

eksctl create nodegroup --region "$EKS_REGION" --cluster "$CLUSTER_NAME" \
  --name windows-example --managed --node-type m5.large --nodes 2 \
  --node-ami-family WindowsServer2022FullContainer

Windows secondary-IP mode normally uses one ENI and its address-slot limit, not the Linux multi-ENI formula. Prefix delegation and actual kubelet limits need separate sizing.

Troubleshooting

IP Allocation and Scheduling

Check Pod events to distinguish scheduling failure from sandbox/CNI allocation failure:

kubectl -n kube-system logs -l k8s-app=aws-node -c aws-node --tail=300
kubectl get nodes -o json | jq '.items[] | {name: .metadata.name, allocatablePods: .status.allocatable.pods}'
SUBNET_ID=subnet-0123456789abcdef0
aws ec2 describe-subnets --region "$EKS_REGION" --subnet-ids "$SUBNET_ID" \
  --query 'Subnets[].{SubnetId:SubnetId,AvailableIPs:AvailableIpAddressCount}'

allocatablePods is kubelet scheduling capacity, not current IP utilization. Subnet available-address count does not show whether a contiguous /28 is available. Check IPAMD logs, allocation mode, warm targets, ENI limits, API errors and the affected node before choosing a remedy.

ENI Count

INSTANCE_ID=i-0123456789abcdef0
aws ec2 describe-instances --region "$EKS_REGION" --instance-ids "$INSTANCE_ID" \
  --query 'Reservations[].Instances[].{InstanceId:InstanceId,AttachedENIs:length(NetworkInterfaces)}'
aws ec2 describe-instance-types --region "$EKS_REGION" --instance-types m5.large \
  --query 'InstanceTypes[].NetworkInfo.{MaxENI:MaximumNetworkInterfaces,IPv4PerENI:Ipv4AddressesPerInterface}'

The original projection counted a nested list of interfaces rather than the interfaces themselves. The corrected query reports a count per instance. Multiple cards, unmanaged/trunk interfaces and instance-specific limits still need interpretation.

Introspection and Metrics

Select the affected node's actual aws-node Pod and keep this forwarding session open:

kubectl -n kube-system get pods -l k8s-app=aws-node -o wide
AWS_NODE_POD=aws-node-example
kubectl -n kube-system port-forward "pod/$AWS_NODE_POD" 61678:61678 61679:61679

From another local terminal:

curl --fail http://127.0.0.1:61679/v1/enis
curl --fail http://127.0.0.1:61678/metrics

IPAMD introspection defaults to loopback 61679; Prometheus metrics use 61678. /v1/enis is not a metrics endpoint. These commands use local curl through the Kubernetes forwarding path; they do not require a curl binary inside the CNI image.

Classify Errors Before Changing the Cluster

Observation	Investigate before acting
InsufficientFreeAddressesInSubnet	Actual free addresses, warm allocation, selected subnets and planned capacity expansion
InsufficientCidrBlocks	Contiguous prefix availability/fragmentation and subnet reservations
ENI/SG limit error	The specific quota, instance/interface type and objects in use; avoid removing unrelated security groups
ENI creation failure	Detailed AWS error, CNI credential role, permissions/conditions, quota and API connectivity
Waiting for a Pod IP	IPAMD state, controller/API delays, throttling, sandbox events and address readiness

Restarting IPAMD, enlarging an instance or granting more node-role permissions is not a universal remedy. Capture evidence first and apply a reviewed change to the component that actually owns the failing operation.

Best Practices

Plan subnet capacity from expected Pods, warm pools, growth and failure/replacement overlap. A /19 or RFC 6598 range is an example design choice, not a universal requirement. Associate new CIDRs, create the necessary subnets/routes and plan CNI/workload adoption together.

Choose one warm-pool strategy. An IPv4 prefix example using free-IP and total-IP targets is:

{
  "env": {
    "ENABLE_PREFIX_DELEGATION": "true",
    "WARM_IP_TARGET": "5",
    "MINIMUM_IP_TARGET": "10"
  }
}

Do not interpret an additional WARM_PREFIX_TARGET as an independent effective target when those IP targets are set. Monitor allocation failures and actual resource constraints rather than inferring safety solely from cluster size.

Metrics and Alerts

The released IPAMD code exports awscni_total_ip_addresses, awscni_assigned_ip_addresses and the counter awscni_no_available_ip_addresses. Total/assigned gauges describe the IPAMD allocated pool, not total VPC subnet space. Small warm targets can legitimately produce a high assigned/total ratio; cooldown, branch interfaces, IP family and kubelet capacity need additional context.

Prometheus Operator CRDs and selectors must already be configured. For a Helm-owned CNI, the chart can create a PodMonitor with this IPv4-cluster example:

podMonitor:
  create: true
  labels:
    release: prometheus
  interval: 30s
  relabelings:
  - sourceLabels:
    - __meta_kubernetes_pod_node_name
    targetLabel: node
  - targetLabel: cluster
    replacement: example-cluster
  - targetLabel: ip_family
    replacement: ipv4
  - targetLabel: job
    replacement: aws-vpc-cni

Replace the example cluster label, adapt the release selector and set IP-family labels truthfully; labels do not detect the cluster's family. The chart scrapes the Agent's named metrics port and the enabled policy agent's agentmetrics port. An EKS-managed add-on needs an independently configured scraper/PodMonitor instead of installing a second CNI Helm release.

apiVersion: monitoring.coreos.com/v1
kind: PrometheusRule
metadata:
  name: vpc-cni-signals
  namespace: monitoring
  labels:
    release: prometheus
spec:
  groups:
  - name: vpc-cni
    rules:
    - record: vpc_cni:allocated_ipv4_pool_utilization:ratio
      expr: (awscni_assigned_ip_addresses{job="aws-vpc-cni",ip_family="ipv4"} / awscni_total_ip_addresses{job="aws-vpc-cni",ip_family="ipv4"})
        and (awscni_total_ip_addresses{job="aws-vpc-cni",ip_family="ipv4"} > 0)
    - alert: CniHighAllocatedIPv4PoolUtilization
      expr: vpc_cni:allocated_ipv4_pool_utilization:ratio > 0.9
      for: 5m
      labels:
        severity: info
      annotations:
        summary: Most currently allocated IPAMD IPv4 addresses are assigned
        description: This is allocated-pool utilization, not subnet exhaustion. Check
          warm targets, assignment failures and available subnet space.
    - alert: CniIPAssignmentFailures
      expr: increase(awscni_no_available_ip_addresses{job="aws-vpc-cni"}[5m]) > 0
      for: 1m
      labels:
        severity: warning
      annotations:
        summary: IPAMD could not assign an available IP address
    - alert: CniMetricsScrapeFailed
      expr: up{job="aws-vpc-cni"} == 0
      for: 5m
      labels:
        severity: warning
      annotations:
        summary: A known CNI metrics endpoint cannot be scraped

The pool ratio is limited to IPv4 and a positive observed denominator. It is an informational tuning signal, not proof of subnet exhaustion. The assignment-failure counter signals an actual failed allocation. A failed scrape is different from a disappeared target; compare expected node/component inventory separately. No data is not healthy zero. Tune thresholds, labels and notification routing in the actual monitoring environment.

References

• VPC CNI 1.23.0 documentation
• VPC CNI Helm values
• Chart version metadata
• Released CNI manifest
• IPAMD implementation
• IPAMD introspection server
• IPAM datastore
• IPAMD metric definitions
• Network policy agent 1.4.1
• AWS Helm chart index
• EKS security groups for Pods
• SGPP operating considerations
• EKS Multus support boundaries
• EKS Windows networking
• EKS IPv6 support
• eksctl IPv6 configuration
• CNI IAM configuration
• EKS VPC CNI management
• EKS network policy conditions
• Enable EKS network policy
• Prefix allocation and Pod-capacity limits

Quiz

Check your understanding with the VPC CNI Quiz.
