Part 2: Storage Classes
Last Updated: September 11, 2026
This document is the second part of the Amazon EKS storage series, covering FSx for Lustre, Amazon S3, snapshots, volume expansion, and performance optimization.
Table of Contents
- Amazon FSx for Lustre
- Amazon S3 Storage Integration

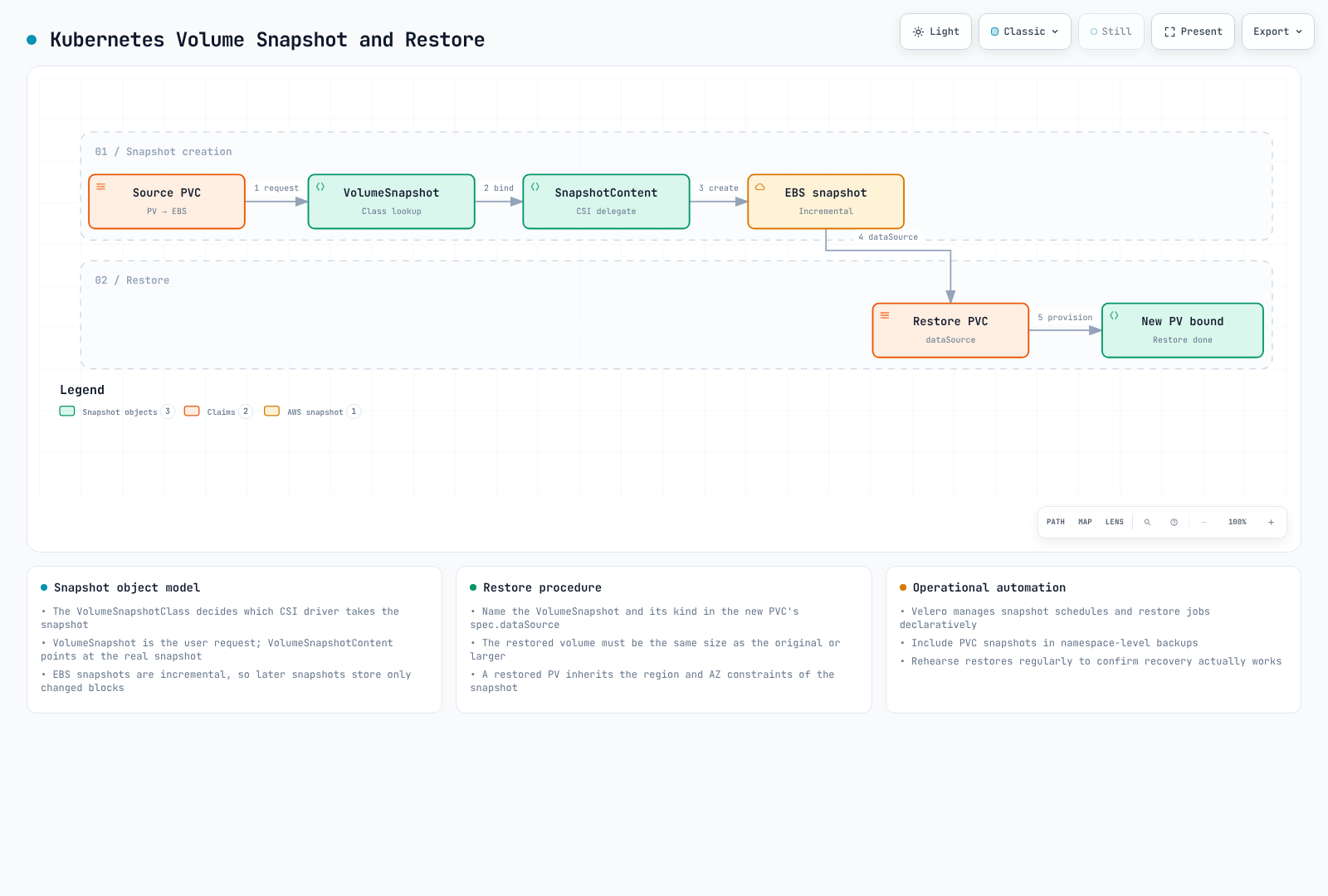

- Snapshots and Backups

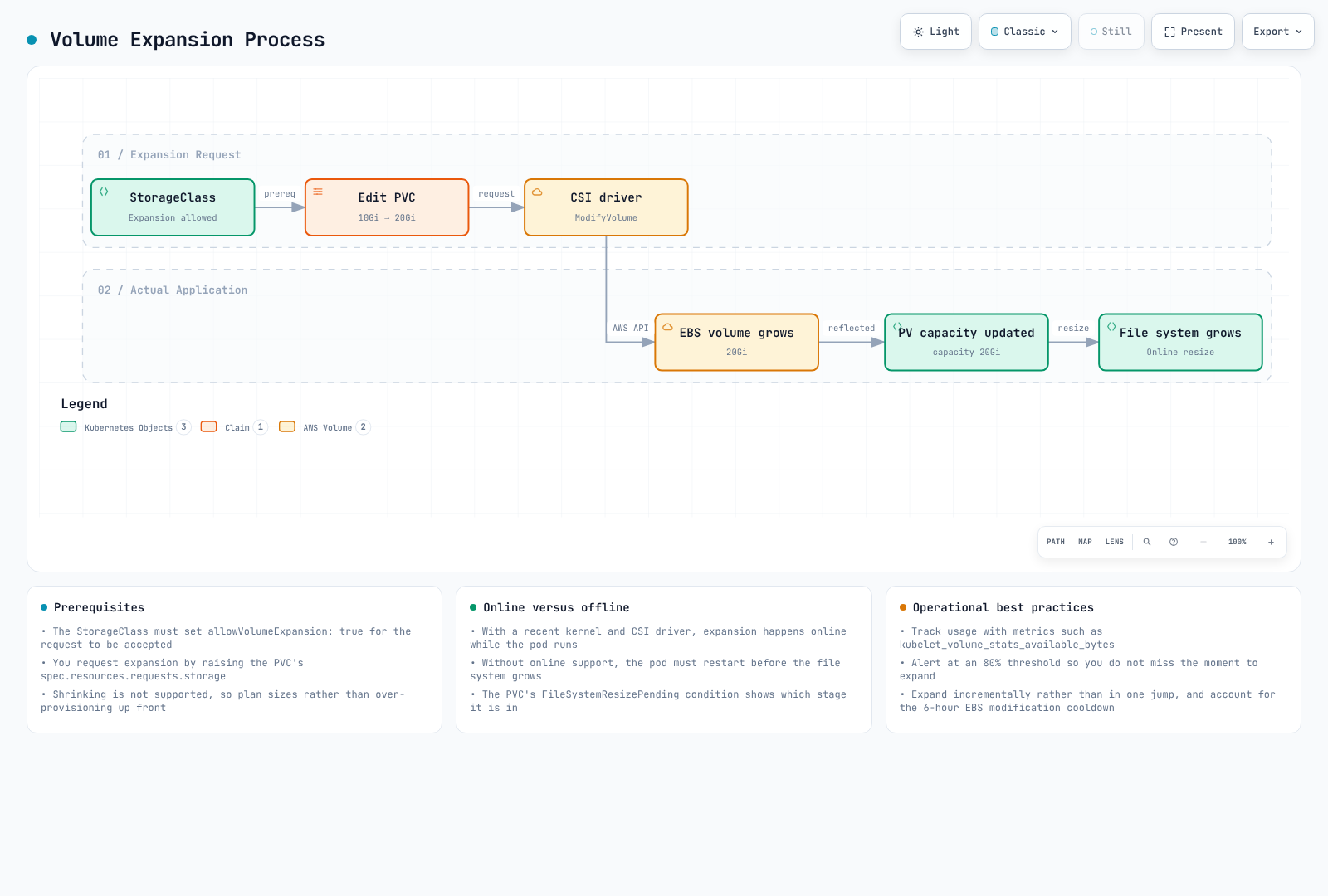

- Volume Expansion and Resizing
- Volume Cloning
- Multi-Attach EBS
- Mountpoint for S3 CSI Deep Dive

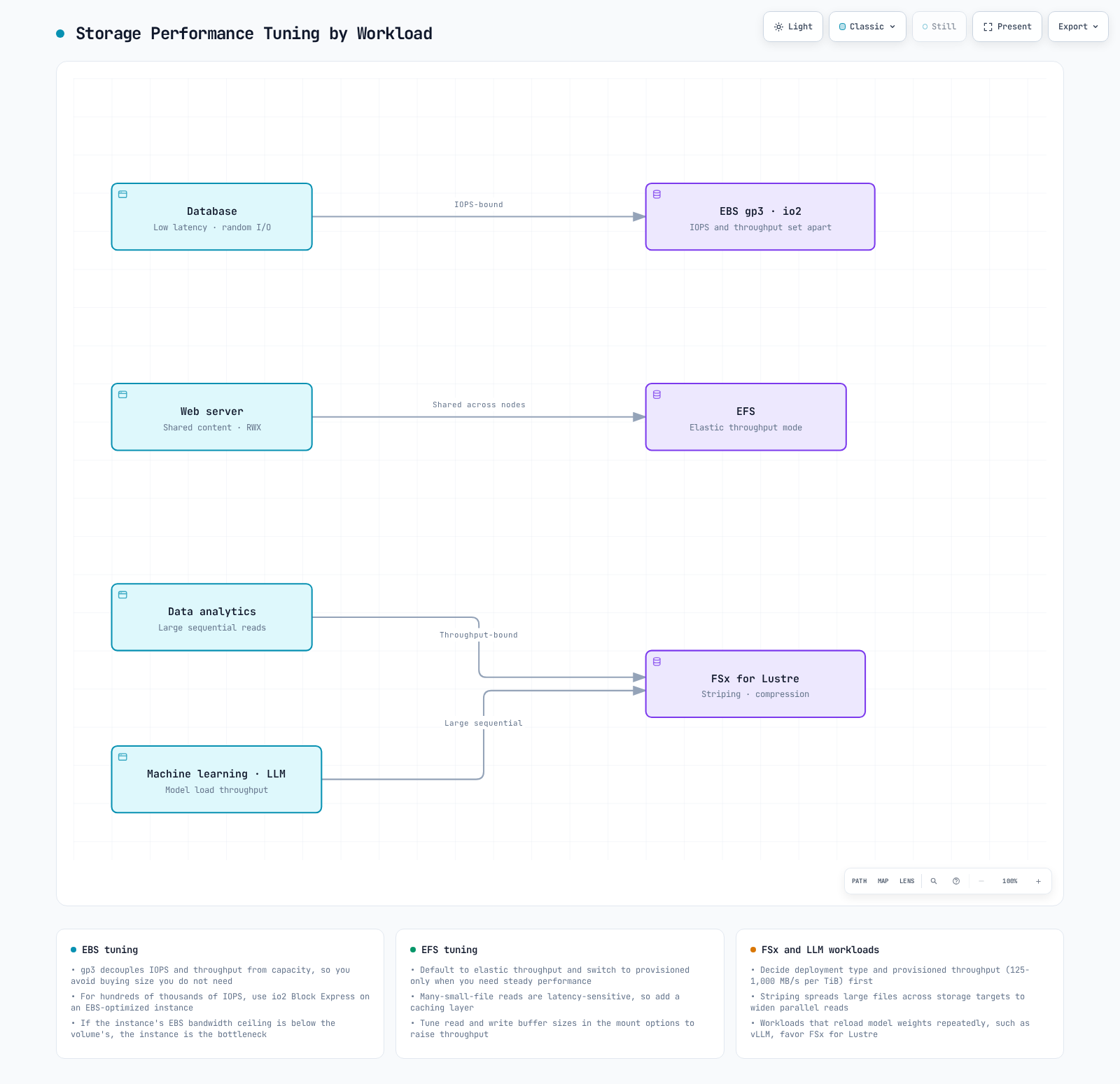

- Storage Performance Optimization
Amazon FSx for Lustre
FSx for Lustre is a parallel filesystem for supported HPC/ML/analytics workloads. Performance depends on the deployment/storage type, capacity, provisioned throughput, clients and network; a small example filesystem does not deliver every advertised aggregate maximum.

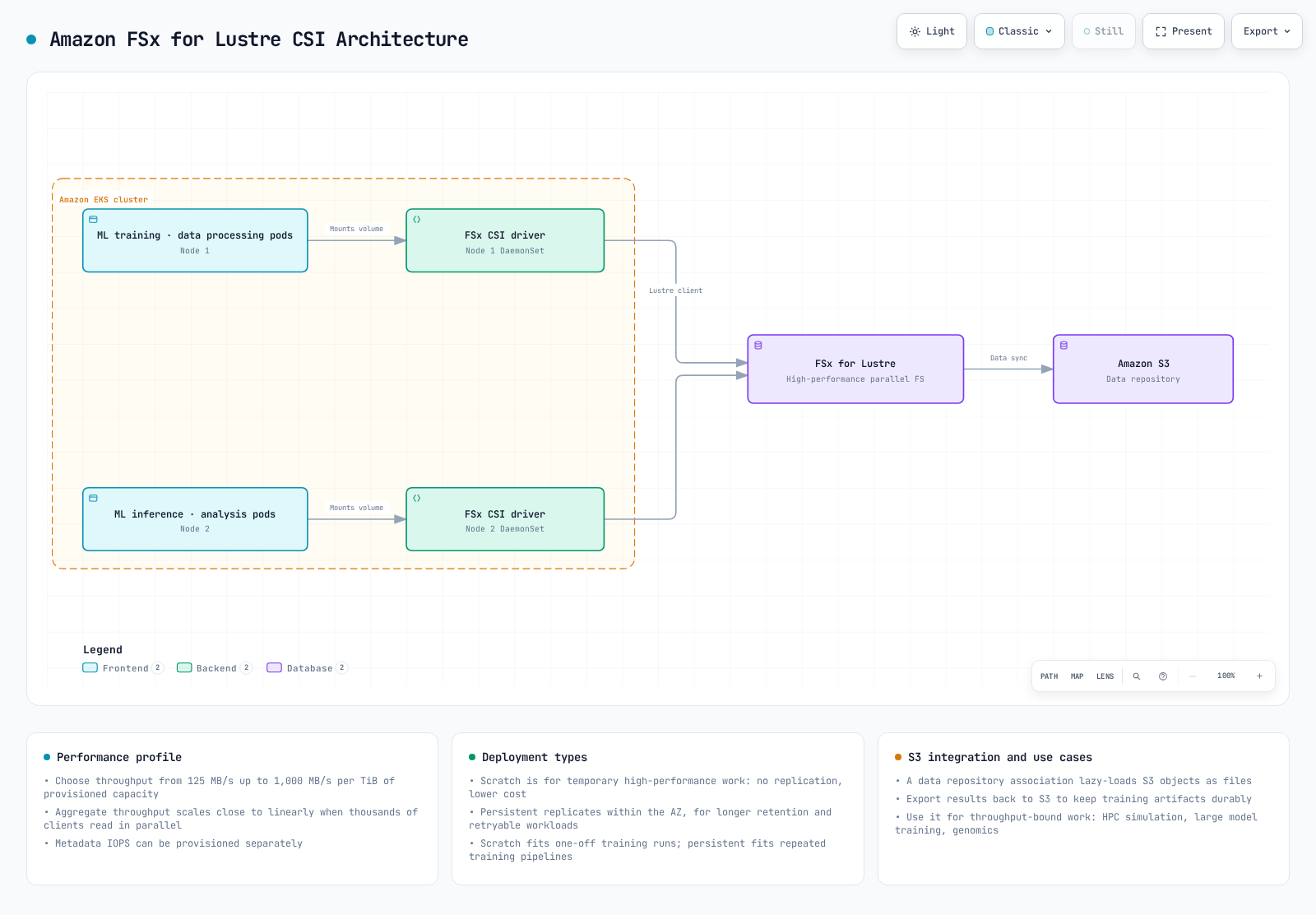

The diagram illustrates optional S3 data-repository integration. Import/export policies, tasks and permissions must be configured; creating a CSI volume alone does not establish automatic bidirectional synchronization.
Installing FSx for Lustre CSI Driver
Use the infrastructure owner’s supported EKS add-on or published Helm release. For the managed add-on example below, set CSI_ADDON_NAME=aws-fsx-csi-driver. Prepare a role for kube-system/fsx-csi-controller-sa with reviewed FSx driver permissions and Pod Identity trust/agent. IRSA is also supported with an OIDC trust and the corresponding add-on role option. The Pod Identity agent is required for that identity method, not for IRSA. Fargate is not a supported FSx CSI node environment; verify the Linux kernel/Lustre client and actual compute support.
A role created with eksctl --role-only is not a Kubernetes ServiceAccount. The managed add-on creates its account; a Helm installation must create or reference the actual account and attach the intended identity. Do not use role-only creation plus serviceAccount.create=false without preparing that account.
set -euo pipefail
: "${CLUSTER_NAME:?Set the existing cluster name}"
: "${AWS_REGION:?Set the cluster Region}"
: "${CSI_ADDON_NAME:?Use aws-fsx-csi-driver}"
case "$CSI_ADDON_NAME" in
aws-fsx-csi-driver) ;;
*) echo "Unexpected add-on"; exit 1 ;;
esac
KUBERNETES_VERSION=$(aws eks describe-cluster --region "$AWS_REGION" --name "$CLUSTER_NAME" \
--query cluster.version --output text)
CLUSTER_ENDPOINT=$(aws eks describe-cluster --region "$AWS_REGION" --name "$CLUSTER_NAME" \
--query cluster.endpoint --output text)
CURRENT_ENDPOINT=$(kubectl config view --minify -o jsonpath='{.clusters[0].cluster.server}')
test "$CURRENT_ENDPOINT" = "$CLUSTER_ENDPOINT" || { echo "kubeconfig points to another cluster"; exit 1; }
aws eks describe-addon-versions --region "$AWS_REGION" --addon-name "$CSI_ADDON_NAME" \
--kubernetes-version "$KUBERNETES_VERSION" --output json > csi-addon-versions.json
aws eks list-addons --region "$AWS_REGION" --cluster-name "$CLUSTER_NAME" --output jsonset -euo pipefail
: "${CSI_ADDON_VERSION:?Choose a reviewed compatible version from csi-addon-versions.json}"
: "${CSI_ROLE_ARN:?Set the prepared Pod Identity role ARN}"
: "${CLUSTER_NAME:?Run the inspection step first}"
: "${AWS_REGION:?Run the inspection step first}"
: "${CSI_ADDON_NAME:?Run the inspection step first}"
case "$CSI_ADDON_NAME" in
aws-fsx-csi-driver) CSI_SA=fsx-csi-controller-sa; CSI_PREFIX=fsx-csi ;;
*) echo "Unexpected add-on"; exit 1 ;;
esac
python3 - "$CSI_ADDON_NAME" "$CSI_ADDON_VERSION" <<'PY'
import json, sys
with open("csi-addon-versions.json") as stream:
catalog = json.load(stream)
versions = [v["addonVersion"] for a in catalog["addons"]
if a["addonName"] == sys.argv[1] for v in a["addonVersions"]]
if sys.argv[2] not in versions:
raise SystemExit("Version not present in the inspected compatible catalog")
PY
aws eks list-addons --region "$AWS_REGION" --cluster-name "$CLUSTER_NAME" \
--output json > csi-existing-addons.json
python3 - "$CSI_ADDON_NAME" <<'PY'
import json, sys
with open("csi-existing-addons.json") as stream:
names = json.load(stream)["addons"]
if sys.argv[1] in names:
raise SystemExit("Existing add-on: use its owner's update procedure")
PY
EXISTING_CSI=$(kubectl -n kube-system get "deployment/$CSI_PREFIX-controller" \
"daemonset/$CSI_PREFIX-node" --ignore-not-found -o name)
test -z "$EXISTING_CSI" || { echo "Existing CSI installation: review its owner"; exit 1; }
aws eks describe-addon-configuration --region "$AWS_REGION" \
--addon-name "$CSI_ADDON_NAME" --addon-version "$CSI_ADDON_VERSION"
aws eks create-addon --region "$AWS_REGION" --cluster-name "$CLUSTER_NAME" \
--addon-name "$CSI_ADDON_NAME" --addon-version "$CSI_ADDON_VERSION" \
--pod-identity-associations "serviceAccount=$CSI_SA,roleArn=$CSI_ROLE_ARN" \
--resolve-conflicts NONE
aws eks wait addon-active --region "$AWS_REGION" --cluster-name "$CLUSTER_NAME" \
--addon-name "$CSI_ADDON_NAME"This workflow stops for existing installations; migrate/update through their owner. Add-on Active is not proof of successful filesystem mounting. The examples below reuse the dedicated storage-demo namespace from Part1 and require reviewed cluster-scoped resource names.
Creating FSx for Lustre File System
Choose dynamic or static provisioning. Dynamic provisioning creates a filesystem from the PVC; do not first create another filesystem expecting the dynamic class to adopt it. The following optional manual workflow is for the static path. Select an approved subnet in a supported AZ and a preconfigured Lustre SG with the required client/filesystem traffic rules. Do not choose Subnets[0] or assume that TCP988 alone completes every supported design. This bounded example requires the cluster VPC; connected-VPC designs need separate routing/security review. It creates billable resources when run and preserves returned IDs on failure.
set -euo pipefail
: "${CLUSTER_NAME:?Set the existing cluster}"
: "${AWS_REGION:?Set the filesystem Region}"
: "${FSX_SUBNET_ID:?Select an approved subnet in a supported AZ}"
: "${FSX_SECURITY_GROUP_ID:?Set the reviewed Lustre filesystem SG}"
: "${FSX_CREATION_TOKEN:?Set a unique stable token for this new filesystem}"
FSX_SETUP_DIR=$(mktemp -d -t eks-fsx-setup.XXXXXX)
printf 'Creation records: %s\n' "$FSX_SETUP_DIR"
VPC_ID=$(aws eks describe-cluster --region "$AWS_REGION" --name "$CLUSTER_NAME" \
--query cluster.resourcesVpcConfig.vpcId --output text)
aws ec2 describe-subnets --region "$AWS_REGION" --subnet-ids "$FSX_SUBNET_ID" \
--output json > "$FSX_SETUP_DIR/subnet.json"
aws ec2 describe-security-groups --region "$AWS_REGION" --group-ids "$FSX_SECURITY_GROUP_ID" \
--output json > "$FSX_SETUP_DIR/sg.json"
python3 - "$FSX_SETUP_DIR" "$VPC_ID" <<'PY'
import pathlib, json, sys
root, vpc = pathlib.Path(sys.argv[1]), sys.argv[2]
subnets = json.loads((root / "subnet.json").read_text())["Subnets"]
groups = json.loads((root / "sg.json").read_text())["SecurityGroups"]
if len(subnets) != 1 or len(groups) != 1 or subnets[0]["VpcId"] != vpc or groups[0]["VpcId"] != vpc:
raise SystemExit("This example requires one subnet and SG in the cluster VPC")
PY
aws fsx create-file-system --region "$AWS_REGION" --file-system-type LUSTRE \
--client-request-token "$FSX_CREATION_TOKEN" --storage-capacity 1200 --storage-type SSD \
--subnet-ids "$FSX_SUBNET_ID" --security-group-ids "$FSX_SECURITY_GROUP_ID" \
--lustre-configuration DeploymentType=SCRATCH_2,DataCompressionType=NONE \
--tags Key=Name,Value=eks-lustre-demo --output json > "$FSX_SETUP_DIR/created.json"
FSX_FILE_SYSTEM_ID=$(python3 - "$FSX_SETUP_DIR/created.json" <<'PY'
import json, sys
with open(sys.argv[1]) as stream:
print(json.load(stream)["FileSystem"]["FileSystemId"])
PY
)
FSX_READY=false
for ((attempt=0; attempt<60; attempt++)); do
STATE=$(aws fsx describe-file-systems --region "$AWS_REGION" --file-system-ids "$FSX_FILE_SYSTEM_ID" \
--query 'FileSystems[0].Lifecycle' --output text)
case "$STATE" in
AVAILABLE) FSX_READY=true; break ;;
CREATING) sleep 10 ;;
*) echo "Unexpected filesystem state: $STATE"; exit 1 ;;
esac
done
test "$FSX_READY" = true || { echo "Filesystem creation still pending; inspect recorded ID"; exit 1; }
aws fsx describe-file-systems --region "$AWS_REGION" --file-system-ids "$FSX_FILE_SYSTEM_ID" \
--query 'FileSystems[0].{Id:FileSystemId,State:Lifecycle,DNS:DNSName,MountName:LustreConfiguration.MountName,CapacityGiB:StorageCapacity}' \
--output json > "$FSX_SETUP_DIR/available.json"
cat "$FSX_SETUP_DIR/available.json"Creating FSx for Lustre Storage Class
For the dynamic path, provide the real subnet and security group in the class. Capacity comes from the PVC request, not an ignored storageCapacity class parameter. SCRATCH_2 must not be combined with persistent-only per-unit throughput/backup settings. The returned mount name belongs in a static PV’s volumeAttributes, not a mountName class parameter.
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
name: fsx-lustre-sc
provisioner: fsx.csi.aws.com
reclaimPolicy: Retain
parameters:
subnetId: subnet-0123456789abcdef0
securityGroupIds: sg-0123456789abcdef0
deploymentType: SCRATCH_2
dataCompressionType: NONECreating PVC and Mounting to Pod
This read-only consumer verifies only that the mount is accessible. It is not a GPU workload or throughput benchmark; a CUDA image is unnecessary for this check. Prepare filesystem permissions for UID/GID1000 and the actual client network path.
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: fsx-claim
namespace: storage-demo
spec:
accessModes:
- ReadWriteMany
storageClassName: fsx-lustre-sc
resources:
requests:
storage: 1200GiapiVersion: v1
kind: Pod
metadata:
name: app-with-fsx
namespace: storage-demo
spec:
automountServiceAccountToken: false
securityContext:
runAsNonRoot: true
runAsUser: 1000
runAsGroup: 1000
fsGroup: 1000
seccompProfile:
type: RuntimeDefault
containers:
- name: app
image: busybox:1.37.0
command:
- sh
- -c
args:
- test -r /data && sleep 3600
securityContext:
allowPrivilegeEscalation: false
readOnlyRootFilesystem: true
capabilities:
drop:
- ALL
resources:
requests:
cpu: 10m
memory: 16Mi
limits:
cpu: 100m
memory: 64Mi
volumeMounts:
- name: data
mountPath: /data
readOnly: true
volumes:
- name: data
persistentVolumeClaim:
claimName: fsx-claimStatic Provisioning for FSx for Lustre Mount
Use the existing filesystem’s actual ID, DNSName, MountName and capacity. This is an alternative to the dynamic PVC. Replace the placeholders below from the lookup, then bind the reserved static PV/PVC; storageClassName: "" prevents default dynamic provisioning. A consumer must use fsx-static-claim.
set -euo pipefail
: "${AWS_REGION:?Set the filesystem Region}"
: "${FSX_FILE_SYSTEM_ID:?Set the owned existing filesystem ID}"
aws fsx describe-file-systems --region "$AWS_REGION" --file-system-ids "$FSX_FILE_SYSTEM_ID" \
--query 'FileSystems[0].{Id:FileSystemId,State:Lifecycle,DNS:DNSName,MountName:LustreConfiguration.MountName,CapacityGiB:StorageCapacity}' \
--output jsonapiVersion: v1
kind: PersistentVolume
metadata:
name: fsx-lustre-static
spec:
capacity:
storage: 1200Gi
volumeMode: Filesystem
accessModes:
- ReadWriteMany
persistentVolumeReclaimPolicy: Retain
storageClassName: ''
claimRef:
namespace: storage-demo
name: fsx-static-claim
csi:
driver: fsx.csi.aws.com
volumeHandle: fs-0123456789abcdef0
volumeAttributes:
dnsname: replace-with-filesystem-dns.example.internal
mountname: replace-with-mountname
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: fsx-static-claim
namespace: storage-demo
spec:
accessModes:
- ReadWriteMany
storageClassName: ''
volumeName: fsx-lustre-static
resources:
requests:
storage: 1200GiFSx for Lustre Deployment Types
- SCRATCH_1/SCRATCH_2 are for temporary, reproducible data. Scratch does not provide persistent deployment replication/recovery simply because it is mounted as a PV; SCRATCH_2 adds different burst/performance and encryption characteristics.
- PERSISTENT_1/PERSISTENT_2 provide persistent deployment choices with different storage/throughput/latency capabilities. PERSISTENT_2 is not available in every Region/AZ configuration.
- Match throughput fields to the selected deployment/storage type. PERSISTENT_2 SSD supports125/250/500/1000MB/s/TiB choices; other deployment/storage combinations differ. Retain is a Kubernetes lifecycle policy, not a data-durability upgrade for scratch storage.
FSx for Lustre Configuration for vLLM
vLLM is an LLM inference/serving project, not “Vector Language Model”. The following is an illustrative model-file storage allocation, not an optimized or measured vLLM deployment. Model loading also depends on file format, CPU deserialization, cache state and GPU initialization. Compression can add overhead for already compressed data; measure it.
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
name: fsx-lustre-vllm
provisioner: fsx.csi.aws.com
reclaimPolicy: Retain
parameters:
subnetId: subnet-0123456789abcdef0
securityGroupIds: sg-0123456789abcdef0
deploymentType: PERSISTENT_2
dataCompressionType: LZ4
perUnitStorageThroughput: '1000'
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: vllm-models
namespace: storage-demo
spec:
accessModes:
- ReadWriteMany
storageClassName: fsx-lustre-vllm
resources:
requests:

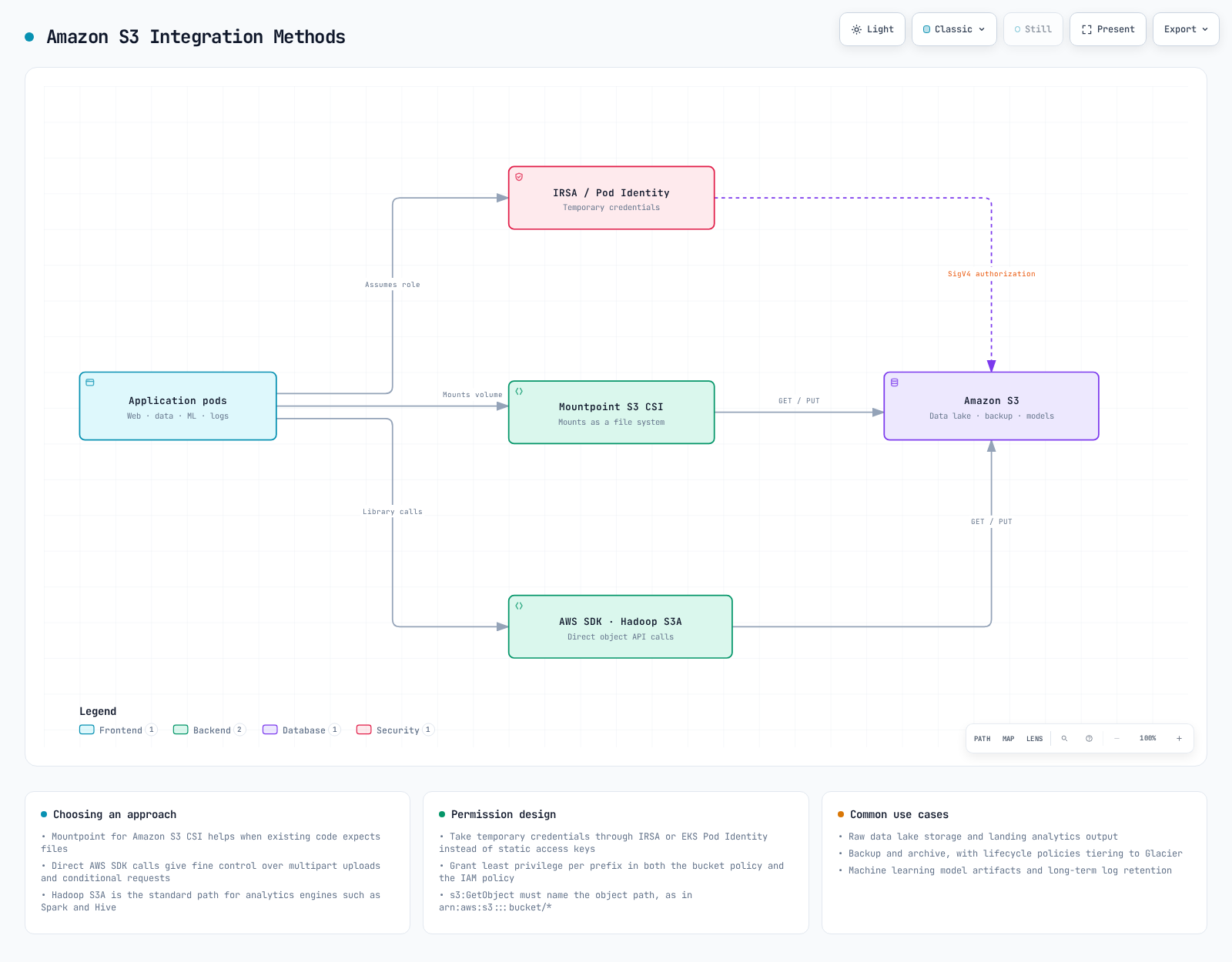

storage: 4800GiAmazon S3 Storage Integration
S3 is object storage. Applications can use its API directly, Hadoop can use S3A, and Mountpoint CSI can expose an existing bucket through a filesystem interface with documented limits. These paths are not interchangeable POSIX filesystems. S3 Files, covered in Part1, is another integration with its own EFS CSI requirements.
Pod Identity or IRSA for S3 Access
Reuse the dedicated storage-demo namespace from Part1. Prepare an existing bucket, Region and an IAM role scoped to the intended bucket/prefix. This example policy permits listing one bucket and reading only training/; it grants no writes. SSE-KMS objects also require the appropriate key policy and scoped KMS decrypt permission. Bucket policies, endpoints and cross-account trust can impose additional restrictions.
{
"Version": "2012-10-17",
"Statement": [
{
"Sid": "ListOneBucket",
"Effect": "Allow",
"Action": [
"s3:ListBucket"
],
"Resource": "arn:aws:s3:::replace-with-owned-data-bucket"
},
{
"Sid": "ReadTrainingPrefix",
"Effect": "Allow",
"Action": [
"s3:GetObject"
],
"Resource": "arn:aws:s3:::replace-with-owned-data-bucket/training/*"
}
]
}The ServiceAccount below illustrates IRSA: replace the example ARN with the prepared role whose OIDC trust permits only this cluster, system:serviceaccount:storage-demo:s3-access-sa, and the STS audience. The annotation alone does not create that role/trust. For EKS Pod Identity, omit the IRSA annotation and create the reviewed association for this same application account with a supported agent; do not configure both as an accidental fallback. No static AWS keys belong in the manifest.
apiVersion: v1
kind: ServiceAccount
metadata:
name: s3-access-sa
namespace: storage-demo
annotations:
eks.amazonaws.com/role-arn: arn:aws:iam::111122223333:role/storage-demo-s3-readerPod Configuration for S3 Access
This bounded, read-only listing Job uses the official AWS CLI image and the prepared account. Replace the bucket/Region before use. Its private writable directories support an unprivileged CLI process; an exit status alone is not proof that the application can read every intended object. Check the Job/logs and a representative authorized object separately.
apiVersion: batch/v1
kind: Job
metadata:
name: s3-read-check
namespace: storage-demo
spec:
backoffLimit: 0
activeDeadlineSeconds: 120
template:
spec:
serviceAccountName: s3-access-sa
restartPolicy: Never
securityContext:
runAsNonRoot: true
runAsUser: 1000
runAsGroup: 1000
fsGroup: 1000
seccompProfile:
type: RuntimeDefault
containers:
- name: reader
image: public.ecr.aws/aws-cli/aws-cli:2.36.43
command:
- aws
args:
- s3api
- list-objects-v2
- --bucket
- replace-with-owned-data-bucket
- --prefix
- training/
- --max-items
- '5'
env:
- name: AWS_REGION
value: us-west-2
- name: AWS_EC2_METADATA_DISABLED
value: 'true'
securityContext:
allowPrivilegeEscalation: false
readOnlyRootFilesystem: true
capabilities:
drop:
- ALL
resources:
requests:
cpu: 100m
memory: 128Mi
limits:
cpu: 500m
memory: 256Mi
volumeMounts:
- name: private-home
mountPath: /root
- name: tmp
mountPath: /tmp
volumes:
- name: private-home
emptyDir: {}
- name: tmp
emptyDir: {}Hadoop S3A Access
S3A is Hadoop’s s3a:// filesystem implementation, not a Kubernetes volume mount. Hadoop3.5.0 uses AWS SDK for Java v2. Build and review an image containing matching hadoop-common/hadoop-aws versions and their compatible shaded SDK bundle; the placeholder below is not a published ready-to-run image. Its contract includes hadoop on PATH, /opt/hadoop/etc/hadoop, and UID1000 support. Merge hadoop-aws with any other required optional tools. The v2 default credentials provider supports the selected workload identity when the bundled SDK supports it; do not reuse a v1 com.amazonaws provider class.
apiVersion: v1
kind: ConfigMap
metadata:
name: hadoop-s3a-config
namespace: storage-demo
data:
core-site.xml: |
<?xml version="1.0" encoding="UTF-8"?>
<configuration>
<property>
<name>fs.s3a.aws.credentials.provider</name>
<value>software.amazon.awssdk.auth.credentials.DefaultCredentialsProvider</value>
</property>
<property>
<name>fs.s3a.endpoint.region</name>
<value>us-west-2</value>
</property>
</configuration>
---
apiVersion: batch/v1
kind: Job
metadata:
name: hadoop-s3a-read-check
namespace: storage-demo
spec:
backoffLimit: 0
activeDeadlineSeconds: 120
template:
spec:
serviceAccountName: s3-access-sa
restartPolicy: Never
securityContext:
runAsNonRoot: true
runAsUser: 1000
runAsGroup: 1000
fsGroup: 1000
seccompProfile:
type: RuntimeDefault
containers:
- name: hadoop
image: registry.example.com/reviewed-hadoop-s3a:3.5.0
command:
- hadoop
args:
- fs
- -ls
- s3a://replace-with-owned-data-bucket/training/
env:
- name: AWS_REGION
value: us-west-2
- name: AWS_EC2_METADATA_DISABLED
value: 'true'
- name: HADOOP_CONF_DIR
value: /opt/hadoop/etc/hadoop
- name: HADOOP_OPTIONAL_TOOLS
value: hadoop-aws
securityContext:
allowPrivilegeEscalation: false
readOnlyRootFilesystem: true
capabilities:
drop:
- ALL
resources:
requests:
cpu: 100m
memory: 128Mi
limits:
cpu: 500m
memory: 256Mi
volumeMounts:
- name: tmp
mountPath: /tmp
- name: hadoop-config
mountPath: /opt/hadoop/etc/hadoop/core-site.xml
subPath: core-site.xml
readOnly: true
volumes:
- name: tmp
emptyDir: {}
- name: hadoop-config
configMap:
name: hadoop-s3a-configMounting one ConfigMap key with subPath preserves the image’s other Hadoop configuration files. A subPath mount does not receive live ConfigMap updates; recreate the Job after configuration changes.
Mounting an Existing Bucket with Mountpoint CSI
The reviewed upstream pair is CSI2.8.0 with bundled Mountpoint1.23.0. Standalone Mountpoint1.24.0 does not automatically change the CSI image. Check the actual EKS add-on version and compute compatibility: this upstream CSI release requires Kubernetes1.31+ and no longer supports AL2/Ubuntu22.04. Prefer the existing infrastructure owner; do not install Helm over a managed add-on or an existing driver.
For a separately owned Helm installation, render the published chart for review first; use the actual cluster version in --kube-version. A Git checkout’s chart is not the supported distribution and its publication guard must not be bypassed. Review privileged node components, CRD ownership and the mount-s3 namespace before deploying through the chosen owner:
set -euo pipefail
helm repo add aws-mountpoint-s3-csi-driver https://awslabs.github.io/mountpoint-s3-csi-driver
helm repo update aws-mountpoint-s3-csi-driver
helm template aws-mountpoint-s3-csi-driver \
aws-mountpoint-s3-csi-driver/aws-mountpoint-s3-csi-driver \
--version 2.8.0 --namespace kube-system --kube-version 1.36.0 --include-crds \
> s3-driver-review.yamlThe published chart creates s3-csi-driver-sa and s3-csi-driver-controller-sa by default. The following PV explicitly selects pod-level credentials from s3-access-sa; driver-level credentials are ignored for this volume. Both IRSA and EKS Pod Identity are supported here. Readiness requires the actual driver/identity installation, not just successful Helm rendering.
Mountpoint CSI uses static provisioning of an existing bucket, not the dynamic StorageClass shown in older examples. Keep both storageClassName fields empty and use explicit PV/PVC prebinding plus a cluster-unique volumeHandle. The capacity fields satisfy Kubernetes binding metadata; they do not create or limit S3 bucket capacity. Replace the bucket, prefix and Region together. Read-only mount and IAM permissions provide separate controls:
apiVersion: v1
kind: PersistentVolume
metadata:
name: s3-training-pv
spec:
capacity:
storage: 1Ti
volumeMode: Filesystem
accessModes:
- ReadOnlyMany
persistentVolumeReclaimPolicy: Retain
storageClassName: ''
claimRef:
namespace: storage-demo
name: training-data
mountOptions:
- read-only
- region us-west-2
- prefix training/
- allow-other
- uid 1000
- gid 1000
- dir-mode 0750
- file-mode 0440
csi:
driver: s3.csi.aws.com
volumeHandle: storage-demo-s3-training-v1
volumeAttributes:
bucketName: replace-with-owned-data-bucket
authenticationSource: pod
stsRegion: us-west-2
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: training-data
namespace: storage-demo
spec:
accessModes:
- ReadOnlyMany
storageClassName: ''
volumeName: s3-training-pv
resources:
requests:
storage: 1TiapiVersion: v1
kind: Pod
metadata:
name: app-with-s3
namespace: storage-demo
spec:
serviceAccountName: s3-access-sa
securityContext:
runAsNonRoot: true
runAsUser: 1000
runAsGroup: 1000
seccompProfile:
type: RuntimeDefault
containers:
- name: reader
image: busybox:1.37.0
command:
- sh
- -c
args:
- ls -la /data && sleep 3600
securityContext:
allowPrivilegeEscalation: false
readOnlyRootFilesystem: true
capabilities:
drop:
- ALL
resources:
requests:
cpu: 10m
memory: 16Mi
limits:
cpu: 100m
memory: 64Mi
volumeMounts:
- name: data
mountPath: /data
readOnly: true
volumes:
- name: data
persistentVolumeClaim:
claimName: training-data
readOnly: trueThe mount options map filesystem ownership to UID/GID1000; they do not change S3 object ownership. allow-other permits that application UID to reach a mount created by the driver. Application containers need no AWS CLI or FUSE privilege for this mounted read path.
S3 Use Cases
Data lakes, model repositories, archives, static assets and audit objects can use S3. Choose API access when the application needs object versions, conditional requests or capabilities outside Mountpoint’s filesystem contract. A writable database directory that requires random updates and POSIX locks needs a different storage design.
Snapshots and Backups
CSI snapshots require support from the specific driver/backend; a PVC alone does not imply snapshot support. The following EBS example captures a block-volume point in time. Quiesce/flush applications or use database-aware backup/WAL archiving when required. A successful snapshot is not proof of application consistency or database point-in-time recovery.
Preparing the Snapshot Controller
Inspect the existing snapshot CRDs, controller owner and CSI snapshotter first. Use the compatible EKS add-on or a reviewed pinned external-snapshotter release; do not apply floating master CRDs over an existing installation. External-snapshotter8.6.0 is a reviewed upstream reference, not an automatic upgrade target for every add-on. Part1’s driver and namespace prerequisites also apply.
set -euo pipefail
kubectl get crd volumesnapshots.snapshot.storage.k8s.io \
volumesnapshotcontents.snapshot.storage.k8s.io volumesnapshotclasses.snapshot.storage.k8s.io
kubectl -n storage-demo get pvc ebs-claim -o yamlCreating the Class and Snapshot
The class driver must match the PV driver. This manually managed class uses Retain; removal of its Kubernetes snapshot does not automatically remove the retained EBS snapshot. Track ownership and cost, and do not confuse this policy with the Velero lifecycle below. Empty snapshotter-secret parameters are unnecessary for this EBS example.
apiVersion: snapshot.storage.k8s.io/v1
kind: VolumeSnapshotClass
metadata:
name: ebs-snapshot-class
driver: ebs.csi.aws.com
deletionPolicy: RetainapiVersion: snapshot.storage.k8s.io/v1
kind: VolumeSnapshot
metadata:
name: ebs-part2-snapshot
namespace: storage-demo
labels:
storage-demo: ebs
spec:
volumeSnapshotClassName: ebs-snapshot-class
source:
persistentVolumeClaimName: ebs-claimset -euo pipefail
kubectl -n storage-demo wait --for=jsonpath='{.status.readyToUse}'=true \
volumesnapshot/ebs-part2-snapshot --timeout=300s
kubectl -n storage-demo get volumesnapshot ebs-part2-snapshot -o yamlRestoring into a New PVC
After readyToUse=true, inspect restoreSize and the bound content/driver. Use a separate name in the same namespace with capacity at least restoreSize. This20Gi example assumes the snapshot is no larger. Keep the live claim untouched; WaitForFirstConsumer can leave the candidate Pending until a compatible consumer is scheduled. Validate restored data with an isolated, compatible application before a controlled cutover.
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: ebs-part2-restored
namespace: storage-demo
spec:
accessModes:
- ReadWriteOnce
storageClassName: ebs-gp3
resources:
requests:
storage: 20Gi
dataSource:
name: ebs-part2-snapshot
kind: VolumeSnapshot
apiGroup: snapshot.storage.k8s.ioScheduling Backups with Velero
The reviewed pair is Velero1.18.2 with AWS plugin1.14.2. Verify the CLI release checksum and plugin compatibility before installation. CSI support is integrated into Velero, but EnableCSI is still required for this path; do not add the old separate CSI plugin. Prepare a private backup bucket/prefix, network access, scoped IAM/KMS permissions and an IRSA role for velero/velero. The following renders a new-install manifest for review without creating resources:
set -euo pipefail
: "${BACKUP_BUCKET:?Set the existing private backup bucket}"
: "${VELERO_ROLE_ARN:?Set the reviewed IRSA role for system:serviceaccount:velero:velero}"
: "${AWS_REGION:?Set the bucket/snapshot Region for this example}"
velero install --provider aws \
--plugins velero/velero-plugin-for-aws:v1.14.2 \
--bucket "$BACKUP_BUCKET" --prefix eks-storage-demo \
--backup-location-config "region=$AWS_REGION" \
--snapshot-location-config "region=$AWS_REGION" \
--features EnableCSI --no-secret \
--sa-annotations "eks.amazonaws.com/role-arn=$VELERO_ROLE_ARN" \
--dry-run -o yaml > velero-review.yamlUse an actual valid kubeconfig even for this CLI dry-run; rendering is not an authorization or backup test. Do not overwrite an existing Velero/CRD installation. The default ServiceAccount is created with the IRSA annotation; using --service-account-name instead selects an already existing account and ignores --sa-annotations. Pod Identity is an alternative with its own association/agent setup. No static credential file is needed.
For CSI class selection, label only one default class per driver, or select a class using the supported backup/schedule annotation. Review the following class together with existing classes:
apiVersion: snapshot.storage.k8s.io/v1
kind: VolumeSnapshotClass
metadata:
name: ebs-velero-snapshots
labels:
velero.io/csi-volumesnapshot-class: 'true'
driver: ebs.csi.aws.com
deletionPolicy: RetainVelero owns the lifecycle of its CSI backup snapshots. When the backup expires or is deleted, Velero changes the VolumeSnapshotContent deletion policy to Delete and removes the snapshot even if the original class used Retain. Set backup TTL and any independent retention/archive procedure deliberately. A Velero backup in S3 does not necessarily contain all volume bytes: CSI snapshots, filesystem backup and data movers are different paths. FSx CSI1.10.0, for example, does not implement CSI snapshots; use a supported FSx/application backup strategy.
set -euo pipefail
velero schedule create storage-demo-daily --schedule="0 1 * * *" \
--include-namespaces=storage-demo --ttl=168h0m0s -o yaml > velero-schedule-review.yamlThe schedule command also emits YAML only. Deploy the reviewed schedule through its owner, then inspect actual Backup phase, errors, snapshot/data-mover completion and restore tests. Scheduled snapshots do not by themselves provide arbitrary database PITR.
For recovery, choose an actual verified backup rather than a hard-coded historical timestamp. Even with -o yaml, this command performs API discovery and reads the selected Backup, so it requires read access to the intended cluster. This manifest preview limits the requested resource types and maps the namespace; inspect dependencies and plugin restore actions before submission. Confirm the destination namespace is isolated, names do not conflict, and storage class/CSI driver/KMS/AZ mappings are valid. It is not a complete production recovery runbook:
set -euo pipefail
: "${VERIFIED_BACKUP:?Choose an actual completed backup after checking its contents/errors}"
velero restore create storage-demo-recovery-review --from-backup "$VERIFIED_BACKUP" \
--namespace-mappings storage-demo:storage-recovery \
--include-namespaces storage-demo \
--include-resources persistentvolumes,persistentvolumeclaims,volumesnapshots.snapshot.storage.k8s.io,volumesnapshotcontents.snapshot.storage.k8s.io \
--restore-volumes=true -o yaml > velero-restore-review.yamlStart restored workloads only after the candidate data passes application checks, and keep a rollback path. Cross-cluster CSI restore requires a matching driver name and accessible snapshots/keys; namespace mapping alone does not make cloud resources portable.
Volume Expansion and Resizing
Use a class with allowVolumeExpansion: true and a supporting CSI driver/filesystem. Keep the bound claim’s existing storageClassName; it is not a resize switch. This example reuses Part1’s ebs-gp3 and increases only the claim request. Check current request/capacity first so an already larger claim is not shrunk.
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
name: ebs-gp3
provisioner: ebs.csi.aws.com
volumeBindingMode: WaitForFirstConsumer
reclaimPolicy: Retain
allowVolumeExpansion: true
parameters:
type: gp3
encrypted: 'true'
csi.storage.k8s.io/fstype: ext4set -euo pipefail
kubectl -n storage-demo get pvc ebs-claim -o yaml
kubectl -n storage-demo patch pvc ebs-claim --type merge \
-p '{"spec":{"resources":{"requests":{"storage":"20Gi"}}}}'
kubectl -n storage-demo describe pvc ebs-claimCSI handles backend and filesystem expansion where supported. Inspect PVC conditions, controller/node logs and mounted capacity. Follow the driver’s documented remount/restart path if needed; do not run resize2fs against a guessed /dev/xvdf inside an application container. Never edit PV capacity to bypass resizing. Plan quota/cost caps and avoid repeated automated growth while a prior resize is pending.
Volume Cloning
Current EBS CSI supports PVC cloning through dataSource and the CSI clone capability; EBS CSI1.66.0 uses native EBS volume copy (CopyVolumes), not an assumed hidden snapshot. Check the deployed driver/add-on support before using it. The target is independent, but availability and fully initialized performance are different states.
For the ordinary PVC dataSource workflow, use a bound source in the same namespace, compatible volume mode/driver, and a request at least as large as the source. Set storageClassName explicitly; omission uses default-class rules rather than automatically inheriting the source. Native EBS copies stay in the source AZ. They are crash-consistent unless the application is quiesced/flushed appropriately. Only one copy from a source can initialize at a time, and account/Region quotas apply.
This dedicated training source avoids launching an unverified database clone in a production namespace. Replace the example AZ in both writer and reader with an actual supported AZ. The seed Job consumes the source PVC, creates one marker without overwriting an existing marker, then exits:
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: ebs-clone-source
namespace: storage-demo
spec:
accessModes:
- ReadWriteOnce
storageClassName: ebs-gp3
resources:
requests:
storage: 10Gi
---
apiVersion: batch/v1
kind: Job
metadata:
name: ebs-clone-seed
namespace: storage-demo
spec:
backoffLimit: 0
template:
metadata:
labels:
app: ebs-clone-seed
spec:
restartPolicy: Never
automountServiceAccountToken: false
nodeSelector:
topology.kubernetes.io/zone: us-west-2a
securityContext:
runAsNonRoot: true
runAsUser: 1000
runAsGroup: 1000
fsGroup: 1000
seccompProfile:
type: RuntimeDefault
containers:
- name: writer
image: busybox:1.37.0
command:
- sh
- -c
args:
- |
set -eu
(set -C; printf 'clone-demo\n' > /data/seed.txt)
sync
securityContext:
allowPrivilegeEscalation: false
readOnlyRootFilesystem: true
capabilities:
drop:
- ALL
resources:
requests:
cpu: 10m
memory: 16Mi
limits:
cpu: 100m
memory: 64Mi
volumeMounts:
- name: data
mountPath: /data
volumes:
- name: data
persistentVolumeClaim:
claimName: ebs-clone-sourcekubectl -n storage-demo wait --for=condition=complete job/ebs-clone-seed --timeout=300s
kubectl -n storage-demo get pvc ebs-clone-source -o yamlCreate the separate clone and its read-only consumer after the seed Job completes. The marker check demonstrates what to validate; this review did not execute a cloud copy. Copying a database does not reset existing database passwords, and the target must use a compatible database version if later started as a database.
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: ebs-clone
namespace: storage-demo
spec:
accessModes:
- ReadWriteOnce
storageClassName: ebs-gp3
resources:
requests:
storage: 10Gi
dataSource:
kind: PersistentVolumeClaim
name: ebs-clone-source
---
apiVersion: v1
kind: Pod
metadata:
name: app-with-clone
namespace: storage-demo
spec:
automountServiceAccountToken: false
securityContext:
runAsNonRoot: true
runAsUser: 1000
runAsGroup: 1000
fsGroup: 1000
seccompProfile:
type: RuntimeDefault
containers:
- name: app
image: busybox:1.37.0
command:
- sh
- -c
args:
- test "$(cat /data/seed.txt)" = clone-demo && sleep 3600
securityContext:
allowPrivilegeEscalation: false
readOnlyRootFilesystem: true
capabilities:
drop:
- ALL
resources:
requests:
cpu: 10m
memory: 16Mi
limits:
cpu: 100m
memory: 64Mi
volumeMounts:
- name: data
mountPath: /data
readOnly: true
volumes:
- name: data
persistentVolumeClaim:
claimName: ebs-clone
nodeSelector:
topology.kubernetes.io/zone: us-west-2a| Property | PVC/native volume copy | Snapshot restore |
|---|---|---|
| Source | Existing volume/PVC | Retained point-in-time snapshot |
| Readiness | Available before background initialization finishes | Depends on snapshot/restore and initialization state |
| Placement | Native EBS copy remains in source AZ | A new restored volume can target another permitted AZ |
| Consistency | Application quiescing may be required | Application-aware backup may be required |
| Namespace | Ordinary PVC dataSource is same-namespace | Snapshot objects are namespaced; cross-namespace/cluster import needs an explicit supported workflow |
| Cost/retention | Copy operation and new volume charges; independent lifecycle | Snapshot storage plus restored-volume charges; separate deletion policies |
Do not infer speed, storage overhead or RPO from “one step” versus “two steps”. Native volume copies do not support fast snapshot restore or provisioned initialization rates; use the actual copy initialization guidance.
Multi-Attach EBS
The EC2 service supports Multi-Attach for eligible io1/io2 volumes, up to16 compatible Nitro instances in one AZ, with volume-type/Region restrictions. The EBS CSI1.66.0 dynamic path supports io2 + ReadWriteMany + volumeMode: Block and enables Multi-Attach from that capability. multiAttachEnabled is not a supported StorageClass switch in this path. RWOP is a one-Pod constraint and is not the Multi-Attach access mode.
A shared block device supplies no application write coordination. Ordinary ext4/XFS must not be independently mounted read/write by multiple nodes; use an appropriate coordinated application/clustered filesystem and fencing design. io2 supports NVMe reservation fencing, but the application must use it correctly. The following attachment-only demonstration does no device I/O or formatting. Its matching labels/anti-affinity require two suitable nodes in the volume’s AZ. Real workloads need reviewed device access and coordination, not this sleeping container:
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
name: ebs-io2-multi-attach
provisioner: ebs.csi.aws.com
volumeBindingMode: WaitForFirstConsumer
reclaimPolicy: Retain
allowVolumeExpansion: true
parameters:
type: io2
iops: '10000'
encrypted: 'true'
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: shared-block-pvc
namespace: storage-demo
spec:
accessModes:
- ReadWriteMany
volumeMode: Block
storageClassName: ebs-io2-multi-attach
resources:
requests:
storage: 100Gi
---
apiVersion: v1
kind: Pod
metadata:
name: shared-block-a
namespace: storage-demo
labels:
app: shared-block-demo
spec:
automountServiceAccountToken: false
securityContext:
runAsNonRoot: true
runAsUser: 1000
runAsGroup: 1000
seccompProfile:
type: RuntimeDefault
affinity:
podAntiAffinity:
requiredDuringSchedulingIgnoredDuringExecution:
- labelSelector:
matchLabels:
app: shared-block-demo
topologyKey: kubernetes.io/hostname
containers:
- name: attachment-only
image: busybox:1.37.0
command:
- sleep
- '3600'
securityContext:
allowPrivilegeEscalation: false
readOnlyRootFilesystem: true
capabilities:
drop:
- ALL
resources:
requests:
cpu: 10m
memory: 16Mi
limits:
cpu: 100m
memory: 64Mi
volumeDevices:
- name: shared
devicePath: /dev/ebs-shared
volumes:
- name: shared
persistentVolumeClaim:
claimName: shared-block-pvc
---
apiVersion: v1
kind: Pod
metadata:
name: shared-block-b
namespace: storage-demo
labels:
app: shared-block-demo
spec:
automountServiceAccountToken: false
securityContext:
runAsNonRoot: true
runAsUser: 1000
runAsGroup: 1000
seccompProfile:
type: RuntimeDefault
affinity:
podAntiAffinity:
requiredDuringSchedulingIgnoredDuringExecution:
- labelSelector:
matchLabels:
app: shared-block-demo
topologyKey: kubernetes.io/hostname
containers:
- name: attachment-only
image: busybox:1.37.0
command:
- sleep
- '3600'
securityContext:
allowPrivilegeEscalation: false
readOnlyRootFilesystem: true
capabilities:
drop:
- ALL
resources:
requests:
cpu: 10m
memory: 16Mi
limits:
cpu: 100m
memory: 64Mi
volumeDevices:
- name: shared
devicePath: /dev/ebs-shared
volumes:
- name: shared
persistentVolumeClaim:
claimName: shared-block-pvcio2 Multi-Attach volumes support size/IOPS modification under the service’s conditions; the blanket “no online resize” claim is incorrect. io1 modification support differs. Enabling/disabling Multi-Attach requires an unattached volume, and CSI/filesystem/application support still determines a safe resize procedure. A shared-volume failure can affect all attached instances. Retain and attachment settings are not a backup strategy.
Mountpoint for S3 CSI Deep Dive
The following behavior is checked against the Mountpoint1.23.0 bundled with CSI2.8.0. Verify the version actually installed before adopting newer standalone options.
Performance Characteristics
Sequential large-object reads and new sequential writes are common fits; Mountpoint automatically prefetches. Random range reads are supported, but object size, request rate, network, cache state and application concurrency determine results. Arbitrary in-place random writes are unsupported, not merely a slow optimization choice.
Historical figures, unverified: the previous English text listed the following aggregate numbers without reproducible setup or a traceable source. They are preserved as historical claims, not current service limits, measured results from this review, or sizing guarantees.
| Historical operation | Original claim |
|---|---|
| Sequential read, large files | Up to100Gbps aggregate |
| Sequential write, new files | Up to50Gbps aggregate |
| Small random reads | Higher latency/lower throughput, workload-dependent |
The earlier qualitative “excellent/good/moderate” ranking likewise was not a controlled benchmark.
Filesystem and Consistency Limits
- S3 provides strong read/list consistency. Mountpoint caching can intentionally retain stale metadata/content or negative entries until their TTL; do not describe S3 itself as eventually consistent.
- New files are written sequentially. Replacing an existing object requires
allow-overwriteand a truncating open; arbitrary random updates remain unsupported. - S3 Express One Zone directory buckets in Availability Zones support append with
incremental-uploadand atomic individual-file rename. General purpose buckets do not support file rename through this Mountpoint version; directory rename is unsupported. Directory buckets in Local Zones have different feature support. Replacement rename also requires overwrite permission/options. - Deletion is opt-in through
allow-deleteand IAM permission; the read-only examples enable neither. Append is not a universal “create a new object version” operation. - Hard/symbolic links, chmod/chown, extended attributes, POSIX locks, device files and ordinary sparse-file semantics are not supported. Do not base database correctness on these missing operations.
Cache Settings
Place Mountpoint CLI options under PV.spec.mountOptions, not StorageClass parameters. Values are option strings such as metadata-ttl 300. Mountpoint1.23 uses seconds for metadata TTL, MiB for standalone max-cache-size, and bytes for read/write-part-size;8MiB is8,388,608bytes. The previous prefetch-bytes/read-ahead/max-read-parallelism/max-cache-size-mb/cache-block-size examples are not valid1.23 CLI flags.
CSI v2 creates cache storage for its Mountpoint Pod, normally in mount-s3. An application Pod’s emptyDir does not become that cache. This alternative static PV uses a10Gi disk-backed emptyDir cache, with the driver enforcing its size limit; Memory would mean tmpfs RAM, not NVMe. Replace the actual bucket/prefix/Region and use its separate prebound PVC:
apiVersion: v1
kind: PersistentVolume
metadata:
name: s3-training-cached-pv
spec:
capacity:
storage: 1Ti
volumeMode: Filesystem
accessModes:
- ReadOnlyMany
persistentVolumeReclaimPolicy: Retain
storageClassName: ''
claimRef:
namespace: storage-demo
name: training-data-cached
mountOptions:
- read-only
- region us-west-2
- prefix training/
- allow-other
- uid 1000
- gid 1000
- dir-mode 0750
- file-mode 0440
- metadata-ttl 300
- read-part-size 8388608
csi:
driver: s3.csi.aws.com
volumeHandle: storage-demo-s3-training-cached-v1
volumeAttributes:
bucketName: replace-with-owned-data-bucket
authenticationSource: pod
stsRegion: us-west-2
cache: emptyDir
cacheEmptyDirSizeLimit: 10Gi
cacheEmptyDirMedium: ''
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: training-data-cached
namespace: storage-demo
spec:
accessModes:
- ReadOnlyMany
storageClassName: ''
volumeName: s3-training-cached-pv
resources:
requests:
storage: 1TiA300-second TTL can hide external changes for that period; use immutable/versioned dataset prefixes when that matters. Cached content is plaintext on local storage, so include node/storage access in the threat model. Budget cache capacity, eviction and Mountpoint Pod memory separately from training containers. An ephemeral PVC cache is another supported option with cache: ephemeral, its storage class and request fields; evaluate its lifecycle and cost. Do not pass a legacy host cache path and assume CSI v2 still uses it.
Large Dataset Training Example
This is an unexecuted integration template, not an optimized p4d benchmark. Prepare a reviewed GPU-compatible image containing /opt/training/train.py, four schedulable GPUs/device plugins, the account and cached data PVC above, and a writable RWX reviewed-model-output-rwx PVC accessible to UID/GID1000. The script must implement the shown arguments and create its distinct output directory. Resolve all placeholders before deployment.
apiVersion: batch/v1
kind: Job
metadata:
name: s3-sharded-training
namespace: storage-demo
spec:
completions: 4
parallelism: 4
completionMode: Indexed
backoffLimit: 0
activeDeadlineSeconds: 7200
template:
spec:
serviceAccountName: s3-access-sa
restartPolicy: Never
securityContext:
runAsNonRoot: true
runAsUser: 1000
runAsGroup: 1000
fsGroup: 1000
seccompProfile:
type: RuntimeDefault
containers:
- name: trainer
image: registry.example.com/reviewed-trainer:replace-me
command:
- sh
- -c
args:
- exec python /opt/training/train.py --data-dir=/data --shard-index="$JOB_COMPLETION_INDEX"
--shard-count=4 --output-dir="/models/$JOB_COMPLETION_INDEX"
env:
- name: JOB_COMPLETION_INDEX
valueFrom:
fieldRef:
fieldPath: metadata.annotations['batch.kubernetes.io/job-completion-index']
resources:
requests:
cpu: '4'
memory: 16Gi
nvidia.com/gpu: 1
limits:
cpu: '8'
memory: 32Gi
nvidia.com/gpu: 1
securityContext:
allowPrivilegeEscalation: false
readOnlyRootFilesystem: true
capabilities:
drop:
- ALL
volumeMounts:
- name: data
mountPath: /data
readOnly: true
- name: output
mountPath: /models
- name: tmp
mountPath: /tmp
volumes:
- name: data
persistentVolumeClaim:
claimName: training-data-cached
readOnly: true
- name: output
persistentVolumeClaim:
claimName: reviewed-model-output-rwx
- name: tmp
emptyDir: {}The four indexed completions are independent data shards, one GPU each. They do not establish distributed training rendezvous, gradient synchronization or exactly-once side effects. Make output handling retry-safe. The earlier4-GPU/8-GPU examples were different illustrative layouts, not comparative measurements; select actual hardware/resources from measured requirements.
Choosing S3, EFS or FSx
| Consideration | Mountpoint/S3 | EFS | FSx for Lustre |
|---|---|---|---|
| Interface | Object-backed filesystem subset | Managed NFS filesystem | Parallel Lustre filesystem |
| Common fit | Large immutable input datasets | Shared application files | Supported HPC/ML parallel I/O |
| Writes | Documented sequential/overwrite and bucket-specific append limits | Filesystem writes with application coordination | Filesystem writes with application coordination |
| Sizing evidence | Request mix, cache, network and object layout | Performance/throughput mode, clients and access pattern | Deployment, capacity, throughput, clients and striping |
| Cost/concurrency | Measure requests, transfer, cache and client limits | Measure throughput/storage/client limits | Measure allocation/throughput/client limits |
No universal low/medium/high cost or unlimited-client ranking follows from the service name.
Storage Performance Optimization
Let's explore various strategies for optimizing storage performance in EKS.
EBS Performance Optimization
Choose the volume type and provisioned IOPS/throughput from measured workload requirements and instance EBS limits. The earlier16,000IOPS/1,000MiB/s values are still valid configuration examples, but not current universal gp3 maxima: Regional gp3 supports up to80,000IOPS/2,000MiB/s subject to size/IOPS constraints, with lower Outposts limits. Do not assume maximum provisioning is necessary or sufficient.
Empty volumes need no initialization. Snapshot-restored volumes and native copies can incur initialization latency; the procedures differ. Writing zeros destroys existing data and is not a safe initialization procedure. Identify the exact volume first. For snapshot restores, assess supported provisioned initialization rates, fast snapshot restore or the documented read-based procedure; those acceleration features do not apply to native copies. The following only inspects metadata in an authorized node environment:
lsblk -o NAME,SERIAL,SIZE,TYPE,MOUNTPOINTEFS Performance Optimization
AWS recommends General Purpose performance mode, including highly concurrent workloads; Max I/O is a previous-generation choice with higher operation latency. Match throughput mode to observed demand. Configure mount options in a StorageClass or PV, not under Pod.spec.volumes.
This is an alternative class for new claims. The EFS helper’s recommended1MiB RPC sizes, hard mount, timeouts and noresvport are a starting point, not a benchmark. retrans=2 triggers further recovery after retries; a hard mount does not abandon requests after two attempts. Prepare the filesystem ID and access-point identity as in Part1:
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
name: efs-tuned
provisioner: efs.csi.aws.com
reclaimPolicy: Retain
mountOptions:
- tls
- rsize=1048576
- wsize=1048576
- hard
- timeo=600
- retrans=2
- noresvport
parameters:
provisioningMode: efs-ap
fileSystemId: fs-0123456789abcdef0
directoryPerms: '750'
uid: '1000'
gid: '1000'
basePath: /storage-demo
ensureUniqueDirectory: 'true'FSx for Lustre Performance Optimization
Select deployment/storage/throughput and client capacity together. Plan Lustre striping from file sizes, concurrency and measured bottlenecks; more stripes are not always faster. Use supported PV/StorageClass mount options and choose one atime policy rather than conflicting noatime and relatime. Compression effects depend on the data. s3ImportPath is a supported CSI parameter, but import/export availability and automation depend on the selected FSx integration.
Storage Optimization for vLLM Workloads
Reuse the earlier explicit class/PVC allocation instead of a class-only storageCapacity field. Benchmark cold/warm model loading, metadata access, CPU/GPU initialization and concurrent consumers. Quantization/sharding change model memory/compute behavior as well as file layout and are not automatic storage optimizations. EFA only helps a supported filesystem/client or communication stack; selecting an EFA-capable GPU instance alone does not accelerate every storage path.
Conclusion
This document covered FSx for Lustre, S3, snapshots, volume expansion, and performance optimization in Amazon EKS. Each storage option has different characteristics and use cases, so it is important to select and optimize the appropriate storage solution for your application requirements.
The next part will cover monitoring, troubleshooting, cost optimization, and security for EKS storage.
References
Quiz
To test what you've learned in this chapter, try the topic quiz.
