Part 4: Ray Serve

Supported Versions: Ray 2.57.0 Last Updated: August 20, 2026

Lab Environment Setup

To follow along with the examples in this document, you will need the following tools and environment:

Required Tools

• Python 3.10+
• pip install "ray[serve]" for general Ray Serve deployments, or pip install "ray[llm]" instead if you plan to follow the Ray Serve LLM section below — it pulls in vLLM and related dependencies that ray[serve] does not include
• kubectl v1.34 or later, pointed at a working Amazon EKS cluster, if you plan to test the RayService path
• A GPU-capable NodePool/EC2NodeClass pair provisioned via Karpenter, if you plan to serve GPU-backed models

What Ray Serve Is

Part 1 introduced the actor as Ray's primitive for stateful, addressable Python objects that keep state in memory between calls. Ray Serve is a model-serving library built directly on that primitive: a Serve deployment is implemented as a Ray actor, or a group of actor replicas, and Ray Serve routes incoming HTTP or gRPC requests to those replicas. A model that's loaded once into a replica's memory can then answer many requests without reloading it, which is exactly the pattern actors were designed for.

A single deployment scales horizontally simply by adding more actor replicas behind Ray Serve's request router, the same way any actor-backed service scales in Ray. More interestingly, Ray Serve lets multiple deployments compose into one serving pipeline, called an application. A common example is a two-step pipeline: one deployment handles preprocessing (tokenization, image resizing, feature extraction) and hands its output to a second deployment that runs the actual model inference. Each deployment in that pipeline can be scaled, versioned, and resourced independently, because each is still just a group of actor replicas underneath.

Ray Serve LLM

Serving large language models is enough of a distinct pattern — continuous batching, token streaming, an OpenAI-compatible request shape — that Ray provides a dedicated set of building blocks for it: the ray.serve.llm module. Rather than hand-assembling a deployment that manages a vLLM engine instance itself, ray.serve.llm gives you higher-level constructs purpose-built for LLM serving, layered on top of Ray Serve's general deployment model described above.

ray.serve.llm documents vLLM as its supported inference engine, and its OpenAI-compatible API is designed to line up closely with vLLM's own OpenAI-compatible server, so most engine_kwargs that work with a plain vllm serve invocation carry over. In practice, that means the same production Ray Serve capabilities — autoscaling, multi-model serving, and Ray's usual distributed-actor placement — apply to LLM serving too, while the LLM-specific plumbing (loading and configuring the vLLM engine, exposing an OpenAI-compatible endpoint) is handled by ray.serve.llm rather than something you build by hand. Check the current docs.ray.io/en/latest/serve/llm/ documentation for the exact configuration surface before depending on specific field names, since this is one of Ray Serve's more actively evolving areas.

Autoscaling a Serve Deployment

Ray Serve deployments have their own autoscaling layer, separate from the cluster-level autoscaling covered in Part 2. Where the Ray/KubeRay autoscaler decides how many worker Pods a RayCluster needs, Ray Serve's autoscaler answers a narrower question one layer up: how many actor replicas does this specific deployment need right now, based on the request load it's actually seeing? Ray Serve compares the number of ongoing requests per replica — queued plus in-flight — against a target value, and scales replicas up or down to keep actual load close to that target, within a configured minimum and maximum replica count.

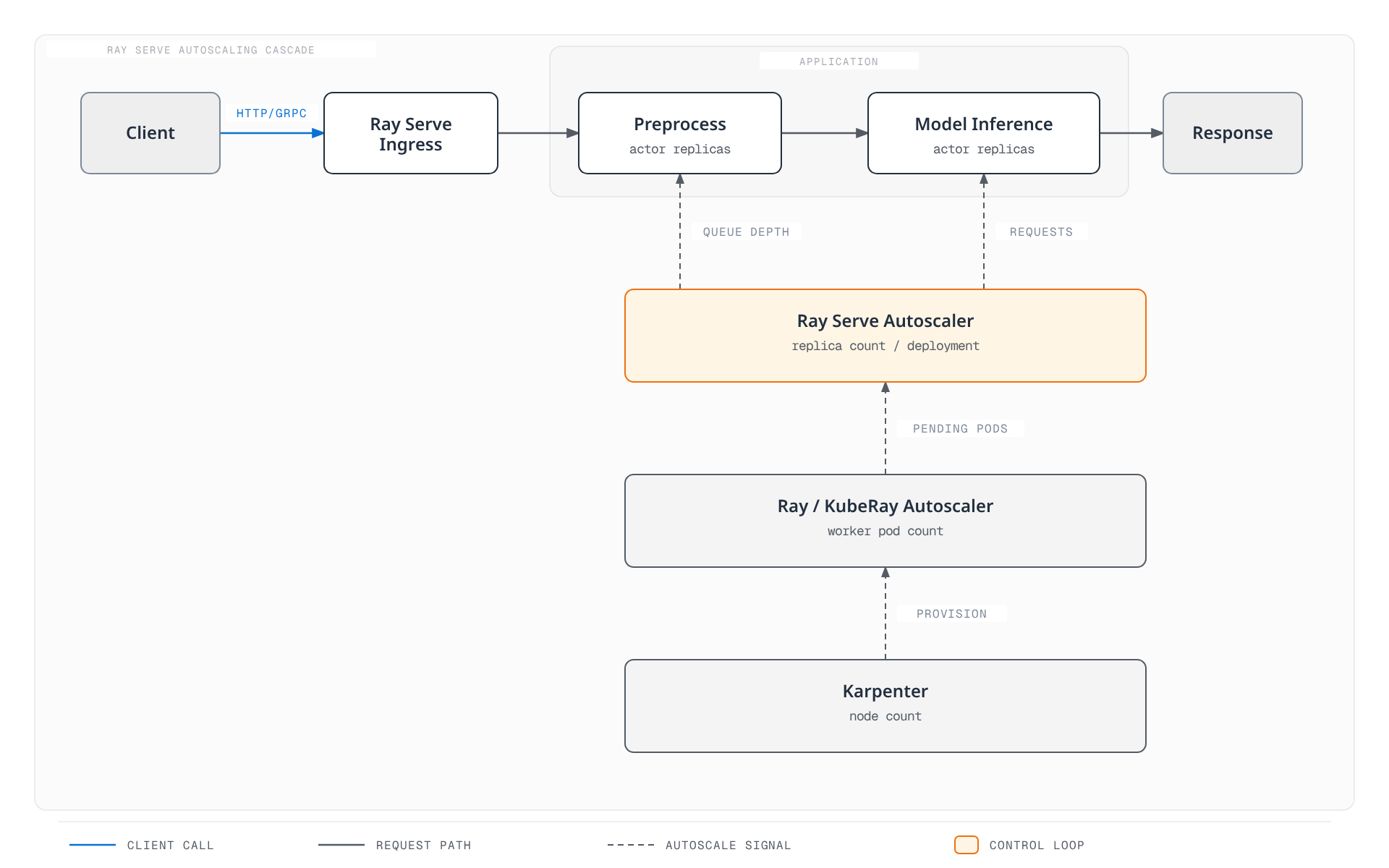

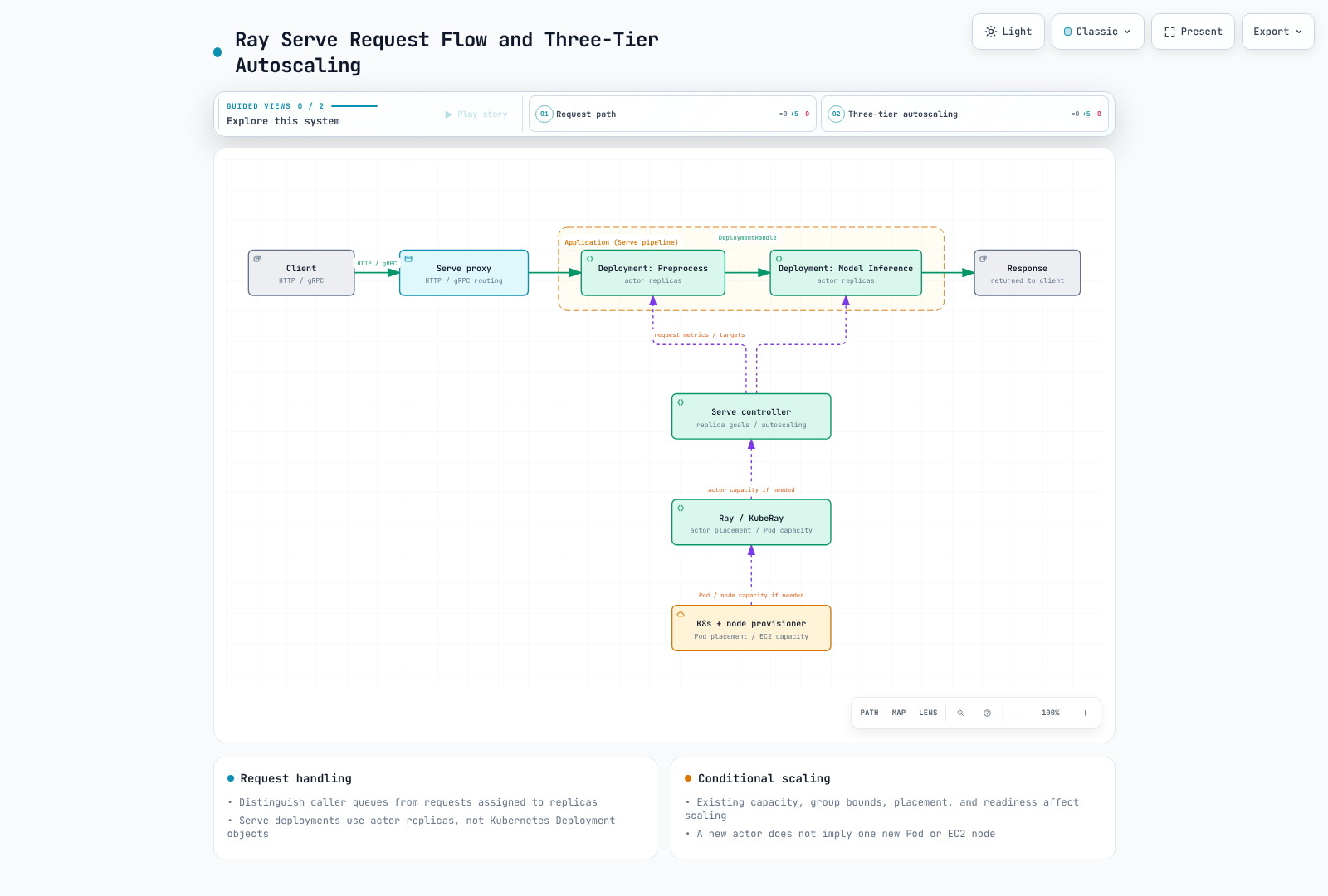

That gives this documentation site's now-familiar three-tier autoscaling picture for a Serve application running on EKS:

1. Ray Serve's autoscaler decides how many actor replicas a deployment needs, based on request load.
2. The Ray/KubeRay autoscaler (covered in Part 2) decides how many Ray worker Pods the underlying RayCluster needs, based on pending actor placement — including the replicas Ray Serve's autoscaler just asked for.
3. Karpenter decides how many EC2 nodes are needed to actually run those worker Pods, the same mechanism described in Karpenter.

Each layer only sees the layer immediately below it. Ray Serve's autoscaler has no idea whether a new replica lands on an existing node or triggers a new one; it just asks for more replicas. Whether that request turns into a new EC2 node — and how long that takes — is Karpenter's problem, one layer further down.

GPU Inference

A model-inference deployment that needs a GPU requests one the same way any other Ray workload does: through Ray's normal per-actor resource request, the same mechanism Part 3 covers for Ray Train and Ray Tune workers. Ray Serve schedules that deployment's actor replicas onto workers that can satisfy the requested GPU count, and — as covered in Part 2 — the worker group's Pod spec is what actually advertises GPU capacity to the Ray scheduler in the first place.

This is also where Ray Serve's autoscaling and Karpenter's node-provisioning lead time interact in exactly the way they do for other GPU workloads on this site: when Ray Serve's autoscaler decides an inference deployment needs another replica and none of the existing GPU worker Pods have room, that replica request turns into a pending Pod, and Karpenter has to provision a new GPU-backed EC2 node before the replica can actually start serving traffic. A serving application that scales its GPU replica count aggressively should account for that provisioning lead time — see Karpenter for how node provisioning latency for GPU instance types works in more depth.

RayService in Production

Running a Serve application by itself, outside Kubernetes, is fine for local development, but production deployments on EKS use the RayService CRD introduced in Part 2. RayService manages the underlying RayCluster and the Serve application deployed on top of it as one unit, and it's specifically the resource that supports rolling out a new application version, or a changed RayCluster spec, aimed at not dropping in-flight requests — check the current KubeRay release notes for this upgrade path's maturity and prerequisites. This document doesn't re-explain RayService's CRD mechanics; see Part 2 for that.

In practice, this means the deployment topology described earlier in this document — an application composed of one or more deployments, each autoscaling its own actor replica count — is what a RayService object manages the lifecycle of on a real EKS cluster, while the Ray/KubeRay and Karpenter autoscaling tiers keep operating underneath it exactly as they do for any other RayCluster.

Next Steps

That's the end of this four-part Ray series. Part 1 covered Ray's core primitives — tasks, actors, and the object store. Part 2 covered running Ray clusters declaratively on Kubernetes through KubeRay's RayCluster, RayJob, and RayService CRDs, and the Ray/KubeRay-plus-Karpenter autoscaling split. Part 3 covered distributed training and hyperparameter tuning on top of that cluster. This part closed the loop with Ray Serve: deployments built on the actor primitive from Part 1, composed into applications, autoscaled on their own request-load metric, and — in production — managed end to end through the RayService CRD from Part 2.
