Cilium Service Mesh Security

Last Updated: September 11, 2026 · Cilium/chart 1.20.1 · bundled SPIRE 1.15.2. See the overview for tested Kubernetes/EKS versions and platform requirements.

Overview

Evaluate three separate controls: workload authorization, peer authentication and application-data encryption. Cilium's out-of-band mutual authentication, WireGuard/IPsec transport encryption and the separate ztunnel mTLS beta have different requirements and limitations.

The policy examples below describe the ordinary Cilium policy/out-of-band-authentication path. Do not assume they retain the same L4 enforcement when ztunnel encryption is enabled; the beta limitation is explained below.

Security Architecture

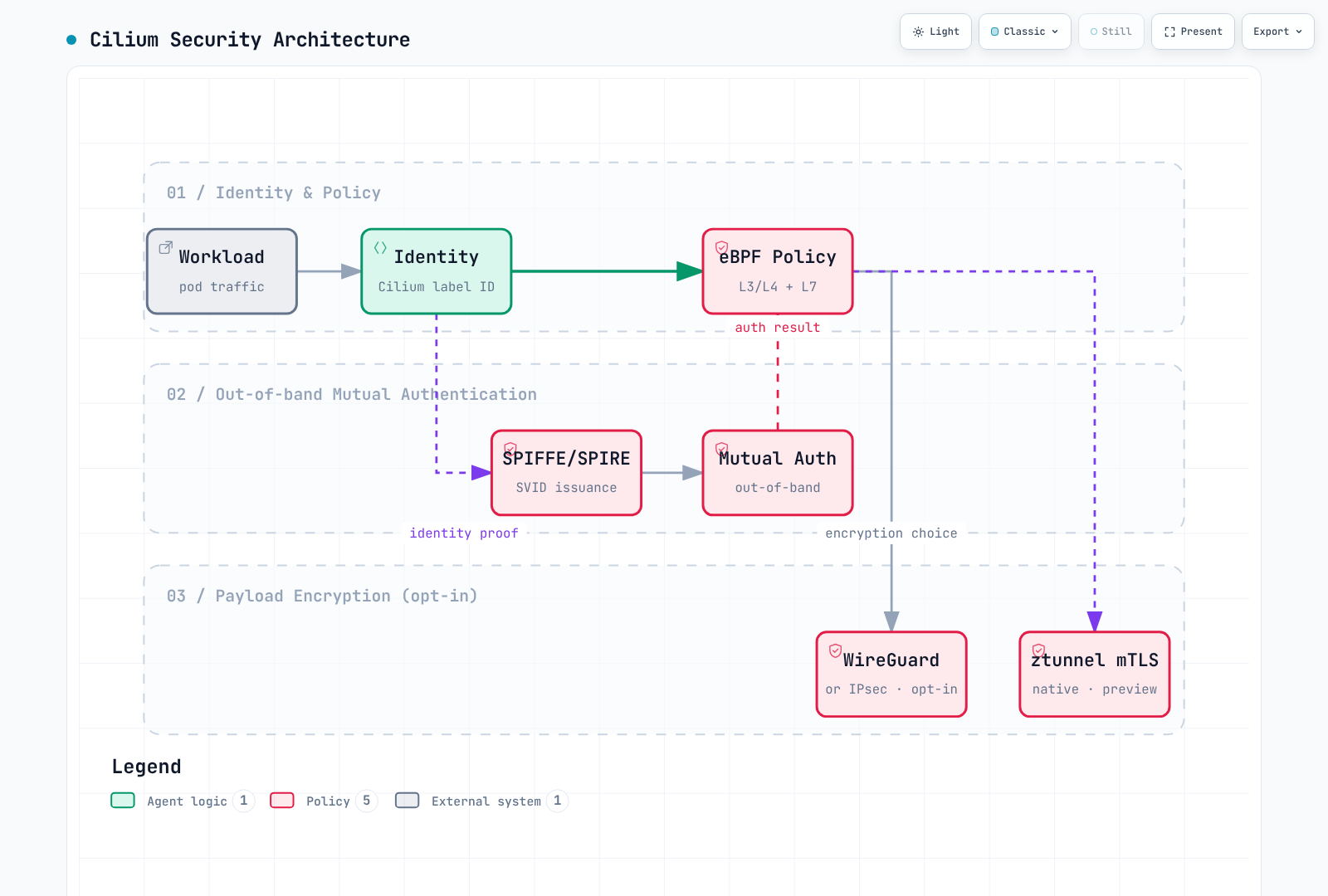

Logical separation of identity/policy, out-of-band authentication and optional encryption choices.Open full screen ↗

These boxes group responsibilities rather than certify that every combination preserves all policies. In particular, ztunnel beta uses a distinct identity/data path, and its default CA does not require the SPIRE integration shown for out-of-band authentication.

Mutual Authentication and Data Encryption

Established Cilium Mutual Authentication

The out-of-band mechanism is still documented as beta/incomplete in Cilium 1.20.1. Cilium agents authenticate Cilium security identities using SPIRE-provided SVIDs; the application connection does not itself become TLS because a network-policy rule requires authentication.

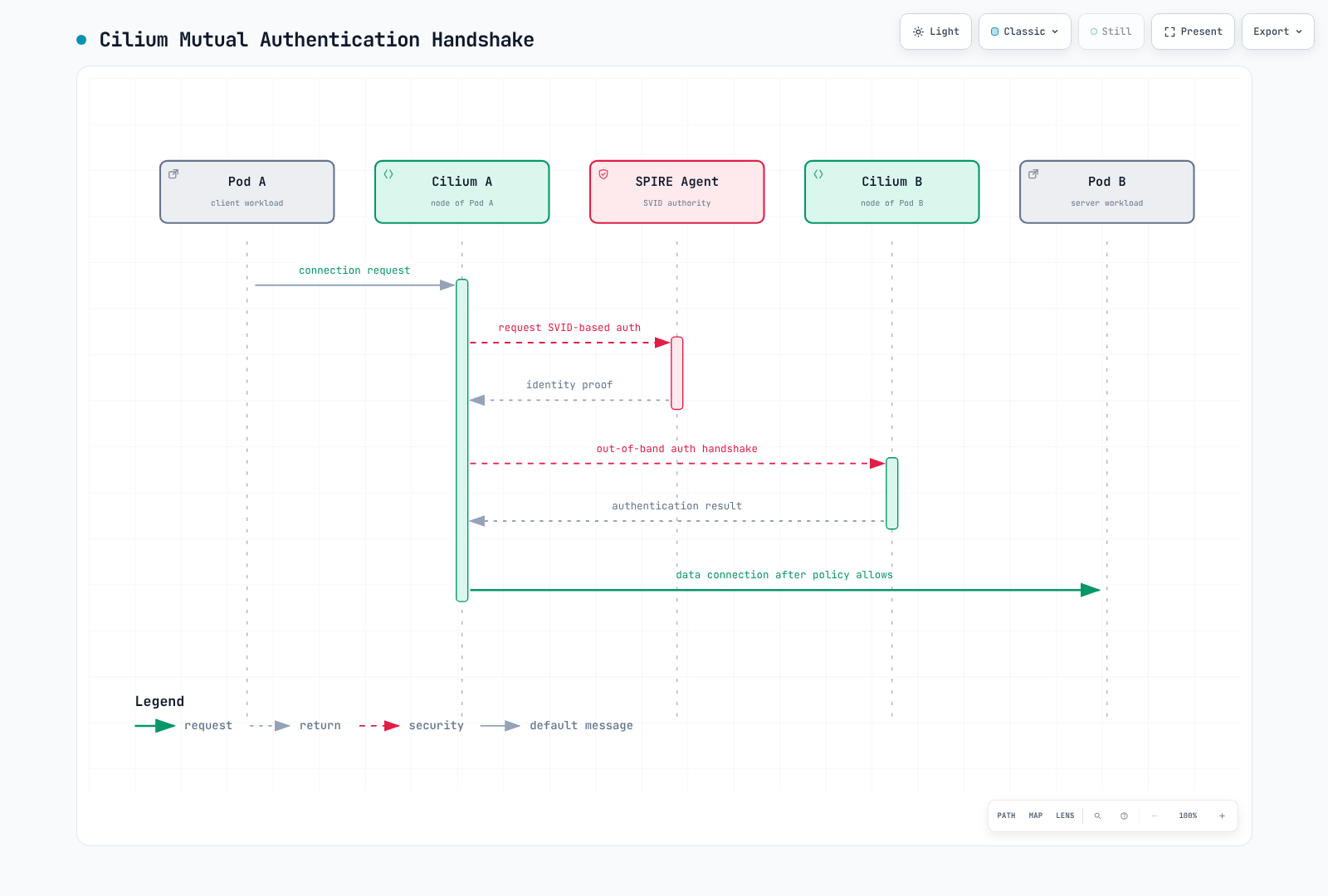

Illustrative out-of-band authentication exchange between agents before policy-protected traffic proceeds.Open full screen ↗

Authentication records are cached for identity relationships. The diagram is not a new certificate/handshake for every HTTP request or necessarily every application connection. Apply explicit authorization rules as well as authentication requirements.

Native mTLS via ztunnel (2026 Update)

Cilium 1.20.1 contains Ztunnel Transparent Encryption (Beta). Select it with this mode fragment, after preparing the required bootstrap/CA material:

encryption:
  enabled: true
  type: ztunnel
  ztunnel:
    ca:
      type: internal

The released default uses Cilium's internal CA option. A cilium-ztunnel-secrets Secret supplies bootstrap-private.key, bootstrap-root.crt, ca-private.key and ca-root.crt; the official generation script is an example, not a complete production PKI/rotation design. The chart's bootstrapRootCert option alone supplies only a public certificate and does not generate the private keys required by the internal CA.

The Cilium agent configures iptables redirection in enrolled Pods' network namespaces, sends workload state to the node's ztunnel, and serves its control/certificate interfaces. The chart creates the ztunnel-cilium DaemonSet. Namespace enrollment uses io.cilium/mtls-enabled=true; installing the mode alone does not enroll all namespaces.

The released guide specifies these boundaries:

• Both source and destination workloads must be enrolled; enrolled-to-unenrolled communication is not supported.
• Enrollment is namespace-based; per-Pod enrollment is not supported. Host-networked Pods cannot be enrolled.
• Only TCP is redirected for mTLS; UDP and other protocols are outside this encryption path.
• ClusterMesh is not supported, and the kernel must support the required iptables operations.
• Encryption occurs before packets leave the Pod. Ordinary L4 policies therefore do not work on this path except when directly targeting HBONE port 15008.

This integration uses a namespace/service-account workload identity model. It differs from the numeric /identity/<id> SPIFFE path used by out-of-band authentication.

Read-only checks for a prepared test installation include:

kubectl -n kube-system get daemonset ztunnel-cilium
kubectl get namespaces -l io.cilium/mtls-enabled=true
kubectl -n kube-system get configmap cilium-config -o yaml

A namespace label, healthy proxy or packet observed on port 15008 alone does not prove all expected traffic is encrypted and authorized. Check successful enrollment, both ends of the chosen path, certificate identity/trust and unsupported traffic cases.

When to Choose Cilium vs. Istio for mTLS

Choose against the required identity, authorization and traffic coverage. An existing Cilium deployment may use identity policy plus WireGuard/IPsec, or evaluate the separate ztunnel beta within its limitations. Account for the additional proxies, CA and operational dependencies actually enabled.

Istio provides workload-proxy mTLS in sidecar and ambient modes with their own feature/platform boundaries. PeerAuthentication STRICT is an inbound mTLS requirement; it does not by itself issue identities, install proxies or authorize every caller. Do not reduce the comparison to a single encryption switch. The sidecar/ambient chapter preserves its actual measured versions and scenarios.

SPIRE-Based Mutual Authentication Configuration

For out-of-band authentication, merge this overlay into the installation's reviewed values:

authentication:
  enabled: true
  mutual:
    spire:
      enabled: true
      trustDomain: spiffe.cilium
      agentSocketPath: /run/spire/sockets/agent/agent.sock
      install:
        enabled: true
        server:
          dataStorage:
            enabled: true
            size: 1Gi

Prepare a suitable StorageClass/PV for the SPIRE StatefulSet. A class named gp3 is not automatically present on every EKS cluster. authentication.enabled is required; trust domain and agent socket settings belong under authentication.mutual.spire, not beneath install.server or install.agent. The bundled chart does not implement the former server.replicas, server.nodeAttestor, agent.workloadAttestor or server.ca.ttl examples.

The SPIRE Server attests agents and signs SVIDs. Agents perform workload attestation; the Cilium integration additionally delegates retrieval and registers entries for Cilium security identities. Enabling SPIRE alone neither enforces authentication on all traffic nor enables WireGuard/IPsec.

Mutual Authentication Policy Enforcement

authentication is an object inside an ingress/egress allow rule. It is not an array and not a top-level spec.authentication switch. This cluster-scoped policy deliberately selects one application/namespace:

apiVersion: cilium.io/v2
kind: CiliumClusterwideNetworkPolicy
metadata:
  name: production-backend-auth
spec:
  endpointSelector:
    matchLabels:
      k8s:io.kubernetes.pod.namespace: production
      k8s:app: backend
  ingress:
  - fromEndpoints:
    - matchLabels:
        k8s:io.kubernetes.pod.namespace: production
        k8s:app: frontend
    toPorts:
    - ports:
      - port: '8080'
        protocol: TCP
    authentication:
      mode: required

Per-Namespace Mutual Authentication

This namespaced example selects workloads in production and permits authenticated peers from that namespace on TCP 8080:

apiVersion: cilium.io/v2
kind: CiliumNetworkPolicy
metadata:
  name: namespace-auth
  namespace: production
spec:
  endpointSelector: {}
  ingress:
  - fromEndpoints:
    - matchLabels:
        k8s:io.kubernetes.pod.namespace: production
    toPorts:
    - ports:
      - port: '8080'
        protocol: TCP
    authentication:
      mode: required

It is an illustrative same-namespace allowance, not least privilege for every application. Other ports, clients, probes and existing policy grants must be assessed separately. It affects ingress; it does not silently configure a complete egress dependency policy.

Per-Service Mutual Authentication

apiVersion: cilium.io/v2
kind: CiliumNetworkPolicy
metadata:
  name: service-auth
  namespace: default
spec:
  endpointSelector:
    matchLabels:
      k8s:io.kubernetes.pod.namespace: default
      k8s:app: backend
  ingress:
  - fromEndpoints:
    - matchLabels:
        k8s:io.kubernetes.pod.namespace: default
        k8s:app: frontend
    toPorts:
    - ports:
      - port: '8080'
        protocol: TCP
    authentication:
      mode: required

Here the source and destination labels describe workloads, not an end user's login. Kubernetes permissions must control who can create workloads, change those labels or use their service accounts.

CiliumNetworkPolicy L7 Rules

HTTP L7 Security Policy

apiVersion: cilium.io/v2
kind: CiliumNetworkPolicy
metadata:
  name: http-security-policy
  namespace: default
spec:
  endpointSelector:
    matchLabels:
      k8s:io.kubernetes.pod.namespace: default
      k8s:app: api-server
  ingress:
  - fromEndpoints:
    - matchLabels:
        k8s:io.kubernetes.pod.namespace: default
        k8s:role: reader
    toPorts:
    - ports:
      - port: '8080'
        protocol: TCP
      rules:
        http:
        - method: ^GET$
          path: ^/api/.*$
  - fromEndpoints:
    - matchLabels:
        k8s:io.kubernetes.pod.namespace: default
        k8s:role: admin
    toPorts:
    - ports:
      - port: '8080'
        protocol: TCP
      rules:
        http:
        - method: ^(GET|POST|PUT|PATCH|DELETE)$
          path: ^/api/.*$
          headers:
          - Authorization
  - fromEndpoints:
    - matchLabels:
        k8s:io.kubernetes.pod.namespace: default
        k8s:app: monitoring
    toPorts:
    - ports:
      - port: '8080'
        protocol: TCP
      rules:
        http:
        - method: ^GET$
          path: ^/health$
        - method: ^GET$
          path: ^/metrics$

HTTP rules within a rule are alternatives. headers: [Authorization] requires presence only: it does not validate a bearer token, its signature, expiry or permissions. The former Authorization: Bearer .* string was not a JWT verifier or a general regular-expression value match. Perform application authentication and authorization independently.

An HTTP path policy requires a supported inspectable L7 path. Application TLS, probes and other dependency traffic need the relevant configuration; a port number alone does not turn on TLS.

Kafka L7 Security Policy

The old rules.kafka object is rejected by the Cilium 1.20.1 L7 schema. The replacement below limits network reachability only:

apiVersion: cilium.io/v2
kind: CiliumNetworkPolicy
metadata:
  name: kafka-network-boundary
  namespace: kafka
spec:
  endpointSelector:
    matchLabels:
      k8s:io.kubernetes.pod.namespace: kafka
      k8s:app: kafka
  ingress:
  - fromEndpoints:
    - matchLabels:
        k8s:io.kubernetes.pod.namespace: kafka
        k8s:role: producer
    toPorts:
    - ports:
      - port: '9092'
        protocol: TCP
  - fromEndpoints:
    - matchLabels:
        k8s:io.kubernetes.pod.namespace: kafka
        k8s:role: consumer
    toPorts:
    - ports:
      - port: '9092'
        protocol: TCP

Configure the actual Kafka listener's TLS/SASL and broker ACLs for produce/fetch, topics and consumer groups. Removing an obsolete L7 rule leaves L4 access; it does not preserve topic-level authorization.

DNS L7 Security Policy

apiVersion: cilium.io/v2
kind: CiliumNetworkPolicy
metadata:
  name: dns-security
  namespace: default
spec:
  endpointSelector:
    matchLabels:
      k8s:io.kubernetes.pod.namespace: default
      k8s:app: web-application
  egress:
  - toEndpoints:
    - matchLabels:
        k8s:io.kubernetes.pod.namespace: kube-system
        k8s:k8s-app: kube-dns
    toPorts:
    - ports:
      - port: '53'
        protocol: UDP
      - port: '53'
        protocol: TCP
      rules:
        dns:
        - matchPattern: '*.*.svc.cluster.local'
        - matchName: api.stripe.com
        - matchName: sts.us-east-1.amazonaws.com
  - toFQDNs:
    - matchName: api.stripe.com
    - matchName: sts.us-east-1.amazonaws.com
    toPorts:
    - ports:
      - port: '443'
        protocol: TCP

The example assumes CoreDNS endpoints labeled k8s-app=kube-dns in kube-system, plus the ordinary cluster.local DNS suffix. It allows UDP and TCP DNS. A Service FQDN contains both service and namespace labels, so *.*.svc.cluster.local differs from the former *.svc.cluster.local.

External HTTPS permission is separate from DNS query permission. sts.us-east-1.amazonaws.com is a specific regional AWS endpoint; AWS does not use the former api.aws.amazon.com as a universal API endpoint. Select the actual SDK region/service endpoints, including any relevant IPv6/dual-stack or private-endpoint variants. Internal DNS answers are not an automatic grant to connect to every internal Service.

Review resolver search-list behavior and NodeLocal DNS if enabled. Broad S3 wildcards can allow destinations beyond one intended bucket, and a DNS/IP policy is not a guarantee against exfiltration through allowed destinations.

Mutual Authentication

Authentication Modes

Mode	Meaning in the out-of-band policy API
required	Require successful authentication for the matched allowed traffic
disabled	Explicit authentication exemption for that matched rule
test-always-fail	Test mode that deliberately fails authentication

There is no optional mode in the released schema. Absence of an explicit requirement differs from a carefully scoped exemption when other rules overlap; inspect the resulting policy rather than assuming authentication rules behave like ordinary independent allow grants.

Mutual Authentication Policy Examples

An exemption is explicit, narrow and should be justified:

apiVersion: cilium.io/v2
kind: CiliumNetworkPolicy
metadata:
  name: authentication-exception
  namespace: production
spec:
  endpointSelector:
    matchLabels:
      k8s:io.kubernetes.pod.namespace: production
      k8s:app: secure-service
  ingress:
  - fromEndpoints:
    - matchLabels:
        k8s:io.kubernetes.pod.namespace: production
        k8s:app: trusted-client
    toPorts:
    - ports:
      - port: '443'
        protocol: TCP
    authentication:
      mode: required
  - fromEndpoints:
    - matchLabels:
        k8s:io.kubernetes.pod.namespace: monitoring
        k8s:app: prometheus
    toPorts:
    - ports:
      - port: '9090'
        protocol: TCP
    authentication:
      mode: disabled

The Prometheus rule is disabled authentication, not “authenticate if possible.” It grants only the stated monitoring workload and port. TLS on either application's listening port is a separate application configuration.

SPIFFE ID-Based Authentication

For the default out-of-band SPIRE trust domain, a Cilium security identity has this form:

spiffe://spiffe.cilium/identity/<numeric-security-identity>

Select the permitted peers through endpoint/identity policy; the authentication object has no arbitrary SPIFFE-ID allow-list field. Changing a comment to an Istio-style /ns/.../sa/... URI does not constrain access. The ztunnel beta described above uses a separate workload identity model.

Encryption

WireGuard Transparent Encryption

encryption:
  enabled: true
  type: wireguard

Cilium creates node key pairs and distributes public keys through CiliumNode information. Supported traffic between Cilium-managed Pods on different nodes is encrypted; same-node traffic is not. The kernel must provide WireGuard support. The chart has no encryption.wireguard.userspaceFallback option.

Allow the required node-to-node UDP 51871 path and account for MTU/encapsulation. AWS VPC CNI chaining has additional MTU requirements, including the documented cni.enableRouteMTUForCNIChaining setting; follow the selected installation mode rather than applying it blindly.

WireGuard Architecture

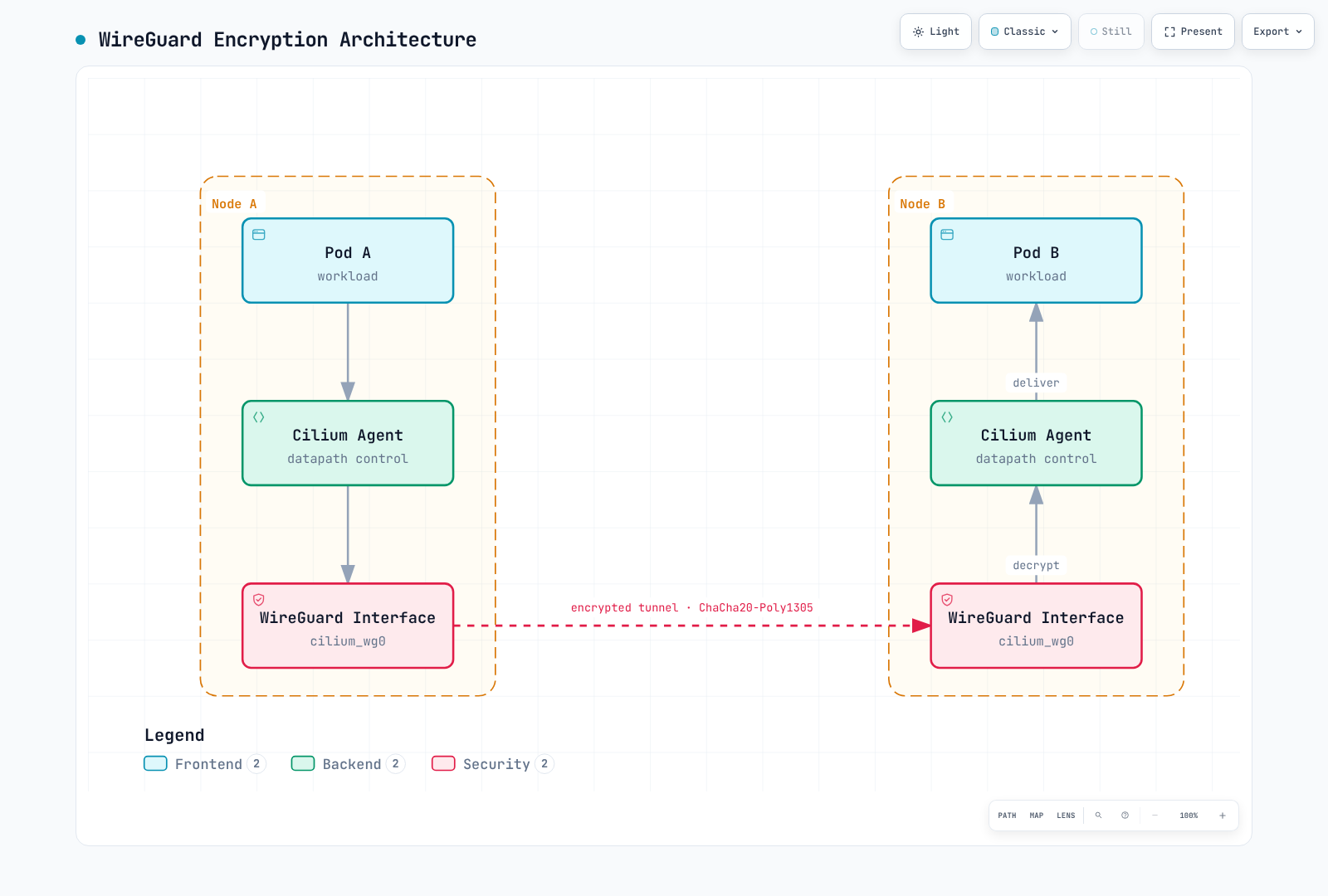

Logical management of inter-node WireGuard by Cilium agents, with encryption performed by the kernel WireGuard interfaces.Open full screen ↗

The Agent box represents management/key distribution, not a userspace transit hop for every packet. Capturing on the WireGuard interface can show plaintext inner packets; verify the correct outer network path when assessing encryption.

Node-to-node coverage is a separate beta option:

encryption:
  enabled: true
  type: wireguard
  nodeEncryption: true

Control-plane nodes are excluded from node encryption by default to avoid key-update bootstrap failures. The released traffic matrix also identifies exclusions involving XDP acceleration, non-Geneve DSR and egress-gateway replies. The client-to-cluster leg of an external request is not encrypted by node WireGuard.

IPsec Encryption

encryption:
  enabled: true
  type: ipsec
  ipsec:
    secretName: cilium-ipsec-keys
    keyFile: keys
    keyWatcher: true
    keyRotationDuration: 5m

The Secret must exist in Cilium's namespace. For the documented AES-GCM example, its keys entry has the shape:

3+ rfc4106(gcm(aes)) <fresh-20-byte-random-value-in-hex> 128

The + selects per-tunnel derived keys. The old global-key form without + was deprecated for security reasons; do not copy it as current guidance. Generate and protect fresh key material through the documented CLI/Secret workflow rather than reusing a sample key.

keyRotationDuration: 5m is a transition/old-key-cleanup grace period after a key change, not a scheduler that generates a new key every five minutes. Update key IDs and material through the supported rotation procedure, coordinate all clusters if using ClusterMesh, and do not rotate while nodes are on mixed versions during an upgrade.

Check ESP/firewall support, the actual encryption interfaces and native-routing CIDR. Current IPsec requires the documented transparent DNS-proxy behavior with L7, does not support CNI chaining or host policies, and does not encrypt same-node traffic.

Encryption Comparison

Topic	WireGuard	IPsec	ztunnel beta
Keys/identity	Node-generated key pairs	Distributed key material with per-tunnel derivation	Workload mTLS certificates and bootstrap/CA material
Data path	Kernel WireGuard interfaces	Kernel IPsec/XFRM	Per-node TLS proxy and Pod-namespace redirection
Same-node/coverage	Same-node traffic not encrypted; use released traffic matrix	Same-node traffic not encrypted; mode limitations apply	Both endpoints enrolled; TCP only; policy limitations apply
Cipher configuration	WireGuard protocol's ChaCha20-Poly1305 suite	Kernel-supported configured algorithms, such as AES-GCM	TLS negotiated by the supported proxy
Performance	Measure the actual CPU, MTU and traffic mix	Measure algorithm/hardware, tunnel and single-tunnel decryption constraints	Measure proxy, TLS and workload overhead; not part of the older comparison benchmarks

Transparent encryption can also have an endpoint-discovery window in which a permitted unknown destination is treated as external. Cilium documents restricted egress and encryption strict modes as mitigations, with specific limitations: strict egress is IPv4/CIDR-dependent; strict ingress requires WireGuard and managed interfaces and is not supported with CNI chaining. Do not interpret “encryption enabled” as proof of fail-closed protection for every path.

Identity-Based Security

Cilium Identity

Cilium allocates a numeric identity for an identity-relevant label set; several Pods can share it. This is not a user-computed hash or a permanent Pod identifier.

Identity Components

kubectl -n kube-system get pods -l k8s-app=cilium -o wide
CILIUM_POD='<agent-on-the-workload-node>'
kubectl -n default get ciliumendpoints
kubectl get ciliumidentities
kubectl -n kube-system exec "$CILIUM_POD" -c cilium-agent -- cilium-dbg identity list
kubectl -n kube-system exec "$CILIUM_POD" -c cilium-agent -- cilium-dbg status --verbose
kubectl -n kube-system exec "$CILIUM_POD" -c cilium-agent -- cilium-dbg encrypt status

Namespace, service-account and selected workload labels can contribute. IDs 1–6 correspond to host, world, unmanaged, health, init and remote-node; allocated workload IDs depend on the installation. Inspect the agent on the relevant node and keep full command failures/status.

Identity-Based Policy

apiVersion: cilium.io/v2
kind: CiliumNetworkPolicy
metadata:
  name: identity-based-policy
  namespace: default
spec:
  endpointSelector:
    matchLabels:
      k8s:io.kubernetes.pod.namespace: default
      k8s:app: backend
  ingress:
  - fromEndpoints:
    - matchLabels:
        k8s:io.kubernetes.pod.namespace: default
        k8s:app: frontend
        k8s:environment: production
    toPorts:
    - ports:
      - port: '8080'
        protocol: TCP
  - fromEndpoints:
    - matchLabels:
        k8s:io.kubernetes.pod.namespace: monitoring
        k8s:app: prometheus
    toPorts:
    - ports:
      - port: '9090'
        protocol: TCP

IP vs Identity Comparison

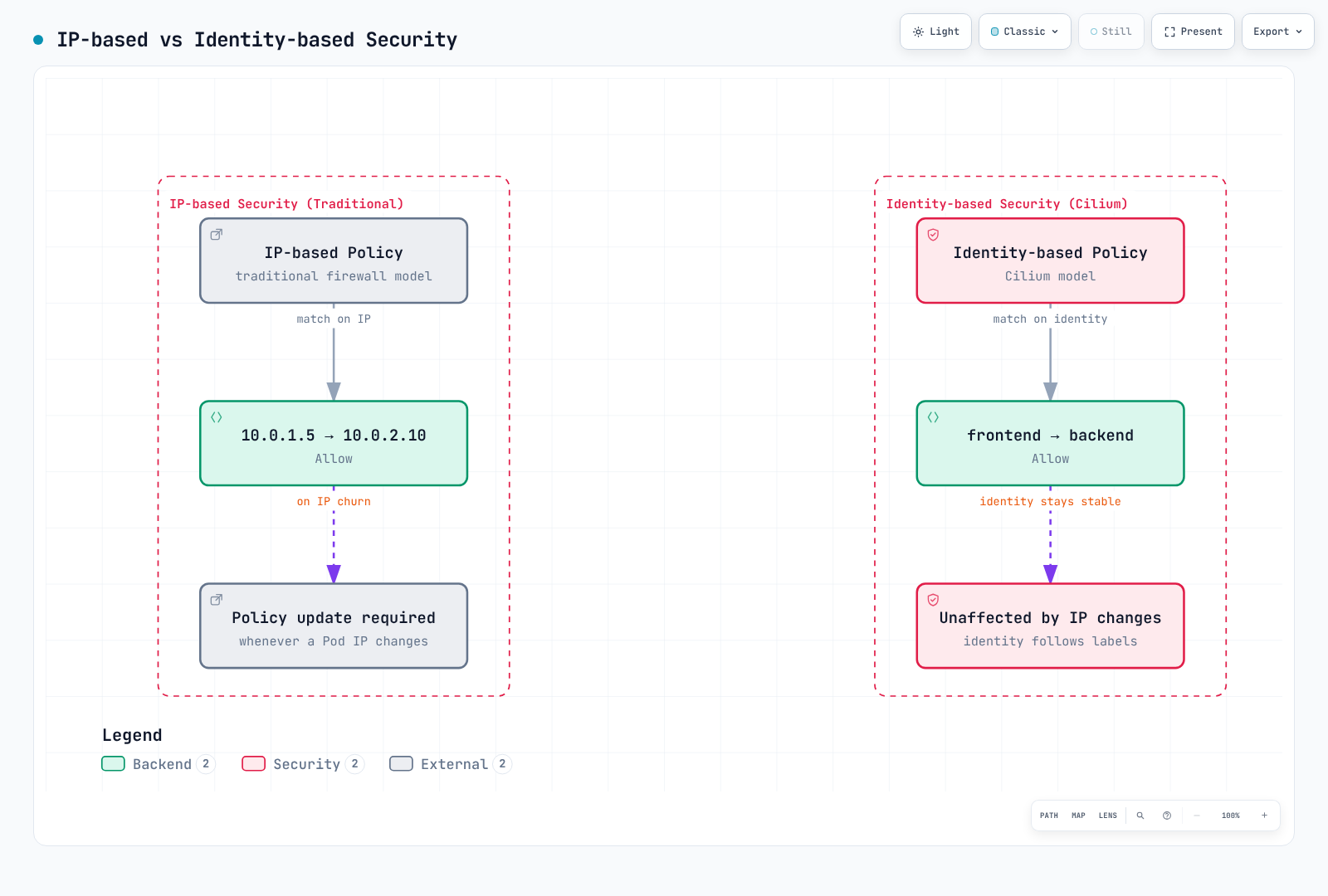

Identity selectors avoid manually rewriting address lists for each Pod change, while Cilium still maintains address-to-identity state.Open full screen ↗

Policy selectors can remain stable across IP churn. Cilium must still update endpoint/IP-cache state, and an identity can be garbage-collected and reallocated; the diagram does not promise an immutable numeric ID after every restart.

External PKI Integration

cert-manager Integration

These objects illustrate producing an upstream CA Secret. They do not connect that Secret to SPIRE by themselves:

apiVersion: cert-manager.io/v1
kind: ClusterIssuer
metadata:
  name: cilium-ca-issuer
spec:
  ca:
    secretName: cilium-ca-secret
---
apiVersion: cert-manager.io/v1
kind: Certificate
metadata:
  name: cilium-spire-ca
  namespace: cilium-spire
spec:
  secretName: spire-ca-secret
  duration: 8760h
  renewBefore: 720h
  isCA: true
  privateKey:
    algorithm: ECDSA
    size: 256
    rotationPolicy: Always
  usages:
  - cert sign
  - crl sign
  subject:
    organizations:
    - Cilium
  commonName: SPIRE upstream CA
  issuerRef:
    name: cilium-ca-issuer
    kind: ClusterIssuer
    group: cert-manager.io

Prepare a valid signing CA/key in cilium-ca-secret in cert-manager's configured cluster-resource namespace, with sufficient remaining lifetime. Validate CA constraints, signing usages and trust chains. The one-year duration is an example subordinate-CA lifetime, not a universal recommendation.

An externally managed SPIRE server must use a supported UpstreamAuthority and access the required mounted material or issuer API. For a disk authority joining an existing PKI, SPIRE requires cert_file_path, key_file_path and a trusted-root bundle_file_path; plan reload/rotation and trust overlap. A Kubernetes Secret update alone is not proof that every certificate consumer has adopted the new CA.

Do not replace the bundled SPIRE ConfigMap with a partial unrelated file. For externally operated SPIRE, review Cilium's external-server address, trust-domain, delegated-identity registration and authentication prerequisites separately.

Vault Integration

The following is only a plugin fragment for an independently configured SPIRE 1.15.2 server, not a complete server configuration or Kubernetes Deployment:

plugins {
  UpstreamAuthority "vault" {
    plugin_data {
      vault_addr = "https://vault.vault.svc:8200"
      pki_mount_point = "pki"
      ca_cert_path = "/vault/ca/ca.crt"
      k8s_auth {
        k8s_auth_mount_point = "kubernetes"
        k8s_auth_role_name = "spire-upstream"
        token_path = "/var/run/secrets/vault/token"
      }
    }
  }
}

Plugins belong in top-level plugins, not inside server. The field is pki_mount_point; token_path belongs inside k8s_auth here. The token is a projected Kubernetes service-account token for the configured Vault auth role, not a generic Vault token file.

Prepare the token projection/audience and Vault Kubernetes auth configuration, bind the role to the intended SPIRE workload, mount the TLS CA used to verify Vault, and grant the required PKI sign-intermediate operation. Coordinate SPIRE ca_ttl, Vault PKI TTLs, workload trust and rotation. This guide does not claim those external dependencies have been deployed or tested.

Zero Trust Networking

Default Deny Policy

This cluster-scoped resource deliberately targets the isolated policy-lab namespace:

apiVersion: cilium.io/v2
kind: CiliumClusterwideNetworkPolicy
metadata:
  name: policy-lab-default-deny
spec:
  endpointSelector:
    matchLabels:
      k8s:io.kubernetes.pod.namespace: policy-lab
  enableDefaultDeny:
    ingress: true
    egress: true
  ingress: []
  egress: []

The enableDefaultDeny flags are explicit: an empty Cilium ingress/egress array by itself does not supply rules that turn on default-deny. Do not transfer that assumption from Kubernetes NetworkPolicy examples.

Add specific dependencies, such as DNS, as separate allow rules:

apiVersion: cilium.io/v2
kind: CiliumNetworkPolicy
metadata:
  name: policy-lab-dns
  namespace: policy-lab
spec:
  endpointSelector: {}
  egress:
  - toEndpoints:
    - matchLabels:
        k8s:io.kubernetes.pod.namespace: kube-system
        k8s:k8s-app: kube-dns
    toPorts:
    - ports:
      - port: '53'
        protocol: UDP
      - port: '53'
        protocol: TCP

There is no universal requirement to allow every host-network flow. Assess actual kubelet/probe, resolver and host-policy behavior. These examples do not change Cilium's host handling or defend against a compromised privileged node.

Least Privilege Access

This example assumes a Cilium-managed gateway workload labeled app=ingress-gateway in edge, frontend/database workloads in production and a working SPIRE integration:

apiVersion: cilium.io/v2
kind: CiliumNetworkPolicy
metadata:
  name: production-security
  namespace: production
spec:
  endpointSelector:
    matchLabels:
      k8s:io.kubernetes.pod.namespace: production
      k8s:app: api
  ingress:
  - fromEndpoints:
    - matchLabels:
        k8s:io.kubernetes.pod.namespace: production
        k8s:app: frontend
    toPorts:
    - ports:
      - port: '8080'
        protocol: TCP
    authentication:
      mode: required
  - fromEndpoints:
    - matchLabels:
        k8s:io.kubernetes.pod.namespace: edge
        k8s:app: ingress-gateway
    toPorts:
    - ports:
      - port: '8080'
        protocol: TCP
  egress:
  - toEndpoints:
    - matchLabels:
        k8s:io.kubernetes.pod.namespace: kube-system
        k8s:k8s-app: kube-dns
    toPorts:
    - ports:
      - port: '53'
        protocol: UDP
      - port: '53'
        protocol: TCP
  - toEndpoints:
    - matchLabels:
        k8s:io.kubernetes.pod.namespace: production
        k8s:app: database
    toPorts:
    - ports:
      - port: '5432'
        protocol: TCP
    authentication:
      mode: required

Use the labels and identities actually observed in the selected gateway implementation. Cilium's own node Envoy ingress/Gateway path and external load balancers can expose different identities; an arbitrary Pod label is not interchangeable with reserved:ingress or an external client address. The former retired ingress-nginx example is not a required dependency.

Microsegmentation

These application-tier policies retain explicit DNS access for tiers that initiate Service lookups. They assume the same gateway model and the stated listening ports:

apiVersion: cilium.io/v2
kind: CiliumNetworkPolicy
metadata:
  name: frontend-policy
  namespace: app
spec:
  endpointSelector:
    matchLabels:
      k8s:io.kubernetes.pod.namespace: app
      k8s:tier: frontend
  ingress:
  - fromEndpoints:
    - matchLabels:
        k8s:io.kubernetes.pod.namespace: edge
        k8s:app: ingress-gateway
    toPorts:
    - ports:
      - port: '443'
        protocol: TCP
  egress:
  - toEndpoints:
    - matchLabels:
        k8s:io.kubernetes.pod.namespace: kube-system
        k8s:k8s-app: kube-dns
    toPorts:
    - ports:
      - port: '53'
        protocol: UDP
      - port: '53'
        protocol: TCP
  - toEndpoints:
    - matchLabels:
        k8s:io.kubernetes.pod.namespace: app
        k8s:tier: backend
    toPorts:
    - ports:
      - port: '8080'
        protocol: TCP
    authentication:
      mode: required
---
apiVersion: cilium.io/v2
kind: CiliumNetworkPolicy
metadata:
  name: backend-policy
  namespace: app
spec:
  endpointSelector:
    matchLabels:
      k8s:io.kubernetes.pod.namespace: app
      k8s:tier: backend
  ingress:
  - fromEndpoints:
    - matchLabels:
        k8s:io.kubernetes.pod.namespace: app
        k8s:tier: frontend
    toPorts:
    - ports:
      - port: '8080'
        protocol: TCP
    authentication:
      mode: required
  egress:
  - toEndpoints:
    - matchLabels:
        k8s:io.kubernetes.pod.namespace: kube-system
        k8s:k8s-app: kube-dns
    toPorts:
    - ports:
      - port: '53'
        protocol: UDP
      - port: '53'
        protocol: TCP
  - toEndpoints:
    - matchLabels:
        k8s:io.kubernetes.pod.namespace: app
        k8s:tier: database
    toPorts:
    - ports:
      - port: '5432'
        protocol: TCP
    authentication:
      mode: required
---
apiVersion: cilium.io/v2
kind: CiliumNetworkPolicy
metadata:
  name: database-policy
  namespace: app
spec:
  endpointSelector:
    matchLabels:
      k8s:io.kubernetes.pod.namespace: app
      k8s:tier: database
  enableDefaultDeny:
    egress: true
  ingress:
  - fromEndpoints:
    - matchLabels:
        k8s:io.kubernetes.pod.namespace: app
        k8s:tier: backend
    toPorts:
    - ports:
      - port: '5432'
        protocol: TCP
    authentication:
      mode: required
  egress: []

The database explicitly enables egress default-deny with no egress allow rule; stateful replies to allowed connections are still permitted. Add real backup, replication, authentication or other dependencies deliberately. Restricting network paths is not complete prevention of data extraction through an otherwise authorized database/application request.

Security Auditing and Monitoring

Policy Audit Mode

cilium.io/audit-mode: "true" is not a supported per-policy audit switch. A policy carrying that arbitrary annotation can still enforce normally.

For an isolated endpoint test, the actual mutable endpoint option is PolicyAuditMode. Inspect the local endpoint, temporarily enable it, and restore enforcement after the controlled observation:

kubectl -n kube-system exec "$CILIUM_POD" -c cilium-agent -- cilium-dbg endpoint list
ENDPOINT_ID='<local-endpoint-id-in-the-isolated-test>'
kubectl -n kube-system exec "$CILIUM_POD" -c cilium-agent -- cilium-dbg endpoint config "$ENDPOINT_ID"
kubectl -n kube-system exec "$CILIUM_POD" -c cilium-agent -- cilium-dbg endpoint config "$ENDPOINT_ID" PolicyAuditMode=true
# Observe the controlled test, then restore enforcement.
kubectl -n kube-system exec "$CILIUM_POD" -c cilium-agent -- cilium-dbg endpoint config "$ENDPOINT_ID" PolicyAuditMode=false

This changes enforcement on that endpoint rather than attaching audit behavior to one policy object. Do not infer that every L7 denial or every security failure becomes an allowed audit event; verify the specific datapath/proxy behavior. enableDefaultDeny: false is also not an equivalent L7 audit mode.

Policy Violation Monitoring

# Terminal 1
cilium hubble port-forward --port-forward 4245
# Terminal 2
hubble observe --server localhost:4245 --namespace production --verdict DROPPED --last 100
hubble observe --server localhost:4245 --namespace production --verdict DROPPED --drop-reason-desc POLICY_DENIED --last 100
hubble observe --server localhost:4245 --namespace policy-lab --verdict AUDIT --last 100

DROPPED includes causes other than policy denial. The reason-filtered query focuses on reported policy-denied drops; L7/application authorization failures need their own observation. AUDIT is distinct from DROPPED. --last 100 is bounded history, and Relay can return that count per connected Hubble instance; it is not a complete cluster traffic counter. Add --follow only when a streaming observation is intended.

Prometheus Metrics

prometheus:
  enabled: true
hubble:
  enabled: true
  metrics:
    enabled:
    - dns
    - drop
    - flow
    - httpV2
    - icmp
    - port-distribution
    - tcp

The agent and Hubble exporter need Prometheus discovery/scraping in addition to these enablement flags. httpV2 replaces deprecated http; do not enable both. HTTP metrics need corresponding L7 visibility.

• cilium_drop_count_total counts dropped packets by reason/direction, not exclusively policy violations.
• cilium_forward_count_total counts forwarded packets, not successful application requests.
• Hubble's drop exporter exposes flow-drop information as hubble_drop_total; it is not the same accounting unit as the agent packet counter.
• The former cilium_policy_verdict metric name was not a documented metric. Use actual policy-verdict events or the metrics exposed by the selected exporter instead.

Next Steps

• Observability
• Ingress & Gateway
• Best Practices
• Security Quiz

References

• Cilium1.20.1 mutual authentication
• Authentication example/API shape
• Cilium1.20.1 CNP schema
• Cilium1.20.1 ztunnel beta
• Ztunnel CA implementation
• Ztunnel bootstrap example
• Encryption scope/strict mode
• WireGuard
• IPsec and key rotation
• Helm values
• HTTP/DNS policy
• Default-deny behavior
• Explicit default-deny API
• Mutable endpoint audit option
• Endpoint configuration CLI
• Metrics
• SPIRE1.15.2 server configuration
• SPIRE Vault authority
• SPIRE disk authority
• Kafka ACLs
• AWS STS endpoints
• WireGuard protocol
• NIST Zero Trust Architecture — further reading
