Istio Metrics ​

Supported Versions: Istio 1.31 Last Updated: September 11, 2026

Validation scope: These lab configurations were checked against official references and offline validators, without deploying a cluster. Namespace, identity, storage, backend and load assumptions are stated with each example and must be verified for the target environment.

Istio proxies generate metrics for observed traffic. This guide covers sidecar/Envoy HTTP and TCP metrics and scraping through Prometheus or the OpenTelemetry Collector. Ambient ztunnel has different L4 metrics; HTTP metrics require a waypoint.

Table of Contents ​

  1. Metrics Overview
  2. Istio Standard Metrics
  3. Circuit Breaker Metrics
  4. Resilience Metrics
  5. OpenTelemetry Integration
  6. Prometheus Integration
  7. Customization with Telemetry API
  8. Practical Metric Queries
  9. Metrics Optimization
  10. Troubleshooting

Metrics Overview ​

Golden Signals ​

Combine proxy telemetry with node/container exporters to measure the Golden Signals:

  1. Latency: Request processing time
  2. Traffic: System throughput (RPS, Bandwidth)
  3. Errors: Failure rate and error types
  4. Saturation: Queue/connection pressure plus CPU/memory from Kubernetes exporters

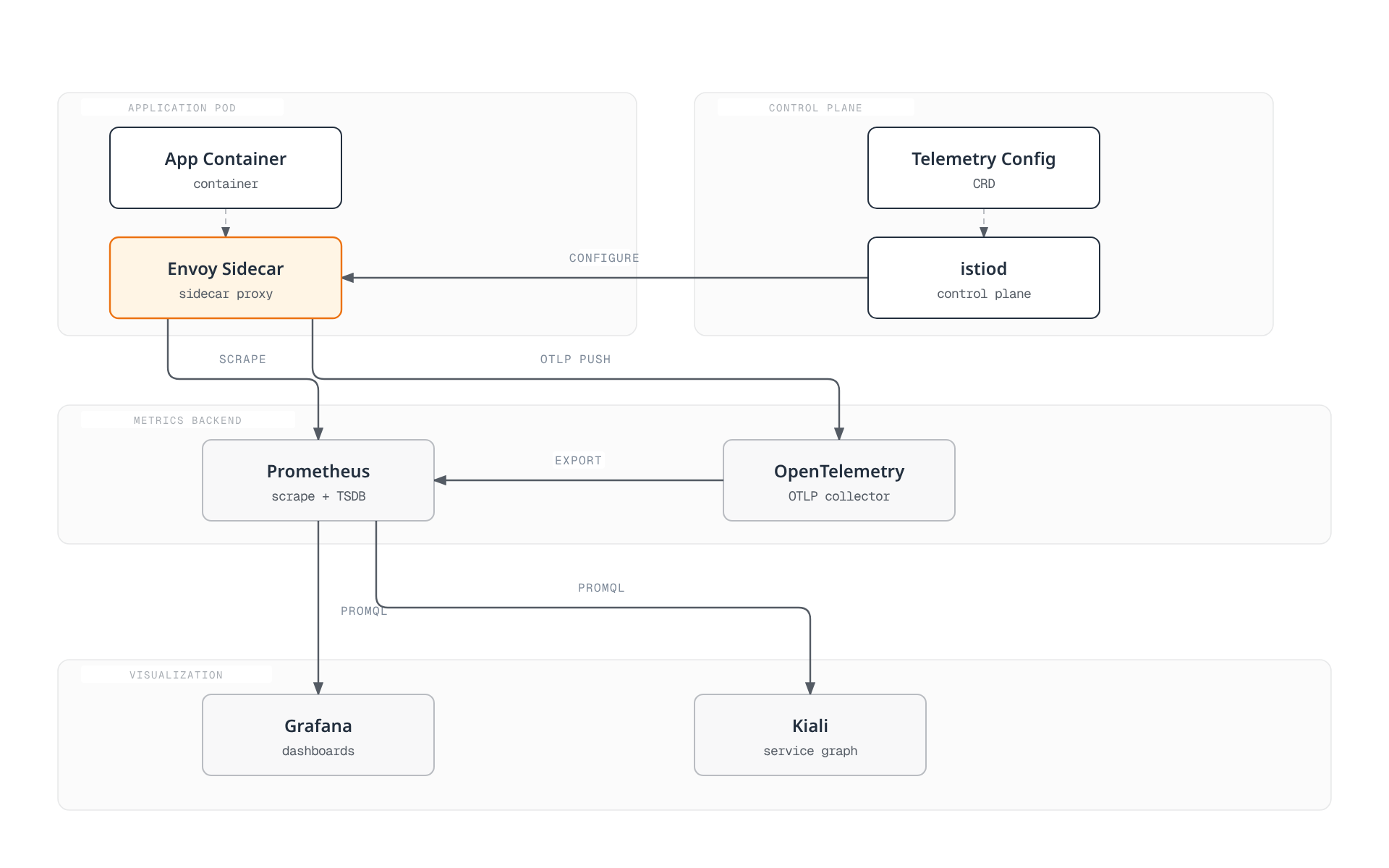

Metrics Collection Architecture ​

Envoy exposes Prometheus metrics → either Prometheus scrapes directly, or an OpenTelemetry Collector Prometheus receiver scrapes them → a configured metrics backend → Grafana/Kiali. The Istio OpenTelemetry extension provider configures tracing; it is not an OTLP metrics sender.

Istio Standard Metrics ​

HTTP/gRPC Metrics ​

Envoy generates these metrics for recognized HTTP/gRPC traffic. A metric is emitted per reporting proxy, so choose one reporter for a given question. Destination reporting avoids duplicate observations of a hop, while source reporting is needed for upstream failures that never reach the destination. Group service names with namespaces (and clusters where relevant).

istio_requests_total ​

Type: Counter Description: Total number of requests processed

promql
istio_requests_total{
  reporter="destination",  # Peer security policy populated at destination
  source_workload="productpage-v1",
  source_workload_namespace="default",
  source_principal="spiffe://cluster.local/ns/default/sa/bookinfo-productpage",
  source_app="productpage",
  source_version="v1",
  source_canonical_service="productpage",
  source_canonical_revision="v1",
  destination_workload="reviews-v1",
  destination_workload_namespace="default",
  destination_principal="spiffe://cluster.local/ns/default/sa/bookinfo-reviews",
  destination_app="reviews",
  destination_version="v1",
  destination_service="reviews.default.svc.cluster.local",
  destination_service_name="reviews",
  destination_service_namespace="default",
  destination_canonical_service="reviews",
  destination_canonical_revision="v1",
  request_protocol="http",
  response_code="200",
  response_flags="-",
  connection_security_policy="mutual_tls",
  grpc_response_status="",
  destination_cluster="",
  source_cluster=""
}

Key Labels:

  • response_code: HTTP status code (200, 404, 500, etc.)
  • response_flags: Envoy response flags
    • UH: No healthy upstream
    • UF: Upstream connection failure
    • UR: Upstream remote reset; UT: upstream request timeout
    • DC: Downstream connection termination
    • LR: Local reset
    • URX: Upstream retry limit exceeded (or TCP maximum connect attempts)
  • connection_security_policy: mTLS status (mutual_tls, none; source reports can be unknown)

istio_request_duration_milliseconds ​

Type: Histogram Description: Request processing time (milliseconds)

promql
istio_request_duration_milliseconds_bucket{le="10"}  # 10ms or less
istio_request_duration_milliseconds_bucket{le="50"}  # 50ms or less
istio_request_duration_milliseconds_bucket{le="100"} # 100ms or less
istio_request_duration_milliseconds_bucket{le="500"} # 500ms or less
istio_request_duration_milliseconds_sum            # Total time
istio_request_duration_milliseconds_count          # Total request count

istio_request_bytes ​

Type: Histogram Description: Request body size (bytes)

promql
istio_request_bytes_bucket  # Inspect actual le bounds
istio_request_bytes_bucket{le="+Inf"}  # All body sizes
istio_request_bytes_sum
istio_request_bytes_count

istio_response_bytes ​

Type: Histogram Description: Response body size (bytes)

promql
istio_response_bytes_bucket
istio_response_bytes_bucket{le="+Inf"}
istio_response_bytes_sum
istio_response_bytes_count

TCP Metrics ​

istio_tcp_connections_opened_total ​

Type: Counter Description: Number of opened TCP connections

promql
istio_tcp_connections_opened_total{
  reporter="source",
  source_workload="mongodb-v1",
  destination_service="mongodb.default.svc.cluster.local"
}

istio_tcp_connections_closed_total ​

Type: Counter Description: Number of closed TCP connections

istio_tcp_sent_bytes_total ​

Type: Counter Description: Number of bytes sent

istio_tcp_received_bytes_total ​

Type: Counter Description: Number of bytes received

Circuit Breaker Metrics ​

Enable required Envoy statistics with proxyStatsMatcher before scraping. The default Istio bootstrap extracts cluster_name; custom bootstraps may change labels. Circuit-breaker _open metrics are 0/1 gauges, not event counters. Some counters appear only after traffic.

Key Circuit Breaker Metrics ​

1. Upstream Connection Pool Overflow ​

promql
# Requests rejected due to connection pool overflow
envoy_cluster_upstream_cx_overflow{
  cluster_name="outbound|80||httpbin.default.svc.cluster.local"
}

Meaning: maxConnections limit exceeded

2. Circuit Breaker Open (Gauge) ​

promql
# Gauge: 1 at capacity, 0 below limit
envoy_cluster_circuit_breakers_default_rq_open{
  cluster_name="outbound|80||httpbin.default.svc.cluster.local"
}

3. Pending Requests Overflow ​

promql
# Pending request count exceeded
envoy_cluster_upstream_rq_pending_overflow{
  cluster_name="outbound|80||httpbin.default.svc.cluster.local"
}

Meaning: pending/active request circuit-breaking rejection. Inspect rq_pending_open, rq_open and the generated thresholds to distinguish queue pressure from the active-request limit.

4. Retry Budget Exhausted ​

promql
# Retry budget exhausted
envoy_cluster_upstream_rq_retry_overflow{
  cluster_name="outbound|80||httpbin.default.svc.cluster.local"
}

5. Detecting Circuit Breaker via Response Flags ​

promql
# Requests rejected by circuit breaker (response_flags="UO")
sum(rate(istio_requests_total{reporter="source",
  response_flags=~".*UO.*",
  destination_service="httpbin.default.svc.cluster.local"
}[5m]))

Response Flags Details:

  • UO: Upstream overflow (circuit breaker open)
  • URX: Upstream retry limit exceeded (or TCP maximum connect attempts)
  • UF: Upstream connection failure
  • UH: No healthy upstream

Circuit Breaker Monitoring Dashboard Queries ​

promql
# Fraction of observed samples at capacity over five minutes (%).
100 * avg_over_time(envoy_cluster_circuit_breakers_default_rq_open[5m])

# Active connections and pending requests (per proxy/cluster).
envoy_cluster_upstream_cx_active
envoy_cluster_upstream_rq_pending_active

# Rejected request events over five minutes.
sum by (namespace, pod, cluster_name) (
  increase(envoy_cluster_upstream_rq_pending_overflow[5m])
)

There are no standard circuit_breakers_default_cx_max or rq_pending_max gauges. Read limits from generated cluster configuration. Optional remaining_cx/remaining_pending gauges require Envoy track_remaining; merely including a metric name does not enable them. A utilization denominator must come from a known matching configured limit.

Circuit Breaker Alert Rules ​

yaml
groups:
- name: istio_circuit_breaker
  rules:
  - alert: CircuitBreakerAtCapacity
    expr: envoy_cluster_circuit_breakers_default_rq_open == 1
    for: 1m
    labels:
      severity: warning
    annotations:
      summary: Request breaker remains at capacity for {{ $labels.cluster_name }}
  - alert: ConnectionPoolOverflow
    expr: rate(envoy_cluster_upstream_cx_overflow[5m]) > 0
    for: 2m
    labels:
      severity: warning
    annotations:
      summary: Connection limit exceeded for {{ $labels.cluster_name }}
  - alert: PendingRequestsOverflow
    expr: rate(envoy_cluster_upstream_rq_pending_overflow[5m]) > 0
    for: 2m
    labels:
      severity: warning
    annotations:
      summary: Request circuit-breaking rejection for {{ $labels.cluster_name }}

Resilience Metrics ​

Outlier Detection Metrics ​

1. Ejected Hosts ​

promql
# Number of hosts ejected by outlier detection
envoy_cluster_outlier_detection_ejections_active{
  cluster_name="outbound|80||httpbin.default.svc.cluster.local"
}

2. Ejection Events ​

promql
# Ejection event rate
rate(envoy_cluster_outlier_detection_ejections_enforced_total[5m])

By Ejection Type:

promql
# Consecutive 5xx errors
envoy_cluster_outlier_detection_ejections_enforced_consecutive_5xx

# Success rate based
envoy_cluster_outlier_detection_ejections_enforced_success_rate

# Failure percentage based
envoy_cluster_outlier_detection_ejections_enforced_failure_percentage

Detected and enforced ejections differ: a detected outlier can remain in service because enforcement probability or the maximum ejection percentage prevents ejection. Some Envoy algorithms are not exposed by Istio DestinationRule; a missing series is not evidence that a configured algorithm is healthy.

Retry Metrics ​

promql
# Number of retried requests
rate(envoy_cluster_upstream_rq_retry[5m])

# Retry success rate
rate(envoy_cluster_upstream_rq_retry_success[5m])
/
rate(envoy_cluster_upstream_rq_retry[5m])

# Retry budget exhausted
rate(envoy_cluster_upstream_rq_retry_overflow[5m])

Timeout Metrics ​

promql
# Requests that timed out
sum(rate(istio_requests_total{reporter="source",
  response_flags=~".*UT.*"
}[5m])) by (destination_service)

# Timeout rate
sum(rate(istio_requests_total{reporter="source",response_flags=~".*UT.*"}[5m]))
/
sum(rate(istio_requests_total{reporter="source"}[5m]))
* 100

OpenTelemetry Integration ​

Prometheus Receiver for Istio Metrics ​

The Istio opentelemetry extension provider exports traces. To collect standard mesh metrics, keep the Prometheus metrics provider and let an OpenTelemetry Collector Prometheus receiver scrape the exposed endpoints. A collector can then export metrics over OTLP to a metrics-capable backend; Tempo is a trace backend, not a metrics destination.

This example uses Collector Contrib 0.160.0 with a Prometheus exporter for a visible demonstration path. Create namespace observability first. Use one replica because replicas with identical scrape configurations duplicate every target; production scaling needs target allocation/sharding. The ServiceAccount can only read pods, as required by the pod discovery jobs. Configure network access to cleartext proxy metrics 15090 and istiod 15014; this example does not scrape application metrics or ambient ztunnel.

yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: otel-metrics
  namespace: observability
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: otel-metrics-pod-reader
rules:
- apiGroups:
  - ''
  resources:
  - pods
  verbs:
  - get
  - list
  - watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: otel-metrics-pod-reader
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: otel-metrics-pod-reader
subjects:
- kind: ServiceAccount
  name: otel-metrics
  namespace: observability
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: otel-metrics-config
  namespace: observability
data:
  config.yaml: |
    receivers:
      prometheus:
        config:
          global:
            scrape_interval: 15s
            evaluation_interval: 15s
          scrape_configs:
          - job_name: envoy-stats
            metrics_path: /stats/prometheus
            kubernetes_sd_configs:
            - role: pod
            relabel_configs:
            - source_labels:
              - __meta_kubernetes_pod_phase
              action: keep
              regex: Running
            - source_labels:
              - __meta_kubernetes_pod_container_name
              - __meta_kubernetes_pod_container_port_name
              action: keep
              regex: istio-proxy;.*-envoy-prom
            - source_labels:
              - __meta_kubernetes_namespace
              target_label: namespace
            - source_labels:
              - __meta_kubernetes_pod_name
              target_label: pod
          - job_name: istiod
            metrics_path: /metrics
            kubernetes_sd_configs:
            - role: pod
              namespaces:
                names:
                - istio-system
            relabel_configs:
            - source_labels:
              - __meta_kubernetes_pod_label_app
              - __meta_kubernetes_pod_container_port_name
              action: keep
              regex: istiod;http-monitoring
            - source_labels:
              - __meta_kubernetes_namespace
              target_label: namespace
            - source_labels:
              - __meta_kubernetes_pod_name
              target_label: pod
    processors:
      memory_limiter:
        check_interval: 1s
        limit_mib: 512
      batch:
        timeout: 10s
        send_batch_size: 1024
    exporters:
      prometheus:
        endpoint: 0.0.0.0:8889
        const_labels:
          environment: production
      debug:
        verbosity: basic
    service:
      pipelines:
        metrics:
          receivers:
          - prometheus
          processors:
          - memory_limiter
          - batch
          exporters:
          - prometheus
          - debug
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: otel-metrics
  namespace: observability
spec:
  replicas: 1
  selector:
    matchLabels:
      app: otel-metrics
  template:
    metadata:
      labels:
        app: otel-metrics
      annotations:
        sidecar.istio.io/inject: 'false'
    spec:
      serviceAccountName: otel-metrics
      containers:
      - name: otel-collector
        image: otel/opentelemetry-collector-contrib:0.160.0
        args:
        - --config=/etc/otel/config.yaml
        ports:
        - containerPort: 8889
          name: prometheus
        volumeMounts:
        - name: config
          mountPath: /etc/otel
          readOnly: true
        resources:
          requests:
            cpu: 200m
            memory: 512Mi
          limits:
            cpu: 1000m
            memory: 1Gi
      volumes:
      - name: config
        configMap:
          name: otel-metrics-config
---
apiVersion: v1
kind: Service
metadata:
  name: otel-metrics
  namespace: observability
  labels:
    app: otel-metrics
spec:
  selector:
    app: otel-metrics
  ports:
  - name: prometheus
    port: 8889
    targetPort: prometheus

The retired logging exporter is replaced by debug. Remove diagnostic exporting after validation. No namespace: istio prefix is added, avoiding a second istio_ prefix on existing metric names. Inspect the collector's emitted labels/names before reusing Kiali dashboards. With a Prometheus Operator, select the labelled Service:

yaml
apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: otel-metrics
  namespace: observability
spec:
  selector:
    matchLabels:
      app: otel-metrics
  endpoints:
  - port: prometheus
    interval: 15s
    path: /metrics
    honorLabels: true

The Prometheus resource must select this ServiceMonitor and its namespace. honorLabels retains the original target job/instance; the collector must be a trusted source. Use either this collector path or direct proxy scraping below for the same series, not both. This ServiceMonitor does not install Prometheus.

Verify Collection ​

bash
kubectl logs -n observability deployment/otel-metrics
# Keep this running in one terminal.
kubectl port-forward -n observability svc/otel-metrics 8889:8889
bash
# In a second terminal, after generating test mesh traffic:
curl -fsS http://localhost:8889/metrics | rg '^istio_'

Trace OTLP receivers and exporters are configured separately in the tracing chapter; proxy debug logs do not prove metric delivery.

Prometheus Integration ​

Prometheus Configuration ​

Use the following config in an installed Prometheus server with pod list/watch permission. A ConfigMap alone does not deploy or reload Prometheus. These pod discovery jobs preserve Kubernetes-discovered addresses (including IPv6) and select exactly the Envoy metrics port or istiod monitoring port. They include sidecars and gateways, so a separate gateway job would duplicate series. The removed Mixer istio-telemetry Service is not a scrape target.

yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: prometheus-config
  namespace: istio-system
data:
  prometheus.yml: |
    global:
      scrape_interval: 15s
      evaluation_interval: 15s
    scrape_configs:
    - job_name: envoy-stats
      metrics_path: /stats/prometheus
      kubernetes_sd_configs:
      - role: pod
      relabel_configs:
      - source_labels:
        - __meta_kubernetes_pod_phase
        action: keep
        regex: Running
      - source_labels:
        - __meta_kubernetes_pod_container_name
        - __meta_kubernetes_pod_container_port_name
        action: keep
        regex: istio-proxy;.*-envoy-prom
      - source_labels:
        - __meta_kubernetes_namespace
        target_label: namespace
      - source_labels:
        - __meta_kubernetes_pod_name
        target_label: pod
    - job_name: istiod
      metrics_path: /metrics
      kubernetes_sd_configs:
      - role: pod
        namespaces:
          names:
          - istio-system
      relabel_configs:
      - source_labels:
        - __meta_kubernetes_pod_label_app
        - __meta_kubernetes_pod_container_port_name
        action: keep
        regex: istiod;http-monitoring
      - source_labels:
        - __meta_kubernetes_namespace
        target_label: namespace
      - source_labels:
        - __meta_kubernetes_pod_name
        target_label: pod

Proxy-only scraping uses 15090 /stats/prometheus. Default merged agent/application metrics use 15020 /stats/prometheus with prometheus.io annotations and require a different, non-duplicating scrape job. Agent certificate metrics require that agent endpoint. These metrics listeners are cleartext even when application traffic uses STRICT mTLS; restrict their network exposure. Scraping a separate application endpoint follows its own authentication policy.

Prometheus Operator Alternative ​

Use these instead of the manual jobs. Ensure the Prometheus resource selects their labels/namespaces. namespaceSelector.any: true makes PodMonitor inspect application namespaces; port: http-envoy-prom picks the actual metrics container port. Adapt a custom gateway's port name. ServiceMonitor selects Services, not Deployment labels.

yaml
apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: istio-component-monitor
  namespace: istio-system
spec:
  selector:
    matchLabels:
      app: istiod
  endpoints:
  - port: http-monitoring
    interval: 15s
    path: /metrics
---
apiVersion: monitoring.coreos.com/v1
kind: PodMonitor
metadata:
  name: envoy-stats-monitor
  namespace: istio-system
spec:
  namespaceSelector:
    any: true
  selector:
    matchExpressions:
    - key: istio-prometheus-ignore
      operator: DoesNotExist
  podMetricsEndpoints:
  - port: http-envoy-prom
    path: /stats/prometheus
    interval: 15s
    relabelings:
    - sourceLabels:
      - __meta_kubernetes_pod_container_name
      action: keep
      regex: istio-proxy

Prometheus Query Optimization ​

yaml
# Recording Rules to pre-compute frequently used queries
groups:
- name: istio_recording_rules
  interval: 30s
  rules:
  # Request rate by service
  - record: istio:service:request_rate:5m
    expr: |
      sum(rate(istio_requests_total{reporter="destination"}[5m])) by (destination_service_name, destination_service_namespace)

  # Error rate by service
  - record: istio:service:error_rate:5m
    expr: |
      sum(rate(istio_requests_total{reporter="destination",response_code=~"5.."}[5m])) by (destination_service_name, destination_service_namespace)
      /
      sum(rate(istio_requests_total{reporter="destination"}[5m])) by (destination_service_name, destination_service_namespace)

  # P95 latency by service
  - record: istio:service:latency_p95:5m
    expr: |
      histogram_quantile(0.95,
        sum(rate(istio_request_duration_milliseconds_bucket{reporter="destination"}[5m]))
        by (destination_service_name, destination_service_namespace, le)
      )

  # Circuit breaker state gauge
  - record: istio:circuit_breaker:at_capacity
    expr: |
      envoy_cluster_circuit_breakers_default_rq_open

Customization with Telemetry API ​

Metrics Customization ​

1. Enable Only Specific Metrics ​

Overrides are evaluated in order. Disable ALL_METRICS first, then re-enable the two required HTTP metrics. mode belongs inside match. Merge related settings into a single Telemetry per selection scope rather than applying all independent examples together.

yaml
apiVersion: telemetry.istio.io/v1
kind: Telemetry
metadata:
  name: custom-metrics
  namespace: istio-system
spec:
  metrics:
  - providers:
    - name: prometheus
    overrides:
    - match:
        metric: ALL_METRICS
        mode: CLIENT_AND_SERVER
      disabled: true
    - match:
        metric: REQUEST_COUNT
        mode: CLIENT_AND_SERVER
      disabled: false
    - match:
        metric: REQUEST_DURATION
        mode: CLIENT_AND_SERVER
      disabled: false

2. Add Custom Labels ​

Use bounded CEL expressions on HTTP metrics. Request IDs, arbitrary User-Agent values and timing headers create unbounded labels. x-envoy-upstream-service-time is a duration, not an upstream cluster identity. CEL does not use the example shell-style | split() syntax.

yaml
apiVersion: telemetry.istio.io/v1
kind: Telemetry
metadata:
  name: custom-tags
  namespace: prod
spec:
  metrics:
  - providers:
    - name: prometheus
    overrides:
    - match:
        metric: REQUEST_COUNT
      tagOverrides:
        api_version:
          value: 'request.url_path.startsWith("/api/v1/") ? "v1" : (request.url_path.startsWith("/api/v2/")
            ? "v2" : "other")'
        request_method:
          value: 'request.method in ["GET", "POST", "PUT", "DELETE"] ? request.method
            : "OTHER"'

3. Namespace-Specific Metrics Configuration ​

yaml
apiVersion: telemetry.istio.io/v1
kind: Telemetry
metadata:
  name: namespace-metrics
  namespace: production
spec:
  metrics:
  - providers:
    - name: prometheus
    overrides:
    - match:
        metric: REQUEST_COUNT
        mode: CLIENT_AND_SERVER
      tagOverrides:
        environment:
          value: '"production"'

4. Improve Performance by Disabling Metrics ​

yaml
apiVersion: telemetry.istio.io/v1
kind: Telemetry
metadata:
  name: disable-tcp-metrics
  namespace: istio-system
spec:
  metrics:
  - providers:
    - name: prometheus
    overrides:
    # Completely disable TCP metrics
    - match:
        metric: TCP_OPENED_CONNECTIONS
      disabled: true
    - match:
        metric: TCP_CLOSED_CONNECTIONS
      disabled: true
    - match:
        metric: TCP_SENT_BYTES
      disabled: true
    - match:
        metric: TCP_RECEIVED_BYTES
      disabled: true

Practical Metric Queries ​

HTTP status-based error ratios do not catch every gRPC failure. For gRPC, examine grpc_response_status and the application's definition of failure; HTTP 200 can carry a nonzero gRPC status.

Golden Signals Dashboard ​

1. Latency ​

promql
# P50 latency
histogram_quantile(0.50,
  sum(rate(istio_request_duration_milliseconds_bucket{reporter="destination",
    destination_service_name="reviews", destination_service_namespace="default"
  }[5m])) by (le)
)

# P95 latency
histogram_quantile(0.95,
  sum(rate(istio_request_duration_milliseconds_bucket{reporter="destination",
    destination_service_name="reviews", destination_service_namespace="default"
  }[5m])) by (le)
)

# P99 latency
histogram_quantile(0.99,
  sum(rate(istio_request_duration_milliseconds_bucket{reporter="destination",
    destination_service_name="reviews", destination_service_namespace="default"
  }[5m])) by (le)
)

# Average latency by service
sum(rate(istio_request_duration_milliseconds_sum{reporter="destination"}[5m])) by (destination_service_name, destination_service_namespace)
/
sum(rate(istio_request_duration_milliseconds_count{reporter="destination"}[5m])) by (destination_service_name, destination_service_namespace)

2. Traffic ​

promql
# Request rate by service (RPS)
sum(rate(istio_requests_total{reporter="destination"}[1m])) by (destination_service_name, destination_service_namespace)

# Total request rate
sum(rate(istio_requests_total{reporter="destination"}[1m]))

# Inbound traffic by service (bytes/sec)
sum(rate(istio_request_bytes_sum{reporter="destination"}[1m])) by (destination_service_name, destination_service_namespace)

# Outbound traffic by service (bytes/sec)
sum(rate(istio_response_bytes_sum{reporter="destination"}[1m])) by (destination_service_name, destination_service_namespace)

# Request distribution by protocol (not HTTP method)
sum(rate(istio_requests_total{reporter="destination"}[5m])) by (request_protocol, destination_service_name, destination_service_namespace)

3. Errors ​

promql
# Error rate (5xx errors)
sum(rate(istio_requests_total{response_code=~"5..", reporter="destination"}[5m])) by (destination_service_name, destination_service_namespace)
/
sum(rate(istio_requests_total{reporter="destination"}[5m])) by (destination_service_name, destination_service_namespace)
* 100

# Separate 4xx vs 5xx
sum(rate(istio_requests_total{response_code=~"4..", reporter="destination"}[5m])) by (destination_service_name, destination_service_namespace)
sum(rate(istio_requests_total{response_code=~"5..", reporter="destination"}[5m])) by (destination_service_name, destination_service_namespace)

# Track specific error codes
sum(rate(istio_requests_total{response_code="503", reporter="destination"}[5m])) by (destination_service_name, destination_service_namespace)

# Analyze error types via response flags
sum(rate(istio_requests_total{response_flags!~"-", reporter="destination"}[5m])) by (response_flags, destination_service_name, destination_service_namespace)

4. Saturation ​

promql
# Connection count and breaker state (not a utilization percentage).
envoy_cluster_upstream_cx_active
envoy_cluster_circuit_breakers_default_cx_open

# Active and pending requests.
envoy_cluster_upstream_rq_active
envoy_cluster_upstream_rq_pending_active

# Allocated proxy memory in bytes; compare with the container memory limit separately.
envoy_server_memory_allocated

mTLS Monitoring ​

promql
# mTLS usage rate
sum(rate(istio_requests_total{
  connection_security_policy="mutual_tls",
  reporter="destination"
}[5m]))
/
sum(rate(istio_requests_total{reporter="destination"}[5m]))
* 100

# Detect non-mTLS traffic
sum(rate(istio_requests_total{
  connection_security_policy="none",
  reporter="destination"
}[5m])) by (source_workload, destination_workload)

# HTTP 401 observed on authenticated mesh traffic; this is not a TLS handshake failure.
sum by (destination_service_name, destination_service_namespace) (
  rate(istio_requests_total{reporter="destination",response_code="401",connection_security_policy="mutual_tls"}[5m])
)

Service Mesh Health Dashboard ​

promql
# Scrape health, not a complete control-plane health check.
up{job="istiod"}

# Istiod xDS build/send error rate, by type.
sum by (type) (rate(pilot_xds_pushes{type=~".*(builderr|senderr)"}[5m]))

# Configuration convergence time, seconds (not push count).
histogram_quantile(0.95,
  sum by (le) (rate(pilot_proxy_convergence_time_bucket[5m]))
)

# Recently started Envoy process; uptime is elapsed seconds, not a timestamp.
envoy_server_uptime < 300

Use istioctl version to inspect actual proxy versions and istioctl proxy-status for synchronization/NACK diagnosis. Process age does not measure configuration freshness, and an Envoy numeric version gauge is not a version-label distribution. For mTLS failures inspect TLS verification counters and certificates as described in the mTLS guide.

Metrics Optimization ​

Solving High Cardinality Problems ​

1. Remove Unnecessary Labels ​

yaml
apiVersion: telemetry.istio.io/v1
kind: Telemetry
metadata:
  name: reduce-cardinality
  namespace: istio-system
spec:
  metrics:
  - providers:
    - name: prometheus
    overrides:
    - match:
        metric: ALL_METRICS
      tagOverrides:
        # Remove high cardinality labels
        request_id:
          operation: REMOVE
        user_agent:
          operation: REMOVE

2. Normalize Label Values ​

yaml
apiVersion: telemetry.istio.io/v1
kind: Telemetry
metadata:
  name: normalize-labels
  namespace: prod
spec:
  metrics:
  - providers:
    - name: prometheus
    overrides:
    - match:
        metric: REQUEST_COUNT
      tagOverrides:
        # Normalize HTTP methods (GET, POST, PUT, DELETE, OTHER)
        request_method:
          value: 'request.method in ["GET", "POST", "PUT", "DELETE"] ? request.method : "OTHER"'

Selecting Envoy Statistics ​

proxyStatsMatcher selects which Envoy statistics to create; it does not sample requests. Include only needed families, preserve required existing matches, and roll selected proxies after changing bootstrap settings. This example enables statistics needed by the preceding queries:

yaml
apiVersion: install.istio.io/v1alpha1
kind: IstioOperator
spec:
  meshConfig:
    defaultConfig:
      proxyStatsMatcher:
        inclusionRegexps:
        - ".*upstream_rq_timeout.*"
        - ".*upstream_cx_connect_timeout.*"
        - ".*upstream_cx_connect_fail.*"
        - ".*upstream_rq_pending_overflow.*"
        - ".*circuit_breakers.*"
        - ".*outlier_detection.*"
        - ".*upstream_cx_(active|overflow).*"
        - ".*upstream_rq_(active|retry|pending).*"

Prometheus Performance Tuning ​

Prometheus defaults to a 1-minute scrape interval; 15s/30s are deliberate choices. This is a configuration fragment to merge with existing scrape jobs. metric_relabel_configs belongs inside each scrape job and drops samples, not just labels. Remote-write endpoint, authentication/TLS and persistence must be configured for the chosen backend.

yaml
global:
  scrape_interval: 30s
  evaluation_interval: 30s
remote_write:
- url: http://victoria-metrics:8428/api/v1/write
  queue_config:
    capacity: 10000
    max_shards: 5
    min_shards: 1
    max_samples_per_send: 5000
scrape_configs:
- job_name: envoy-stats
  metrics_path: /stats/prometheus
  kubernetes_sd_configs:
  - role: pod
  relabel_configs:
  - source_labels:
    - __meta_kubernetes_pod_phase
    action: keep
    regex: Running
  - source_labels:
    - __meta_kubernetes_pod_container_name
    - __meta_kubernetes_pod_container_port_name
    action: keep
    regex: istio-proxy;.*-envoy-prom
  - source_labels:
    - __meta_kubernetes_namespace
    target_label: namespace
  - source_labels:
    - __meta_kubernetes_pod_name
    target_label: pod
  metric_relabel_configs:
  - source_labels:
    - __name__
    regex: istio_tcp_.*
    action: drop

Troubleshooting ​

The exec/curl examples require a proxy image containing curl. Otherwise use kubectl port-forward pod/<pod-name> 15090:15090 (or 15020 for the agent) and query from a second terminal. Telemetry examples here are for Envoy; use waypoint attachment for ambient L7 policy and separate ztunnel L4 collection.

When Metrics Are Not Being Collected ​

1. Check Envoy Metrics Endpoint ​

bash
# Check Envoy admin port
kubectl exec -it <pod-name> -c istio-proxy -- curl localhost:15000/stats/prometheus | head -20

# Check metrics filter
istioctl proxy-config bootstrap <pod-name> -o json | jq '.bootstrap.statsConfig'

2. Check if Prometheus Discovered Targets ​

bash
# Check Targets page in Prometheus UI
kubectl port-forward -n istio-system svc/prometheus 9090:9090

# In browser: http://localhost:9090/targets

3. Validate Telemetry API Configuration ​

bash
# Check Telemetry resources
kubectl get telemetry -A

# Check specific Telemetry details
kubectl describe telemetry <name> -n <namespace>

# Check if reflected in Envoy config
istioctl proxy-config listeners <pod-name> -n <namespace> -o json

When Metric Labels Are Missing ​

bash
# 1. Check if Envoy generates correct labels
kubectl exec -it <pod-name> -c istio-proxy -- curl localhost:15000/stats/prometheus | grep istio_requests_total | head -1

# 2. Check Prometheus relabeling rules
kubectl get configmap prometheus-config -n istio-system -o yaml

# 3. Check ServiceMonitor/PodMonitor
kubectl get servicemonitor,podmonitor -n istio-system

Metric Cardinality Explosion ​

After port-forwarding Prometheus in another terminal, query active series and TSDB statistics. Counting metric names is not counting time series. The TSDB status endpoint also reports per-label/value cardinality.

bash
curl -fsS http://localhost:9090/api/v1/status/tsdb | jq '.data'
curl -fsSG http://localhost:9090/api/v1/query \
  --data-urlencode 'query=count(istio_requests_total)' | jq '.data.result'
curl -fsSG http://localhost:9090/api/v1/query \
  --data-urlencode 'query=topk(10, count by (__name__) ({__name__=~"istio_.*"}))' | jq '.data.result'

When Circuit Breaker Metrics Are Not Visible ​

bash
# 1. Check Envoy cluster statistics
istioctl proxy-config cluster <pod-name> --fqdn <service-fqdn> -o json | \
  jq '.[] | .circuitBreakers'

# 2. Check directly from Envoy admin
kubectl exec -it <pod-name> -c istio-proxy -- \
  curl "localhost:15000/clusters" | grep -A 10 "outbound|80||<service>"

# 3. Verify DestinationRule is correctly applied
istioctl analyze -n <namespace>

References ​
