Cilium Service Mesh 트래픽 관리

지원 버전: Cilium 1.16+, Kubernetes 1.28+ 마지막 업데이트: 2026년 2월 22일

개요

Cilium Service Mesh의 트래픽 관리는 eBPF 기반 L4 로드 밸런싱과 Envoy 기반 L7 라우팅을 결합하여 제공됩니다. 이 장에서는 CiliumEnvoyConfig, CiliumNetworkPolicy의 L7 규칙, Gateway API 통합 등을 통한 고급 트래픽 관리 기능을 설명합니다.

트래픽 관리 아키텍처

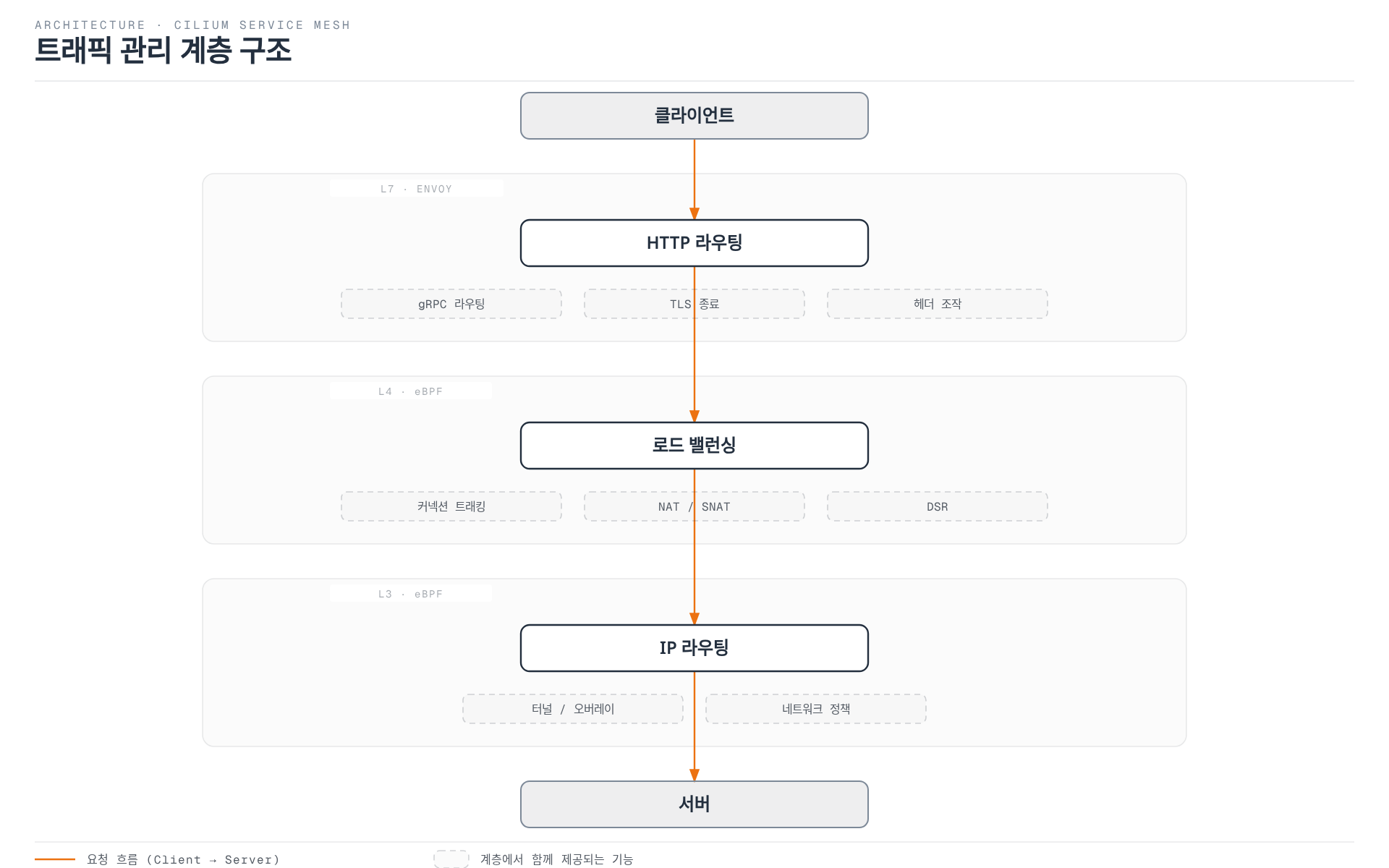

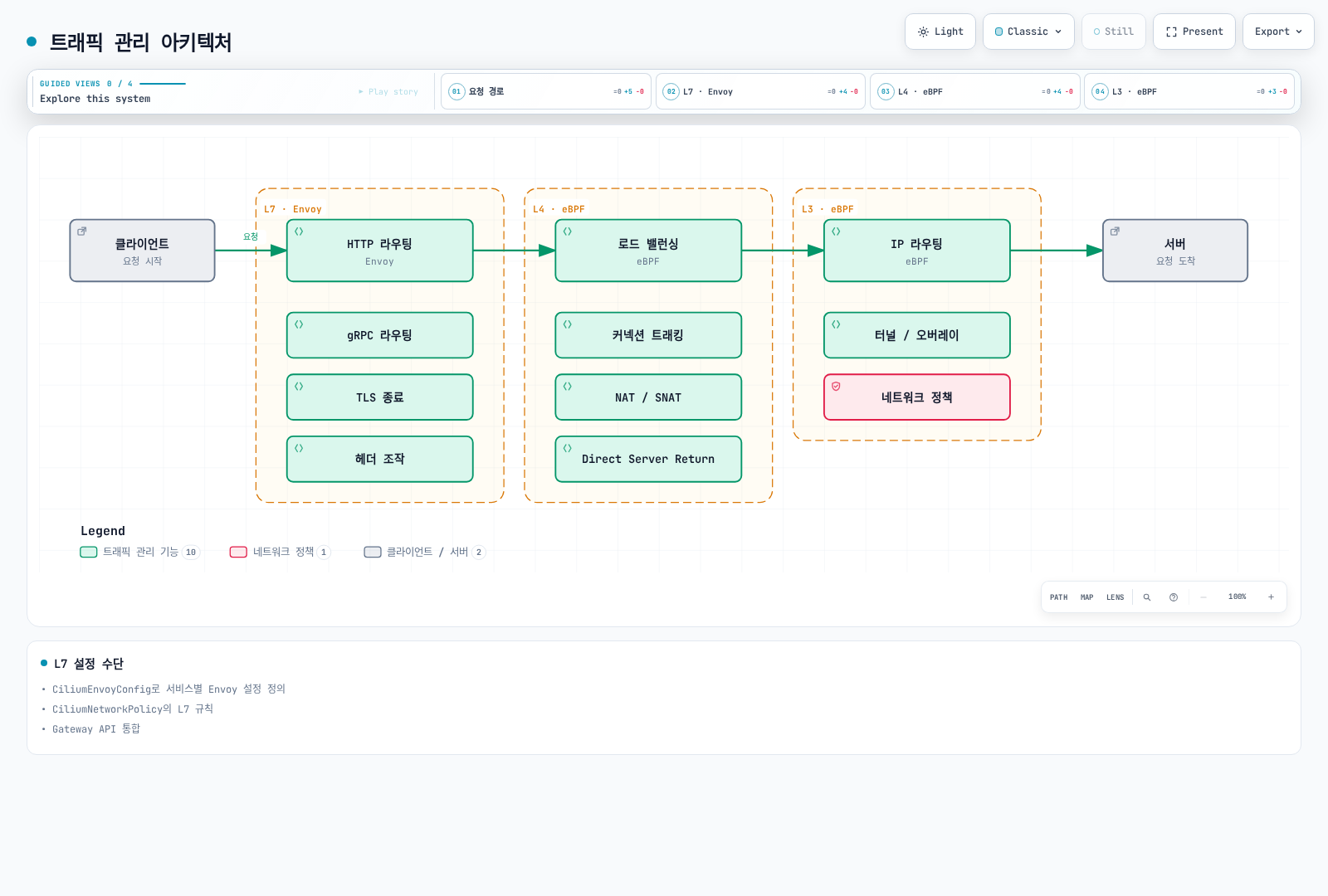

클라이언트 요청이 L7 Envoy 계층의 HTTP 라우팅, L4 eBPF 계층의 로드 밸런싱, L3 eBPF 계층의 IP 라우팅을 차례로 거쳐 서버에 도달하며, 각 계층에 함께 제공되는 다른 트래픽 관리 기능들을 보여주는 다이어그램.

CiliumEnvoyConfig

기본 구조

CiliumEnvoyConfig는 특정 서비스에 대한 Envoy 설정을 정의합니다:

yaml

apiVersion: cilium.io/v2
kind: CiliumEnvoyConfig
metadata:
  name: my-service-config
  namespace: default
spec:
  # 이 설정이 적용될 서비스
  services:
  - name: my-service
    namespace: default

  # 백엔드 서비스 (선택적)
  backendServices:
  - name: backend-v1
    namespace: default
  - name: backend-v2
    namespace: default

  # Envoy 리소스 정의
  resources:
  - "@type": type.googleapis.com/envoy.config.listener.v3.Listener
    name: my-service-listener
    # ... listener 설정

HTTP 라우팅

경로 기반 라우팅

yaml

apiVersion: cilium.io/v2
kind: CiliumEnvoyConfig
metadata:
  name: path-routing
  namespace: default
spec:
  services:
  - name: api-gateway
    namespace: default

  backendServices:
  - name: users-service
    namespace: default
  - name: orders-service
    namespace: default
  - name: products-service
    namespace: default

  resources:
  - "@type": type.googleapis.com/envoy.config.listener.v3.Listener
    name: api-gateway-listener
    filter_chains:
    - filters:
      - name: envoy.filters.network.http_connection_manager
        typed_config:
          "@type": type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
          stat_prefix: api-gateway
          codec_type: AUTO
          route_config:
            name: api_routes
            virtual_hosts:
            - name: api
              domains: ["*"]
              routes:
              # /users/* -> users-service
              - match:
                  prefix: "/users"
                route:
                  cluster: default/users-service

              # /orders/* -> orders-service
              - match:
                  prefix: "/orders"
                route:
                  cluster: default/orders-service

              # /products/* -> products-service
              - match:
                  prefix: "/products"
                route:
                  cluster: default/products-service

              # 기본 라우트
              - match:
                  prefix: "/"
                direct_response:
                  status: 404
                  body:
                    inline_string: "Not Found"

          http_filters:
          - name: envoy.filters.http.router
            typed_config:
              "@type": type.googleapis.com/envoy.extensions.filters.http.router.v3.Router

헤더 기반 라우팅

yaml

apiVersion: cilium.io/v2
kind: CiliumEnvoyConfig
metadata:
  name: header-routing
  namespace: default
spec:
  services:
  - name: api-service
    namespace: default

  backendServices:
  - name: api-v1
    namespace: default
  - name: api-v2
    namespace: default
  - name: api-beta
    namespace: default

  resources:
  - "@type": type.googleapis.com/envoy.config.listener.v3.Listener
    name: header-routing-listener
    filter_chains:
    - filters:
      - name: envoy.filters.network.http_connection_manager
        typed_config:
          "@type": type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
          stat_prefix: api-service
          route_config:
            name: header_routes
            virtual_hosts:
            - name: api
              domains: ["*"]
              routes:
              # X-API-Version: v2 헤더가 있으면 v2로 라우팅
              - match:
                  prefix: "/"
                  headers:
                  - name: "X-API-Version"
                    exact_match: "v2"
                route:
                  cluster: default/api-v2

              # X-Beta-User: true 헤더가 있으면 beta로 라우팅
              - match:
                  prefix: "/"
                  headers:
                  - name: "X-Beta-User"
                    exact_match: "true"
                route:
                  cluster: default/api-beta

              # 기본: v1으로 라우팅
              - match:
                  prefix: "/"
                route:
                  cluster: default/api-v1

          http_filters:
          - name: envoy.filters.http.router
            typed_config:
              "@type": type.googleapis.com/envoy.extensions.filters.http.router.v3.Router

메서드 기반 라우팅

yaml

apiVersion: cilium.io/v2
kind: CiliumEnvoyConfig
metadata:
  name: method-routing
  namespace: default
spec:
  services:
  - name: rest-api
    namespace: default

  backendServices:
  - name: read-service
    namespace: default
  - name: write-service
    namespace: default

  resources:
  - "@type": type.googleapis.com/envoy.config.listener.v3.Listener
    name: method-routing-listener
    filter_chains:
    - filters:
      - name: envoy.filters.network.http_connection_manager
        typed_config:
          "@type": type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
          stat_prefix: rest-api
          route_config:
            name: method_routes
            virtual_hosts:
            - name: api
              domains: ["*"]
              routes:
              # GET 요청 -> read-service
              - match:
                  prefix: "/"
                  headers:
                  - name: ":method"
                    exact_match: "GET"
                route:
                  cluster: default/read-service

              # POST, PUT, DELETE -> write-service
              - match:
                  prefix: "/"
                  headers:
                  - name: ":method"
                    safe_regex_match:
                      google_re2: {}
                      regex: "POST|PUT|DELETE|PATCH"
                route:
                  cluster: default/write-service

          http_filters:
          - name: envoy.filters.http.router
            typed_config:
              "@type": type.googleapis.com/envoy.extensions.filters.http.router.v3.Router

L7 트래픽 정책

CiliumNetworkPolicy L7 규칙

CiliumNetworkPolicy를 통해 L7 레벨의 세밀한 트래픽 제어가 가능합니다:

yaml

apiVersion: cilium.io/v2
kind: CiliumNetworkPolicy
metadata:
  name: l7-http-policy
  namespace: default
spec:
  endpointSelector:
    matchLabels:
      app: backend-api

  ingress:
  - fromEndpoints:
    - matchLabels:
        app: frontend
    toPorts:
    - ports:
      - port: "8080"
        protocol: TCP
      rules:
        http:
        # GET /api/users/* 허용
        - method: GET
          path: "/api/users/.*"

        # GET /api/products/* 허용
        - method: GET
          path: "/api/products/.*"

        # POST /api/orders 허용
        - method: POST
          path: "/api/orders"

        # 헤더 조건 포함
        - method: GET
          path: "/api/admin/.*"
          headers:
          - "X-Admin-Token: secret-token"

다양한 프로토콜 지원

Kafka L7 정책

yaml

apiVersion: cilium.io/v2
kind: CiliumNetworkPolicy
metadata:
  name: kafka-l7-policy
  namespace: kafka
spec:
  endpointSelector:
    matchLabels:
      app: kafka-broker

  ingress:
  - fromEndpoints:
    - matchLabels:
        app: kafka-producer
    toPorts:
    - ports:
      - port: "9092"
        protocol: TCP
      rules:
        kafka:
        # 특정 토픽에 대한 produce 허용
        - apiKey: "produce"
          topic: "orders"
        - apiKey: "produce"
          topic: "events"

  - fromEndpoints:
    - matchLabels:
        app: kafka-consumer
    toPorts:
    - ports:
      - port: "9092"
        protocol: TCP
      rules:
        kafka:
        # 특정 토픽에 대한 fetch 허용
        - apiKey: "fetch"
          topic: "orders"
        - apiKey: "fetch"
          topic: "events"
        # consumer group 관리 허용
        - apiKey: "offsetcommit"
          topic: "orders"
        - apiKey: "offsetfetch"
          topic: "orders"

DNS L7 정책

yaml

apiVersion: cilium.io/v2
kind: CiliumNetworkPolicy
metadata:
  name: dns-l7-policy
  namespace: default
spec:
  endpointSelector:
    matchLabels:
      app: web-app

  egress:
  - toEndpoints:
    - matchLabels:
        k8s:io.kubernetes.pod.namespace: kube-system
        k8s-app: kube-dns
    toPorts:
    - ports:
      - port: "53"
        protocol: UDP
      rules:
        dns:
        # 특정 도메인만 조회 허용
        - matchPattern: "*.example.com"
        - matchPattern: "api.external-service.io"
        - matchName: "database.internal.svc.cluster.local"

gRPC L7 정책

yaml

apiVersion: cilium.io/v2
kind: CiliumNetworkPolicy
metadata:
  name: grpc-l7-policy
  namespace: default
spec:
  endpointSelector:
    matchLabels:
      app: grpc-server

  ingress:
  - fromEndpoints:
    - matchLabels:
        app: grpc-client
    toPorts:
    - ports:
      - port: "50051"
        protocol: TCP
      rules:
        http:
        # gRPC는 HTTP/2 기반이므로 http 규칙 사용
        - method: POST
          path: "/myapp.UserService/GetUser"
        - method: POST
          path: "/myapp.UserService/ListUsers"
        - method: POST
          path: "/myapp.OrderService/.*"

로드 밸런싱

L4 로드 밸런싱 (eBPF)

eBPF 기반 L4 로드 밸런싱은 kube-proxy를 대체합니다:

yaml

# Cilium 설정 (values.yaml)
kubeProxyReplacement: true

loadBalancer:
  # 로드 밸런싱 알고리즘
  algorithm: maglev  # maglev 또는 random

  # 모드 설정
  mode: snat  # snat, dsr, 또는 hybrid

  # DSR 설정 (선택적)
  dsrDispatch: opt  # opt 또는 ipip

  # 세션 어피니티
  serviceTopology: true

  # 상태 확인
  healthCheckNodePort: true

Maglev 해싱

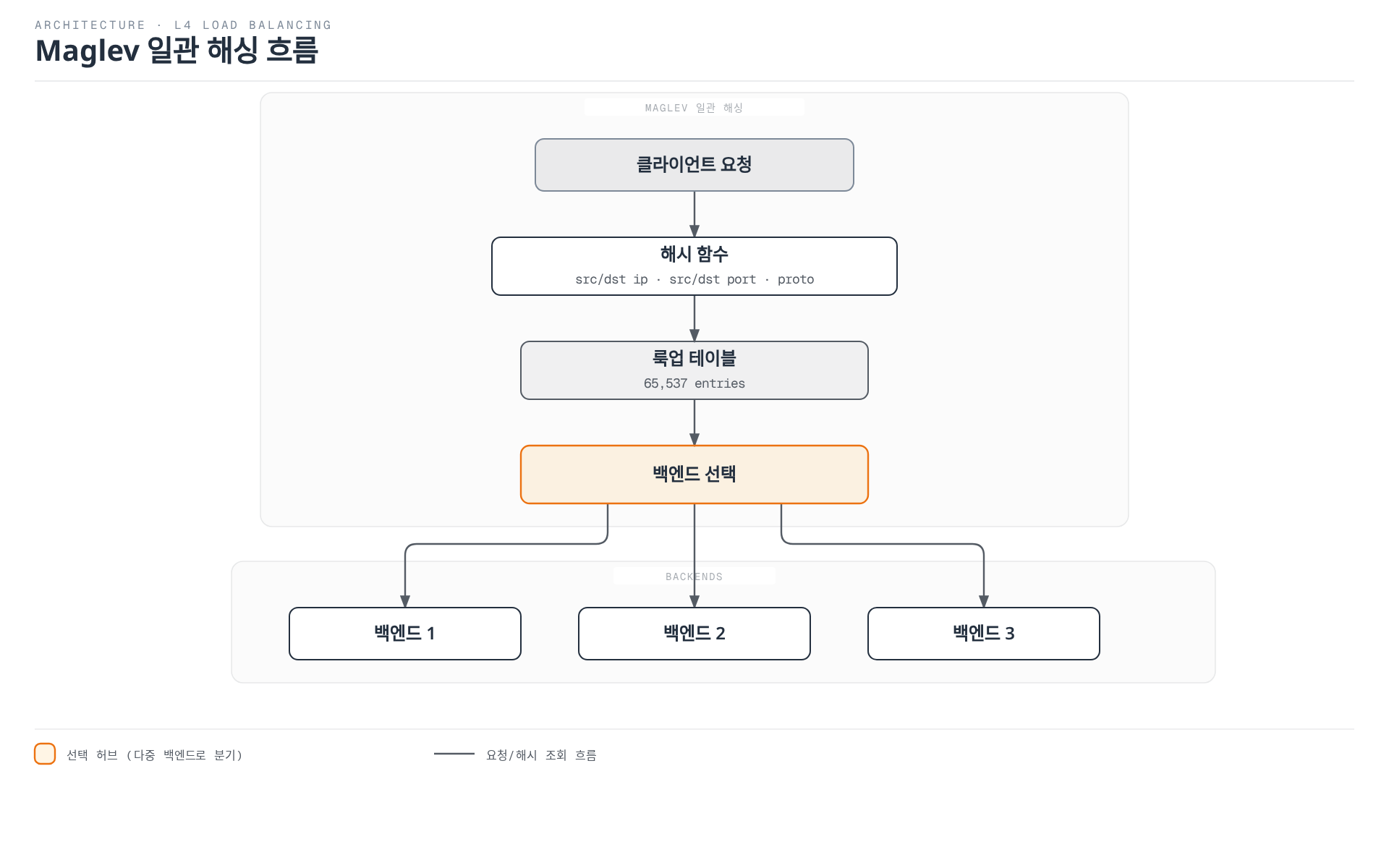

클라이언트 요청의 5-튜플을 해시 함수에 넣고 65,537개 엔트리의 룩업 테이블을 거쳐, 허브 역할을 하는 백엔드 선택 단계에서 세 개의 백엔드 중 하나로 일관되게 분산시키는 Maglev 해싱 흐름을 보여주는 다이어그램.

L7 로드 밸런싱 (Envoy)

L7 로드 밸런싱은 Envoy를 통해 제공됩니다:

yaml

apiVersion: cilium.io/v2
kind: CiliumEnvoyConfig
metadata:
  name: l7-load-balancing
  namespace: default
spec:
  services:
  - name: api-service
    namespace: default

  backendServices:
  - name: api-backend
    namespace: default

  resources:
  # 클러스터 정의
  - "@type": type.googleapis.com/envoy.config.cluster.v3.Cluster
    name: default/api-backend
    connect_timeout: 5s
    type: EDS
    eds_cluster_config:
      eds_config:
        api_config_source:
          api_type: GRPC
          grpc_services:
          - envoy_grpc:
              cluster_name: xds-grpc-cilium

    # 로드 밸런싱 정책
    lb_policy: ROUND_ROBIN

    # 이상치 감지 (Circuit Breaker)
    outlier_detection:
      consecutive_5xx: 5
      interval: 10s
      base_ejection_time: 30s
      max_ejection_percent: 50

    # 헬스 체크
    health_checks:
    - timeout: 5s
      interval: 10s
      unhealthy_threshold: 3
      healthy_threshold: 2
      http_health_check:
        path: "/health"
        expected_statuses:
        - start: 200
          end: 299

    # 연결 풀 설정
    circuit_breakers:
      thresholds:
      - priority: DEFAULT
        max_connections: 1000
        max_pending_requests: 1000
        max_requests: 1000
        max_retries: 3

로드 밸런싱 알고리즘 옵션

yaml

# Round Robin
lb_policy: ROUND_ROBIN

# Least Request
lb_policy: LEAST_REQUEST
least_request_lb_config:
  choice_count: 2

# Random
lb_policy: RANDOM

# Ring Hash (Consistent Hashing)
lb_policy: RING_HASH
ring_hash_lb_config:
  hash_function: XX_HASH
  minimum_ring_size: 1024
  maximum_ring_size: 8388608

# Maglev
lb_policy: MAGLEV
maglev_lb_config:
  table_size: 65537

트래픽 분할 (카나리 배포)

가중치 기반 트래픽 분할

yaml

apiVersion: cilium.io/v2
kind: CiliumEnvoyConfig
metadata:
  name: canary-deployment
  namespace: default
spec:
  services:
  - name: frontend
    namespace: default

  backendServices:
  - name: frontend-stable
    namespace: default
  - name: frontend-canary
    namespace: default

  resources:
  - "@type": type.googleapis.com/envoy.config.listener.v3.Listener
    name: canary-listener
    filter_chains:
    - filters:
      - name: envoy.filters.network.http_connection_manager
        typed_config:
          "@type": type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
          stat_prefix: frontend
          route_config:
            name: canary_routes
            virtual_hosts:
            - name: frontend
              domains: ["*"]
              routes:
              - match:
                  prefix: "/"
                route:
                  weighted_clusters:
                    clusters:
                    # 90% -> stable
                    - name: default/frontend-stable
                      weight: 90
                    # 10% -> canary
                    - name: default/frontend-canary
                      weight: 10
                    total_weight: 100

          http_filters:
          - name: envoy.filters.http.router
            typed_config:
              "@type": type.googleapis.com/envoy.extensions.filters.http.router.v3.Router

헤더 기반 카나리

yaml

apiVersion: cilium.io/v2
kind: CiliumEnvoyConfig
metadata:
  name: header-canary
  namespace: default
spec:
  services:
  - name: api
    namespace: default

  backendServices:
  - name: api-stable
    namespace: default
  - name: api-canary
    namespace: default

  resources:
  - "@type": type.googleapis.com/envoy.config.listener.v3.Listener
    name: header-canary-listener
    filter_chains:
    - filters:
      - name: envoy.filters.network.http_connection_manager
        typed_config:
          "@type": type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
          stat_prefix: api
          route_config:
            name: header_canary_routes
            virtual_hosts:
            - name: api
              domains: ["*"]
              routes:
              # X-Canary: true 헤더가 있으면 canary로 라우팅
              - match:
                  prefix: "/"
                  headers:
                  - name: "X-Canary"
                    exact_match: "true"
                route:
                  cluster: default/api-canary

              # 기본: stable로 라우팅
              - match:
                  prefix: "/"
                route:
                  cluster: default/api-stable

          http_filters:
          - name: envoy.filters.http.router
            typed_config:
              "@type": type.googleapis.com/envoy.extensions.filters.http.router.v3.Router

재시도 및 타임아웃

재시도 설정

yaml

apiVersion: cilium.io/v2
kind: CiliumEnvoyConfig
metadata:
  name: retry-config
  namespace: default
spec:
  services:
  - name: api-service
    namespace: default

  backendServices:
  - name: api-backend
    namespace: default

  resources:
  - "@type": type.googleapis.com/envoy.config.listener.v3.Listener
    name: retry-listener
    filter_chains:
    - filters:
      - name: envoy.filters.network.http_connection_manager
        typed_config:
          "@type": type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
          stat_prefix: api-service
          route_config:
            name: retry_routes
            virtual_hosts:
            - name: api
              domains: ["*"]
              routes:
              - match:
                  prefix: "/"
                route:
                  cluster: default/api-backend
                  timeout: 30s

                  # 재시도 정책
                  retry_policy:
                    # 재시도할 상태 코드
                    retry_on: "5xx,reset,connect-failure,retriable-4xx"

                    # 최대 재시도 횟수
                    num_retries: 3

                    # 재시도 간격
                    per_try_timeout: 10s

                    # 재시도 백오프
                    retry_back_off:
                      base_interval: 0.5s
                      max_interval: 10s

                    # 재시도 가능한 헤더
                    retriable_headers:
                    - name: "x-envoy-retriable-on"
                      exact_match: "true"

                    # 재시도 우선순위
                    retry_priority:
                      name: envoy.retry_priorities.previous_priorities
                      typed_config:
                        "@type": type.googleapis.com/envoy.extensions.retry.priority.previous_priorities.v3.PreviousPrioritiesConfig
                        update_frequency: 2

          http_filters:
          - name: envoy.filters.http.router
            typed_config:
              "@type": type.googleapis.com/envoy.extensions.filters.http.router.v3.Router

타임아웃 설정

yaml

apiVersion: cilium.io/v2
kind: CiliumEnvoyConfig
metadata:
  name: timeout-config
  namespace: default
spec:
  services:
  - name: slow-service
    namespace: default

  resources:
  - "@type": type.googleapis.com/envoy.config.listener.v3.Listener
    name: timeout-listener
    filter_chains:
    - filters:
      - name: envoy.filters.network.http_connection_manager
        typed_config:
          "@type": type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
          stat_prefix: slow-service

          # 연결 타임아웃
          common_http_protocol_options:
            idle_timeout: 300s
            headers_with_underscores_action: REJECT_REQUEST

          # 스트림 타임아웃
          stream_idle_timeout: 60s
          request_timeout: 120s

          route_config:
            name: timeout_routes
            virtual_hosts:
            - name: slow-service
              domains: ["*"]
              routes:
              # 기본 라우트
              - match:
                  prefix: "/"
                route:
                  cluster: default/slow-service
                  timeout: 60s

              # 긴 처리 시간이 필요한 엔드포인트
              - match:
                  prefix: "/long-running"
                route:
                  cluster: default/slow-service
                  timeout: 300s

              # 스트리밍 엔드포인트 (무제한)
              - match:
                  prefix: "/stream"
                route:
                  cluster: default/slow-service
                  timeout: 0s  # 무제한

          http_filters:
          - name: envoy.filters.http.router
            typed_config:
              "@type": type.googleapis.com/envoy.extensions.filters.http.router.v3.Router

Rate Limiting

로컬 Rate Limiting

yaml

apiVersion: cilium.io/v2
kind: CiliumEnvoyConfig
metadata:
  name: local-ratelimit
  namespace: default
spec:
  services:
  - name: api-service
    namespace: default

  resources:
  - "@type": type.googleapis.com/envoy.config.listener.v3.Listener
    name: ratelimit-listener
    filter_chains:
    - filters:
      - name: envoy.filters.network.http_connection_manager
        typed_config:
          "@type": type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
          stat_prefix: api-service
          route_config:
            name: ratelimit_routes
            virtual_hosts:
            - name: api
              domains: ["*"]
              routes:
              - match:
                  prefix: "/"
                route:
                  cluster: default/api-service

          http_filters:
          # 로컬 Rate Limiter
          - name: envoy.filters.http.local_ratelimit
            typed_config:
              "@type": type.googleapis.com/envoy.extensions.filters.http.local_ratelimit.v3.LocalRateLimit
              stat_prefix: http_local_rate_limiter

              # 전역 토큰 버킷
              token_bucket:
                max_tokens: 1000
                tokens_per_fill: 100
                fill_interval: 1s

              # 응답 헤더
              response_headers_to_add:
              - append_action: OVERWRITE_IF_EXISTS_OR_ADD
                header:
                  key: x-ratelimit-limit
                  value: "1000"
              - append_action: OVERWRITE_IF_EXISTS_OR_ADD
                header:
                  key: x-ratelimit-remaining
                  value: "%DYNAMIC_METADATA(envoy.http.local_rate_limit:remaining)%"

              # Rate Limit 초과 시 응답
              status:
                code: TooManyRequests
              filter_enabled:
                runtime_key: local_rate_limit_enabled
                default_value:
                  numerator: 100
                  denominator: HUNDRED
              filter_enforced:
                runtime_key: local_rate_limit_enforced
                default_value:
                  numerator: 100
                  denominator: HUNDRED

          - name: envoy.filters.http.router
            typed_config:
              "@type": type.googleapis.com/envoy.extensions.filters.http.router.v3.Router

경로별 Rate Limiting

yaml

apiVersion: cilium.io/v2
kind: CiliumEnvoyConfig
metadata:
  name: per-route-ratelimit
  namespace: default
spec:
  services:
  - name: api-service
    namespace: default

  resources:
  - "@type": type.googleapis.com/envoy.config.listener.v3.Listener
    name: per-route-ratelimit-listener
    filter_chains:
    - filters:
      - name: envoy.filters.network.http_connection_manager
        typed_config:
          "@type": type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
          stat_prefix: api-service
          route_config:
            name: ratelimit_routes
            virtual_hosts:
            - name: api
              domains: ["*"]
              routes:
              # 인증 엔드포인트 - 낮은 rate limit
              - match:
                  prefix: "/auth"
                route:
                  cluster: default/api-service
                typed_per_filter_config:
                  envoy.filters.http.local_ratelimit:
                    "@type": type.googleapis.com/envoy.extensions.filters.http.local_ratelimit.v3.LocalRateLimit
                    stat_prefix: auth_rate_limiter
                    token_bucket:
                      max_tokens: 10
                      tokens_per_fill: 5
                      fill_interval: 60s

              # 검색 엔드포인트 - 중간 rate limit
              - match:
                  prefix: "/search"
                route:
                  cluster: default/api-service
                typed_per_filter_config:
                  envoy.filters.http.local_ratelimit:
                    "@type": type.googleapis.com/envoy.extensions.filters.http.local_ratelimit.v3.LocalRateLimit
                    stat_prefix: search_rate_limiter
                    token_bucket:
                      max_tokens: 100
                      tokens_per_fill: 50
                      fill_interval: 1s

              # 기본 - 높은 rate limit
              - match:
                  prefix: "/"
                route:
                  cluster: default/api-service
                typed_per_filter_config:
                  envoy.filters.http.local_ratelimit:
                    "@type": type.googleapis.com/envoy.extensions.filters.http.local_ratelimit.v3.LocalRateLimit
                    stat_prefix: default_rate_limiter
                    token_bucket:
                      max_tokens: 1000
                      tokens_per_fill: 100
                      fill_interval: 1s

          http_filters:
          - name: envoy.filters.http.local_ratelimit
            typed_config:
              "@type": type.googleapis.com/envoy.extensions.filters.http.local_ratelimit.v3.LocalRateLimit
              stat_prefix: http_local_rate_limiter
          - name: envoy.filters.http.router
            typed_config:
              "@type": type.googleapis.com/envoy.extensions.filters.http.router.v3.Router

URL 재작성 및 헤더 조작

URL 재작성

yaml

apiVersion: cilium.io/v2
kind: CiliumEnvoyConfig
metadata:
  name: url-rewrite
  namespace: default
spec:
  services:
  - name: api-gateway
    namespace: default

  backendServices:
  - name: users-service
    namespace: default

  resources:
  - "@type": type.googleapis.com/envoy.config.listener.v3.Listener
    name: rewrite-listener
    filter_chains:
    - filters:
      - name: envoy.filters.network.http_connection_manager
        typed_config:
          "@type": type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
          stat_prefix: api-gateway
          route_config:
            name: rewrite_routes
            virtual_hosts:
            - name: api
              domains: ["*"]
              routes:
              # /api/v1/users/* -> /users/*
              - match:
                  prefix: "/api/v1/users"
                route:
                  cluster: default/users-service
                  prefix_rewrite: "/users"

              # 정규식 재작성
              - match:
                  safe_regex:
                    google_re2: {}
                    regex: "/v([0-9]+)/(.*)"
                route:
                  cluster: default/users-service
                  regex_rewrite:
                    pattern:
                      google_re2: {}
                      regex: "/v([0-9]+)/(.*)"
                    substitution: "/api/\\2?version=\\1"

              # 호스트 재작성
              - match:
                  prefix: "/legacy"
                route:
                  cluster: default/users-service
                  host_rewrite_literal: "legacy.internal.svc.cluster.local"
                  prefix_rewrite: "/"

          http_filters:
          - name: envoy.filters.http.router
            typed_config:
              "@type": type.googleapis.com/envoy.extensions.filters.http.router.v3.Router

헤더 조작

yaml

apiVersion: cilium.io/v2
kind: CiliumEnvoyConfig
metadata:
  name: header-manipulation
  namespace: default
spec:
  services:
  - name: api-service
    namespace: default

  resources:
  - "@type": type.googleapis.com/envoy.config.listener.v3.Listener
    name: header-listener
    filter_chains:
    - filters:
      - name: envoy.filters.network.http_connection_manager
        typed_config:
          "@type": type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
          stat_prefix: api-service
          route_config:
            name: header_routes
            virtual_hosts:
            - name: api
              domains: ["*"]

              # 가상 호스트 레벨 헤더
              request_headers_to_add:
              - header:
                  key: "X-Forwarded-By"
                  value: "cilium-envoy"
                append_action: OVERWRITE_IF_EXISTS_OR_ADD

              response_headers_to_add:
              - header:
                  key: "X-Served-By"
                  value: "cilium-service-mesh"
                append_action: OVERWRITE_IF_EXISTS_OR_ADD

              response_headers_to_remove:
              - "server"
              - "x-powered-by"

              routes:
              - match:
                  prefix: "/"
                route:
                  cluster: default/api-service

                  # 라우트 레벨 헤더
                  request_headers_to_add:
                  - header:
                      key: "X-Request-Start"
                      value: "%START_TIME(%s.%3f)%"
                    append_action: OVERWRITE_IF_EXISTS_OR_ADD
                  - header:
                      key: "X-Envoy-Original-Path"
                      value: "%REQ(:PATH)%"
                    append_action: OVERWRITE_IF_EXISTS_OR_ADD

                  response_headers_to_add:
                  - header:
                      key: "X-Response-Time"
                      value: "%RESPONSE_DURATION%ms"
                    append_action: OVERWRITE_IF_EXISTS_OR_ADD
                  - header:
                      key: "X-Upstream-Host"
                      value: "%UPSTREAM_HOST%"
                    append_action: OVERWRITE_IF_EXISTS_OR_ADD

          http_filters:
          - name: envoy.filters.http.router
            typed_config:
              "@type": type.googleapis.com/envoy.extensions.filters.http.router.v3.Router

Gateway API 통합

GatewayClass 및 Gateway

yaml

# GatewayClass 정의
apiVersion: gateway.networking.k8s.io/v1
kind: GatewayClass
metadata:
  name: cilium
spec:
  controllerName: io.cilium/gateway-controller
---
# Gateway 정의
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: api-gateway
  namespace: default
spec:
  gatewayClassName: cilium
  listeners:
  - name: http
    protocol: HTTP
    port: 80
    allowedRoutes:
      namespaces:
        from: Same

  - name: https
    protocol: HTTPS
    port: 443
    tls:
      mode: Terminate
      certificateRefs:
      - kind: Secret
        name: api-gateway-tls
    allowedRoutes:
      namespaces:
        from: Same

HTTPRoute

yaml

apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: api-routes
  namespace: default
spec:
  parentRefs:
  - name: api-gateway
    namespace: default

  hostnames:
  - "api.example.com"

  rules:
  # /users/* -> users-service
  - matches:
    - path:
        type: PathPrefix
        value: /users
    backendRefs:
    - name: users-service
      port: 80

  # /orders/* -> orders-service
  - matches:
    - path:
        type: PathPrefix
        value: /orders
    backendRefs:
    - name: orders-service
      port: 80

  # 헤더 기반 라우팅
  - matches:
    - path:
        type: PathPrefix
        value: /
      headers:
      - name: X-API-Version
        value: v2
    backendRefs:
    - name: api-v2
      port: 80

  # 가중치 기반 분할
  - matches:
    - path:
        type: PathPrefix
        value: /
    backendRefs:
    - name: api-stable
      port: 80
      weight: 90
    - name: api-canary
      port: 80
      weight: 10

HTTPRoute 고급 기능

yaml

apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: advanced-routes
  namespace: default
spec:
  parentRefs:
  - name: api-gateway

  rules:
  - matches:
    - path:
        type: PathPrefix
        value: /api

    # 요청 헤더 수정
    filters:
    - type: RequestHeaderModifier
      requestHeaderModifier:
        add:
        - name: X-Request-ID
          value: "%REQ(X-REQUEST-ID)%"
        set:
        - name: X-Forwarded-Proto
          value: https
        remove:
        - X-Internal-Header

    # 응답 헤더 수정
    - type: ResponseHeaderModifier
      responseHeaderModifier:
        add:
        - name: X-Frame-Options
          value: DENY
        - name: X-Content-Type-Options
          value: nosniff

    # URL 재작성
    - type: URLRewrite
      urlRewrite:
        path:
          type: ReplacePrefixMatch
          replacePrefixMatch: /v1

    backendRefs:
    - name: api-service
      port: 80

  # 리다이렉트
  - matches:
    - path:
        type: Exact
        value: /old-endpoint
    filters:
    - type: RequestRedirect
      requestRedirect:
        scheme: https
        hostname: new.example.com
        path:
          type: ReplaceFullPath
          replaceFullPath: /new-endpoint
        statusCode: 301

트래픽 미러링

yaml

apiVersion: cilium.io/v2
kind: CiliumEnvoyConfig
metadata:
  name: traffic-mirror
  namespace: default
spec:
  services:
  - name: production-service
    namespace: default

  backendServices:
  - name: production-backend
    namespace: default
  - name: shadow-backend
    namespace: default

  resources:
  - "@type": type.googleapis.com/envoy.config.listener.v3.Listener
    name: mirror-listener
    filter_chains:
    - filters:
      - name: envoy.filters.network.http_connection_manager
        typed_config:
          "@type": type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
          stat_prefix: production-service
          route_config:
            name: mirror_routes
            virtual_hosts:
            - name: production
              domains: ["*"]
              routes:
              - match:
                  prefix: "/"
                route:
                  cluster: default/production-backend

                  # 트래픽 미러링 설정
                  request_mirror_policies:
                  - cluster: default/shadow-backend
                    runtime_fraction:
                      default_value:
                        numerator: 100  # 100% 미러링
                        denominator: HUNDRED
                    trace_sampled: false

          http_filters:
          - name: envoy.filters.http.router
            typed_config:
              "@type": type.googleapis.com/envoy.extensions.filters.http.router.v3.Router

다음 단계

보안: mTLS와 L7 네트워크 정책 설정
관찰성: Hubble을 통한 트래픽 모니터링
인그레스 & 게이트웨이: 외부 트래픽 관리

Traffic Management

Security

Observability

Resilience

Advanced

비교 가이드

ArgoCD

Metrics

Logging

Tracing

Alerting

Observability End-to-End 실습

Cilium Service Mesh 트래픽 관리 ​

개요 ​

트래픽 관리 아키텍처 ​

CiliumEnvoyConfig ​

기본 구조 ​

HTTP 라우팅 ​

경로 기반 라우팅 ​

헤더 기반 라우팅 ​

메서드 기반 라우팅 ​

L7 트래픽 정책 ​

CiliumNetworkPolicy L7 규칙 ​

다양한 프로토콜 지원 ​

Kafka L7 정책 ​

DNS L7 정책 ​

gRPC L7 정책 ​

로드 밸런싱 ​

L4 로드 밸런싱 (eBPF) ​

Maglev 해싱 ​

L7 로드 밸런싱 (Envoy) ​

로드 밸런싱 알고리즘 옵션 ​

트래픽 분할 (카나리 배포) ​

가중치 기반 트래픽 분할 ​

헤더 기반 카나리 ​

재시도 및 타임아웃 ​

재시도 설정 ​

타임아웃 설정 ​

Rate Limiting ​

로컬 Rate Limiting ​

경로별 Rate Limiting ​

URL 재작성 및 헤더 조작 ​

URL 재작성 ​

헤더 조작 ​

Gateway API 통합 ​

GatewayClass 및 Gateway ​

HTTPRoute ​

HTTPRoute 고급 기능 ​

트래픽 미러링 ​

다음 단계 ​

참고 자료 ​

Cilium Service Mesh 트래픽 관리

개요

트래픽 관리 아키텍처

CiliumEnvoyConfig

기본 구조

HTTP 라우팅

경로 기반 라우팅

헤더 기반 라우팅

메서드 기반 라우팅

L7 트래픽 정책

CiliumNetworkPolicy L7 규칙

다양한 프로토콜 지원

Kafka L7 정책

DNS L7 정책

gRPC L7 정책

로드 밸런싱

L4 로드 밸런싱 (eBPF)

Maglev 해싱

L7 로드 밸런싱 (Envoy)

로드 밸런싱 알고리즘 옵션

트래픽 분할 (카나리 배포)

가중치 기반 트래픽 분할

헤더 기반 카나리

재시도 및 타임아웃

재시도 설정

타임아웃 설정

Rate Limiting

로컬 Rate Limiting

경로별 Rate Limiting

URL 재작성 및 헤더 조작

URL 재작성

헤더 조작

Gateway API 통합

GatewayClass 및 Gateway

HTTPRoute

HTTPRoute 고급 기능

트래픽 미러링

다음 단계

참고 자료
