Overview

このガイドでは、高可用性とゼロダウンタイム deployments を備えた production EKS workloads を実行するための高度な infrastructure patterns を扱います。Blue/Green cluster architecture により、シームレスな cluster upgrades、disaster recovery、複数の availability zones にまたがる traffic management が可能になります。

主なトピック:

Blue/Green dual-cluster architecture
traffic distribution のための NLB weighted target groups
Route53 を使用した DNS-based traffic switching
stateful workloads のための zone-aware data placement
CloudWatch と Lambda による automated failover

1. Blue/Green Architecture Overview

Why Blue/Green Clusters?

従来の in-place cluster upgrades には大きなリスクがあります。

control plane updates 中の workload disruption
Node draining により capacity issues が発生する可能性
問題発生時の rollback complexity
長い maintenance windows

Blue/Green architecture は、2 つの独立した clusters を維持することで、これらのリスクを排除します。

Aspect	In-Place Upgrade	Blue/Green
Downtime Risk	Medium-High	Near Zero
Rollback Time	30-60 minutes	Seconds (DNS/NLB)
Testing	Limited	Full production traffic
Cost	Single cluster	2x cluster (during transition)

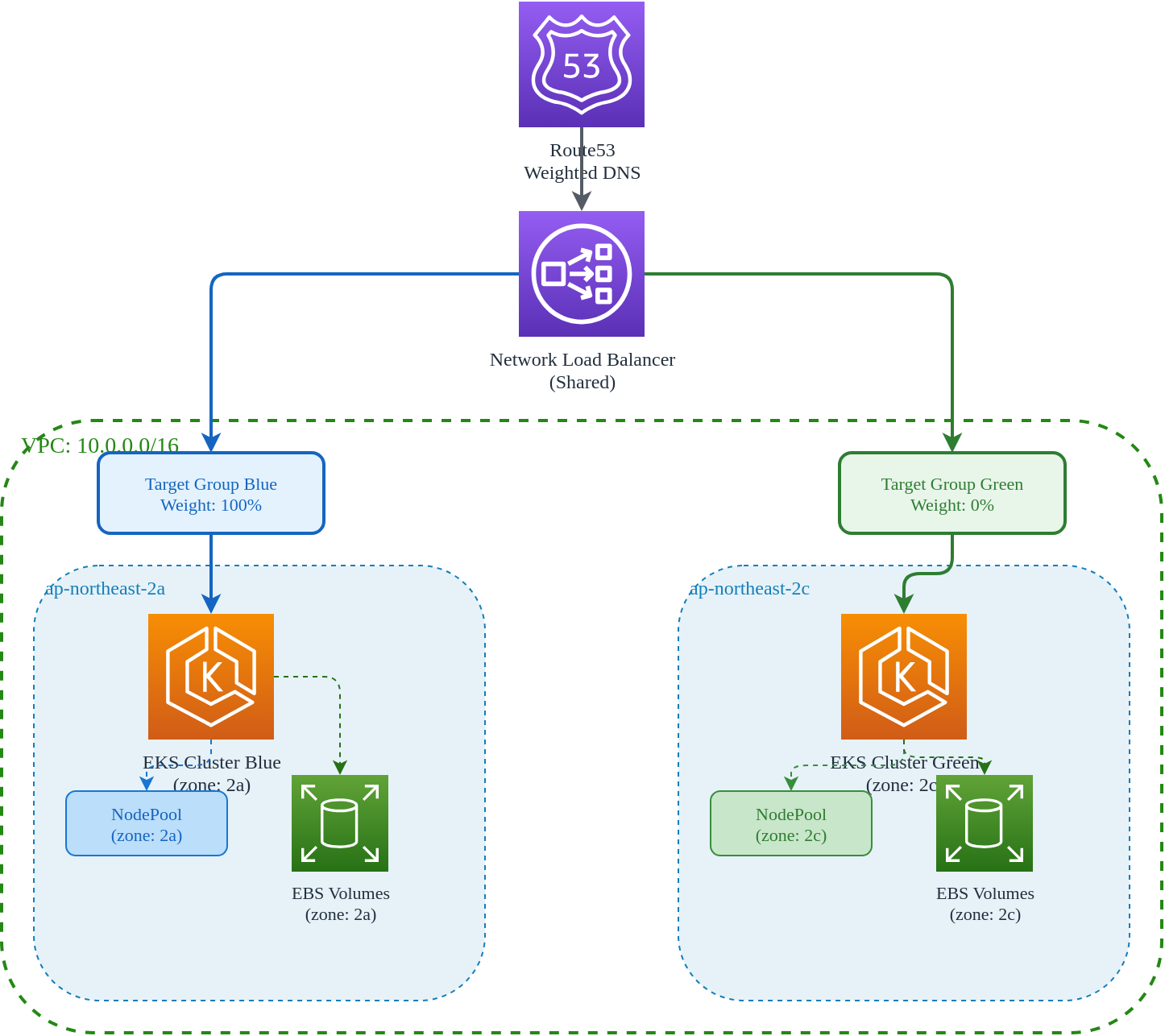

Architecture Diagram

NLB Blue/Green Architecture

Single-Zone Design Rationale

各 cluster は単一の availability zone で動作します。

利点:

Data Locality: Pods は常に storage volumes の近くに schedule されます
Cost Optimization: cross-AZ data transfer costs をゼロにできます
Failure Isolation: AZ failure は 1 つの cluster のみに影響します
Simplified Networking: 複雑な multi-AZ load balancing が不要です

トレードオフ:

single-AZ risk が高くなります（Blue/Green failover により軽減）
zone ごとに慎重な capacity planning が必要です

Zone Assignment

Cluster	Availability Zone	Purpose
Blue	ap-northeast-2a	Primary production
Green	ap-northeast-2c	Secondary/upgrade target

2. NLB Weighted Target Groups

Network Load Balancer Configuration

shared NLB は、target group weights に基づいて Blue clusters と Green clusters の間で traffic を分散します。

hcl

# nlb/main.tf

terraform {
  required_version = ">= 1.5.0"
  required_providers {
    aws = {
      source  = "hashicorp/aws"
      version = ">= 5.40.0"
    }
  }
}

provider "aws" {
  region = var.region

  default_tags {
    tags = local.tags
  }
}

locals {
  name_prefix = "${var.project_name}-${var.environment}"

  tags = {
    Environment = var.environment
    Project     = var.project_name
    ManagedBy   = "terraform"
    Component   = "nlb"
  }
}

# Reference network layer for VPC and subnets
data "terraform_remote_state" "network" {
  backend = "s3"

  config = {
    bucket = "${var.project_name}-${var.environment}-tfstate"
    key    = "network/terraform.tfstate"
    region = var.region
  }
}

#------------------------------------------------------------------------------
# Network Load Balancer
#------------------------------------------------------------------------------

resource "aws_lb" "main" {
  name               = "${local.name_prefix}-nlb"
  internal           = false
  load_balancer_type = "network"

  # Deploy in both AZs for high availability
  subnets = data.terraform_remote_state.network.outputs.public_subnet_ids

  enable_deletion_protection = var.environment == "prod"
  enable_cross_zone_load_balancing = true

  tags = merge(local.tags, {
    Name = "${local.name_prefix}-nlb"
  })
}

#------------------------------------------------------------------------------
# Target Groups - Blue Cluster
#------------------------------------------------------------------------------

resource "aws_lb_target_group" "blue_http" {
  name        = "${local.name_prefix}-blue-http"
  port        = 80
  protocol    = "TCP"
  vpc_id      = data.terraform_remote_state.network.outputs.vpc_id
  target_type = "ip"

  health_check {
    enabled             = true
    protocol            = "HTTP"
    port                = "traffic-port"
    path                = "/healthz"
    healthy_threshold   = 2
    unhealthy_threshold = 2
    interval            = 10
    timeout             = 5
  }

  # Deregistration delay for graceful shutdown
  deregistration_delay = 30

  tags = merge(local.tags, {
    Name    = "${local.name_prefix}-blue-http"
    Cluster = "blue"
  })
}

resource "aws_lb_target_group" "blue_https" {
  name        = "${local.name_prefix}-blue-https"
  port        = 443
  protocol    = "TCP"
  vpc_id      = data.terraform_remote_state.network.outputs.vpc_id
  target_type = "ip"

  health_check {
    enabled             = true
    protocol            = "HTTPS"
    port                = "traffic-port"
    path                = "/healthz"
    healthy_threshold   = 2
    unhealthy_threshold = 2
    interval            = 10
    timeout             = 5
  }

  deregistration_delay = 30

  tags = merge(local.tags, {
    Name    = "${local.name_prefix}-blue-https"
    Cluster = "blue"
  })
}

#------------------------------------------------------------------------------
# Target Groups - Green Cluster
#------------------------------------------------------------------------------

resource "aws_lb_target_group" "green_http" {
  name        = "${local.name_prefix}-green-http"
  port        = 80
  protocol    = "TCP"
  vpc_id      = data.terraform_remote_state.network.outputs.vpc_id
  target_type = "ip"

  health_check {
    enabled             = true
    protocol            = "HTTP"
    port                = "traffic-port"
    path                = "/healthz"
    healthy_threshold   = 2
    unhealthy_threshold = 2
    interval            = 10
    timeout             = 5
  }

  deregistration_delay = 30

  tags = merge(local.tags, {
    Name    = "${local.name_prefix}-green-http"
    Cluster = "green"
  })
}

resource "aws_lb_target_group" "green_https" {
  name        = "${local.name_prefix}-green-https"
  port        = 443
  protocol    = "TCP"
  vpc_id      = data.terraform_remote_state.network.outputs.vpc_id
  target_type = "ip"

  health_check {
    enabled             = true
    protocol            = "HTTPS"
    port                = "traffic-port"
    path                = "/healthz"
    healthy_threshold   = 2
    unhealthy_threshold = 2
    interval            = 10
    timeout             = 5
  }

  deregistration_delay = 30

  tags = merge(local.tags, {
    Name    = "${local.name_prefix}-green-https"
    Cluster = "green"
  })
}

#------------------------------------------------------------------------------
# Listeners with Weighted Target Groups
#------------------------------------------------------------------------------

resource "aws_lb_listener" "http" {
  load_balancer_arn = aws_lb.main.arn
  port              = 80
  protocol          = "TCP"

  default_action {
    type = "forward"

    forward {
      target_group {
        arn    = aws_lb_target_group.blue_http.arn
        weight = var.blue_weight
      }
      target_group {
        arn    = aws_lb_target_group.green_http.arn
        weight = var.green_weight
      }

      stickiness {
        enabled  = true
        duration = 3600  # 1 hour session stickiness
      }
    }
  }

  tags = merge(local.tags, {
    Name = "${local.name_prefix}-http-listener"
  })
}

resource "aws_lb_listener" "https" {
  load_balancer_arn = aws_lb.main.arn
  port              = 443
  protocol          = "TCP"

  default_action {
    type = "forward"

    forward {
      target_group {
        arn    = aws_lb_target_group.blue_https.arn
        weight = var.blue_weight
      }
      target_group {
        arn    = aws_lb_target_group.green_https.arn
        weight = var.green_weight
      }

      stickiness {
        enabled  = true
        duration = 3600
      }
    }
  }

  tags = merge(local.tags, {
    Name = "${local.name_prefix}-https-listener"
  })
}

Variables

hcl

# nlb/variables.tf

variable "region" {
  description = "AWS region"
  type        = string
  default     = "ap-northeast-2"
}

variable "environment" {
  description = "Environment name"
  type        = string
  default     = "prod"
}

variable "project_name" {
  description = "Project name"
  type        = string
  default     = "eks-platform"
}

variable "blue_weight" {
  description = "Traffic weight for blue cluster (0-100)"
  type        = number
  default     = 100

  validation {
    condition     = var.blue_weight >= 0 && var.blue_weight <= 100
    error_message = "Blue weight must be between 0 and 100."
  }
}

variable "green_weight" {
  description = "Traffic weight for green cluster (0-100)"
  type        = number
  default     = 0

  validation {
    condition     = var.green_weight >= 0 && var.green_weight <= 100
    error_message = "Green weight must be between 0 and 100."
  }
}

Outputs

hcl

# nlb/outputs.tf

output "nlb_arn" {
  description = "NLB ARN"
  value       = aws_lb.main.arn
}

output "nlb_dns_name" {
  description = "NLB DNS name"
  value       = aws_lb.main.dns_name
}

output "nlb_zone_id" {
  description = "NLB hosted zone ID"
  value       = aws_lb.main.zone_id
}

output "blue_http_target_group_arn" {
  description = "Blue HTTP target group ARN"
  value       = aws_lb_target_group.blue_http.arn
}

output "blue_https_target_group_arn" {
  description = "Blue HTTPS target group ARN"
  value       = aws_lb_target_group.blue_https.arn
}

output "green_http_target_group_arn" {
  description = "Green HTTP target group ARN"
  value       = aws_lb_target_group.green_http.arn
}

output "green_https_target_group_arn" {
  description = "Green HTTPS target group ARN"
  value       = aws_lb_target_group.green_https.arn
}

output "current_weights" {
  description = "Current traffic weights"
  value = {
    blue  = var.blue_weight
    green = var.green_weight
  }
}

Weight Adjustment for Deployments

canary-style deployments のために weights を段階的に調整します。

hcl

# terraform.tfvars examples for different deployment stages

# Stage 1: All traffic to Blue (default)
blue_weight  = 100
green_weight = 0

# Stage 2: Canary - 10% to Green
blue_weight  = 90
green_weight = 10

# Stage 3: 50/50 split
blue_weight  = 50
green_weight = 50

# Stage 4: All traffic to Green
blue_weight  = 0
green_weight = 100

weight changes を適用します。

bash

# Update weights
terraform apply -var="blue_weight=90" -var="green_weight=10"

# Verify listener configuration
aws elbv2 describe-listeners \
  --load-balancer-arn $(terraform output -raw nlb_arn) \
  --query 'Listeners[*].DefaultActions[*].ForwardConfig.TargetGroups'

3. DNS-Based Traffic Switching

Route53 Weighted Routing

よりきめ細かな制御と global routing のために、NLB weights と併用、または代替として Route53 weighted records を使用します。

hcl

# dns/main.tf

terraform {
  required_version = ">= 1.5.0"
  required_providers {
    aws = {
      source  = "hashicorp/aws"
      version = ">= 5.40.0"
    }
  }
}

provider "aws" {
  region = var.region
}

locals {
  name_prefix = "${var.project_name}-${var.environment}"
}

# Reference NLB outputs
data "terraform_remote_state" "nlb" {
  backend = "s3"

  config = {
    bucket = "${var.project_name}-${var.environment}-tfstate"
    key    = "nlb/terraform.tfstate"
    region = var.region
  }
}

#------------------------------------------------------------------------------
# Route53 Hosted Zone
#------------------------------------------------------------------------------

data "aws_route53_zone" "main" {
  name         = var.domain_name
  private_zone = false
}

#------------------------------------------------------------------------------
# Health Checks
#------------------------------------------------------------------------------

resource "aws_route53_health_check" "blue" {
  fqdn              = "blue.${var.domain_name}"
  port              = 443
  type              = "HTTPS"
  resource_path     = "/healthz"
  failure_threshold = 3
  request_interval  = 10

  tags = {
    Name        = "${local.name_prefix}-blue-health"
    Environment = var.environment
    Cluster     = "blue"
  }
}

resource "aws_route53_health_check" "green" {
  fqdn              = "green.${var.domain_name}"
  port              = 443
  type              = "HTTPS"
  resource_path     = "/healthz"
  failure_threshold = 3
  request_interval  = 10

  tags = {
    Name        = "${local.name_prefix}-green-health"
    Environment = var.environment
    Cluster     = "green"
  }
}

#------------------------------------------------------------------------------
# Weighted DNS Records
#------------------------------------------------------------------------------

# Primary record - Blue cluster
resource "aws_route53_record" "app_blue" {
  zone_id = data.aws_route53_zone.main.zone_id
  name    = "app.${var.domain_name}"
  type    = "A"

  set_identifier = "blue"
  weighted_routing_policy {
    weight = var.blue_dns_weight
  }

  alias {
    name                   = data.terraform_remote_state.nlb.outputs.nlb_dns_name
    zone_id                = data.terraform_remote_state.nlb.outputs.nlb_zone_id
    evaluate_target_health = true
  }

  health_check_id = aws_route53_health_check.blue.id
}

# Secondary record - Green cluster
resource "aws_route53_record" "app_green" {
  zone_id = data.aws_route53_zone.main.zone_id
  name    = "app.${var.domain_name}"
  type    = "A"

  set_identifier = "green"
  weighted_routing_policy {
    weight = var.green_dns_weight
  }

  alias {
    name                   = data.terraform_remote_state.nlb.outputs.nlb_dns_name
    zone_id                = data.terraform_remote_state.nlb.outputs.nlb_zone_id
    evaluate_target_health = true
  }

  health_check_id = aws_route53_health_check.green.id
}

#------------------------------------------------------------------------------
# Direct Cluster Access Records
#------------------------------------------------------------------------------

# Blue cluster direct access
resource "aws_route53_record" "blue_direct" {
  zone_id = data.aws_route53_zone.main.zone_id
  name    = "blue.${var.domain_name}"
  type    = "A"

  alias {
    name                   = data.terraform_remote_state.nlb.outputs.nlb_dns_name
    zone_id                = data.terraform_remote_state.nlb.outputs.nlb_zone_id
    evaluate_target_health = true
  }
}

# Green cluster direct access
resource "aws_route53_record" "green_direct" {
  zone_id = data.aws_route53_zone.main.zone_id
  name    = "green.${var.domain_name}"
  type    = "A"

  alias {
    name                   = data.terraform_remote_state.nlb.outputs.nlb_dns_name
    zone_id                = data.terraform_remote_state.nlb.outputs.nlb_zone_id
    evaluate_target_health = true
  }
}

#------------------------------------------------------------------------------
# Failover Configuration
#------------------------------------------------------------------------------

# Primary failover record
resource "aws_route53_record" "app_primary" {
  zone_id = data.aws_route53_zone.main.zone_id
  name    = "failover.${var.domain_name}"
  type    = "A"

  set_identifier = "primary"
  failover_routing_policy {
    type = "PRIMARY"
  }

  alias {
    name                   = data.terraform_remote_state.nlb.outputs.nlb_dns_name
    zone_id                = data.terraform_remote_state.nlb.outputs.nlb_zone_id
    evaluate_target_health = true
  }

  health_check_id = aws_route53_health_check.blue.id
}

# Secondary failover record
resource "aws_route53_record" "app_secondary" {
  zone_id = data.aws_route53_zone.main.zone_id
  name    = "failover.${var.domain_name}"
  type    = "A"

  set_identifier = "secondary"
  failover_routing_policy {
    type = "SECONDARY"
  }

  alias {
    name                   = data.terraform_remote_state.nlb.outputs.nlb_dns_name
    zone_id                = data.terraform_remote_state.nlb.outputs.nlb_zone_id
    evaluate_target_health = true
  }

  health_check_id = aws_route53_health_check.green.id
}

Variables

hcl

# dns/variables.tf

variable "region" {
  description = "AWS region"
  type        = string
  default     = "ap-northeast-2"
}

variable "environment" {
  description = "Environment name"
  type        = string
  default     = "prod"
}

variable "project_name" {
  description = "Project name"
  type        = string
  default     = "eks-platform"
}

variable "domain_name" {
  description = "Domain name for Route53 records"
  type        = string
}

variable "blue_dns_weight" {
  description = "DNS weight for blue cluster (0-255)"
  type        = number
  default     = 255

  validation {
    condition     = var.blue_dns_weight >= 0 && var.blue_dns_weight <= 255
    error_message = "DNS weight must be between 0 and 255."
  }
}

variable "green_dns_weight" {
  description = "DNS weight for green cluster (0-255)"
  type        = number
  default     = 0

  validation {
    condition     = var.green_dns_weight >= 0 && var.green_dns_weight <= 255
    error_message = "DNS weight must be between 0 and 255."
  }
}

TTL Strategy

DNS TTL は、weights の変更時に traffic がどれだけ早く切り替わるかに影響します。

TTL Value	Switch Time	Use Case
60 seconds	~2-3 minutes	Rapid failover
300 seconds	~10-15 minutes	Normal operations
3600 seconds	~1-2 hours	Stable routing

Route53 Alias records では、TTL は target（NLB）から継承されます。明示的な TTL control が必要な場合は、IP addresses を使用した non-alias records を使用します。

4. Data Node Placement

Zone Affinity Concepts

stateful workloads では、pods は persistent volumes と同じ zone に schedule される必要があります。EKS Auto Mode はこの多くを自動的に処理しますが、概念を理解しておくと troubleshooting に役立ちます。

NodePool Zone Configuration

実際の NodePool YAML は ArgoCD GitOps によって管理されます（GitOps Pipeline Configuration を参照）が、重要な概念は次のとおりです。

yaml

# Conceptual NodePool for Blue cluster (zone: ap-northeast-2a)
# Actual resource managed by ArgoCD, not Terraform
apiVersion: karpenter.sh/v1
kind: NodePool
metadata:
  name: blue-data-nodes
spec:
  template:
    spec:
      requirements:
        - key: topology.kubernetes.io/zone
          operator: In
          values:
            - ap-northeast-2a
        - key: karpenter.sh/capacity-type
          operator: In
          values:
            - on-demand
        - key: node.kubernetes.io/instance-type
          operator: In
          values:
            - r6i.xlarge
            - r6i.2xlarge
            - r6i.4xlarge
      nodeClassRef:
        group: eks.amazonaws.com
        kind: NodeClass
        name: default
  limits:
    cpu: 1000
    memory: 4000Gi
  disruption:
    consolidationPolicy: WhenEmpty
    consolidateAfter: 30m

TopologySpreadConstraints

workloads が single-zone cluster 内で正しく分散されるようにします。

yaml

# Example Deployment with topology constraints
apiVersion: apps/v1
kind: Deployment
metadata:
  name: api-server
spec:
  replicas: 3
  selector:
    matchLabels:
      app: api-server
  template:
    metadata:
      labels:
        app: api-server
    spec:
      topologySpreadConstraints:
        # Spread across nodes within the zone
        - maxSkew: 1
          topologyKey: kubernetes.io/hostname
          whenUnsatisfiable: DoNotSchedule
          labelSelector:
            matchLabels:
              app: api-server
      containers:
        - name: api-server
          image: myapp/api-server:latest
          resources:
            requests:
              cpu: 500m
              memory: 512Mi

Pod Affinity for Co-location

latency を削減するために、関連する pods を同じ場所に配置します。

yaml

# Cache pods should be near API pods
apiVersion: apps/v1
kind: Deployment
metadata:
  name: cache
spec:
  replicas: 3
  selector:
    matchLabels:
      app: cache
  template:
    metadata:
      labels:
        app: cache
    spec:
      affinity:
        podAffinity:
          preferredDuringSchedulingIgnoredDuringExecution:
            - weight: 100
              podAffinityTerm:
                labelSelector:
                  matchLabels:
                    app: api-server
                topologyKey: kubernetes.io/hostname
        podAntiAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            - labelSelector:
                matchLabels:
                  app: cache
              topologyKey: kubernetes.io/hostname
      containers:
        - name: redis
          image: redis:7-alpine

StatefulSet with Zone-Specific Storage

databases やその他の stateful workloads の場合:

yaml

# PostgreSQL StatefulSet with zone-locked storage
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: postgresql
spec:
  serviceName: postgresql
  replicas: 1
  selector:
    matchLabels:
      app: postgresql
  template:
    metadata:
      labels:
        app: postgresql
    spec:
      # Node selector ensures pod schedules in correct zone
      nodeSelector:
        topology.kubernetes.io/zone: ap-northeast-2a
      containers:
        - name: postgresql
          image: postgres:15
          ports:
            - containerPort: 5432
          volumeMounts:
            - name: data
              mountPath: /var/lib/postgresql/data
          env:
            - name: POSTGRES_DB
              value: myapp
            - name: PGDATA
              value: /var/lib/postgresql/data/pgdata
  volumeClaimTemplates:
    - metadata:
        name: data
      spec:
        accessModes:
          - ReadWriteOnce
        storageClassName: ebs-sc  # Auto Mode managed
        resources:
          requests:
            storage: 100Gi

Storage Class for Zone-Specific Provisioning

yaml

# StorageClass that provisions in specific zone
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  name: ebs-sc-zone-a
provisioner: ebs.csi.aws.com
parameters:
  type: gp3
  iops: "3000"
  throughput: "125"
  encrypted: "true"
allowedTopologies:
  - matchLabelExpressions:
      - key: topology.kubernetes.io/zone
        values:
          - ap-northeast-2a
volumeBindingMode: WaitForFirstConsumer
reclaimPolicy: Retain

5. Failover Automation

CloudWatch Alarms

cluster health を monitor し、automated failover を trigger します。

hcl

# failover/cloudwatch.tf

resource "aws_cloudwatch_metric_alarm" "blue_unhealthy" {
  alarm_name          = "${local.name_prefix}-blue-unhealthy"
  comparison_operator = "LessThanThreshold"
  evaluation_periods  = 2
  metric_name         = "HealthyHostCount"
  namespace           = "AWS/NetworkELB"
  period              = 60
  statistic           = "Average"
  threshold           = 1
  alarm_description   = "Blue cluster has no healthy targets"

  dimensions = {
    TargetGroup  = aws_lb_target_group.blue_http.arn_suffix
    LoadBalancer = aws_lb.main.arn_suffix
  }

  alarm_actions = [
    aws_sns_topic.alerts.arn,
    aws_lambda_function.failover.arn
  ]

  ok_actions = [
    aws_sns_topic.alerts.arn
  ]

  tags = local.tags
}

resource "aws_cloudwatch_metric_alarm" "green_unhealthy" {
  alarm_name          = "${local.name_prefix}-green-unhealthy"
  comparison_operator = "LessThanThreshold"
  evaluation_periods  = 2
  metric_name         = "HealthyHostCount"
  namespace           = "AWS/NetworkELB"
  period              = 60
  statistic           = "Average"
  threshold           = 1
  alarm_description   = "Green cluster has no healthy targets"

  dimensions = {
    TargetGroup  = aws_lb_target_group.green_http.arn_suffix
    LoadBalancer = aws_lb.main.arn_suffix
  }

  alarm_actions = [
    aws_sns_topic.alerts.arn
  ]

  tags = local.tags
}

# SNS Topic for alerts
resource "aws_sns_topic" "alerts" {
  name = "${local.name_prefix}-failover-alerts"
  tags = local.tags
}

resource "aws_sns_topic_subscription" "email" {
  topic_arn = aws_sns_topic.alerts.arn
  protocol  = "email"
  endpoint  = var.alert_email
}

Lambda Failover Function

cluster が unhealthy になったときに weight switching を自動化します。

hcl

# failover/lambda.tf

resource "aws_lambda_function" "failover" {
  filename         = data.archive_file.failover.output_path
  function_name    = "${local.name_prefix}-failover"
  role             = aws_iam_role.failover_lambda.arn
  handler          = "index.handler"
  source_code_hash = data.archive_file.failover.output_base64sha256
  runtime          = "python3.11"
  timeout          = 30

  environment {
    variables = {
      LISTENER_ARN_HTTP  = aws_lb_listener.http.arn
      LISTENER_ARN_HTTPS = aws_lb_listener.https.arn
      BLUE_TG_ARN_HTTP   = aws_lb_target_group.blue_http.arn
      BLUE_TG_ARN_HTTPS  = aws_lb_target_group.blue_https.arn
      GREEN_TG_ARN_HTTP  = aws_lb_target_group.green_http.arn
      GREEN_TG_ARN_HTTPS = aws_lb_target_group.green_https.arn
      SNS_TOPIC_ARN      = aws_sns_topic.alerts.arn
    }
  }

  tags = local.tags
}

data "archive_file" "failover" {
  type        = "zip"
  source_file = "${path.module}/lambda/failover.py"
  output_path = "${path.module}/lambda/failover.zip"
}

# Lambda IAM Role
resource "aws_iam_role" "failover_lambda" {
  name = "${local.name_prefix}-failover-lambda-role"

  assume_role_policy = jsonencode({
    Version = "2012-10-17"
    Statement = [
      {
        Action = "sts:AssumeRole"
        Effect = "Allow"
        Principal = {
          Service = "lambda.amazonaws.com"
        }
      }
    ]
  })

  tags = local.tags
}

resource "aws_iam_role_policy" "failover_lambda" {
  name = "failover-policy"
  role = aws_iam_role.failover_lambda.id

  policy = jsonencode({
    Version = "2012-10-17"
    Statement = [
      {
        Effect = "Allow"
        Action = [
          "logs:CreateLogGroup",
          "logs:CreateLogStream",
          "logs:PutLogEvents"
        ]
        Resource = "arn:aws:logs:*:*:*"
      },
      {
        Effect = "Allow"
        Action = [
          "elasticloadbalancing:ModifyListener",
          "elasticloadbalancing:DescribeListeners",
          "elasticloadbalancing:DescribeTargetGroups",
          "elasticloadbalancing:DescribeTargetHealth"
        ]
        Resource = "*"
      },
      {
        Effect = "Allow"
        Action = [
          "sns:Publish"
        ]
        Resource = aws_sns_topic.alerts.arn
      }
    ]
  })
}

# CloudWatch permission to invoke Lambda
resource "aws_lambda_permission" "cloudwatch" {
  statement_id  = "AllowCloudWatch"
  action        = "lambda:InvokeFunction"
  function_name = aws_lambda_function.failover.function_name
  principal     = "lambda.alarms.cloudwatch.amazonaws.com"
  source_arn    = aws_cloudwatch_metric_alarm.blue_unhealthy.arn
}

Lambda Function Code

python

# failover/lambda/failover.py
"""
Automated failover handler for Blue/Green EKS clusters.
Triggered by CloudWatch alarms when a cluster becomes unhealthy.
"""

import json
import os
import boto3
from datetime import datetime

elbv2 = boto3.client('elbv2')
sns = boto3.client('sns')

def handler(event, context):
    """
    Handle CloudWatch alarm and adjust NLB weights.
    """
    print(f"Event received: {json.dumps(event)}")

    # Parse CloudWatch alarm
    alarm_name = event.get('alarmName', '')
    alarm_state = event.get('newStateValue', '')

    if alarm_state != 'ALARM':
        print(f"Alarm state is {alarm_state}, not ALARM. No action needed.")
        return {'statusCode': 200, 'body': 'No action needed'}

    # Determine which cluster is unhealthy
    if 'blue' in alarm_name.lower():
        unhealthy_cluster = 'blue'
        healthy_cluster = 'green'
    elif 'green' in alarm_name.lower():
        unhealthy_cluster = 'green'
        healthy_cluster = 'blue'
    else:
        print(f"Cannot determine cluster from alarm name: {alarm_name}")
        return {'statusCode': 400, 'body': 'Unknown alarm'}

    print(f"Unhealthy cluster: {unhealthy_cluster}")
    print(f"Switching traffic to: {healthy_cluster}")

    # Get environment variables
    listener_arns = [
        os.environ['LISTENER_ARN_HTTP'],
        os.environ['LISTENER_ARN_HTTPS']
    ]

    target_groups = {
        'blue': {
            'http': os.environ['BLUE_TG_ARN_HTTP'],
            'https': os.environ['BLUE_TG_ARN_HTTPS']
        },
        'green': {
            'http': os.environ['GREEN_TG_ARN_HTTP'],
            'https': os.environ['GREEN_TG_ARN_HTTPS']
        }
    }

    # Check health of target cluster before switching
    healthy_tg_arn = target_groups[healthy_cluster]['http']
    health_response = elbv2.describe_target_health(TargetGroupArn=healthy_tg_arn)
    healthy_targets = [
        t for t in health_response['TargetHealthDescriptions']
        if t['TargetHealth']['State'] == 'healthy'
    ]

    if len(healthy_targets) == 0:
        message = f"CRITICAL: Both clusters unhealthy! Cannot failover."
        print(message)
        notify(message, 'CRITICAL')
        return {'statusCode': 500, 'body': message}

    # Update listener weights
    for listener_arn in listener_arns:
        protocol = 'https' if '443' in listener_arn else 'http'

        new_action = {
            'Type': 'forward',
            'ForwardConfig': {
                'TargetGroups': [
                    {
                        'TargetGroupArn': target_groups[unhealthy_cluster][protocol],
                        'Weight': 0
                    },
                    {
                        'TargetGroupArn': target_groups[healthy_cluster][protocol],
                        'Weight': 100
                    }
                ],
                'TargetGroupStickinessConfig': {
                    'Enabled': True,
                    'DurationSeconds': 3600
                }
            }
        }

        elbv2.modify_listener(
            ListenerArn=listener_arn,
            DefaultActions=[new_action]
        )

        print(f"Updated listener {listener_arn}")

    # Send notification
    message = (
        f"FAILOVER EXECUTED\n"
        f"Time: {datetime.utcnow().isoformat()}Z\n"
        f"Unhealthy Cluster: {unhealthy_cluster}\n"
        f"Traffic Redirected To: {healthy_cluster}\n"
        f"Healthy Targets in {healthy_cluster}: {len(healthy_targets)}\n"
        f"\n"
        f"Action Required: Investigate {unhealthy_cluster} cluster health."
    )
    notify(message, 'FAILOVER')

    return {
        'statusCode': 200,
        'body': f'Failover to {healthy_cluster} completed'
    }


def notify(message, severity):
    """Send notification via SNS."""
    sns_topic_arn = os.environ.get('SNS_TOPIC_ARN')
    if sns_topic_arn:
        sns.publish(
            TopicArn=sns_topic_arn,
            Subject=f'[{severity}] EKS Cluster Failover Alert',
            Message=message
        )

EventBridge Rule

failover checks を schedule で trigger します。

hcl

# failover/eventbridge.tf

resource "aws_cloudwatch_event_rule" "health_check" {
  name                = "${local.name_prefix}-health-check"
  description         = "Periodic health check for EKS clusters"
  schedule_expression = "rate(1 minute)"

  tags = local.tags
}

resource "aws_cloudwatch_event_target" "health_check" {
  rule      = aws_cloudwatch_event_rule.health_check.name
  target_id = "HealthCheckLambda"
  arn       = aws_lambda_function.health_check.arn
}

resource "aws_lambda_permission" "eventbridge" {
  statement_id  = "AllowEventBridge"
  action        = "lambda:InvokeFunction"
  function_name = aws_lambda_function.health_check.function_name
  principal     = "events.amazonaws.com"
  source_arn    = aws_cloudwatch_event_rule.health_check.arn
}

Manual Switchover Procedure

planned maintenance または manual failover の場合:

bash

#!/bin/bash
# manual-switchover.sh - Manually switch traffic between clusters

set -e

TARGET_CLUSTER="${1:-green}"  # Target cluster to receive traffic
REGION="${2:-ap-northeast-2}"

echo "=== Manual Cluster Switchover ==="
echo "Target: $TARGET_CLUSTER"
echo "Region: $REGION"
echo ""

# Validate target
if [[ "$TARGET_CLUSTER" != "blue" && "$TARGET_CLUSTER" != "green" ]]; then
  echo "ERROR: Target cluster must be 'blue' or 'green'"
  exit 1
fi

# Set weights based on target
if [ "$TARGET_CLUSTER" == "blue" ]; then
  BLUE_WEIGHT=100
  GREEN_WEIGHT=0
else
  BLUE_WEIGHT=0
  GREEN_WEIGHT=100
fi

echo "Setting weights: Blue=$BLUE_WEIGHT%, Green=$GREEN_WEIGHT%"
echo ""

# Confirm with user
read -p "Proceed with switchover? (yes/no): " CONFIRM
if [ "$CONFIRM" != "yes" ]; then
  echo "Aborted."
  exit 0
fi

# Apply Terraform changes
cd "$(dirname "$0")/../nlb"
terraform apply \
  -var="blue_weight=$BLUE_WEIGHT" \
  -var="green_weight=$GREEN_WEIGHT" \
  -auto-approve

echo ""
echo "=== Switchover Complete ==="
echo "Traffic is now routed to: $TARGET_CLUSTER"
echo ""
echo "Verify with:"
echo "  aws elbv2 describe-listeners --load-balancer-arn \$(terraform output -raw nlb_arn)"

Gradual Rollback Script

bash

#!/bin/bash
# gradual-rollback.sh - Gradually shift traffic back to original cluster

set -e

FROM_CLUSTER="${1:-green}"
TO_CLUSTER="${2:-blue}"
STEP="${3:-10}"  # Percentage step
INTERVAL="${4:-60}"  # Seconds between steps

echo "=== Gradual Traffic Shift ==="
echo "From: $FROM_CLUSTER"
echo "To: $TO_CLUSTER"
echo "Step: $STEP%"
echo "Interval: ${INTERVAL}s"
echo ""

cd "$(dirname "$0")/../nlb"

# Current weights
CURRENT_FROM=100
CURRENT_TO=0

while [ $CURRENT_TO -lt 100 ]; do
  CURRENT_FROM=$((CURRENT_FROM - STEP))
  CURRENT_TO=$((CURRENT_TO + STEP))

  # Clamp values
  [ $CURRENT_FROM -lt 0 ] && CURRENT_FROM=0
  [ $CURRENT_TO -gt 100 ] && CURRENT_TO=100

  echo "Setting: $FROM_CLUSTER=$CURRENT_FROM%, $TO_CLUSTER=$CURRENT_TO%"

  if [ "$TO_CLUSTER" == "blue" ]; then
    terraform apply \
      -var="blue_weight=$CURRENT_TO" \
      -var="green_weight=$CURRENT_FROM" \
      -auto-approve
  else
    terraform apply \
      -var="blue_weight=$CURRENT_FROM" \
      -var="green_weight=$CURRENT_TO" \
      -auto-approve
  fi

  if [ $CURRENT_TO -lt 100 ]; then
    echo "Waiting ${INTERVAL}s before next step..."
    sleep $INTERVAL
  fi
done

echo ""
echo "=== Traffic Shift Complete ==="
echo "All traffic now routed to: $TO_CLUSTER"

Summary

NLB weighted routing を備えた Blue/Green cluster architecture は、次を提供します。

Zero-Downtime Deployments: traffic を段階的または即時に切り替えます
Rapid Rollback: 数秒で previous cluster に切り戻します
Isolated Failure Domains: AZ failures は 1 つの cluster のみに影響します
Testing in Production: small percentage を new cluster に route します
Automated Recovery: automatic failover のための CloudWatch + Lambda

< 前へ: Terraform 3-Layer Infrastructure | 目次 | 次へ: CI Pipelines >

エンドツーエンドのオブザーバビリティラボ

ArgoCD の詳細クイズ

Istio の詳細クイズ

Linkerd の詳細クイズ

Cilium サービスメッシュの詳細クイズ

Cilium 詳説

Calico 詳説

メトリクス

ログ記録

トレーシング

アラート通知

可観測性の演習

ArgoCD

トラフィック管理

セキュリティ

可観測性

レジリエンス

高度な設定

比較ガイド

メトリクス

ログ記録

トレーシング

アラート通知

Infrastructure Advanced ​

Overview ​

1. Blue/Green Architecture Overview ​

Why Blue/Green Clusters? ​

Architecture Diagram ​

Single-Zone Design Rationale ​

Zone Assignment ​

2. NLB Weighted Target Groups ​

Network Load Balancer Configuration ​

Variables ​

Outputs ​

Weight Adjustment for Deployments ​

3. DNS-Based Traffic Switching ​

Route53 Weighted Routing ​

Variables ​

TTL Strategy ​

4. Data Node Placement ​

Zone Affinity Concepts ​

NodePool Zone Configuration ​

TopologySpreadConstraints ​

Pod Affinity for Co-location ​

StatefulSet with Zone-Specific Storage ​

Storage Class for Zone-Specific Provisioning ​

5. Failover Automation ​

CloudWatch Alarms ​

Lambda Failover Function ​

Lambda Function Code ​

EventBridge Rule ​

Manual Switchover Procedure ​

Gradual Rollback Script ​

Summary ​

Related Documentation ​

Infrastructure Advanced

Overview

1. Blue/Green Architecture Overview

Why Blue/Green Clusters?

Architecture Diagram

Single-Zone Design Rationale

Zone Assignment

2. NLB Weighted Target Groups

Network Load Balancer Configuration

Variables

Outputs

Weight Adjustment for Deployments

3. DNS-Based Traffic Switching

Route53 Weighted Routing

Variables

TTL Strategy

4. Data Node Placement

Zone Affinity Concepts

NodePool Zone Configuration

TopologySpreadConstraints

Pod Affinity for Co-location

StatefulSet with Zone-Specific Storage

Storage Class for Zone-Specific Provisioning

5. Failover Automation

CloudWatch Alarms

Lambda Failover Function

Lambda Function Code

EventBridge Rule

Manual Switchover Procedure

Gradual Rollback Script

Summary

Related Documentation
