Scaling Strategies

Supported Versions: EKS 1.28+, Metrics Server 0.7+, KEDA 2.13+, VPA 1.0+ Last Updated: February 19, 2026

< Previous: GitOps Automation | Table of Contents | Next: Operational Alert Configuration >

Introduction

Effective scaling requires moving beyond basic CPU/memory metrics. This guide covers advanced scaling strategies including custom metrics with Prometheus Adapter, event-driven scaling with KEDA, vertical pod autoscaling, and optimizing Spot instance utilization.

1. HPA with Custom Metrics

Horizontal Pod Autoscaler (HPA) can scale based on custom metrics from Prometheus, enabling RPS-based, queue-length, or business-metric scaling.

1.1 Prometheus Adapter Architecture

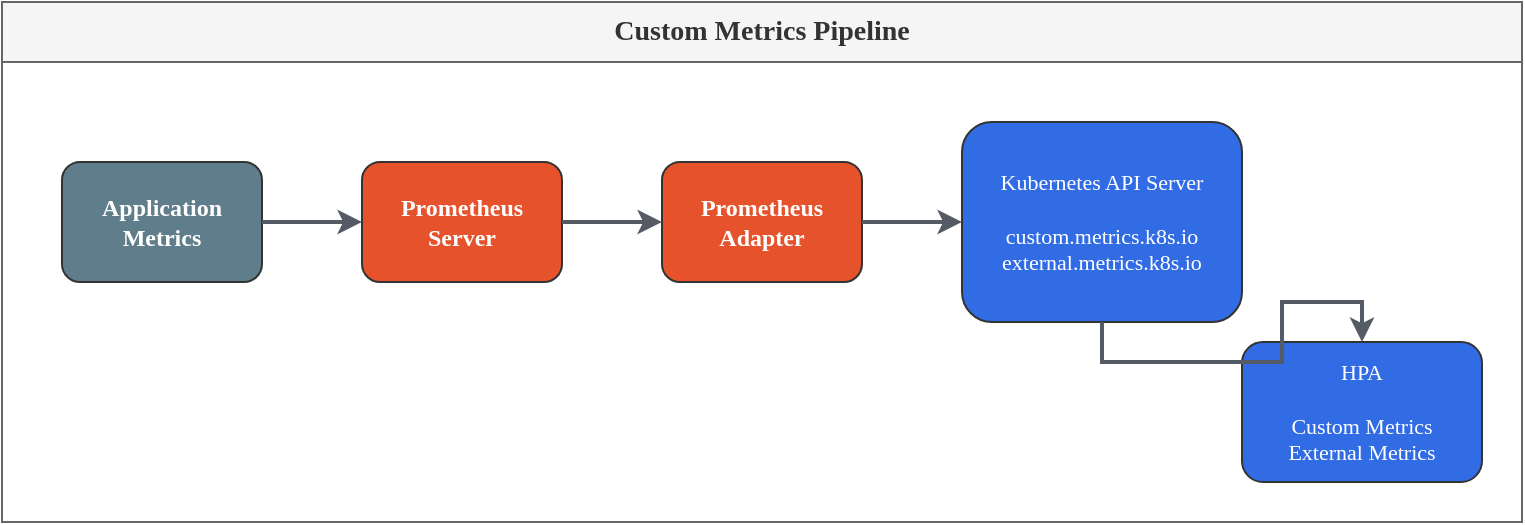

Custom Metrics Pipeline

1.2 Prometheus Adapter Installation

yaml

# prometheus-adapter-values.yaml
replicas: 2

prometheus:
  url: http://prometheus-server.monitoring.svc
  port: 80

# Service account for RBAC
serviceAccount:
  create: true
  name: prometheus-adapter

# Resource configuration
resources:
  requests:
    cpu: 100m
    memory: 128Mi
  limits:
    cpu: 500m
    memory: 512Mi

# Pod disruption budget
podDisruptionBudget:
  enabled: true
  minAvailable: 1

# Rules for custom metrics
rules:
  default: false

  # Custom metric rules
  custom:
    # RPS (Requests Per Second) per pod
    - seriesQuery: 'http_requests_total{namespace!="",pod!=""}'
      resources:
        overrides:
          namespace:
            resource: namespace
          pod:
            resource: pod
      name:
        matches: "^(.*)_total$"
        as: "${1}_per_second"
      metricsQuery: 'sum(rate(<<.Series>>{<<.LabelMatchers>>}[2m])) by (<<.GroupBy>>)'

    # HTTP request rate by service
    - seriesQuery: 'http_server_requests_seconds_count{namespace!="",pod!=""}'
      resources:
        overrides:
          namespace:
            resource: namespace
          pod:
            resource: pod
      name:
        matches: "^(.*)_count$"
        as: "requests_per_second"
      metricsQuery: 'sum(rate(<<.Series>>{<<.LabelMatchers>>}[2m])) by (<<.GroupBy>>)'

    # Queue depth
    - seriesQuery: 'queue_messages_total{namespace!="",pod!=""}'
      resources:
        overrides:
          namespace:
            resource: namespace
          pod:
            resource: pod
      name:
        matches: "^(.*)_total$"
        as: "${1}_depth"
      metricsQuery: '<<.Series>>{<<.LabelMatchers>>}'

    # Active connections
    - seriesQuery: 'active_connections{namespace!="",pod!=""}'
      resources:
        overrides:
          namespace:
            resource: namespace
          pod:
            resource: pod
      name:
        matches: "^(.*)$"
        as: "${1}"
      metricsQuery: '<<.Series>>{<<.LabelMatchers>>}'

    # Custom business metric
    - seriesQuery: 'active_users{namespace!="",service!=""}'
      resources:
        overrides:
          namespace:
            resource: namespace
          service:
            resource: service
      name:
        matches: "^(.*)$"
        as: "${1}"
      metricsQuery: 'sum(<<.Series>>{<<.LabelMatchers>>}) by (<<.GroupBy>>)'

  # External metrics (e.g., CloudWatch, SQS)
  external:
    # SQS Queue Length
    - seriesQuery: 'aws_sqs_approximate_number_of_messages_visible_average{queue_name!=""}'
      resources:
        overrides:
          queue_name:
            group: "sqs.aws"
            resource: "queue"
      name:
        matches: "^aws_sqs_(.*)$"
        as: "sqs_${1}"
      metricsQuery: 'avg(<<.Series>>{<<.LabelMatchers>>})'

    # CloudWatch custom metric
    - seriesQuery: 'cloudwatch_custom_metric{metric_name!=""}'
      resources:
        overrides:
          metric_name:
            group: "cloudwatch.aws"
            resource: "metric"
      name:
        matches: "^cloudwatch_(.*)$"
        as: "cw_${1}"
      metricsQuery: '<<.Series>>{<<.LabelMatchers>>}'

# Logging
logLevel: 4

# TLS configuration (for production)
tls:
  enable: false

Install Prometheus Adapter:

bash

helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
helm repo update

helm install prometheus-adapter prometheus-community/prometheus-adapter \
  --namespace monitoring \
  --values prometheus-adapter-values.yaml

# Verify installation
kubectl get --raw "/apis/custom.metrics.k8s.io/v1beta1" | jq .
kubectl get --raw "/apis/external.metrics.k8s.io/v1beta1" | jq .

1.3 RPS-Based HPA Configuration

yaml

# hpa/api-server-hpa.yaml
apiVersion: autoscaling/v2
kind: HorizontalPodAutoscaler
metadata:
  name: api-server
  namespace: production
spec:
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: api-server

  minReplicas: 3
  maxReplicas: 50

  metrics:
    # Primary: RPS per pod
    - type: Pods
      pods:
        metric:
          name: http_requests_per_second
        target:
          type: AverageValue
          averageValue: "100"  # 100 RPS per pod

    # Secondary: CPU as fallback
    - type: Resource
      resource:
        name: cpu
        target:
          type: Utilization
          averageUtilization: 70

    # Tertiary: Memory
    - type: Resource
      resource:
        name: memory
        target:
          type: Utilization
          averageUtilization: 80

  # Scaling behavior configuration
  behavior:
    scaleUp:
      stabilizationWindowSeconds: 0  # Scale up immediately
      policies:
        - type: Percent
          value: 100  # Double capacity
          periodSeconds: 15
        - type: Pods
          value: 4  # Or add 4 pods
          periodSeconds: 15
      selectPolicy: Max  # Use whichever adds more pods

    scaleDown:
      stabilizationWindowSeconds: 300  # Wait 5 minutes before scaling down
      policies:
        - type: Percent
          value: 10  # Remove 10% of pods
          periodSeconds: 60
        - type: Pods
          value: 2  # Or remove 2 pods
          periodSeconds: 60
      selectPolicy: Min  # Use whichever removes fewer pods

---
# HPA with external metrics (CloudWatch)
apiVersion: autoscaling/v2
kind: HorizontalPodAutoscaler
metadata:
  name: worker-processor
  namespace: production
spec:
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: worker-processor

  minReplicas: 2
  maxReplicas: 100

  metrics:
    # External metric: SQS queue depth
    - type: External
      external:
        metric:
          name: sqs_approximate_number_of_messages_visible_average
          selector:
            matchLabels:
              queue_name: "my-processing-queue"
        target:
          type: AverageValue
          averageValue: "50"  # 50 messages per pod

  behavior:
    scaleUp:
      stabilizationWindowSeconds: 0
      policies:
        - type: Percent
          value: 200
          periodSeconds: 30
    scaleDown:
      stabilizationWindowSeconds: 600
      policies:
        - type: Pods
          value: 1
          periodSeconds: 120

1.4 Custom PromQL for Complex Metrics

yaml

# prometheus-adapter-rules-configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: prometheus-adapter-rules
  namespace: monitoring
data:
  config.yaml: |
    rules:
      custom:
        # Error rate percentage
        - seriesQuery: 'http_requests_total{namespace!="",pod!=""}'
          resources:
            overrides:
              namespace: {resource: namespace}
              pod: {resource: pod}
          name:
            as: "error_rate_percent"
          metricsQuery: |
            100 * (
              sum(rate(http_requests_total{status=~"5..",<<.LabelMatchers>>}[5m])) by (<<.GroupBy>>)
              /
              sum(rate(http_requests_total{<<.LabelMatchers>>}[5m])) by (<<.GroupBy>>)
            )

        # P99 latency
        - seriesQuery: 'http_request_duration_seconds_bucket{namespace!="",pod!=""}'
          resources:
            overrides:
              namespace: {resource: namespace}
              pod: {resource: pod}
          name:
            as: "latency_p99_seconds"
          metricsQuery: |
            histogram_quantile(0.99,
              sum(rate(http_request_duration_seconds_bucket{<<.LabelMatchers>>}[5m])) by (le, <<.GroupBy>>)
            )

        # Concurrent requests
        - seriesQuery: 'http_requests_in_flight{namespace!="",pod!=""}'
          resources:
            overrides:
              namespace: {resource: namespace}
              pod: {resource: pod}
          name:
            as: "concurrent_requests"
          metricsQuery: 'sum(<<.Series>>{<<.LabelMatchers>>}) by (<<.GroupBy>>)'

        # Business metric: orders per minute
        - seriesQuery: 'orders_processed_total{namespace!="",service!=""}'
          resources:
            overrides:
              namespace: {resource: namespace}
              service: {resource: service}
          name:
            as: "orders_per_minute"
          metricsQuery: |
            sum(rate(orders_processed_total{<<.LabelMatchers>>}[1m]) * 60) by (<<.GroupBy>>)

1.5 HPA Behavior Patterns

yaml

# hpa/behavior-patterns.yaml

# Pattern 1: Fast scale-up, slow scale-down (web servers)
---
apiVersion: autoscaling/v2
kind: HorizontalPodAutoscaler
metadata:
  name: web-frontend
  namespace: production
spec:
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: web-frontend
  minReplicas: 5
  maxReplicas: 100
  metrics:
    - type: Resource
      resource:
        name: cpu
        target:
          type: Utilization
          averageUtilization: 60
  behavior:
    scaleUp:
      stabilizationWindowSeconds: 0
      policies:
        - type: Percent
          value: 100
          periodSeconds: 15
    scaleDown:
      stabilizationWindowSeconds: 600  # 10 minute window
      policies:
        - type: Percent
          value: 5
          periodSeconds: 60

# Pattern 2: Aggressive scale-up, aggressive scale-down (batch workers)
---
apiVersion: autoscaling/v2
kind: HorizontalPodAutoscaler
metadata:
  name: batch-worker
  namespace: production
spec:
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: batch-worker
  minReplicas: 0  # Scale to zero when idle
  maxReplicas: 200
  metrics:
    - type: External
      external:
        metric:
          name: sqs_approximate_number_of_messages_visible_average
          selector:
            matchLabels:
              queue_name: "batch-queue"
        target:
          type: Value
          value: "100"
  behavior:
    scaleUp:
      stabilizationWindowSeconds: 0
      policies:
        - type: Percent
          value: 500  # 5x increase
          periodSeconds: 15
    scaleDown:
      stabilizationWindowSeconds: 60
      policies:
        - type: Percent
          value: 50
          periodSeconds: 30

# Pattern 3: Conservative scaling (database connections)
---
apiVersion: autoscaling/v2
kind: HorizontalPodAutoscaler
metadata:
  name: db-proxy
  namespace: production
spec:
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: db-proxy
  minReplicas: 3
  maxReplicas: 20
  metrics:
    - type: Pods
      pods:
        metric:
          name: active_connections
        target:
          type: AverageValue
          averageValue: "100"
  behavior:
    scaleUp:
      stabilizationWindowSeconds: 120  # Wait 2 minutes
      policies:
        - type: Pods
          value: 2  # Add at most 2 pods
          periodSeconds: 60
    scaleDown:
      stabilizationWindowSeconds: 900  # Wait 15 minutes
      policies:
        - type: Pods
          value: 1  # Remove 1 pod at a time
          periodSeconds: 300

# Pattern 4: Time-based stabilization (avoid flapping)
---
apiVersion: autoscaling/v2
kind: HorizontalPodAutoscaler
metadata:
  name: api-gateway
  namespace: production
spec:
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: api-gateway
  minReplicas: 10
  maxReplicas: 100
  metrics:
    - type: Pods
      pods:
        metric:
          name: http_requests_per_second
        target:
          type: AverageValue
          averageValue: "200"
  behavior:
    scaleUp:
      stabilizationWindowSeconds: 60
      policies:
        - type: Percent
          value: 50
          periodSeconds: 60
      selectPolicy: Max
    scaleDown:
      stabilizationWindowSeconds: 300
      policies:
        - type: Percent
          value: 10
          periodSeconds: 120
      selectPolicy: Min

1.6 Verifying Custom Metrics

bash

# List available custom metrics
kubectl get --raw "/apis/custom.metrics.k8s.io/v1beta1" | jq '.resources[].name'

# Query specific metric for a pod
kubectl get --raw "/apis/custom.metrics.k8s.io/v1beta1/namespaces/production/pods/*/http_requests_per_second" | jq .

# Query metric for all pods in deployment
kubectl get --raw "/apis/custom.metrics.k8s.io/v1beta1/namespaces/production/pods/*/http_requests_per_second?labelSelector=app=api-server" | jq .

# Check external metrics
kubectl get --raw "/apis/external.metrics.k8s.io/v1beta1/namespaces/production/sqs_approximate_number_of_messages_visible_average?labelSelector=queue_name=my-queue" | jq .

# Debug HPA status
kubectl describe hpa api-server -n production

# Watch HPA scaling events
kubectl get hpa api-server -n production -w

2. KEDA Event-Driven Scaling

KEDA (Kubernetes Event-Driven Autoscaling) provides event-driven scaling with support for numerous event sources.

Cross-reference: For KEDA fundamentals and installation, see KEDA Autoscaling

2.1 KEDA Architecture

┌─────────────────────────────────────────────────────────────────────┐
│                      KEDA Architecture                              │
├─────────────────────────────────────────────────────────────────────┤
│                                                                     │
│  ┌──────────────────────────────────────────────────────────────┐  │
│  │                    Event Sources                              │  │
│  │  ┌──────────┐ ┌──────────┐ ┌──────────┐ ┌──────────────────┐ │  │
│  │  │   SQS    │ │ Kafka    │ │Prometheus│ │ PostgreSQL       │ │  │
│  │  └────┬─────┘ └────┬─────┘ └────┬─────┘ └────────┬─────────┘ │  │
│  └───────┼────────────┼────────────┼────────────────┼───────────┘  │
│          │            │            │                │              │
│          ▼            ▼            ▼                ▼              │
│  ┌──────────────────────────────────────────────────────────────┐  │
│  │                    KEDA Components                            │  │
│  │  ┌─────────────────────┐  ┌─────────────────────────────┐   │  │
│  │  │  KEDA Operator      │  │  KEDA Metrics Server        │   │  │
│  │  │  (ScaledObject CR)  │  │  (external-metrics API)     │   │  │
│  │  └──────────┬──────────┘  └──────────────┬──────────────┘   │  │
│  └─────────────┼────────────────────────────┼──────────────────┘  │
│                │                            │                      │
│                ▼                            ▼                      │
│  ┌──────────────────────────────────────────────────────────────┐  │
│  │              Kubernetes Components                            │  │
│  │  ┌─────────────────────┐  ┌─────────────────────────────┐   │  │
│  │  │        HPA          │  │      Deployment/Job         │   │  │
│  │  │  (created by KEDA)  │  │  (scaled by HPA)            │   │  │
│  │  └─────────────────────┘  └─────────────────────────────┘   │  │
│  └──────────────────────────────────────────────────────────────┘  │
│                                                                     │
└─────────────────────────────────────────────────────────────────────┘

2.2 RPS-Based ScaledObject with Prometheus

yaml

# keda/rps-scaledobject.yaml
apiVersion: keda.sh/v1alpha1
kind: ScaledObject
metadata:
  name: api-server
  namespace: production
spec:
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: api-server

  # Scaling limits
  minReplicaCount: 3
  maxReplicaCount: 100

  # Scale to zero configuration
  idleReplicaCount: 0  # Optional: scale to zero when idle

  # Polling configuration
  pollingInterval: 15  # Check every 15 seconds
  cooldownPeriod: 300  # Wait 5 minutes before scaling down

  # Fallback configuration
  fallback:
    failureThreshold: 3
    replicas: 5

  # Advanced scaling behavior
  advanced:
    horizontalPodAutoscalerConfig:
      name: api-server-keda-hpa
      behavior:
        scaleUp:
          stabilizationWindowSeconds: 0
          policies:
            - type: Percent
              value: 100
              periodSeconds: 15
        scaleDown:
          stabilizationWindowSeconds: 300
          policies:
            - type: Percent
              value: 10
              periodSeconds: 60

  triggers:
    # Primary: RPS from Prometheus
    - type: prometheus
      metadata:
        serverAddress: http://prometheus-server.monitoring:80
        metricName: http_requests_per_second
        query: |
          sum(rate(http_requests_total{
            namespace="production",
            deployment="api-server"
          }[2m]))
        threshold: "1000"  # Total 1000 RPS triggers scaling
        activationThreshold: "100"  # Start scaling above 100 RPS

    # Secondary: Error rate threshold
    - type: prometheus
      metadata:
        serverAddress: http://prometheus-server.monitoring:80
        metricName: error_rate
        query: |
          100 * sum(rate(http_requests_total{
            namespace="production",
            deployment="api-server",
            status=~"5.."
          }[5m])) / sum(rate(http_requests_total{
            namespace="production",
            deployment="api-server"
          }[5m]))
        threshold: "5"  # Scale up if error rate > 5%
        activationThreshold: "1"

---
# TriggerAuthentication for secure Prometheus access
apiVersion: keda.sh/v1alpha1
kind: TriggerAuthentication
metadata:
  name: prometheus-auth
  namespace: production
spec:
  secretTargetRef:
    - parameter: bearerToken
      name: prometheus-token
      key: token

2.3 PostgreSQL Session-Based Scaling

yaml

# keda/postgres-scaledobject.yaml
apiVersion: keda.sh/v1alpha1
kind: ScaledObject
metadata:
  name: db-worker
  namespace: production
spec:
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: db-worker

  minReplicaCount: 1
  maxReplicaCount: 20
  pollingInterval: 30
  cooldownPeriod: 300

  triggers:
    - type: postgresql
      metadata:
        # Connection string from secret
        connectionFromEnv: POSTGRES_CONNECTION_STRING
        query: |
          SELECT COUNT(*)
          FROM pg_stat_activity
          WHERE state = 'active'
          AND query NOT LIKE '%pg_stat_activity%'
        targetQueryValue: "5"  # 5 active queries per pod
        activationTargetQueryValue: "1"

    # Alternative: pending jobs in queue table
    - type: postgresql
      metadata:
        connectionFromEnv: POSTGRES_CONNECTION_STRING
        query: |
          SELECT COUNT(*)
          FROM job_queue
          WHERE status = 'pending'
          AND created_at > NOW() - INTERVAL '1 hour'
        targetQueryValue: "50"  # 50 pending jobs per pod

---
# Secret for PostgreSQL connection
apiVersion: v1
kind: Secret
metadata:
  name: postgres-credentials
  namespace: production
type: Opaque
stringData:
  connection_string: "host=mydb.cluster-xxx.ap-northeast-2.rds.amazonaws.com port=5432 user=app dbname=production password=secret sslmode=require"

---
# Deployment with connection string
apiVersion: apps/v1
kind: Deployment
metadata:
  name: db-worker
  namespace: production
spec:
  selector:
    matchLabels:
      app: db-worker
  template:
    metadata:
      labels:
        app: db-worker
    spec:
      containers:
        - name: worker
          image: myregistry/db-worker:v1.0
          env:
            - name: POSTGRES_CONNECTION_STRING
              valueFrom:
                secretKeyRef:
                  name: postgres-credentials
                  key: connection_string

2.4 SQS Queue-Based Scaling

yaml

# keda/sqs-scaledobject.yaml
apiVersion: keda.sh/v1alpha1
kind: ScaledObject
metadata:
  name: queue-processor
  namespace: production
spec:
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: queue-processor

  minReplicaCount: 0  # Scale to zero when queue is empty
  maxReplicaCount: 100
  pollingInterval: 15
  cooldownPeriod: 60

  triggers:
    - type: aws-sqs-queue
      authenticationRef:
        name: aws-credentials
      metadata:
        queueURL: https://sqs.ap-northeast-2.amazonaws.com/123456789012/my-processing-queue
        queueLength: "10"  # 10 messages per pod
        awsRegion: ap-northeast-2
        activationQueueLength: "1"  # Start scaling at 1 message
        scaleOnInFlight: "true"  # Include in-flight messages

---
# TriggerAuthentication for AWS
apiVersion: keda.sh/v1alpha1
kind: TriggerAuthentication
metadata:
  name: aws-credentials
  namespace: production
spec:
  podIdentity:
    provider: aws-eks  # Use EKS Pod Identity

---
# Alternative: Using IAM Role for Service Account (IRSA)
apiVersion: keda.sh/v1alpha1
kind: TriggerAuthentication
metadata:
  name: aws-credentials-irsa
  namespace: production
spec:
  podIdentity:
    provider: aws
    identityId: arn:aws:iam::123456789012:role/keda-sqs-role

2.5 Cron-Based Scaling

yaml

# keda/cron-scaledobject.yaml
apiVersion: keda.sh/v1alpha1
kind: ScaledObject
metadata:
  name: api-server-scheduled
  namespace: production
spec:
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: api-server

  minReplicaCount: 3
  maxReplicaCount: 50

  triggers:
    # Business hours scaling (Mon-Fri 9AM-6PM KST)
    - type: cron
      metadata:
        timezone: Asia/Seoul
        start: 0 9 * * 1-5    # 9 AM weekdays
        end: 0 18 * * 1-5     # 6 PM weekdays
        desiredReplicas: "20"

    # Peak hours scaling (Mon-Fri 11AM-2PM KST)
    - type: cron
      metadata:
        timezone: Asia/Seoul
        start: 0 11 * * 1-5
        end: 0 14 * * 1-5
        desiredReplicas: "40"

    # Weekend scaling
    - type: cron
      metadata:
        timezone: Asia/Seoul
        start: 0 10 * * 0,6   # Saturday, Sunday 10 AM
        end: 0 22 * * 0,6     # Saturday, Sunday 10 PM
        desiredReplicas: "15"

    # Combine with metric-based trigger
    - type: prometheus
      metadata:
        serverAddress: http://prometheus-server.monitoring:80
        metricName: rps
        query: sum(rate(http_requests_total{deployment="api-server"}[2m]))
        threshold: "500"

2.6 Composite Triggers

yaml

# keda/composite-scaledobject.yaml
apiVersion: keda.sh/v1alpha1
kind: ScaledObject
metadata:
  name: multi-trigger-worker
  namespace: production
spec:
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: multi-worker

  minReplicaCount: 2
  maxReplicaCount: 100
  pollingInterval: 15
  cooldownPeriod: 300

  # Use formula to combine triggers
  advanced:
    horizontalPodAutoscalerConfig:
      behavior:
        scaleUp:
          stabilizationWindowSeconds: 30
          selectPolicy: Max
          policies:
            - type: Percent
              value: 100
              periodSeconds: 30

  triggers:
    # Trigger 1: SQS Queue
    - type: aws-sqs-queue
      name: sqs-trigger
      authenticationRef:
        name: aws-credentials
      metadata:
        queueURL: https://sqs.ap-northeast-2.amazonaws.com/123456789012/task-queue
        queueLength: "20"
        awsRegion: ap-northeast-2

    # Trigger 2: Kafka Consumer Lag
    - type: kafka
      name: kafka-trigger
      metadata:
        bootstrapServers: kafka.production:9092
        consumerGroup: my-consumer-group
        topic: events
        lagThreshold: "100"
        activationLagThreshold: "10"

    # Trigger 3: Prometheus metric
    - type: prometheus
      name: cpu-trigger
      metadata:
        serverAddress: http://prometheus-server.monitoring:80
        metricName: cpu_usage
        query: |
          avg(rate(container_cpu_usage_seconds_total{
            namespace="production",
            pod=~"multi-worker-.*"
          }[5m])) * 100
        threshold: "70"

    # Trigger 4: Memory pressure
    - type: prometheus
      name: memory-trigger
      metadata:
        serverAddress: http://prometheus-server.monitoring:80
        metricName: memory_usage
        query: |
          avg(container_memory_working_set_bytes{
            namespace="production",
            pod=~"multi-worker-.*"
          } / container_spec_memory_limit_bytes{
            namespace="production",
            pod=~"multi-worker-.*"
          }) * 100
        threshold: "80"

2.7 ScaledJob for Batch Processing

yaml

# keda/scaledjob.yaml
apiVersion: keda.sh/v1alpha1
kind: ScaledJob
metadata:
  name: batch-processor
  namespace: production
spec:
  jobTargetRef:
    parallelism: 1
    completions: 1
    activeDeadlineSeconds: 600
    backoffLimit: 3
    template:
      metadata:
        labels:
          app: batch-processor
      spec:
        restartPolicy: Never
        serviceAccountName: batch-processor
        containers:
          - name: processor
            image: myregistry/batch-processor:v1.0
            env:
              - name: QUEUE_URL
                value: https://sqs.ap-northeast-2.amazonaws.com/123456789012/batch-queue
            resources:
              requests:
                cpu: 500m
                memory: 512Mi
              limits:
                cpu: 2000m
                memory: 2Gi

  pollingInterval: 30
  successfulJobsHistoryLimit: 5
  failedJobsHistoryLimit: 10

  # Maximum concurrent jobs
  maxReplicaCount: 50

  # Scaling strategy
  scalingStrategy:
    strategy: accurate  # Options: default, custom, accurate
    # For custom strategy:
    # customScalingQueueLengthDeduction: 1
    # customScalingRunningJobPercentage: "0.5"

  # Scale to zero
  minReplicaCount: 0

  # Rollout strategy
  rollout:
    strategy: gradual
    propagationPolicy: Foreground

  triggers:
    - type: aws-sqs-queue
      authenticationRef:
        name: aws-credentials
      metadata:
        queueURL: https://sqs.ap-northeast-2.amazonaws.com/123456789012/batch-queue
        queueLength: "1"  # One job per message
        awsRegion: ap-northeast-2
        activationQueueLength: "0"

---
# ScaledJob with Cron trigger for scheduled batch
apiVersion: keda.sh/v1alpha1
kind: ScaledJob
metadata:
  name: scheduled-report
  namespace: production
spec:
  jobTargetRef:
    parallelism: 1
    completions: 1
    template:
      spec:
        restartPolicy: Never
        containers:
          - name: report-generator
            image: myregistry/report-generator:v1.0
            resources:
              requests:
                cpu: 1000m
                memory: 2Gi

  pollingInterval: 60
  maxReplicaCount: 1

  triggers:
    - type: cron
      metadata:
        timezone: Asia/Seoul
        start: 0 6 * * *    # 6 AM daily
        end: 0 7 * * *      # 7 AM daily
        desiredReplicas: "1"

2.8 KEDA Tuning Parameters

yaml

# keda/tuning-example.yaml
apiVersion: keda.sh/v1alpha1
kind: ScaledObject
metadata:
  name: tuned-worker
  namespace: production
  annotations:
    # Disable auto-scaling temporarily
    # autoscaling.keda.sh/paused: "true"
    # Custom replica annotation
    autoscaling.keda.sh/paused-replicas: "5"
spec:
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: tuned-worker

  # Core tuning parameters
  pollingInterval: 15       # How often to check triggers (seconds)
  cooldownPeriod: 300       # Time to wait after last trigger before scaling down
  idleReplicaCount: 0       # Replicas when idle (scale to zero)
  minReplicaCount: 2        # Minimum replicas when active
  maxReplicaCount: 100      # Maximum replicas

  # Fallback when trigger fails
  fallback:
    failureThreshold: 5     # Number of failures before fallback
    replicas: 10            # Fallback replica count

  # Advanced HPA configuration
  advanced:
    restoreToOriginalReplicaCount: true  # Restore on ScaledObject deletion
    horizontalPodAutoscalerConfig:
      name: tuned-worker-hpa
      behavior:
        scaleUp:
          stabilizationWindowSeconds: 0
          policies:
            - type: Percent
              value: 100
              periodSeconds: 15
            - type: Pods
              value: 10
              periodSeconds: 15
          selectPolicy: Max
        scaleDown:
          stabilizationWindowSeconds: 300
          policies:
            - type: Percent
              value: 10
              periodSeconds: 60
          selectPolicy: Min

  triggers:
    - type: prometheus
      metadata:
        serverAddress: http://prometheus-server.monitoring:80
        metricName: queue_depth
        query: sum(queue_messages_pending{app="tuned-worker"})
        threshold: "100"
        activationThreshold: "10"  # Don't scale until threshold is met
        # Metric type affects scaling calculation
        # AverageValue (default): totalMetric / desiredReplicas
        # Value: scale based on absolute metric value
        metricType: AverageValue

3. VPA (Vertical Pod Autoscaler)

VPA automatically adjusts CPU and memory requests based on actual usage.

3.1 VPA Installation

bash

# Clone VPA repository
git clone https://github.com/kubernetes/autoscaler.git
cd autoscaler/vertical-pod-autoscaler

# Install VPA components
./hack/vpa-up.sh

# Verify installation
kubectl get pods -n kube-system | grep vpa

Or install with Helm:

yaml

# vpa-values.yaml
admissionController:
  enabled: true
  replicaCount: 2

recommender:
  enabled: true
  replicaCount: 1
  resources:
    requests:
      cpu: 50m
      memory: 500Mi

updater:
  enabled: true
  replicaCount: 1
  resources:
    requests:
      cpu: 50m
      memory: 500Mi

# Minimum resources for VPA recommendations
resourcePolicy:
  minAllowed:
    cpu: 10m
    memory: 50Mi
  maxAllowed:
    cpu: 8
    memory: 32Gi

bash

helm repo add fairwinds-stable https://charts.fairwinds.com/stable
helm install vpa fairwinds-stable/vpa \
  --namespace kube-system \
  --values vpa-values.yaml

3.2 VPA Update Modes

yaml

# vpa/update-modes.yaml

# Mode: Off - Recommendations only, no auto-update
---
apiVersion: autoscaling.k8s.io/v1
kind: VerticalPodAutoscaler
metadata:
  name: api-server-vpa-off
  namespace: production
spec:
  targetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: api-server
  updatePolicy:
    updateMode: "Off"  # Only provide recommendations
  resourcePolicy:
    containerPolicies:
      - containerName: api-server
        minAllowed:
          cpu: 100m
          memory: 128Mi
        maxAllowed:
          cpu: 4
          memory: 8Gi

# Mode: Initial - Set resources only at pod creation
---
apiVersion: autoscaling.k8s.io/v1
kind: VerticalPodAutoscaler
metadata:
  name: api-server-vpa-initial
  namespace: production
spec:
  targetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: api-server
  updatePolicy:
    updateMode: "Initial"  # Only set on pod creation
  resourcePolicy:
    containerPolicies:
      - containerName: api-server
        minAllowed:
          cpu: 100m
          memory: 128Mi
        maxAllowed:
          cpu: 4
          memory: 8Gi
        controlledResources: ["cpu", "memory"]

# Mode: Auto - Full automatic adjustment (causes pod restarts)
---
apiVersion: autoscaling.k8s.io/v1
kind: VerticalPodAutoscaler
metadata:
  name: api-server-vpa-auto
  namespace: production
spec:
  targetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: api-server
  updatePolicy:
    updateMode: "Auto"
    minReplicas: 2  # Minimum replicas during updates
  resourcePolicy:
    containerPolicies:
      - containerName: api-server
        minAllowed:
          cpu: 100m
          memory: 128Mi
        maxAllowed:
          cpu: 4
          memory: 8Gi
        controlledResources: ["cpu", "memory"]
        controlledValues: RequestsAndLimits  # Or RequestsOnly

---
# Check VPA recommendations
# kubectl describe vpa api-server-vpa-off -n production

3.3 VPA Resource Policies

yaml

# vpa/resource-policies.yaml
apiVersion: autoscaling.k8s.io/v1
kind: VerticalPodAutoscaler
metadata:
  name: multi-container-vpa
  namespace: production
spec:
  targetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: multi-container-app
  updatePolicy:
    updateMode: "Auto"
  resourcePolicy:
    containerPolicies:
      # Main application container
      - containerName: app
        minAllowed:
          cpu: 200m
          memory: 256Mi
        maxAllowed:
          cpu: 4
          memory: 8Gi
        controlledResources: ["cpu", "memory"]
        controlledValues: RequestsAndLimits

      # Sidecar - fixed resources (not controlled by VPA)
      - containerName: envoy-proxy
        mode: "Off"  # Don't adjust this container

      # Log shipper - only control memory
      - containerName: fluentbit
        minAllowed:
          memory: 64Mi
        maxAllowed:
          memory: 512Mi
        controlledResources: ["memory"]  # Only memory, not CPU
        controlledValues: RequestsOnly

      # Init container - use wildcard for all init containers
      - containerName: "*"
        mode: "Off"

3.4 In-Place Pod Resize (KEP-1287)

Starting from Kubernetes 1.27 (beta), in-place pod resize allows VPA to adjust resources without restarting pods.

yaml

# vpa/inplace-resize.yaml
# Requires: Kubernetes 1.27+ with InPlacePodVerticalScaling feature gate

apiVersion: autoscaling.k8s.io/v1
kind: VerticalPodAutoscaler
metadata:
  name: api-server-inplace
  namespace: production
spec:
  targetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: api-server
  updatePolicy:
    updateMode: "Auto"
  resourcePolicy:
    containerPolicies:
      - containerName: api-server
        minAllowed:
          cpu: 100m
          memory: 128Mi
        maxAllowed:
          cpu: 4
          memory: 8Gi
        controlledResources: ["cpu", "memory"]

---
# Deployment with resizePolicy for in-place updates
apiVersion: apps/v1
kind: Deployment
metadata:
  name: api-server
  namespace: production
spec:
  replicas: 3
  selector:
    matchLabels:
      app: api-server
  template:
    metadata:
      labels:
        app: api-server
    spec:
      containers:
        - name: api-server
          image: myregistry/api-server:v1.0
          resources:
            requests:
              cpu: 500m
              memory: 512Mi
            limits:
              cpu: 2
              memory: 2Gi
          # Resize policy for in-place updates
          resizePolicy:
            - resourceName: cpu
              restartPolicy: NotRequired  # CPU can be changed without restart
            - resourceName: memory
              restartPolicy: RestartContainer  # Memory change requires restart

3.5 Goldilocks Dashboard

Goldilocks provides a dashboard to visualize VPA recommendations.

bash

# Install Goldilocks
helm repo add fairwinds-stable https://charts.fairwinds.com/stable
helm install goldilocks fairwinds-stable/goldilocks \
  --namespace goldilocks \
  --create-namespace \
  --set dashboard.enabled=true \
  --set dashboard.service.type=LoadBalancer

yaml

# goldilocks/namespace-label.yaml
# Label namespaces for Goldilocks to monitor
apiVersion: v1
kind: Namespace
metadata:
  name: production
  labels:
    goldilocks.fairwinds.com/enabled: "true"
    goldilocks.fairwinds.com/vpa-update-mode: "Off"

3.6 VPA + HPA Coexistence Strategy

VPA and HPA can conflict when both try to manage CPU. Use this strategy:

yaml

# vpa-hpa-coexistence.yaml

# Strategy 1: VPA manages memory, HPA manages CPU
---
apiVersion: autoscaling.k8s.io/v1
kind: VerticalPodAutoscaler
metadata:
  name: api-server-vpa
  namespace: production
spec:
  targetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: api-server
  updatePolicy:
    updateMode: "Auto"
  resourcePolicy:
    containerPolicies:
      - containerName: api-server
        controlledResources: ["memory"]  # Only memory
        minAllowed:
          memory: 256Mi
        maxAllowed:
          memory: 8Gi

---
apiVersion: autoscaling/v2
kind: HorizontalPodAutoscaler
metadata:
  name: api-server-hpa
  namespace: production
spec:
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: api-server
  minReplicas: 3
  maxReplicas: 50
  metrics:
    - type: Resource
      resource:
        name: cpu
        target:
          type: Utilization
          averageUtilization: 70

# Strategy 2: VPA in "Off" mode for recommendations, manual apply
---
apiVersion: autoscaling.k8s.io/v1
kind: VerticalPodAutoscaler
metadata:
  name: batch-worker-vpa
  namespace: production
spec:
  targetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: batch-worker
  updatePolicy:
    updateMode: "Off"  # Recommendations only
  resourcePolicy:
    containerPolicies:
      - containerName: worker
        minAllowed:
          cpu: 100m
          memory: 128Mi
        maxAllowed:
          cpu: 8
          memory: 16Gi

# Strategy 3: VPA "Initial" mode + HPA for dynamic workloads
---
apiVersion: autoscaling.k8s.io/v1
kind: VerticalPodAutoscaler
metadata:
  name: web-frontend-vpa
  namespace: production
spec:
  targetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: web-frontend
  updatePolicy:
    updateMode: "Initial"  # Only at pod creation
  resourcePolicy:
    containerPolicies:
      - containerName: frontend
        controlledResources: ["cpu", "memory"]
        minAllowed:
          cpu: 100m
          memory: 128Mi
        maxAllowed:
          cpu: 2
          memory: 4Gi

---
apiVersion: autoscaling/v2
kind: HorizontalPodAutoscaler
metadata:
  name: web-frontend-hpa
  namespace: production
spec:
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: web-frontend
  minReplicas: 5
  maxReplicas: 100
  metrics:
    - type: Resource
      resource:
        name: cpu
        target:
          type: Utilization
          averageUtilization: 60

4. Custom Scheduler and Pod Deletion Cost

Pod deletion cost allows you to influence which pods are terminated first during scale-down.

Cross-reference: For scheduling fundamentals, see Scheduling, Preemption, and Eviction

4.1 Pod Deletion Cost Annotation

yaml

# pod-deletion-cost/examples.yaml

# Lower cost = deleted first (range: -2147483648 to 2147483647)
# Default cost is 0

# Example 1: Spot instance pods (delete first)
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: worker-spot
  namespace: production
spec:
  replicas: 10
  selector:
    matchLabels:
      app: worker
      instance-type: spot
  template:
    metadata:
      labels:
        app: worker
        instance-type: spot
      annotations:
        controller.kubernetes.io/pod-deletion-cost: "-100"  # Delete first
    spec:
      nodeSelector:
        kubernetes.io/capacity-type: spot
      containers:
        - name: worker
          image: myregistry/worker:v1.0

# Example 2: On-demand instance pods (delete last)
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: worker-ondemand
  namespace: production
spec:
  replicas: 5
  selector:
    matchLabels:
      app: worker
      instance-type: ondemand
  template:
    metadata:
      labels:
        app: worker
        instance-type: ondemand
      annotations:
        controller.kubernetes.io/pod-deletion-cost: "100"  # Delete last
    spec:
      nodeSelector:
        kubernetes.io/capacity-type: on-demand
      containers:
        - name: worker
          image: myregistry/worker:v1.0

# Example 3: Data-intensive pods (high cost to preserve)
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: cache-server
  namespace: production
spec:
  replicas: 3
  selector:
    matchLabels:
      app: cache-server
  template:
    metadata:
      labels:
        app: cache-server
      annotations:
        controller.kubernetes.io/pod-deletion-cost: "1000"  # Very last to delete
    spec:
      containers:
        - name: cache
          image: myregistry/cache:v1.0
          volumeMounts:
            - name: cache-data
              mountPath: /data
      volumes:
        - name: cache-data
          emptyDir:
            sizeLimit: 10Gi

4.2 Dynamic Pod Deletion Cost Controller

yaml

# pod-deletion-cost/controller.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: deletion-cost-controller
  namespace: kube-system
spec:
  replicas: 1
  selector:
    matchLabels:
      app: deletion-cost-controller
  template:
    metadata:
      labels:
        app: deletion-cost-controller
    spec:
      serviceAccountName: deletion-cost-controller
      containers:
        - name: controller
          image: myregistry/deletion-cost-controller:v1.0
          env:
            - name: PROMETHEUS_URL
              value: "http://prometheus-server.monitoring:80"
          resources:
            requests:
              cpu: 50m
              memory: 64Mi

---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: deletion-cost-controller
  namespace: kube-system

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: deletion-cost-controller
rules:
  - apiGroups: [""]
    resources: ["pods"]
    verbs: ["get", "list", "watch", "patch"]
  - apiGroups: [""]
    resources: ["nodes"]
    verbs: ["get", "list", "watch"]

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: deletion-cost-controller
subjects:
  - kind: ServiceAccount
    name: deletion-cost-controller
    namespace: kube-system
roleRef:
  kind: ClusterRole
  name: deletion-cost-controller
  apiGroup: rbac.authorization.k8s.io

python

#!/usr/bin/env python3
# deletion-cost-controller/controller.py
"""
Dynamically adjusts pod deletion cost based on:
- Node type (Spot vs On-demand)
- Pod age
- Data locality
- Job completion status
"""

import os
import time
import requests
from kubernetes import client, config, watch

PROMETHEUS_URL = os.environ.get('PROMETHEUS_URL', 'http://prometheus-server:80')

def calculate_deletion_cost(pod: client.V1Pod) -> int:
    """Calculate deletion cost based on multiple factors."""
    cost = 0

    # Factor 1: Node type
    node_name = pod.spec.node_name
    if node_name:
        v1 = client.CoreV1Api()
        node = v1.read_node(node_name)
        capacity_type = node.metadata.labels.get('karpenter.sh/capacity-type', 'on-demand')
        if capacity_type == 'spot':
            cost -= 100  # Prefer deleting Spot pods
        else:
            cost += 100  # Preserve On-demand pods

    # Factor 2: Pod age (older = higher cost)
    if pod.status.start_time:
        age_hours = (time.time() - pod.status.start_time.timestamp()) / 3600
        cost += int(min(age_hours * 10, 500))  # Max +500 for old pods

    # Factor 3: Data locality (pods with PVCs)
    if pod.spec.volumes:
        for volume in pod.spec.volumes:
            if volume.persistent_volume_claim:
                cost += 200  # Higher cost for pods with data

    # Factor 4: Job completion (check if pod is processing work)
    labels = pod.metadata.labels or {}
    if 'batch.kubernetes.io/job-name' in labels:
        # Check if job is near completion via metrics
        job_progress = get_job_progress(pod.metadata.namespace, labels['batch.kubernetes.io/job-name'])
        if job_progress > 0.8:
            cost += 500  # Very high cost if job is 80%+ complete

    # Factor 5: Leader election (preserve leaders)
    annotations = pod.metadata.annotations or {}
    if annotations.get('is-leader') == 'true':
        cost += 1000  # Never delete leaders first

    return max(-2147483648, min(2147483647, cost))


def get_job_progress(namespace: str, job_name: str) -> float:
    """Query Prometheus for job progress."""
    query = f'job_progress{{namespace="{namespace}", job="{job_name}"}}'
    try:
        response = requests.get(
            f'{PROMETHEUS_URL}/api/v1/query',
            params={'query': query}
        )
        data = response.json()
        if data['status'] == 'success' and data['data']['result']:
            return float(data['data']['result'][0]['value'][1])
    except Exception:
        pass
    return 0.0


def update_pod_deletion_cost(pod: client.V1Pod, cost: int):
    """Update the pod's deletion cost annotation."""
    v1 = client.CoreV1Api()

    current_cost = pod.metadata.annotations.get(
        'controller.kubernetes.io/pod-deletion-cost', '0'
    )

    if current_cost != str(cost):
        body = {
            'metadata': {
                'annotations': {
                    'controller.kubernetes.io/pod-deletion-cost': str(cost)
                }
            }
        }
        v1.patch_namespaced_pod(
            pod.metadata.name,
            pod.metadata.namespace,
            body
        )
        print(f"Updated {pod.metadata.namespace}/{pod.metadata.name} deletion cost: {cost}")


def main():
    config.load_incluster_config()
    v1 = client.CoreV1Api()

    # Label selector for pods to manage
    label_selector = 'deletion-cost-managed=true'

    while True:
        pods = v1.list_pod_for_all_namespaces(
            label_selector=label_selector
        )

        for pod in pods.items:
            if pod.status.phase == 'Running':
                cost = calculate_deletion_cost(pod)
                update_pod_deletion_cost(pod, cost)

        time.sleep(60)  # Update every minute


if __name__ == '__main__':
    main()

4.3 Use Cases for Pod Deletion Cost

yaml

# pod-deletion-cost/use-cases.yaml

# Use Case 1: Spot pods deleted before On-demand
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: mixed-capacity-app
  namespace: production
spec:
  replicas: 20
  selector:
    matchLabels:
      app: mixed-app
  template:
    metadata:
      labels:
        app: mixed-app
    spec:
      topologySpreadConstraints:
        - maxSkew: 5
          topologyKey: karpenter.sh/capacity-type
          whenUnsatisfiable: ScheduleAnyway
          labelSelector:
            matchLabels:
              app: mixed-app
      containers:
        - name: app
          image: myregistry/app:v1.0
      # Deletion cost set by mutating webhook based on node type

---
# Mutating webhook to set deletion cost
apiVersion: admissionregistration.k8s.io/v1
kind: MutatingWebhookConfiguration
metadata:
  name: deletion-cost-webhook
webhooks:
  - name: deletion-cost.example.com
    clientConfig:
      service:
        name: deletion-cost-webhook
        namespace: kube-system
        path: /mutate
      caBundle: ${CA_BUNDLE}
    rules:
      - operations: ["CREATE"]
        apiGroups: [""]
        apiVersions: ["v1"]
        resources: ["pods"]
    namespaceSelector:
      matchLabels:
        deletion-cost-managed: "true"

# Use Case 2: Batch job completion priority
---
apiVersion: batch/v1
kind: Job
metadata:
  name: data-processing
  namespace: production
spec:
  parallelism: 10
  completions: 100
  template:
    metadata:
      annotations:
        # Will be updated dynamically as job progresses
        controller.kubernetes.io/pod-deletion-cost: "0"
    spec:
      restartPolicy: Never
      containers:
        - name: processor
          image: myregistry/processor:v1.0
          env:
            - name: POD_NAME
              valueFrom:
                fieldRef:
                  fieldPath: metadata.name
          # Update deletion cost based on progress
          lifecycle:
            postStart:
              exec:
                command:
                  - /bin/sh
                  - -c
                  - |
                    # Increase deletion cost as job progresses
                    while true; do
                      PROGRESS=$(cat /tmp/progress || echo 0)
                      COST=$((PROGRESS * 10))
                      kubectl annotate pod $POD_NAME \
                        controller.kubernetes.io/pod-deletion-cost="$COST" \
                        --overwrite
                      sleep 30
                    done &

5. Spot Node Utilization

Optimize cost by effectively using Spot instances while maintaining reliability.

5.1 EKS Auto Mode with Spot NodePools

yaml

# spot/auto-mode-nodepools.yaml
apiVersion: karpenter.sh/v1
kind: NodePool
metadata:
  name: general-spot
spec:
  template:
    metadata:
      labels:
        capacity-type: spot
        workload-type: general
    spec:
      requirements:
        - key: karpenter.sh/capacity-type
          operator: In
          values: ["spot"]
        - key: kubernetes.io/arch
          operator: In
          values: ["amd64"]
        - key: karpenter.k8s.aws/instance-category
          operator: In
          values: ["c", "m", "r"]
        - key: karpenter.k8s.aws/instance-generation
          operator: Gt
          values: ["5"]
        - key: karpenter.k8s.aws/instance-size
          operator: In
          values: ["large", "xlarge", "2xlarge"]
      nodeClassRef:
        group: karpenter.k8s.aws
        kind: EC2NodeClass
        name: default

  limits:
    cpu: 1000
    memory: 2000Gi

  disruption:
    consolidationPolicy: WhenEmptyOrUnderutilized
    consolidateAfter: 1m
    budgets:
      - nodes: "20%"

  # Weight for scheduling preference (higher = preferred)
  weight: 100  # Prefer Spot

---
apiVersion: karpenter.sh/v1
kind: NodePool
metadata:
  name: general-ondemand
spec:
  template:
    metadata:
      labels:
        capacity-type: on-demand
        workload-type: general
    spec:
      requirements:
        - key: karpenter.sh/capacity-type
          operator: In
          values: ["on-demand"]
        - key: kubernetes.io/arch
          operator: In
          values: ["amd64"]
        - key: karpenter.k8s.aws/instance-category
          operator: In
          values: ["c", "m", "r"]
        - key: karpenter.k8s.aws/instance-generation
          operator: Gt
          values: ["5"]
      nodeClassRef:
        group: karpenter.k8s.aws
        kind: EC2NodeClass
        name: default

  limits:
    cpu: 200
    memory: 400Gi

  disruption:
    consolidationPolicy: WhenEmpty
    consolidateAfter: 30m

  # Lower weight = fallback
  weight: 10  # Use only when Spot unavailable

---
# EC2NodeClass for both pools
apiVersion: karpenter.k8s.aws/v1
kind: EC2NodeClass
metadata:
  name: default
spec:
  amiSelectorTerms:
    - alias: al2023@latest
  subnetSelectorTerms:
    - tags:
        karpenter.sh/discovery: "production-cluster"
  securityGroupSelectorTerms:
    - tags:
        karpenter.sh/discovery: "production-cluster"

  # Spot configuration
  instanceStorePolicy: RAID0

  # Block device mapping
  blockDeviceMappings:
    - deviceName: /dev/xvda
      ebs:
        volumeSize: 100Gi
        volumeType: gp3
        iops: 3000
        throughput: 125
        encrypted: true

5.2 Spot Interruption Handler

yaml

# spot/interruption-handler.yaml
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: spot-interruption-handler
  namespace: kube-system
spec:
  selector:
    matchLabels:
      app: spot-interruption-handler
  template:
    metadata:
      labels:
        app: spot-interruption-handler
    spec:
      nodeSelector:
        karpenter.sh/capacity-type: spot
      serviceAccountName: spot-interruption-handler
      hostNetwork: true
      containers:
        - name: handler
          image: myregistry/spot-handler:v1.0
          env:
            - name: NODE_NAME
              valueFrom:
                fieldRef:
                  fieldPath: spec.nodeName
            - name: SLACK_WEBHOOK_URL
              valueFrom:
                secretKeyRef:
                  name: slack-webhook
                  key: url
          resources:
            requests:
              cpu: 10m
              memory: 32Mi
      tolerations:
        - operator: Exists

---
# Karpenter handles interruptions automatically
# This is supplementary for custom handling
apiVersion: v1
kind: ConfigMap
metadata:
  name: spot-handler-config
  namespace: kube-system
data:
  config.yaml: |
    # Actions on interruption notice
    on_interruption:
      - drain_node: true
      - cordon_node: true
      - notify_slack: true

    # Grace period actions
    grace_period_seconds: 120

    # Pod priority for eviction order
    eviction_order:
      - priority_class: low-priority
      - label_selector: "batch=true"
      - annotation: "spot-evictable=true"

5.3 PDB + Pod Deletion Cost Combination

yaml

# spot/pdb-deletion-cost.yaml
# Ensure high availability while preferring Spot termination

---
apiVersion: policy/v1
kind: PodDisruptionBudget
metadata:
  name: api-server-pdb
  namespace: production
spec:
  minAvailable: 3  # Always keep 3 pods running
  selector:
    matchLabels:
      app: api-server

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: api-server
  namespace: production
spec:
  replicas: 10
  selector:
    matchLabels:
      app: api-server
  template:
    metadata:
      labels:
        app: api-server
    spec:
      # Spread across capacity types
      topologySpreadConstraints:
        - maxSkew: 3
          topologyKey: karpenter.sh/capacity-type
          whenUnsatisfiable: DoNotSchedule
          labelSelector:
            matchLabels:
              app: api-server
        - maxSkew: 2
          topologyKey: topology.kubernetes.io/zone
          whenUnsatisfiable: DoNotSchedule
          labelSelector:
            matchLabels:
              app: api-server

      # Prefer Spot nodes
      affinity:
        nodeAffinity:
          preferredDuringSchedulingIgnoredDuringExecution:
            - weight: 100
              preference:
                matchExpressions:
                  - key: karpenter.sh/capacity-type
                    operator: In
                    values: ["spot"]

      containers:
        - name: api-server
          image: myregistry/api-server:v1.0
          resources:
            requests:
              cpu: 500m
              memory: 512Mi
          # Graceful shutdown
          lifecycle:
            preStop:
              exec:
                command: ["/bin/sh", "-c", "sleep 15"]
          terminationGracePeriodSeconds: 30

5.4 Topology Spread with Spot

yaml

# spot/topology-spread.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: resilient-app
  namespace: production
spec:
  replicas: 12
  selector:
    matchLabels:
      app: resilient-app
  template:
    metadata:
      labels:
        app: resilient-app
    spec:
      topologySpreadConstraints:
        # Spread across zones
        - maxSkew: 1
          topologyKey: topology.kubernetes.io/zone
          whenUnsatisfiable: DoNotSchedule
          labelSelector:
            matchLabels:
              app: resilient-app

        # Spread across capacity types (Spot vs On-demand)
        - maxSkew: 4
          topologyKey: karpenter.sh/capacity-type
          whenUnsatisfiable: ScheduleAnyway
          labelSelector:
            matchLabels:
              app: resilient-app

        # Spread across instance types (Spot diversification)
        - maxSkew: 2
          topologyKey: node.kubernetes.io/instance-type
          whenUnsatisfiable: ScheduleAnyway
          labelSelector:
            matchLabels:
              app: resilient-app

      containers:
        - name: app
          image: myregistry/app:v1.0
          resources:
            requests:
              cpu: 250m
              memory: 256Mi

5.5 Graceful Shutdown Configuration

yaml

# spot/graceful-shutdown.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: graceful-app
  namespace: production
spec:
  replicas: 5
  selector:
    matchLabels:
      app: graceful-app
  template:
    metadata:
      labels:
        app: graceful-app
    spec:
      terminationGracePeriodSeconds: 120  # 2 minutes for graceful shutdown

      containers:
        - name: app
          image: myregistry/app:v1.0

          # Health checks
          readinessProbe:
            httpGet:
              path: /health/ready
              port: 8080
            initialDelaySeconds: 5
            periodSeconds: 5

          livenessProbe:
            httpGet:
              path: /health/live
              port: 8080
            initialDelaySeconds: 10
            periodSeconds: 10

          # Graceful shutdown handling
          lifecycle:
            preStop:
              exec:
                command:
                  - /bin/sh
                  - -c
                  - |
                    # Signal application to stop accepting new requests
                    curl -X POST http://localhost:8080/admin/drain

                    # Wait for in-flight requests to complete
                    sleep 30

                    # Signal shutdown
                    curl -X POST http://localhost:8080/admin/shutdown

                    # Wait for graceful shutdown
                    sleep 10

          env:
            - name: GRACEFUL_SHUTDOWN_TIMEOUT
              value: "90s"

5.6 Spot Cost Analysis

yaml

# spot/cost-analysis-job.yaml
apiVersion: batch/v1
kind: CronJob
metadata:
  name: spot-cost-analyzer
  namespace: monitoring
spec:
  schedule: "0 9 * * 1"  # Weekly on Monday 9 AM
  jobTemplate:
    spec:
      template:
        spec:
          serviceAccountName: cost-analyzer
          containers:
            - name: analyzer
              image: myregistry/cost-analyzer:v1.0
              env:
                - name: PROMETHEUS_URL
                  value: "http://prometheus-server:80"
                - name: SLACK_WEBHOOK_URL
                  valueFrom:
                    secretKeyRef:
                      name: slack-webhook
                      key: url
          restartPolicy: OnFailure

python

#!/usr/bin/env python3
# cost-analyzer/analyze.py
"""
Analyzes Spot vs On-demand cost savings.
"""

import os
import requests
from datetime import datetime, timedelta

PROMETHEUS_URL = os.environ['PROMETHEUS_URL']
SLACK_WEBHOOK_URL = os.environ.get('SLACK_WEBHOOK_URL')

# Instance pricing (example, update with actual prices)
PRICING = {
    'm5.large': {'spot': 0.034, 'ondemand': 0.096},
    'm5.xlarge': {'spot': 0.068, 'ondemand': 0.192},
    'c5.large': {'spot': 0.030, 'ondemand': 0.085},
    'c5.xlarge': {'spot': 0.060, 'ondemand': 0.170},
    'r5.large': {'spot': 0.038, 'ondemand': 0.126},
}


def get_node_hours(capacity_type: str, days: int = 7) -> dict:
    """Get node-hours by instance type for given capacity type."""

    query = f'''
    sum by (instance_type) (
      increase(
        karpenter_nodes_total_daemon_requests_cpu_cores{{
          capacity_type="{capacity_type}"
        }}[{days}d]
      )
    )
    '''

    response = requests.get(
        f'{PROMETHEUS_URL}/api/v1/query',
        params={'query': query}
    )

    result = {}
    data = response.json()
    if data['status'] == 'success':
        for item in data['data']['result']:
            instance_type = item['metric'].get('instance_type', 'unknown')
            hours = float(item['value'][1]) / (days * 24)  # Normalize to hours
            result[instance_type] = hours * days * 24

    return result


def calculate_savings():
    """Calculate cost savings from Spot usage."""

    spot_hours = get_node_hours('spot', 7)
    ondemand_hours = get_node_hours('on-demand', 7)

    spot_cost = 0
    ondemand_equivalent_cost = 0

    for instance_type, hours in spot_hours.items():
        if instance_type in PRICING:
            spot_cost += hours * PRICING[instance_type]['spot']
            ondemand_equivalent_cost += hours * PRICING[instance_type]['ondemand']

    actual_ondemand_cost = 0
    for instance_type, hours in ondemand_hours.items():
        if instance_type in PRICING:
            actual_ondemand_cost += hours * PRICING[instance_type]['ondemand']

    total_cost = spot_cost + actual_ondemand_cost
    total_if_all_ondemand = ondemand_equivalent_cost + actual_ondemand_cost
    savings = total_if_all_ondemand - total_cost
    savings_percent = (savings / total_if_all_ondemand) * 100 if total_if_all_ondemand > 0 else 0

    return {
        'spot_cost': spot_cost,
        'ondemand_cost': actual_ondemand_cost,
        'total_cost': total_cost,
        'savings': savings,
        'savings_percent': savings_percent,
        'spot_hours': sum(spot_hours.values()),
        'ondemand_hours': sum(ondemand_hours.values()),
    }


def send_report(data: dict):
    """Send weekly cost report to Slack."""

    message = f"""
*Weekly Spot Instance Cost Report*

:moneybag: *Cost Summary (Last 7 Days)*
- Spot Instance Cost: ${data['spot_cost']:.2f}
- On-Demand Instance Cost: ${data['ondemand_cost']:.2f}
- *Total Cost: ${data['total_cost']:.2f}*

:chart_with_upwards_trend: *Savings*
- Estimated Savings: ${data['savings']:.2f}
- Savings Percentage: {data['savings_percent']:.1f}%

:bar_chart: *Usage*
- Spot Node-Hours: {data['spot_hours']:.0f}
- On-Demand Node-Hours: {data['ondemand_hours']:.0f}
- Spot Ratio: {data['spot_hours'] / (data['spot_hours'] + data['ondemand_hours']) * 100:.1f}%
"""

    requests.post(SLACK_WEBHOOK_URL, json={
        'text': message,
        'mrkdwn': True
    })


def main():
    data = calculate_savings()
    print(f"Weekly cost analysis: {data}")

    if SLACK_WEBHOOK_URL:
        send_report(data)


if __name__ == '__main__':
    main()

5.7 Fallback Strategy

yaml

# spot/fallback-strategy.yaml
# Strategy: Primary Spot, fallback to On-demand with Karpenter

apiVersion: karpenter.sh/v1
kind: NodePool
metadata:
  name: spot-primary
spec:
  template:
    spec:
      requirements:
        - key: karpenter.sh/capacity-type
          operator: In
          values: ["spot"]
        - key: karpenter.k8s.aws/instance-family
          operator: In
          values: ["c5", "c6i", "m5", "m6i", "r5", "r6i"]
      nodeClassRef:
        group: karpenter.k8s.aws
        kind: EC2NodeClass
        name: default

  disruption:
    consolidationPolicy: WhenEmptyOrUnderutilized
    consolidateAfter: 30s

  weight: 100

---
apiVersion: karpenter.sh/v1
kind: NodePool
metadata:
  name: ondemand-fallback
spec:
  template:
    spec:
      requirements:
        - key: karpenter.sh/capacity-type
          operator: In
          values: ["on-demand"]
        - key: karpenter.k8s.aws/instance-family
          operator: In
          values: ["c5", "m5", "r5"]  # Fewer options for On-demand
      nodeClassRef:
        group: karpenter.k8s.aws
        kind: EC2NodeClass
        name: default

  limits:
    cpu: 100  # Limit On-demand capacity

  disruption:
    consolidationPolicy: WhenEmpty
    consolidateAfter: 5m

  weight: 10  # Low priority

---
# Application deployment with fallback handling
apiVersion: apps/v1
kind: Deployment
metadata:
  name: critical-app
  namespace: production
spec:
  replicas: 10
  selector:
    matchLabels:
      app: critical-app
  template:
    metadata:
      labels:
        app: critical-app
      annotations:
        # Prefer Spot but allow On-demand
        karpenter.sh/do-not-disrupt: "false"
    spec:
      # Soft preference for Spot
      affinity:
        nodeAffinity:
          preferredDuringSchedulingIgnoredDuringExecution:
            - weight: 90
              preference:
                matchExpressions:
                  - key: karpenter.sh/capacity-type
                    operator: In
                    values: ["spot"]
            - weight: 10
              preference:
                matchExpressions:
                  - key: karpenter.sh/capacity-type
                    operator: In
                    values: ["on-demand"]

      # Spread for resilience
      topologySpreadConstraints:
        - maxSkew: 1
          topologyKey: topology.kubernetes.io/zone
          whenUnsatisfiable: DoNotSchedule
          labelSelector:
            matchLabels:
              app: critical-app

      containers:
        - name: app
          image: myregistry/critical-app:v1.0

Summary

Strategy	Use Case	Key Configuration
HPA Custom Metrics	RPS-based scaling, queue depth	Prometheus Adapter + Custom PromQL
KEDA	Event-driven, scale-to-zero	ScaledObject + Triggers
VPA	Right-sizing, memory optimization	UpdateMode + Resource Policies
Pod Deletion Cost	Spot preference, job completion	Annotation + Custom Controller
Spot Utilization	Cost optimization	NodePools + Topology Spread

Scaling Decision Matrix:

┌─────────────────────────────────────────────────────────────────────┐
│                    Scaling Decision Matrix                          │
├─────────────────────────────────────────────────────────────────────┤
│                                                                     │
│  Workload Type           │ Primary      │ Secondary    │ Notes     │
│  ─────────────────────────────────────────────────────────────────  │
│  Web API                 │ HPA (RPS)    │ VPA (memory) │ Fast up   │
│  Queue Consumer          │ KEDA (SQS)   │ -            │ Scale 0   │
│  Batch Processing        │ ScaledJob    │ Spot nodes   │ Cost opt  │
│  Database Proxy          │ HPA (conn)   │ VPA (both)   │ Conserve  │
│  ML Inference            │ HPA (GPU)    │ KEDA (queue) │ GPU aware │
│  Event Stream            │ KEDA (Kafka) │ -            │ Lag-based │
│                                                                     │
└─────────────────────────────────────────────────────────────────────┘

< Previous: GitOps Automation | Table of Contents | Next: Operational Alert Configuration >

Traffic Management

Security

Observability

Resilience

Advanced

Comparison Guide

ArgoCD

Metrics

Logging

Tracing

Alerting

Observability End-to-End Labs

Cilium Deep Dive

Calico Deep Dive

Istio Detailed Quiz

Linkerd Detailed Quiz

Cilium Service Mesh Detailed Quiz

ArgoCD Detailed Quiz

Metrics

Logging

Tracing

Alerting

Observability Labs

Scaling Strategies ​

Introduction ​

1. HPA with Custom Metrics ​

1.1 Prometheus Adapter Architecture ​

1.2 Prometheus Adapter Installation ​

1.3 RPS-Based HPA Configuration ​

1.4 Custom PromQL for Complex Metrics ​

1.5 HPA Behavior Patterns ​

1.6 Verifying Custom Metrics ​

2. KEDA Event-Driven Scaling ​

2.1 KEDA Architecture ​

2.2 RPS-Based ScaledObject with Prometheus ​

2.3 PostgreSQL Session-Based Scaling ​

2.4 SQS Queue-Based Scaling ​

2.5 Cron-Based Scaling ​

2.6 Composite Triggers ​

2.7 ScaledJob for Batch Processing ​

2.8 KEDA Tuning Parameters ​

3. VPA (Vertical Pod Autoscaler) ​

3.1 VPA Installation ​

3.2 VPA Update Modes ​

3.3 VPA Resource Policies ​

3.4 In-Place Pod Resize (KEP-1287) ​

3.5 Goldilocks Dashboard ​

3.6 VPA + HPA Coexistence Strategy ​

4. Custom Scheduler and Pod Deletion Cost ​

4.1 Pod Deletion Cost Annotation ​

4.2 Dynamic Pod Deletion Cost Controller ​

4.3 Use Cases for Pod Deletion Cost ​

5. Spot Node Utilization ​

5.1 EKS Auto Mode with Spot NodePools ​

5.2 Spot Interruption Handler ​

5.3 PDB + Pod Deletion Cost Combination ​

5.4 Topology Spread with Spot ​

5.5 Graceful Shutdown Configuration ​

5.6 Spot Cost Analysis ​

5.7 Fallback Strategy ​

Summary ​

Scaling Strategies

Introduction

1. HPA with Custom Metrics

1.1 Prometheus Adapter Architecture

1.2 Prometheus Adapter Installation

1.3 RPS-Based HPA Configuration

1.4 Custom PromQL for Complex Metrics

1.5 HPA Behavior Patterns

1.6 Verifying Custom Metrics

2. KEDA Event-Driven Scaling

2.1 KEDA Architecture

2.2 RPS-Based ScaledObject with Prometheus

2.3 PostgreSQL Session-Based Scaling

2.4 SQS Queue-Based Scaling

2.5 Cron-Based Scaling

2.6 Composite Triggers

2.7 ScaledJob for Batch Processing

2.8 KEDA Tuning Parameters

3. VPA (Vertical Pod Autoscaler)

3.1 VPA Installation

3.2 VPA Update Modes

3.3 VPA Resource Policies

3.4 In-Place Pod Resize (KEP-1287)

3.5 Goldilocks Dashboard

3.6 VPA + HPA Coexistence Strategy

4. Custom Scheduler and Pod Deletion Cost

4.1 Pod Deletion Cost Annotation

4.2 Dynamic Pod Deletion Cost Controller

4.3 Use Cases for Pod Deletion Cost

5. Spot Node Utilization

5.1 EKS Auto Mode with Spot NodePools

5.2 Spot Interruption Handler

5.3 PDB + Pod Deletion Cost Combination

5.4 Topology Spread with Spot

5.5 Graceful Shutdown Configuration

5.6 Spot Cost Analysis

5.7 Fallback Strategy

Summary
