第 5 部分：网络策略

支持的版本：Calico v3.29+ / Kubernetes 1.28+ 最后更新：February 23, 2026

简介

网络策略是 Kubernetes 安全的基础，可控制 Pod、namespace 和外部端点之间的流量。Kubernetes 提供基本的 NetworkPolicy API，而 Calico 则通过全局策略、分层策略评估、基于 DNS 的规则和第 7 层过滤等强大功能对其进行了扩展。

本深入指南涵盖 Kubernetes 标准策略和 Calico 扩展功能，并提供满足企业安全要求的模式和示例。

---

Kubernetes 标准 NetworkPolicy

NetworkPolicy 基础知识

Kubernetes NetworkPolicy 是一种 namespace 范围的资源，可根据标签、namespace 和 IP 块控制进出 Pod 的流量。

基本 NetworkPolicy 结构

apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: example-policy
  namespace: default
spec:
  # Which pods this policy applies to
  podSelector:
    matchLabels:
      app: web

  # Policy types: Ingress, Egress, or both
  policyTypes:
    - Ingress
    - Egress

  # Ingress rules (who can connect TO these pods)
  ingress:
    - from:
        - podSelector:
            matchLabels:
              app: frontend
        - namespaceSelector:
            matchLabels:
              purpose: monitoring
        - ipBlock:
            cidr: 10.0.0.0/8
            except:
              - 10.0.1.0/24
      ports:
        - protocol: TCP
          port: 8080

  # Egress rules (where these pods can connect TO)
  egress:
    - to:
        - podSelector:
            matchLabels:
              app: database
      ports:
        - protocol: TCP
          port: 5432

Kubernetes NetworkPolicy 限制

限制	说明	Calico 解决方案
仅限 namespace 范围	无法创建集群范围的策略	GlobalNetworkPolicy
无策略排序	所有策略均等评估	分层策略
无拒绝规则	仅允许（隐式拒绝）	显式 Deny 操作
有限的 L4 过滤	仅支持基本端口/协议	端口范围、命名端口
无 L7 过滤	无法按 HTTP 方法过滤	HTTP 匹配规则
不支持 FQDN	无法使用域名	DNS 策略
仅以 Pod 为中心	无法保护节点	Host endpoint

---

Calico NetworkPolicy 扩展

扩展协议支持

除 TCP 和 UDP 外，Calico 还支持其他协议：

apiVersion: projectcalico.org/v3
kind: NetworkPolicy
metadata:
  name: extended-protocols
  namespace: default
spec:
  selector: app == 'network-tools'

  ingress:
    # ICMP ping
    - action: Allow
      protocol: ICMP
      icmp:
        type: 8  # Echo Request
        code: 0

    # ICMPv6
    - action: Allow
      protocol: ICMPv6
      icmp:
        type: 128  # Echo Request

    # SCTP
    - action: Allow
      protocol: SCTP
      destination:
        ports:
          - 3868  # Diameter

    # UDP with port range
    - action: Allow
      protocol: UDP
      destination:
        ports:
          - 5000:6000  # Port range

端口范围和命名端口

apiVersion: projectcalico.org/v3
kind: NetworkPolicy
metadata:
  name: port-examples
  namespace: default
spec:
  selector: app == 'multi-port-app'

  ingress:
    # Port range
    - action: Allow
      protocol: TCP
      destination:
        ports:
          - 8080:8090

    # Named ports (from pod spec)
    - action: Allow
      protocol: TCP
      destination:
        ports:
          - http      # References containerPort name
          - metrics   # References containerPort name

    # Mix of specific ports and ranges
    - action: Allow
      protocol: TCP
      destination:
        ports:
          - 22
          - 80
          - 443
          - 3000:3100

增强的选择器语法

Calico 使用比 Kubernetes 更具表达力的选择器语法：

apiVersion: projectcalico.org/v3
kind: NetworkPolicy
metadata:
  name: selector-examples
  namespace: production
spec:
  # Label equality
  selector: app == 'web'

  ingress:
    # Set membership
    - action: Allow
      source:
        selector: app in {'frontend', 'api-gateway', 'monitoring'}

    # Negation
    - action: Allow
      source:
        selector: app != 'untrusted'

    # Label existence
    - action: Allow
      source:
        selector: has(security-cleared)

    # Combining conditions (AND)
    - action: Allow
      source:
        selector: app == 'backend' && tier == 'internal'

    # Complex expression (OR via multiple rules)
    - action: Allow
      source:
        selector: (app == 'frontend') || (app == 'api')

    # Namespace selector
    - action: Allow
      source:
        namespaceSelector: environment == 'production'
        selector: app == 'authorized-client'

---

GlobalNetworkPolicy

GlobalNetworkPolicy 适用于所有 namespace，非常适合用于集群范围的安全规则。

GlobalNetworkPolicy 结构

apiVersion: projectcalico.org/v3
kind: GlobalNetworkPolicy
metadata:
  name: cluster-wide-deny-egress
spec:
  # Applies to all pods (empty selector)
  selector: all()

  # Order determines priority (lower = higher priority)
  order: 1000

  types:
    - Egress

  egress:
    # Block access to metadata service
    - action: Deny
      destination:
        nets:
          - 169.254.169.254/32

    # Block access to internal DNS except kube-dns
    - action: Deny
      protocol: UDP
      destination:
        ports:
          - 53
        notSelector: k8s-app == 'kube-dns'

常见 GlobalNetworkPolicy 模式

默认拒绝所有流量：

apiVersion: projectcalico.org/v3
kind: GlobalNetworkPolicy
metadata:
  name: default-deny-all
spec:
  selector: all()
  order: 10000  # Lowest priority
  types:
    - Ingress
    - Egress

  # Empty rules = deny all
  ingress: []
  egress: []

允许基本服务：

apiVersion: projectcalico.org/v3
kind: GlobalNetworkPolicy
metadata:
  name: allow-essential-services
spec:
  selector: all()
  order: 100
  types:
    - Egress

  egress:
    # Allow DNS
    - action: Allow
      protocol: UDP
      destination:
        selector: k8s-app == 'kube-dns'
        ports:
          - 53

    # Allow Kubernetes API
    - action: Allow
      protocol: TCP
      destination:
        nets:
          - 10.96.0.1/32  # ClusterIP of kubernetes service
        ports:
          - 443

阻止敏感 namespace：

apiVersion: projectcalico.org/v3
kind: GlobalNetworkPolicy
metadata:
  name: protect-kube-system
spec:
  namespaceSelector: kubernetes.io/metadata.name == 'kube-system'
  order: 50
  types:
    - Ingress

  ingress:
    # Only allow from pods with explicit access
    - action: Allow
      source:
        selector: has(kube-system-access)

    # Allow from kube-system itself
    - action: Allow
      source:
        namespaceSelector: kubernetes.io/metadata.name == 'kube-system'

    # Deny everything else (implicit)

---

NetworkSet 和 GlobalNetworkSet

NetworkSet 对 IP 地址进行分组，以便跨策略复用。

NetworkSet（namespace 范围）

apiVersion: projectcalico.org/v3
kind: NetworkSet
metadata:
  name: corporate-networks
  namespace: default
  labels:
    network-type: corporate
spec:
  nets:
    - 10.0.0.0/8
    - 172.16.0.0/12
    - 192.168.0.0/16

---
# Reference in policy
apiVersion: projectcalico.org/v3
kind: NetworkPolicy
metadata:
  name: allow-corporate
  namespace: default
spec:
  selector: app == 'internal-app'

  ingress:
    - action: Allow
      source:
        selector: network-type == 'corporate'  # References NetworkSet by label

GlobalNetworkSet（集群范围）

apiVersion: projectcalico.org/v3
kind: GlobalNetworkSet
metadata:
  name: external-trusted-ips
  labels:
    network-group: external-trusted
spec:
  nets:
    - 203.0.113.0/24     # Partner network
    - 198.51.100.0/24    # CDN network
    - 192.0.2.50/32      # Specific trusted IP

---
apiVersion: projectcalico.org/v3
kind: GlobalNetworkSet
metadata:
  name: blocked-countries
  labels:
    network-group: blocked
spec:
  nets:
    # Country IP ranges to block
    - 1.2.3.0/24
    - 5.6.7.0/24

---
# Reference in GlobalNetworkPolicy
apiVersion: projectcalico.org/v3
kind: GlobalNetworkPolicy
metadata:
  name: external-access-control
spec:
  selector: has(external-facing)
  order: 200
  types:
    - Ingress

  ingress:
    # Allow trusted external
    - action: Allow
      source:
        selector: network-group == 'external-trusted'

    # Block known bad actors
    - action: Deny
      source:
        selector: network-group == 'blocked'

---

分层策略

层级提供分层策略评估，可在平台、安全和应用团队之间实现职责分离。

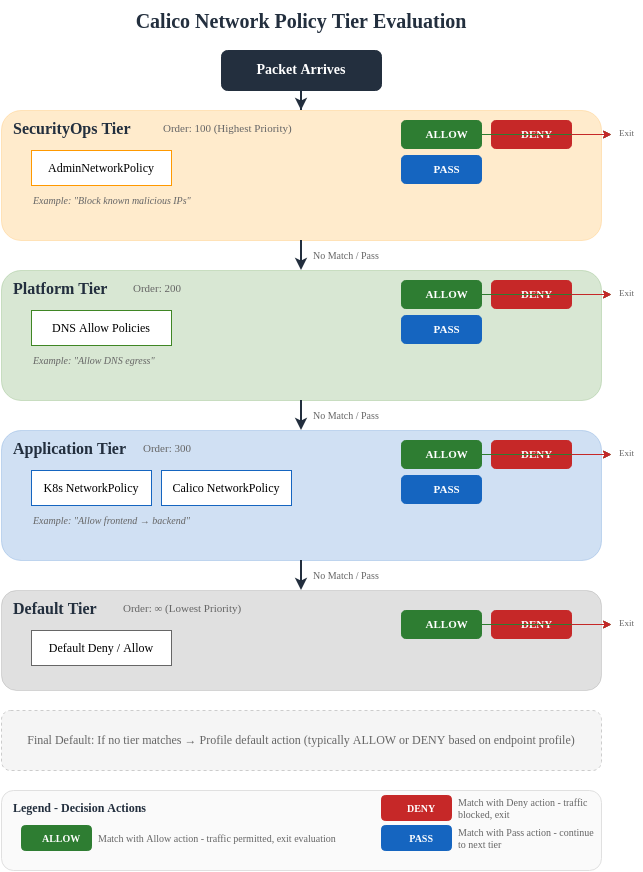

策略评估顺序

创建层级

# Security team tier (highest priority)
apiVersion: projectcalico.org/v3
kind: Tier
metadata:
  name: security
spec:
  order: 100

---
# Platform team tier
apiVersion: projectcalico.org/v3
kind: Tier
metadata:
  name: platform
spec:
  order: 200

---
# Application team tier
apiVersion: projectcalico.org/v3
kind: Tier
metadata:
  name: application
spec:
  order: 500

---
# Default tier (lowest priority, auto-created)
# order: 1000

分层策略示例

# Security tier: Block known threats
apiVersion: projectcalico.org/v3
kind: GlobalNetworkPolicy
metadata:
  name: security.block-threats
spec:
  tier: security
  order: 100
  selector: all()
  types:
    - Ingress
    - Egress

  ingress:
    - action: Deny
      source:
        selector: network-group == 'threat-intel'

  egress:
    - action: Deny
      destination:
        selector: network-group == 'malware-c2'

    # Pass to next tier for further evaluation
    - action: Pass

---
# Platform tier: Enforce baseline connectivity
apiVersion: projectcalico.org/v3
kind: GlobalNetworkPolicy
metadata:
  name: platform.baseline
spec:
  tier: platform
  order: 100
  selector: all()
  types:
    - Egress

  egress:
    # Allow DNS
    - action: Allow
      protocol: UDP
      destination:
        selector: k8s-app == 'kube-dns'
        ports:
          - 53

    # Allow Kubernetes API
    - action: Allow
      protocol: TCP
      destination:
        services:
          name: kubernetes
          namespace: default

    # Pass to application tier
    - action: Pass

---
# Application tier: Team-specific policies
apiVersion: projectcalico.org/v3
kind: NetworkPolicy
metadata:
  name: application.frontend-rules
  namespace: production
spec:
  tier: application
  order: 100
  selector: app == 'frontend'
  types:
    - Ingress
    - Egress

  ingress:
    - action: Allow
      source:
        selector: app == 'ingress-nginx'

  egress:
    - action: Allow
      destination:
        selector: app == 'backend'
        ports:
          - 8080

层级 RBAC 集成

# ClusterRole for security team
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: security-team-policy-admin
rules:
  - apiGroups: ["projectcalico.org"]
    resources: ["globalnetworkpolicies", "tiers"]
    verbs: ["*"]
    # Can only manage policies in security tier
    resourceNames: ["security.*"]

---
# ClusterRole for application teams
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: app-team-policy-admin
rules:
  - apiGroups: ["projectcalico.org"]
    resources: ["networkpolicies"]
    verbs: ["*"]
  - apiGroups: ["projectcalico.org"]
    resources: ["tiers"]
    verbs: ["get", "list"]
    resourceNames: ["application"]

---

基于 FQDN 的 Egress 策略

Calico 可以根据域名过滤 Egress 流量，这对于控制对外部服务的访问非常有用。

DNS 策略配置

首先，在 Felix 中启用 DNS 策略：

apiVersion: projectcalico.org/v3
kind: FelixConfiguration
metadata:
  name: default
spec:
  dnsTrustedServers:
    - k8s-service:kube-system/kube-dns
  policySyncPathPrefix: /var/run/nodeagent

FQDN Egress 规则

apiVersion: projectcalico.org/v3
kind: GlobalNetworkPolicy
metadata:
  name: allow-specific-domains
spec:
  selector: app == 'external-api-client'
  order: 500
  types:
    - Egress

  egress:
    # Allow specific domains
    - action: Allow
      destination:
        domains:
          - api.github.com
          - "*.amazonaws.com"
          - registry.npmjs.org
      protocol: TCP
      destination:
        ports:
          - 443

    # Allow Google APIs
    - action: Allow
      destination:
        domains:
          - "*.googleapis.com"
          - "*.google.com"
      protocol: TCP
      destination:
        ports:
          - 443

    # Deny all other external
    - action: Deny
      destination:
        notNets:
          - 10.0.0.0/8
          - 172.16.0.0/12
          - 192.168.0.0/16

通配符域名模式

apiVersion: projectcalico.org/v3
kind: GlobalNetworkPolicy
metadata:
  name: dns-wildcards
spec:
  selector: all()
  egress:
    # Single wildcard - matches any subdomain
    - action: Allow
      destination:
        domains:
          - "*.example.com"     # Matches api.example.com, www.example.com

    # Does NOT match
    # example.com (no subdomain)
    # deep.sub.example.com (multiple levels)

---

HTTP 方法过滤（第 7 层）

Calico Enterprise 和 Calico Cloud 支持用于 HTTP 流量的第 7 层策略。

HTTP 匹配规则

apiVersion: projectcalico.org/v3
kind: GlobalNetworkPolicy
metadata:
  name: l7-http-policy
spec:
  selector: app == 'api-server'
  order: 300
  types:
    - Ingress

  ingress:
    # Allow only GET and HEAD for read-only clients
    - action: Allow
      source:
        selector: role == 'reader'
      http:
        methods:
          - GET
          - HEAD
        paths:
          - prefix: /api/v1/

    # Allow full access for admin clients
    - action: Allow
      source:
        selector: role == 'admin'
      http:
        methods:
          - GET
          - POST
          - PUT
          - DELETE
          - PATCH

    # Allow health checks
    - action: Allow
      http:
        methods:
          - GET
        paths:
          - exact: /health
          - exact: /ready

基于路径的过滤

apiVersion: projectcalico.org/v3
kind: NetworkPolicy
metadata:
  name: path-based-policy
  namespace: production
spec:
  selector: app == 'web-app'

  ingress:
    # Public endpoints
    - action: Allow
      http:
        paths:
          - prefix: /public/
          - exact: /

    # Admin endpoints - restricted
    - action: Allow
      source:
        selector: role == 'admin'
      http:
        paths:
          - prefix: /admin/

    # API endpoints - authenticated only
    - action: Allow
      source:
        selector: has(api-access)
      http:
        paths:
          - prefix: /api/

---

Host Endpoint 保护

Host endpoint 保护进出节点本身的流量，而不只是 Pod 流量。

启用 Host Endpoint

apiVersion: projectcalico.org/v3
kind: FelixConfiguration
metadata:
  name: default
spec:
  defaultEndpointToHostAction: Drop  # or Accept, Return

Host Endpoint 定义

apiVersion: projectcalico.org/v3
kind: HostEndpoint
metadata:
  name: node1-eth0
  labels:
    host: node1
    interface: external
spec:
  interfaceName: eth0
  node: node1
  expectedIPs:
    - 10.0.1.10

---
# Policy for host endpoints
apiVersion: projectcalico.org/v3
kind: GlobalNetworkPolicy
metadata:
  name: host-ssh-policy
spec:
  selector: interface == 'external'
  order: 100
  types:
    - Ingress

  ingress:
    # Allow SSH from bastion
    - action: Allow
      protocol: TCP
      source:
        nets:
          - 10.0.0.100/32  # Bastion IP
      destination:
        ports:
          - 22

    # Allow kubelet API from control plane
    - action: Allow
      protocol: TCP
      source:
        selector: has(control-plane)
      destination:
        ports:
          - 10250

    # Allow node exporter metrics
    - action: Allow
      protocol: TCP
      source:
        namespaceSelector: kubernetes.io/metadata.name == 'monitoring'
        selector: app == 'prometheus'
      destination:
        ports:
          - 9100

自动 Host Endpoint

为所有节点自动创建 Host endpoint：

apiVersion: projectcalico.org/v3
kind: FelixConfiguration
metadata:
  name: default
spec:
  defaultEndpointToHostAction: Drop

---
apiVersion: operator.tigera.io/v1
kind: Installation
metadata:
  name: default
spec:
  calicoNetwork:
    hostPorts: Enabled  # Creates auto host endpoints

---

DoNotTrack 和 PreDNAT 策略

DoNotTrack 策略

DoNotTrack 策略会绕过连接跟踪，适用于高吞吐量场景：

apiVersion: projectcalico.org/v3
kind: GlobalNetworkPolicy
metadata:
  name: high-throughput-no-track
spec:
  selector: app == 'load-balancer'
  order: 10
  types:
    - Ingress
    - Egress

  doNotTrack: true
  applyOnForward: true

  ingress:
    - action: Allow
      protocol: TCP
      destination:
        ports:
          - 80
          - 443

  egress:
    - action: Allow

PreDNAT 策略

PreDNAT 策略在目标 NAT 之前应用，适用于控制 NodePort 访问：

apiVersion: projectcalico.org/v3
kind: GlobalNetworkPolicy
metadata:
  name: restrict-nodeport-access
spec:
  selector: has(kubernetes.io/os)  # Applies to host endpoints
  order: 100
  types:
    - Ingress

  preDNAT: true
  applyOnForward: true

  ingress:
    # Allow NodePort access only from trusted networks
    - action: Allow
      protocol: TCP
      source:
        nets:
          - 10.0.0.0/8
      destination:
        ports:
          - 30000:32767  # NodePort range

    # Deny NodePort from everywhere else
    - action: Deny
      protocol: TCP
      destination:
        ports:
          - 30000:32767

---

策略调试

使用 calicoctl

# List all policies
calicoctl get networkpolicy -A
calicoctl get globalnetworkpolicy

# Get policy details
calicoctl get networkpolicy my-policy -n default -o yaml

# Describe endpoints affected by a policy
calicoctl get workloadendpoint -o wide

# Check policy selectors
calicoctl get networkpolicy -o yaml | grep -A5 selector

检查 iptables 规则

# View Calico chains
iptables -L -n -v | grep -i cali

# View filter table
iptables -t filter -L -n -v

# View NAT table
iptables -t nat -L -n -v

# Count packets by rule
iptables -L cali-fw-xxxxx -n -v

# Watch traffic in real-time
watch -n 1 'iptables -L cali-fw-xxxxx -n -v'

Felix 日志

# View Felix logs
kubectl logs -n kube-system -l k8s-app=calico-node -c calico-node | grep -i policy

# Increase log verbosity
calicoctl patch felixconfiguration default -p '{"spec":{"logSeverityScreen":"Debug"}}'

# Check policy sync status
kubectl exec -n kube-system calico-node-xxxxx -c calico-node -- calico-node -felix-ready

策略评估流程调试

# Get workload endpoint details
calicoctl get workloadendpoint -n default --selector='app==web' -o yaml

# Check which policies apply
calicoctl get networkpolicy -A -o yaml | grep -B20 "app.*web"

# Test connectivity
kubectl exec -it test-pod -- nc -zv target-pod 8080

---

常见策略模式库

微服务模式

# Frontend -> Backend -> Database
---
apiVersion: projectcalico.org/v3
kind: NetworkPolicy
metadata:
  name: frontend-policy
  namespace: production
spec:
  selector: app == 'frontend'
  types:
    - Ingress
    - Egress

  ingress:
    - action: Allow
      source:
        selector: app == 'ingress-nginx'

  egress:
    - action: Allow
      destination:
        selector: app == 'backend'
        ports:
          - 8080

---
apiVersion: projectcalico.org/v3
kind: NetworkPolicy
metadata:
  name: backend-policy
  namespace: production
spec:
  selector: app == 'backend'
  types:
    - Ingress
    - Egress

  ingress:
    - action: Allow
      source:
        selector: app == 'frontend'
        ports:
          - 8080

  egress:
    - action: Allow
      destination:
        selector: app == 'database'
        ports:
          - 5432

---
apiVersion: projectcalico.org/v3
kind: NetworkPolicy
metadata:
  name: database-policy
  namespace: production
spec:
  selector: app == 'database'
  types:
    - Ingress

  ingress:
    - action: Allow
      source:
        selector: app == 'backend'
        ports:
          - 5432

多租户隔离

# Each tenant namespace is fully isolated
apiVersion: projectcalico.org/v3
kind: GlobalNetworkPolicy
metadata:
  name: tenant-isolation
spec:
  namespaceSelector: has(tenant)
  order: 500
  types:
    - Ingress
    - Egress

  ingress:
    # Allow same-tenant traffic
    - action: Allow
      source:
        namespaceSelector: tenant == "$(namespace.tenant)"

  egress:
    # Allow same-tenant traffic
    - action: Allow
      destination:
        namespaceSelector: tenant == "$(namespace.tenant)"

    # Allow DNS
    - action: Allow
      protocol: UDP
      destination:
        selector: k8s-app == 'kube-dns'
        ports:
          - 53

零信任模式

# Default deny everything
apiVersion: projectcalico.org/v3
kind: GlobalNetworkPolicy
metadata:
  name: zero-trust-default-deny
spec:
  selector: all()
  order: 10000
  types:
    - Ingress
    - Egress
  ingress: []
  egress: []

---
# Explicit allow for each service
apiVersion: projectcalico.org/v3
kind: NetworkPolicy
metadata:
  name: zero-trust-api-server
  namespace: production
spec:
  selector: app == 'api-server'
  order: 100
  types:
    - Ingress
    - Egress

  ingress:
    - action: Allow
      source:
        selector: app == 'api-gateway'
        namespaceSelector: kubernetes.io/metadata.name == 'production'
      destination:
        ports:
          - 8080

  egress:
    - action: Allow
      destination:
        selector: app == 'database'
        namespaceSelector: kubernetes.io/metadata.name == 'production'
        ports:
          - 5432

    # Allow DNS
    - action: Allow
      protocol: UDP
      destination:
        namespaceSelector: kubernetes.io/metadata.name == 'kube-system'
        selector: k8s-app == 'kube-dns'
        ports:
          - 53

Egress 控制模式

# Control outbound internet access
apiVersion: projectcalico.org/v3
kind: GlobalNetworkPolicy
metadata:
  name: egress-internet-control
spec:
  selector: has(internet-access)
  order: 300
  types:
    - Egress

  egress:
    # Allow approved external services
    - action: Allow
      destination:
        domains:
          - "*.amazonaws.com"
          - api.github.com
          - registry.npmjs.org
      protocol: TCP
      destination:
        ports:
          - 443

    # Allow internal traffic
    - action: Allow
      destination:
        nets:
          - 10.0.0.0/8
          - 172.16.0.0/12
          - 192.168.0.0/16

---
# Block internet for unlabeled pods
apiVersion: projectcalico.org/v3
kind: GlobalNetworkPolicy
metadata:
  name: egress-internet-deny
spec:
  selector: "!has(internet-access)"
  order: 400
  types:
    - Egress

  egress:
    # Allow internal only
    - action: Allow
      destination:
        nets:
          - 10.0.0.0/8
          - 172.16.0.0/12
          - 192.168.0.0/16

    # Deny external
    - action: Deny

Namespace 隔离模式

# Isolate namespaces by default
apiVersion: projectcalico.org/v3
kind: GlobalNetworkPolicy
metadata:
  name: namespace-isolation
spec:
  namespaceSelector: has(kubernetes.io/metadata.name)
  order: 800
  types:
    - Ingress

  ingress:
    # Allow same namespace
    - action: Allow
      source:
        namespaceSelector: kubernetes.io/metadata.name == "$(namespace.name)"

    # Allow monitoring namespace
    - action: Allow
      source:
        namespaceSelector: kubernetes.io/metadata.name == 'monitoring'
        selector: app in {'prometheus', 'grafana'}

    # Allow ingress namespace
    - action: Allow
      source:
        namespaceSelector: kubernetes.io/metadata.name == 'ingress-nginx'

---

策略性能影响

性能注意事项

因素	影响	缓解措施
策略数量	线性规则评估	使用分层策略，优化选择器
选择器复杂度	匹配时间增加	使用简单的标签匹配
IP 集大小	内存使用量	聚合 IP 范围
日志频率	CPU 和存储	对高流量使用采样
连接跟踪	有状态连接的内存	对无状态连接使用 DoNotTrack

优化建议

1. 使用分层策略：先评估拒绝规则
2. 尽量降低选择器复杂度：优先使用相等匹配而不是集合操作
3. 聚合 IP 范围：使用 CIDR 块而不是单个 IP
4. 使用 GlobalNetworkSet：跨策略复用 IP 组
5. 启用策略缓存：近期 Calico 版本默认启用

策略性能基准测试

# Measure rule evaluation time
kubectl exec -n kube-system calico-node-xxxxx -c calico-node -- \
  calico-node -felix-ready

# Check dataplane programming time
kubectl logs -n kube-system -l k8s-app=calico-node -c calico-node | \
  grep "Policy sync"

# Monitor iptables rule count
iptables -L -n | wc -l

---

最佳实践总结

设计原则

1. 从默认拒绝开始：将所需流量加入白名单
2. 遵循最小权限原则：仅允许必要的端口和协议
3. 分层设置策略：安全 -> 平台 -> 应用
4. 统一标签：使用标准标签作为策略目标
5. 记录策略：包含说明意图的注释

运维建议

1. 先在 staging 环境测试：在生产环境前验证策略
2. 使用审计模式：在强制实施新策略前先记录日志
3. 监控策略命中次数：识别未使用的规则
4. 定期审查策略：移除过时规则
5. 自动化策略部署：使用 GitOps 进行策略管理

安全建议

1. 阻止元数据服务：防止 SSRF 攻击
2. 控制 Egress：将外部访问限制为已批准的目标
3. 保护控制平面：限制对 kube-system 的访问
4. 启用日志记录：审计被拒绝的连接
5. 使用 FQDN 策略：按名称控制对外部服务的访问

---

参考资料

• Calico Network Policy 文档
• Kubernetes 网络策略
• Calico 策略教程
• Tigera 策略最佳实践
